Ergotron StyleView® Vertical Lift Patient Room White | 60-609-216
SKU: 60-609-216
£605.34 (Excl. VAT)
- Warranty5 Year Warranty
- Mount ConfigurationMax 1 Screen
- Max Load (kg)50 kg per screen
- Mounting TypeWall Mounts
- VESA Patterns100x100
- FeaturesTilted
- Description
- Specifications
- Downloads
-

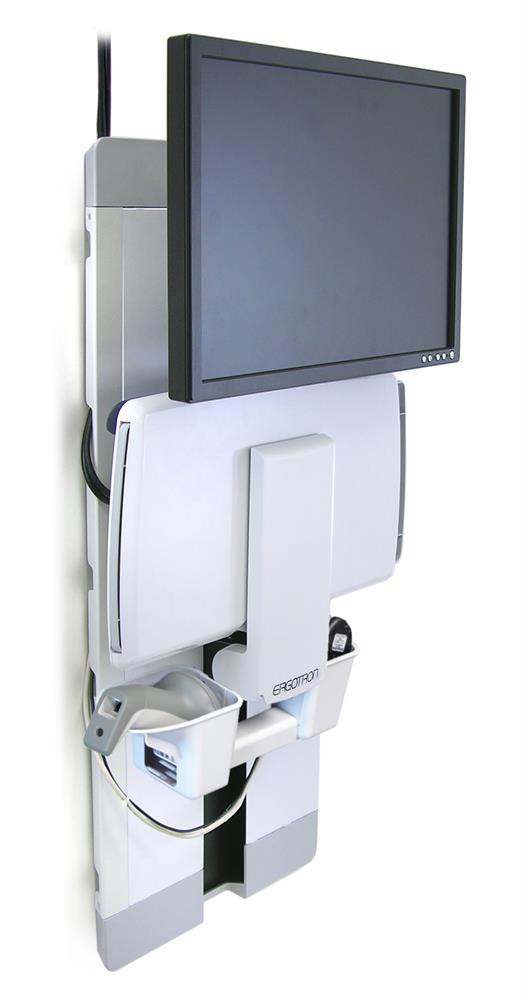

Ergotron StyleView® Vertical Lift Patient Room White

Perfect for space-constrained patient exam rooms, the low-profile vertical lift provides 9" (23 cm) of smooth vertical adjustment and folds into a slim, compact unit when not in use. The slide-out, back-tilt keyboard enhances user comfort, while the monitor and keyboard pan capability promote patient-caregiver interaction. A unique cable management system conceals and organizes cords and makes cleaning a snap!

Side-to-side pan of keyboard and display promote patient caregiver interaction while access data

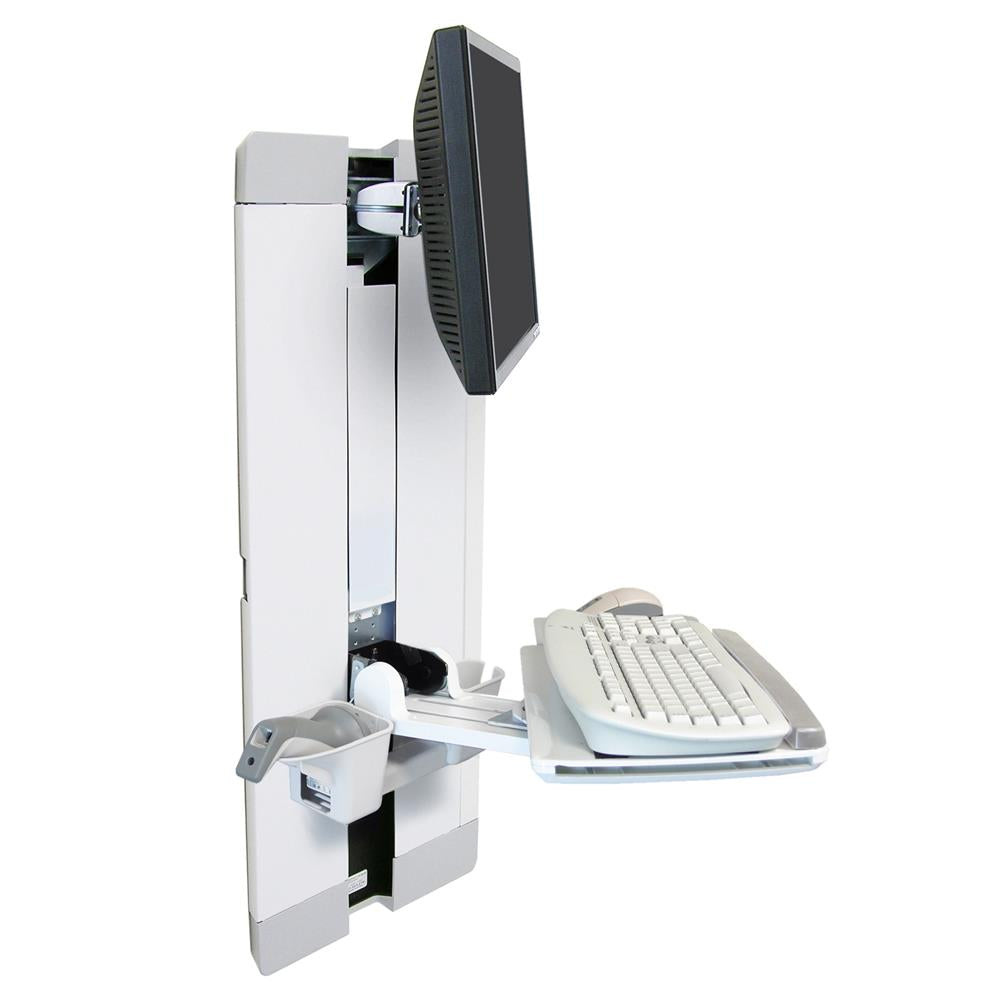

Slide-out Keyboard Tray can extend out an extra 5" (13 cm) for comfortable data entry
With the keyboard folded up, total system depth is as little as 4.5" (11 cm)
Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry
Patented counterbalance system provides smooth adjustment while maintaining touch-screen stability
9" (23 cm) vertical adjustment enhances ergonomics for multiple users
Steel construction for long-lasting durability
Right- or left-side cable management system conceals and organizes cords and makes cleaning a snap! -
Feature Details GTIN 00698833015317 Part Number 60-609-216 Product Weight 12.7 kg Shipping Weight 15.6 kg Description StyleView Vertical Lift, Patient Room version Included Accessories Adjustable lift, pan pivot, extendable keyboard tray, wrist rest, mouse pouch and scanner holder, attachment hardware Weight Capacity* Total load, including both the monitor and contents of keyboard tray. Maximum monitor weight = 25 lbs (11.3 kg); monitor thickness greater than 3" (7.6 cm) may decrease capacity Mounting Standards VESA FDMI MIS-D, 100/75 (hole pattern: 100 x 100 mm & 75 x 75 mm) Monitor Pan Left/right up to 50° (varies per size of monitor) Keyboard Tray Features Fold-down keyboard with built-in mouse pad surface, extends out up to 5" (127 mm) inches when in use, pans left/right up to 120°, back-tilt adjustable (0 to -10 degrees), integrated scanner and mouse holder Cable Management Integrated cable management system can be configured on either side Exterior Material Easy-to-clean exterior Shipping Dimensions 39.5" x 16" x 10.75" (1000 x 406 x 273 mm) Warranty Five years - Ergotron StyleView® Vertical Lift Patient Room Product Sheet Downloads
Ergotron StyleView® Vertical Lift Patient Room Dimensional Illustrations
Downloads
Ergotron StyleView® Vertical Lift Patient Room Installation Manual Downloads
