Ergotron Up to 46" LX HD Sit-Stand Wall Mount | 45-383-026
SKU: 45-383-026
£260.16 (Excl. VAT)
Check display compatibility before you buy
Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.
- Warranty10 Year Warranty
- Mount ConfigurationMax 1 Screen
- Max Load (kg)13.6 kg per screen
- Mounting TypeWall Mounts
- Screen Sizes39" - 46"
- VESA Patterns400x400
- Description
- Specifications
- Downloads
-

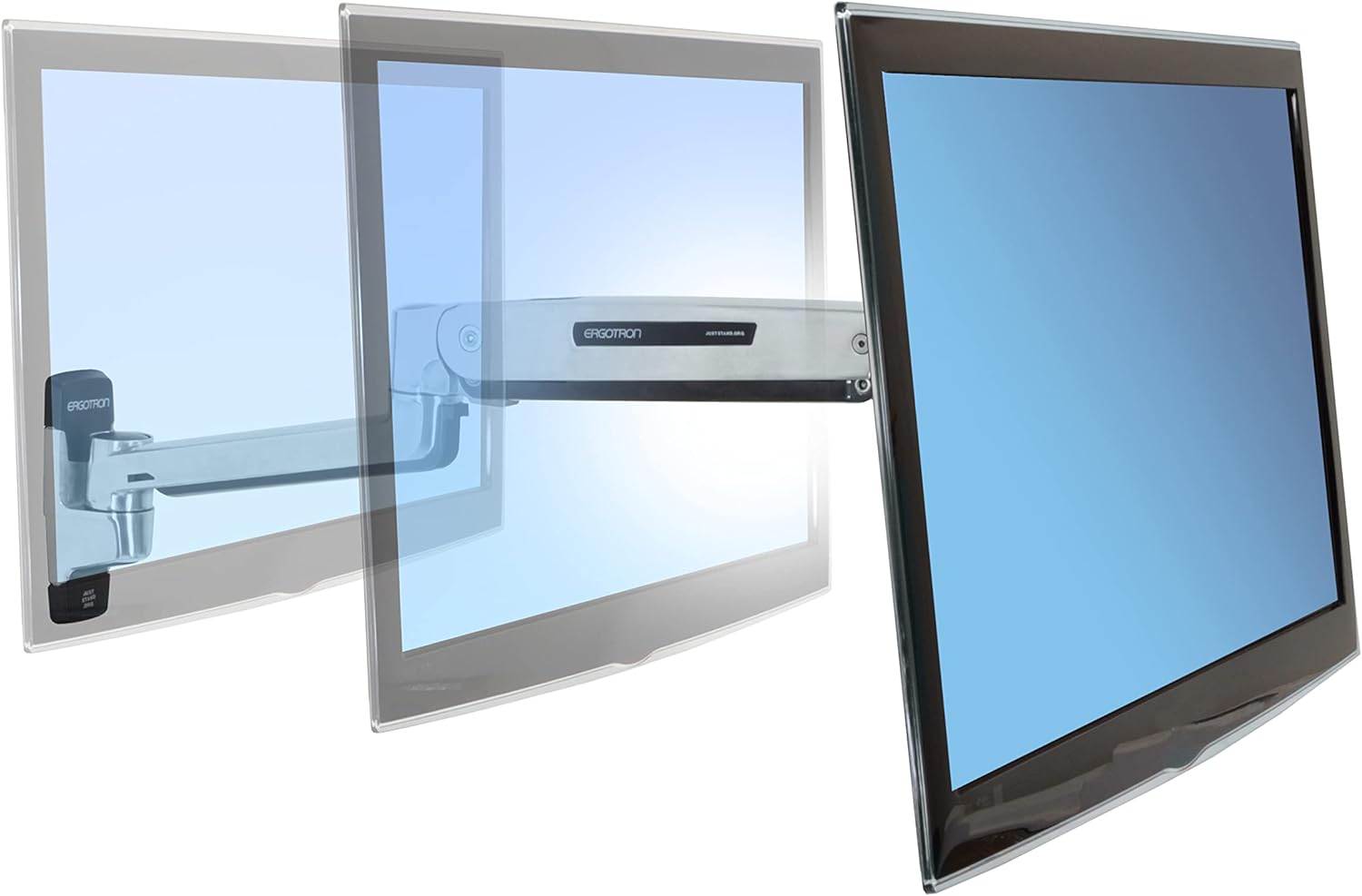

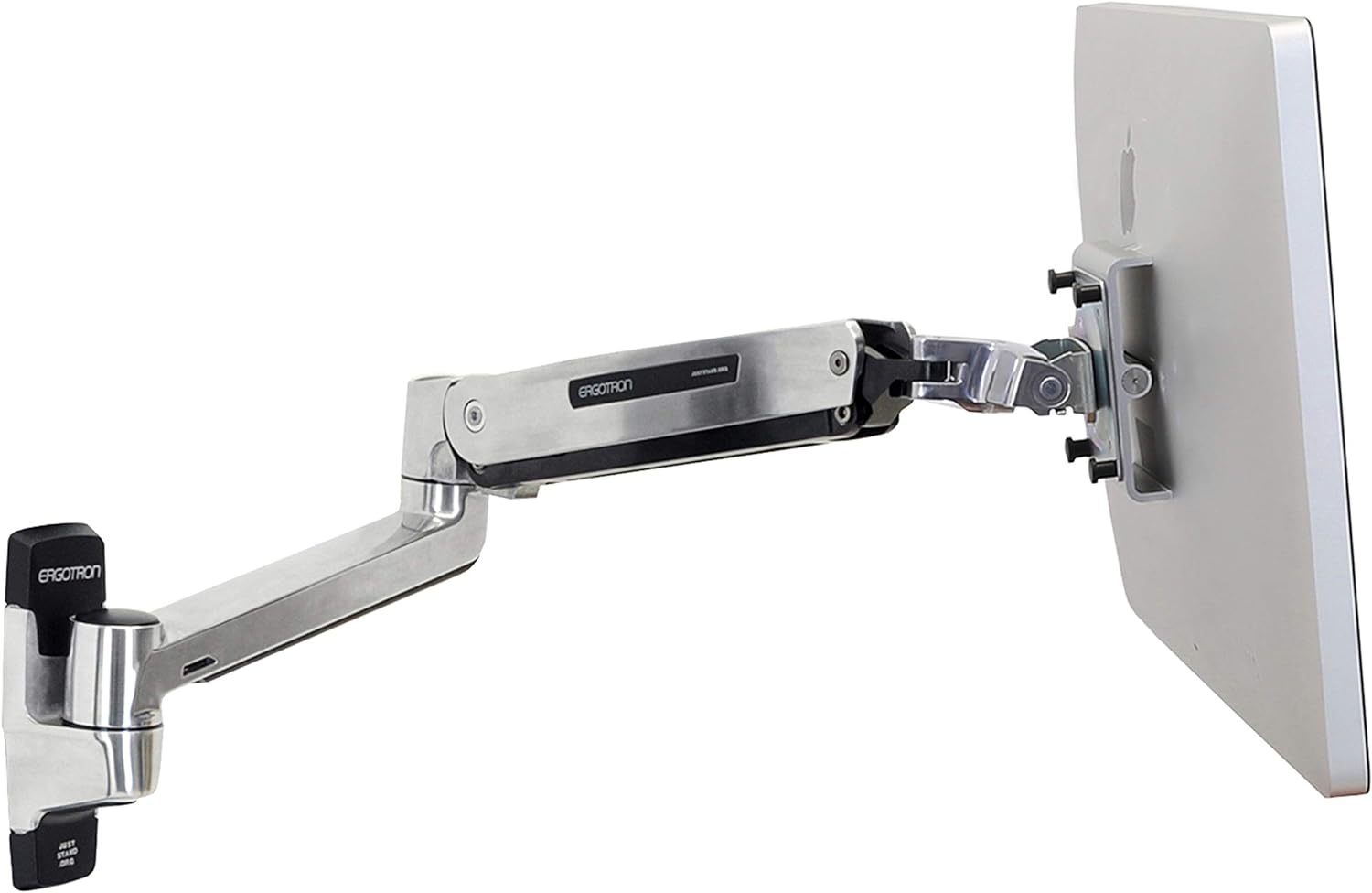

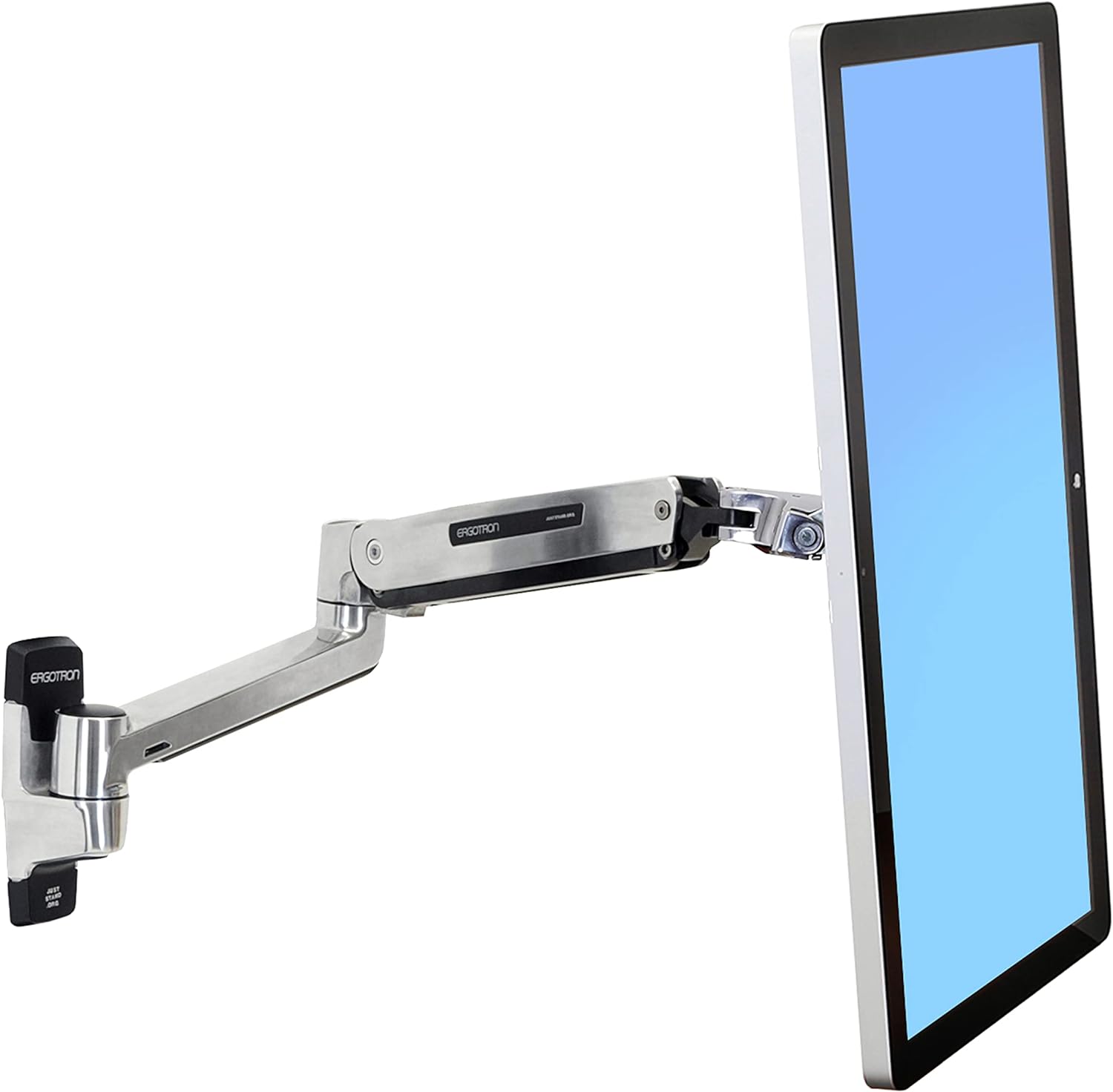

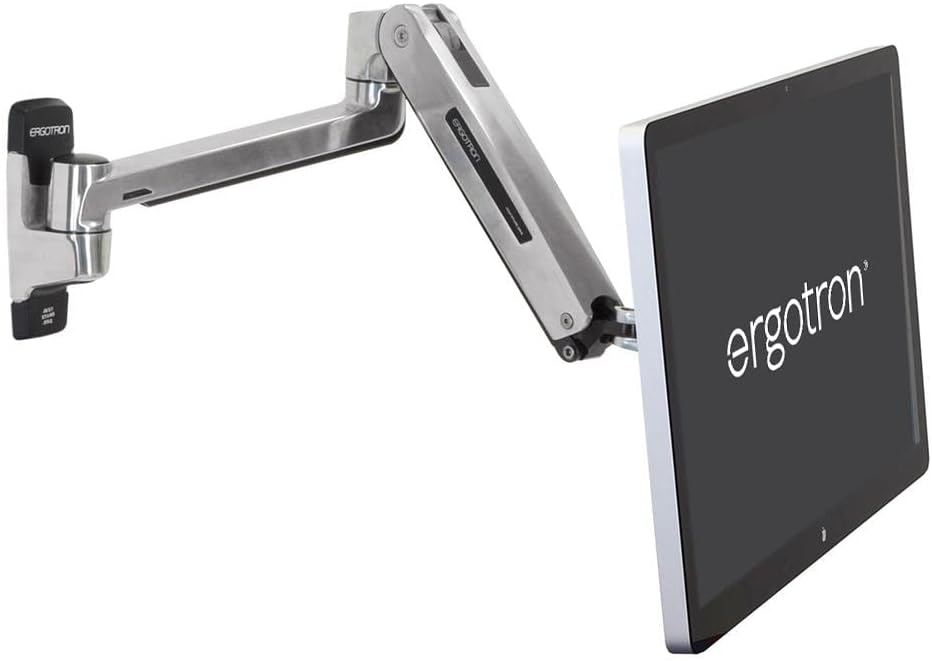

Ergotron Up to 46" LX HD Sit-Stand Wall Mount | 45-383-026
Work at your best sitting or standing with the LX Sit-Stand Wall Arm. The wall attachment keeps your space open for reviewing drafts or for stand-up meetings. Easily place screens or digital signage where you need it for each project, and then reclaim even more work area by folding the arm and pushing it aside during a much-needed screen break. Keep your technology on lock with anchor holes in the base.
Comfortable fit
Offers full monitor movement and improved ergonomics
More motion
20" (51 cm) of height adjustment lets you work sitting or standing
Saves space
Folds within inches of the wall when not in use
Large extension
Screen can extend 33" (84 cm) with 62" (157 cm) of side-to-side motion
Sleek build
Streamlined look enhances your work area
Quality design
Built for thousands of movements by passing 10,000-cycle test -
Attribute Value GTIN 00698833040104 Part Number 45-383-026 Product Weight 5.0 kg Shipping Weight 6.8 kg Description LX HD Sit-Stand Wall Mount LCD Arm (polished aluminum) Included Components LX HD sit-stand arm, extension, wall-mount base, VESA brackets Quality Testing 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment Weight Capacity 14 to 30 lbs (6.3 to 13.6 kg). Monitor depth may affect weight capacity Monitor Tilt 75° up and 5° down Mounting Standards VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm Rotation Stop Limits turn of extension-base connection to 180°, preventing extension from contacting wall Technology Patented Constant Force™ motion technology provides premium ease-of-use display adjustment Cable Management Feature routes cables under the arm, out of the way. Cable management clips on the under side of the arm route and hide cords Mounting Options Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Track using bracket (97-091, order separately) Theft Deterrence Locking connections between arm, extension, and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts Indoor Air Quality Compliance Certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds) Shipping Dimensions 22" x 11" x 7.5" (56 x 28 x 19 cm) Warranty Ten years -
Description Downloads Ergotron 46" LX HD Sit-Stand Wall Arm Product Sheet Downloads Ergotron 46" LX HD Sit-Stand Wall Arm Recycling Guide Downloads Ergotron 46" LX HD Sit-Stand Wall Arm Installation Manual Downloads Ergotron 46" LX HD Sit-Stand Wall Arm Dimensional Illustrations Downloads
