Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.
Installs in three simple steps
Extremely slim profile—just over an inch (3 cm) from the wall
Fits most screens up to 175 lbs (79 kg)
Protect your investment: Integrated security fasteners hold display in place and deter others
from removing your display
Sturdy solid aluminum construction
Includes fasteners for mounting to wood studs or concrete
| Attribute | Details |
|---|---|
| GTIN | 00698833011661 |
| Part Number | 60-604-003 |
| Product Weight | 3.5 kg |
| Shipping Weight | 4.2 kg |
| Shipping Dimensions | 33.3"W x 10.4"H x 2.2"D (84.5 x 26 x 5.5 cm) |
| Description | WM Low Profile Wall Mount (silver) |
| Includes | Wall plate, two display brackets, hardware fastener kit |
| Installation Options | Attaches to vertical surfaces; includes hardware for wood studs or concrete walls |
| Stud Compatibility | Compatible with 16" centered studs; for 24" studs, order XL version (pt. # 60-602-003) |

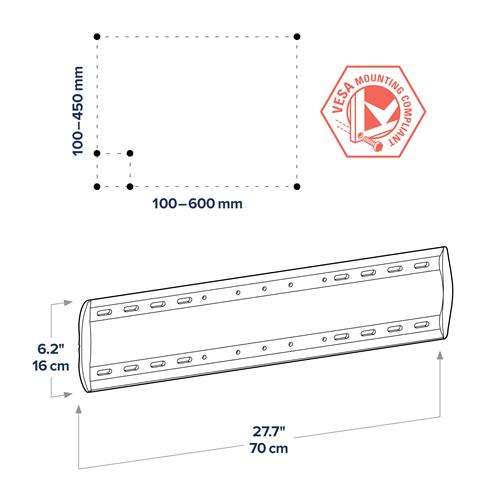

| Mounting Hole Range | Horizontal: 100 mm (min) to 600 mm (max); Vertical: 100 mm (min) to 450 mm (max) |
| Screen Compatibility | Fits most screens up to 32"; may be visible with screens < 32" |
| Material | Composed of extruded aluminum and steel |
| Profile Off the Wall | 1.25" (32 mm) |
| Certification | UL certified to UL Standard 2442; tested to hold four times its maximum load capacity |
| Warranty | Five years |
| Description | Downloads |
|---|---|
| Dimensional Illustrations | Download |
| Installation Manual | Download |
