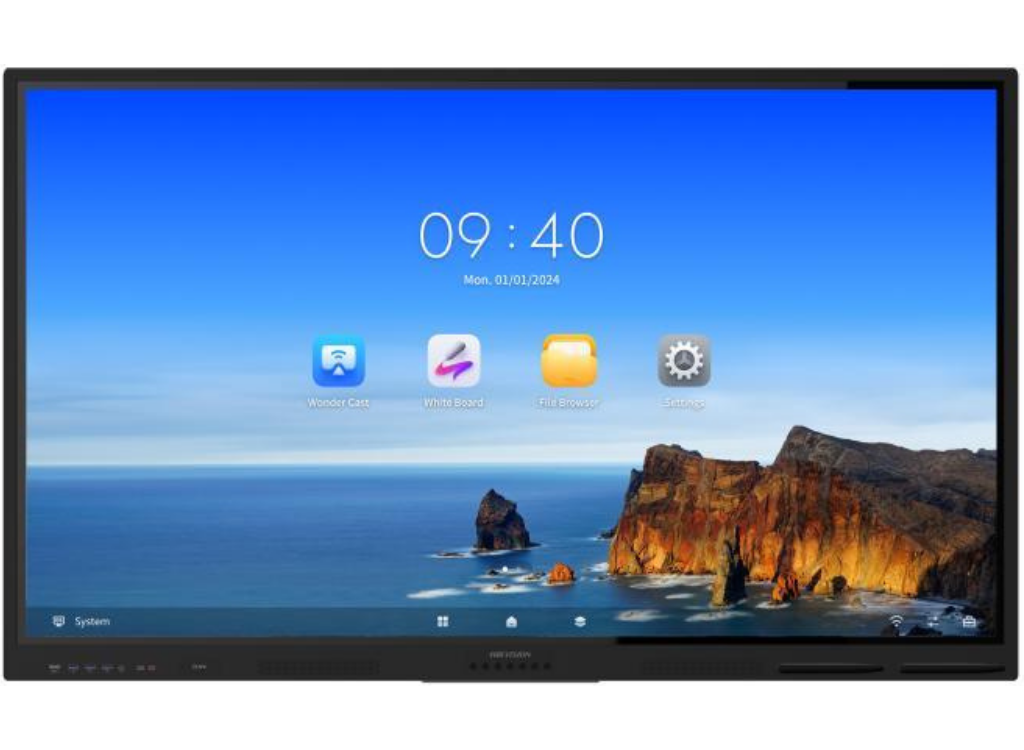

Hikvision 65" 4K UHD Interactive Flat Panel Display
UHD 4K display with resolution of 3840 × 2160.
Anti-glare and anti-blocking design to ensure smooth interaction.
Dual systems of Android and Windows (optional) saving cost and easy to use, video conference software are recommended to run under Windows system.
Quick response, at most 40-point touch controls and smooth writing experience.
Multi-button design in front, convenient for classroom use.
Compatible with OPS/OPS-C devices, realizing smooth switch between built-in systems.
| Category | Detail |
|---|---|
| Product Model | DS-D5B65RB/EL |
| Display | |
| Screen Size | 65 inch |
| Backlight | DLED |
| Pixel Pitch | 0.124 (H) × 0.372 (V) mm |
| Resolution | 3840 × 2160 @60 Hz |
| Brightness | 400 cd/m² (Typ.) |
| Color Depth | 10 bit |
| Display Color | 1.07G |
| Response Time | 5ms |
| Panel Type | VA |
| Contrast Ratio | 5000:1 (Static), 30,000:1 (Dynamic) |
| Color Gamut | 72% NTSC (CIE1931) (Typ.) |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178°(H)/178°(V) |
| Aspect Ratio | 16:9 |
| Surface Haze | 25% Haze |
| Display Area | 1428.48 mm × 803.52 mm |
| Working Duration | 7 × 16H |
| Surface Hardness | 9H (Pencil), 7 (Mohs) |
| Surface Glass | 3.2 mm Anti-Glare Glass |
| Transmittance | 88% ± 3 |
| Lifespan | 50,000 hours |
| Touch | |
| Type | Infrared Touch Screen |
| Touch Point | 40-point multi-touch |
| Touch Response Time | ＜ 5 ms |
| Minimum Touch Object | ≥ 2 mm (≥ 90% touching area) |
| Touch Precision | ± 1 mm (≥ 90% touching area) |
| Touch Resolution | 32767 × 32767 |
| Built-in System | |
| Operation System | Android 13.0 |
| Memory | 8 GB |
| Built-in Storage | 64 GB |
| CPU | Cortex-A55 × 4 (1.92GHz) |
| HDCP Version | Support 1.4/2.2/2.3 |
| GPU | Mali-G52 MP2 (2EE) |
| Internal Function | |
| Loudspeaker | Built-in 2 × 20 W |
| Speaker Frequency | 200-20Khz |
| Bluetooth | Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.2 |
| NFC | Support card reader |
| Light Sensor | Yes |
| Interface | |
| Video & Audio Input | HDMI In (HDMI 2.0) × 2, Audio In × 1 |
| Video & Audio Output | Audio Out × 1 |
| Control Interface | TOUCH-USB 2.0 × 1, RS232 × 1 |
| Network Interface | LAN (100 Mbps) × 2, WIFI AP&Station (2.4G/5G), IEEE 802.11 protocols |
| Data Transmission | USB 3.0 × 3, USB 2.0 × 2, Type-C × 1 (USB 2.0) |
| Power | |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Standby Consumption | ≤ 0.5 W |
| Max. Consumption | 184 W |
| Average Consumption | 153 W |
| General | |
| Product Dimensions | 1491.88 mm × 901.59 mm × 82.3 mm |
| Package Dimensions | 1662 mm × 1062 mm × 223 mm |
| VESA | 600 mm × 400 mm (4 × M8-25 mm) |
| Net Weight | 31.2 kg |
| Gross Weight | 45.6 kg |
| Accessory | Wall mount bracket, hook, user manual, stylus × 2, packing list, 1.5 m power cable, remote controller |
| Working Environment | |
| Working Temperature | 0 °C to 40 °C (32 °F to 104°F) |
| Working Humidity | 10%~90% RH |
| Description | Downloads |
|---|---|
| User Manual | Downloads |
