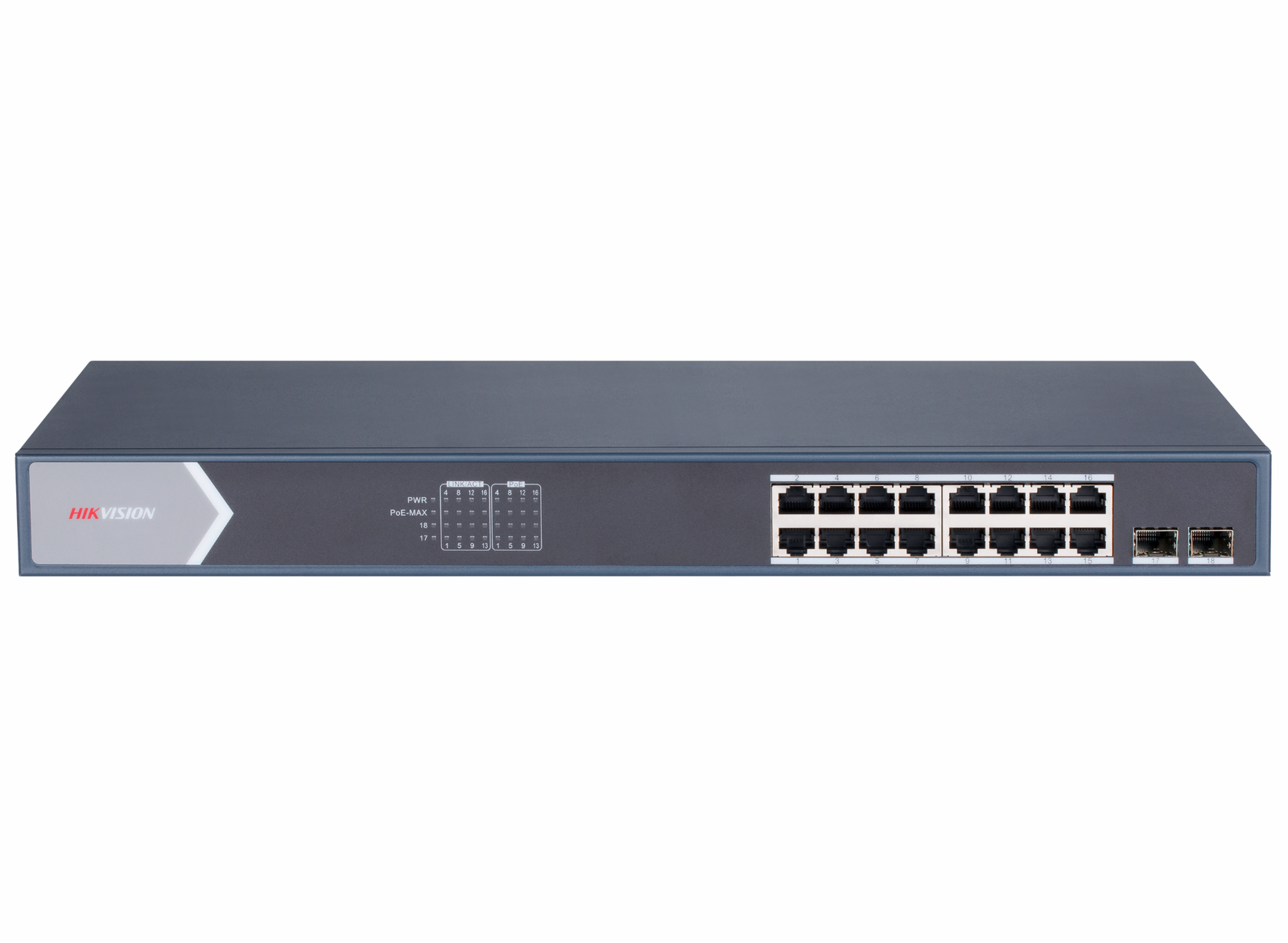

16 × gigabit PoE ports, and 2 × gigabit fiber optical ports.
IEEE 802.3at/af standard for PoE ports.
Network topology management, alarm push, network health monitor.
6 KV surge protection for PoE ports.
AF/AT camera can reach up to 300 m in extend mode.
PoE watchdog to auto detect and restart the cameras that do not respond.
Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.
| General - Shell | Metal material | General - Net Weight | 2.735 kg (6.03 lb) |
| General - Gross Weight | 3.31 kg (7.30 lb) | General - Dimensions | 440 mm × 44 mm × 220.8 mm (17.32” × 1.73” × 8.69”) |
| General - Operating Temperature | 0 °C to 45 °C (0 °F to 113 °F) | General - Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| General - Operating Humidity | 5% to 95% (no condensation) | General - Relative Humidity | 5% to 95% (no condensation) |
| General - Power Supply | 100 to 240 VAC, 50/60 Hz, Max. 4 A | General - Installation Mode | Rack (equipped with mounting ears) |
| General - Max. Power Consumption | 250 W | General - Idle Power Consumption | 25 W |
| General - Surge Protection | 6 KV surge protection for PoE ports. | Network - Ports | 16 × Gigabit PoE port, 2 × Gigabit fiber optical port |
| Network - MAC Address Table | 8 K | Network - Switching Capacity | 56 Gbps |
| Network - Packet Forwarding Rate | 41.66 Mpps | Network - Internal Cache | 4.1 Mbits |
| PoE - Standard | IEEE 802.3af, IEEE 802.3at | PoE - Power Pin | End-span: 1/2(+), 3/6(-); |
| PoE - Port | PoE: Ports 1 to 16 | PoE - Max. Port Power | 30 W |
| PoE - Power Budget | 225 W | Software - Long Range | Ports 1 to 16: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| Software - Port Isolation | Ports 1 to 16: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
Software - PoE Watchdog | Ports 1 to 16: auto detect and restart the cameras that do not respond. |
| Software - Link Aggregation | Aggregates multiple physical ports into a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation groups. |
Software - QoS | Allocates bandwidth to different services for end-to-end service quality assurance. Support port-based priority configuration. Support SP, WRR priority schedule mode. |
| Software - Loop Prevention | Prevents switching network loops that affect communication. Disabled by default. Support 802.1D STP. |
Software - VLAN | Used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. |
| Software - HPP | Support one-click activation and remote management via Hik-Partner Pro. | HPP - Supported Functions | Display port rate, display port bandwidth utilization rate, display topology information, display alarm status, restart ports and devices, remotely upgrade the device. |
| Software - System Maintenance | Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync | Software - Port Rate-Limiting | Used for port bandwidth adjustment to prevent network congestion. |
| Software - Storm Control | Prevents switch ports from being blocked by broadcast or multicast storms in the LAN. Support port rate limiting based on broadcast, multicast, and unknown unicast packets. |
Approval - EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (ASNZS CISPR 32: 2015) |
| Approval - Safety | UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017) | Approval - Chemistry | CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006) |
