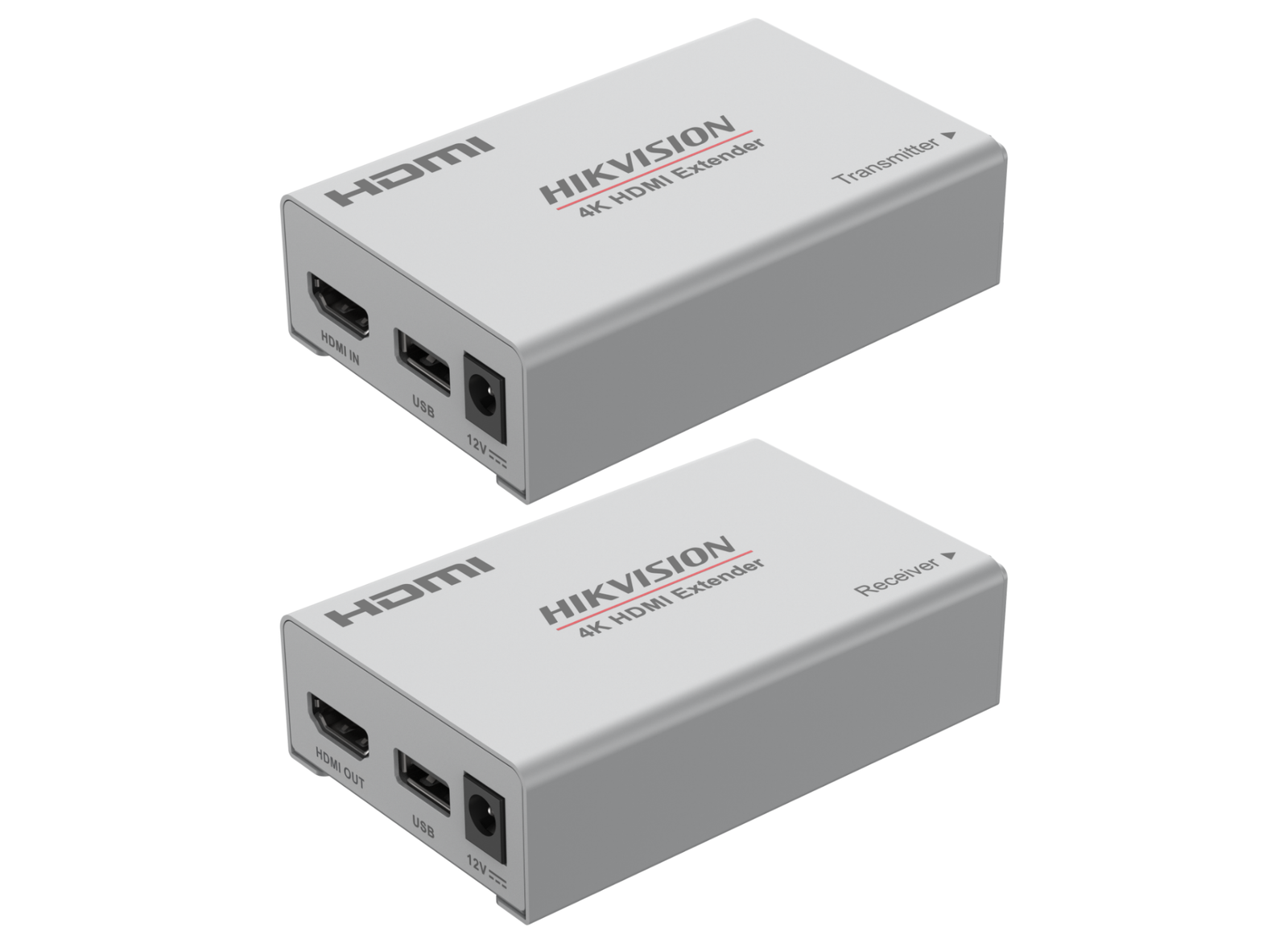

Up to 4K resolution and stable 120 m long-distance transmission
Compatible with major video recorders in the market
Plug-and-play, synchronous transmission of video and audio
No latency in video image, extraordinary user experience
| HDMI Output | Receiver: 1-ch; Resolution: 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080p/60 Hz, 1080 × 720/60 Hz | HDMI Input | Transmitter: 1-ch; Resolution: 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080p/60 Hz, 1080 × 720/60 Hz |
| Serial Interface | Transmitter: 1, console interface; Receiver: 1, console interface | USB Interface | Transmitter: 1; Receiver: 1 |
| Power Supply | 12 VDC, 1 A | Consumption | Transmitter: ≤ 5 W; Receiver: ≤ 5 W |
| Working Temperature | -10 °C to 45 °C (14 °F to 113 °F) | Working Humidity | 10% to 90% |
| Dimension (W × D × H) | Transmitter: 96 mm × 60 mm × 26 mm (3.76" × 2.36" × 1.02"); Receiver: 96 mm × 60 mm × 26 mm (3.76" × 2.36" × 1.02") | Weight | ≤ 1 kg |
| Power Indicator | Transmitter: 1 power indicator; Receiver: 1 power indicator | Transmission Distance | 120 m with Cat6: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1080 × 720/60 Hz; 100 m with Cat5e: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1080 × 720/60 Hz; 60 m with Cat6/Cat5e: 4K (3840 × 2160)/60 Hz, 2K (2560 × 1440)/60 Hz |
| Transmission Interface | 1, RJ45 |
| Description | Downloads |
|---|---|
| Datasheet | Download |
