The DS-D2046LU-Y LCD display uses an industry-level ultra-narrow bezel design, which enables a bezel width of 3.5 mm between neighboring displays. The adopted direct-lit LED backlighting technology helps achieve ultra-high and uniform brightness of 500 cd/m² without boundary shadows. The display has abundant interfaces for video inputs, such as DVI, VGA,HDMI, and DP.

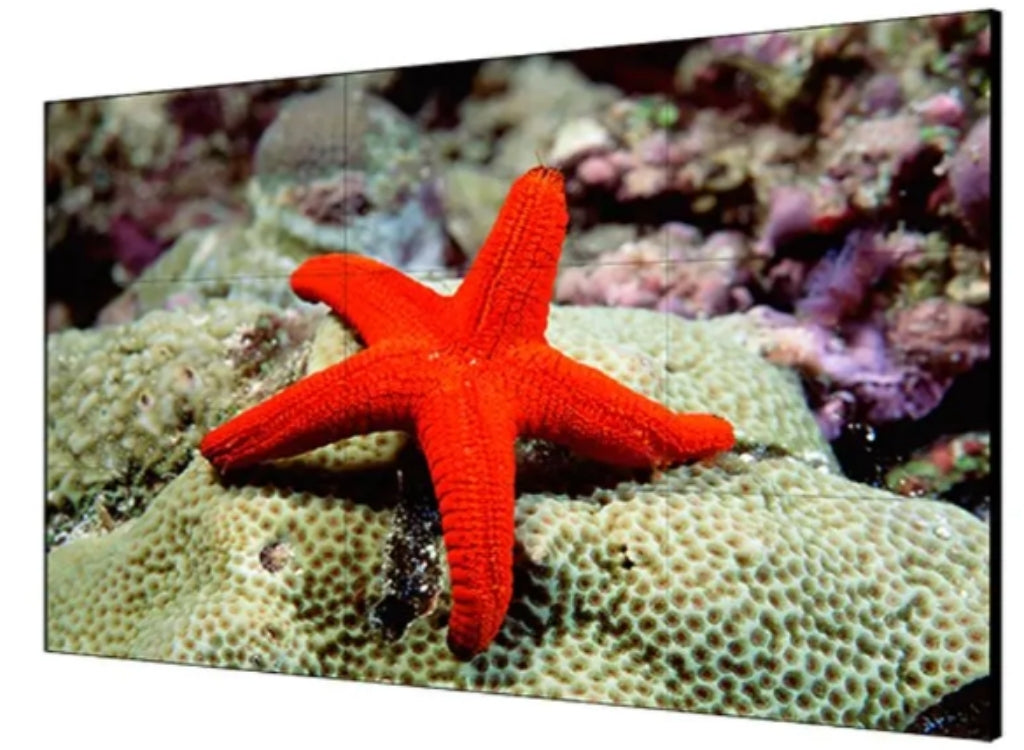

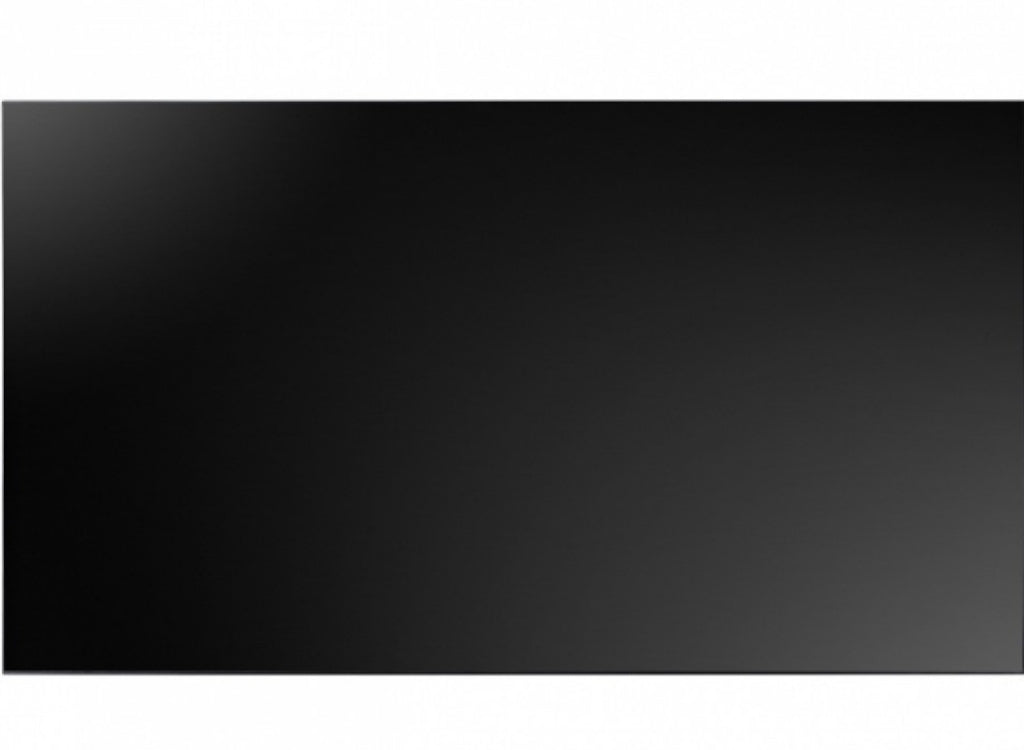

46-inch 3.5mm LCD Display Unit
4K signal input, auto loop up to 30 screens with HDMI interfaces
Switching between three picture modes: Monitoring, Meeting, and Movie
Factory calibration for color and brightness uniformity
Direct-lit LED backlight with uniform brightness and no boundary shadows
1920 × 1080 resolution, 178° viewing angle
Ultra-narrow 3.5 mm bezel design
Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors
Stable and 24-hour continuous working
Metal casing for preventing from radiation and magnetic & electric field interference
Wall-mount and modular brackets available to meet various installation requirements
| Parameter | Value |
|---|---|
| Display Screen Size | 46 inch |
| Active Display Area | 1018.08 (H) mm × 572.67 (V) mm |
| Backlight | Direct-lit LED backlight |
| Pixel Pitch | 0.53 mm |
| Physical Seam | 3.5 mm |
| Bezel Width | 2.3 mm (top/left), 1.2 mm (bottom/right) |
| Resolution | 1920 × 1080@60 Hz (downward compatible) |
| Brightness | 500 cd/m² |
| Viewing Angle | Horizontal 178°, vertical 178° |
| Color Depth | 8 bit, 16.7 M |
| Contrast Ratio | 1200:1 |
| Response Time | 8 ms |
| Color Gamut | 72% NTSC |
| Surface Treatment | Haze 25%, 3H |
| Interface Video & Audio Input | VGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1 |
| Interface Video & Audio Output | HDMI × 1 |
| Control Interface | RS232 IN × 1, RS232 OUT × 1 |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Power Consumption | ≤ 111 W |
| Standby Consumption | ≤ 0.5 W |
| Working Temperature | 0°C to 40°C (32°F to 104°F) |
| Working Humidity | 10% to 80% RH (non-condensing) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Humidity | 10% to 80% RH (non-condensing) |
| General Casing Material | SECC |
| VESA | 600 (H) mm × 400 (V) mm |
| Product Dimension (W × H × D) | 1021.98 mm × 576.57 mm × 72.25 mm (40.24'' × 22.7'' × 2.84'') |
| Package Dimension (W × H × D) | Carton with two displays: 1214 mm × 783 mm × 414 mm (47.8'' × 30.83'' × 16.3'') <br> Carton with a single display: 1214 mm × 783 mm × 414 mm (47.8'' × 30.83'' × 16.3'') |
| Net Weight | 19.8 ± 0.5 kg (43.65 ± 1.1 lb) for single display |
| Gross Weight | Carton with two displays: 48.5 ± 0.5 kg (106.92 ± 1.1 lb) <br> Carton with a single display: 24.42 ± 0.5 kg (53.84 ± 1.1 lb) |
| Packing List | Carton with two displays: LCD display × 2, power cable × 2, network cable × 2, 2-meter HDMI cable × 2, screw × 8, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1 <br> Carton with a single display: LCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1 |
