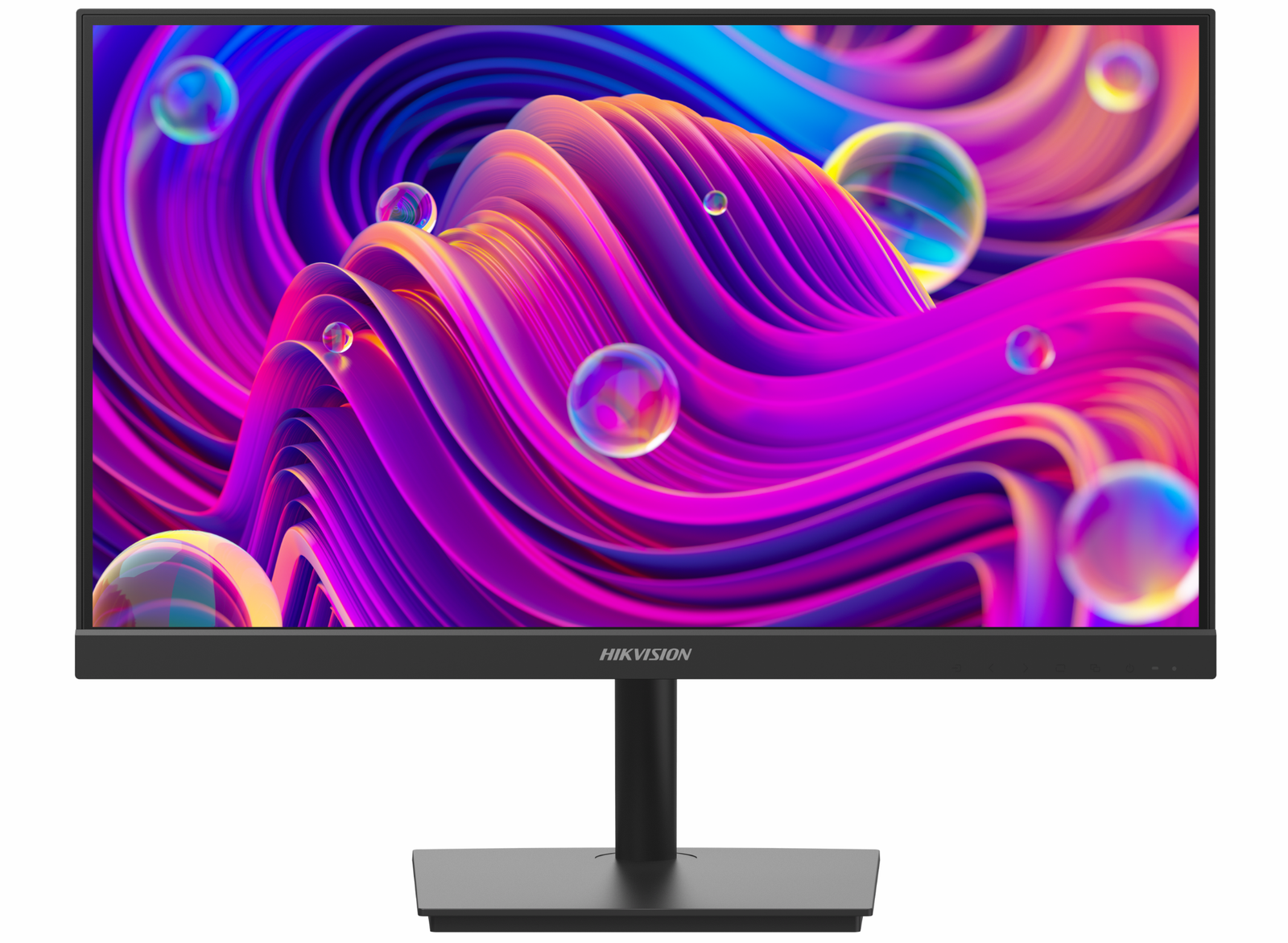

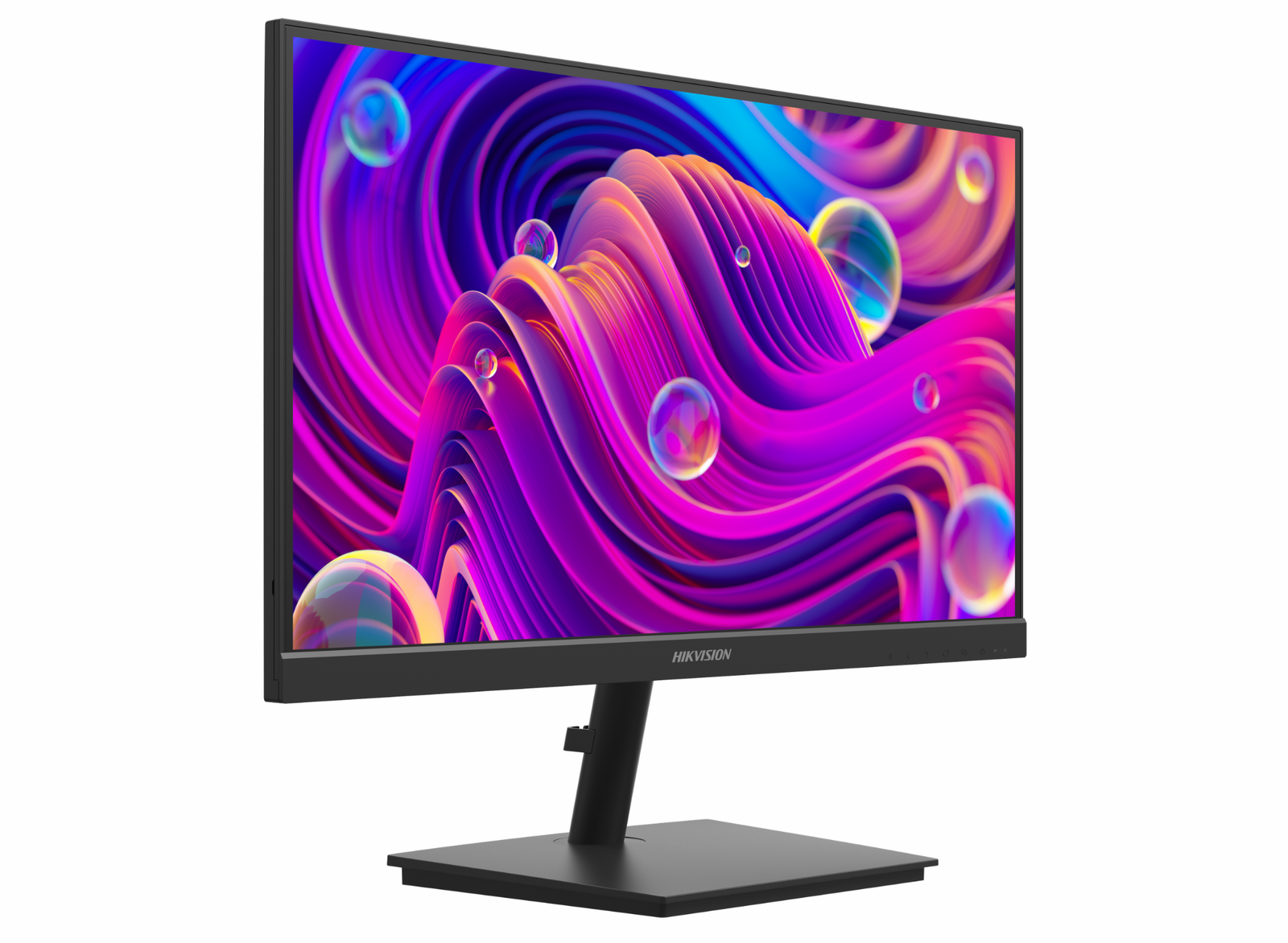

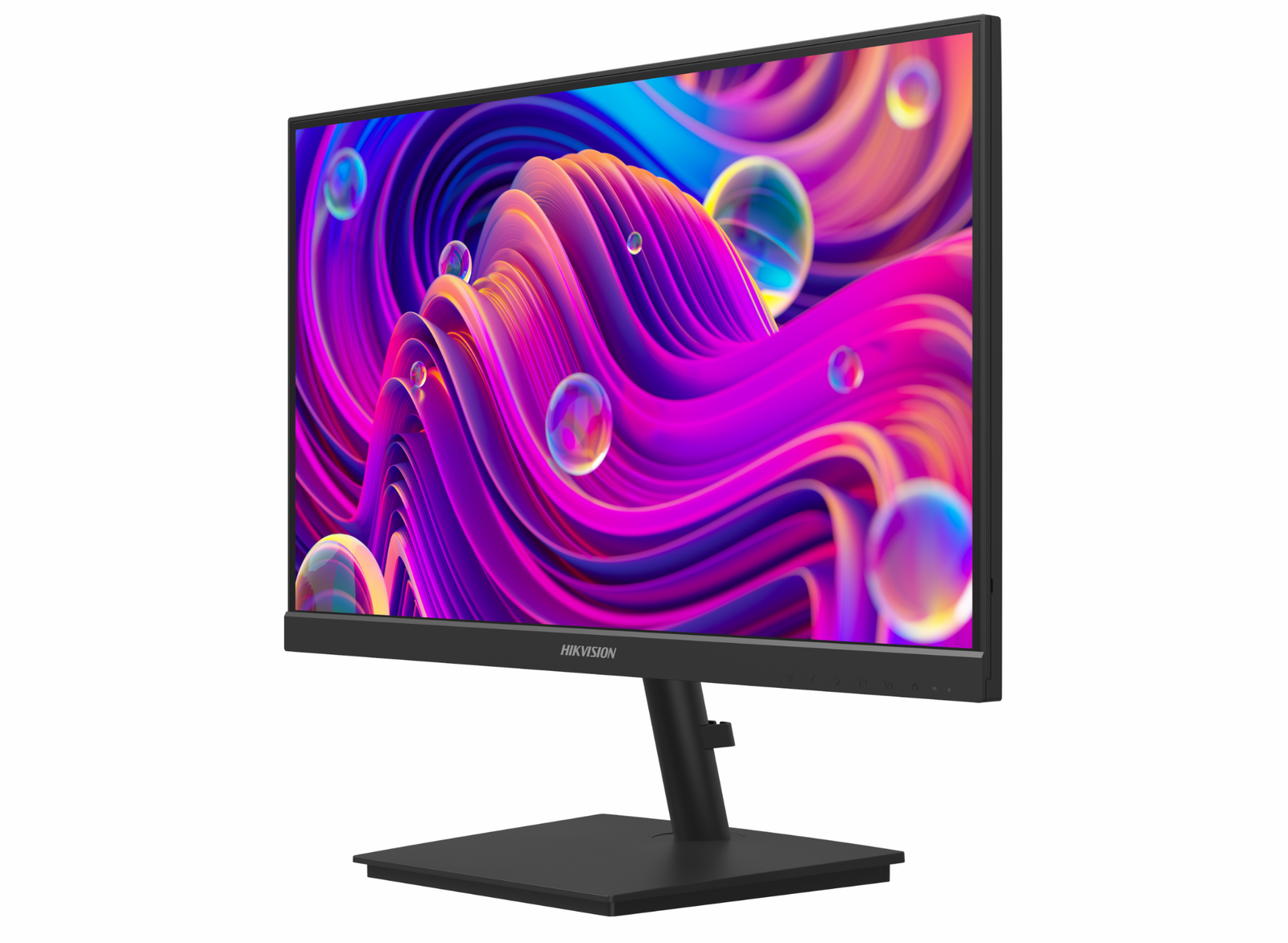

21.5 inch FHD 100Hz VA Monitor with Speaker
100 Hz refresh rate, more fluid and life-like video
Ultra-thin device body with ultra-thin border for 3 sides.
8 bit LVDS FHD (1920 × 1080) display.
Low blue light design for eye care.
Multiple interfaces, including VGA, HDMI, audio out, and built-in speaker.

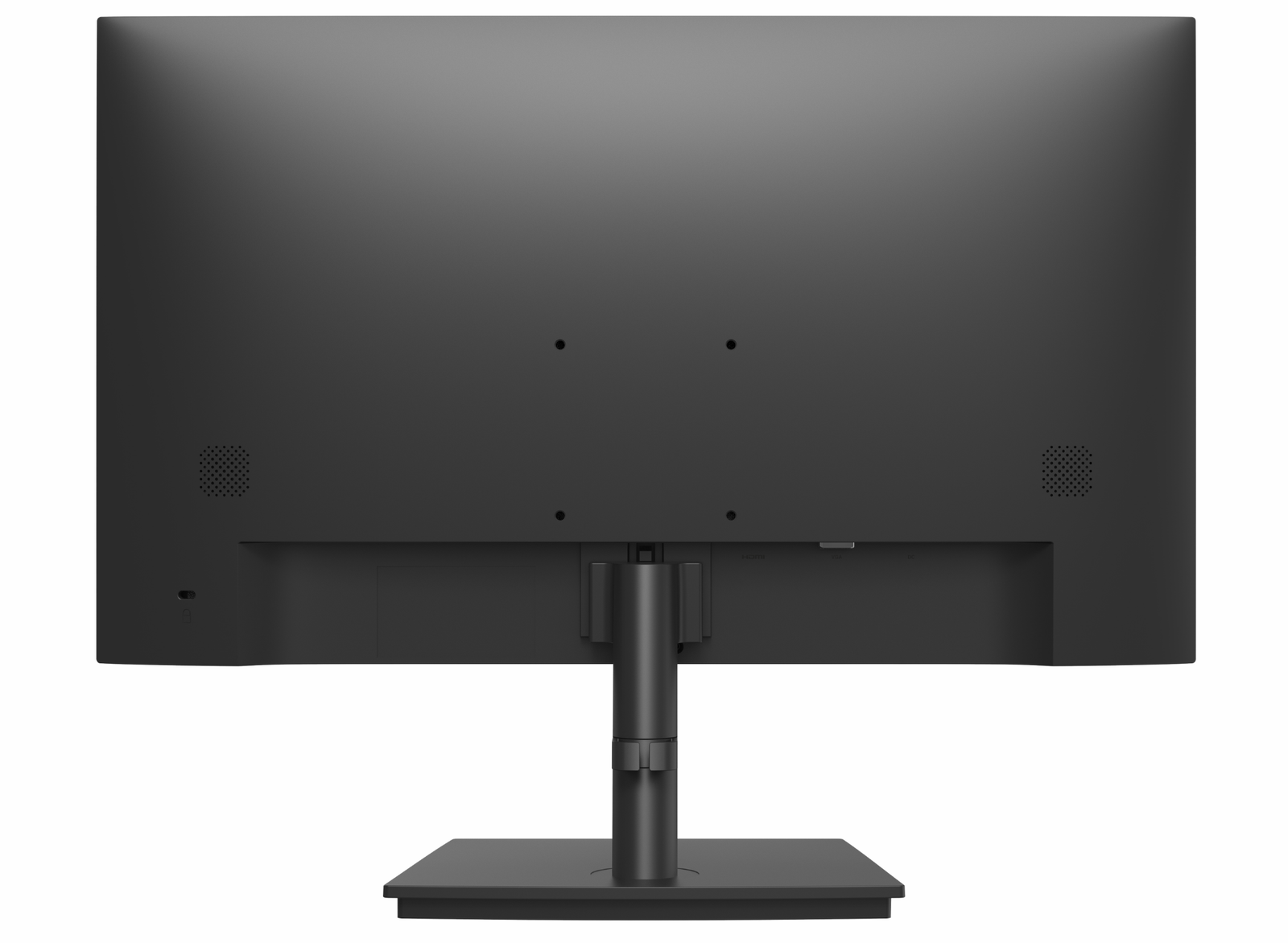

Support VESA wall mount.
| Screen Size | 21.45 inch | Active Display Area | 478.656 (H) mm × 260.280 (V) mm |
| Resolution | 1920 × 1080 | Backlight | E-LED |
| Pixel Pitch | 0.241 mm (H) × 0.241 mm (V) | Brightness | 250 cd/m² |
| Viewing Angle | 178° (H) / 178° (V) | Color Depth | 8 bit, 16.7 M |
| Contrast Ratio | 4000 : 1 | Response Time | 8 ms |
| Refresh Rate | Max. 100Hz, Typ. 60 Hz | Haze | Haze 25%, 3H |
| Reliability | 7 × 24 H | Color Gamut | 72% NTSC |
| Video & Audio Input | HDMI 1.4 × 1, VGA × 1, Audio In × 1 | Video & Audio Output | Speaker × 2 (4Ω 2W) |
| Data Transmission Interface | None | Control Interface | None |
| Power Supply | DC 12V, 2.0A | Power Consumption | ≤ 24 W |
| Standby Consumption | ≤ 0.5 W | Working Temperature | 0℃ to 40 ℃ (32 ℉ to 104 ℉) |
| Working Humidity | 20% to 90% RH (Non-Condensing) | Storage Temperature | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉) |
| Storage Humidity | 10% to 90% RH (Non-Condensing) | Casing Material | Plastic |
| VESA | 75 mm × 75 mm (4 - M4 × 6 mm) | Bezel Width | 2.38 mm (top/left/right), 21.55 mm (bottom) |
| Product Dimensions With Base | 493.26 (W) mm × 393.45 (H) mm × 185.74 (D) mm | Product Dimensions Without Base | 493.26 (W) mm × 290.13 (H) mm × 42.35 (D) mm |
| Package Dimensions | 599 (W) mm × 393 (H) mm × 109 (D) mm | Net Weight | 2.0 ± 0.5 kg |
| Gross Weight | 3.2 ± 0.5 kg | Packing List | Monitor × 1, Base component × 1, Power adapter (12 V, 2.0 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1 |
| Remarks | The base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information |
| Description | Downloads |
|---|---|
| Datasheet | Download |
