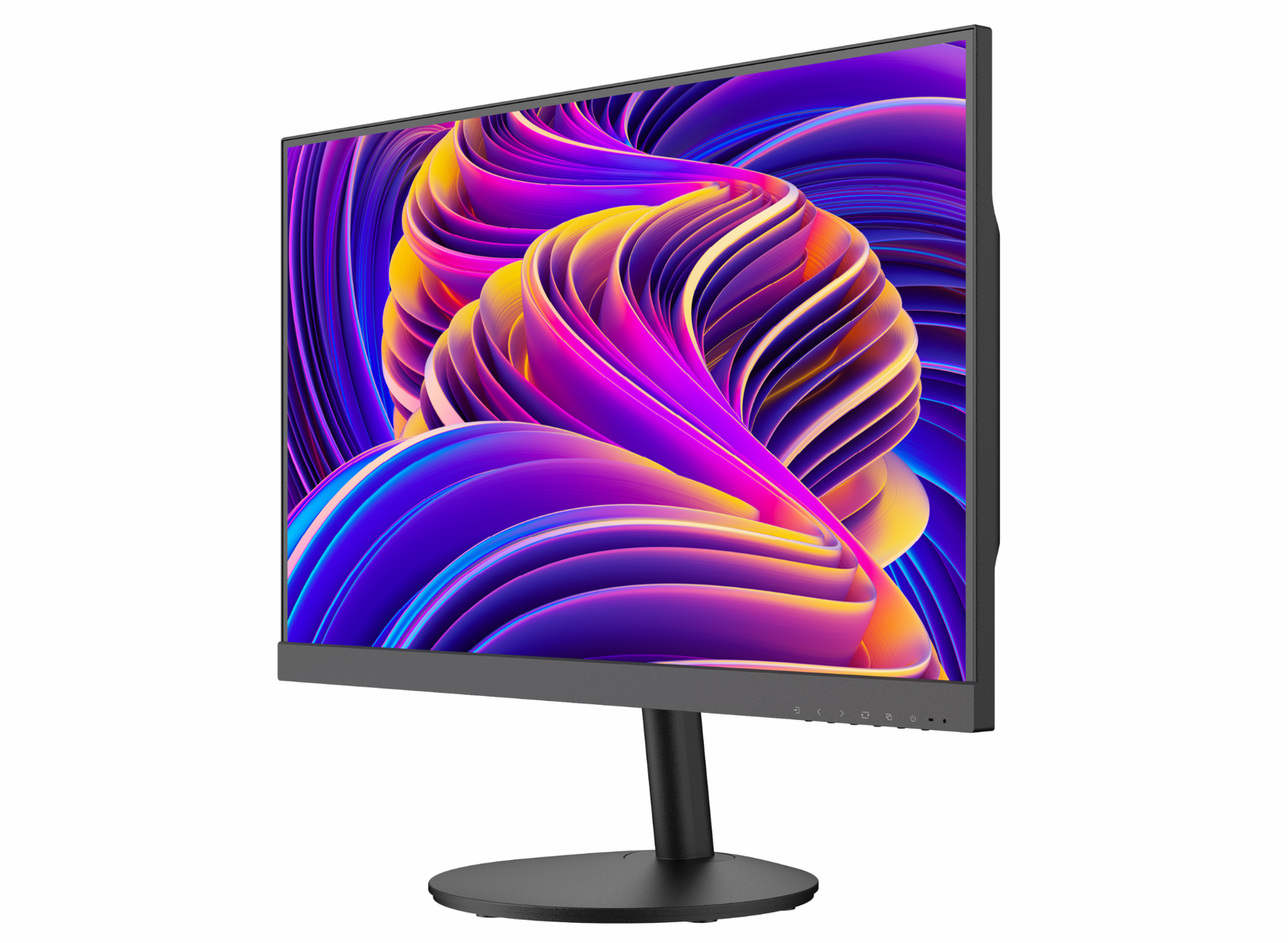

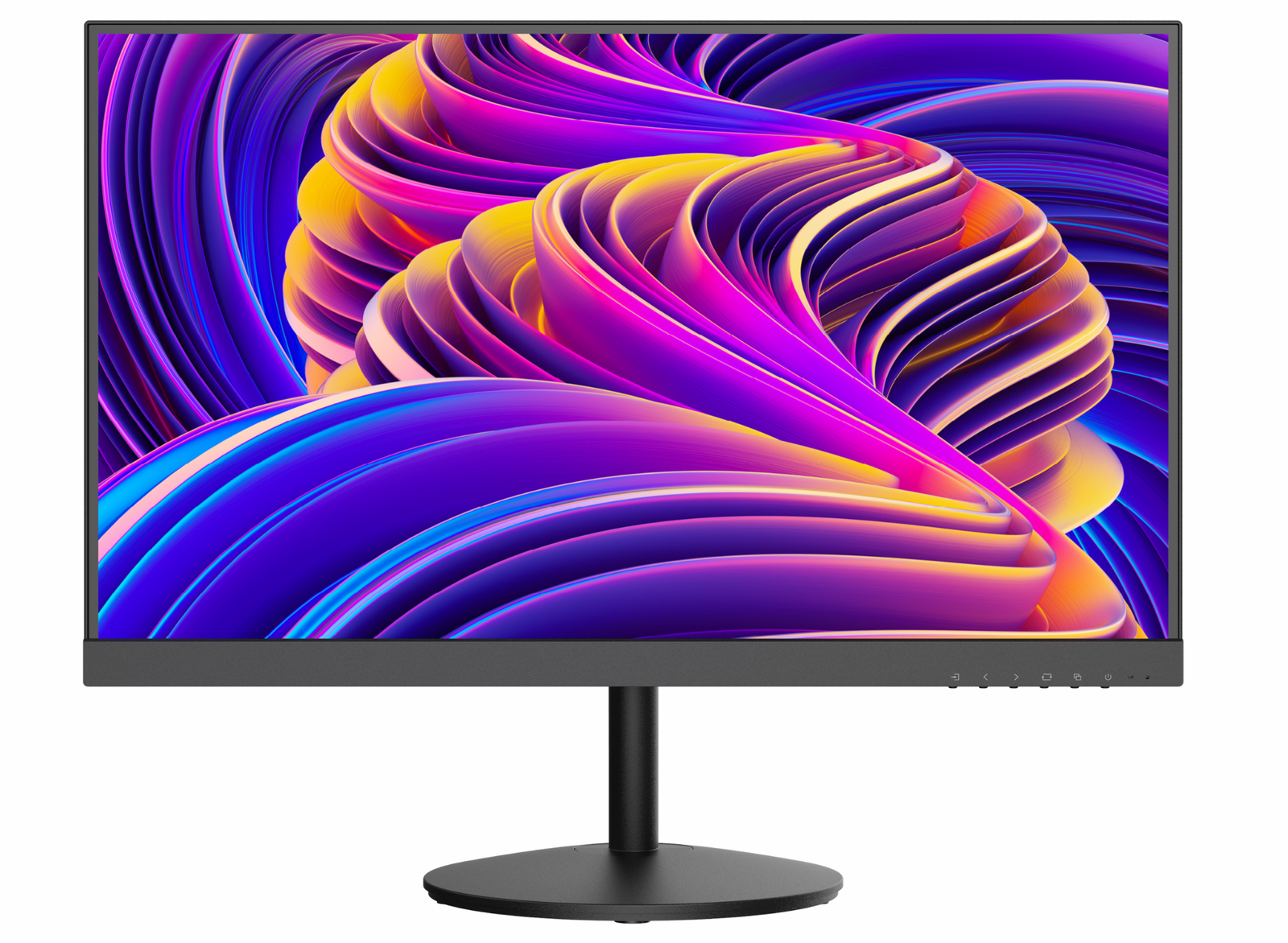

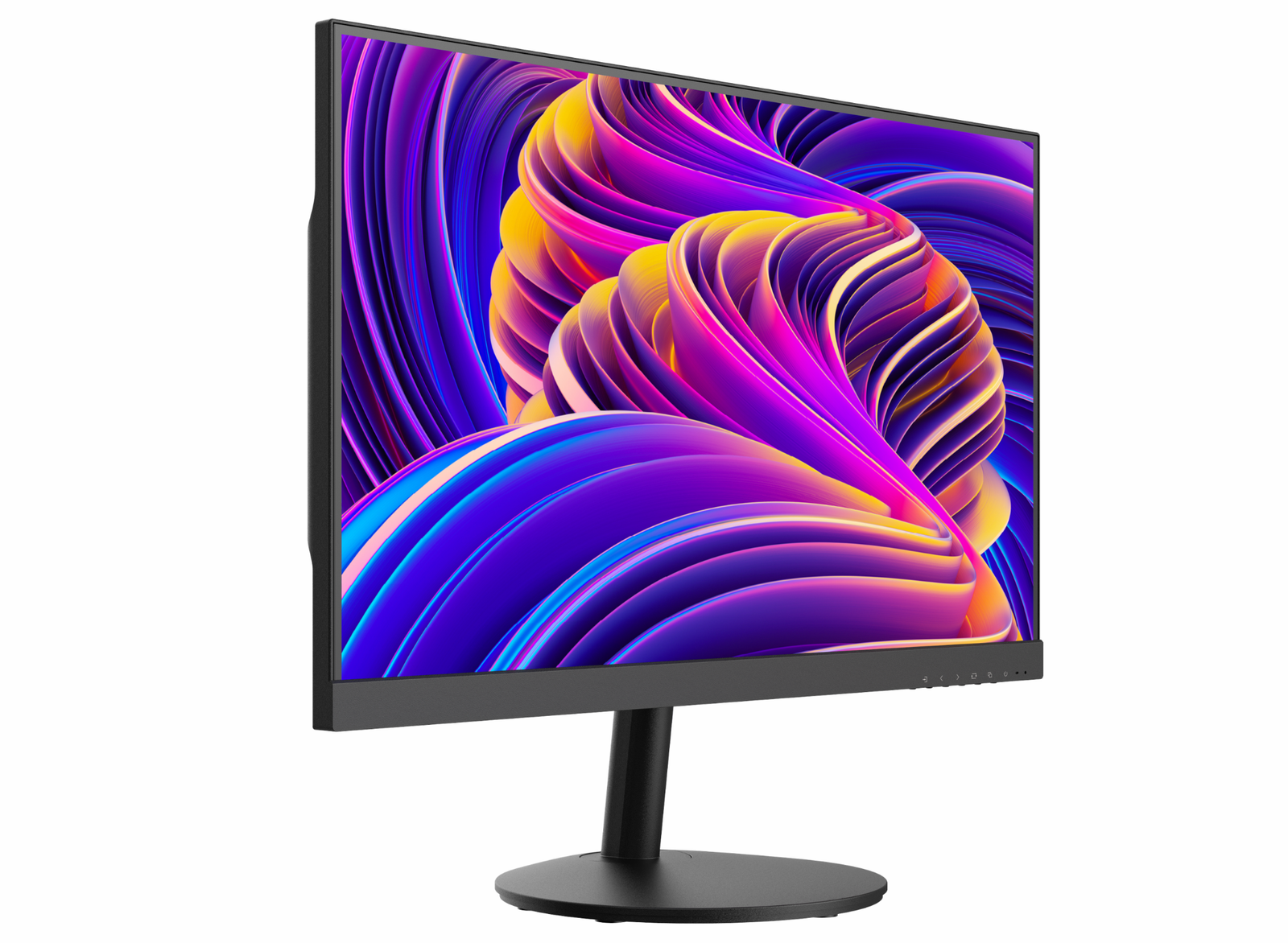

21.45 VA 75Hz Monitor
Ultra-thin device body with ultra-thin border for 3 sides.
8 bit LVDS FHD (1920 × 1080) display.
178° ultra-wide view screen.
3D noise reduction.
Low blue light design for eye care.
Dual interface of HDMI and VGA.

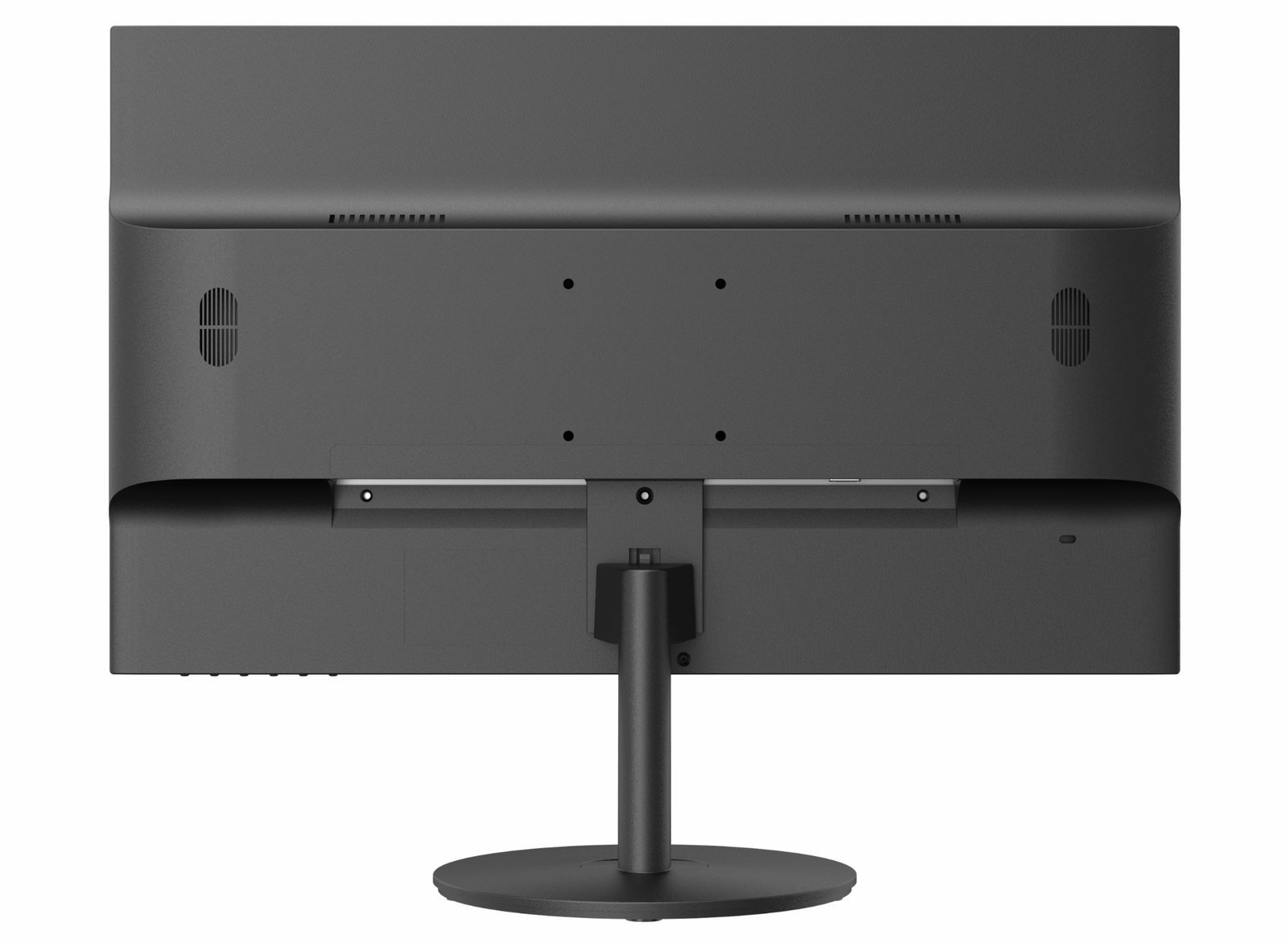

Support VESA wall mount.
Built-in speaker for audio input.
| Screen Size | 21.45 inch | Active Display Area | 478.656 (H) mm × 260.280 (V) mm |
| Resolution | 1920 × 1080 | Backlight | E-LED |
| Pixel Pitch | 0.241 mm (H) × 0.241 mm (V) | Brightness | 250 cd/m² |
| Viewing Angle | 178° (H) / 178° (V) | Color Depth | 8 bit, 16.7 M |
| Contrast Ratio | 3000 : 1 | Response Time | 6.5 ms |
| Refresh Rate | Max. 75Hz, Typ. 60 Hz | Haze | Haze 25%, 3H |
| Reliability | 7 × 24 H | Color Gamut | 72% NTSC |
| Video & Audio Input | HDMI 1.4 × 1, VGA × 1, CVBS × 1, AUDIO IN × 1 | Video & Audio Output | Speaker (2W 8Ω) × 2 |
| Data Transmission Interface | USB 2.0 (support program upgrade and USB online playback) × 1 | Power Supply | AC 100-240V～, 50/60Hz, 0.5A Max |
| Power Consumption | ≤ 25 W | Standby Consumption | ≤ 0.5 W |
| Working Temperature | 0℃ to 40 ℃ (32 ℉ to 104 ℉) | Working Humidity | 10% to 80% RH (Non-Condensing) |
| Storage Temperature | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉) | Storage Humidity | 5% to 90% RH (Non-Condensing) |
| Casing Material | Plastic | VESA | 75 mm × 75 mm (4 - M4 × 6 mm) |
| Bezel Width | 1.89mm (top/left/right), 22.55 mm (bottom) | Product Dimensions Without Stand | 492.36 (W) mm × 289.68 (H) mm × 41.88 (D) mm (19.38″ × 11.4″ × 1.65″) |
| Product Dimensions With Stand | 492.36 (W) mm × 403.93 (H) mm × 209.99(D) mm (19.38″ × 15.9″ × 8.27″) | Package Dimensions | 600 (W) mm × 400(H) mm × 115 (D) mm (23.62″ × 15.75″ × 4.53″) |
| Net Weight | 2.65 ± 0.5 kg | Gross Weight | 3.9 ± 0.5 kg |
| Packing List | Monitor × 1, Base component × 1, AC power cable (1.5 m) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1 | Remarks | The base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information |
| Description | Downloads |
|---|---|
| Datasheet | Download |
| User Manual | Download |
| Dimensions | Download |
