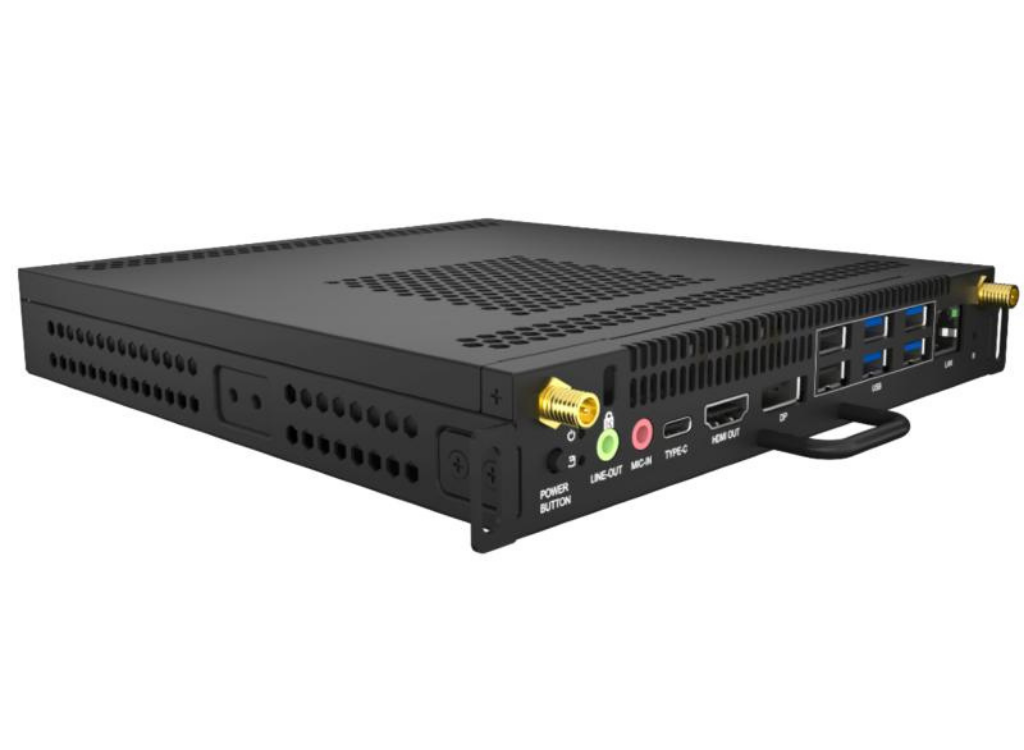

Hikvision DS-D5AC12T5-8S2 OPS Module - Intel UHD Graphics for 12th Gen Intel Processors
SKU: DS-D5AC12T5-8S2
£590.52 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Hikvision DS-D5AC12T5-8S2 OPS Module - Intel UHD Graphics for 12th Gen Intel Processors
Intel UHD Graphics for 12th Gen Intel Processors, support 4K resolution
Support M.2 nvme system disk quick start
Support 4 USB 3.0 ports, 2 USB2.0 ports, 1 HDMI port, 1 DP interface，1 Type-C port
Support Wi-Fi IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
Support TPM 2.0
-
Category Specification Built-in System Operation System WIN11 ENT Processor Intel® Core i5-12450H, 12th Gen CPU Clock Speed 2.0 GHz Base, 4.4 GHz Turbo CPU Cores 8 CPU Threads 12 Memory & Graphics Memory 8GB Graphics Intel UHD Graphics for 12th Gen Intel Processors Platform Architecture Intel® Alder Lake H Cooling System Cooling System Single Brass & Single Fan Storage Storage 256GB Interfaces Video & Audio Input Audio in *1 Video & Audio Output HDMI1.4 * 1, DP 1.2 * 1, Audio out *1 Network Interface RJ45 (10/100/1000 Mbps) * 1, WIFI 6 Data Transmission Interface Bluetooth 5.2, USB 3.0 * 4, USB 2.0 * 2, Type-C * 1 Antenna 2 Power Standby Consumption 0.5W Input Voltage 12V-19V DC Max. Consumption 95W Working Environment Working Temperature 0°C - 40°C Working Humidity 10%-90% Storage Temperature -20°C - 60°C Storage Humidity 10%-90% General Product Dimensions (W × H × D) 195 × 30 × 180 mm Package Dimensions (W × H × D) Carton with a single module: 308 × 80 × 278 mm Carton with five modules: 420 × 298 × 320 mm Net Weight About 1.22 kg Gross Weight Carton with a single module: About 1.36 kg Carton with five modules: About 7.50 kg Color Black -
Description Downloads Datasheet Downloads
