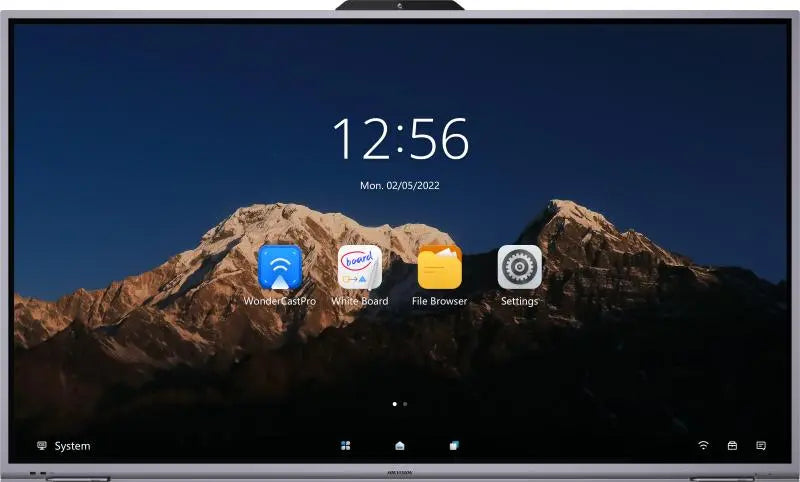

Product Model |
DS-D5B65RB/D |
Display |
Screen Size: 65 inch LED Backlight |
|
Backlight: DLED |
|
Pixel Pitch: 0.124 (H) × 0.372 (V) mm |
|
Resolution: 3840 × 2160 @ 60 Hz |
|
Brightness: 350 cd/m² |
|
Color Depth: 10 bit |
|
Contrast Ratio: 4000:1 (Typ.) |
|
Response Time: 6 ms |
|
Color Gamut: 90% NTSC (CIE1931) (Typ.) |
|
Refresh Rate: 60 Hz |
|
Viewing Angle: 178° (H) / 178° (V) |
Built-In System |
Operation System: Android 11 |
|
Processor: A722 + A534, 1.8 GHz |
|
Memory: 4 GB |
|
Built-In Storage: 64 GB |
|
NIC: Built-in 1000 Mbps NIC, supporting routing; IEEE 802.11 a/b/g/n/ac with 2 × 2 MIMO, supporting both 2.4 GHz and 5GHz bands |
Touch |
Type: Infrared touch screen |
|
Glass: AG smooth glass |
|
Touch Point: Max 45 point multi-touch |
|
Touch Response Time: <10 ms |
|
Touch Precision: ±1 mm (≥ 90% touching area) |
Internal Function |
Loudspeaker: Built-in 2 × 16 W loudspeaker |
|
Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version. |
Interface |
Video & Audio Input: HDMI IN × 2, MAX 4K @ 30 Hz, LINE IN × 1 |
|
Video & Audio Output: HDMI OUT (HDMI 2.0) × 1, MAX 4K @ 60 Hz, LINE OUT × 1 |
|
Control Interface: RS-232 × 1, Touch-USB × 1 |
|
Network Interface: RJ45 (1000 Mbps port) × 2 |
|
Data Transmission Interface: USB-C × 1, USB-A × 2 on front panel, USB-A × 2 on rear panel |
Power |
Power Consumption: ≤ 320 W (full load) |
|
Standby Consumption: 0.5 W |
Working Environment |
Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) |
|
Working Humidity: 10% to 90% RH |
General |
Power: 100 to 240 V, AC, 50/60 Hz |
|
Product Dimensions: 1507 × 930 × 86 mm |
|
Package Dimensions (W × H × D): 1687 × 1061 × 234 mm |
|
Net Weight: 40.36 kg |
|
Gross Weight: 50.69 kg |
|
Lifespan: 50,000 hours |
Camera |
Pixel: 8 MP |
|
Camera Function: Smart switch between Android system and OPS |
|
Field Angle: 120° (diagonal), 110° (horizontal), 66° (vertical) |
|
Distortion: ≤6% |
|
Camera Resolution Ratio: Up to 4K |
Microphone |
Specification: Omni-directional 6-array layout |
|
Mic Function: Echo reduction and smart noise-cancellation |
|
Voice Distance: 8 m |
|
Sampling Rate: 32 K |
|
Mic Sampling Rate: 16 bitStandard Shipping: Deliver within 1-3 days after the order was placed.
|
