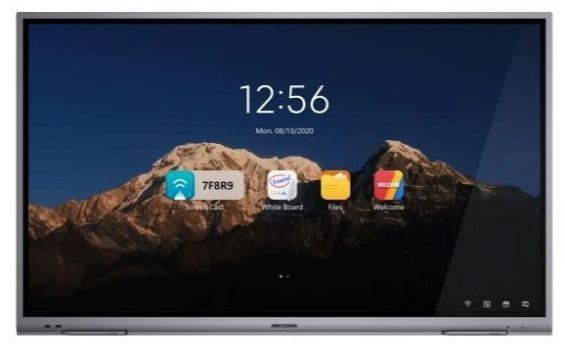

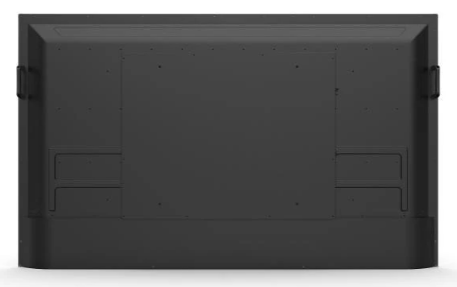

Hikvision DS-D5B86RB/A 86-inch 4K Interactive Display

Part Number: DS-D5B86RB/A
Condition: Brand New
Purchase Orders Accepted
Sold out
Original price £2,180.30
Inc. VAT
Original price £2,180.30 - Original price £2,180.30
Original price £2,180.30

£1,470.00 (Excl. VAT)

Current price - £1,764.00 Inc. VAT
£1,764.00 - £1,764.00
Current price- - £1,764.00
(Inc. VAT )
Out of stock


Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at

  • Product Descriptions
  • Product Specifications
  • Delivery Time
  • Return and Warranty
  • DS-D5B86RB/A
    Conference Flat Panel
    The Conference Flat Panel (hereafter referred to as the “device”) integrates functions of computers, projectors,interactive whiteboards, sound boxes, cameras (optional), bluetooth remote control (optional), HDTVs, advertising machines and so on. The device integrates technologies like 4K display, infrared touch, human-machine interaction,multi-media information processing, and network transmission and provides users with various features such as writing,annotating, multi-screen sharing, pen detection and remote video call (optional).The Conference Flat Panel is mainly used for remote video conferences, trainings and guidance, medical consulting, and other events in kinds of offices,meeting rooms, multi-media classrooms, exhibition halls and so on.

    86-inch 4K Interactive Display
    Ultra HD display with up to 3840 × 2160 resolution of input signal available.
    20px ultra fine writing, and 2 mm diameter recognizable with the precision of 1 mm.
    Built-in Wi-Fi realizes miracasting without any cable connection.
    Built-in interactive whiteboard system allows annotating and sharing by QR code.
    Looping-out display available.
    Various audio and video interfaces for device access.
    Built-in network switch chip saves a network switch.
    Built-in Android system provides kinds of applications.
    Compatible with OPS/OPS-C devices, realizing smooth switch between built-in systems.
    Ultra-thin design with aluminum profile frame.

  • Product Model DS-D5B86RB/A
    Screen Size 86 inch LED Backlight
    Backlight DLED
    Pixel Pitch 0.164(H) × 0.493(V) mm
    Resolution 3840 × 2160 @60 Hz
    Brightness 350 cd/m²
    Color Depth 10 bit
    Contrast Ratio 1200:1 (Typ.)
    Response Time 6 ms
    Color Gamut 90% NTSC (CIE1931) (Typ.)
    Refresh Rate 60 Hz
    Viewing Angle 178°(H)/178°(V)
    Built-In System
    Operation System Android 8.0
    Processor 4-core A73 × 2 + A53 × 2, 1.5 GHz
    Memory 3 GB
    Built-In Storage 32 GB
    NIC Built-in 100 Mbps NIC, supporting routing
    Type Infrared touch screen
    Glass AG smooth glass
    Touch Point 20 point multi-touch
    Touch Response Time < 10 ms
    Touch Precision ±1 mm (≥ 90% touching area)
    Touch Craft Full paste
    Internal Function
    Loudspeaker Built-in 2 × 16 W loudspeaker
    Bluetooth Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version.
    Video & Audio Input HDMI IN × 2, MAX 4K @ 60 Hz, LINE IN × 1
    Video & Audio Output HDMI OUT × 1, MAX 4K @ 60 Hz; LINE OUT × 1
    Control Interface RS-232 × 1
    Network Interface RJ45 (100Mbps ports) × 2
    Data Transmission Interface 2 USB on front panel, 2 USB on rear panel
    Power Consumption < 420 W (full load)
    Standby Consumption 0.5 W
    Working Environment
    Working Temperature 0°C ~ 40°C
    Working Humidity 10% ~ 90% RH
    Power AC 100 V~240 V, 50/60 Hz
    Product Dimensions 1963 × 1159 × 87.5 mm
    Package Dimensions (W × H × D) 2187 x 1366 x 274mm
    Net Weight 65.12 kg
    Gross Weight 86.24 kg
  • Standard Shipping: Deliver within 1-3 days after the order was placed.

    Next-Business-Day: Shipping same-day (before 14:00 PM Orders), arriving next business days.

  • Hikvision 5 Year Warranty. Hikvision takes quality seriously and puts a lot of effort into ensuring our products are both innovative and reliable.
