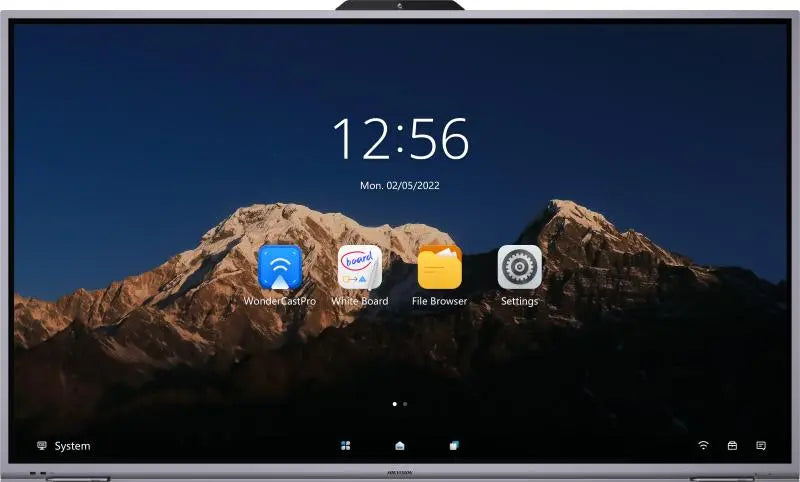

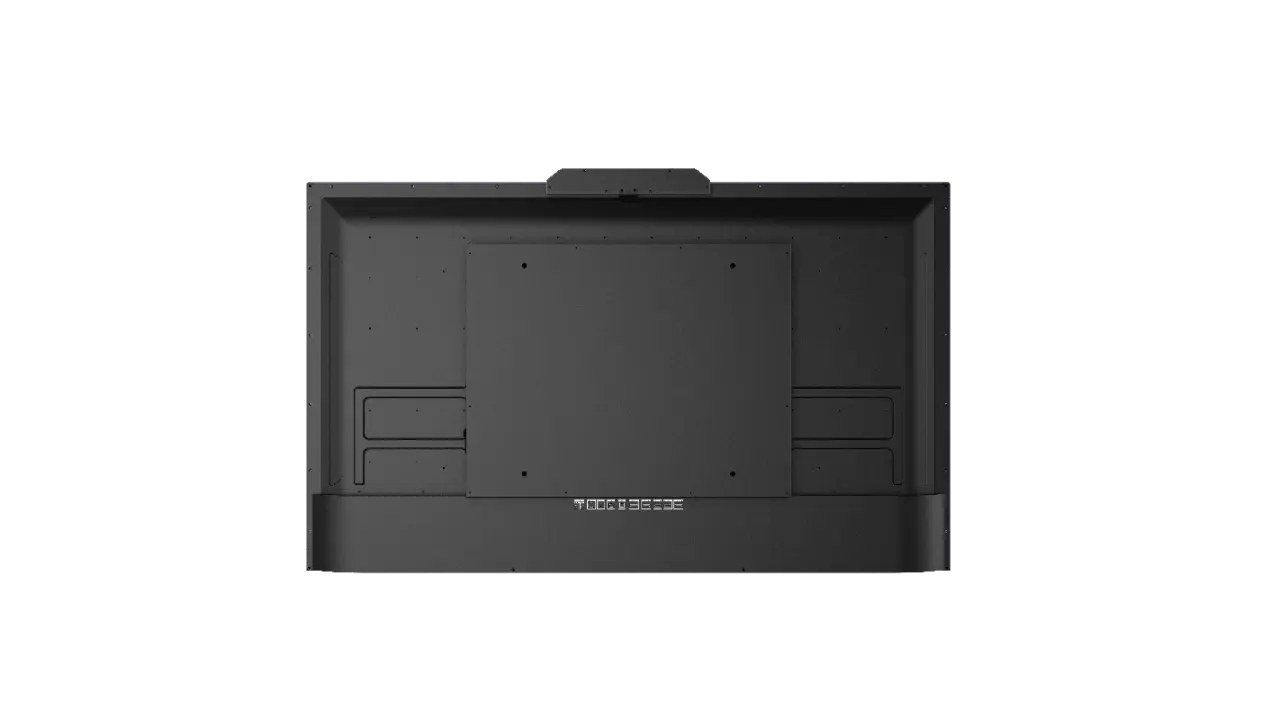

Hikvision DS-D5B86RB/B 86-inch 4K Interactive Display W/ Camera and Microphone

SKU: DS-D5B86RB/B
Part Number: DS-D5B86RB/B
Condition: Brand New
Purchase Orders Accepted
Sold out
Original price £1,600.00
Original price £1,600.00 - Original price £1,600.00
Original price £1,600.00
Current price £1,564.92
£1,564.92 - £1,564.92
Current price £1,564.92
Ex. VAT
Availability:
Out of stock
Send an enquiryExpress delivery UKTrustpilot rated

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Product Descriptions
  • Product Specifications
  • Delivery Time
  • Return and Warranty
  • Hikvision DS-D5B86RB/B 86-inch 4K Interactive Display W/ Camera and Microphone

    4K Display Presenting More Details: 4K resolution improves the image details with the features of being anti-glared, fingerprint-resistant, and strong light-blocked.

    Instant and Ultra-Fine Writing: Provides smooth writing with the touch precision of 1 mm, and smart stroke optimization makes every stroke more real.

    One-touch Sharing for Meeting: Annotation sharing by QR code or e-mail ensures more concentrations and higher efficiency.

    Free Annotating Without Boundaries: Built-in application enables free annotations and instant saving on any interfaces. The whiteboard system can register up to 20 simultaneous touch points, showing different opinions at the same time.

    Wireless Screen Mirroring: Wireless screen mirroring through laptop, desktop PC, mobile phone, and tablet with no need to connect cables. Convenient solution comparison thanks to screen split by half and by quarter.

    Corporative Working Without Distance Limit: Video conferencing available through relative software and hardware, making remote cooperation achievable. Multi-screen interaction in large-scale scenarios with synchronized displaying of writing.

    Built-in 8 MP camera ensures clearer images, and 6 microphone arrays present you an immersive experience.

  • Specification Details
    Product Model DS-D5B86RB/B
    Display Screen Size: 86 inch LED Backlight
    Backlight: DLED
    Pixel Pitch: 0.105 (H) × 0.315 (V) mm
    Resolution: 3840 × 2160 @ 60 Hz
    Brightness: 350 cd/m²
    Color Depth: 10 bit
    Contrast Ratio: 4500:1 (Typ.)
    Response Time: 6 ms
    Color Gamut: 90% NTSC (CIE1931) (Typ.)
    Refresh Rate: 60 Hz
    Viewing Angle: 178° (H) / 178° (V)
    Built-In System Operation System: Android 8.0
    Processor: 4-core A73 × 2 + A53 × 2, 1.5 GHz
    Memory: 3 GB
    Built-In Storage: 32 GB
    NIC: Built-in 100 Mbps NIC, supporting routing
    Touch Type: Infrared touch screen
    Glass: Smooth tempered glass being anti-glare and explosion-proof
    Touch Point: 20 point multi-touch
    Touch Response Time: <10 ms
    Touch Precision: ±1 mm (≥ 90% touching area)
    Optical Bonding: Support
    Internal Function Loudspeaker: Built-in 2 × 10 W loudspeaker
    Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version.
    Interface Video & Audio Input: HDMI IN × 2, MAX 4K @ 60 Hz, LINE IN × 1
    Video & Audio Output: HDMI OUT × 1, MAX 4K @ 60 Hz, LINE OUT × 1
    Control Interface: RS-232 × 1
    Network Interface: RJ45 (100 Mbps port) × 2
    Data Transmission Interface: USB on front panel × 2, USB on rear panel × 2, touch USB × 1
    Power Power Consumption: ≤ 250 W (full load)
    Standby Consumption: 0.5 W
    Working Environment Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
    Working Humidity: 10% to 90% RH
    General Power: 100 to 240 VAC, 50/60 Hz
    Product Dimensions: 1266 × 789 × 83 mm (49.8'' × 31.1'' × 3.3'')
    Package Dimensions (W × H × D): 1432 × 904 × 211 mm (56.4'' × 35.6'' × 8.3'')
    Net Weight: 29.71 kg (65.5 lb.)
    Gross Weight: 37.25 kg (82.1 lb.)
    Camera Pixel: 8 MP
    Camera Function: Smart switch between Android system and OPS
    Field Angle: 100° (diagonal), 90° (horizontal), 66° (vertical)
    Distortion: ≤1%
    Camera Resolution Ratio: Up to 4K
    Microphone Specification: Omni-directional 6-array layout
    Mic Function: Echo reduction and smart noise-cancellation
    Voice Distance: 8 m
    Sampling Rate: 32 K
    Mic Sampling Rate: 16 bit
  • Standard Shipping: Deliver within 1-3 days after the order was placed.

    Next-Business-Day: Shipping same-day (before 14:00 PM Orders), arriving next business days.

  • Hikvision 5 Year Warranty. Hikvision takes quality seriously and puts a lot of effort into ensuring our products are both innovative and reliable.
