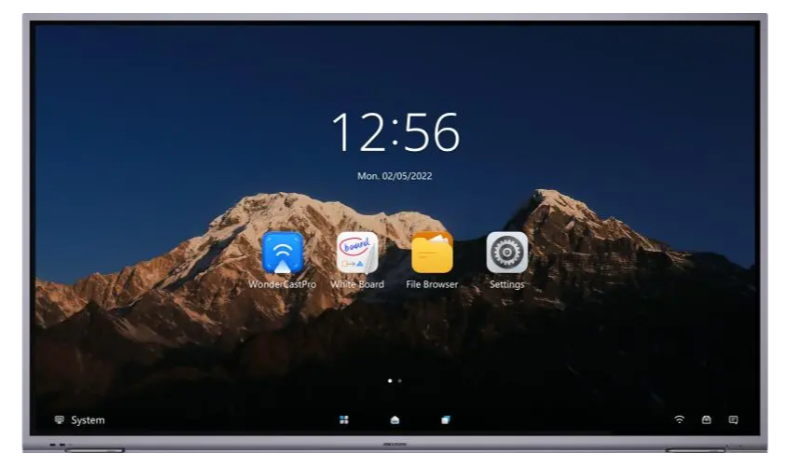

Hikvision DS-D5B86RB/C 86-inch 4K Interactive Display
SKU: DS-D5B86RB/C
£2,221.92 (Excl. VAT)
- Product Descriptions
- Product Specifications
- Delivery Time
- Return and Warranty
-
DS-D5B86RB/C
Interactive Flat Panel
The Conference Flat Panel (hereafter referred to as the “device”) integrates functions of computers, projectors, interactive whiteboards, sound boxes, cameras (optional), bluetooth remote control (optional), HDTVs, advertising machines and so on.The device integrates technologies like 4K display, infrared touch, human-machine interaction, multi-media information processing, and network transmission and provides users with various features such as writing, annotating, multi-screen sharing, pen detection and remote video call (optional).The Conference Flat Panel is mainly used for remote video conferences, trainings and guidance, medical consulting, and other events in kinds of offices, meeting rooms, multi-media classrooms, exhibition halls and so on.
86-inch 4K Interactive Display
Ultra HD display with up to 3840 × 2160 resolution of input signal available.
20px ultra fine writing, and 2 mm diameter recognizable with the precision of 1 mm.
Built-in Wi-Fi realizes miracasting without any cable connection.
Built-in interactive whiteboard system allows annotating and sharing by QR code.
Looping-out display available.
Various audio and video interfaces for device access.
Built-in network switch chip saves a network switch.
Built-in Android system provides kinds of applications.
Compatible with OPS/OPS-C devices, realizing smooth switch between built-in systems.
Ultra-thin design with aluminum profile frame. -
Product Model DS-D5B86RB/C Display Screen Size 86 inch LED Backlight Backlight DLED Pixel Pitch 0.164 (H) × 0.493 (V) mm Resolution 3840 × 2160 @60 Hz Brightness 350 cd/m² Color Depth 10 bit Contrast Ratio 4000:1 (Typ.) Response Time 6 ms Color Gamut 90% NTSC (CIE1931) (Typ.) Refresh Rate 60 Hz Viewing Angle 178°(H)/178°(V) Built-In System Operation System Android 11 Processor A722 + A534, 1.8 GHz Memory 4 GB Built-In Storage 64 GB NIC Built-in 1000 Mbps NIC, supporting routing; IEEE 802.11 a/b/g/n/ac with 2 × 2 MIMO, supporting both 2.4 GHz and 5GHz bands Touch Type Infrared touch screen Glass AG smooth glass Touch Point Max 45 point multi-touch Touch Response Time ＜ 10 ms Touch Precision ± 1 mm (≥ 90% touching area) Internal Function Loudspeaker Built-in 2 × 16 W loudspeaker Bluetooth Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version Interface Video & Audio Input HDMI IN × 2, MAX 4K @30 Hz, LINE IN × 1 Video & Audio Output HDMI OUT（HDMI 2.0） × 1, MAX 4K @60 Hz, LINE OUT × 1 Control Interface RS-232 × 1, Touch-USB × 1 Network Interface RJ45 (1000 Mbps port) × 2 Data Transmission Interface USB-C × 1, USB-A × 2 on front panel, USB-A × 2 on rear panel Power Power Consumption ≤ 490 W (full load) Standby Consumption 0.5 W Working Environment Working Temperature 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) Working Humidity 10% to 90% RH General Power 100 to 240 V, AC, 50/60 Hz Product Dimensions 1963 × 1159 × 87.5 mm Package Dimensions (W × H × D) 2187 × 1366 × 274 mm Net Weight 65.12 kg Gross Weight 86.24 kg Lifespan 50000 hours -
Standard Shipping: Deliver within 1-3 days after the order was placed.
Next-Business-Day: Shipping same-day (before 14:00 PM Orders), arriving next business days. - Hikvision 5 Year Warranty. Hikvision takes quality seriously and puts a lot of effort into ensuring our products are both innovative and reliable.
