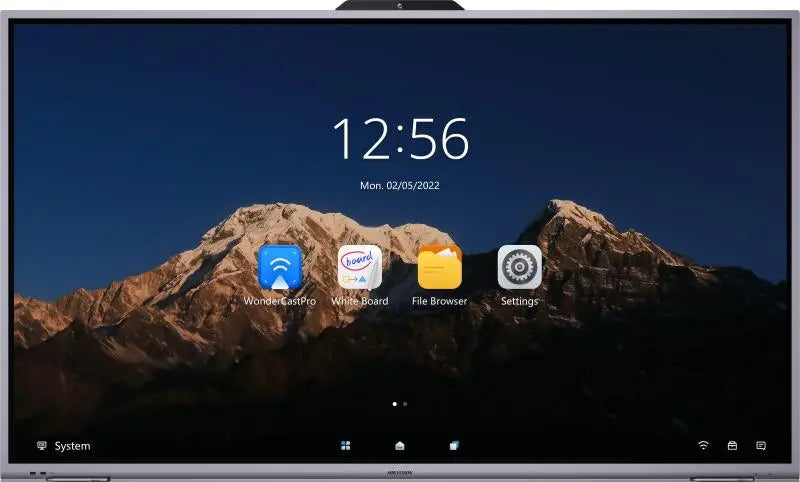

Hikvision DS-D5B86RB/D 86-inch 4K Interactive Flat Panel W/ Camera and Microphone

SKU: DS-D5B86RB/D
Part Number: DS-D5B86RB/D
Condition: Brand New
Purchase Orders Accepted
Sold out
Original price £3,063.63
Original price £3,063.63 - Original price £3,063.63
Original price £3,063.63
Current price £2,478.67
£2,478.67 - £2,478.67
Current price £2,478.67
Inc. VAT
Availability:
Out of stock
Send an enquiryExpress delivery UKTrustpilot rated

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Product Descriptions
  • Product Specifications
  • Delivery Time
  • Return and Warranty
  • Hikvision DS-D5B86RB/D 86-inch 4K Interactive Flat Panel W/ Camera and Microphone

    Ultra HD display with up to 3840 × 2160 resolution of input signal available.

    20px ultra fine writing, and 2 mm diameter recognizable with the precision of 1 mm.

    Built-in Wi-Fi realizes miracasting without any cable connection.

    Built-in interactive whiteboard system allows annotating and sharing by QR code.

    Looping-out display available.

    Various audio and video interfaces for device access.

    Built-in network switch chip saves a network switch.

    Built-in Android system provides kinds of applications.

    Compatible with OPS/OPS-C devices, realizing smooth switch between built-in systems.

    Ultra-thin design with aluminum profile frame.

  • Specification Details
    Product Model DS-D5B86RB/D
    Display Screen Size: 86 inch LED Backlight
    Backlight: DLED
    Pixel Pitch: 0.124 (H) × 0.372 (V) mm
    Resolution: 3840 × 2160 @ 60 Hz
    Brightness: 350 cd/m²
    Color Depth: 10 bit
    Contrast Ratio: 4000:1 (Typ.)
    Response Time: 6 ms
    Color Gamut: 90% NTSC (CIE1931) (Typ.)
    Refresh Rate: 60 Hz
    Viewing Angle: 178° (H) / 178° (V)
    Built-In System Operation System: Android 11
    Processor: A722 + A534, 1.8 GHz
    Memory: 4 GB
    Built-In Storage: 64 GB
    NIC: Built-in 1000 Mbps NIC, supporting routing; IEEE 802.11 a/b/g/n/ac with 2 × 2 MIMO, supporting both 2.4 GHz and 5GHz bands
    Touch Type: Infrared touch screen
    Glass: AG smooth glass
    Touch Point: Max 45 point multi-touch
    Touch Response Time: <10 ms
    Touch Precision: ±1 mm (≥ 90% touching area)
    Internal Function Loudspeaker: Built-in 2 × 16 W loudspeaker
    Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version.
    Interface Video & Audio Input: HDMI IN × 2, MAX 4K @ 30 Hz, LINE IN × 1
    Video & Audio Output: HDMI OUT (HDMI 2.0) × 1, MAX 4K @ 60 Hz, LINE OUT × 1
    Control Interface: RS-232 × 1, Touch-USB × 1
    Network Interface: RJ45 (1000 Mbps port) × 2
    Data Transmission Interface: USB-C × 1, USB-A × 2 on front panel, USB-A × 2 on rear panel
    Power Power Consumption: ≤ 320 W (full load)
    Standby Consumption: 0.5 W
    Working Environment Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
    Working Humidity: 10% to 90% RH
    General Power: 100 to 240 V, AC, 50/60 Hz
    Product Dimensions: 1507 × 930 × 86 mm
    Package Dimensions (W × H × D): 1687 × 1061 × 234 mm
    Net Weight: 40.36 kg
    Gross Weight: 50.69 kg
    Lifespan: 50,000 hours
    Camera Pixel: 8 MP
    Camera Function: Smart switch between Android system and OPS
    Field Angle: 120° (diagonal), 110° (horizontal), 66° (vertical)
    Distortion: ≤6%
    Camera Resolution Ratio: Up to 4K
    Microphone Specification: Omni-directional 6-array layout
    Mic Function: Echo reduction and smart noise-cancellation
    Voice Distance: 8 m
    Sampling Rate: 32 K
    Mic Sampling Rate: 16 bitStandard Shipping: Deliver within 1-3 days after the order was placed.

  • Next-Business-Day: Shipping same-day (before 14:00 PM Orders), arriving next business days.

  • Hikvision 5 Year Warranty. Hikvision takes quality seriously and puts a lot of effort into ensuring our products are both innovative and reliable.
