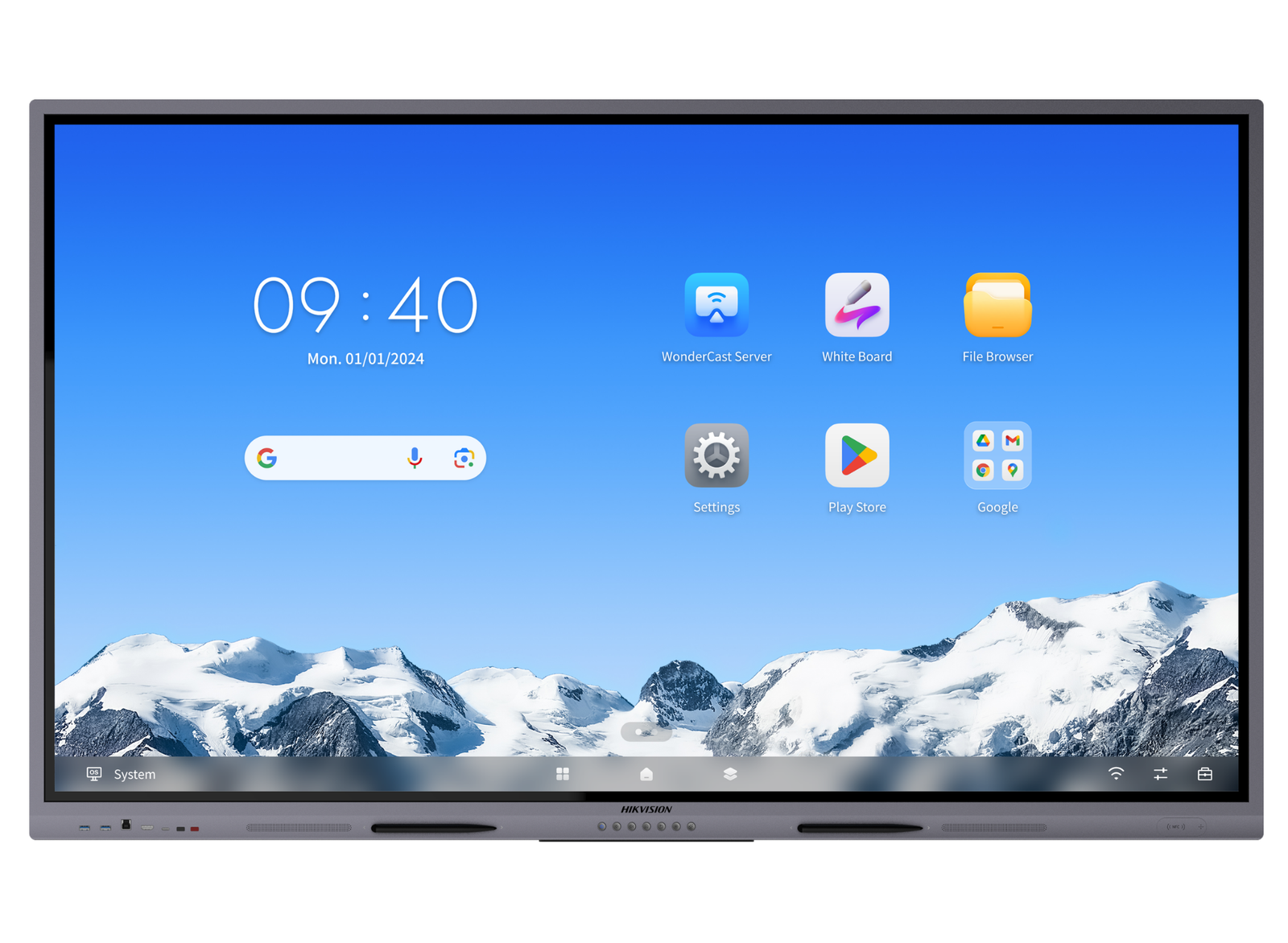

UHD 4K display with a resolution of 3840 × 2160 and 540 nits brightness.
Anti-Glare and Anti-Fingerprint design to ensure smooth interaction.
Dual systems of Android and Windows (optional with 195×30×180mm OPS) saving cost and easy to use, video conferencing software is recommended to run on the Windows system.
Supports up to 50-point multi-touch interaction with smooth and responsive writing.
Built-in network switch chip eliminates the need for an external network switch.
Multi-button front design for convenient classroom use.
Durable all-in-one design with tempered safety glass and intelligent thermal management.
Built-in Android 14 operating system with EDLA certification.
Dual full-function USB Type-C ports, supporting up to 100W total power delivery and DisplayPort 1.2 input.
Built-in sensors for ambient light, humidity, and temperature monitoring.
| Product Model | DS-D5C65RB/A2L | Screen Size | 65 inch |
| Backlight | DLED | Pixel Pitch | 0.124 (H) × 0.372 (V) mm |
| Resolution | 3840 × 2160 @60 Hz | Brightness | 540 cd/m² (Typ.) |
| Color Depth | 10 bit (8 bit + FRC) | Display Color | 1.07 G |
| Response Time | 5 ms | Panel Type | VA |
| Contrast Ratio | 5000:1 (Static) 30,000:1 (Dynamic) |
Color Gamut | 72% NTSC (CIE1931) (Typ.) |
| Refresh Rate | 60 Hz | Viewing Angle | 178° (H) / 178° (V) |
| Aspect Ratio | 16:9 | Surface Hardness | 9H (Pencil) 7 (Mohs) |
| Surface Glass | Anti-Glare & Anti-Fingerprint glass | Surface Haze | 25% Haze |
| Glass Bonding Method | Zero Lamination | Display Area | 1428.48 (H) × 803.52 (V) |
| Working Duration | 7 × 16 H | Transmittance | 88% ± 3 |
| Lifespan | 50,000 hours | Touch Type | Infrared Touch Screen |
| Touch Point | Up to 50-point multi-touch | Touch Response Time | ≤ 2 ms |
| Minimum Touch Object | ≥ 1.5 mm (≥ 90% touching area) | Touch Precision | ± 0.5 mm (≥ 90% touching area) |
| Touch Resolution | 32768 × 32768 | Operating System | Android 14.0 |
| Memory | 8 GB (Optional 16 GB) + Max 16 GB Virtual RAM | Built-in Storage | 128 GB (Optional 256 GB) |
| Processor | Quad-core Cortex-A76 × 4 (2.4 GHz) and quad-core Cortex-A55 × 4 (1.8 GHz) | GPU | Mali-G610 MC4 |
| HDCP Version | 2.3 & 2.0 & 1.4 | NPU | 6TOPs |
| Loudspeaker | Built-in 2 × 20 W + 25 W loudspeaker | Bluetooth | Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4 |
| Language Supported | Simplified Chinese, German, Italian, Arabic, Portuguese, Dutch, French, Indonesian, Thai, Vietnamese, Japanese, Spanish, English, Czech, Danish, Hungarian, Polish, Turkish, Russian, Romanian, Slovak, Korean, Uzbek, Bulgarian, Greek, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Hebrew, Ukrainian, Traditional Chinese (HK), Traditional Chinese (TW), Hindi, Latvian, Kazakh, Nepali | NFC | Support card reader 13.56 MHz (ISO 14443A / ISO 14443B / ISO 15693) |
| Light Sensor | Yes | Humidity and Temperature Sensor | Relative humidity accuracy: up to ± 1.5 %RH; Temperature accuracy: up to ± 0.1 °C |
| AI Function | AI Assistant, AI Identify, and AI Notes. Free for a 1-year validity period with 6,000 minutes for AI Notes. | Whiteboard | Built-in whiteboard supports handwriting recognition, graphics recognition, document insertion, and more. |
| ScreenCast | Built-in WonderCast software supports screen casting for up to 9 devices simultaneously. | Video & Audio Input | HDMI 2.1 TMDS × 3 (Front × 1; Rear × 2; supports HDCP 2.3, 2.0 and 1.4; supports HDMI CEC protocol) VGA × 1 (Rear) Audio × 1 (Rear) |
| Video & Audio Output | HDMI 2.1 TMDS × 1 (Rear) Audio × 1 (Rear) SPDIF × 1 (Rear) |
Control Interface | TOUCH-USB 3.0 × 1 (Front × 1) TOUCH-USB 2.0 × 2 (Rear × 2) RS232 × 1 (Rear) |
| Network Interface | LAN (1000 Mbps) × 2 (Rear) Wi-Fi AP & Station, 2.4 G/5 G Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz), authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP |
Data Transmission Interface | USB 3.0 × 4 (Front × 2; Rear × 2) USB 2.0 × 1 (Rear) Type-C × 2 (Front × 1; Rear × 1; supports USB 2.0, 100 W charging functions and DP IN 1.2) |
| Power Supply | 100 to 240 VAC, 50/60 Hz | Standby Consumption | ≤ 0.5 W |
| Average Consumption | < 184 W | Working Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Working Humidity | 10%~90% RH | VESA | 600 mm × 400 mm (4 × M8-25 mm) |
| Accessory | Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5 M HDMI cable (2.0), 3 M power cable, remote control, screen cleaning cloth. | Package Dimensions (W × H × D) | 1662 × 1062 × 223 mm |
| Net Weight | 34.3 ± 0.5 kg | Gross Weight | 46.7 ± 0.5 kg |
| Product Dimensions With Wall Attachment | 1491.9 × 895.1 × 111.0 mm | Product Dimensions Without Wall Attachment | 1491.9 × 895.1 × 82.3 mm |
| Description | Downloads |
|---|---|
| Datasheet | Download |
| User Manual | Download |
| Dimensions | Download |
