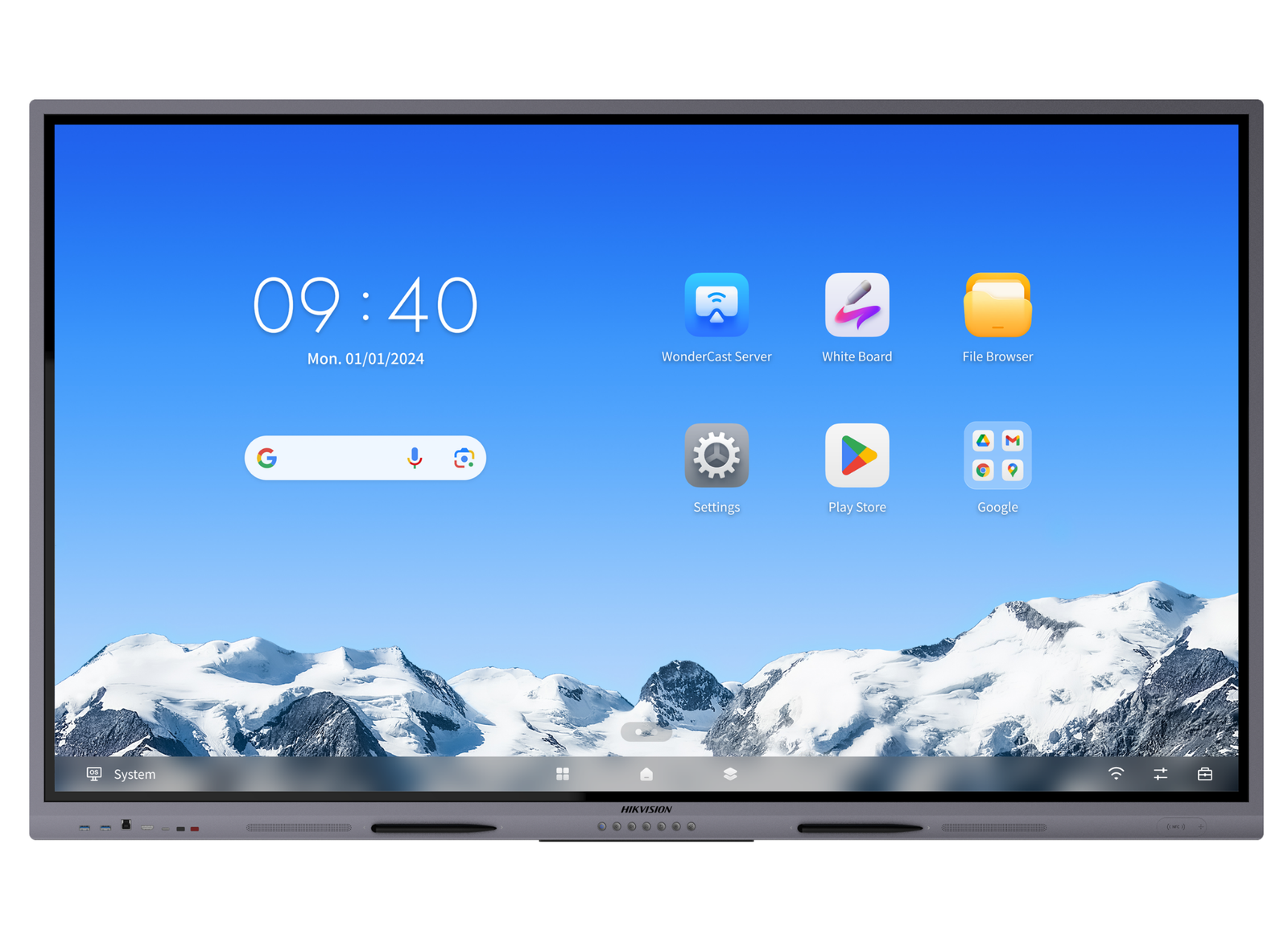

Hikvision DS-D5C75RB/A2L 75" 4K Ultra HD WonderHub Interactive Display with Android 15 EDLA
SKU: DS-D5C75RB/A2L
£1,796.61 (Excl. VAT)
- Display Size75"
- Touch Capabilities50pt multi-touch
- Net Weight45.4kg
- Operating SystemAndroid 15
- VESA Patterns800x400
- Panel TypeVA Panel
- ResolutionUltra HD (4K)
- Screen TypeFlat
- Response Time5ms
- Screen Ratio16:9
- Brightness480 cd/m2
- Operating Hours16/7
- Description
- Specifications
- Downloads
-
Empower Interactive Learning and Professional Collaboration
UHD 4K display with a resolution of 3840 × 2160 and 540 nits brightness.
Anti-Glare and Anti-Fingerprint design to ensure smooth interaction.
Dual systems of Android and Windows (optional with 195×30×180mm OPS) saving cost and easy to use, video conferencing software is recommended to run on the Windows system.
Supports up to 50-point multi-touch interaction with smooth and responsive writing.
Built-in network switch chip eliminates the need for an external network switch.
Multi-button front design for convenient classroom use.
Durable all-in-one design with tempered safety glass and intelligent thermal management.
Built-in Android 14 operating system with EDLA certification.
Dual full-function USB Type-C ports, supporting up to 100W total power delivery and DisplayPort 1.2 input.
Built-in sensors for ambient light, humidity, and temperature monitoring.
-
Product Model DS-D5C75RB/A2L Screen Size 75 inch Backlight DLED Pixel Pitch 0.143 (H) × 0.429 (V) mm Resolution 3840 × 2160 @60 Hz Brightness 540 cd/m² (Typ.) Color Depth 10 bit (8 bit + FRC) Display Color 1.07 G Response Time 5 ms Panel Type VA Contrast Ratio 5000:1 (Static)
30,000:1 (Dynamic)Color Gamut 72% NTSC (CIE1931) (Typ.) Refresh Rate 60 Hz Viewing Angle 178° (H) / 178° (V) Aspect Ratio 16:9 Surface Hardness 9H (Pencil)
7 (Mohs)Surface Glass Anti-Glare & Anti-Fingerprint glass Surface Haze 25% Haze Glass Bonding Method Zero Lamination Display Area 1650.24 (H) × 928.26 (V) Working Duration 7 × 16 H Transmittance 88% ± 3 Lifespan 50,000 hours Touch Type Infrared Touch Screen Touch Point Up to 50-point multi-touch Touch Response Time ≤ 2 ms Minimum Touch Object ≥ 1.5 mm (≥ 90% touching area) Touch Precision ± 0.5 mm (≥ 90% touching area) Touch Resolution 32768 × 32768 Operating System Android 14.0 Memory 8 GB (Optional 16 GB) + Max 16 GB Virtual RAM Built-in Storage 128 GB (Optional 256 GB) Processor Quad-core Cortex-A76 × 4 (2.4 GHz) and quad-core Cortex-A55 × 4 (1.8 GHz) GPU Mali-G610 MC4 HDCP Version 2.3 & 2.0 & 1.4 NPU 6TOPs Loudspeaker Built-in 2 × 20 W + 25 W loudspeaker Bluetooth Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4 Language Supported Simplified Chinese, German, Italian, Arabic, Portuguese, Dutch, French, Indonesian, Thai, Vietnamese, Japanese, Spanish, English, Czech, Danish, Hungarian, Polish, Turkish, Russian, Romanian, Slovak, Korean, Uzbek, Bulgarian, Greek, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Hebrew, Ukrainian, Traditional Chinese (HK), Traditional Chinese (TW), Hindi, Latvian, Kazakh, Nepali NFC Support card reader
13.56 MHz (ISO 14443A / ISO 14443B / ISO 15693)Light Sensor Yes Humidity and Temperature Sensor Relative humidity accuracy: up to ± 1.5 %RH; Temperature accuracy: up to ± 0.1 °C AI Function AI Assistant, AI Identify, and AI Notes. Free for a 1-year validity period with 6,000 minutes for AI Notes. Whiteboard Built-in whiteboard supports handwriting recognition, graphics recognition, document insertion, and more. ScreenCast Built-in WonderCast software supports screen casting for up to 9 devices simultaneously. Video & Audio Input HDMI 2.1 TMDS × 3 (Front × 1; Rear × 2; supports HDCP 2.3, 2.0 and 1.4; supports HDMI CEC protocol)
VGA × 1 (Rear)
Audio × 1 (Rear)Video & Audio Output HDMI 2.1 TMDS × 1 (Rear)
Audio × 1 (Rear)
SPDIF × 1 (Rear)Control Interface TOUCH-USB 3.0 × 1 (Front × 1)
TOUCH-USB 2.0 × 2 (Rear × 2)
RS232 × 1 (Rear)Network Interface LAN (1000 Mbps) × 2 (Rear)
Wi-Fi AP & Station, 2.4 G/5 G
Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz), authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAPData Transmission Interface USB 3.0 × 4 (Front × 2; Rear × 2)
USB 2.0 × 1 (Rear)
Type-C × 2 (Front × 1; Rear × 1; supports USB 2.0, 100 W charging functions and DP IN 1.2)Power Supply 100 to 240 VAC, 50/60 Hz Standby Consumption ≤ 0.5 W Average Consumption < 237 W Working Temperature 0 °C to 40 °C (32 °F to 104 °F) Working Humidity 10%~90% RH VESA 800 mm × 400 mm (4 × M8-25 mm) Accessory Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5 M HDMI cable (2.0), 3 M power cable, remote control, screen cleaning cloth. Package Dimensions (W × H × D) 1907 × 1160 × 223 mm Net Weight 45.4 ± 0.5 kg Gross Weight 63.1 ± 0.5 kg Product Dimensions With Wall Attachment 1713.2 × 1019.0 × 106.5 mm Product Dimensions Without Wall Attachment 1713.2 × 1019.0 × 82.5 mm -
Description Downloads Datasheet Download User Manual Download Dimensions Download
