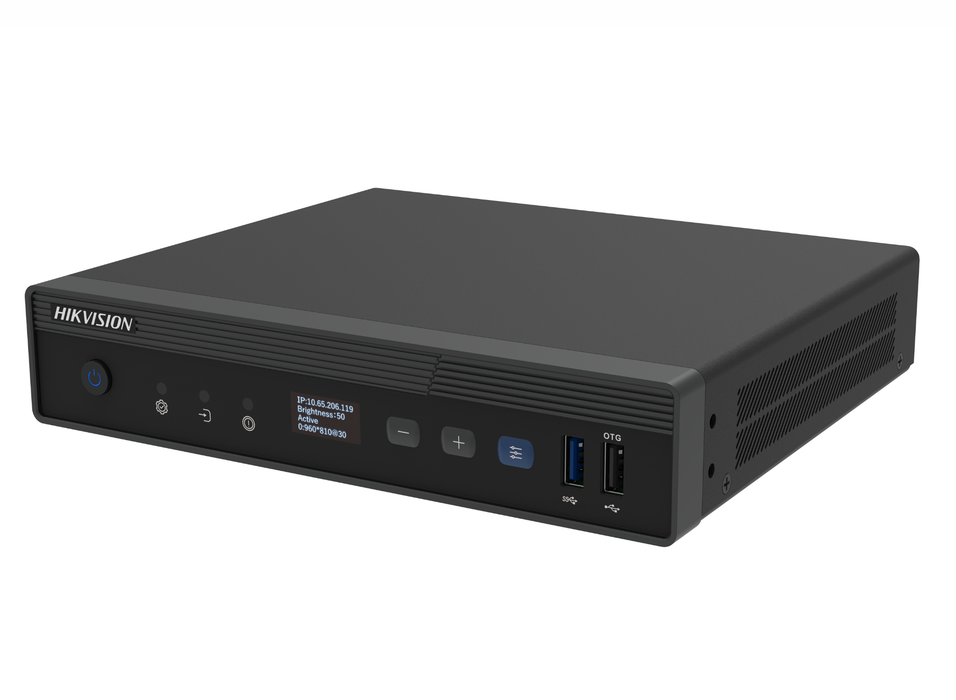

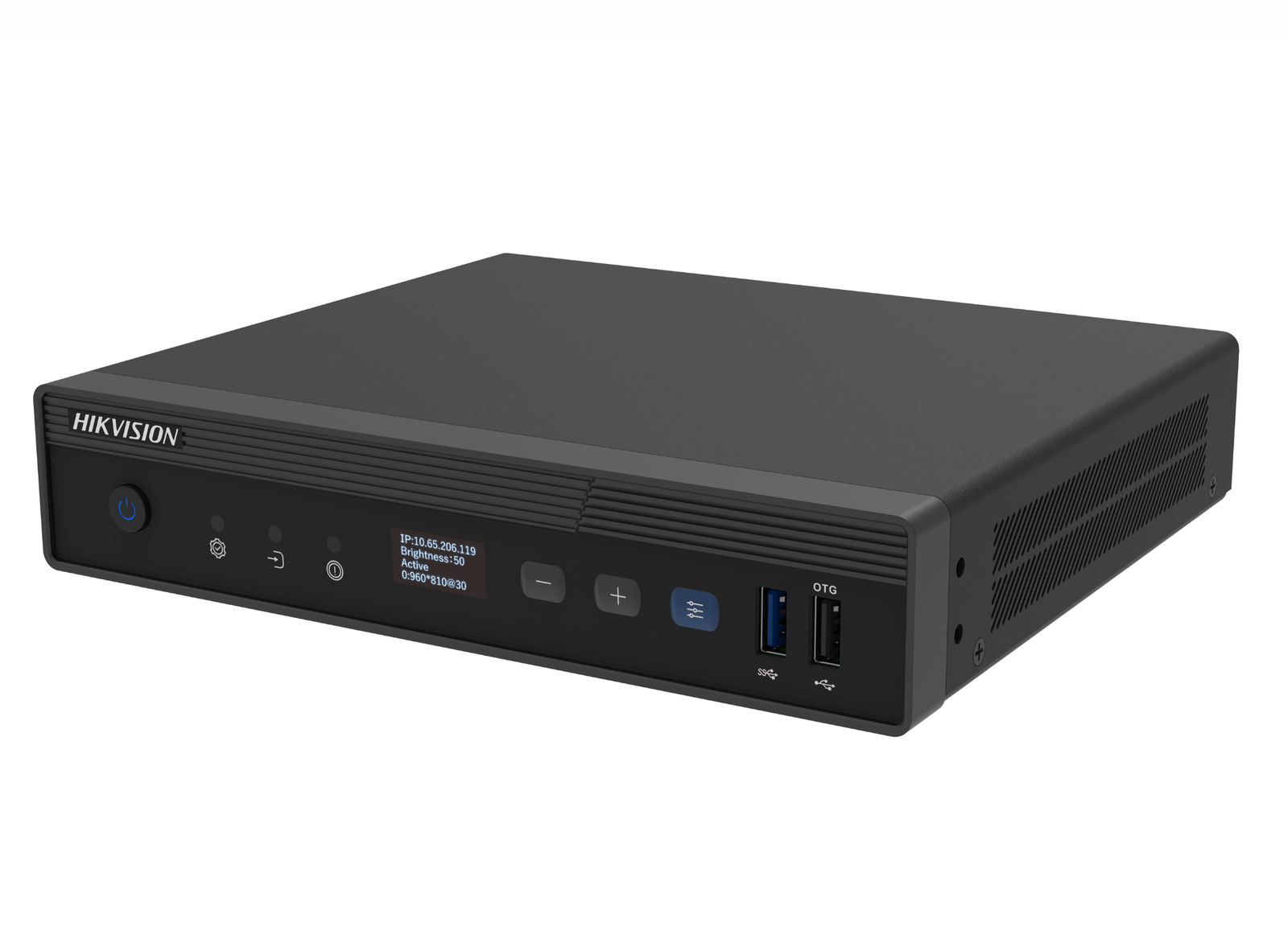

Hikvision DS-DT60P-02HI04NO 4 Ports 3-in-1 LED Controller

Advanced 4-Port LED Display Control Solution

Provides a full-color OLED non-touch screen with the resolution of 128 × 64. Thus, you can view device status at any time and the device maintenance become easier.
Adopts the 1 U rackmount chassis and industrial grade chassis system.

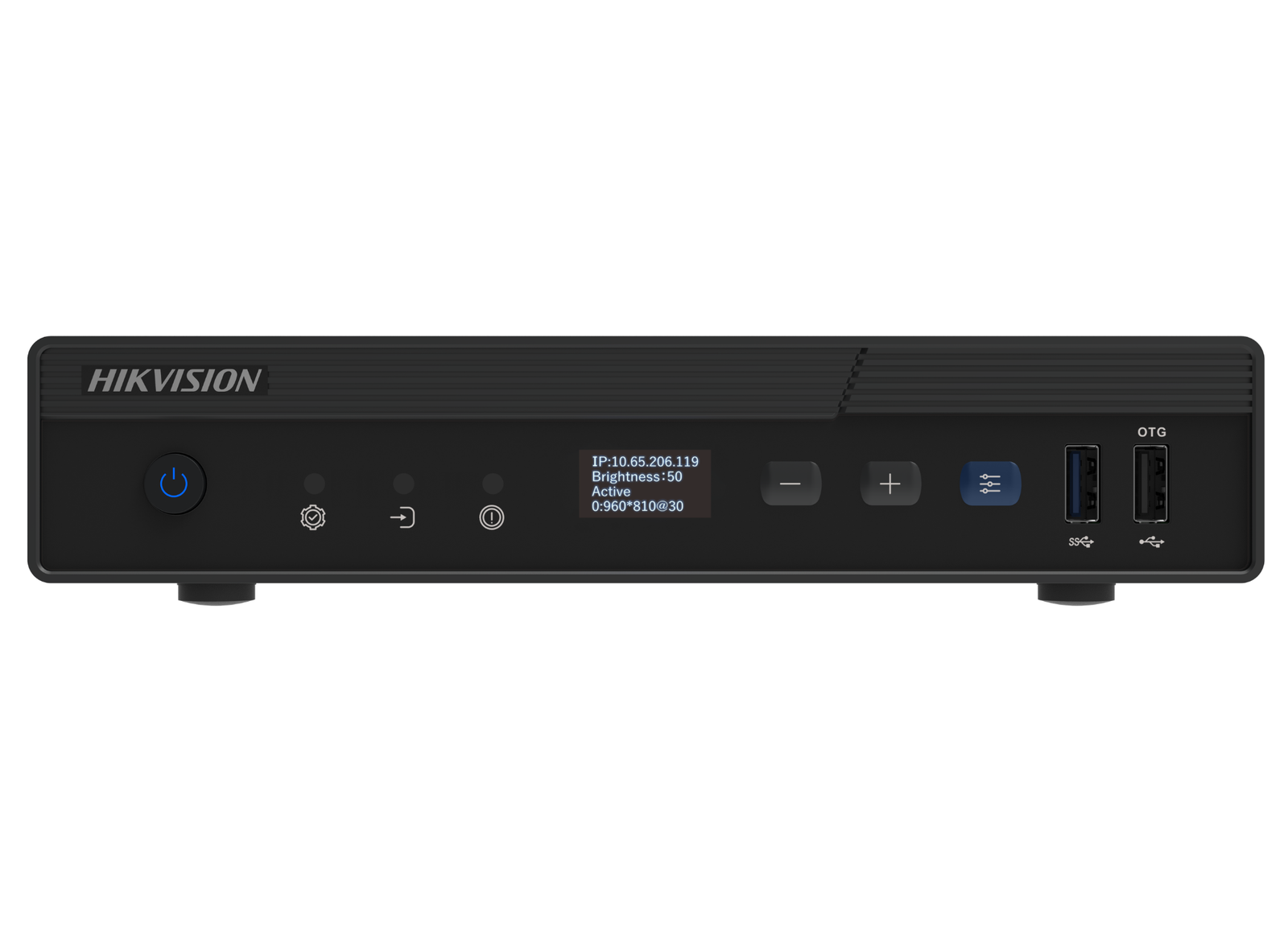

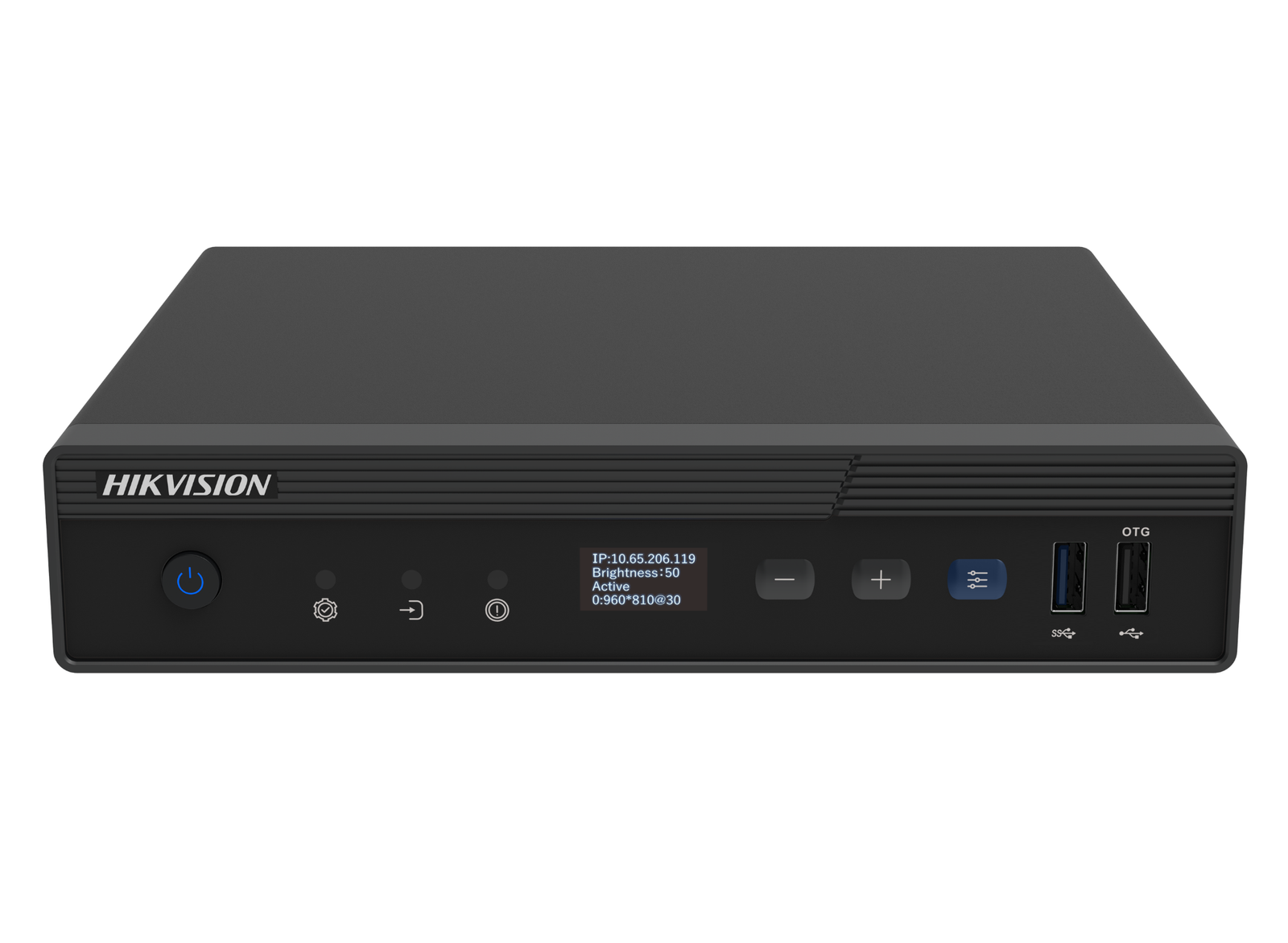

Provides buttons on the front panel to change brightness and other parameters.
Provides indicators on the front panel to indicate the power status, signal access status, and running status.

Supports 3 channels of video signal input. The HDMI 1.4 resolution is 1920 × 1200@60 Hz.

Supports frame rate self-adaption ranging from 25 Hz to 60 Hz for image collection.
Supports the RGB 444 image loading output without image quality loss.
Supports 4 channels of loading output with the maximum loading capacity of 2.6 MP. The maximum width is 5120 pixels and maximum height is 5120 pixels for a single device and the maximum loading capacity of each network port is 0.65 MP.
Supports input of mixed HDMI audio and video stream, and 3.5 mm audio output.
Supports full-screen zoom and custom zoom for video signal input, custom changing, and custom splicing.

Supports opening the signal source windows on the display and roaming window.
Supports 1 channel of subtitle. You can set the color, font, and scrolling speed for the subtitle, and add the picture and clock.

Supports the video wall configuration and window visualization.

Supports up to 10 scenes. Thus, the saved scene can be used directly in the future.
Supports displaying 7 windows (3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window) and customizing the window layout for all windows except for the background window.

Supports high-bandwidth digital content protection technology of HDCP 2.2 protocol.

Supports custom EDID settings.

Supports dual backup of the power supplies and dual backup of LED controller network ports.

Supports custom cable alignment without rectangular frame limit.

Supports the operation through the client or the LED controller web page.

Supports configuring the background.

Supports configuring the startup logo.

Supports configuring the screen dehumidification.

Supports using the remote control to control the screen to display the remote UI menu.

Supports adjusting the brightness, contrast, hue, and other parameters of the output image.

Supports pixel-level screen correction to effectively eliminate color difference and improve the quality of the display

Supports changing the display mode, including general, text, advertisement, video, cinema, security, and etc.

Supports selecting the color temperature adjustment mode such as standard, warm color, and cold color and customizing color temperature.

Supports eye protection mode to protect the vision of the viewer.
Supports high refresh rate output at 3840 Hz, nanosecond response time, and smooth video picture.

Supports viewing the loading relationship between the device and LED screen.
Supports viewing abnormal screen positioning during running.

Supports checking parameters such as device running status, device memory, CPU usage, device running temperature, and network port usage.

Supports abnormal screen voltage detection, screen temperature detection, and device temperature detection

Supports connecting to the central control device and IoT device through RS-485 port.

Supports docking device command and managing device by using the control network port and the protocols such as OTAP.

Supports using the control network port to connect to the multi-functional card to realize environment temperature detection, environment humidity detection, and the cooperation between the human body temperature monitoring and screen control.

Provides built-in Android 12 system, 4 GB memory and 32 GB storage and supports multi-media playing.

Supports WonderCast application via PC, mobile devices, screen casting devices, etc.

Supports program playback via USB flash drive.
