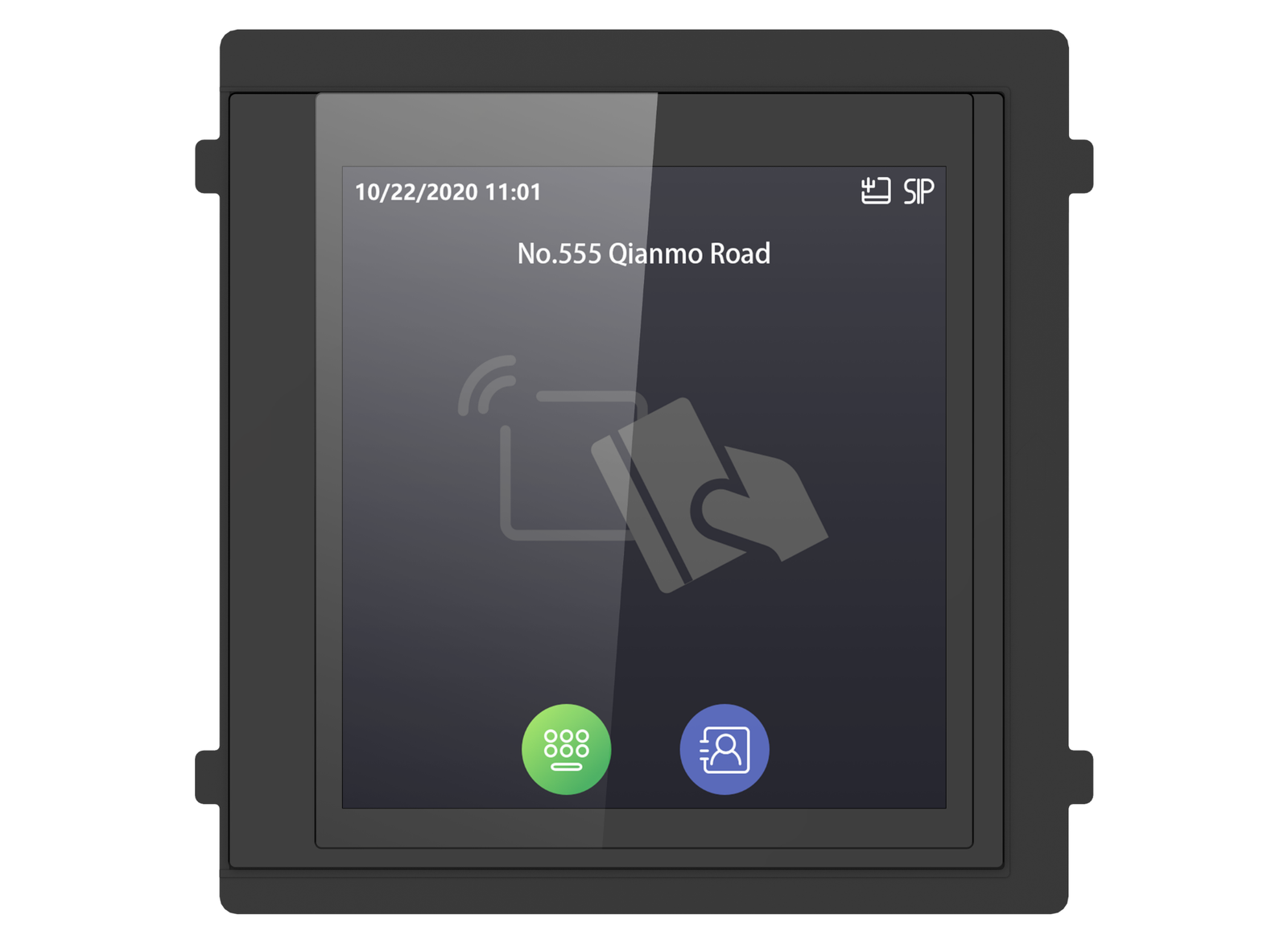

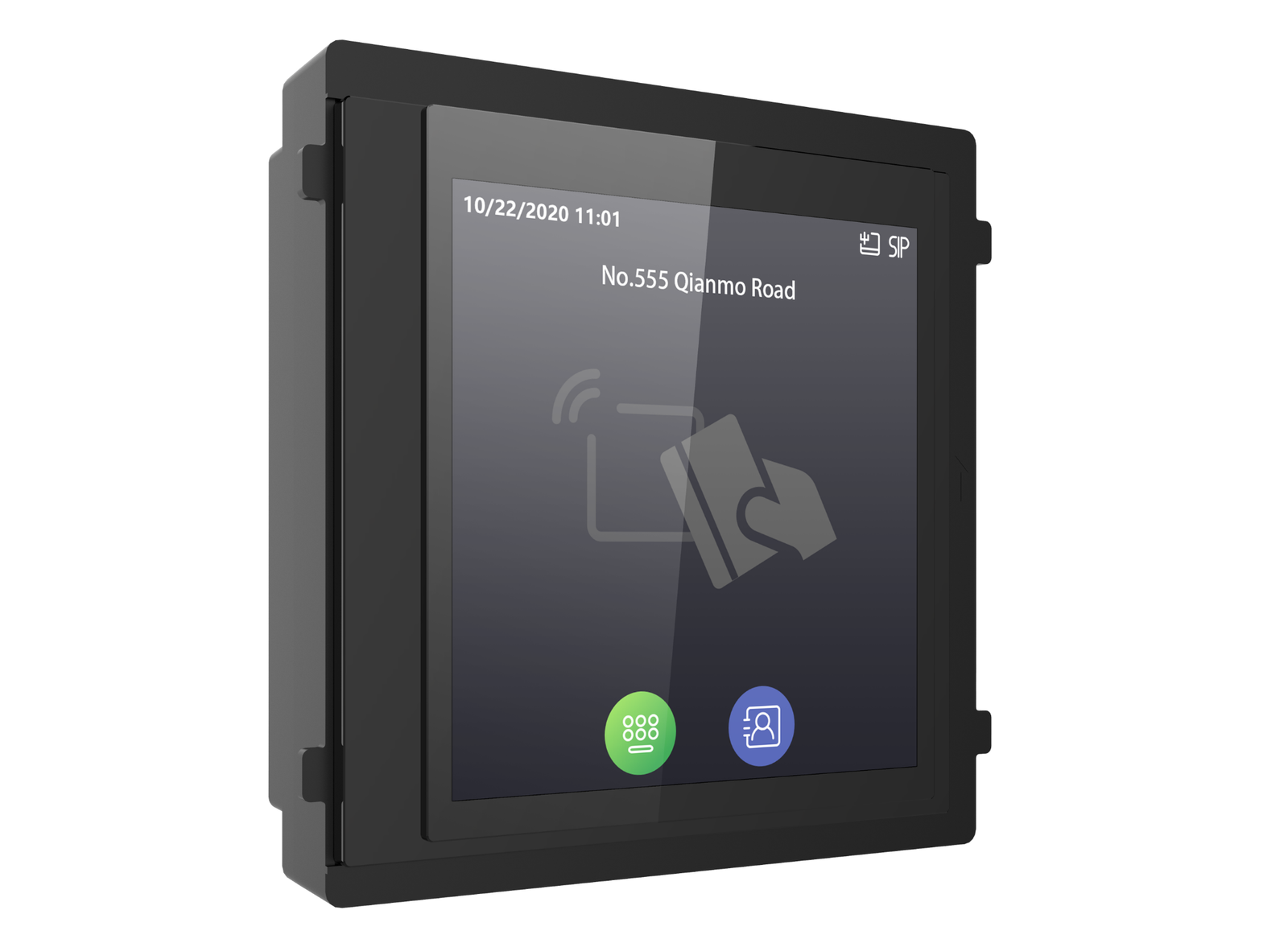

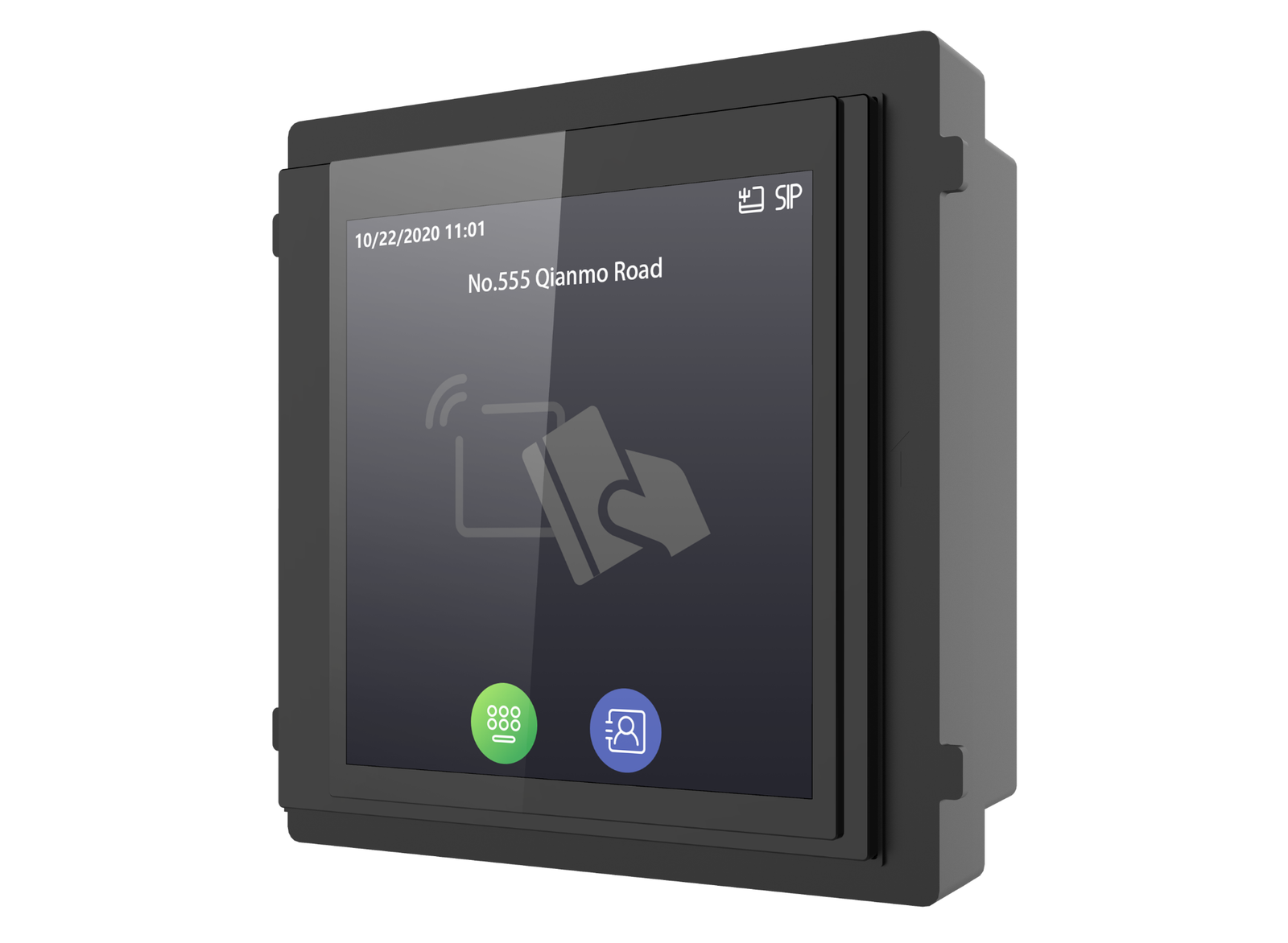

Touch display module with M1 card reader of modular door station
4-inch touch screen with rich information display: Dial number, pin code unlock, contact list, advertisement
Store up to 2000 contacts
IP65 and IK08 higher protection level
Support multiple languages
| Operation System | Linux | ROM | 32 MB |
| RAM | 128 MB | Screen Size | 4-inch |
| Type | IPS | Resolution | 480 × 480 |
| Brightness | Adjustable, Max.500 cd/m2 | Audio Input | / |
| Audio Compression Standard | / | Audio Output | 1 buzzer |
| Audio Quality | / | Volume Adjustment | / |
| Loudspeaker Consumption | / | Wireless Network | AP mode |
| Card Reading Frequency | 13.56 MHz | Card Reading Distance | 2 cm |
| Card Type | M1 card | TF Card | Reserved |
| DIP Switch | 8 bits | Two-Ware Cascading Interface | 2 |
| Installation | Flush mounting, surface mounting | Protective Level | IP65, IK08 |
| Working Temperature | -20 °C to 60 °C (-4 °F to 140 °F) | Working Humidity | 10% to 95% (no-condensing) |
| Dimension (W × H × D) | 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38") | Power Supply | 12 VDC, supplied by the main module |
| Power Consumption | ≤ 4 W | Language | English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish |
| Description | Downloads |
|---|---|
| Datasheet | Download |
