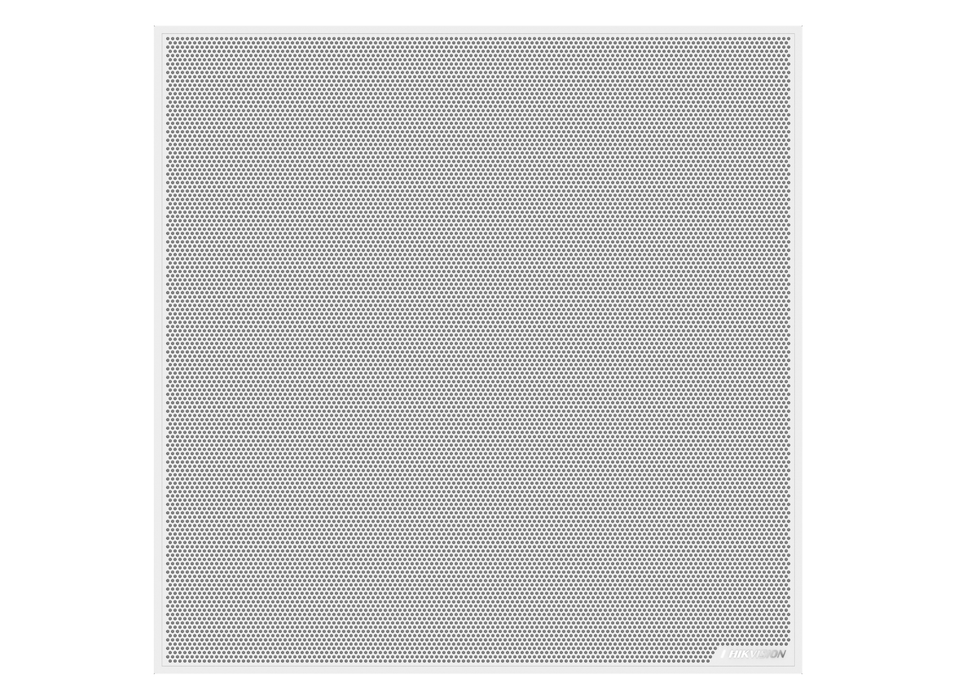

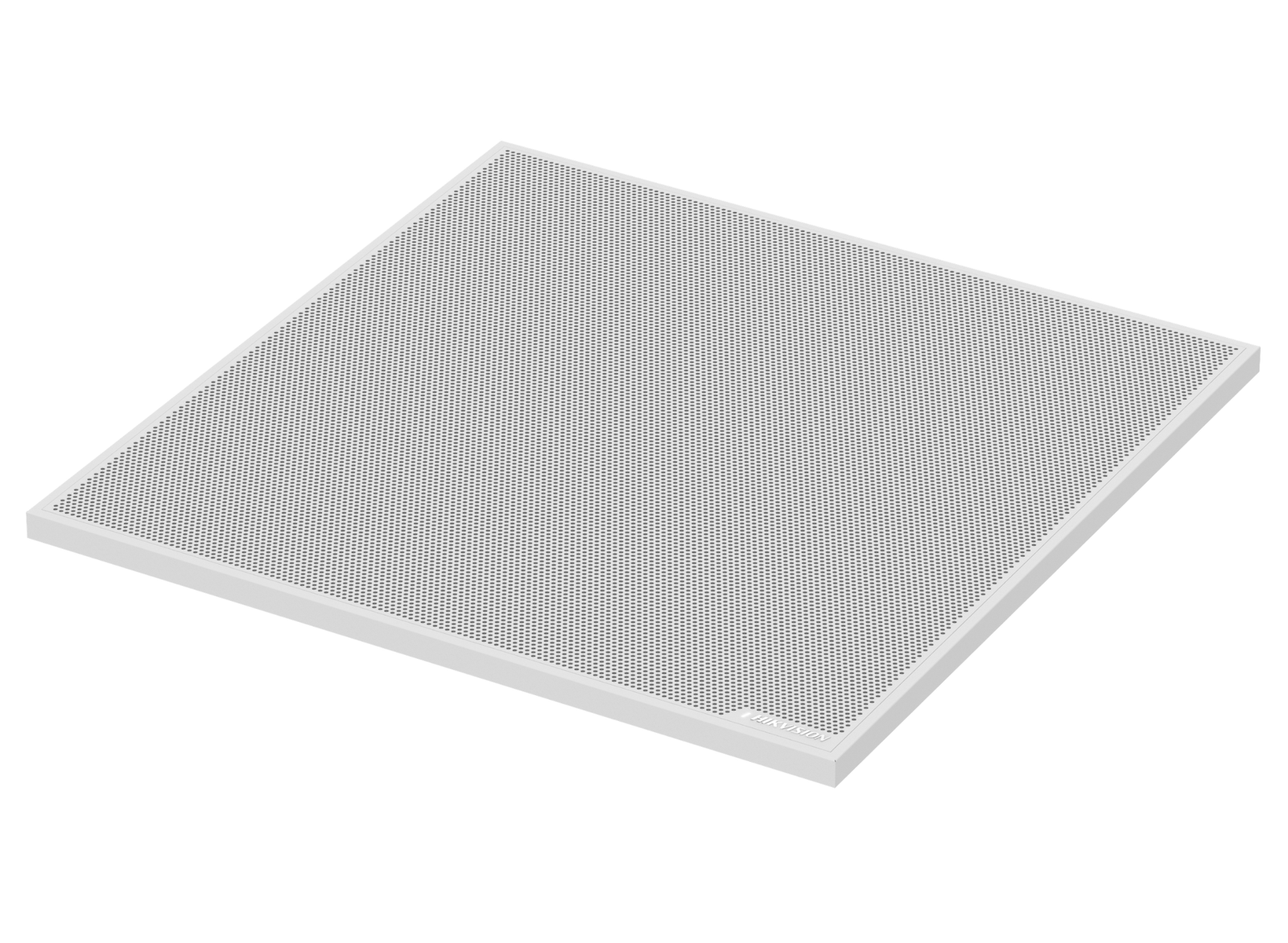

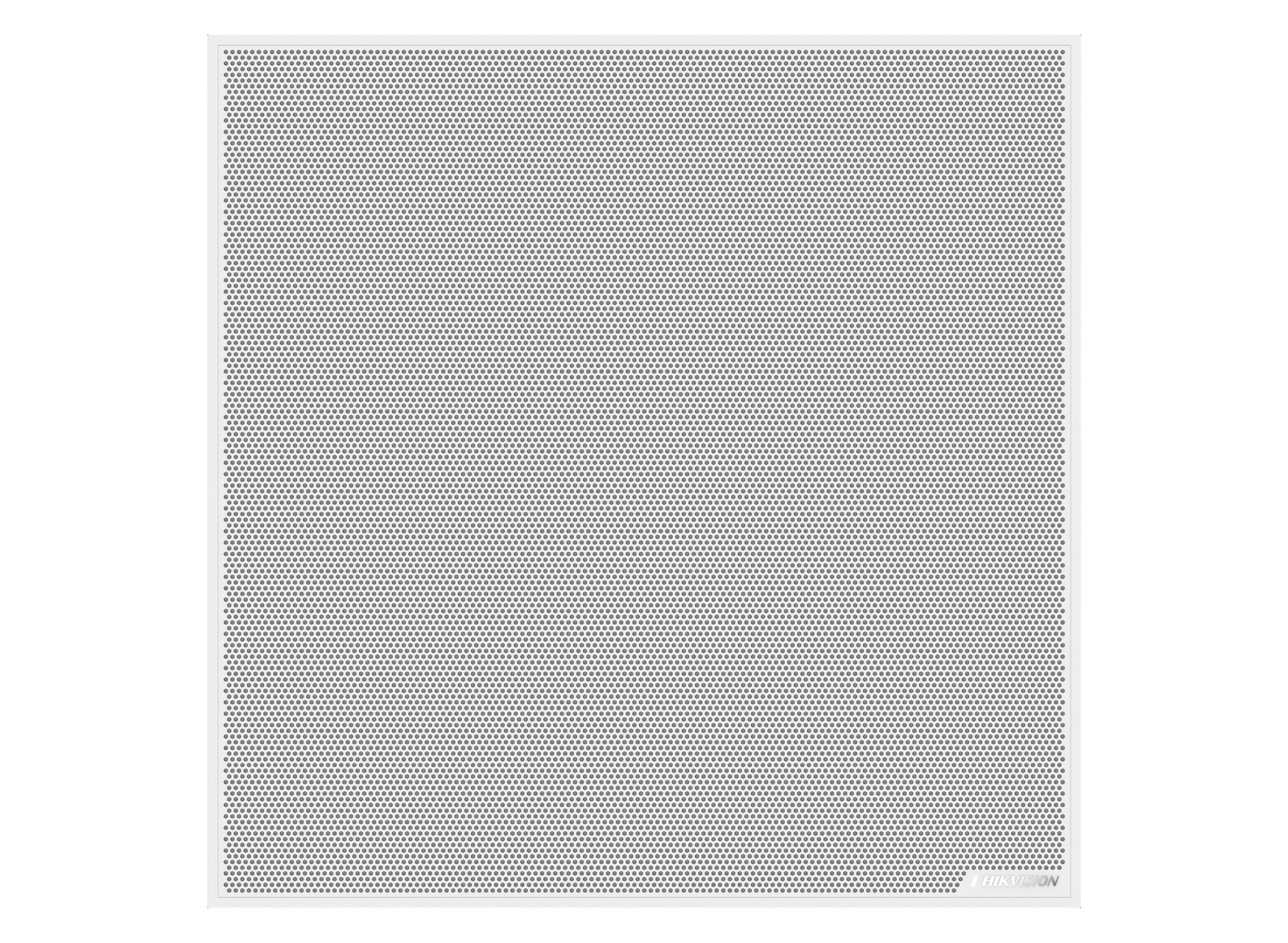

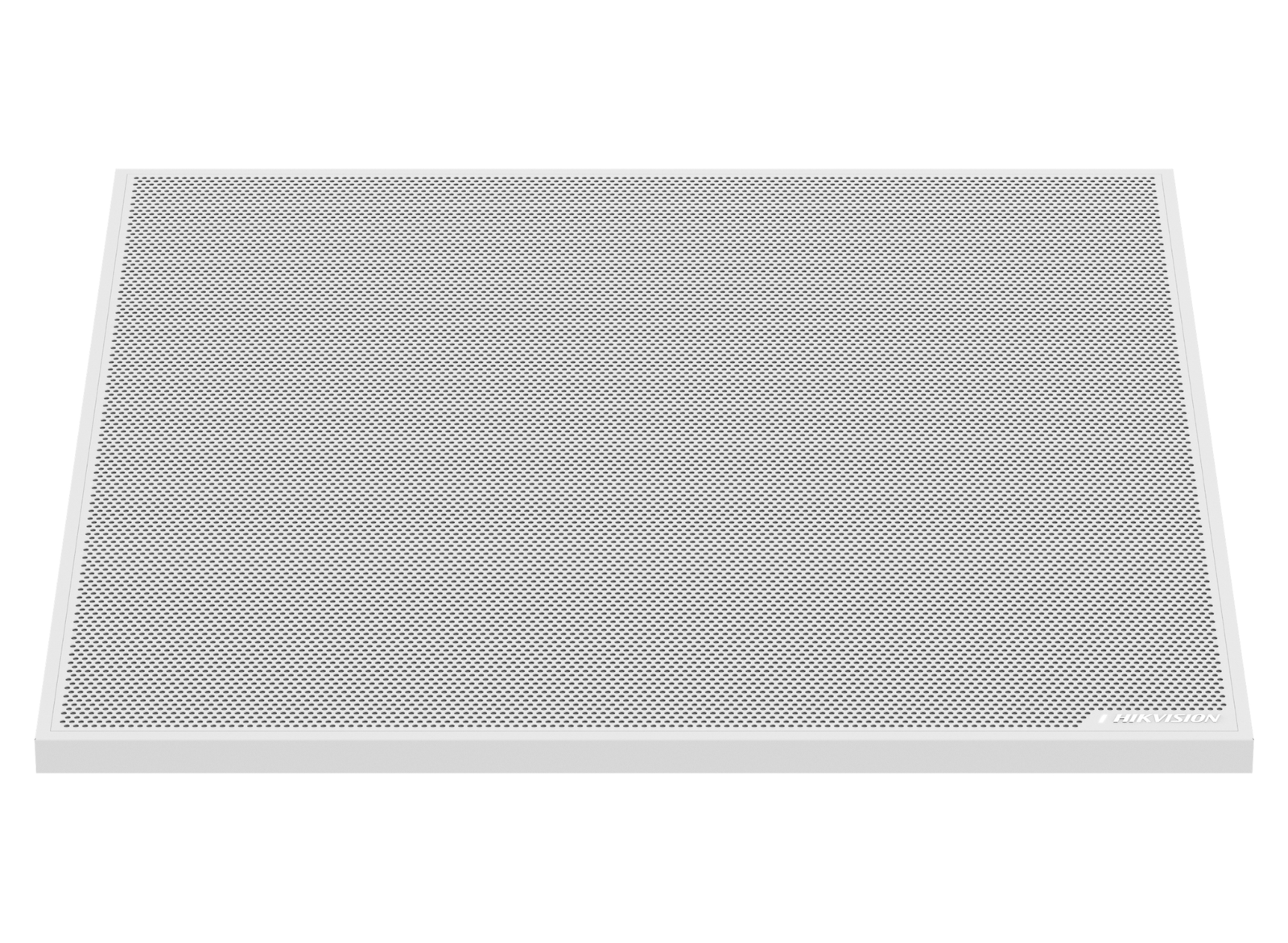

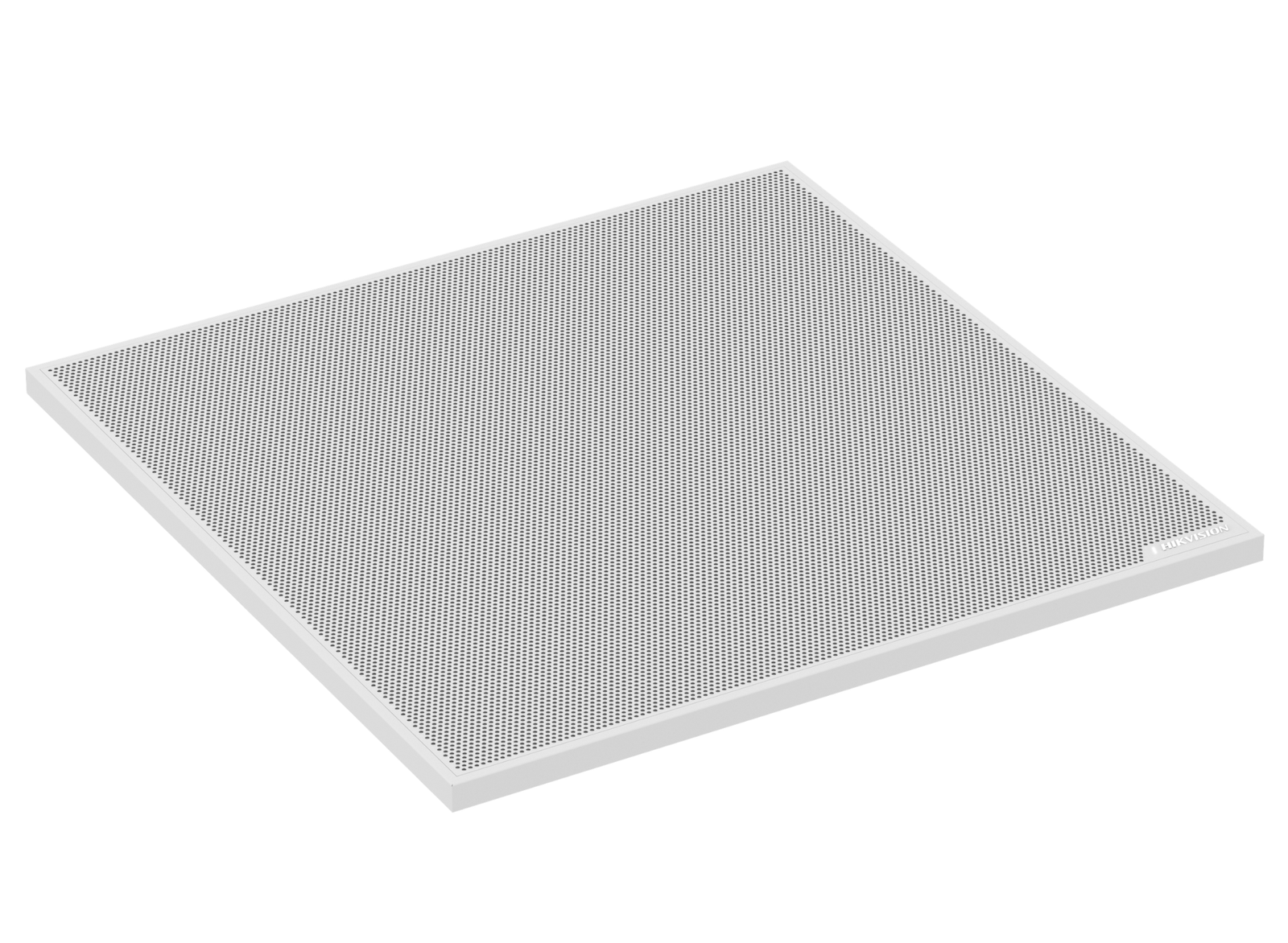

Hikvision DS-QAPMCU128 128 MIC Network Ceiling Array Microphone
SKU: DS-QAPMCU128
£2,450.00 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Intelligent Voice Capture for Modern Meeting Spaces
Sound reinforcement pickup radius is 3 m, video conference pickup radius is 5 m
8 audio collection areas, allowing you to adjust the areas and set area priorities to ensure sound collection
Support 48 kHz/24-bit high sampling rate, providing more authentic sound
Support intelligent noise reduction algorithms, effectively solving various transient noise interference in the environment
Support audio processing algorithms such as AEC, AFC, AGC, and EQ adjustment, and can support local amplification, remote conference, etc.
Support AES67 international standard transmission protocol (subsequent versions will support AES67 third-party compatibility), effectively ensuring low-latency and high-synchronization transmission for the network audio system
Support device activation, network setting, routing setting, parameter setting, and other related operations via audio assistant tool

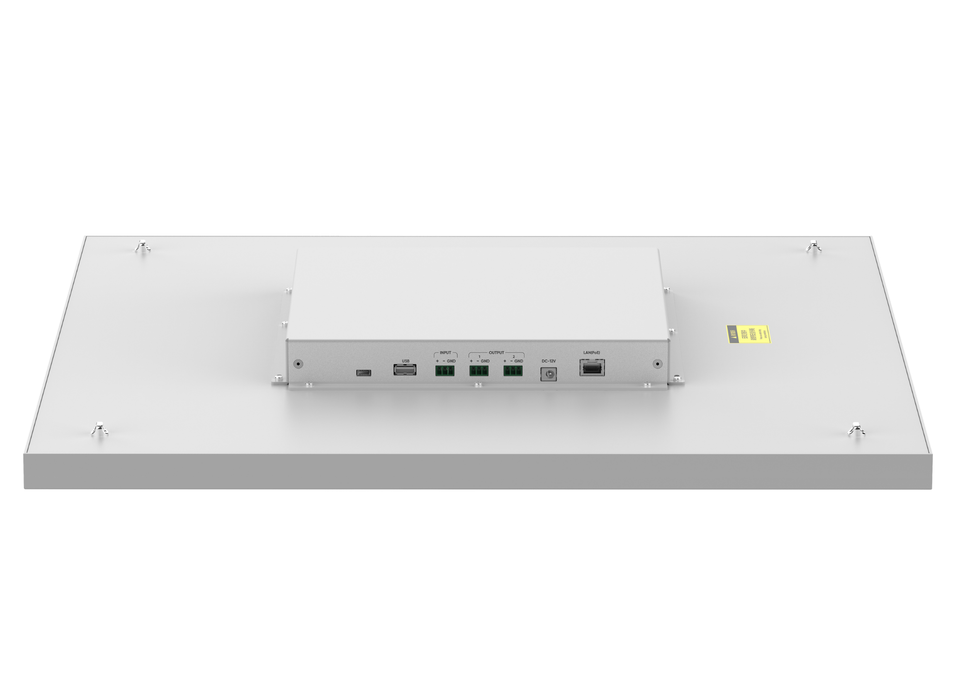

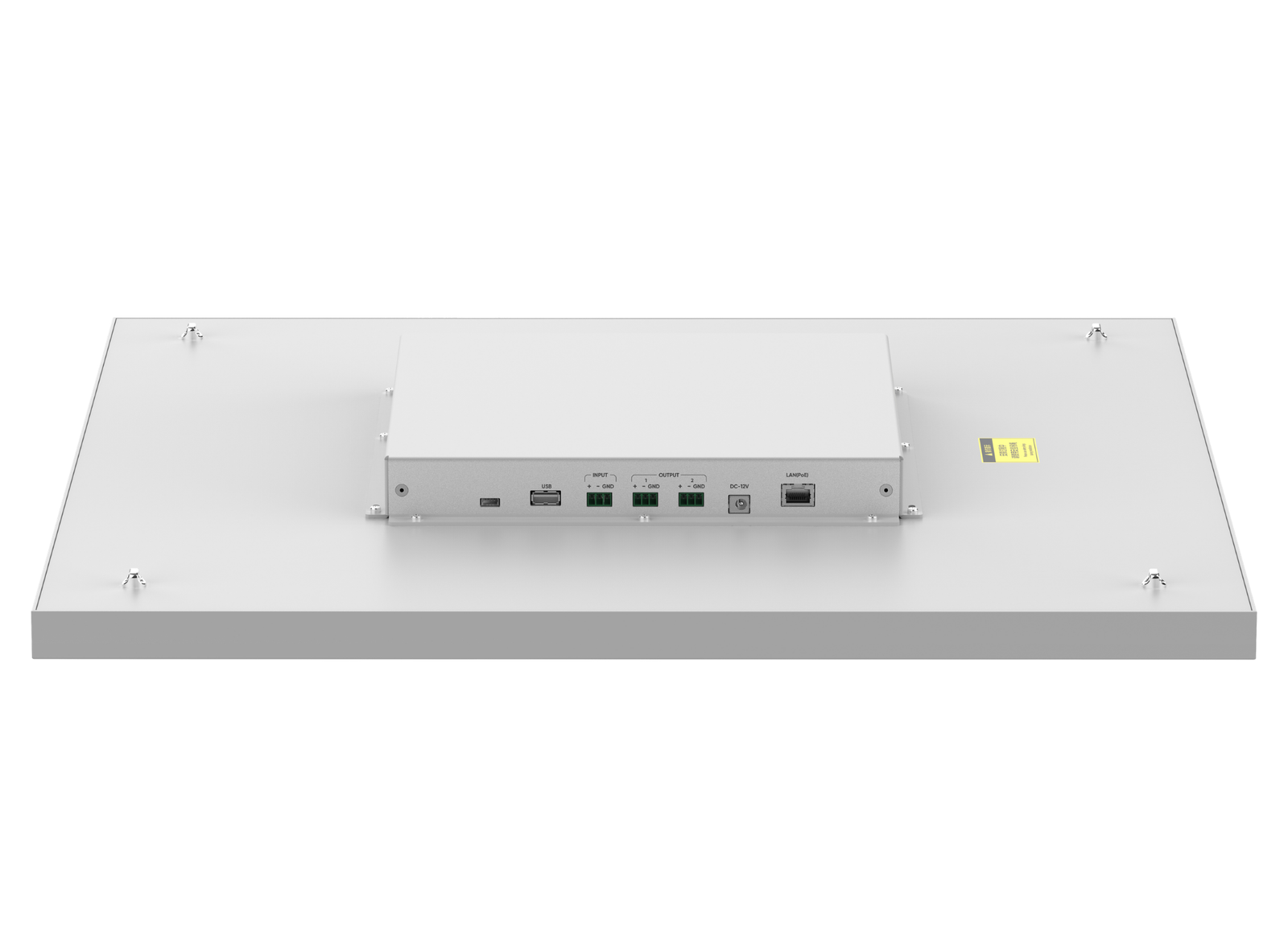

Support 1-channel LINE IN/2-channel LINE OUT analog interfaces, which can be used with analog audio systems.
Support power supply and audio transmission via POE network cables, making installation and wiring more convenient
-
Microphone Type MEMS Amount 128 Frequency Response 20 Hz to 20 kHz Sensitivity -38 dBV SNR 68 dB Sampling Rate 48 kHz Dynamic Range 104 Acoustic Overload Point (AOP) 130 dBSPL Total Harmonic Distortion (THD) <1% Quantization Bits 24 bit Function Audio Algorithm COMP, Delay, Mixing, ALC, PEQ, Noise Gate, Beam Control Audio Bit Rate RTP 768000 bps, AES67 1152000 bps Protection Function Power Reverse Protection, Overcurrent Protection, Overvoltage Protection Network Network Protocol AES67, TCP/IP, ICMP, HTTP, HTTPS, DNS, RTP, RTSP, RTCP, NTP, QoS, UDP, SSL/TLS, IEEE1588 Interface Protocol (API) OTAP Network Security Password protection, complicated password, HTTPS encryption, basic and digest authentication for HTTP/HTTPS, security audit log, TLS 1.2/1.3 Interface Network Interface RJ45 1000 M Ethernet port × 1 Local Storage Built-in 32 GB EMMC × 1, 2 GB DDR4 × 1 Audio In LINE IN × 1, green Phoenix terminal Audio Out LINE OUT × 2, green Phoenix terminal, network output LED Indicator Light off: The device is not powered on. The program is not started.
Breathing White: The device is powering on and initializing.
Solid White: The device is running normally.
Flashing White (10 times): Device recognition is in progress (when there are multiple devices in the system, click Identify Device on the client).
Flashing Red: Device fault.
Solid Red: Device mute.Reset Support Compatibility System Requirement Recommended system configuration for Audio Assistant Tool:
Operating System: Windows® 10 recommended; compatible with Windows® 7, Windows® 8.1, and Windows® 11
CPU: Intel® i3-9100 @ 4.2 GHz or above
RAM: 4 GB and above
Video Card: GT1030 D5
HDD: 20 GB
Display: 1920 × 1080 and aboveGeneral Power DC 12 V, 2 A, max. 24 W; PoE: at Material Metal Dimension 594.0 mm × 594.0 mm × 55.4 mm (23.39" × 23.39" × 2.18") Weight Approx. 6 kg (13.2 lb.) Operating Condition -10°C to 50°C (14°F to 122°F), humidity 90% or less (non-condensing) Package Dimension 710 mm × 137 mm × 745 mm (27.95" × 5.39" × 29.33") With Package Weight Approx. 9.2 kg (20.3 lb.) Color White Installation Ceiling-mounting (600 mm × 600 mm suspended ceiling), pendant mounting (wall thickness ≥ 60 mm) System Language English Mounting Bracket Included: Crossbar Bracket, Safety Rope, Lifting Rope -
Description Downloads Datasheet Download User Manual Download Dimensions Download
