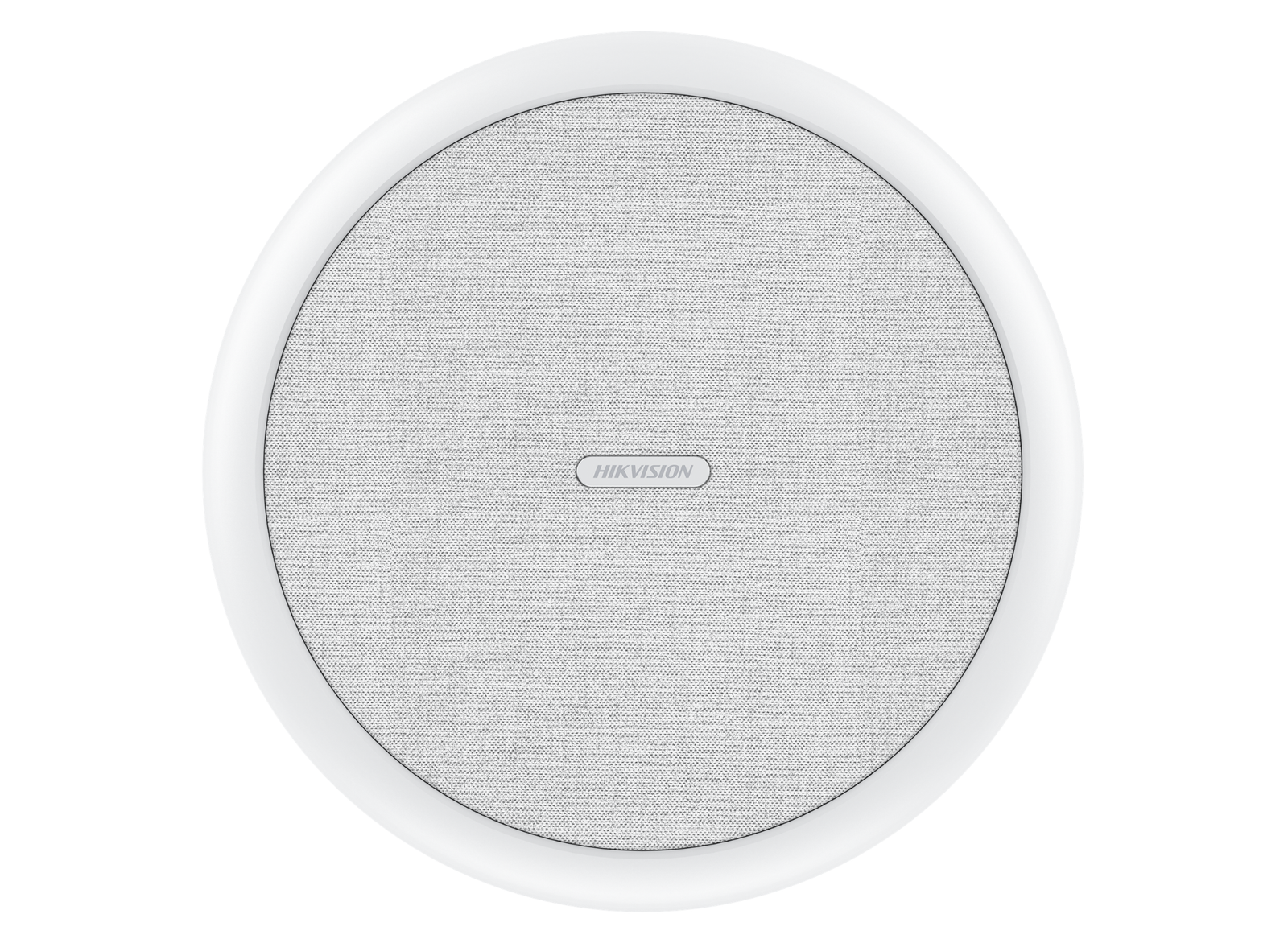

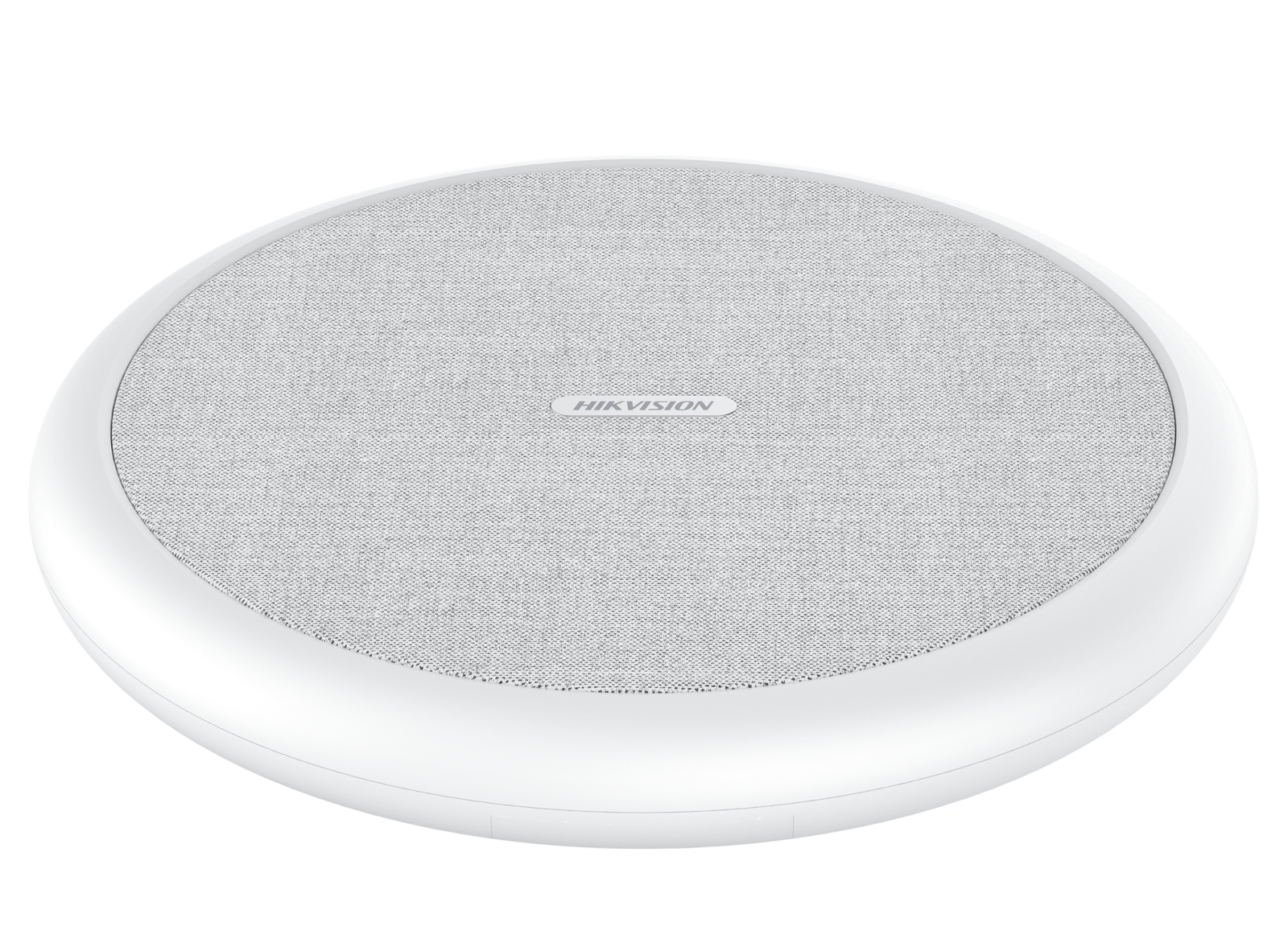

Hikvision DS-UAC-M1P 32-Mic Array Conference Microphone with PoE
SKU: DS-UAC-M1P
£226.86 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Professional Audio Capture for Large Meeting Spaces
Adopts multi-mic array, picking up sounds in the radius up to 10 meters
The built-in digital circuit is embedded with DSP processing unit and AGC technology to realize clear sound with high fidelity
With multi-mic array design and self-adaptive beamforming technology, the microphone reduces reverberation effectively
Supports accessing echo reference signal via line in interface, and with AEC algorithm, the microphone suppresses echo and squeal effectively
Supports smart noise reduction, avoiding environmental noise
The indicator is convenient for troubleshooting
Supports network settings and transmitting the audio stream to network camera and DVR/NVR
Supports 32 kHz audio sampling rate for HD sound
Power over ethernet, convenient for installation
-
Microphone Amount 32 Direction Omnidirectional Pickup Distance Radius up to 10 m Sensitivity -36 dB ± 1 dBFS Signal-to-Noise Ratio 90 dB Frequency Response 20 Hz to 16 kHz Dynamic Range 105 dB Maximum Sound Pressure Level 120 dBSPL Output Amplitude 2.5 Vpp maximum Audio Transmission Distance ≥3000 m Output Impedance 600 Ω, balanced output Distortion Degree ≤3% Audio Sampling Rate 16 kHz, 32 kHz Indicator Solid white: normally working
Solid red: abnormal
No light: no power supplyDevice Interface Line out, Line in, DC power input, RJ45 network cable Power 9 VDC to 30 VDC, PoE, 2.4 W maximum Material Plastic Dimensions Ø250 mm × 34.5 mm (Ø9.84" × 1.36") Weight Approximately 740 g (1.63 lb.) Operating Condition -10°C to 50°C (14°F to 122°F), indoor Echo Suppression Yes Noise Reduction Adjustment Digital noise reduction Volume Adjustment ≥100-level volume adjustment Device Management Power-off detection, program exception detection Anti-Reverberation Yes Packing List 1 × Microphone, 1 × Extension Cable, 1 × Quick Start Guide, 1 × Installation Plate Protection Lightning protection, power polarity reversal protection, and electrostatic discharge protection -
Description Downloads Datasheet Download User Manual Download Dimensions Download
