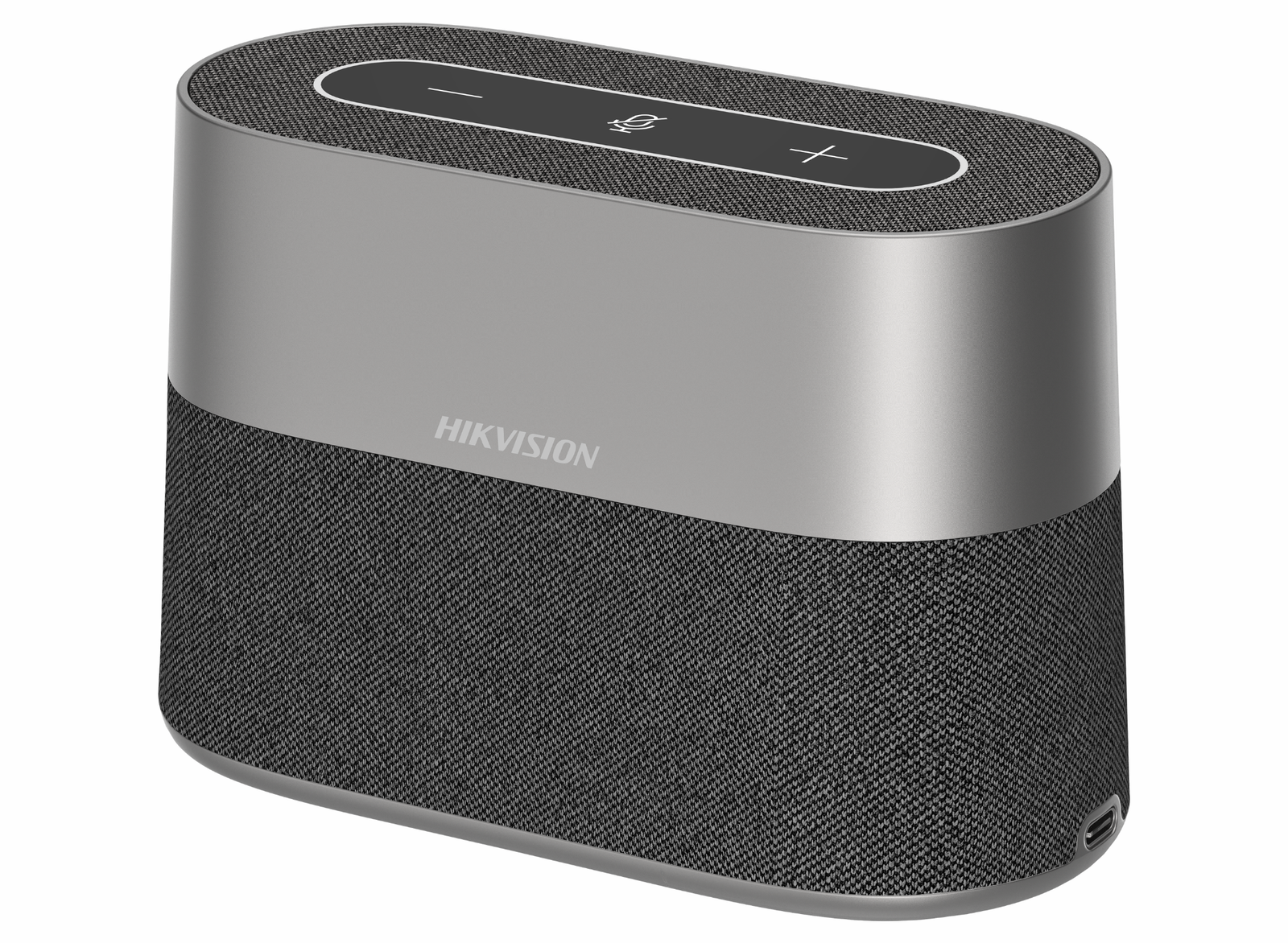

Hikvision DS-UAC-S1V Sound Cube Speakerphone for Conference
SKU: DS-UAC-S1V
£135.66 (Excl. VAT)
- Description
- Specifications
- Downloads
-
360° Conference Speakerphone with 8-Mic Array
Adopts 8-mic array, picking up 360° clear sound with 5 meters range
Adopts the HD speaker
Supports steady and transient smart noise reduction, echo and squeal suppression, anti-reverberation to enhance speech quality and offer audio in high quality
Supports USB cable connection, plug and play
Compatible with leading online conferencing platform
-
Section Microphone Type MEMS Direction 360° Omni-directional Pickup Distance In the radius up to 5 m Amount 8 Frequency Response 100 Hz to 10 kHz Sensitivity -38 dBV/Pa SNR 85 dB Sampling Rate 16 kHz/32 kHz/48 kHz Dynamic Range 102 dB Acoustic Overload Point (AOP) 130 dBSPL Power Supply Rejection Ratio (PSRR) 60 dB Total Harmonic Distortion (THD) 0.15%@94 dBSPL, 1 kHz Special Function/Algorithm Beam forming 3A Algorithm AEC, ANS, AGC Section Speaker Rated Power 3 W Maximum Output Loudness 81 dBSPL @1 m, 1 kHz Speaker Range In the radius up to 8 m Effective Bandwidth (-10 dB) 150 Hz~15 kHz Total Harmonic Distortion (THD) ＜1% @ 1 kHz Sensitivity 76 dB@1 m, 1 W Dimension 45 mm Maximum Displacement 2 mm Rear Cavity Volume 0.14 L Impedance 4 Ω Direction Omni-directional F0 260 Hz Weight 118.5 g Section Functions Audio Function Supports steady noise reduction, such as the sound of air conditioner and fan, and transient noise reduction, such as the sound of falling, claps and steps.
Supports echo and squeal suppression, anti-reverberation to enhance speech quality and offer audio in high qualityLED Indicator Solid white: normally working
Solid red: mute
Green: Speaker volumeSection Communication Communication Method USB cable Wired Communication Distance Cable length: 2 m Section Battery Capacity 7.2 V/3700 mAh Charging Temperature 0 °C to 45 °C (32 °F to 113 °F) Discharging Temperature -20 °C to 60 °C (-4 °F to 160 °F) Storage Temperature 0 °C to 35 °C (32 °F to 95 °F) (less than one year) Section Interface Cable USB Type C to Type A interface Device Interface USB Type C Section Compatibility System Requirement Windows XP/7/8/10/11
Android 8.1 and above version
Linux 4.14 and above version
macOS 10.12 and above versionSection General Power 5 VDC ± 5%, max. 4.8 W Operating Condition -10 °C to 45 °C (14 °F to 113 °F). Humidity 90% or less (non-condensing) Dimension 142.2 mm × 93.9 mm × 69.2 mm (5.60" × 3.70" × 2.72") Package Dimension 273 mm × 140 mm × 82 mm (10.75" × 5.51" × 3.23") Weight Approx. 620 g (1.37 lb.) With Package Weight Approx. 1100 g (2.43 lb.) Color Silver gray Packing List Speakerphone × 1
USB Cable × 1
Quick Start Guide × 1 -
Description Downloads Datasheet Download User Manual Download
