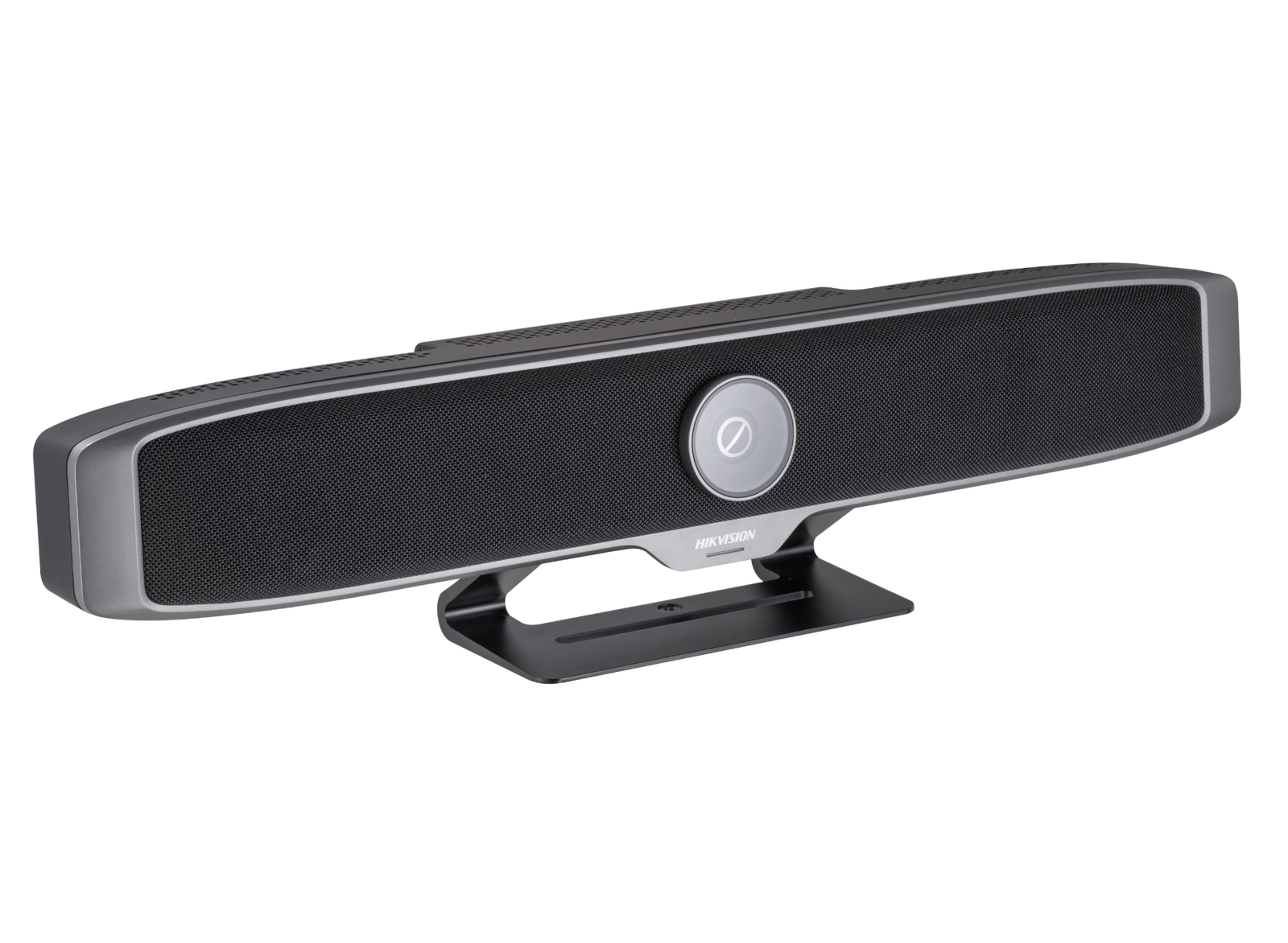

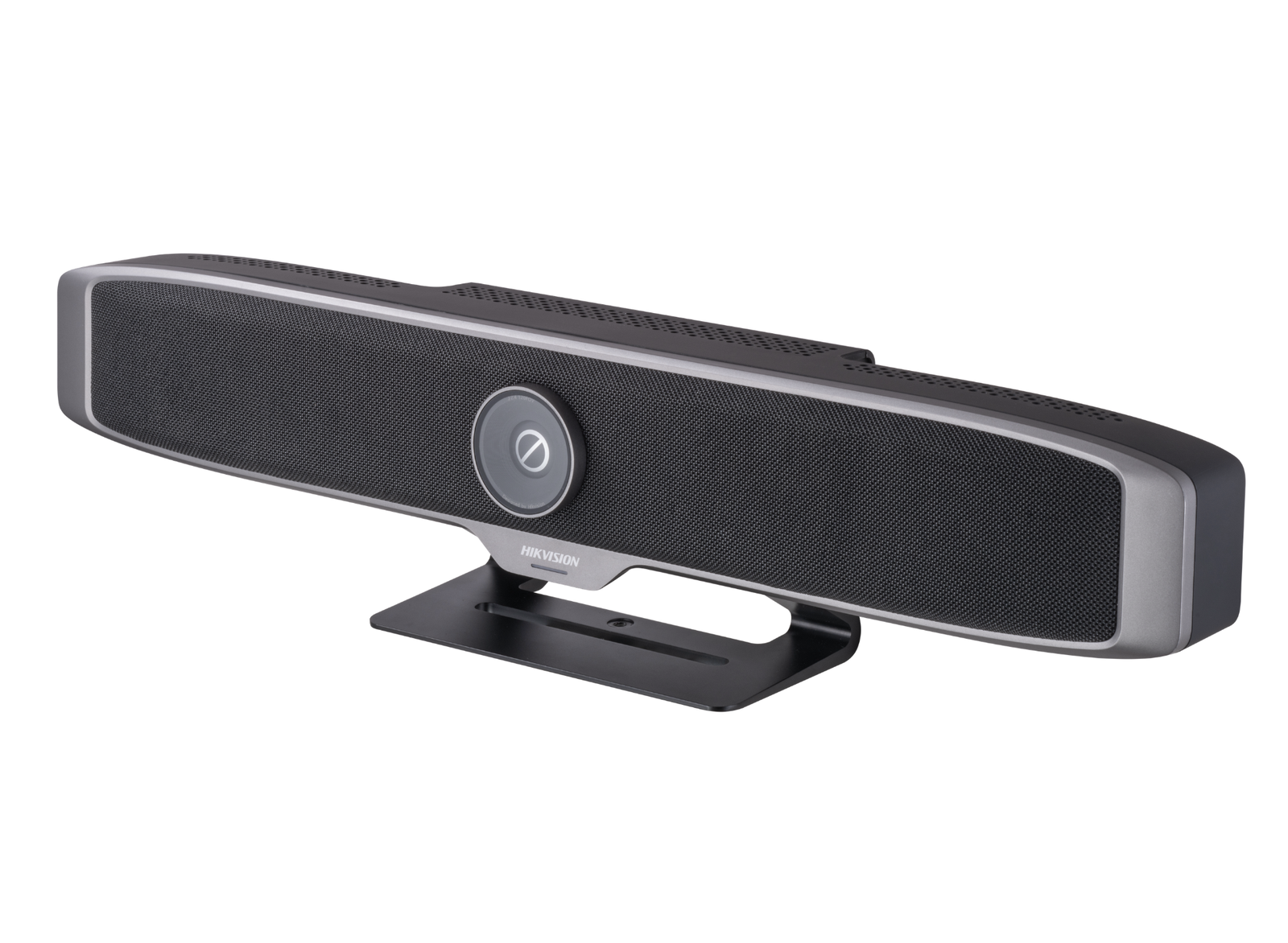

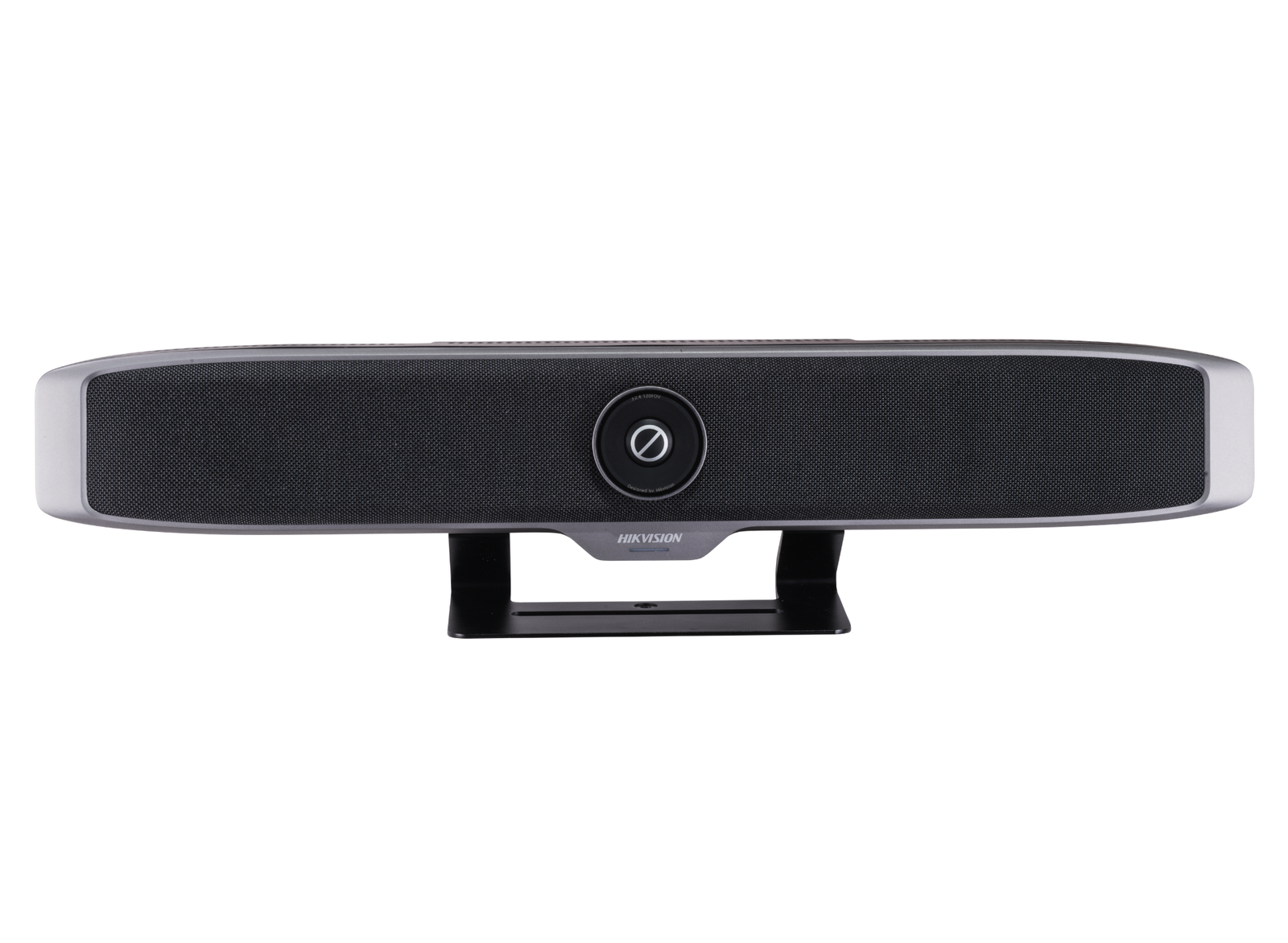

Hikvision iDS-UVC-X28-B 4K All-in-One Video Conference Bar
SKU: IDS-UVC-X28-B
£765.00 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Professional Collaboration Solution for Modern Meeting Rooms
The all-in-one design integrates a camera, microphone, and speaker, easily meeting the needs of video conferencing
4K CMOS, delivering ultra-high definition meeting images for your video meetings
HDR technologies allow for the automatic adjustment of video settings in any lighting condition
Equipped with an 8 microphones array. It supports 6-meter sound pickup range and perfectly meets the needs of small and medium-sized conference rooms
Built-in full-range, high definition speaker
Support smart functions, including auto framing, speaker tracking and close-up group
Using a wireless dongle featuring BYOM, and enhancing your meeting experience by making it seamless
USB Type-C interface, supporting USB 3.0 protocol, plug-and-play, suitable for mainstream cloud conference platforms
-
Product Form Highly-integrated Product Characteristics Wired USB camera, wireless mirroring Video Codec Protocol MJPEG, H264 Audio Codec Protocol PCM 16 bit depth 48 kHz, AAC-LC 16 bit depth 48 kHz Other Communication Protocols UAC, UVC Wi-Fi Standard Supports 2.4 G and 5 G dual-band connection Bluetooth Supports 5.0 (only for the remote control) Video Input Resolution Capability 1 × HDMI IN, Max. 4K@30
1 × Wireless Screen Mirroring, Max. 4K@30
1 × Wireless Camera, Max. 1080P@30Video Output Resolution Capability 2 × HDMI OUT, Max. 4K@60
1 × USB-C (UVC MJPEG), Max. 1080P@30Audio Algorithm Audio Array Algorithm, Self-Adaption Audio Algorithm, Acoustic Echo Cancellation (AEC), Automatic Noise Suppression (ANS), Automatic Gain Control (AGC) Automatic Gain Control Supported Automatic Noise Suppression Supported Acoustic Echo Cancellation Supported Intelligent Noise Reduction Supported Camera Type Built-In Privacy Mask Electronic Privacy Cover Sensor 1/2.8 inch CMOS, effective pixel 8 million Maximum Resolution 4K@30 (3840 × 2160) Aperture f/2.5 Focus Distance 2.02 mm Backlight Compensation Supported Horizontal Field Angle 109.9° Vertical Field Angle 74.6° Field Angle 118.8° Digital Magnification 3× e-PTZ electronic head Automatic Gain Supported Automatic Exposure Supported Preset Point Supported, 5 presets; supports active call, update and clear DNR 2D & 3D White Balance Supported, automatic Other Camera Features Supports adjustment of brightness, contrast, saturation, sharpness and gain. View modes include Manual Mode, Smart View, Smart Tracking and Smart Gallery. Loudspeaker Rated Power 10 W Loudspeaker Sensitivity 78 dB ± 3 dB Loudspeaker Size 78 mm × 183.4 mm × 50 mm Electrical Impedance 8 ± 1.2 Ω Lowest Frequency Response Point 240 Hz Speaker Follow Supported Intelligent Framing Supported Smart Window Supported Electronic Nameplate Supported Supported Operating System Windows 7/10/11 and Mac OS Video System MJPEG: 1080P@30 (1920 × 1080), 720P@30 (1280 × 720), 540P@30 (960 × 540), 360P@30 (640 × 360), 270P@30 (480 × 270) USB Audio PCM 16 bit depth, 48 kHz USB Video Communication Protocol UAC, UVC Maintenance Mode Supported; managed by remote control Maintenance Function Supports device configuration and upgrade via USB flash drive or cloud service online detection Video Input 1 × built-in camera, 1 × HDMI IN Video Output 2 × HDMI OUT Audio Input 1 × 3.5 mm LINE IN Audio Output 1 × 3.5 mm LINE OUT Network Interface 1 × 10/100/1000 Mbps self-adaption network USB Interfaces 1 × USB 3.0 Type-C, 2 × USB 2.0 Type-A Power Interface DC Jack, Φ2.0 m Bluetooth Interfaces 1 × 2.4G remote control Bluetooth, 1 × 2.4G audio Bluetooth Wi-Fi 1 × 2.4 G & 5 G Other Interface 1 × MIC (PoE power supply, reserved interface) Microphone Type Built-In Polar Pattern Omni-Directional Pickup Range 6 m Array Amount 8 Frequency Response Range 100 Hz–20 kHz Microphone Sensitivity -38 dB Signal-to-Noise Ratio 65 dB Sampling Rate 48 kHz Installation Screws + buckles Product Weight 2.49 kg Weight with Packing Approximately 5.360 kg Product Dimensions 616 × 145 × 104.23 mm Packaging Dimensions 727 × 227 × 213 mm Power Consumption 24 W Input Voltage DC 12 V Input Current 2 A Operating Temperature 0 to 40°C Operating Humidity 10% RH to 80% RH Tripod Connecting Hole 1 × 1/4-20" screw hole Heat Dissipation No heat dissipation holes; internal aluminum block for heat dissipation Packing List 1 × Remote Control, 2 × Batteries, 1 × AC Powerline, 1 × Power Adapter with European/German Plug Adapter, 1 × Wall-Mounted Bracket, 1 × NFC Sticker, 1 × Expansion Screw, 1 × Quick Start Guide, 1 × Regulation Compliance and Safety Information, 1 × Thank You Card, 1 × 5 m USB 3.0 Cable (USB-C to USB-A) Certification Certificate CB/CE, Certification of Transport -
Description Downloads Datasheet Download User Manual Download
