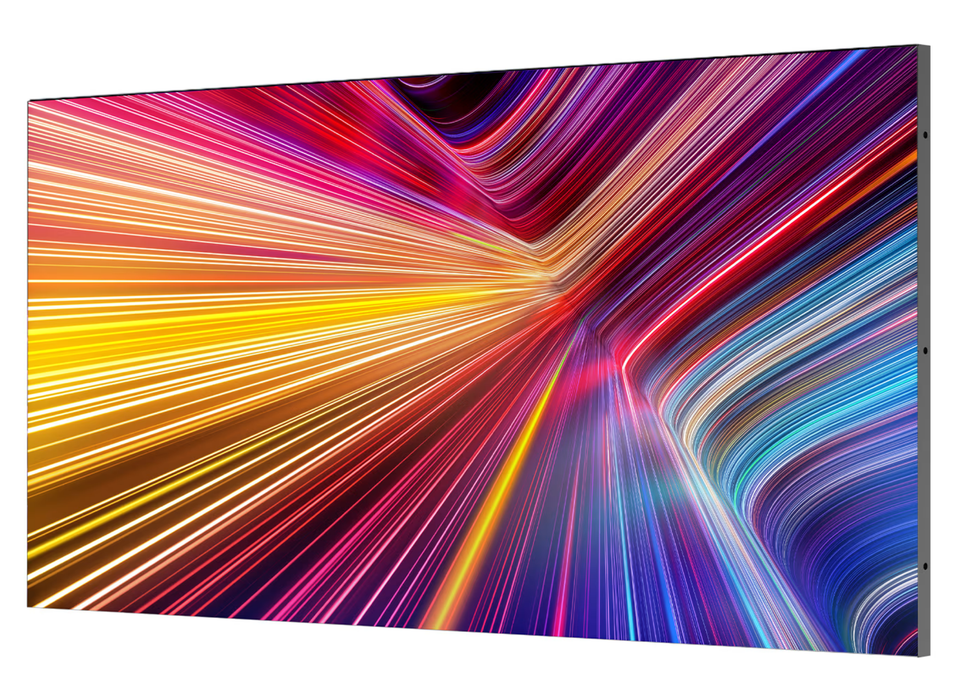

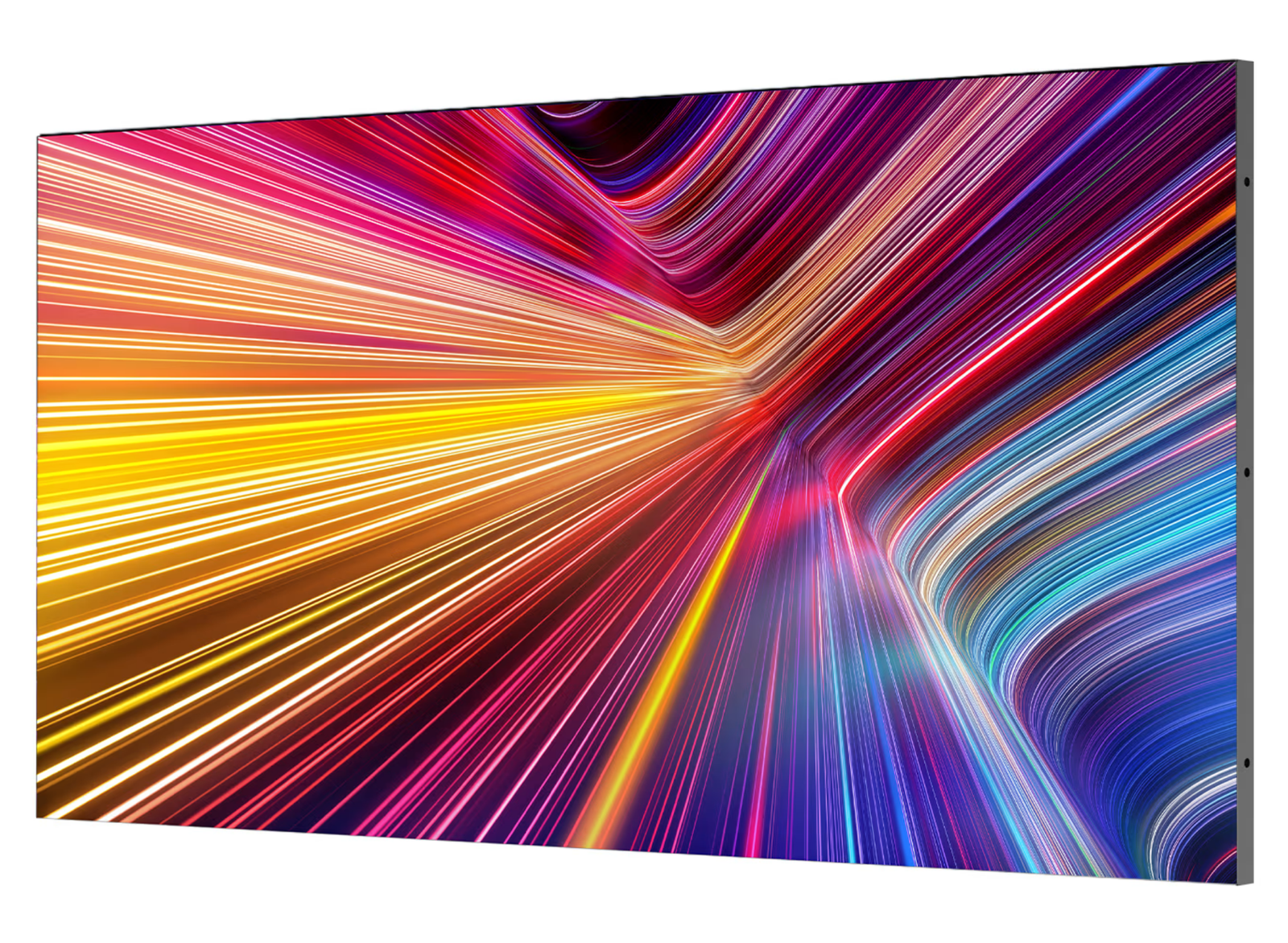

Hisense 54DS012FE 54" All-in-One LED Digital Signage

54DS012FE High Performance LED Display

Smart and Vibrant 54-inch LED
The smart, vibrant 54-inch LED display, featuring 16 pieces 150 x 337.5 mm large-size modules, significantly boosts installation efficiency. Its carton-packaged units ensure safe handling while optimizing storage/logistics, delivering brilliant, seamless displays while maintaining the same logistical simplicity as LCD video walls and digital signage displays in warehousing and transport.

ASIC-driven Precision Unleashed
The dedicated ASIC chipset replaces FPGA-based architecture and upgrades signal transmission to true 4K (60Hz) , eliminating convoluted sending/receiver cards. Proprietary enhanced LVDS protocol delivers 16 times bandwidth over conventional solutions, HDMI 2.0 transmission is enabled for the visually lossless transmission.

Quick Installation
The display enables seamless viewing, it enables a controller-free installations up to 216 inches, which is a standard 4K display. This capability allows for 3 times faster installation process compared to traditional LED displays, significantly streamlining the setup of cabinets, signal cables, and power cables.

HDMI Daisy Chain
Experience the simplicity of controller-free 1:1 pixel mapping for NxN (N < 4) LED walls. The native HDMI daisy-chaining feature enables effortless, single-cable signal transmission between displays, eliminating complex controllers and ensuring perfectly synchronized, seamless tiling. This direct cascading technology streamlines installation while maintaining lossless image quality across the entire LED wall.

Standard VESA and Rapid Integration
Seamless integration with the industry-standard VESA mounting is made possible. Reuse your existing brackets for quick installation. This plug-and-play compatibility minimizes downtime while ensuring consistent, vibration-resistant alignment post-installation, eliminating the need for additional hardware costs.

Energy Efficient
Efficient power supply and 3-in-1 ASIC architecture ensure low energy consumption, while optimized common cathode drivers and advanced energy-saving algorithms further decreased nearly 20% power consumption compared with last generation COB. The maximum screen temperature is maintained below 40°C*, significantly enhancing user comfort and product durability. *According to the current Hisense Test Environment

EMC Class B
Certified to EMC Class B standards, this display offers reduced electromagnetic interference, enhanced stability, superior compatibility with other devices, and safer operation for a wide range of commercial and residential applications.

Built-in VisionInfo
Hisense VisionInfo is an integrated system offering comprehensive, cloud-based device control and management capabilities. This innovative system enables seamless end-to-end monitoring and operation of connected devices.

Dimensions
