Hisense 55SDT25P_X3

HB Drive Thru Display X3

• Description
• Specifications
• Warranty
• Download

• The Hisense Drive thru display is used by quick service restaurants globally to provides an professional, easy-to-use solution maximising advertising from any drive thru lane. Our 2500nit high-bright screen provides clear content, ensuring maximum engagement in any lighting conditions. The IP55 enclosure protects components in any conditions all year round.

  Round-the-clock operation
  Designed with dual-core System on Chip (SoC) technology, Hisense displays can be used as reliable digital signage for both offline and cloud based content 24 hours a day, 7 days a week. You are completely free to choose your content management system to help display your advertising. If necessary the internal memory will allow you to upload media into the display for instant broadcast without the need for external hardware or software.

  2500 nits
  LED display could reveal more details, including layers and colors, than traditional displays do.

  Smart Brightness Sensor
  Self-heat dissipation design, energy saving and noise reduction improve the service life.

  Efficient Heat Dissapation Management
  Professional software for thermal simulation for cooling system design, which cools down the heat generated from every part of the product with high performance, preventing outside air from entering.

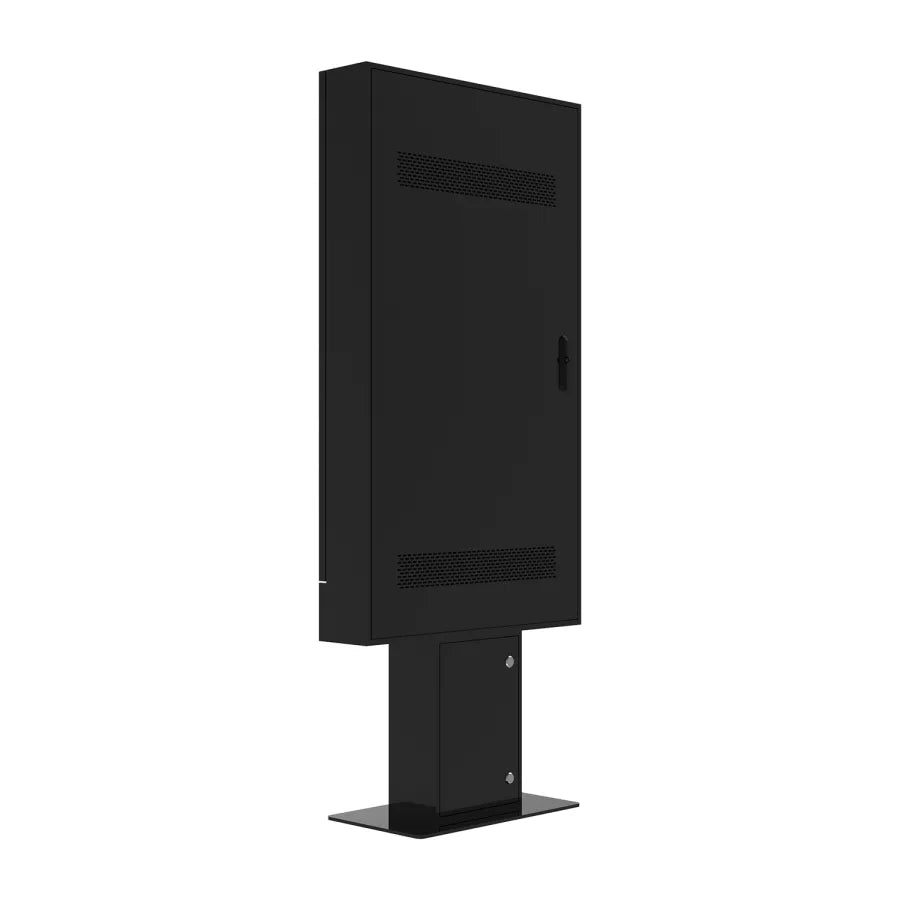

  Easy Maintenance
  Telecom-class routing design ensures the cabinet sealing performance. Front door access with lock for both wall mount monitor and kiosk models for easy operation and maintenance.

  Safety Lock and Invisible Screws and Hinges
  With Professional three-point anti-theft lock design, internal locking of bolts, no exposed high-strength steel doors, Hisense Outdoor Display can prevent criminals from picking locks and doing malicious damage.

  IP55 Rated All Weather Displays
  The IP55 rating provide full protection against dust and water projection. Built in intelligent heating and cooling, together with a smart automatic air circulation system. Anti vandal glass for protection from extreme environmental conditions and impacts to the display.

• Category	Specification
  General
  Screen Size	55" (1x1)
  Screen Active Area (mm)	1210 x 680mm
  Resolution	FHD (1920x1080)
  Aspect Ratio	16:9
  Brightness (nit)	2500nits
  Contrast Ratio	1200:1
  Viewing Angle (H/V)	178°/178°
  Backlight Life Cycle	50,000 Hrs
  Operation Hours	24/7
  Response Time	8ms
  Screen Orientation	Portrait
  Touch Screen	Optional
  System
  OS	Android 9.0
  Connectivity
  Input	x1 HDMI IN, x2 USB 2.0, x1 LAN, x1 SD Card Slot, x1 AV IN
  Output	x1 AV OUT
  Network Connection
  Wifi or LAN	Yes
  3G/4G Connection	Optional
  Thermal Management
  Built-in Fan	Airflow
  Overheating Protection	Yes
  Operation
  Working Environment	Full outdoor
  Auto Brightness Control	Light sensor
  Operation Temperature	-20℃ to 45℃
  Operation Humidity	5% to 90%
  Physical
  IP Rating	IP55
  Glass	6.8 mm (AR, Tempered & Laminated Glass)
  Metal	Galvanized steel with powder coated
  Standard Color	Black
  Dimensions	2150(H) x 900(W) x 200(D) mm
  Net Weight	Approx. 160kg
  Packing Dimensions	2300(H) x 1060(W) x 450(D) mm
  Power
  Power Supply	AC 110/220V, 50/60Hz
  Power Type	Built-In Power
  Power Consumption	380W(Max.)
  Available Regions	EU, APAC, SA

• Hisense Premium Commercial Display Warranty

  Hisense proudly provides a unique 3-year de-installation warranty, ensuring seamless operation of your signage and swift solutions if challenges arise.

  Curious about the Hisense Display Collection?
  For any inquiries or additional details on the Hisense Digital Signage Displays, feel free to reach out to our dedicated team at 020 8191 9223 or drop us an email at: info@screenmoove.com

• Document Type	Download Link
  55SDT25P_X3 Datasheet	DOWNLOAD
