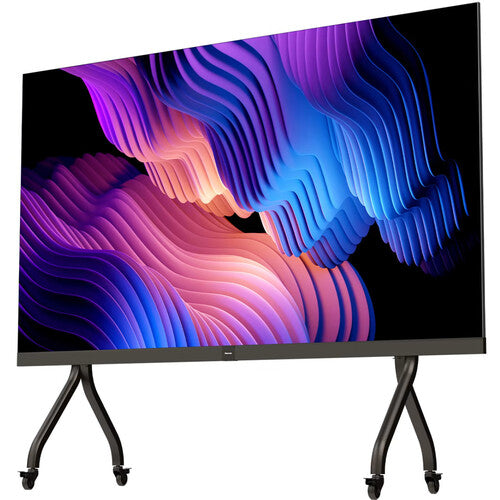

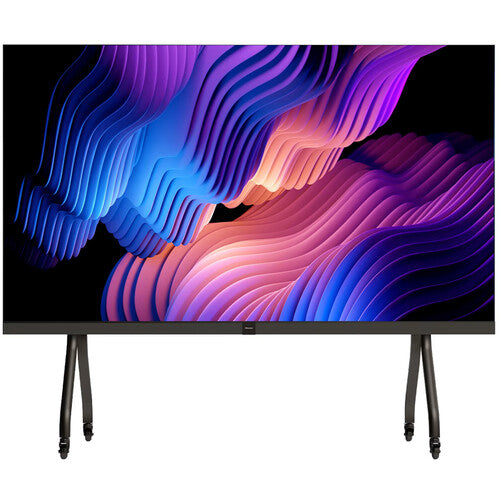

Create the ultimate immersive AV experience for your boardroom with the Hisense All-In-One LED display. Equipped with Hisense’s unique ASIC picture quality solution for precision dimming it controls each LED pixel to accurately express brightness and chromaticity information. Delivering vivid detail and unrivalled colour depth, the All-in-one 136” LED display will provide finishing touch to any quality meeting space.
Simple Precise Design
Industrial aesthetic minimalist integrated design. The thinnest lightweight body at only 27.8mm means occupying less space for the display. An ultra-narrow bezel, 95% screen ratio and elegant design of wall bracket and mobile cart.
AI Picture Quality Solution
The display adapts in real time to achieve the best picture parameters based on intelligent recognition of the screen content. The display controls each LED pixel to accurately express brightness and chromaticity information, significantly improving the brightness and contrast of the large screen.
Stereo Surround Sound
Equipped with 60W built in speakers, Dolby & DTS audio dual decoding, impactful bass and crisp treble to create a truly immersive stereo surround sound.
Super Energy Saving
Super energy saving standby design, no signal standby power consumption <0.5W. The energy-saving design can save more than 20% compared with conventional products in the industry under same working condition.
Smart Display
Automatically adjust the brightness of the LED all-in-one screen according to the environment. Automatic all-round monitoring of the screen status. Up to three intelligent screen casting methods.
Quick Installation & Easy Maintenance
Complete installation within 1.5 hours for 2 persons with a fully automated configuration setup. Full front installation and maintenance helps to minimise installation space.
Smart Screen Casting
Up to three intelligent screen casting methods. Rapid screen transmission via Dongle, support 4 split screen. Android phone NFC a touch cast screen, cell phone WPS sweep cast screen.
Smart Detection
Automatic all-round monitoring of the screen status. Real-time monitoring and dynamic adjustment, avoid short circuit and high temperature
Smart Light Sensing
Automatically adjust the brightness of the LED all-in-one screen according to the environment to avoid the screen being too bright or too dark
Smart Calibration
The LED modules can be replaced directly, and the replacement can be completed in 1 minute, and the display can be normalized without recalibration on site, making the installation and maintenance more troublefree.
HDR
Low brightness dimming being capable to show rich dark details. Show more details of the image via richer color peformance and brightness adjustment, and enhance color levels with consistent color saturation and detail, more vividly viewing experience whatever you’re watching.
AI Precision Dimming
Equipped with Hisense’s unique ASIC picture quality solution for precision dimming. Support AIPQ function, intelligent identification of contents, adaptive to achieve optimal picture display parameters, which controls each LED pixel to accurately express brightness and chromaticity information, significantly improving the brightness and contrast of large screens.
Ultimate Motion
With MEMC Tech, Ultimate Motion reduces blur in fast moving scenes, offering crisp and clear images for fast action sequences. Its smooth viewing experience puts you into the scene.
Bright Color Balance Technology
Intelligent recognition of presentation scenes, content, contrast, clarity fine adjustment, Ultimate color purity and tiny Brightness deviation, matching the corresponding best viewing effect, viewing more comfortable.
Dolby & DTS Sound Dual Decoding
Equipped with Dolby & DTS audio dual decoding, immersive stereo surround sound, making the bass more shocking, treble brighter, all-round to create a theater-grade shocking sound.
Hi-Fi Stereo
Built in 60W speakers (6x10W), surround sound, surging sound, cinema effect, bringing IMAX theater-like shocking sound.
Simply Precise Design
Industrial aesthetic minimalist integrated design, the thinnest body only 27.8mm, occupying less space.Lightweight body, Ultra-narrow bezel, 95% screen ratio; Elegant design of wall bracket and mobile cart
Quick Installation and Easy Maintenance
Factory pre-assembly. Installation within 1.5 hours for 2 persion. Auto configuration setup. Full front installation, maintenance, save the installation space.
GOB Screen Lamination
Optional GOB protective coating to avoid screen failure caused by impact, humidity, dust, etc. and enhance screen protection.
Dynamic Energy Saving
Dynamic energy saving & efficient cooling, compared to the conventional LED energy saving > 40%, screen temperature <40 °.
Meeting room
Huge screen clear display, support for multi-person teleconference, thinner body does not take up space, making the meeting office more convenient.
Terrace Classroom
The huge picture is clearly displayed to provide a better classroom learning experience for students. Support OPS devises with Windows system.Offers A various classrooms teaching forms and rich teaching contents
Expert Conference Room
Huge picture clear display, high reliability of the product, life expectancy of more than 100,000 hours.
| Parameter | Details |
|---|---|
| Physical | |
| Pixel Pitch | 1.5625 mm |
| Pixel Configuration | 3 in one SMD |
| Screen Resolution (W x H) | 1920x1080 |
| Module Dimensions (W x H) | 150 x 337.5mm / 5.9 x 13.3inch |
| No. of Modules Per Screen | 20 x 5 (Total 100 Pcs LED Modules) |
| Screen Dimensions (W x H x D) | 3004 x 1774.5 x 32.3mm / 118.3 x 69.9 x 1.27inch (with Screen Frame) |
| Cabinet Dimensions (W x H x D) | 600 x 337.5 x 29.3mm / 23.6 x 13.3 x 1.15inch |
| Weight (per Cabinet/per Screen) | 4kg / 110Kg [8.82lbs / 242.55lbs] |
| Pixel Density | 409,600 pixels/m2 |
| Flatness Of Cabinet | ± 0.05 mm |
| Cabinet Material | Die-cast Aluminum |
| Gray Level | 14 bits |
| Aspect Ratio | 16:9 |
| Service Access | Front |
| Optical | |
| Brightness | 100~600 Nits Adjustable |
| Contrast Ratio | 5,000 : 1 |
| Visual Viewing Angle (H x V) | 150° x 140° |
| Brightness Uniformity | 95% |
| Color Uniformity | ± 0.003 Cx,Cy |
| Processing Depth | 16 bits |
| Color Temperature (Adjustable) | 9300 K (2,000 ~ 9,300 K) |
| Electrical | |
| Power Supply Voltage | 100 - 240 V, 50/60Hz |
| Average Power Consumption (W/ Screen) | ≤ 800W |
| Max Power Consumption (W/ Screen) | ≤ 1800W |
| Refresh Rate | 3,840 Hz |
| Operation Conditions | |
| Operating Temp/Humidity | 0 - 40 °C/ 10% - 90%RH (no frost) |
| Storage Temp/Humidity | -20 - 40 °C/ 10% - 65%RH (no frost) |
| IP Rating | IP50 |
| Expected LED Lifetime (typ) | 100,000 Hrs |
| Speaker | |
| Built-in | 10W×6 |
| External | 3.5-mm AUDIO external sound system connector (prior to the built-in sound system connector) |
| System | |
| OS | Android 9.0 |
| CPU | CA73*4 1.3GHz |
| GPU | G52 MC1 |
| DDR | 3GB |
| ROM | 64GB |
| Language | Chinese/English(Default)/ French, German, Spanish, Italian, Polish, Arabic |
| Features | HDR/EMMC/Low blue light/Dolby/DTS |
| Certification | |
| Standard Certification | CE, CB, FCC, RCM, cTUVus |
| Environment | RoHS, REACH |
| Controller | Embedded |
| Available Regions | |
| EU | |
| USA | |
| APAC | |
| SA |
| Document Type | Download Link |
|---|---|
| 136" All-in-one Brochure | DOWNLOAD |
| 136" All-in-one Datasheet | DOWNLOAD |
| HAIO136 - User Manual | DOWNLOAD |
