Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.

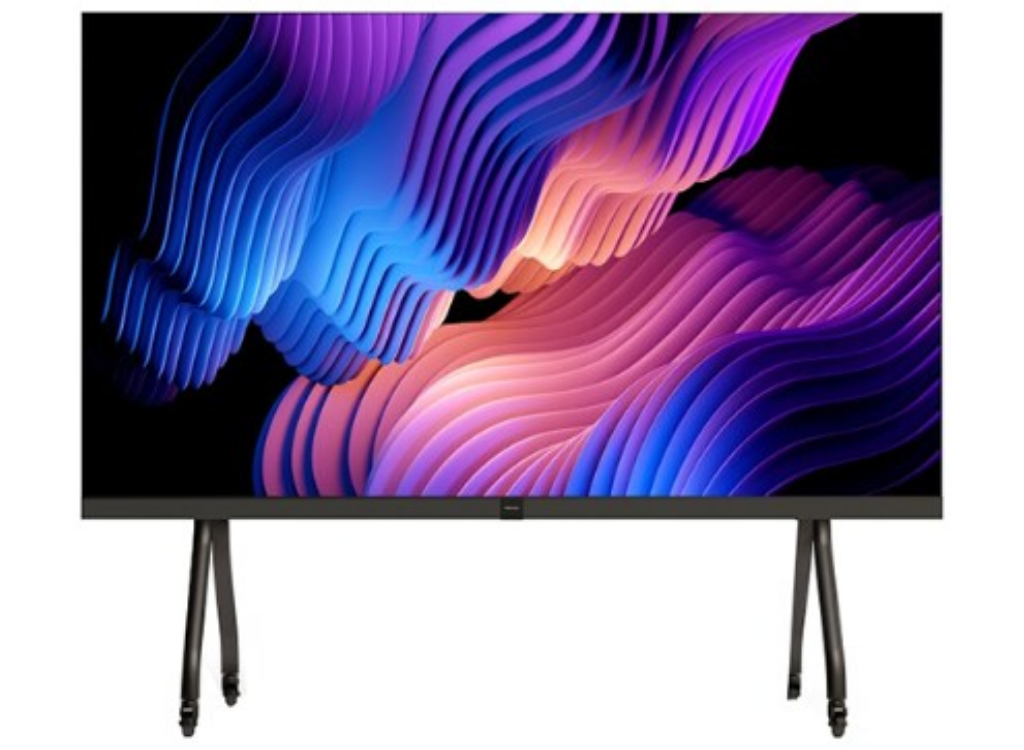

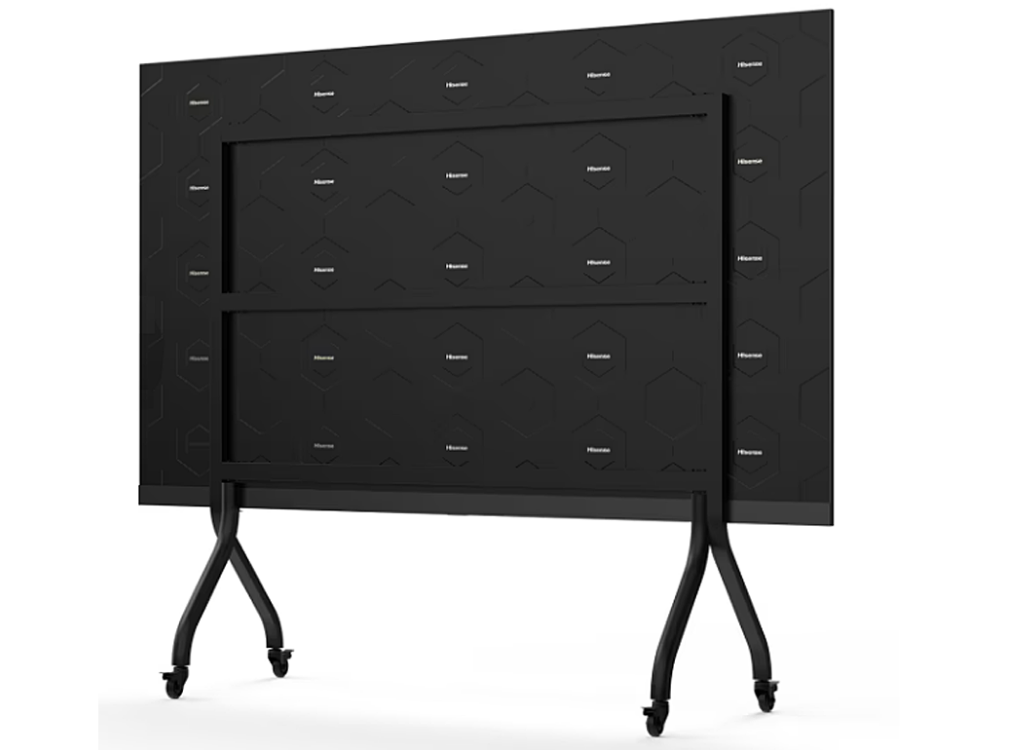

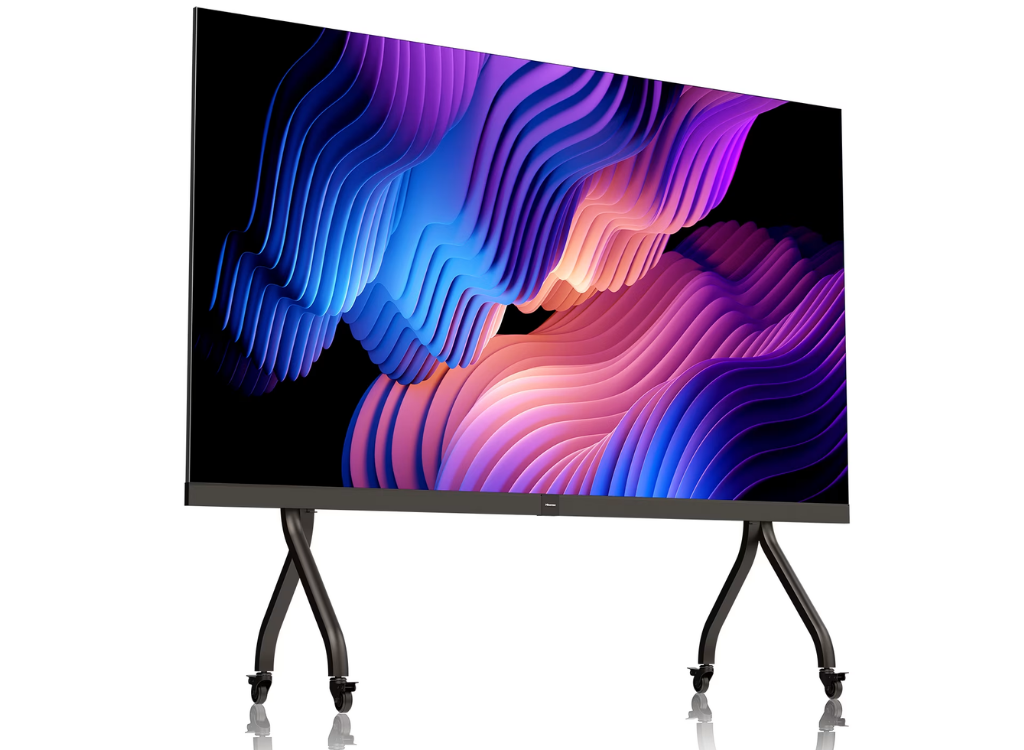

Create the ultimate immersive AV experience for your boardroom with the Hisense All-In-One LED display. Equipped with Hisense’s unique ASIC picture quality solution for precision dimming it controls each LED pixel to accurately express brightness and chromaticity information. Delivering vivid detail and unrivalled colour depth, the All-in-one 136” LED display will provide finishing touch to any quality meeting space.
Ultra Picture Quality Chip
Relying on Hisense’s super picture quality chip, supported by powerful algorithms, colour enhancement, multi-grayscale correction, MEMC, HDR, SR super resolution four major picture quality technologies, the picture quality is more detailed and vivid.
Smart Display
Automatically adjust the brightness of the LED all-in-one screen according to the environment. Automatic all-round monitoring of the screen status. Up to three intelligent screen casting methods.
Flexibility
Supporting VisionInfo which provides the capability to control and manage devices through cloud-based systems, enabling end-to end device management and control.
Energy Saving
With our efficient power supply and 3-in-1 minimalist ASIC architecture, along with common-negative driver and super energy-saving algorithms, we have significantly reduced energy consumption, aiding in minimizing environmental impact. Additionally, our advanced technology allows us to maintain a maximum temperature of 40°C for the screen body, ensuring users enjoy a comfortable and safe experience when close to the screen. This not only enhances user comfort but also prolongs the display’s lifespan. Overall, our commitment to innovation and sustainability enables us to create a high-performance display solution that prioritises energy efficiency and user comfort.
Stereo Surround Sound
Equipped with 60W built in speakers, Dolby & DTS audio dual decoding, impactful bass and crisp treble to create a truly immersive stereo surround sound.
COB Screen Lamination
Using the industry-leading Micro-size Flip-chip COB (1 red, 1 green, 1 blue) technology, the black colour ratio is as high as 98.6%. Hisense’s self-developed pure black coating technology, applied to larger LED modules, can control reflectivity below 3.5%, achieving a contrast ratio of up to 40,000:1 in a 10lux environment, making the picture even brighter and more detailed.
| Feature | Specification |
|---|---|
| Pixel Pitch | 1.5625mm |
| Pixel Configuration | Flip-Chip COB (1 Red, 1 Green, 1 Blue) |
| Screen Resolution (WxH) | 1920 x 1080 |
| Module Dimensions (WxH) | 150 x 337.5mm / 5.9 x 13.3 inch |
| No. of Modules Per Screen (WxH) | 20 x 5 (Total 100 Pcs LED Modules) |
| Screen Dimensions With Frame | 3004 x 1774.5 x 32.3mm / 118.3 x 69.9 x 1.27 inch |
| With Mobile Cart Dimensions | 3004 x 2439.5 x 903.7mm / 118.3 x 96.04 x 35.57 inch |
| Panel/Cabinet Dimensions (WxHxD) | 600 x 337.5 x 32.3mm / 23.6 x 13.3 x 1.27 inch |
| Weight (per panel / screen) | 4kg / 110kg // 8.82lbs / 242.55lbs |
| Pixel Density | 409,600 pixels/m² |
| Flatness of Cabinet | ±0.05mm |
| Cabinet Material | Die-cast Aluminium |
| Grey Level | 14 bits |
| Colour Gamut | >113% DCI-P3 |
| Aspect Ratio | 16:9 |
| Service Access | Front |
| Brightness (max./peak) | 1,000 / 1,600 nits |
| Contrast Ratio | 40,000:1 @10lux |
| Visual Viewing Angle (HxV) | 165° x 150° |
| Brightness Uniformity | 98% |
| Colour Uniformity | ±0.003 Cx, Cy |
| Processing Depth | 14 bits |
| Colour Temperature (Adjustable) | 6500 K (2,000 ~ 9,300 K) |
| Power Supply Voltage | 100-240V, 50/60Hz |
| Average Power Consumption | ≤650W @1,000nits / ≤500W @600nits |
| Max Power Consumption | ≤1900W @1000nits / ≤1250W @600nits |
| Refresh Rate | 3,840Hz (typ.) / up to 7,680Hz |
| WiFi | 2.4G & 5G |
| Bluetooth | 5.0 |
| Input | HDMI(2.0) IN x3 (include 1 internal), USB2.0 x1, USB3.0 / Type-C x1 (not full function), RS-232 x1 (internal), LAN x1 |
| Output | SPDIF x1, Audio Out x1 |
| Operating Temp/Humidity | 0 - 40°C / 10% - 90%RH (no frost) |
| Storage Temp/Humidity | -20 - 40°C / 10% - 65%RH (no frost) |
| Expected LED Lifetime | 100,000 Hrs |
| Built-in Speaker | 10W x 6 |
| External Speaker | 3.5mm Audio external sound system connector |
| Operating System | Android 9.0 |
| CPU | CA73*4 1.3GHz |
| GPU | G52 MC1 |
| DDR | 3GB |
| ROM | 64GB |
| Languages | Chinese / English / French / German / Spanish / Italian / Polish / Arabic / Russian |
| Packing Method | Flight case for Cabinets / Modules / Wall Bracket and Accessory |
| Packaging Dimensions | 1005 x 2055 x 765mm / 39.56 x 80.90 x 30.12 inch |
| Net / Gross Weight | 110kg / 200kg // 242.50lbs / 440.92lbs |
| Mobile Cart Packaging Method | Wooden Box (For Mobile Cart) (Option) |
| Mobile Cart Packaging Dimensions | 2415 x 255 x 855mm / 95.1 x 10 x 33.7 inch |
| Mobile Cart Net / Gross Weight | 50kg / 90kg // 110.23lbs / 198.42lbs |
| Curve Support | Flat, Flat |
| Controller | Embedded |
| Standard Accessories | User Manual / Remote Control / Battery / Vacuum Tool / Wall Bracket |
| Optional Accessories | Mobile Cart (LGT60401A) / Hisense Dongle (HT002)* / Camera (HMC03-1080P, 25M)* / OPS (S02BDS7AA21E/5A811E) |
| Available Regions | EU, APAC, SA, USA |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| Brochure | Downloads |
