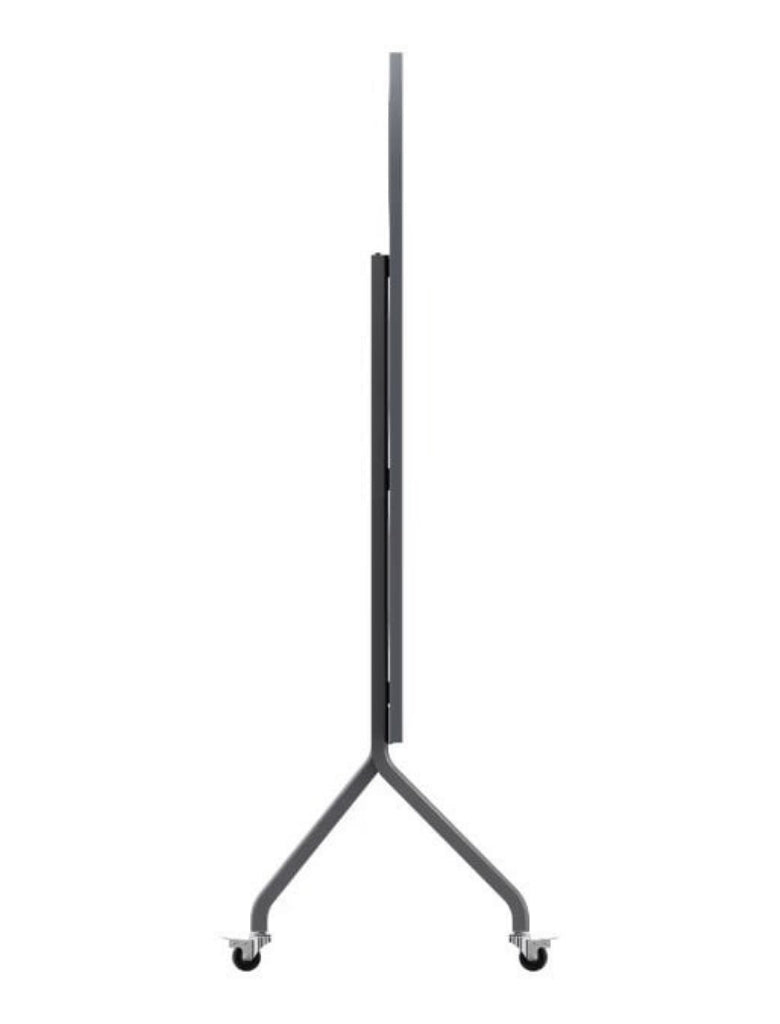

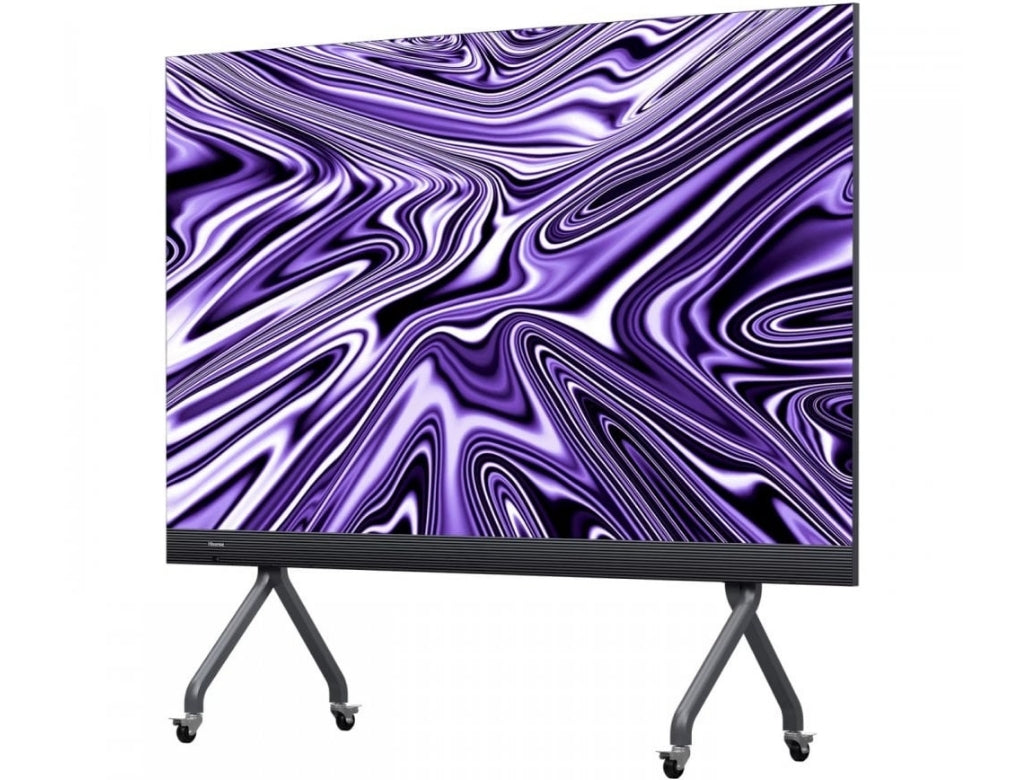

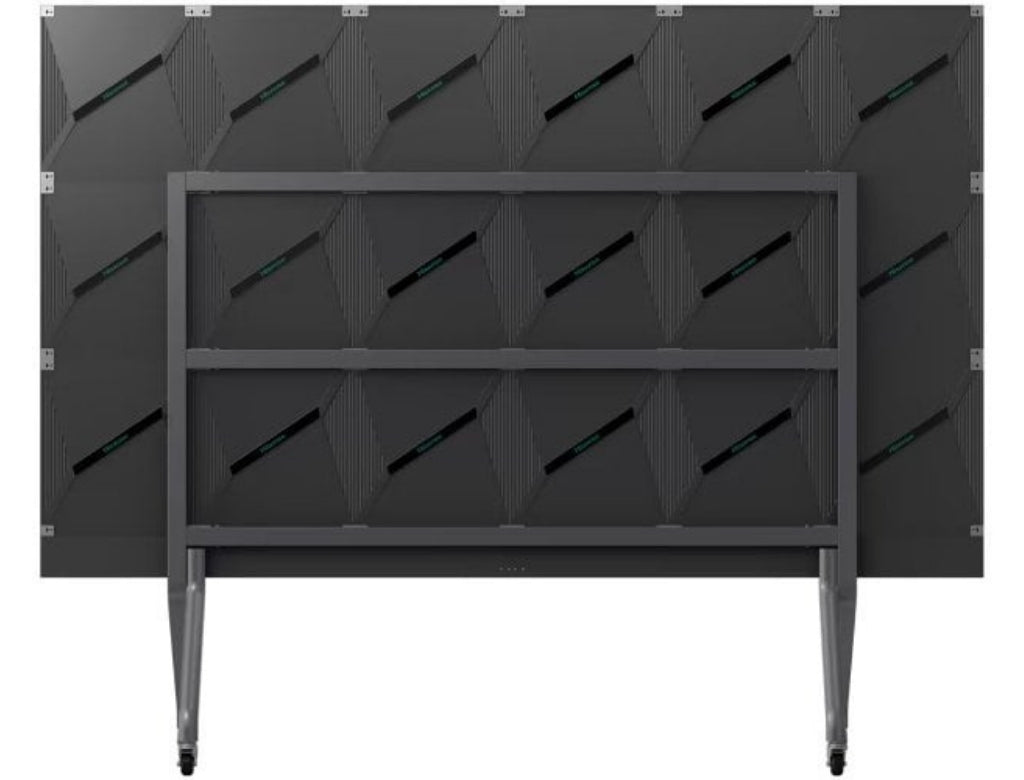

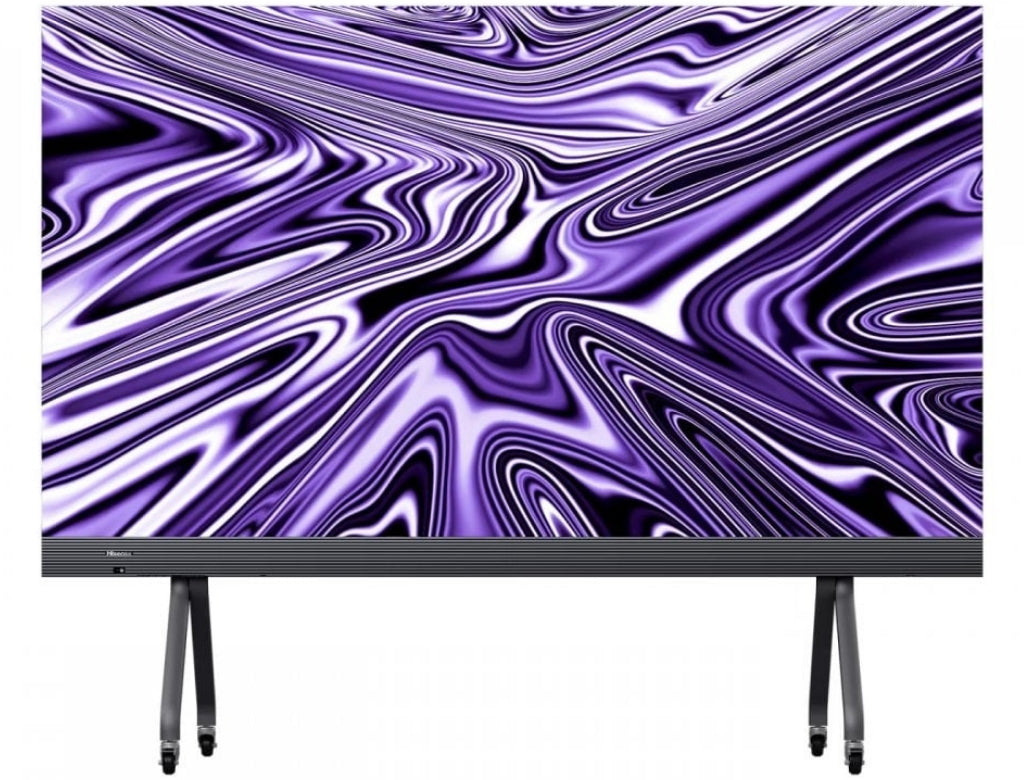

Hisense HAIO138

138” LED All-in-one Digital Signage Display

• Description
• Specifications
• Warranty
• Downloads

• Create the ultimate immersive AV experience for your boardroom with the Hisense All-In-One LED display. Delivering vivid detail and unrivalled colour depth, the All-in-one 138” LED display will provide finishing touch to any quality meeting space.

  500 nits
  With 500 nits maximum brightness the display panels can deliver amazingly vivid imagery anywhere during daytime and nighttime conditions.

  160° High viewing angle
  The extra wide 160° viewing angle is a perfect fit for large groups of people that will view the displays from diverse angles while passing by.

  High refresh rate
  With uniform color scale and brightness, dynamic performance of LED display could restore the true scenes without any ripples.

  Effortless set-up and maintenance
  Easy access allows for effortless set up, operation and maintenance.

  Full array local dimming
  Local dimming reduces backlight intensity in specific areas of the screen to improve the contrast ratio.

  HRC12 grade multi-layer protection
  Dustproof, waterproof, anti-static, anti-knock and anti-salt spray.

• Feature	Specification
  Pixel Pitch	1.59 mm
  Pixel Configuration	3 in one SMD
  Screen Resolution	1,920 x 1,080
  Module Dimensions (W x H)	127.5 x 191.25mm / 5.02 x 7.53inch
  Screen Dimensions (W x H x D)	3068 x 1723 x 34mm / 120.79 x 67.83 x 1.34inch (w/o Screen Frame)
  Physical Resolution of Module	80 x 120
  Physical Resolution of Panel	320 x 360
  LED Module Dimensions (mm)	127.5 x 191.25mm
  No. of Cabinet Per Screen	4 x 3
  No. of Modules Per Cabinet	6 x 3
  Panel Dimensions (mm)	510 x 573.75 x 34mm
  Screen Weight	195Kg (w/o Screen Frame)
  Cabinet Material	Die-cast Aluminum
  Gray Level (bit)	14 bits
  Aspect Ratio	16:9

  Optical Parameter

  Feature	Specification
  Brightness (adjustable)	500 nits
  Contrast Ratio	3,000 : 1
  Visual Viewing Angle (H x V)	160° x 160°
  Brightness Uniformity	95%
  Color Uniformity	± 0.003 Cx,Cy
  Processing Depth	16 bits
  Color Temperature - Default (Adjustable)	6500 ± 200 K (2,000 ~ 9,300 K)

  Electrical Parameter

  Feature	Specification
  Power Supply Voltage	100 - 240 V
  Average Power Consumption (W/ Screen)	≤ 1000
  Max Power Consumption (W / Screen)	≤ 2200
  Refresh Rate	3,840 Hz

  Operation Conditions

  Feature	Specification
  Operating Temp/Humidity	-0 - 40 °C/ 10% - 90%RH (no frost)
  Storage Temp/Humidity	-20 - 40 °C/ 10% - 65%RH (no frost)
  IP Rating	IP50
  Expected LED Lifetime (Max)	100,000 Hrs

  Speaker

  • Built-in: 15W x4
  • External: 3.5-mm AUDIO external sound system connector (prior to the built-in sound system connector)

  System

  Feature	Specification
  OS	Android 9.0
  CPU	CA73 x 4 1.3GHz
  GPU	G52 MC1
  DDR	3GB
  ROM	64GB
  Language	English

• Hisense Premium Commercial Display Warranty

  Hisense proudly provides a unique 3-year de-installation warranty, ensuring seamless operation of your signage and swift solutions if challenges arise.

  Curious about the Hisense Display Collection?
  For any inquiries or additional details on the Hisense Digital Signage Displays, feel free to reach out to our dedicated team at 020 8191 9223 or drop us an email at: info@screenmoove.com


• Document Type	Download Link
  HAIO138 Datasheet	DOWNLOAD
  HAIO138 / 163 Manual	DOWNLOAD
