Hisense HAIO163 163” LED All-in-one Digital Signage Display
SKU: HAIO163
£34,128.38 (Excl. VAT)
- Operating SystemAndroid 9
- VESA PatternsN/A
- Panel TypeLED Panel
- ResolutionFull HD (1080p)
- Screen TypeFlat
- Screen Ratio16:9
- Description
- Specifications
- Warranty
- Downloads
-

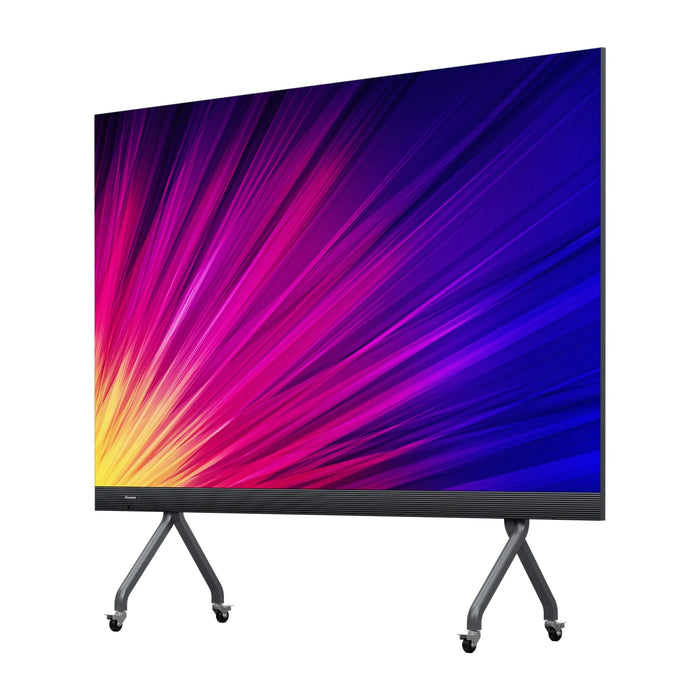

Hisense HAIO163
163” LED All-in-one Digital Signage Display
Create the ultimate immersive AV experience for your boardroom with the Hisense All-In-One LED display. Delivering vivid detail and unrivalled colour depth, the All-in-one 163” LED display will provide finishing touch to any quality meeting space.
500 nits
With 500 nits maximum brightness the display panels can deliver amazingly vivid imagery anywhere during daytime and nighttime conditions.
160° High viewing angle
The extra wide 160° viewing angle is a perfect fit for large groups of people that will view the displays from diverse angles while passing by.
High refresh rate
With uniform color scale and brightness, dynamic performance of LED display could restore the true scenes without any ripples.
Effortless set-up and maintenance
Easy access allows for effortless set up, operation and maintenance.
Full array local dimming
Local dimming reduces backlight intensity in specific areas of the screen to improve the contrast ratio.
HRC12 grade multi-layer protection
Dustproof, waterproof, anti-static, anti-knock and anti-salt spray. -
Parameter Details Physical Pixel Pitch 1.875 mm Pixel Configuration 3 in one SMD Screen Resolution 1,920 x 1,080 Module Dimensions (W x H) 150 x 337.5mm / 5.9 x 13.29inch Screen Dimensions (W x H x D) 3605 x 2027 x 40mm / 141.93 x 79.8 x 1.57inch (w/o Screen Frame) Physical Resolution of Module 80 x 180 Physical Resolution of Panel 320 x 180 LED Module Dimensions 150 x 337.5mm No. of Cabinet Per Screen 6 x 6 No. of Modules Per Cabinet 4 x 1 Panel Dimensions 600 x 337.5 x 40mm Screen Weight ≤6.5kg / 230Kg [14.33lbs x 507.15lbs] (w/o Screen Frame) Cabinet Material Die-cast Aluminum Gray Level (bit) 14 bits Aspect Ratio 16:9 Optical Brightness (adjustable) 500 nits Contrast Ratio 3,000 : 1 Visual Viewing Angle (H x V) 160° x 160° Brightness Uniformity 95% Color Uniformity ± 0.003 Cx,Cy Processing Depth 16 bits Color Temperature (Adjustable) 6500 ± 200 K (2,000 ~ 9,300 K) Electrical Power Supply Voltage 100 - 240 V Average Power Consumption ≤ 1200 (W/ Screen) Max Power Consumption ≤ 2800 (W / Screen) Refresh Rate 3,840 Hz Operation Conditions Operating Temp/Humidity -20 - 40 °C/ 10% - 90%RH (no frost) Storage Temp/Humidity -20 - 40 °C/ 10% - 65%RH (no frost) IP Rating IP50 Expected LED Lifetime (Max) 100,000 Hrs Speaker Built-in 30W x 2 External 3.5-mm AUDIO external sound system connector (prior to the built-in sound system connector) System OS Android 9.0 CPU CA73 x 4 1.3GHz GPU G52 MC1 DDR 3GB ROM 64GB Language English Curve Installation Flat Certification CE / CB / FCC / ETL Controller Built-in Available Regions EU USA APAC SA
- Hisense Premium Commercial Display Warranty
Hisense proudly provides a unique 3-year de-installation warranty, ensuring seamless operation of your signage and swift solutions if challenges arise.
Curious about the Hisense Display Collection?
For any inquiries or additional details on the Hisense Digital Signage Displays, feel free to reach out to our dedicated team at 020 8191 9223 or drop us an email at: info@screenmoove.com
-
Document Type Download Link HAIO163 Datasheet DOWNLOAD HAIO163 Datasheet DOWNLOAD
