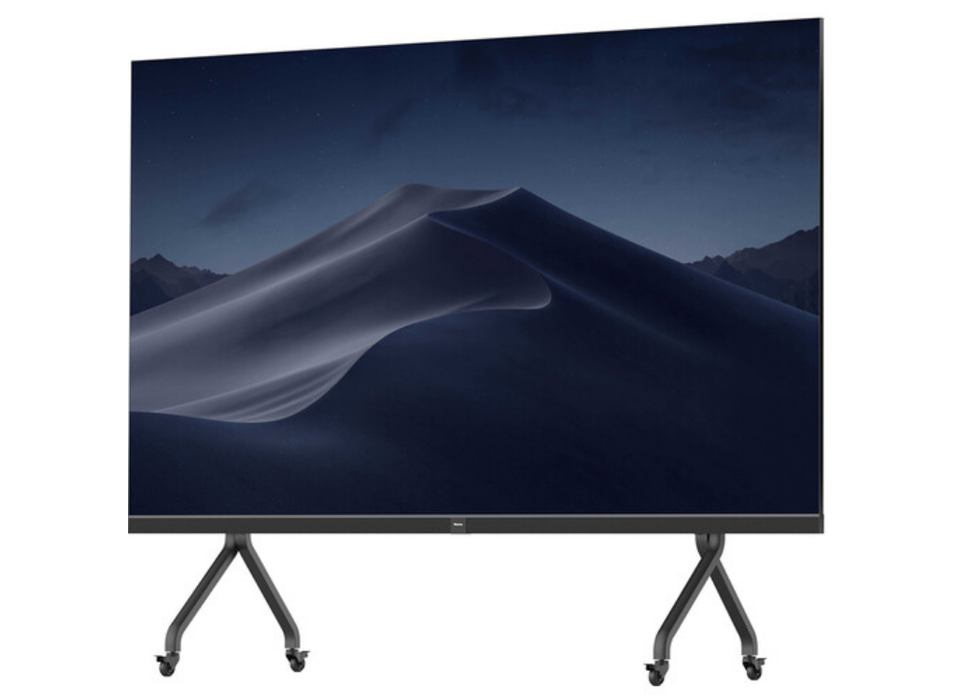

Hisense HAIO163DE 163" 1080p Full HD LED All-In-One Display

SKU: HAIO163DE Manufacturer: Hisense
Hisense HAIO163DE 163" 1080p Full HD LED All-In-One Display All-In-One Display Hisense
In Stock11 available
Express DeliveryFast UK delivery where eligible
3 Year WarrantyManufacturer-backed cover
UK Expert SupportPre-sales and technical advice

Product description

  • Description
  • Specifications
  • Downloads

  • Hisense HAIO163DE 163" 1080p Full HD LED All-In-One Display

    Create the ultimate immersive AV experience for your boardroom with the Hisense All-In-One LED display. Delivering vivid detail and unrivalled color depth, the All-in-one 163” LED display will provide finishing touch to any quality meeting space.


    Ultra Picture Quality Chip
    Relying on Hisense’s super picture quality chip, supported by powerful algorithms, colour enhancement, multi-grayscale correction, MEMC, HDR, SR super resolution four major picture quality technologies, the picture quality is more detailed and vivid.


    Smart Display
    Automatically adjust the brightness of the LED all-in-one screen according to the environment. Automatic all-round monitoring of the screen status. Up to three intelligent screen casting methods.


    Stereo Surround Sound
    Equipped with 60W built in speakers, Dolby & DTS audio dual decoding, impactful bass and crisp treble to create a truly immersive stereo surround sound.


    Energy Saving
    With our efficient power supply and 3-in-1 minimalist ASIC architecture, along with common-negative driver and super energy-saving algorithms, we have significantly reduced energy consumption, aiding in minimizing environmental impact. Additionally, our advanced technology allows us to maintain a maximum temperature of 40°C for the screen body, ensuring users enjoy a comfortable and safe experience when close to the screen. This not only enhances user comfort but also prolongs the display’s lifespan. Overall, our commitment to innovation and sustainability enables us to create a high-performance display solution that prioritizes energy efficiency and user comfort.


    Automatic PQ Adjustment
    Hisense HAIO series, the spare lamp board can be directly replaced, intelligent reading lamp board data, automatically complete the colour correction

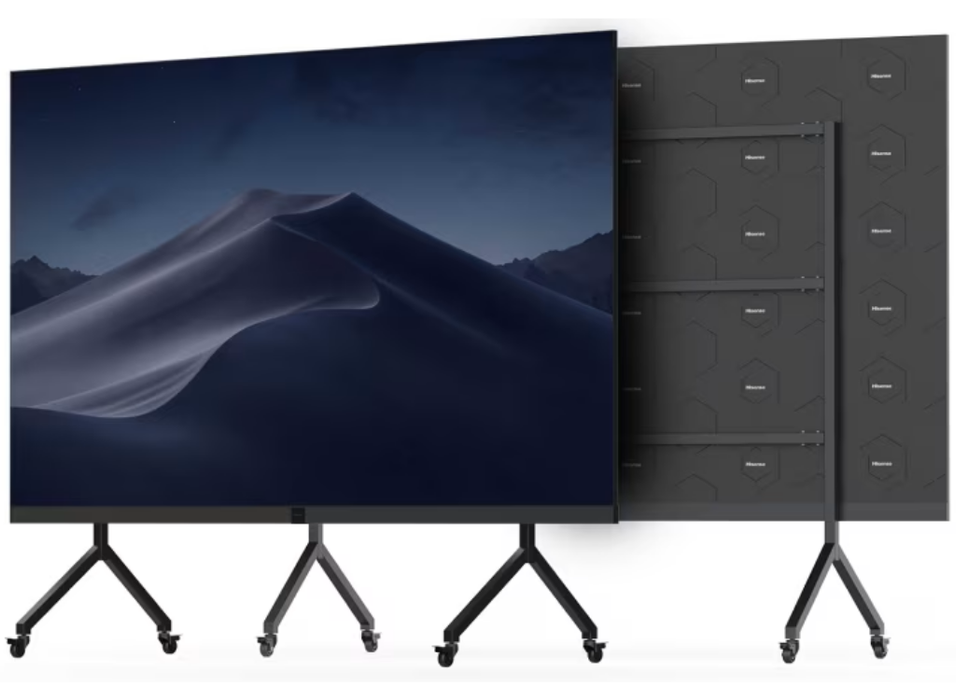

    Quick Installation and Easy Maintenance
    Complete installation within 1.5 hours for 2 persons with a fully automated configuration setup. Full front installation and maintenance helps to minimise installation space.


    Simple Precise Design
    Industrial aesthetic minimalist integrated design. The thinnest lightweight body at only 32.3mm means occupying less space for the display. An ultra-narrow bezel, 95% screen ratio and elegant design of wall bracket and mobile cart.

  • Category Specification
    Pixel Pitch 1.875mm
    Pixel Configuration 3 in one SMD (with Glue On Board)
    Screen Resolution (WxH) 1920 x 1080
    Module Dimensions (WxH) 150 x 337.5mm / 5.9 x 13.3 inch
    No. of Modules Per Screen (WxH) 24 x 6 (Total 144 Pcs LED Modules)
    Screen Dimensions With Frame 3604 x 2112 x 32.3mm / 141.8 x 83.1 x 1.27 inch
    With Mobile Cart Dimensions 3604 x 2662 x 1086.8mm / 141.8 x 104.8 x 42.7 inch
    Panel/Cabinet Dimensions (WxHxD) 600 x 337.5 x 32.3mm / 23.6 x 13.3 x 1.27 inch
    Weight (per panel / screen) 4kg / 162kg // 8.82lbs / 357.14lbs
    Pixel Density 284,444 pixels/m²
    Flatness of Cabinet ±0.05mm
    Cabinet Material Die-cast Aluminium
    Grey Level 14 bits
    Aspect Ratio 16:9
    Service Access Front
    Brightness 500 nits (100~500 nits Adjustable)
    Contrast Ratio 5,000:1
    Visual Viewing Angle (HxV) 150° x 140°
    Brightness Uniformity 95%
    Colour Uniformity ±0.003 Cx,Cy
    Processing Depth 14 bits
    Colour Temperature (Adjustable) 6500 K (2,000 ~ 9,300 K)
    Power Supply Voltage 100-240V, 50/60Hz
    Average Power Consumption ≤720W
    Max Power Consumption ≤2100W
    Refresh Rate 3,840Hz
    WiFi 2.4G & 5G
    Bluetooth 5.0
    Input HDMI(2.0) IN x3, USB2.0 x1, USB3.0/Type-C x1, RS-232 x1, LAN x1
    Output SPDIF x1, Audio Out x1
    Operating Temp/Humidity 0 - 40°C / 10% - 90%RH (no frost)
    Storage Temp/Humidity -20 - 40°C / 10% - 65%RH (no frost)
    Expected LED Lifetime 100,000 Hrs
    Built-in Speaker 10W x 6
    External Speaker 3.5mm Audio external sound system connector
    Operating System Android 9.0
    CPU CA73*4 1.3GHz
    GPU G52 MC1
    DDR 3GB
    ROM 64GB
    Languages Chinese / English / French / German / Spanish / Italian / Polish / Arabic / Russian
    Packing Method Flight case for Cabinets / Modules / Wall Bracket and Accessory
    Packaging Dimensions 1120 x 2100 x 768mm / 44.09 x 82.67 x 30.23 inch
    Net / Gross Weight 162kg / 230kg // 357.14lbs / 526.90lbs
    Mobile Cart Packaging Method Wooden Box (For Mobile Cart) (Option)
    Mobile Cart Packaging Dimensions 2551 x 192 x 1037mm / 100.43 x 7.55 x 40.82 inch
    Mobile Cart Net / Gross Weight 57kg / 110kg // 125.66lbs / 242.50lbs
    Curve Support Flat, Flat
    Controller Embedded
    Standard Accessories User Manual / Remote Control / Battery / Vacuum Tool / Wall Bracket
    Optional Accessories Mobile Cart (LGR00401A), Hisense Dongle (HT002), Camera (HMC03-1080P, 25M), OPS (S02BDs&AA21E/5A811E)
    Available Regions EU, APAC, SA, USA
  • Description Downloads
    Datasheet Downloads
    Brochure Downloads

Technical Highlights

Resolution
Full HD (1080p)
Screen type
Flat
Brightness
500 cd/m2
Screen ratio
16:9
Display orientation
Landscape Only
Operating system
Android 9
VESA patterns
N/A
Warranty
3 Year Warranty
