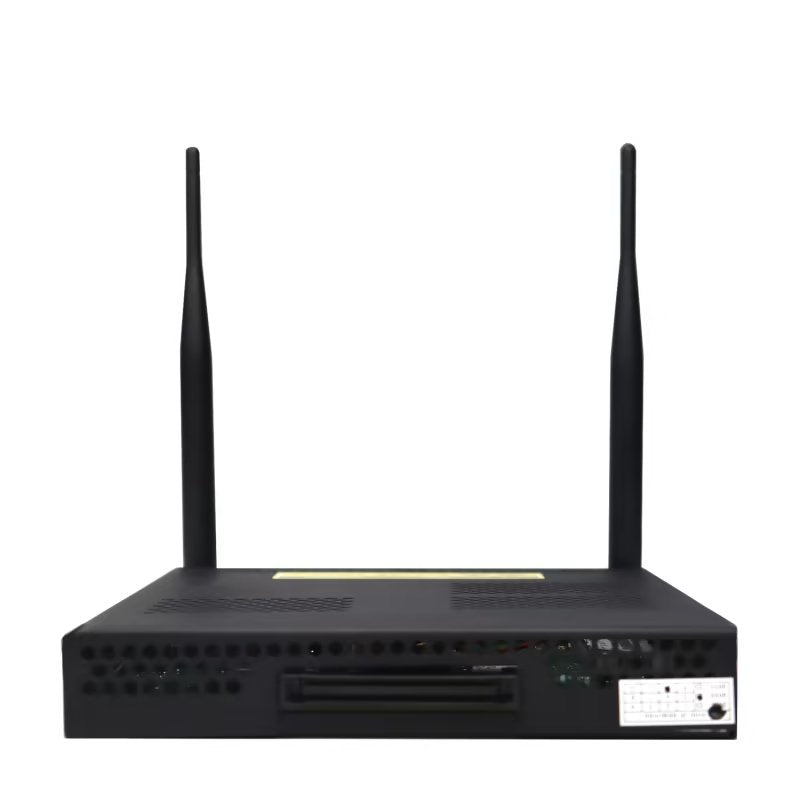

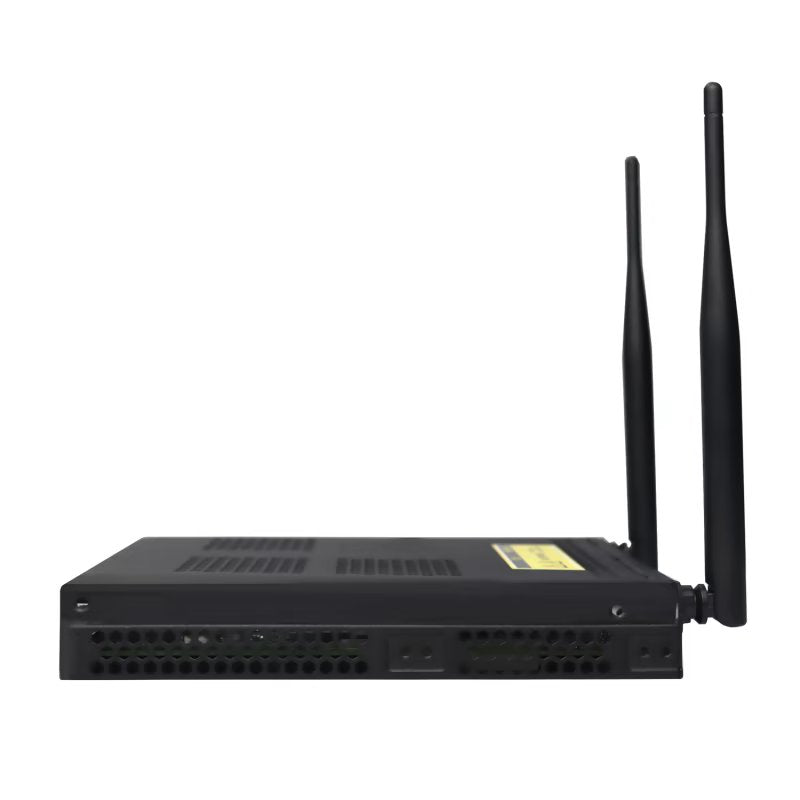

Hisense S02BDS5A811E OPS On Board Computer
SKU: S02BDS5A811E
£84,671.15 (Excl. VAT)
Hisense S02BDS5A811E
OPS On Board Computer
- Description
- Specifications
- Warranty
- Download
-
Hisense Interactive displays comes with an OPS slot (Open Pluggable Specification) giving you the ability to integrate a computer in to the display. The integrated OPS computer utilises powerful Intel processors to bring you all the power of a desktop computer within the interactive display maximising its versatility and compatibility.
MSATA System Disk
Support quick start of MSATA system disk and one click restore to enhance user experience.
HD Graphics
The standard Intel HD graphics 630 integrated graphics card supports h.265 and 4K.
10th Generation CPU
10th Generation Intel desktop CoreTM CPU.
Support Bluetooth 4.2
Version 4.2 makes Bluetooth smarter, faster and the ideal wireless technology supporting up to 1Mbps.
Update System to Win10 Iot Enterprise LTSC or Win 11 Pro
Windows Enterprise is a streamlined operating system that is designed for use on Internet of Things (IoT) devices.
Support WiFi 5 and Wired Network
Wifi 5 or IEEE 802.11ac is the fifth generation of wireless networking standards in the IEEE 802.11 set of standards which provides high throughput in a wireless local area network (LAN) -

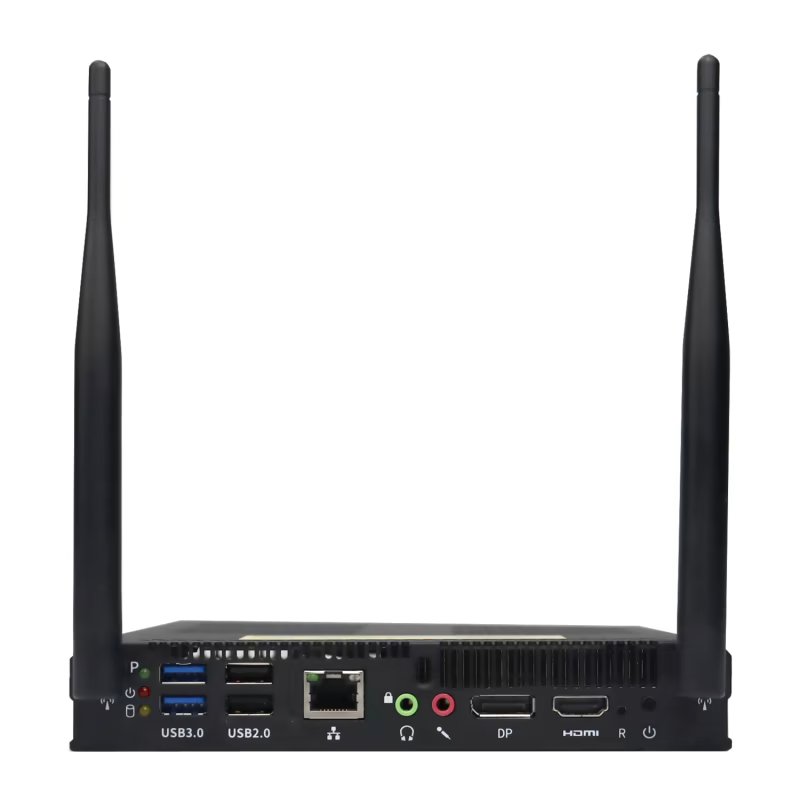

Category Specification OPS CPU Intel CoreTMI i5 10400 CPU RAM 8GB SSD 128GB System Win10 Iot Enterprise LTSC or Win 11 Pro Power Power Supply Mode Internal Power Supply Module Power Requirements 12V-19V DC Max Power 95W Standby Power 0.5W Motherboard Interface LAN Integrated 10/100/1000M Adaption WiFi WiFi5 11ac Bluetooth Bluetooth 4.2 USB3.0 x 2 USB 2.0 x 2 HDMI Out x 1 DP Out x 1 Mic In x 1 Physical Colour Black Dimension LWH 18019530(mm) Net Weight 1.4kg Environmental Conditions Operation Temperature 0 - 40°C Operation Humidity 10% - 90% Storage Temperature -20 - 60°C Storage Humidity 10% - 90% Available Regions EU, USA, APAC, SA
- Hisense Premium Commercial Display Warranty
Hisense proudly provides a unique 3-year de-installation warranty, ensuring seamless operation of your signage and swift solutions if challenges arise.
Curious about the Hisense Display Collection?
For any inquiries or additional details on the Hisense Digital Signage Displays, feel free to reach out to our dedicated team at 020 8191 9223 or drop us an email at: info@screenmoove.com -
Document Type Download Link S02BDS5A811E Datasheet DOWNLOAD
