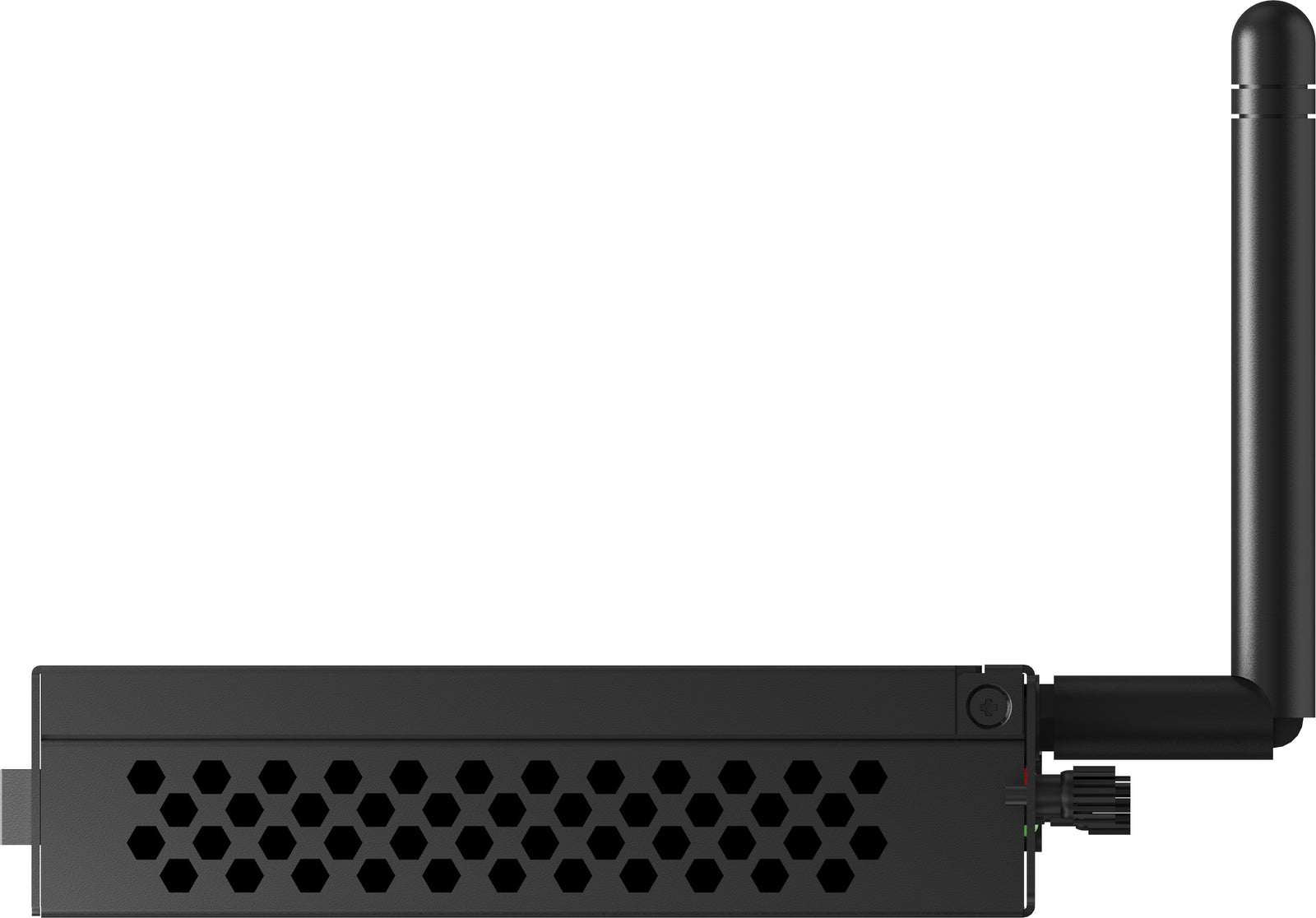

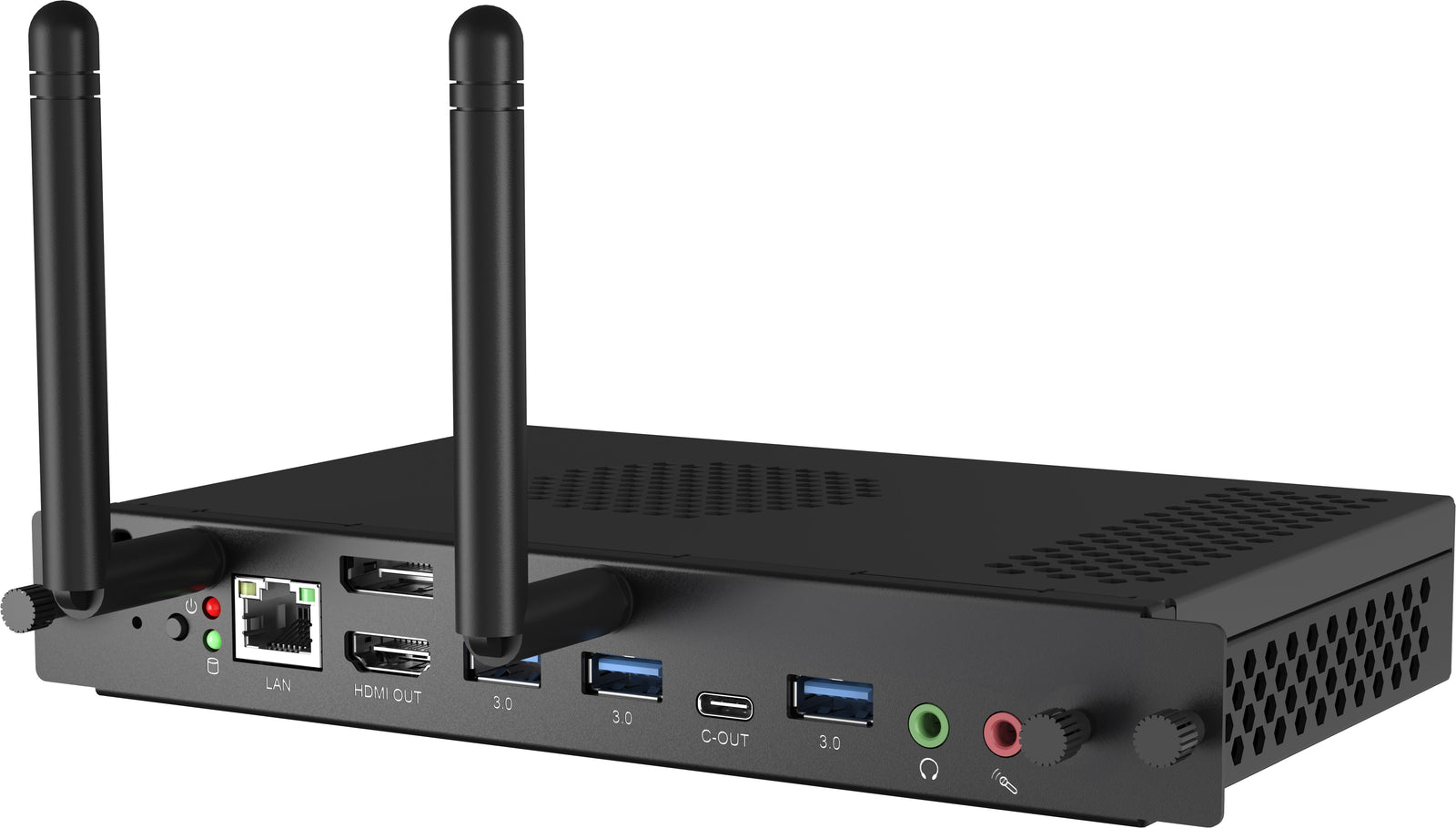

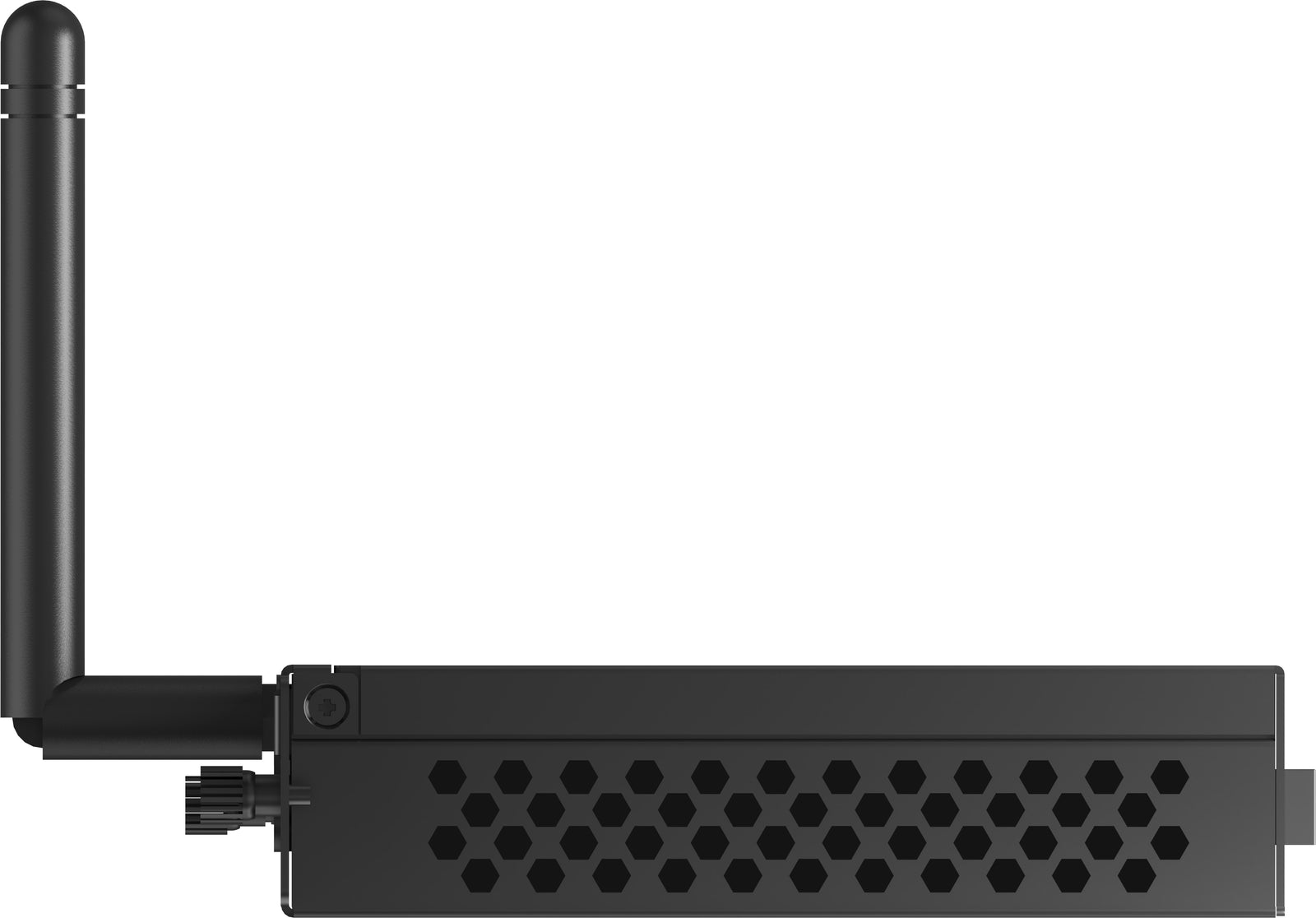

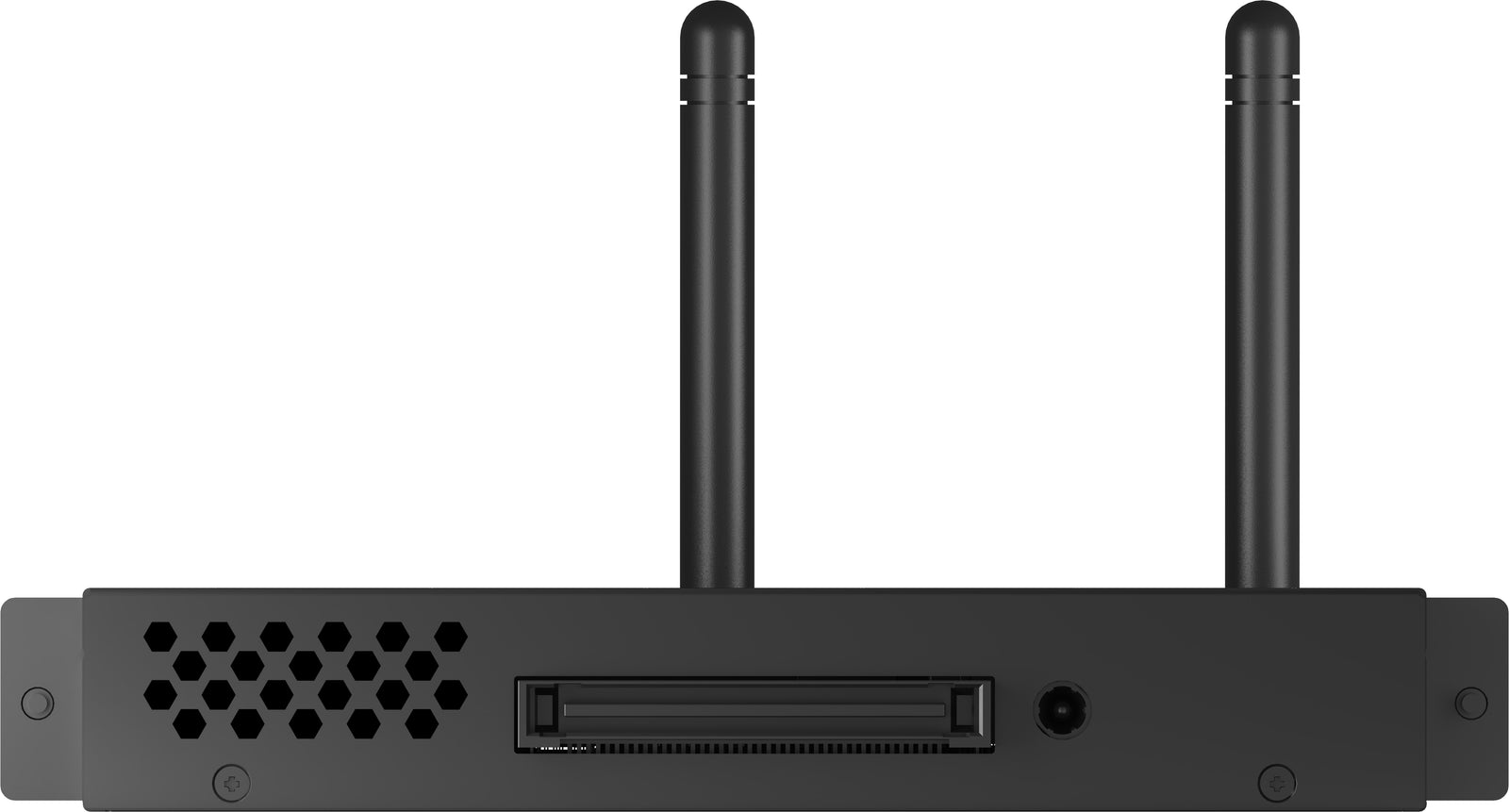

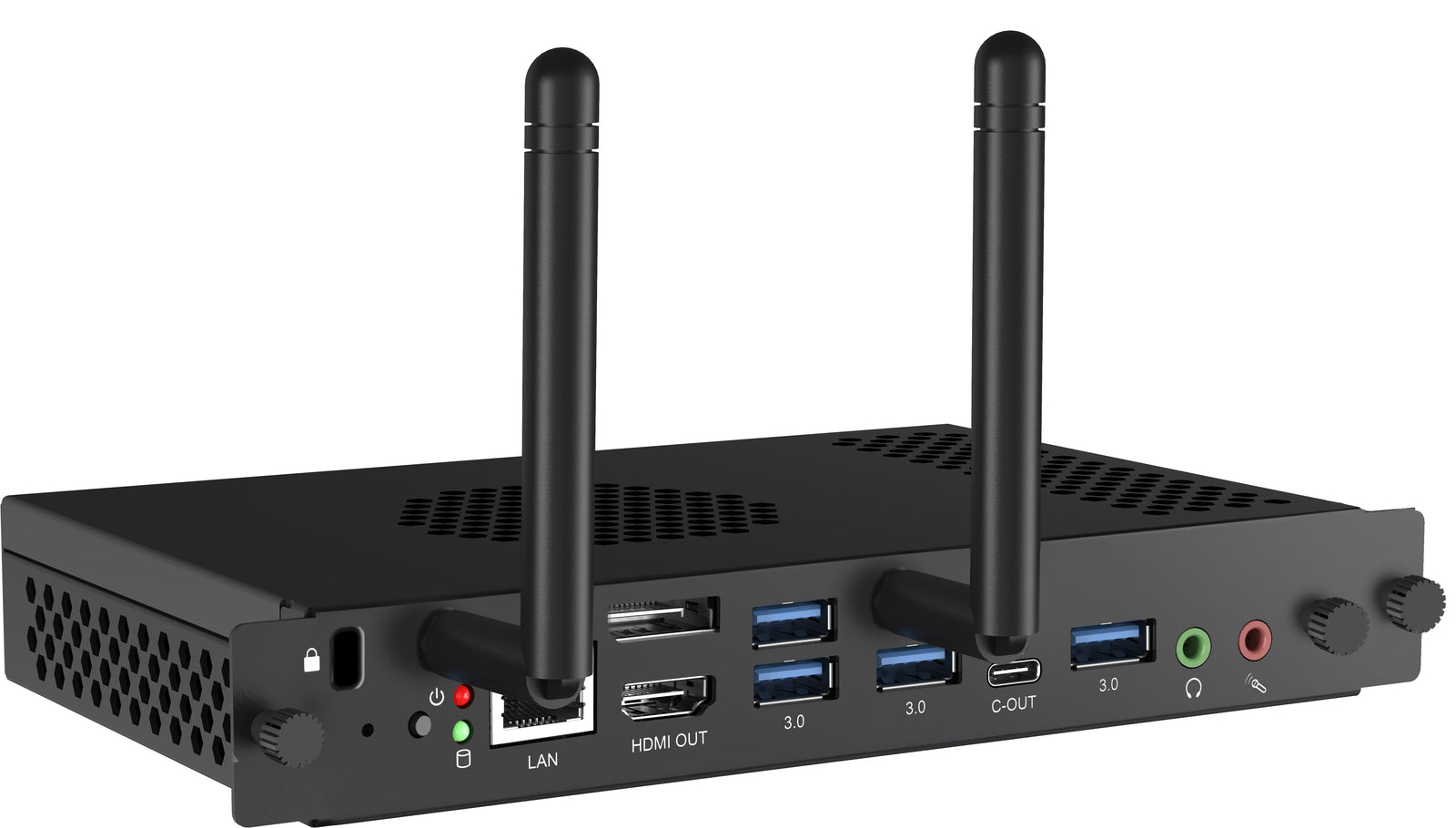

This mini OPS PC with Intel® Core™ i5 inside turns your iiyama (interactive) large format display into a stand-alone solution. It comes equipped with a powerful Intel® processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. The OPC51204BC-1 is also very quiet with a noise level below 34dB at 100% CPU load at 1 meter distance. Simply slide in the iiyama OPS slot PC and get started right away.
| Feature | Specification |
|---|---|
| DEVICE | |
| Type | OPS slot PC |
| CPU | Intel® Core™ i5-12450H |
| Security | TPM 2.0 (Trusted Platform Module), vPro Essential |
| RAM | DDR4 3200MHz 8GB, Max. 32GB |
| Storage | PCIe 256GB M.2 SSD |
| Graphics | Integrated Intel® UHD Graphics for 12th Gen Intel® Processors |
| Chipset | Intel® |
| Network | 10/100/1000M Adapter |
| WiFi | 802.11 a/b/g/n/ac/ax (Wifi 6) |
| Bluetooth | 5.2 |
| Operating System | Windows 11 IoT Enterprise |

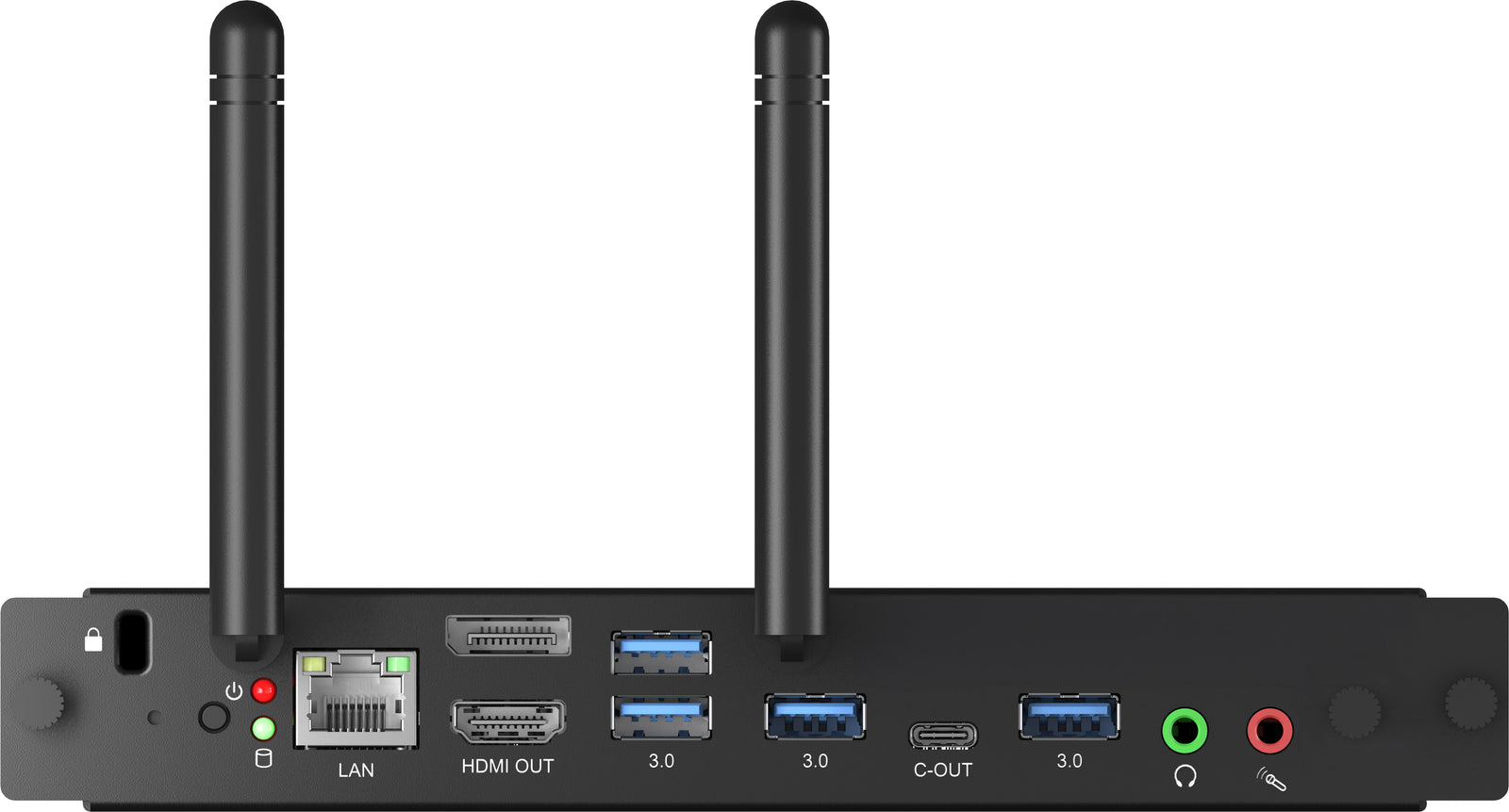

| Ports | |
| LAN (RJ45) | 1 |
| USB 3.0 | 4 |
| USB 3.2 (Type C) | 1 (Not support DP Alt mode) |
| DisplayPort Out | 1, DP1.4 (Max resolution 3840 x 2160 60Hz) |
| HDMI Out | 1, HDMI2.0 (Max resolution 3840 x 2160 60Hz) |
| Headphone Connector | Yes |
| Microphone In | 1 |
| FEATURES | |
| Bluetooth | 5.2 |
| POWER MANAGEMENT | |
| Power Usage | 80.7W typical, 2.9W stand by |
| DIMENSIONS / WEIGHT | |
| Product dimensions (L x W x H) | 180 x 119 x 30 mm |
| Box dimensions (W x H x D) | 260 x 192 x 72 mm |
| Weight (without box) | 0.60kg |
| Weight (with box) | 0.957kg |
| EAN code | 4948570033331 |
| ENVIRONMENTAL CONDITIONS | |
| Operating temperature range | 0°C - 45°C |
| Operating humidity | 10% - 95% |
| Storage temperature range | -10°C - 50°C |
| Storage humidity | 10% - 95% |
