iiyama PC51201CC-1

An Intel® i5 OPS slot PC with Windows

• Description
• Specifications
• Warranty

• OPC51201CC-1

  An Intel® i5 OPS slot PC with Windows® 11 which supports 5K (5120x2160) resolution

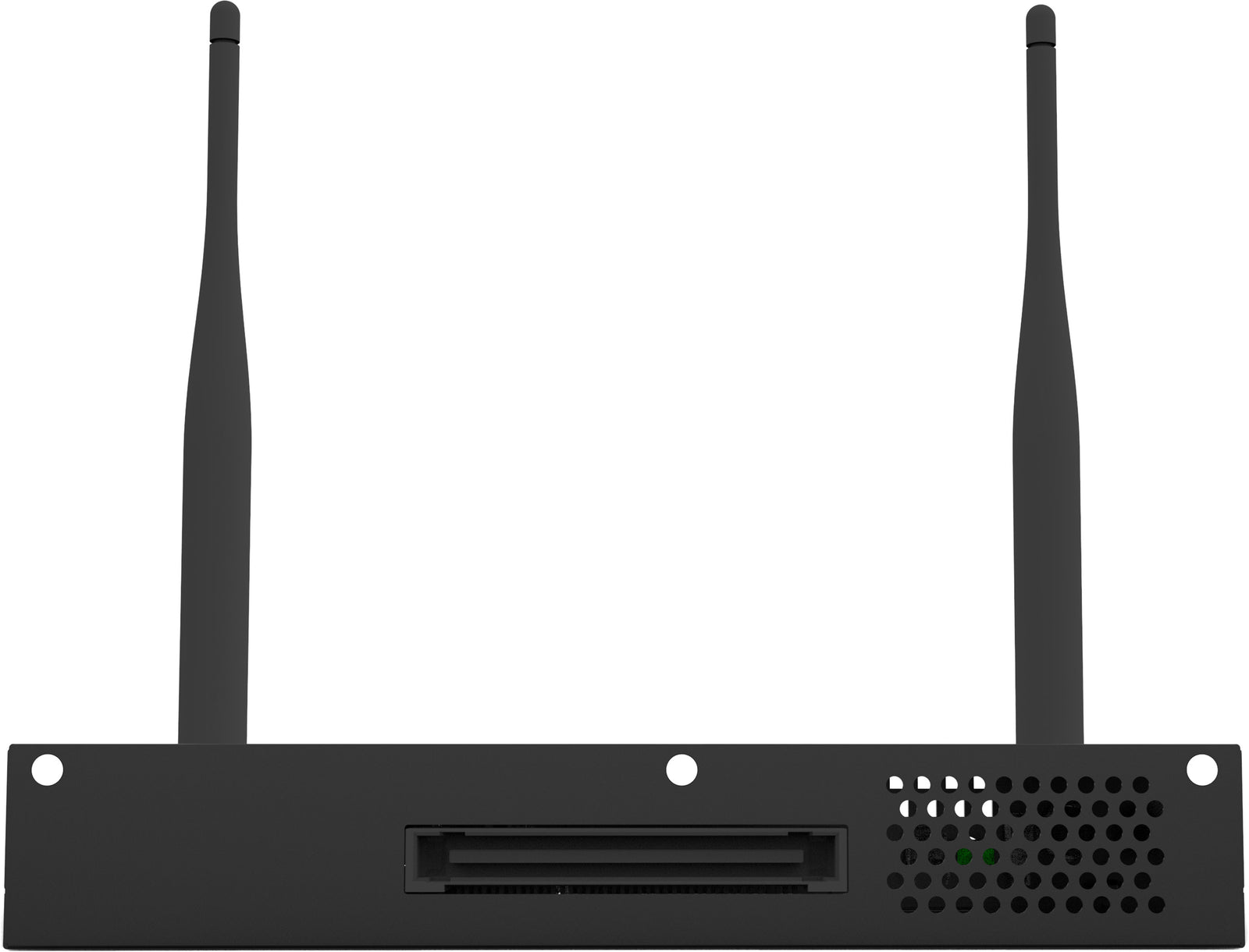

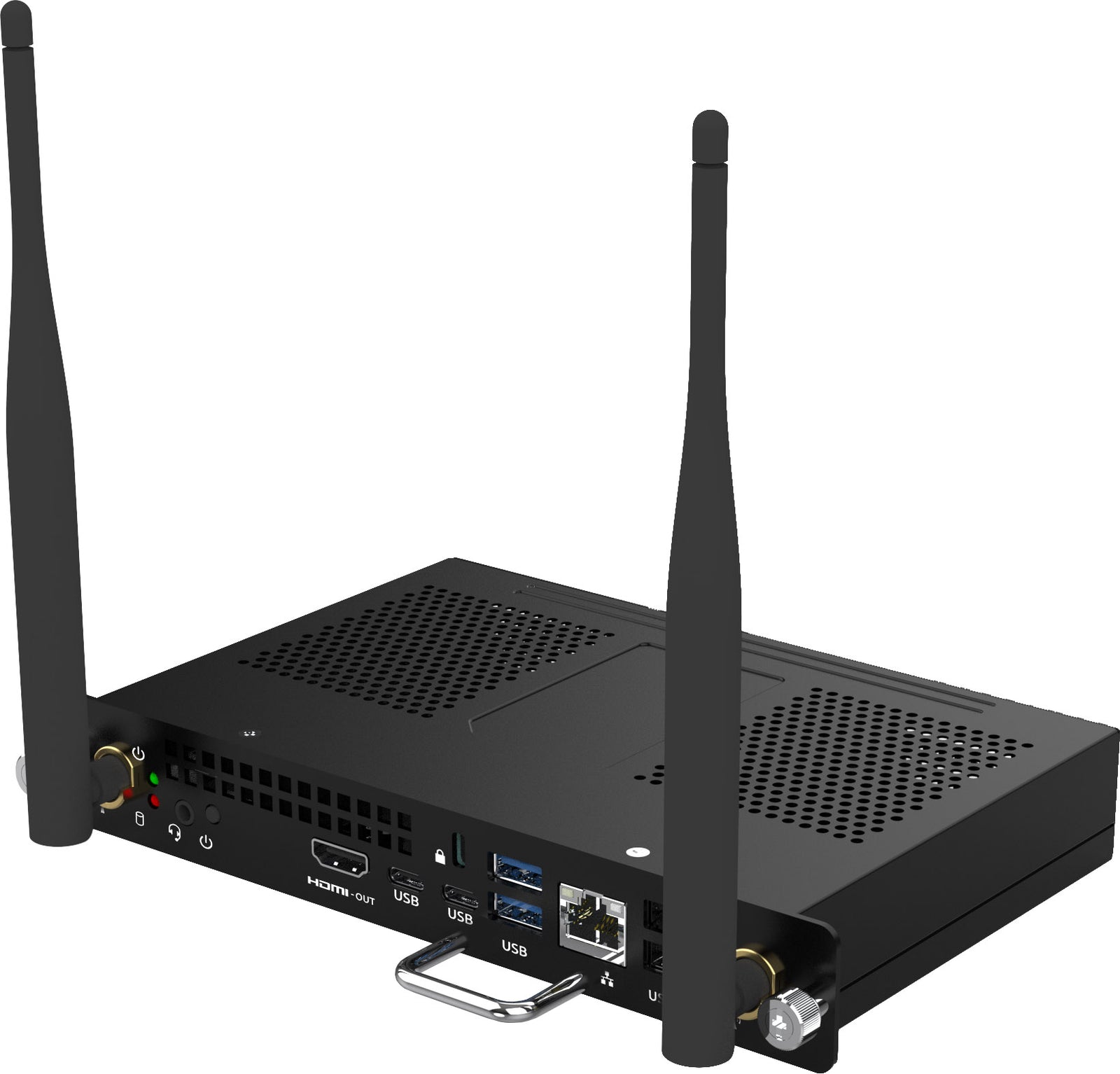

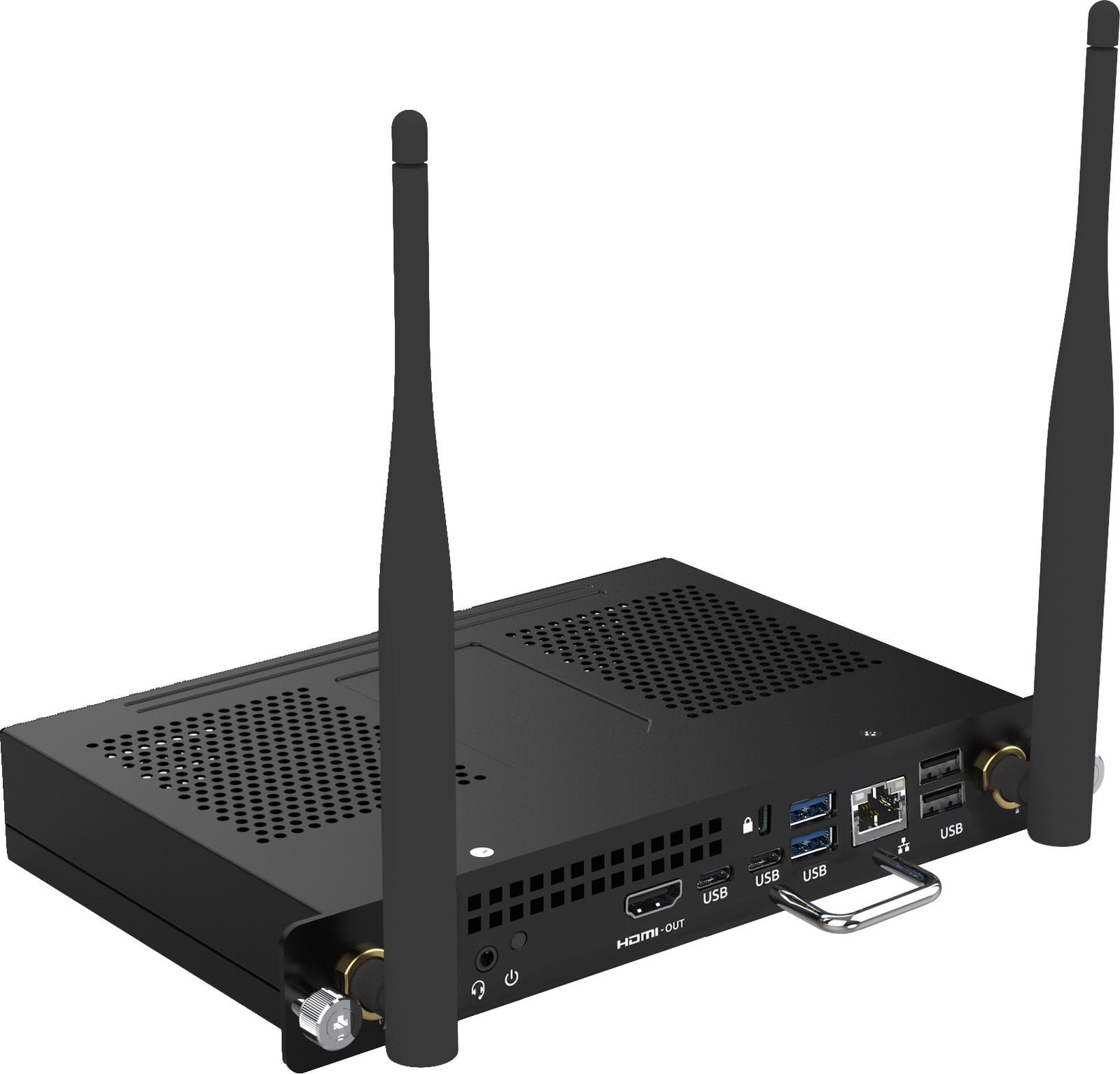

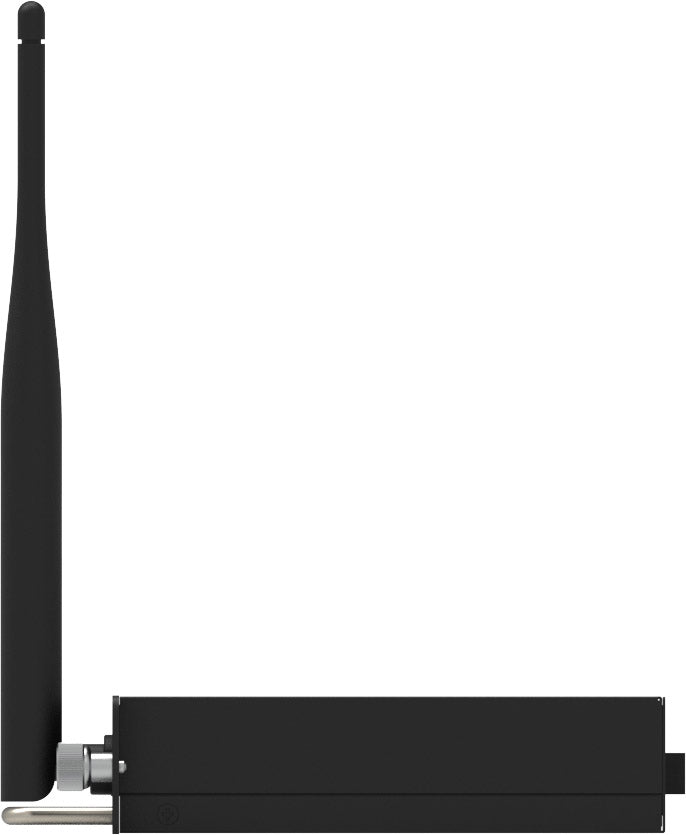

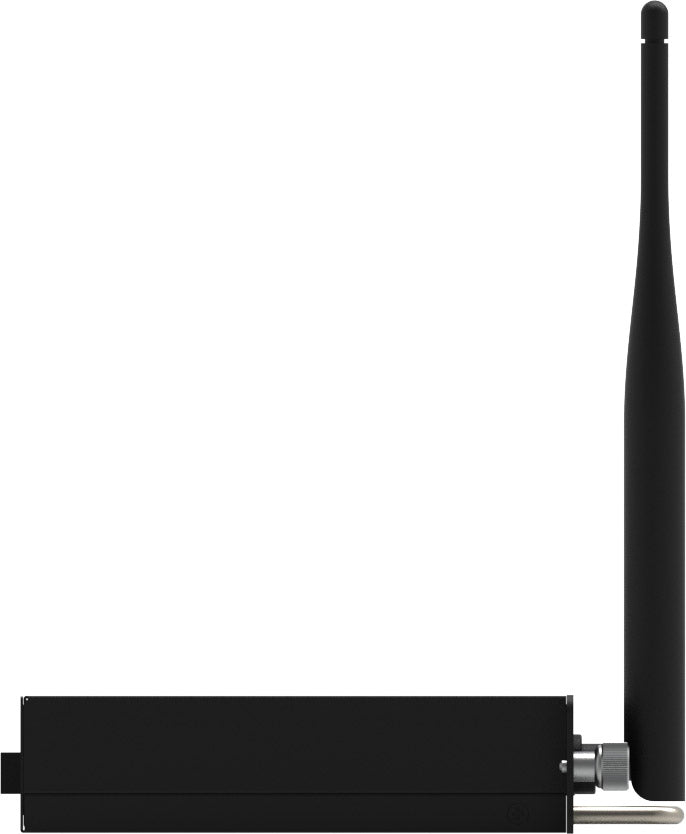

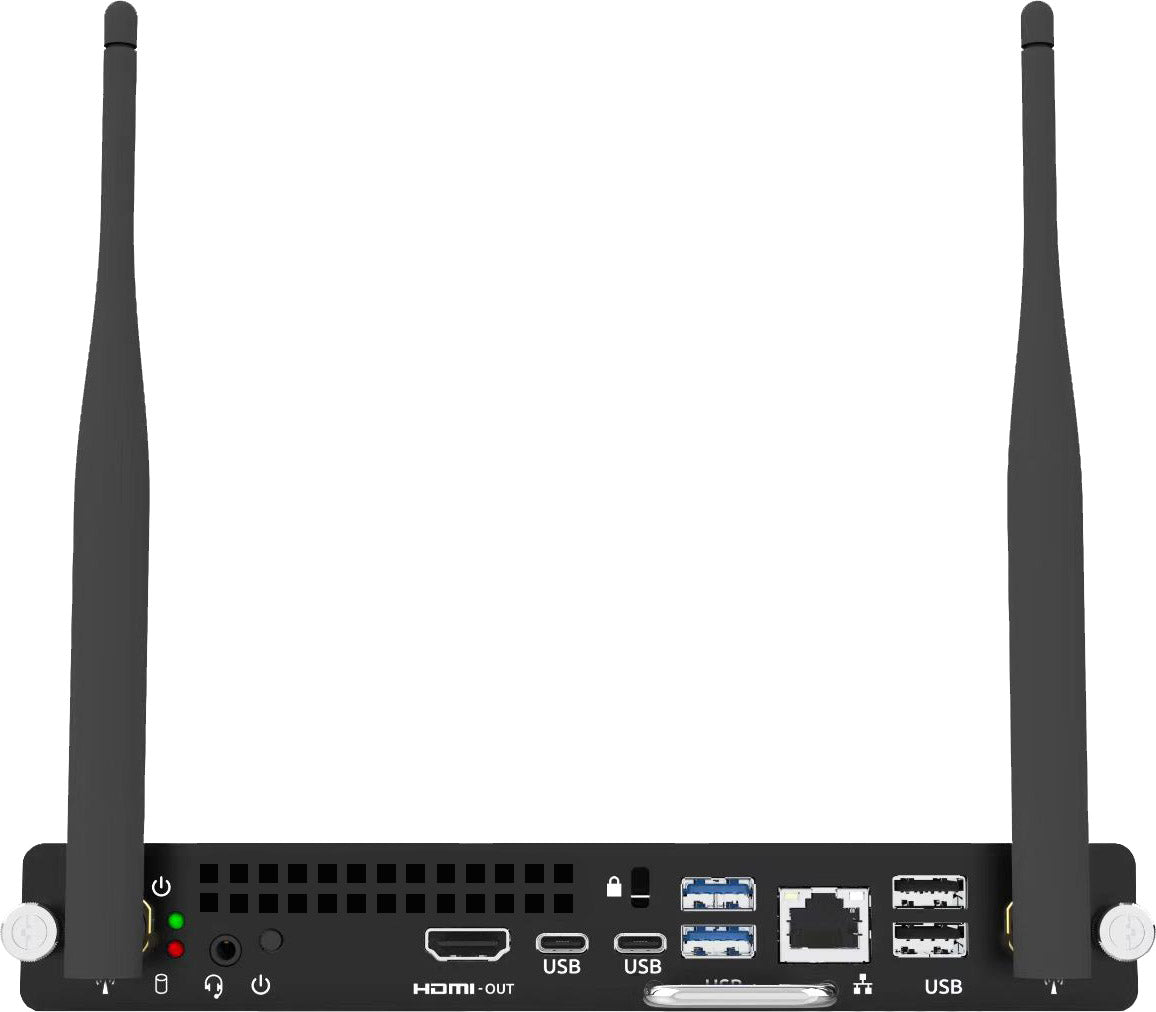

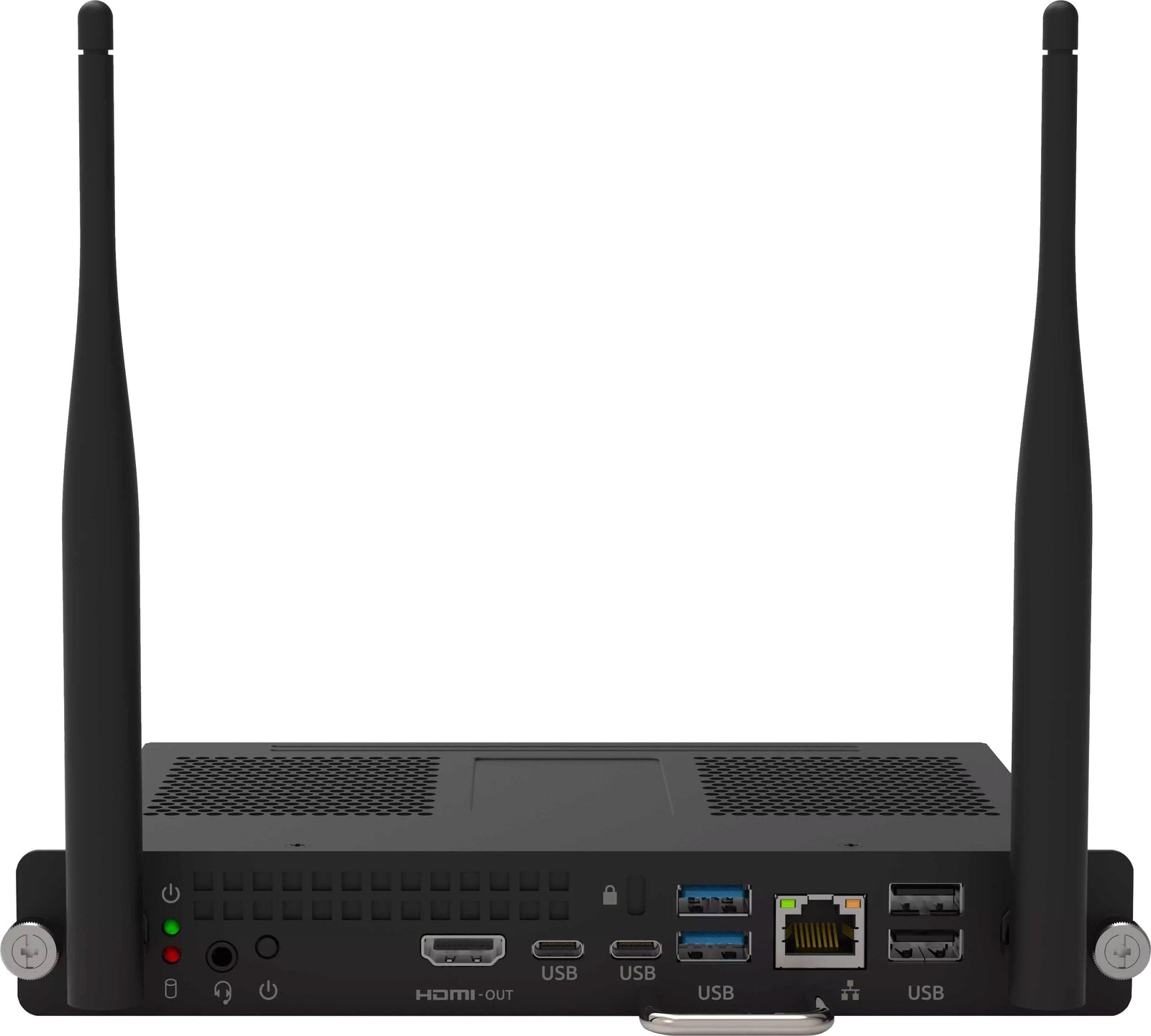

  This mini OPS PC with Intel® Core™ i5 inside turns your iiyama (interactive) large format display into a stand-alone solution. It comes equipped with a powerful Intel® processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. The OPC51201CC-1 is also very quiet with a noise level below 34dB at 100% CPU load at 1meter distance. Simply slide in the iiyama OPS slot PC and get started right away.

• DEVICE

  Type	OPS slot PC
  CPU	Intel® Core™ i5-1240P, TPM 2.0 (Trusted Platform Module), vPro Essential
  RAM	16GB DDR4
  SSD	256GB M.2
  Graphics	Integrated Intel® Iris® Xe
  Chipset	Intel®
  Sound card	Integrated High Definition Audio Stereo
  Networking	10/100/1000M Adapter
  WiFi	802.11 a/b/g/n/ac/ax (M.2 NVME)
  Bluetooth	5.3
  Operating system	Windows 11 IoT Enterprise
  LAN (RJ45)	x1
  USB	3.0 x2, 2.0 x2, 3.2 (Type C) x2 (support DP Alt mode)
  HDMI Out	x1 (2.0)
  Microphone In	x1 (mic and headset combo)

  POWER MANAGEMENT

  Power usage

  95W typical, 0.5W stand by

  DIMENSIONS / WEIGHT

  Product dimensions L x W x H	180 x 119 x 30mm
  Weight (without box)	0.75kg
  Weight (with box)	0.95kg
  EAN code	4948570033188

  ENVIRONMENTAL CONDITIONS

  Operation temperature range	0°C - 40°C
  Operation humidity	10% - 95%
  Storage temperature range	- 10°C - 50°C
  Storage humidity	10% - 95%

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17" - 43")	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download


  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one - Check that all connections have been properly made.

  Step two - Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three - If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four - Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five - Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six - Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required
