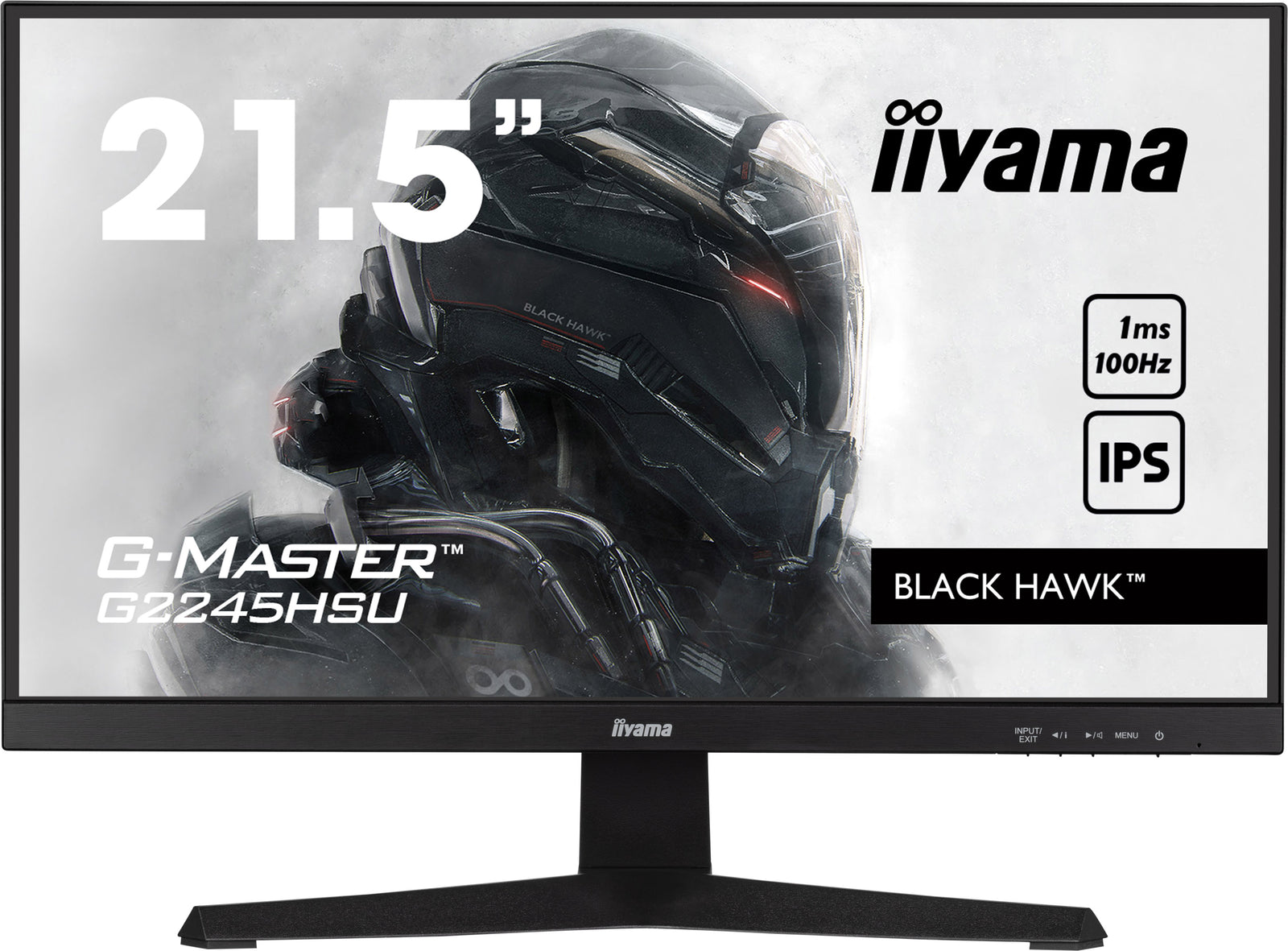

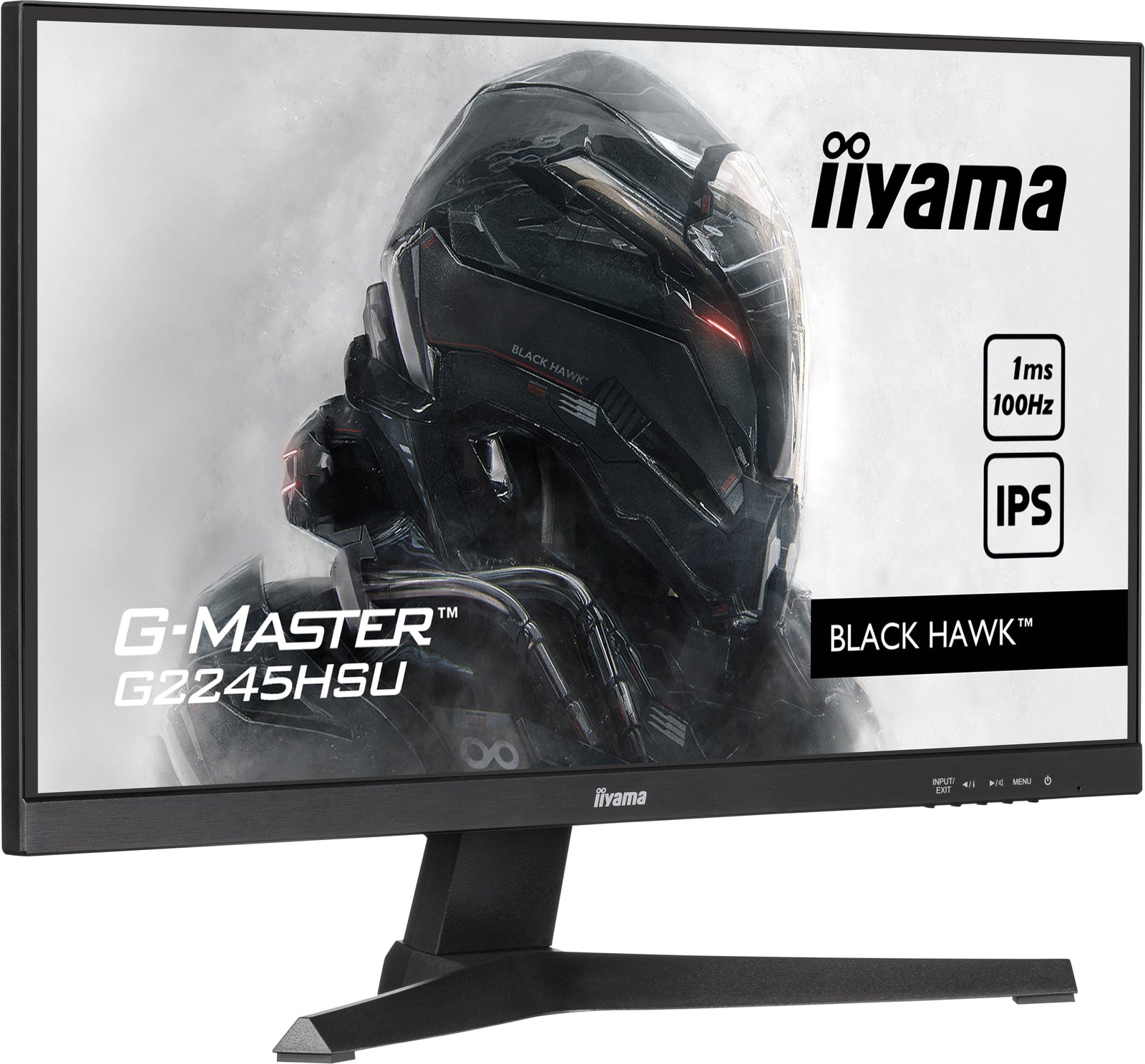

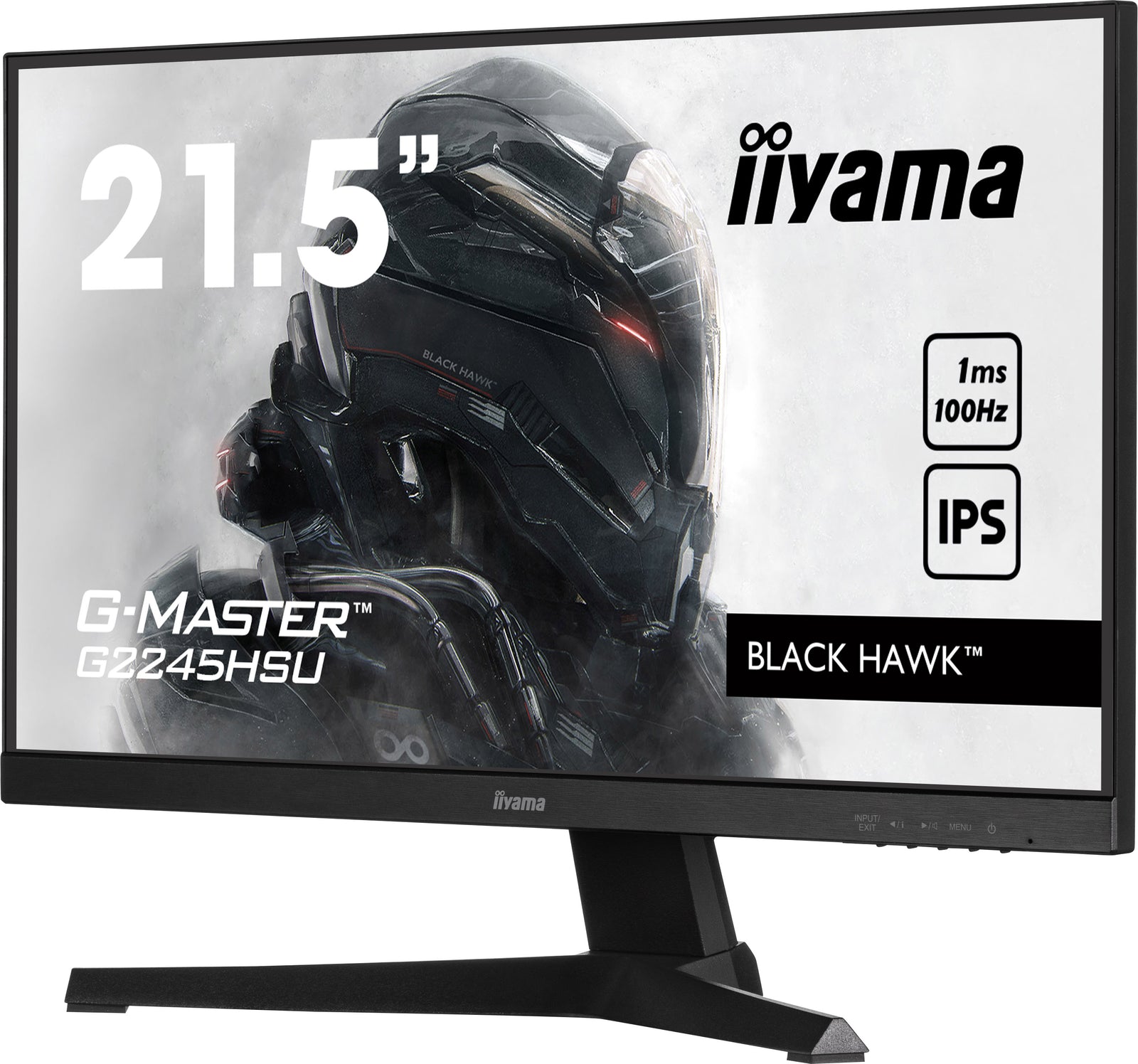

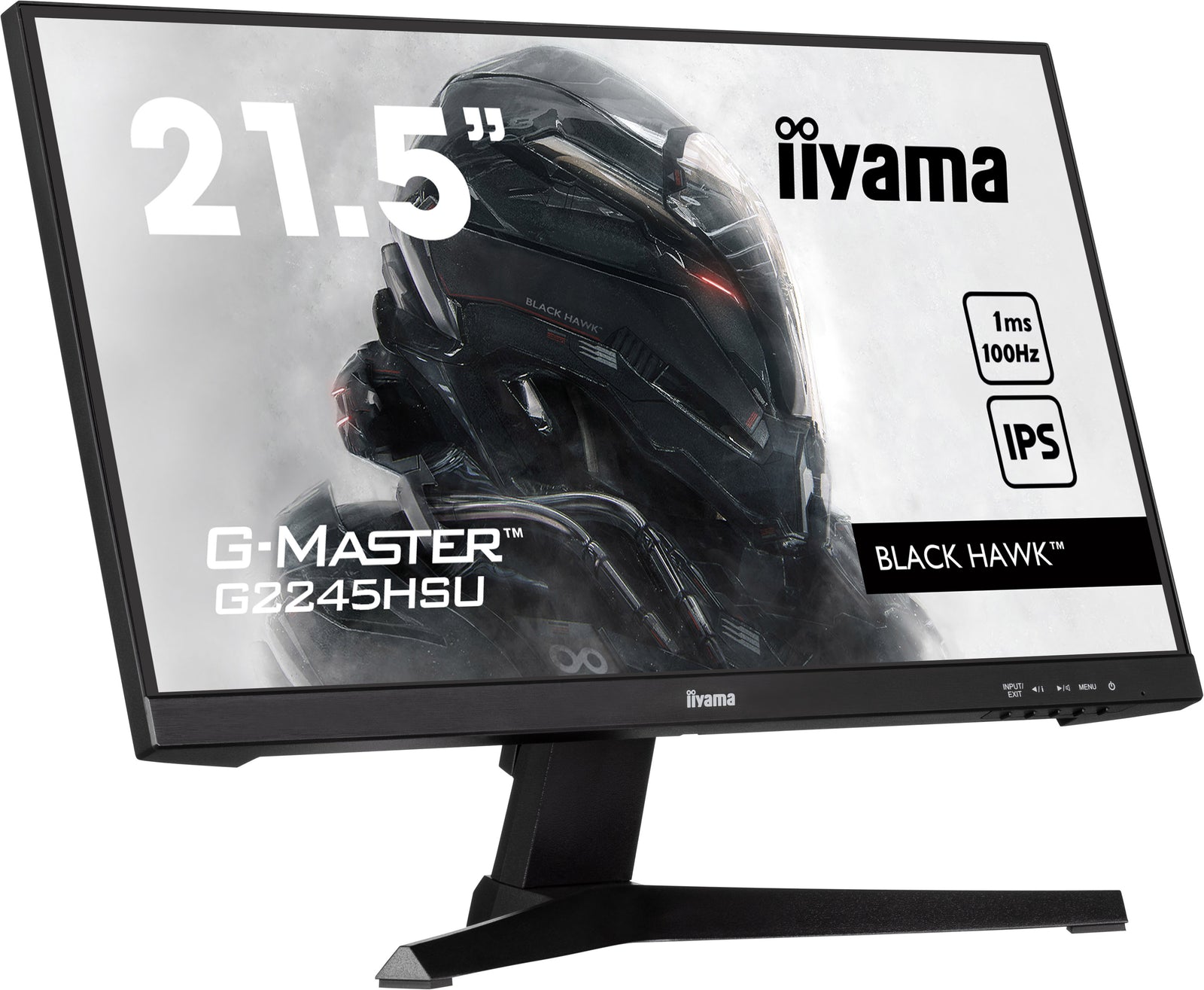

Get ahead with the G2245HSU with IPS Panel Technology and 1ms MPRT

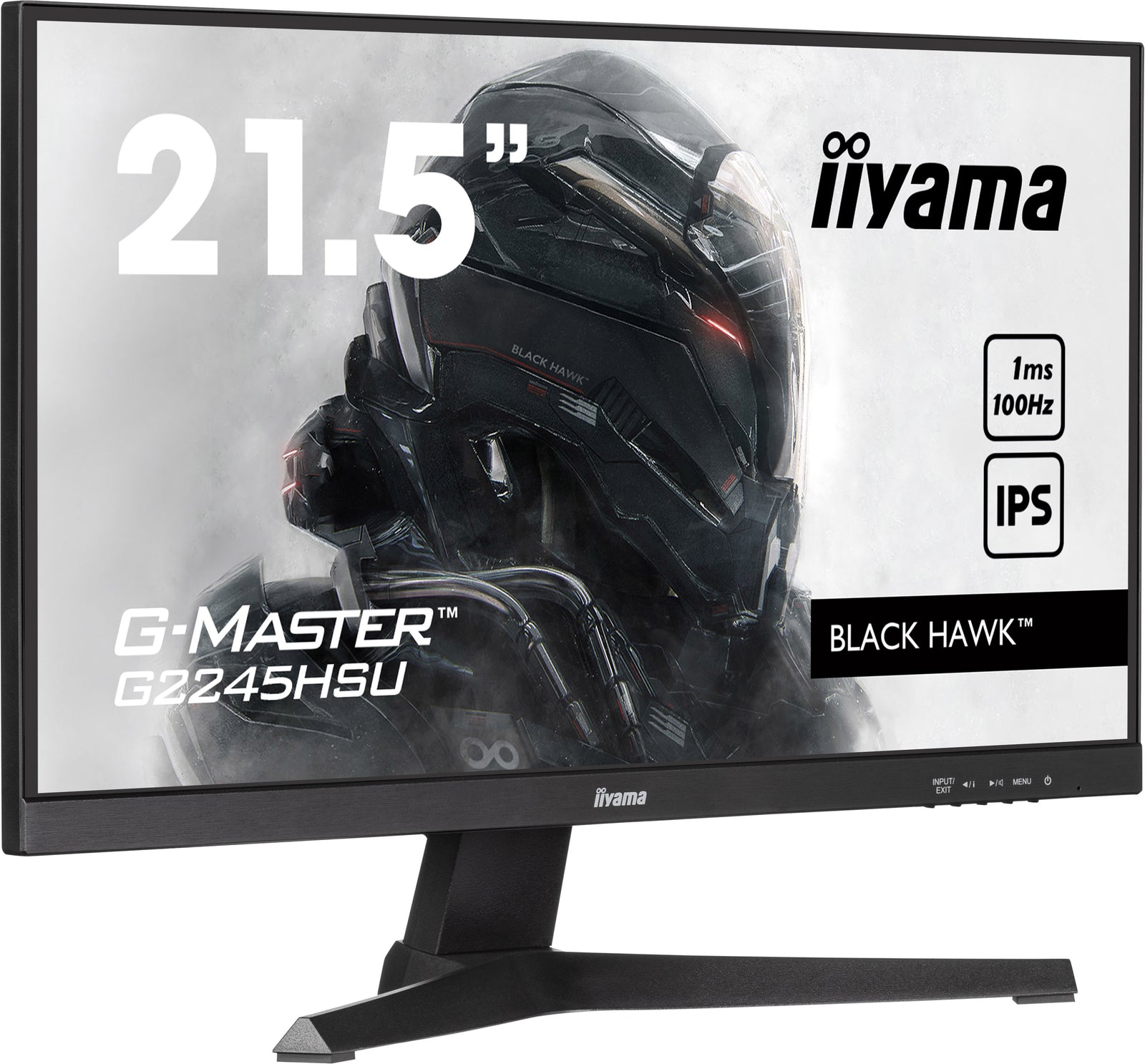

Indulge in exceptional gaming excellence with the 21.5" G2245HSU monitor. This display boasts cutting-edge IPS panel technology, a 100Hz refresh rate, and an ultra-swift 1ms MPRT response time. Elevate your gaming adventure to the next level, thanks to FreeSync Technology and the Black Tuner function, ensuring crystal-clear visibility even in the darkest scenes.
1MS
Fast response time is key to ultra-smooth gaming. It reduces ghosting and blurring providing the user with an improved graphic performance.
100HZ
A 100Hz refresh rate translates into increased smoothness of the image. This means that flickering is reduced and therefore eye fatigue is also less noticeable. The increased frequency also means smoother transitions between contrasting colours, smoother motion scenes in both movies and gaming, and even reduced mouse cursor flickering.
FREESYNC™ TECHNOLOGY
IPS TECHNOLOGY
Covering 100% of the sRGB colour range, this IPS panel provides outstanding colour accuracy and wider viewing angles guaranteeing high-fidelity, vivid battleground scenes.
| DISPLAY CHARACTERISTICS | |
|---|---|
| Diagonal | 22", 54.5cm |
| Panel | IPS, matte finish |
| Native resolution | 1920 x 1080 @100Hz |
| Aspect ratio | 16:9 |
| Panel brightness | 250 cd/m² |
| Static contrast | 1000:1 |
| Advanced contrast | 80M:1 |
| Response time (MPRT) | 1ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7mln |
| Horizontal Sync | 30 - 110kHz |
| Viewable area W x H | 478.7 x 260.3mm, 18.8 x 10.2" |
| Pixel pitch | 0.249mm |
| Colour | matte, black |

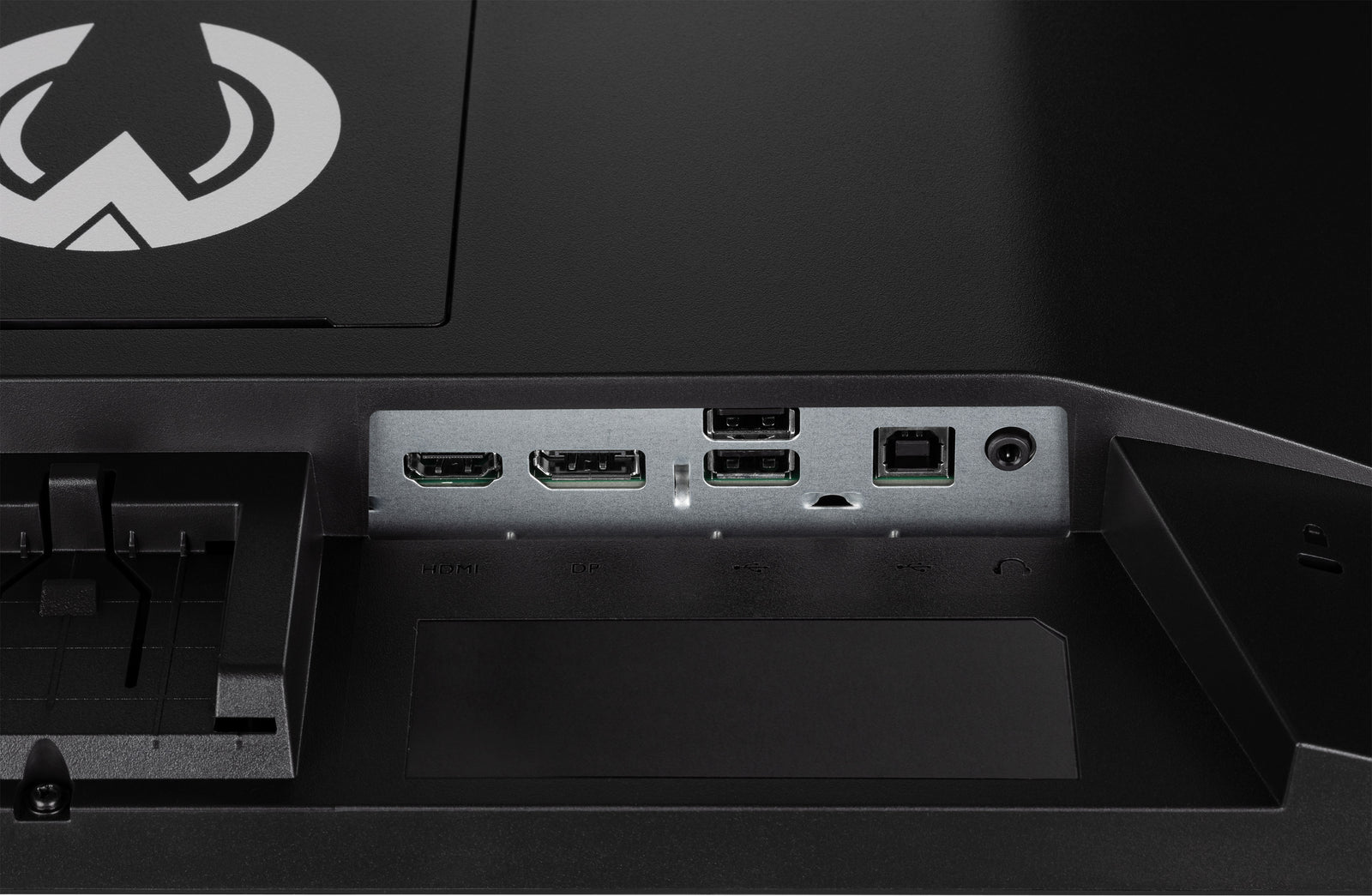

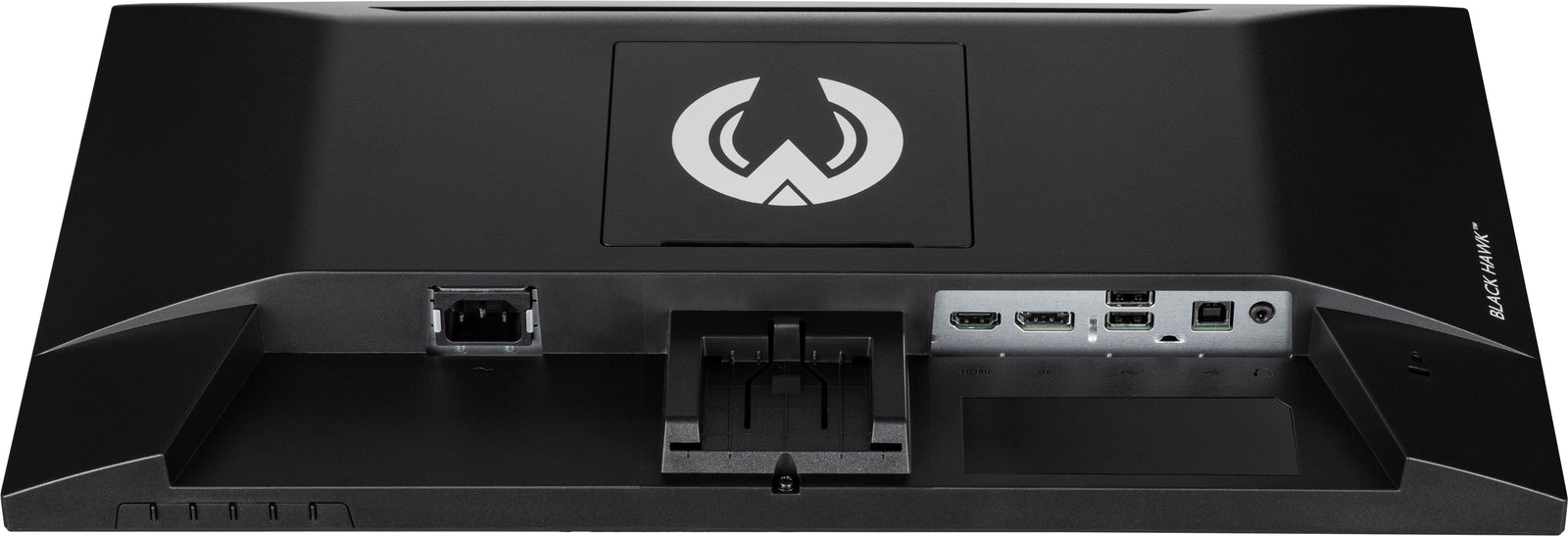

| INTERFACES / CONNECTORS / CONTROLS | |
| Signal input | HDMI x1 (v.1.4) |
| DisplayPort x1 (v.1.2) | |
| USB HUB | x2 (v.2.0 DC5V, 500mA) |
| HDCP | yes |
| Headphone connector | yes |
| FEATURES | |
| Blue light reducer | yes |
| Flicker free | yes |
| Adaptive Sync support | 1920 x 1080 @48-100Hz |
| Extra | i-Style Colour |
| OSD languages | EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL |
| Control buttons | Power, Menu, Up/Right/Volume, Down/Left/Black Tuner/MBR/AMD FreeSync/Night Mode Button, Input Select/Exit |
| User controls | |
| Picture adjust | contrast, brightness, OD, AC, Eco, black tuner, colour saturation, MBR, AMD FreeSync |
| input source, audio settings (volume, mute audio), user modes, colour settings (6-Axis, gamma, blue light reducer, colour temperature, user preset) | |
| image adjust (i-Style Colour, sharp and soft, RGB range, video mode adjust) | |
| language, setup menu (OSD h. position, OSD v. position, OSD time, opening logo, LED), display information, recall | |
| Speakers | 2 x 2W |
| Convenience | Kensington-lock™ prepared, DDC2B, Mac OSX |
| MECHANICAL | |

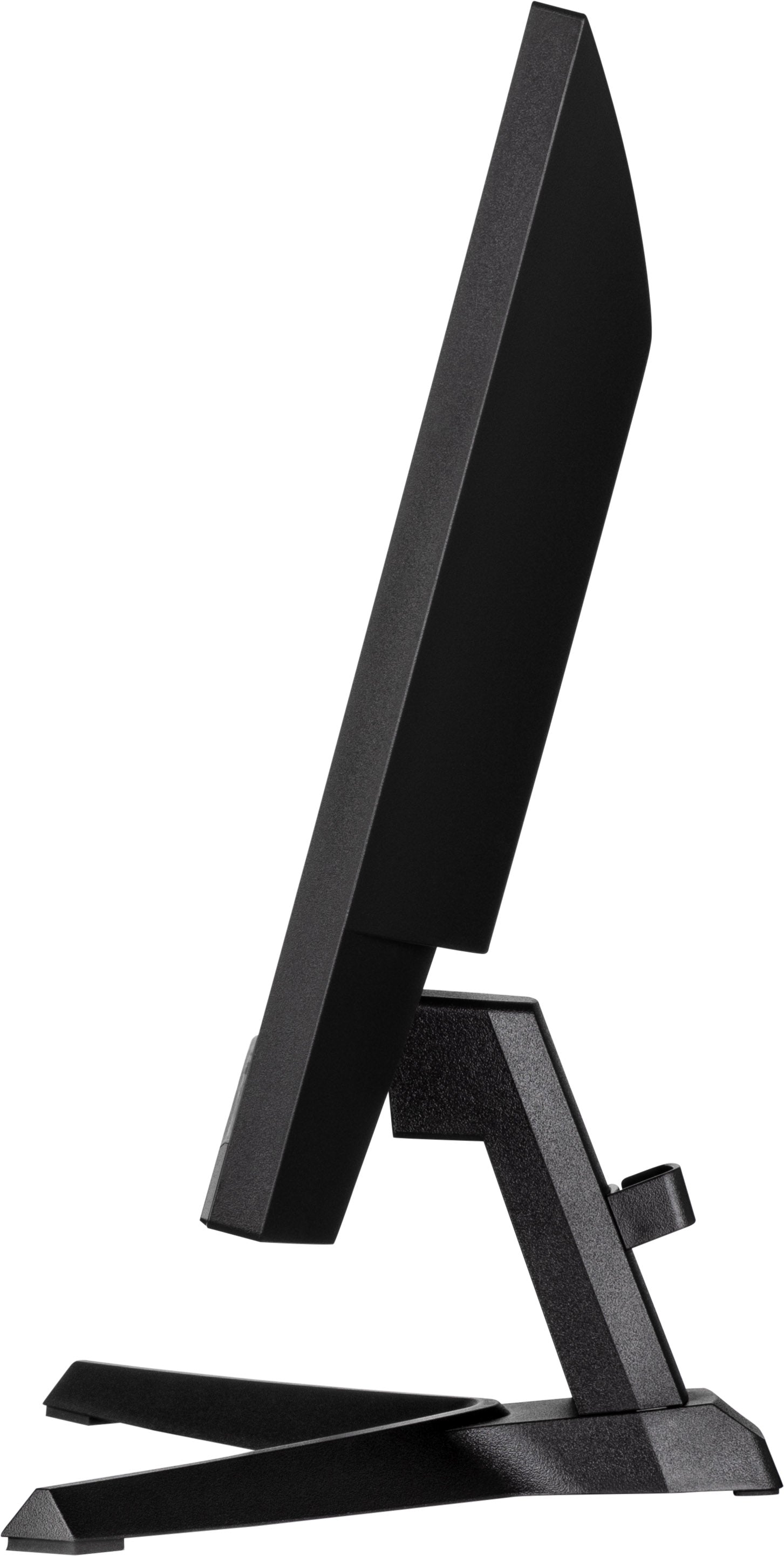

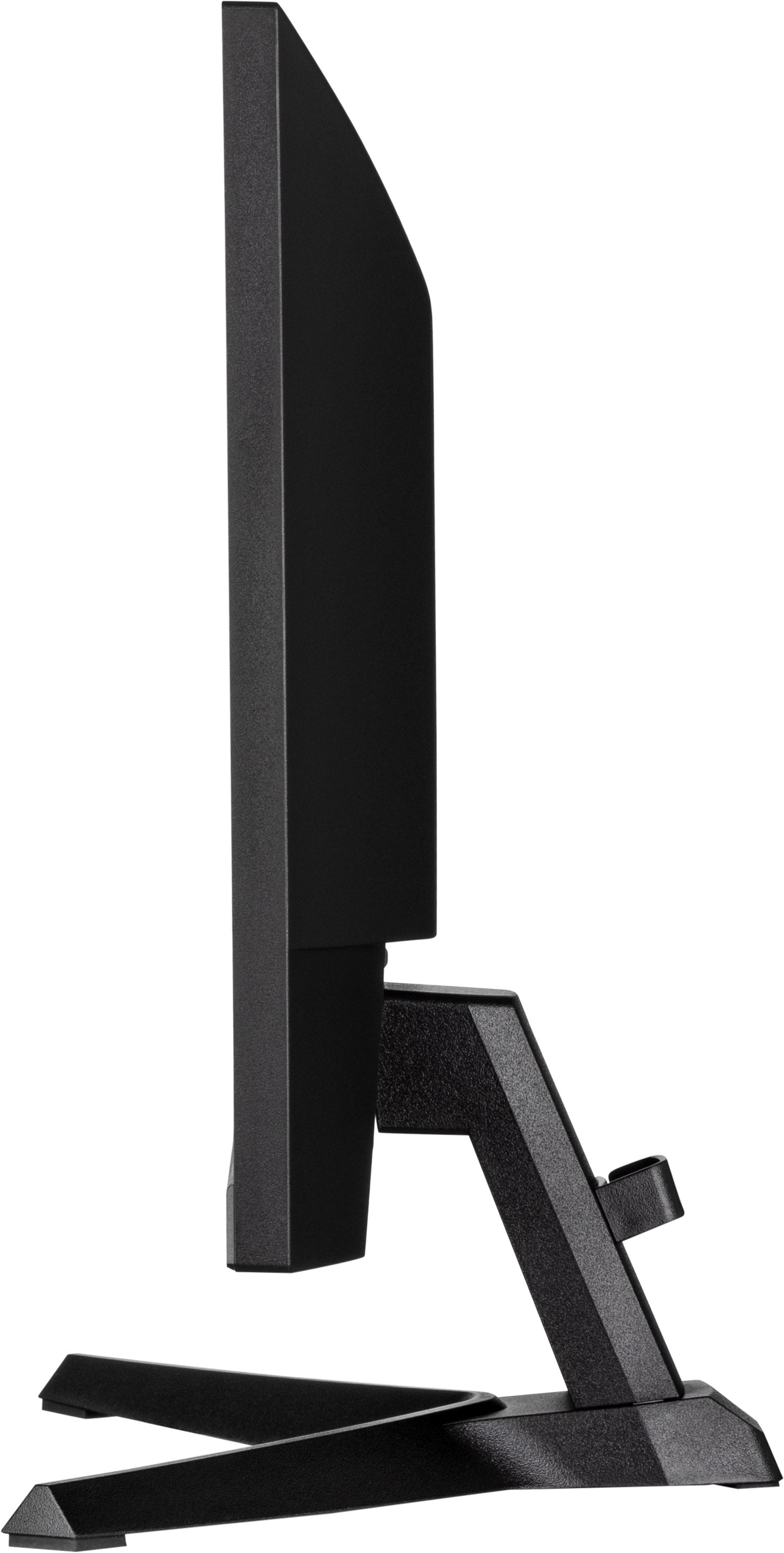

| Display position adjustments | tilt |
| Tilt angle | 22° up; 4° down |
| VESA mounting | 100 x 100mm |
| Cable management system | yes |
| ACCESSORIES INCLUDED | |

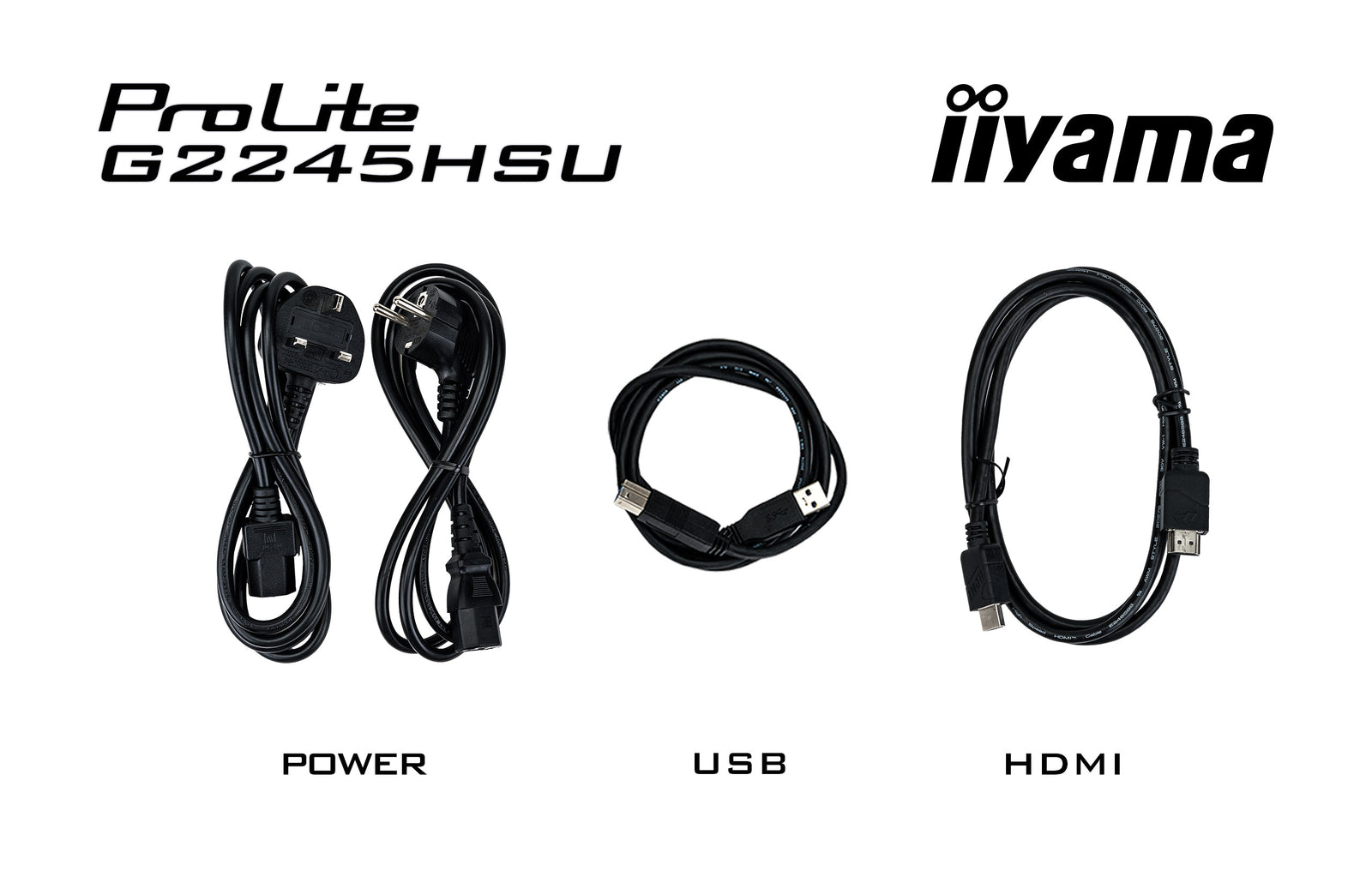

| Cables | power, USB, HDMI |
| Other | quick start guide, safety guide |
| POWER MANAGEMENT | |
| Power supply unit | internal |
| Power supply | AC 50 - 60V, 100/240Hz |
| Power usage | 17W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class | E |
| REACH SVHC | above 0.1%: Lead |
| DIMENSIONS / WEIGHT | |
| Product dimensions W x H x D | 492 x 362 x 192mm |
| Box dimensions W x H x D | 564 x 122 x 380mm |
| Weight (without box) | 2.6kg |
| Weight (with box) | 3.6kg |
| EAN code | 4948570122714 |
| Warranty | Product | Cover |
| Visioncare | Desktop LCD products (Monitors) (17" - 43") |
3 years on-site UK warranty. (Upgrades to 5 years available) |
| Touchcare |
LCD touchscreen products | 3 years repair and return. (Upgrades to on-site & 5 years available) |
| LFD | Large Format Displays Standard Warranty |
3 years collect and return (Upgrade to swap, installation & 5 years available) Download |
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one - Check that all connections have been properly made.
Step two - Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three - If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four - Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five - Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six - Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
ON-SITE SWAP OUT
PIONEERING CUSTOMER SERVICE.
| Description | Downloads |
|---|---|
| User manual | Download |
| Technical specification | Download |
| Drawing | Download |
| UK Energy Label | Download |
