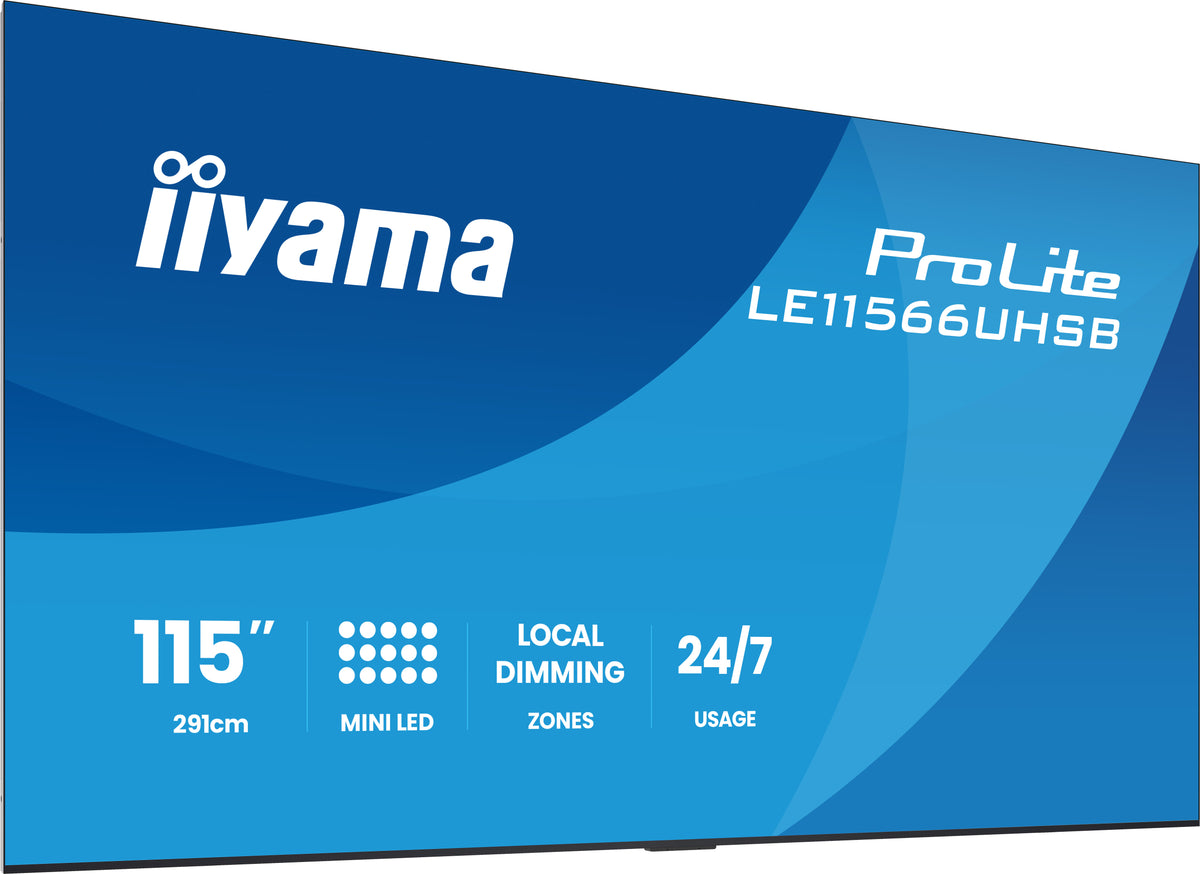

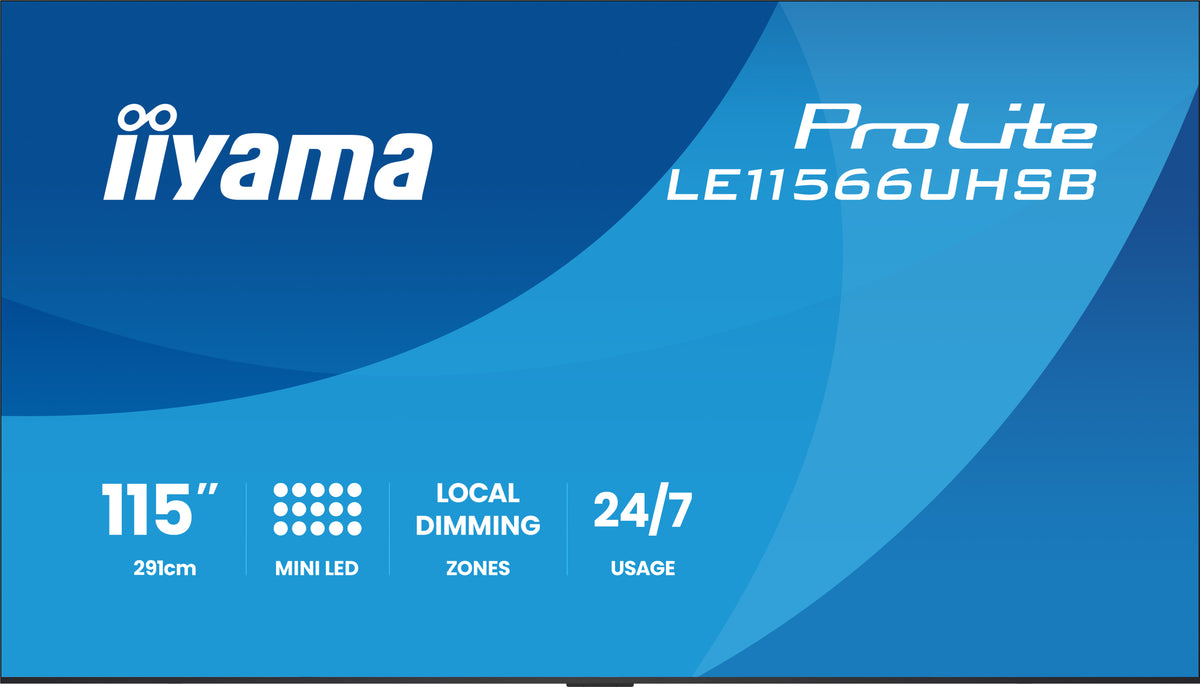

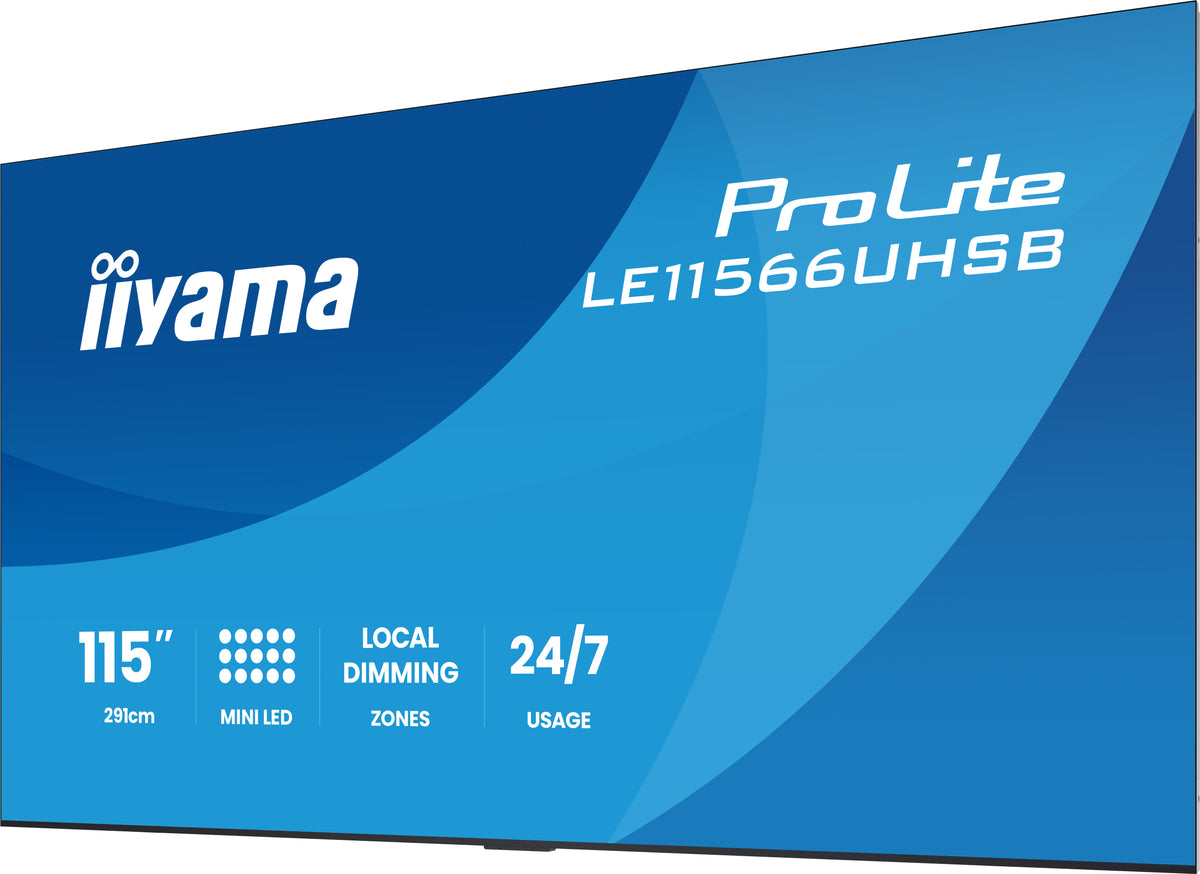

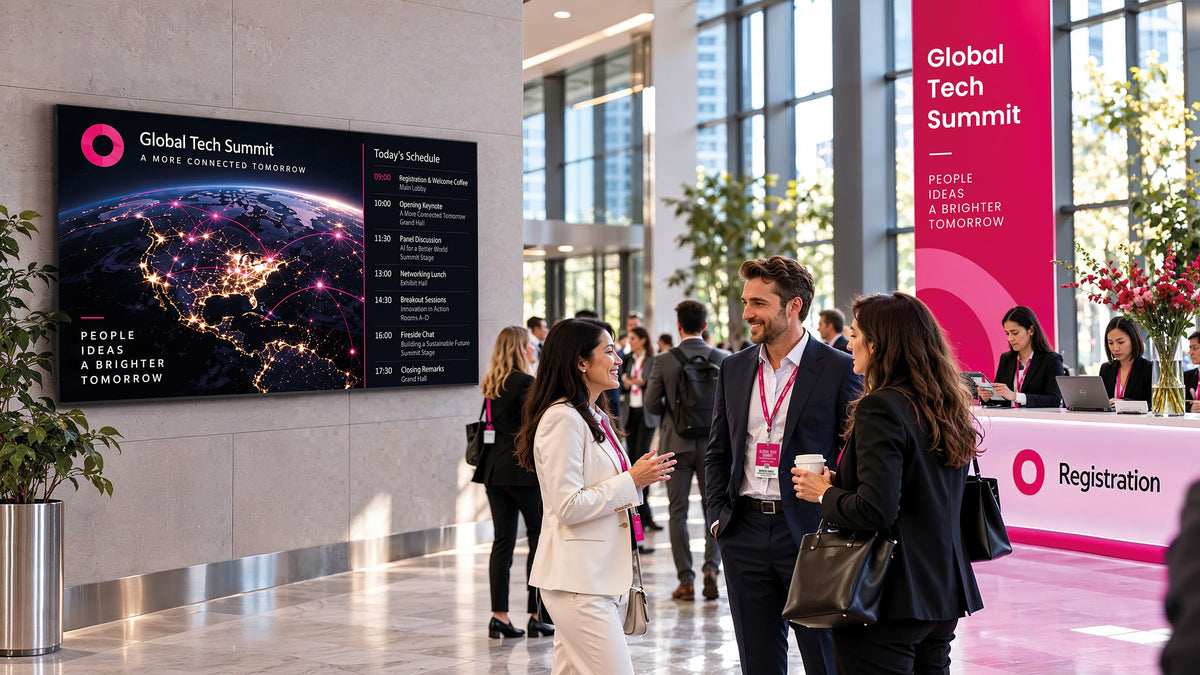

The LE11566UHSB-B1AG is a 115" 4K UHD digital signage powerhouse designed to elevate your business's visual communication. This Mini LED screen has 2304 local dimming zones which results in high contrast images, even when showing challenging content shot in low light environments. The contrast ratio of 5500:1 and the Anti-Glare treatment contribute to the use case in demanding settings like board rooms, retail, airports and large reception halls. With Android 14 OS, iiSignage² (CMS), iiControl (DMS), and iiShare (Wireless Presentation), managing content is effortless. It's WiFi enabled for remote content delivery and offers reliable 24/7 operation.
Local Dimming Zones for clear images
Want crisp, clear pictures, even in low-light scenes? Sunsets, deep oceans and starry nights are often hard to watch on large displays. On this Mini LED display with 2304 local dimming zones, you see them just as the director intended. Mini LED delivers OLED-like contrast and deep blacks, but without the risk of burn-in, making it suitable for continuous 24/7 operation.
10 integrated speakers
The LE11566UHSB-B1AG fills a large room on its own, with eight 10W speakers and two 20W subwoofers — no external audio system to buy or wire up. You get clear, deep sound for video and music, all coming straight from the screen so your audience hears everything in sync, whether in a boardroom, retail space, or busy reception hall.
Zero Mount Gap

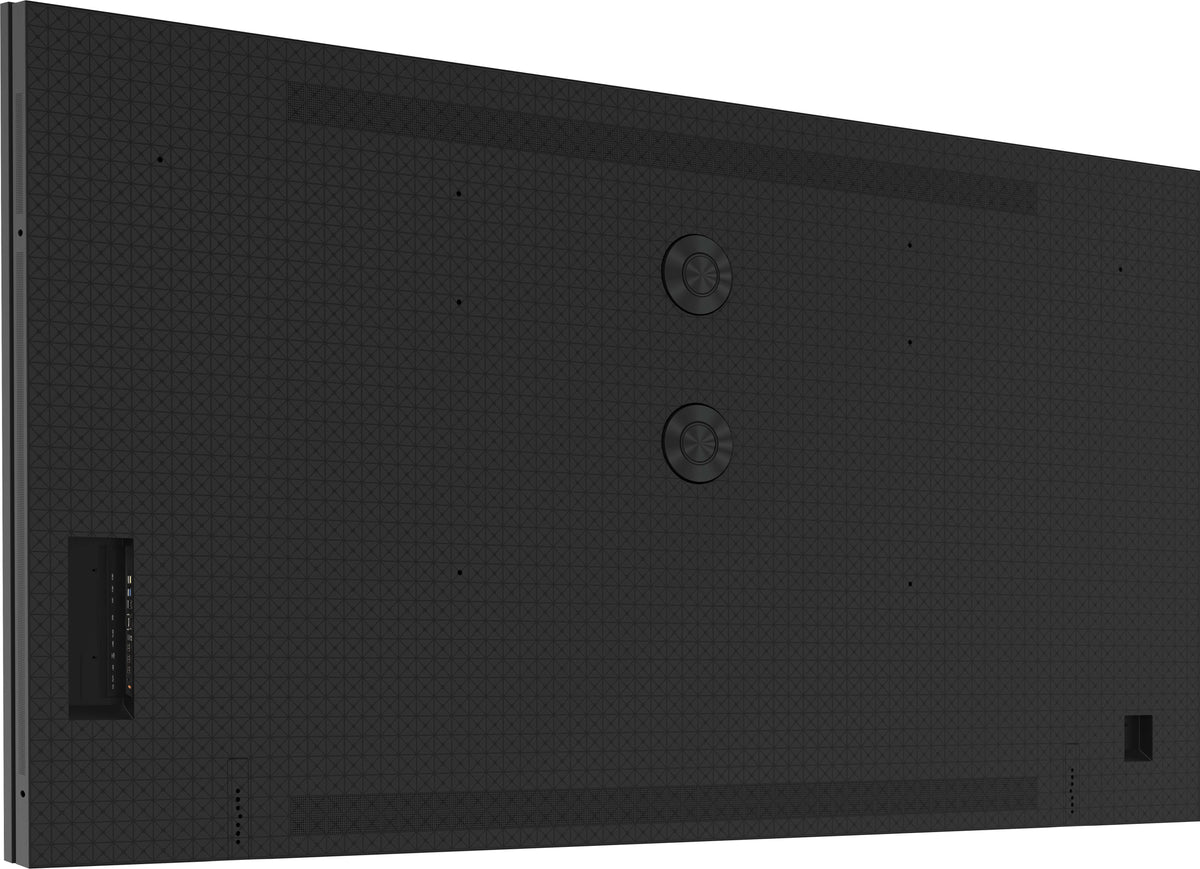

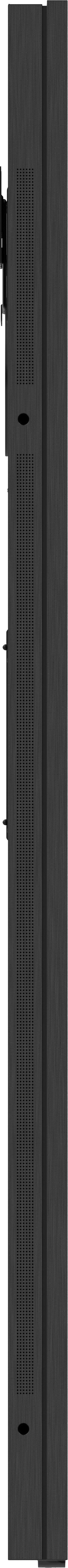

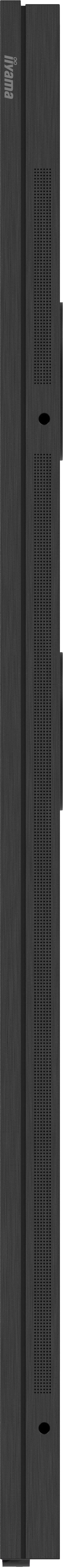

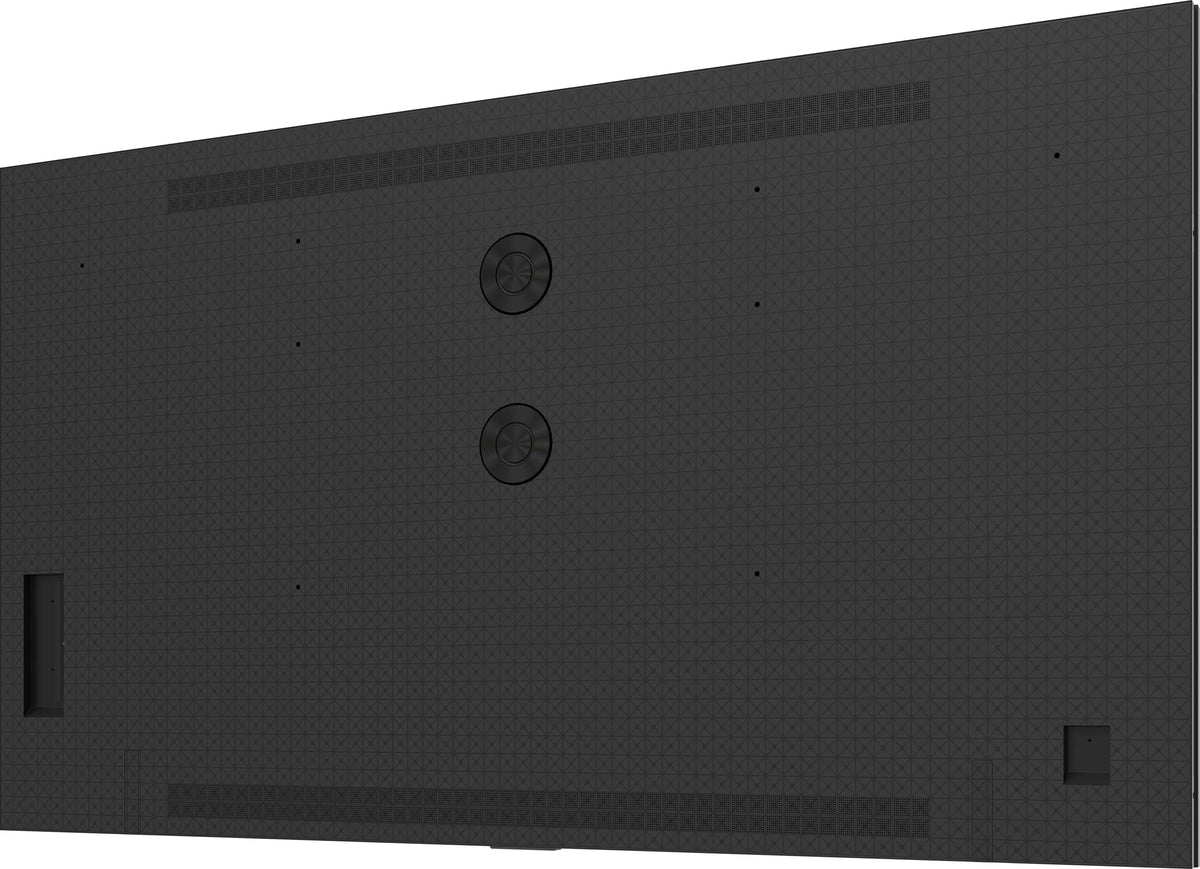

Zero gap wall mount, closing the gap between the wall and the screen. So the gap will not irritate you when you look at it from the side, whilst there is still room to connect cable.
| DISPLAY CHARACTERISTICS | |||
| Design | Thin bezel | Diagonal | 115", 291cm |
| Panel | Mini LED, local dimming zones, VA, Anti-Glare coated glass, haze 25% | Native Resolution | 3840 × 2160 |
| Aspect Ratio | 16:9 | Panel Brightness | 750 cd/m² |
| Static Contrast | 5500:1 | Response Time (GTG) | 6.5ms |
| Viewing Zone | Horizontal/Vertical: 178°/178°; Right/Left: 0°/0°; Up/Down: 89°/89° | Viewable Area (W × H) | 2534.4 × 1425.6mm |
| Bezel Width (Sides, Top, Bottom) | 1.5mm, 1.5mm, 14.7mm | Pixel Pitch | 0.22 (H) × 0.66 (V) Sub Pixel mm |
| Bezel Colour and Finish | Black, matte | ||
| INTERFACES / CONNECTORS / CONTROLS | |||
| Analog Signal Input | 1 × RCA Composite | Digital Signal Input | 3 × HDMI |
| Monitor Control Input | 1 × RS-232c (9-pin); 1 × RJ45 (LAN); 1 × IR | Audio Output | 1 × S/PDIF (Optical); 1 × Mini Jack |
| Speakers / Subwoofers | 2 × 20W subwoofers; 8 × 10W speakers | USB Ports | 2 × USB (v2.0, v3.0) |
| FEATURES | |||
| Integrated Software | Android 14 OS, iiSignage², iiControl, iiShare, EShare, TeamViewer, iiyama Player, iiBrowser, File Manager | WiFi | Yes |
| Hardware | SoC: MT9679; CPU: ARM Cortex-A73; GPU: ARM Mali-G52 MC1; RAM: 4GB; ROM: 64GB | Extra | Wall mounting kit included (VESA 1000 × 500mm) |
| Max. Non-Stop Operating Time | 24/7 | Media Playback | Yes |
| Water and Dust Protection | IP5X (front) | Housing (Bezel) | Metal |
| GENERAL | |||
| OSD Languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB | Control Buttons | Power Indicator, Power Button, Remote Sensor |
| User Controls |
Network: Status, WiFi, Ethernet, Hotspot; Picture: Brightness, Contrast, Sharpness, Black Level, Tint, Colour, Noise Reduction, Gamma Selection, Colour Temperature, Colour Control, Picture Reset; Audio: Balance, Treble, Bass, Volume, Audio Out, Maximum Volume, Minimum Volume, Mute, Audio Out Sync, Speaker Setting, Audio Reset; OSD Settings: OSD Timeout, OSD H-Position, OSD V-Position, OSD Transparency, Information OSD; General: Logo and Animation, Wallpaper, No Signal Image, Schedule, Off Timer; Screen: Zoom Mode, Custom Zoom, System Rotation, Screen Reset; Device: Power On Status, RS232 Routing, IR Control, Power Saving, Panel Saving, Monitor Info, Other; Channel: Boot on Source, Rename Input Channel, Auto Source Switching, Signal Lost Detection, HDMI Version; System: Language, System Update, Setting Reset, Factory Reset, Android Setting; Admin: Menu Lock, Meeting Room, HDMI CEC, Screen Share, Miracast Standby, Log Export |
Blue Light Reducer | Yes |
| MECHANICAL | |||
| Orientation | Landscape | Fanless Design | Yes |

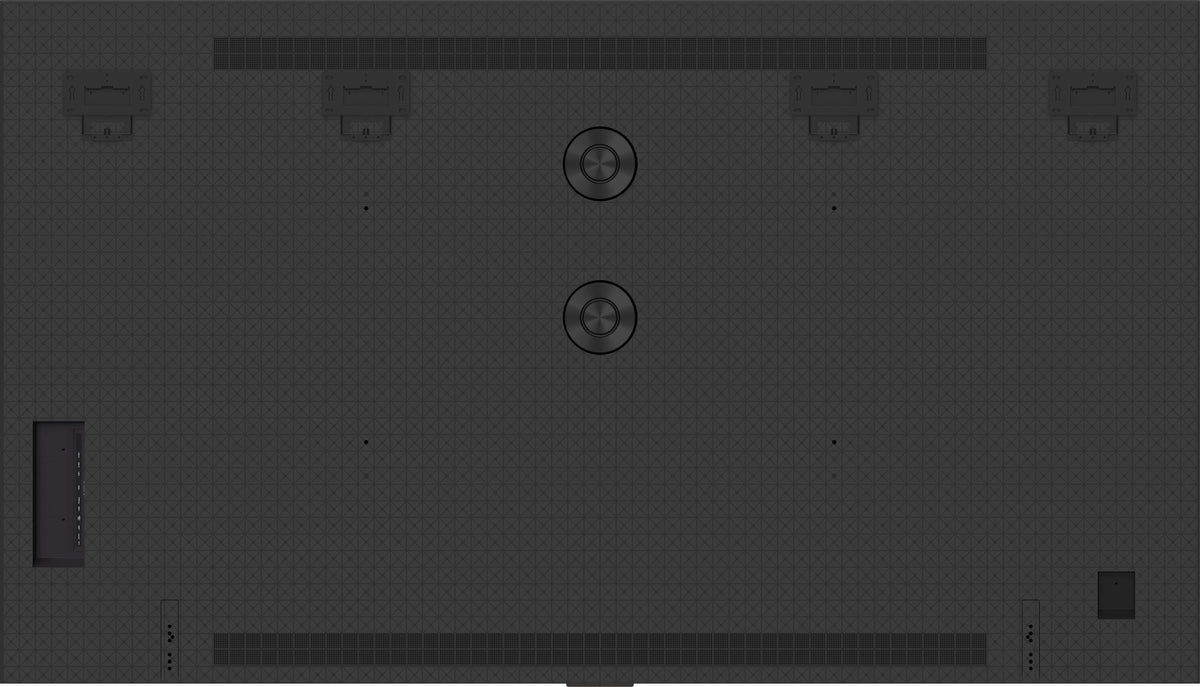

| VESA Mounting | 1000 × 500mm | Operation Temperature Range | 0°C to 40°C |
| Storage Temperature Range | -20°C to 60°C | MTBF | 50,000 hours |
| ACCESSORIES INCLUDED | |||
| Cables | Power (3.0m), HDMI (3.0m), RS-232c (1.8m) | Other Accessories | Wall Mount Bracket, Wall Mount Guide, Screws, Screw Anchors, Stickers for Screw Holes, AV Cable (15cm) |
| Remote Control | Yes (batteries included) | ||
| POWER MANAGEMENT | |||
| Power Supply Unit | Internal | Power Supply | AC 100–240V, 50/60Hz |
| Power Usage | 647W typical, 0.5W standby | Energy Efficiency Class (Power Data) | 647, %2kWh/1000h (as supplied) |
| SUSTAINABILITY | |||
| Regulations | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA | Energy Efficiency Class (EU 2017/1369) | G |
| DIMENSIONS / WEIGHT | |||
| Product Dimensions (W × H × D) | 2564.5 × 1468.5 × 61.5mm | Box Dimensions (W × H × D) | 2780 × 1680 × 280mm |
| Weight (Without Box) | 93.4kg | Weight (With Box) | 135.2kg |
| EAN Code | 4948570128259 | ||
