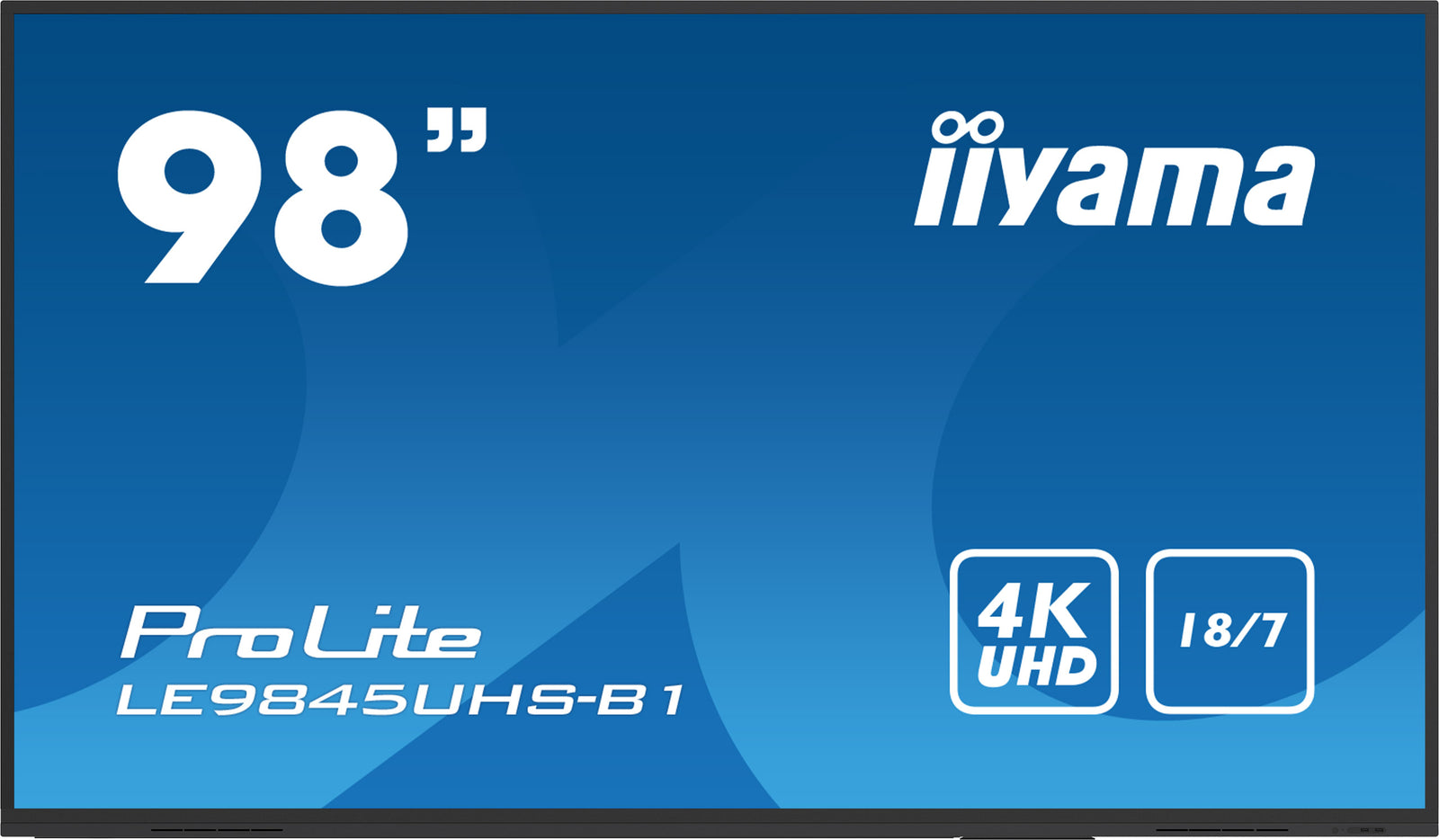

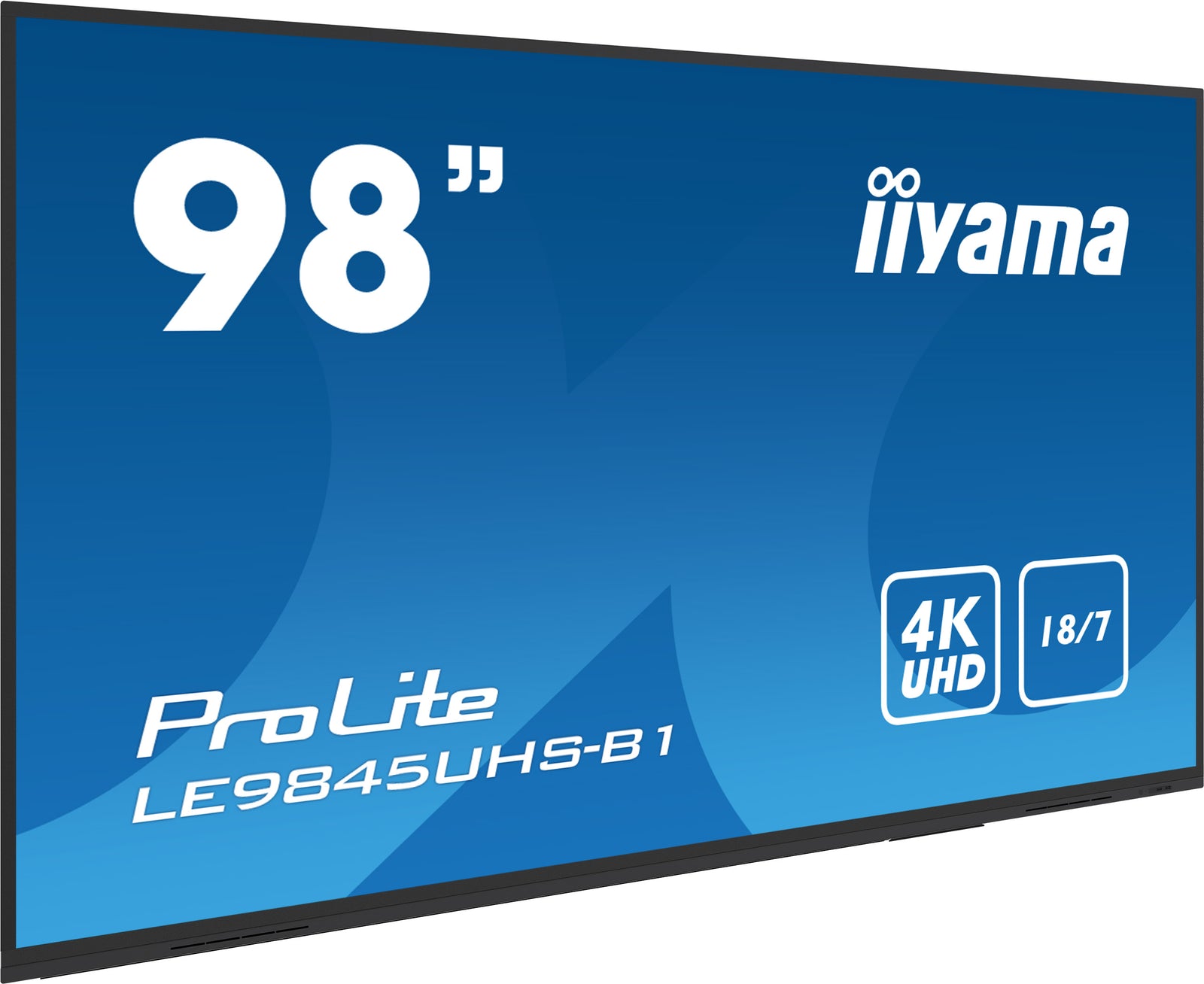

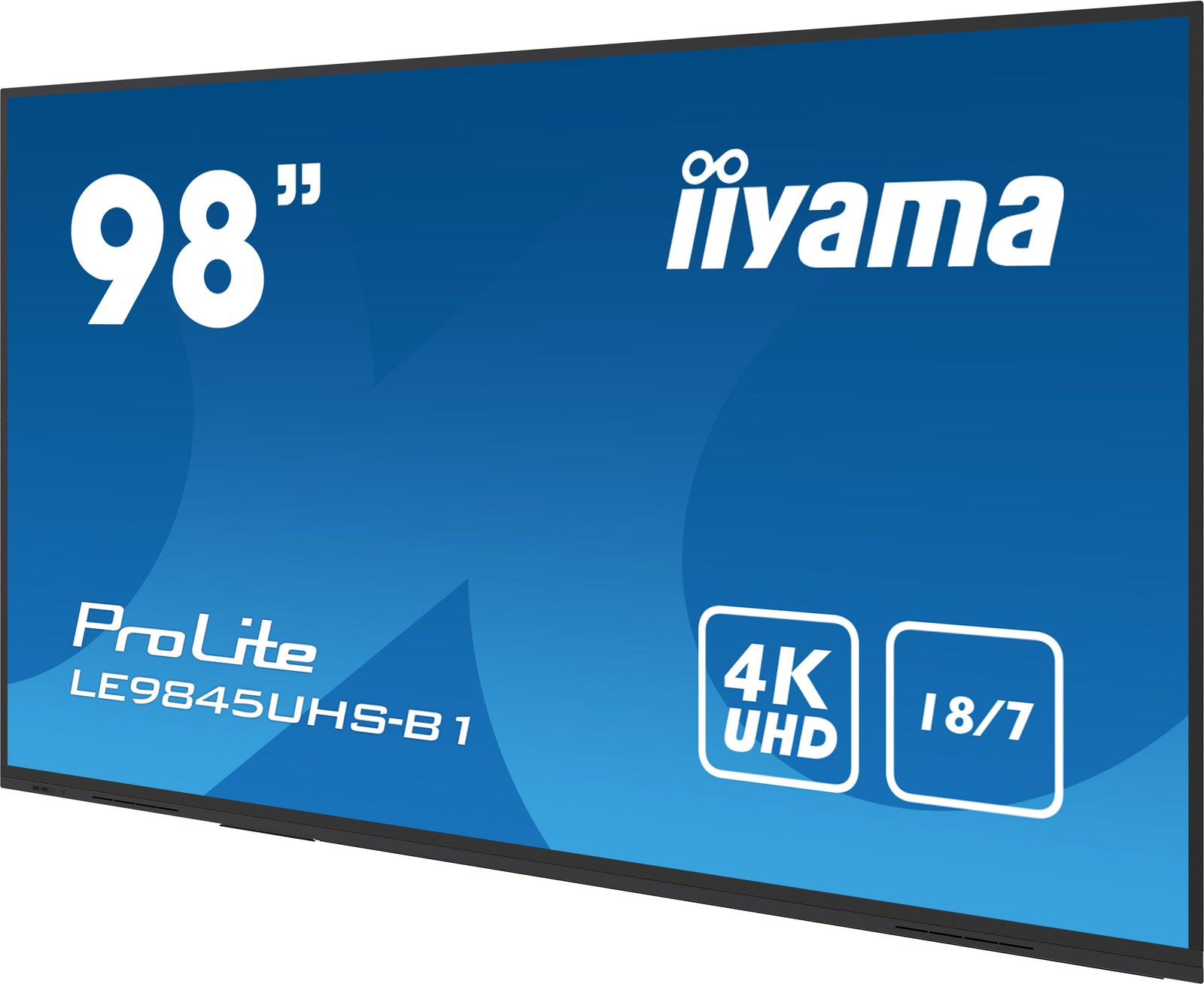

iiyama ProLite LE9845UHS-B1

98" 4K UHD Professional Signage Display

• Description
• Specifications
• Warranty

• PROLITE LE9845UHS-B1 (EOL) REPLACED BY: PROLITE LH9854UHS-B1AG
  98’’ 4K UHD Professional Signage Display, featuring Android OS, ScreenSharePro and Eshare

  Deliver professional signage to your audience and capture their attention with the ProLite LE9845UHS. This professional 98” display offers businesses a versatile and effective solution. Whether installed in a meeting room or conference facility, or adding a vibrant signage display to your estate. The integrated Android OS enables users to store and manage files locally through the Cloud, as well as make use of familiar Office applications with content uploaded directly to the screen, such as the playback of presentations. Additionally supporting the playback of media, such as images and videos, which can be added to a play list through the screens built in intelligence. Supporting real time collaboration, users can share, stream and view content back and forth from any device directly utilising the iiyama ScreenSharePro and the Eshare app.

  This impressive commercial IPS LED Anti Glare screen with 4K UHD resolution (3840x2160), 350cd/m² and a contrast ratio of 1200:1 provides sharp and vibrant clarity for video or static images, making it the perfect choice for Digital Signage and meeting areas. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image.

  ANDROID OS
  Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

  IIYAMA SHARE
  Connect up to 9 devices and easily share, stream and edit content from your device to your interactive display and vice versa, back to your laptop, tablet or phone. iiyama Share supports AirPlay, Chromecast and Miracast.

  4K
  UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

  MEDIA PLAYER
  Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.

  LAN CONTROL
  LAN control enables making adjustments in the display OSD menu through your network (software not included).

• DISPLAY CHARACTERISTICS

  Design	Thin bezel
  Diagonal	98", 247.7cm
  Panel	IPS Direct LED, AG coated glass, haze 28%
  Native resolution	3840 x 2160 (8.3 megapixel 4K UHD, HDMI)
  Aspect ratio	16:9
  Panel brightness	350 cd/m²
  Static contrast	1200:1
  Response time (GTG)	8ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	1.07B 10bit
  Horizontal Sync	30 - 135kHz
  Viewable area W x H	2159 x 1214mm, 85 x 47.8"
  Bezel width (sides, top, bottom)	20.5mm, 20.5mm, 43mm
  Pixel pitch	0.5622mm
  Bezel colour and finish	black, matte

  INTERFACES / CONNECTORS / CONTROLS

  Analog signal input	VGA x1 (max. 1920x1080 @60Hz)
  Digital signal input	HDMI x3 (2.0 - max. 3840x2160 @60Hz, YUV420)
  Audio input	Mini jack x1
  Monitor control input	RS-232c x1 RJ45 (LAN) x1 IR x1
  Audio output	S/PDIF (Optical) x1 Mini jack x1 Speakers 2 x 10W (and 15W subwoofer)
  HDCP	yes
  USB ports	x6 (media playback / peripherals / storage – front side: 2x 2.0, right side: 3x 2.0, Bottom: 1x 2.0)

  FEATURES

  Integrated software	Android 8.0 featuring web browser, file manager, cloud drives, WPS office, ScreenSharePro and EShare for wireless connection with Windows (MiraCast) / iOS (AirPlay) / Android (ChromeCast)
  WiFi	yes (WiFi Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac, Bluetooth Support: 2.1/3.0/4.2/5.0)
  Hardware	CPU: CA73*2+A53*2, GPU: Mali G51*2, 3GB RAM, 32GB internal memory
  Extra	OTA firmware update
  Kiosk mode	yes
  Max. non-stop operating time	18/7
  Media playback	yes
  Housing (bezel)	metal

  GENERAL

  OSD languages	EN, DE, FR, ES, IT, RU, CZ, NL, PL
  Control buttons	Power, Power Indicator, Remote Sensor, USB Connector (2.0, 5V, 500mA)
  User controls	general settings (input, backlight), audio settings (volume, bass, treble, balance, mute), screen settings (screen mode, H-position, V-position, clock, phase, auto adjustments), display settings (brightness, contrast, hue, sharpness, colour temp.), application settings (wireless & network, personal, sound, input setting, startup & shutdown, date & time, language, security, storage, advanced settings, about)
  Blue light reducer	yes
  Plug&Play	DDC2B
  Warranty	3 years (for details and eligible countries please check the Warranty section of our website)

  MECHANICAL

  Orientation	landscape
  Fanless design	yes
  VESA mounting	800 x 600mm
  Operation temperature range	0°C - 40°C
  Storage temperature range	- 20°C - 60°C
  MTBF	100.000 hours (excluding backlight)

  ACCESSORIES INCLUDED

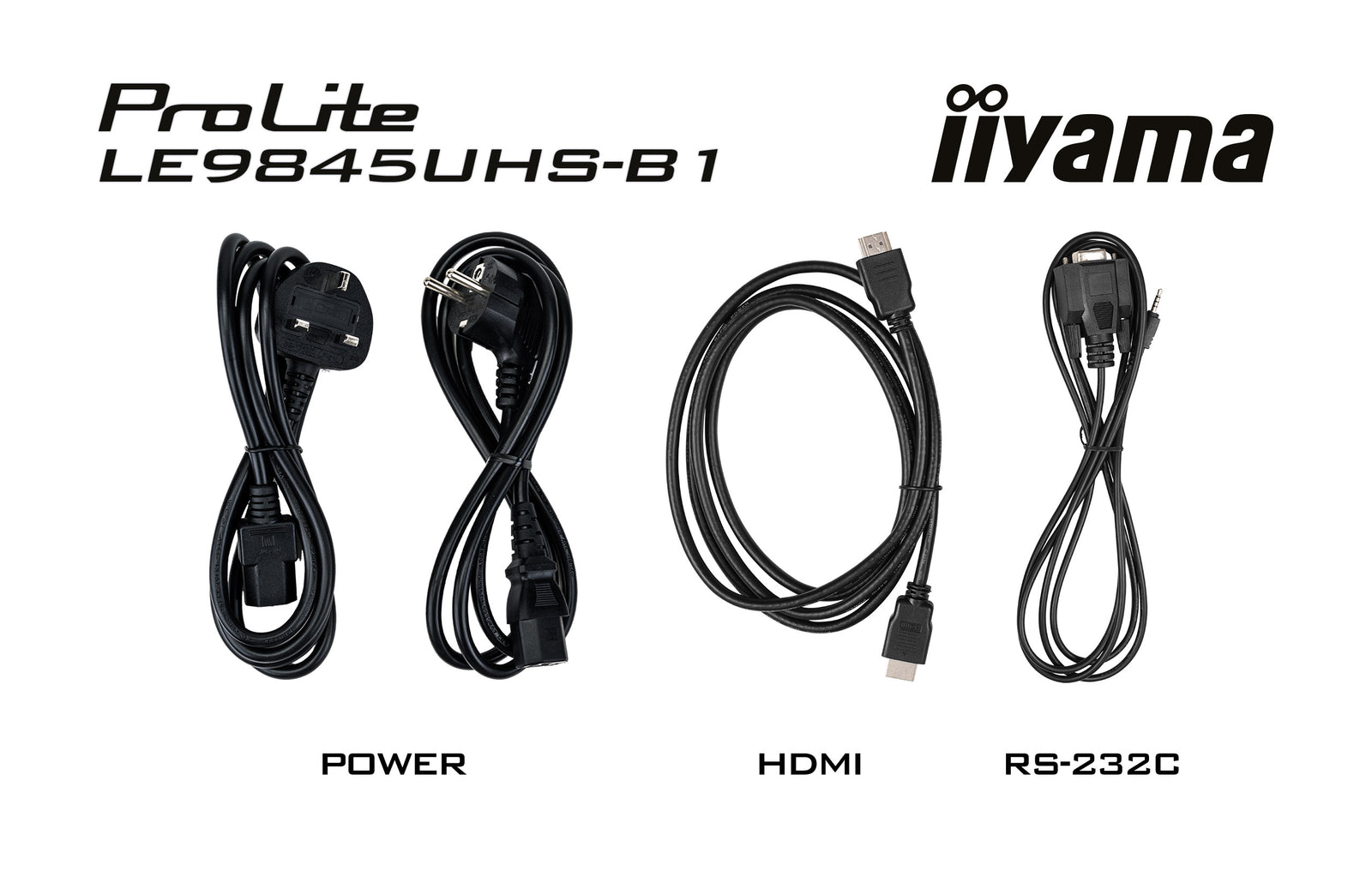

  Cables	power, HDMI, RS-232c
  Guides	quick start guide, safety guide
  Other	WiFi Module (OWM002), Wall Mount
  Remote control	yes (batteries included)

  POWER MANAGEMENT

  Power supply unit	internal
  Power supply	AC 100 - 240V, 50/60Hz
  Power usage	400W typical, 0.5W stand by, 0.3W off mode

  SUSTAINABILITY

  Regulations	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA (Iot5,RoHS)
  Energy efficiency class (Regulation (EU) 2017/1369)	G
  REACH SVHC	above 0.1%: Lead

  DIMENSIONS / WEIGHT

  Product dimensions W x H x D	2204 x 1282 x 79mm
  Box dimensions W x H x D	2380 x 280 x 1483mm
  Weight (without box)	70kg
  Weight (with box)	107.7kg
  EAN code	4948570119189
