105" UltraWide
A huge 104.7" professional display designed for large-scale visual communication.
Official Partner
iiyama ProLite LH10551UWS-B1AG 105" Professional Large Format Display
In Stock1 available
Express DeliveryFast UK delivery where eligible
3 Year WarrantyManufacturer-backed cover
UK Expert SupportPre-sales and technical advice
Product description
iiyama ProLite LH10551UWS-B1AG

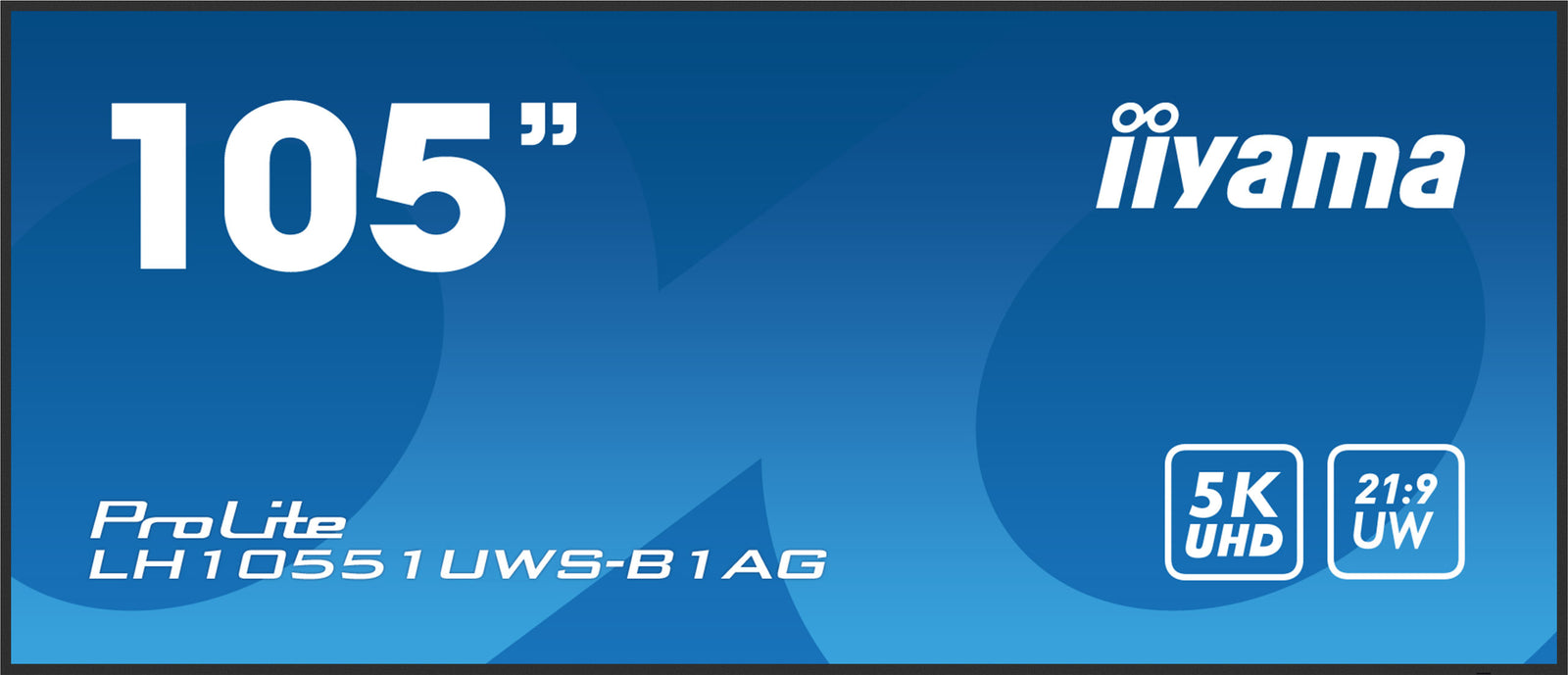

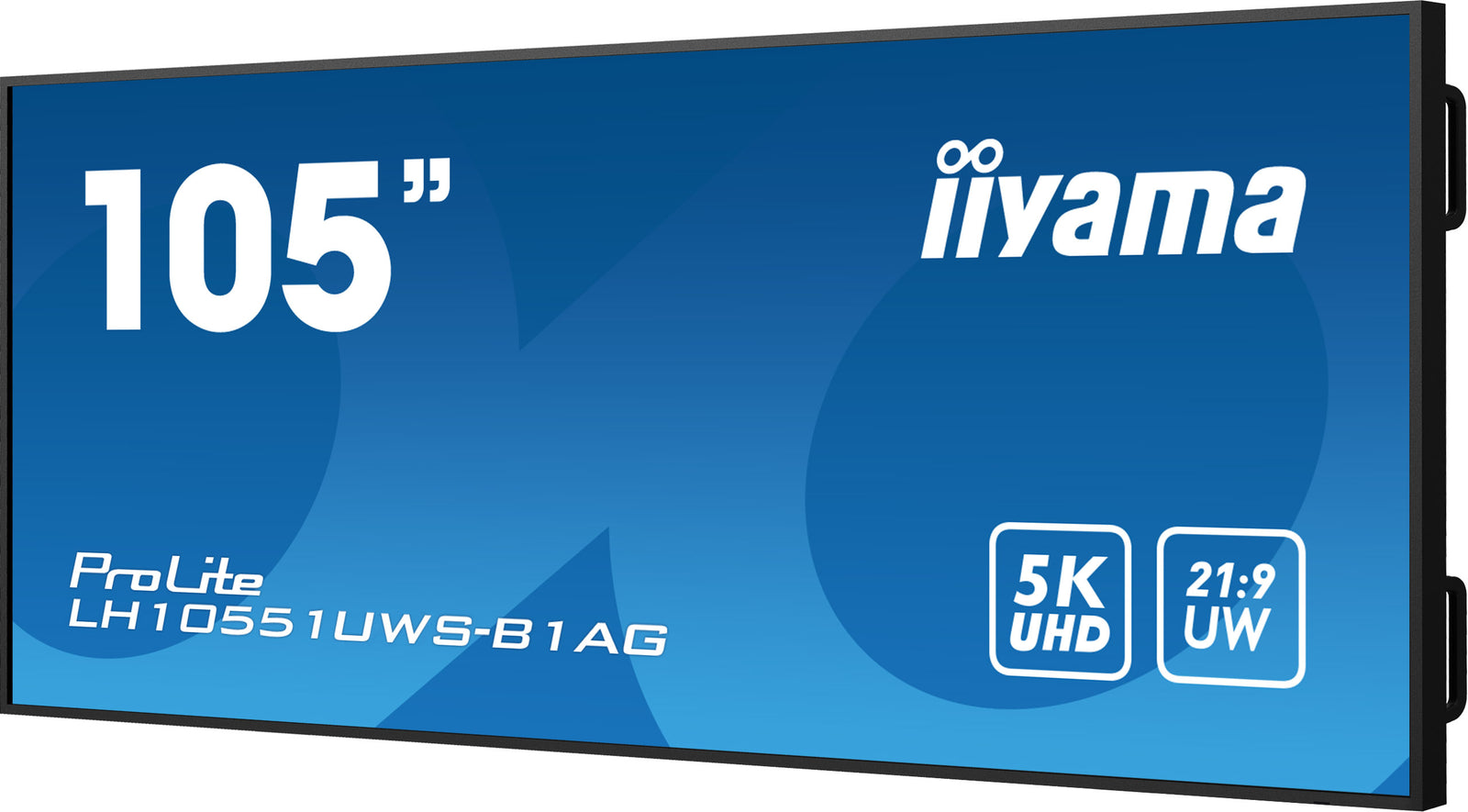

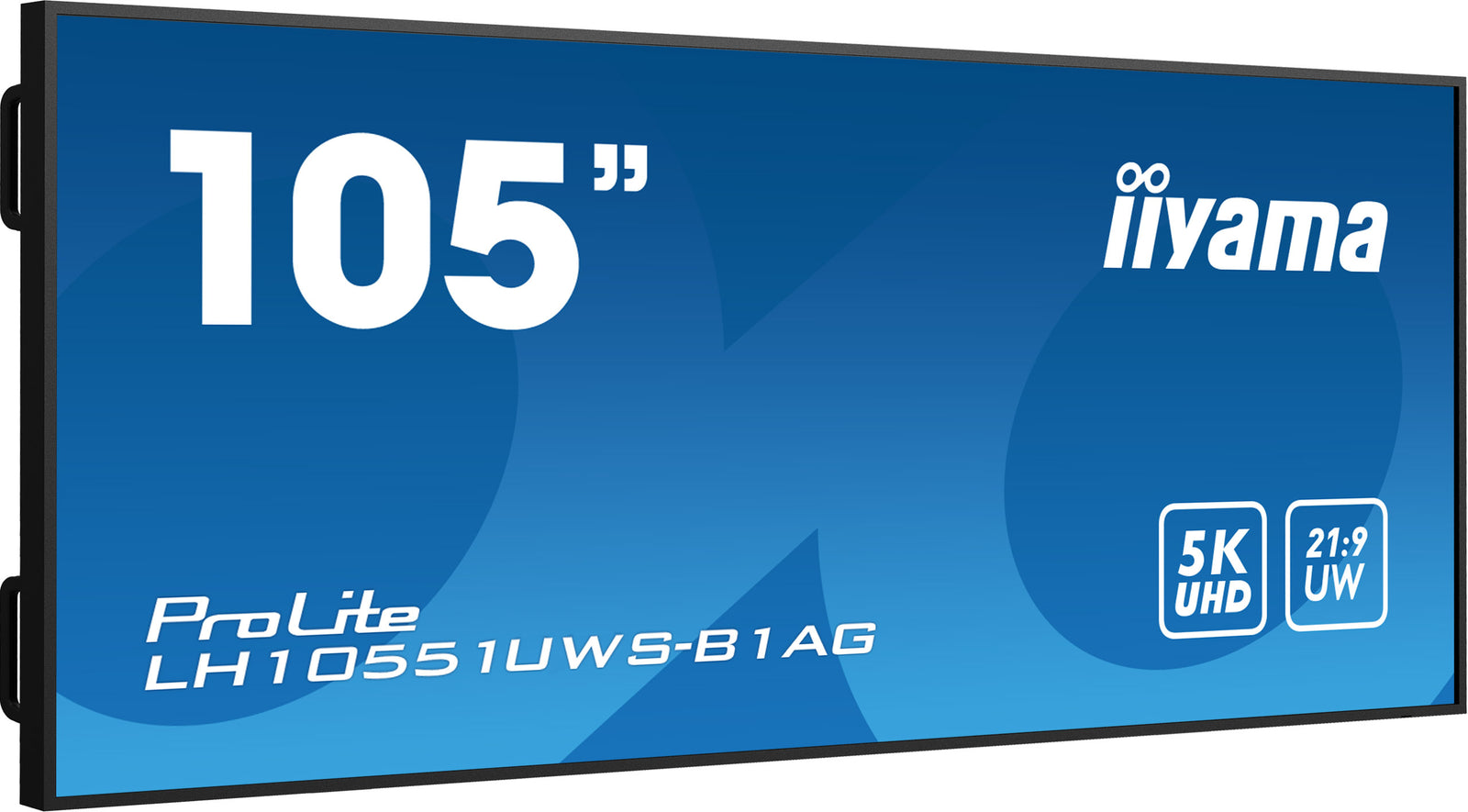

iiyama ProLite LH10551UWS-B1AG 105" 5K UltraWide Professional Display
The iiyama ProLite LH10551UWS-B1AG is a 105" professional 5K UltraWide 21:9 display designed for panoramic digital signage, control rooms, large meeting environments and immersive commercial presentations.
Its 104.7" IPS panel combines 5120 x 2160 resolution, 500 cd/m² brightness, wide 178° viewing angles, an OPS PC slot, DisplayPort daisy chaining and reliable 24/7 professional operation.
105" 5K UltraWide
5120 x 2160 @ 60Hz
21:9 Format
Panoramic professional canvas
IPS Panel
500 cd/m² brightness
24/7 Operation
Continuous professional use
Description
LH10551UWS-B1AG Professional Display
A huge 105" UltraWide display for specialist professional environments.
The iiyama LH10551UWS-B1AG combines a 104.7" professional display with an expansive 21:9 UltraWide format, creating a panoramic canvas for large-scale commercial communication.
Its native 5120 x 2160 5KUW resolution provides substantial horizontal workspace for dashboards, presentations, control-room content, advertising and multi-window applications.
Designed for continuous professional use, the LH10551UWS-B1AG supports portrait and landscape mounting, OPS expansion, DisplayPort daisy chaining and 24/7 operation.
- iiyama ProLite LH10551UWS-B1AG
- 104.7" / 265.9cm professional display
- 5120 x 2160 5K UltraWide resolution
- 21:9 aspect ratio
- 500 cd/m² brightness
- IPS panel
- 1200:1 static contrast
- OPS PC slot
- DisplayPort daisy chain
- Landscape and portrait mounting
- 24/7 operation
LH10551UWS-B1AG Key Features
iiyama ProLite LH10551UWS-B1AG specifications at a glance.
5120 x 2160
5K UltraWide resolution provides an expansive digital workspace.
21:9 Aspect Ratio
Designed for panoramic signage, dashboards and immersive presentations.
500 cd/m²
Professional indoor brightness with wide IPS viewing angles.
OPS PC Slot
Supports an optional slot-in computer for a cleaner standalone solution.
24/7 Operation
Built for continuous commercial and professional use.

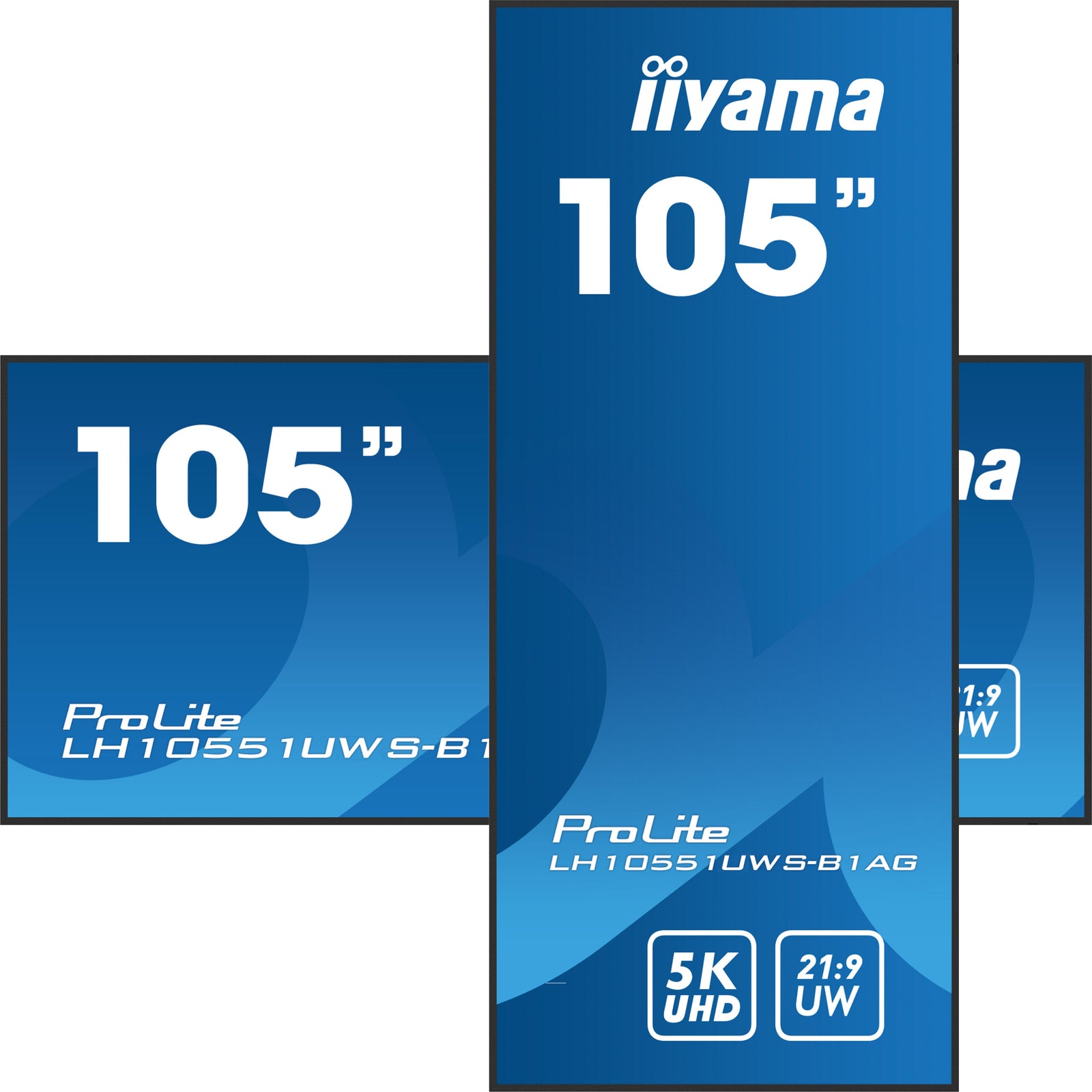

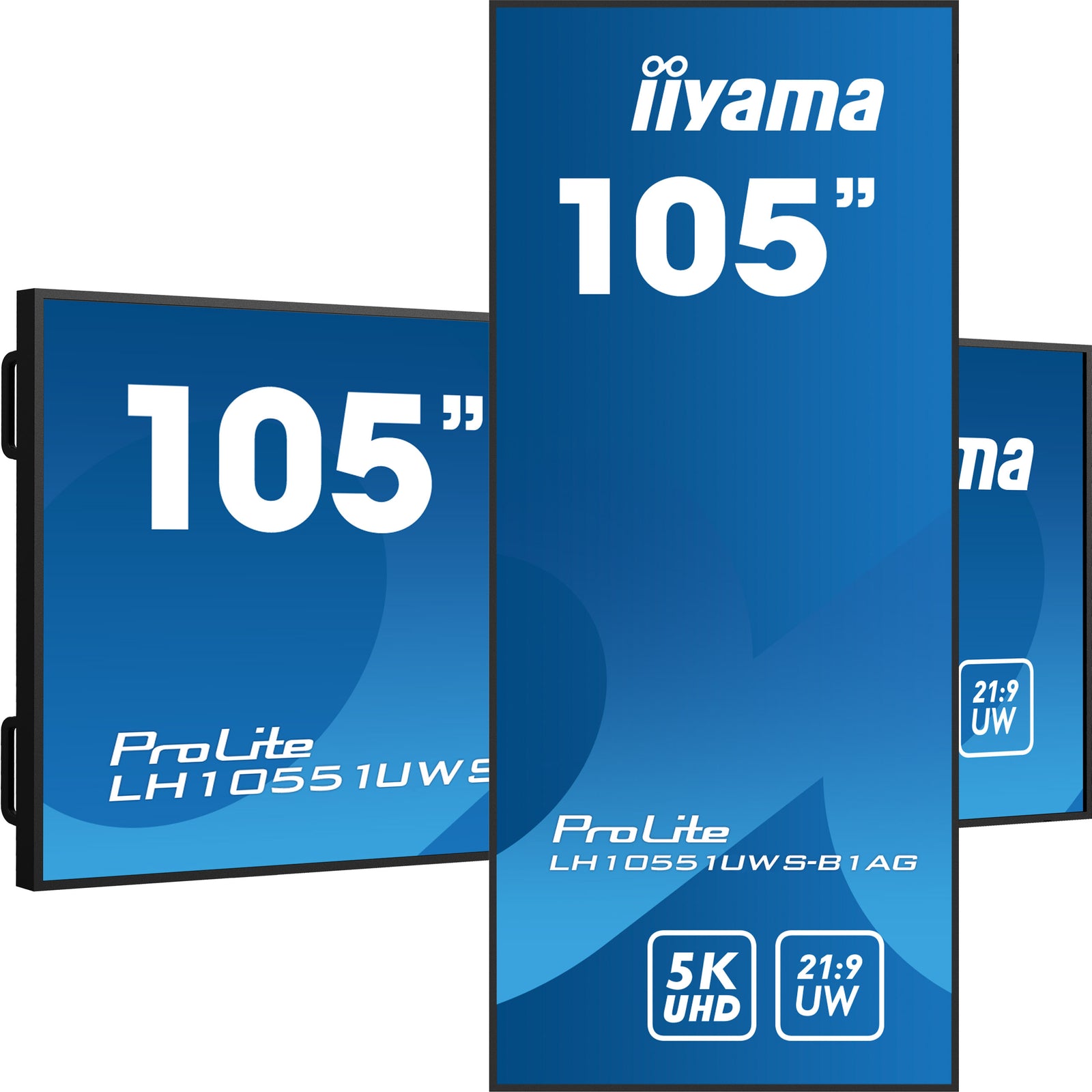

Flexible Orientation
Landscape or portrait installation.
The LH10551UWS-B1AG supports both landscape and portrait orientation, allowing professional installers to adapt the UltraWide screen to different environments and content formats.
Landscape orientation is particularly effective for control rooms, meeting spaces and panoramic signage, while portrait installation creates an exceptionally tall canvas for specialist visual applications.
- Landscape mounting
- Portrait mounting
- 1500 x 600mm VESA mounting
- Professional large-format installation
21:9 UltraWide
An expansive panoramic format for professional content.
The defining feature of the LH10551UWS-B1AG is its 21:9 UltraWide aspect ratio.
The significantly wider canvas provides more horizontal space than a conventional 16:9 commercial display, making it ideal for panoramic advertising, dashboards, command-centre information and wide collaborative content.
- 21:9 native aspect ratio
- 104.7" diagonal
- 2450mm wide viewable area
- Ideal for panoramic content
5K UltraWide Resolution
5120 x 2160 resolution for expansive professional content.
The LH10551UWS-B1AG provides a native 5120 x 2160 resolution at 60Hz.
The high-resolution UltraWide canvas supports detailed dashboards, presentations, multi-window content, advertising and large-scale information without sacrificing clarity.
- 5120 x 2160 native resolution
- 5K UltraWide at 60Hz
- 21:9 professional format
- High-resolution commercial content
IPS Panel
Wide viewing angles across a huge 105" display.
The iiyama ProLite LH10551UWS-B1AG uses an IPS panel with a 1200:1 static contrast ratio.
Wide 178° horizontal and vertical viewing angles help content remain clear to audiences positioned around large meeting rooms, control rooms and commercial spaces.
- IPS panel technology
- 1200:1 static contrast
- 500 cd/m² brightness
- 178° horizontal viewing angle
- 178° vertical viewing angle
- 1.07 billion colours
USB-C Connectivity
Modern connectivity for professional AV environments.
USB-C provides a convenient connection for compatible professional devices while DisplayPort supports the full 5120 x 2160 UltraWide resolution.
The combination of USB-C, DisplayPort, HDMI and LAN gives AV teams flexibility when integrating the LH10551UWS-B1AG into professional environments.
Optional OPS PC
Create a cleaner standalone Windows solution.
The integrated OPS PC slot allows a compatible optional slot-in computer to be installed directly into the LH10551UWS-B1AG.
This reduces the need for an externally mounted PC and helps create a cleaner professional installation for collaboration, presentation and specialist signage environments.
- Integrated OPS PC slot
- Optional slot-in computer
- Cleaner professional installation
- Useful for Windows-based AV environments
Integrated Audio
Built-in stereo speakers for professional multimedia.
The iiyama ProLite LH10551UWS-B1AG includes 2 x 10W integrated speakers.
Built-in audio supports presentations, digital signage, multimedia content and other applications where external audio is not required.
- 2 x 10W integrated speakers
- 3.5mm audio input
- 3.5mm audio output
- S/PDIF optical output
24/7 Professional Operation
Designed for continuous commercial use.
The iiyama LH10551UWS-B1AG is rated for 24/7 operation, making it suitable for demanding environments where content needs to remain visible continuously.
The fanless metal design and anti-image-retention functionality support long-term professional operation.
- 24/7 operation
- Fanless design
- Anti-image-retention support
- 50,000-hour MTBF excluding backlight
Professional Connectivity
HDMI, DisplayPort, USB-C, LAN and RS-232C.
The LH10551UWS-B1AG provides professional connectivity for commercial signage, AV and control environments.
- HDMI 2.0 input
- DisplayPort 1.4 input
- DisplayPort 1.4 output
- USB-C
- RJ45 LAN
- RS-232C control
- 4 x USB 2.0 hub ports
- S/PDIF optical output

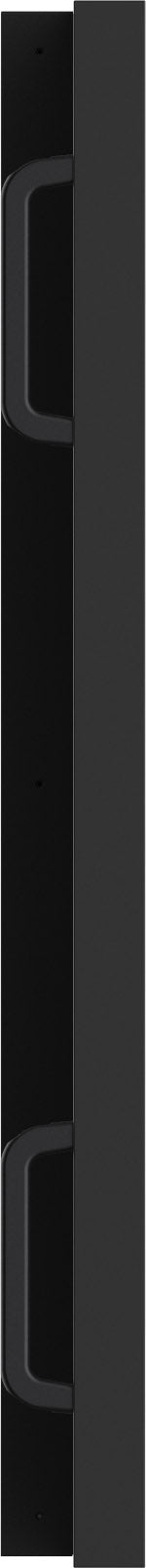

DisplayPort Daisy Chain
Connect multiple professional displays.
DisplayPort output enables daisy-chain installations using SST, providing additional flexibility for specialist multi-display professional environments.
- DisplayPort 1.4 input
- DisplayPort 1.4 output
- 5120 x 2160 support
- SST daisy-chain functionality

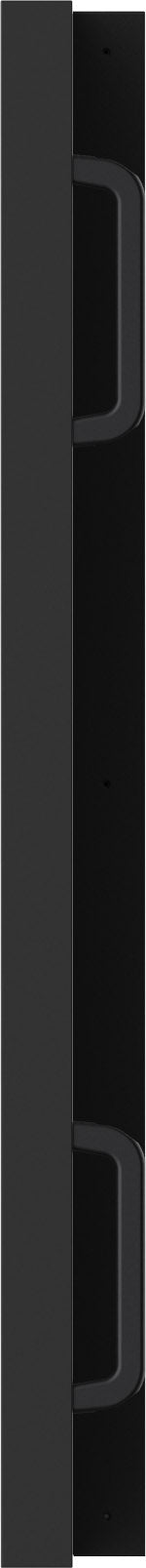

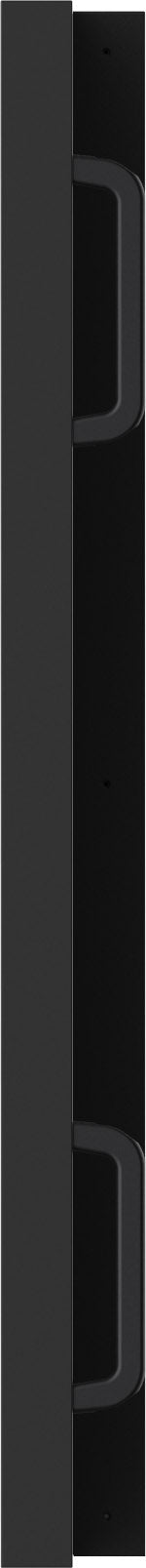

Professional Design
Built for very large commercial installations.
At almost 2.5 metres wide, the LH10551UWS-B1AG creates a substantial visual presence in professional environments.
- 2487.4mm overall width
- 1070.6mm overall height
- 99.1mm depth
- 60.14kg product weight
- Metal housing

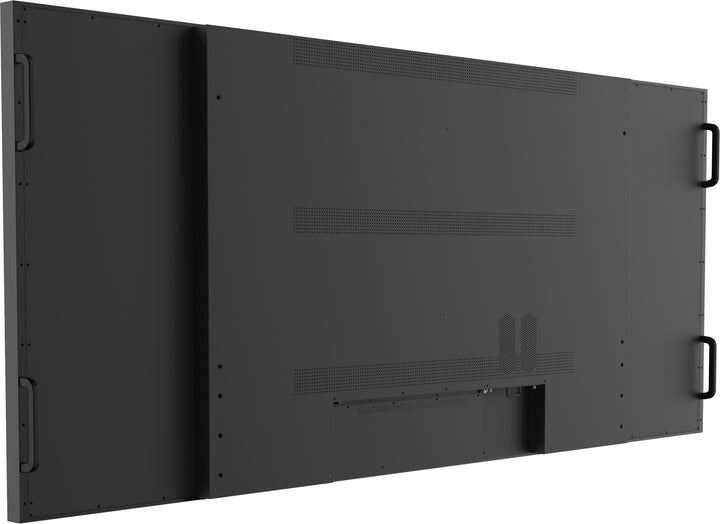

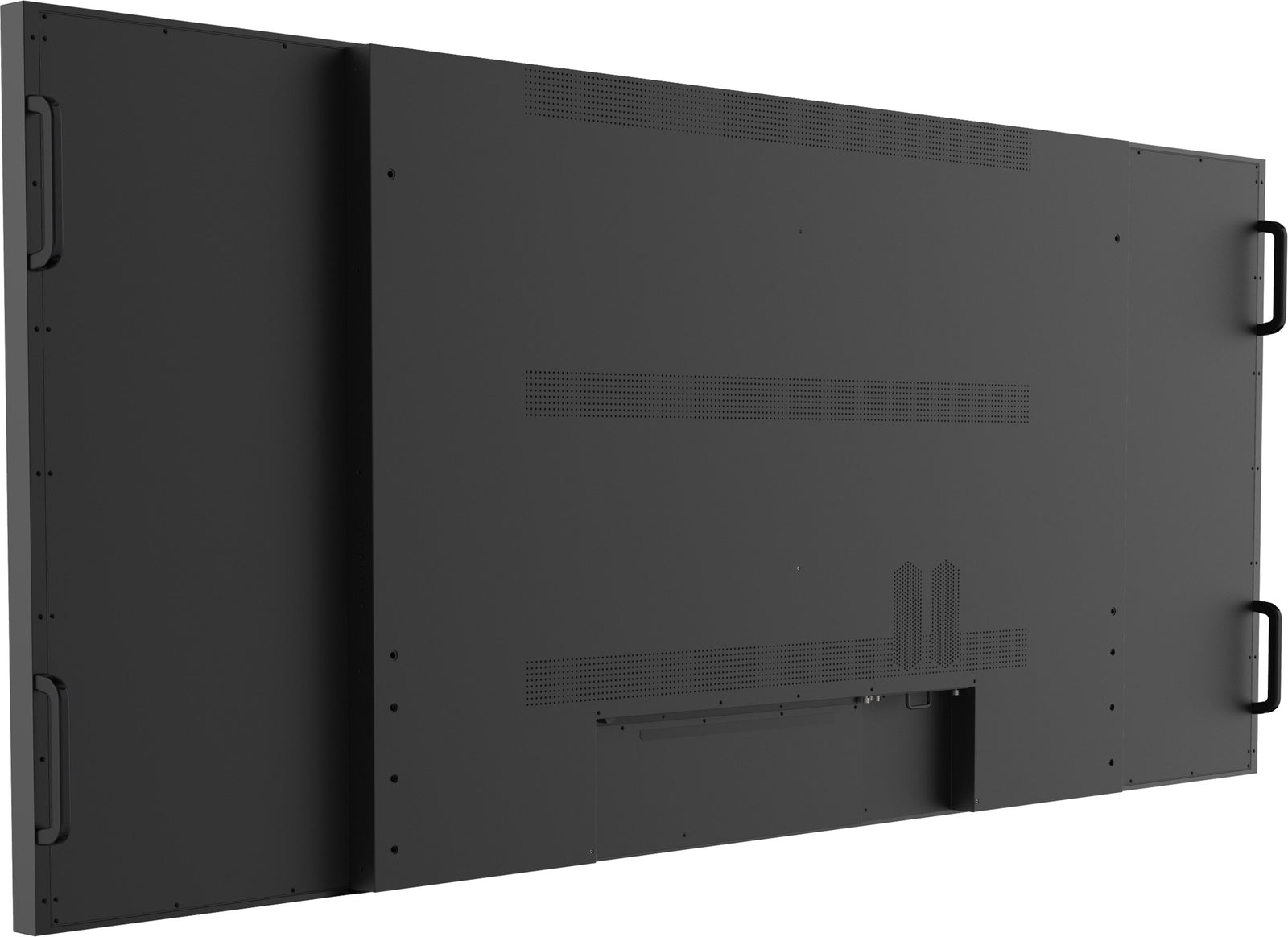

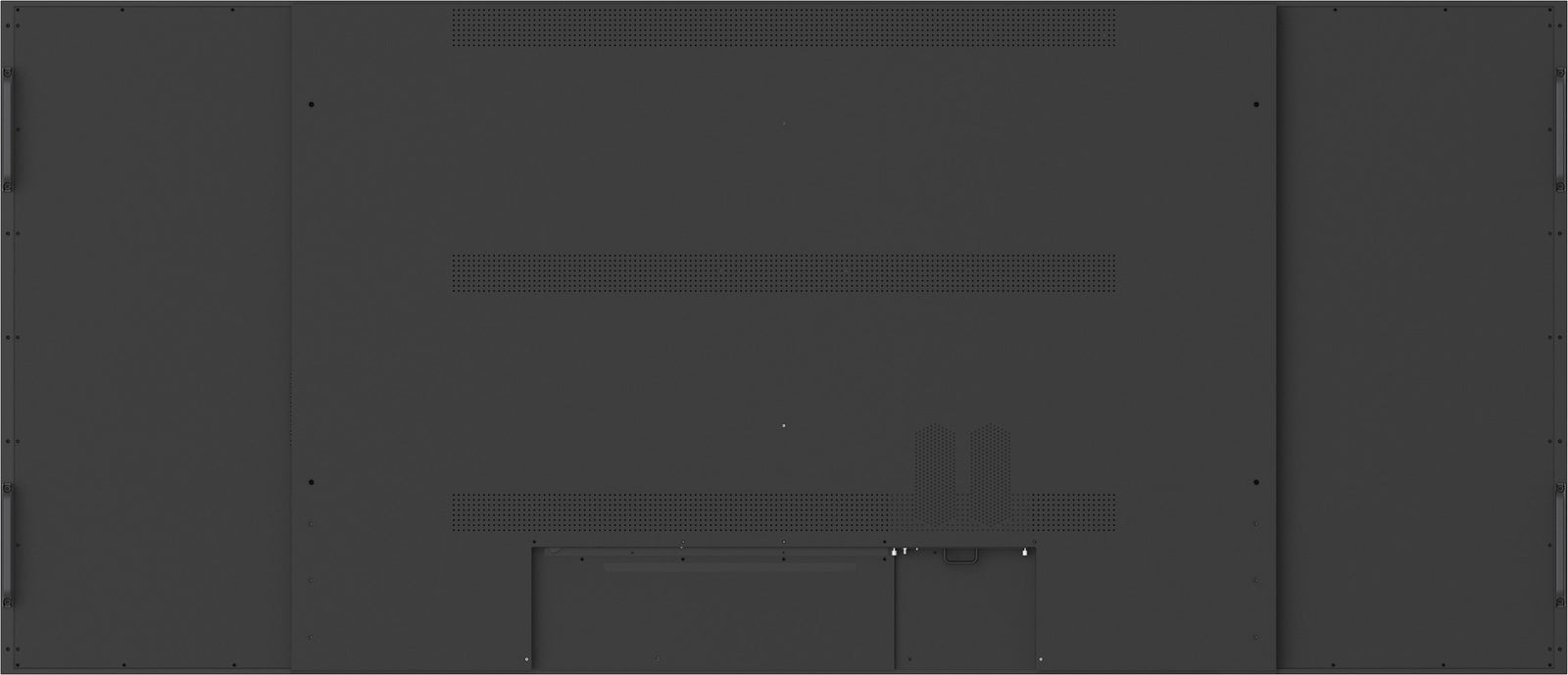

Professional Mounting
1500 x 600mm VESA mounting.
The iiyama ProLite LH10551UWS-B1AG uses a 1500 x 600mm VESA mounting pattern.
Because of the screen's physical size and weight, a suitable professional large-format mounting solution and installation process should be used.
- 1500 x 600mm VESA
- Landscape mounting
- Portrait mounting
- Professional installation recommended
Professional Installation
Commercial construction and installation details.
The LH10551UWS-B1AG is designed as a dedicated professional large-format display, supporting permanent installation in demanding commercial environments.
Large Format Construction
Purpose-built for professional AV environments.
Its metal housing, fanless design and professional connection options distinguish the LH10551UWS-B1AG from conventional consumer televisions.

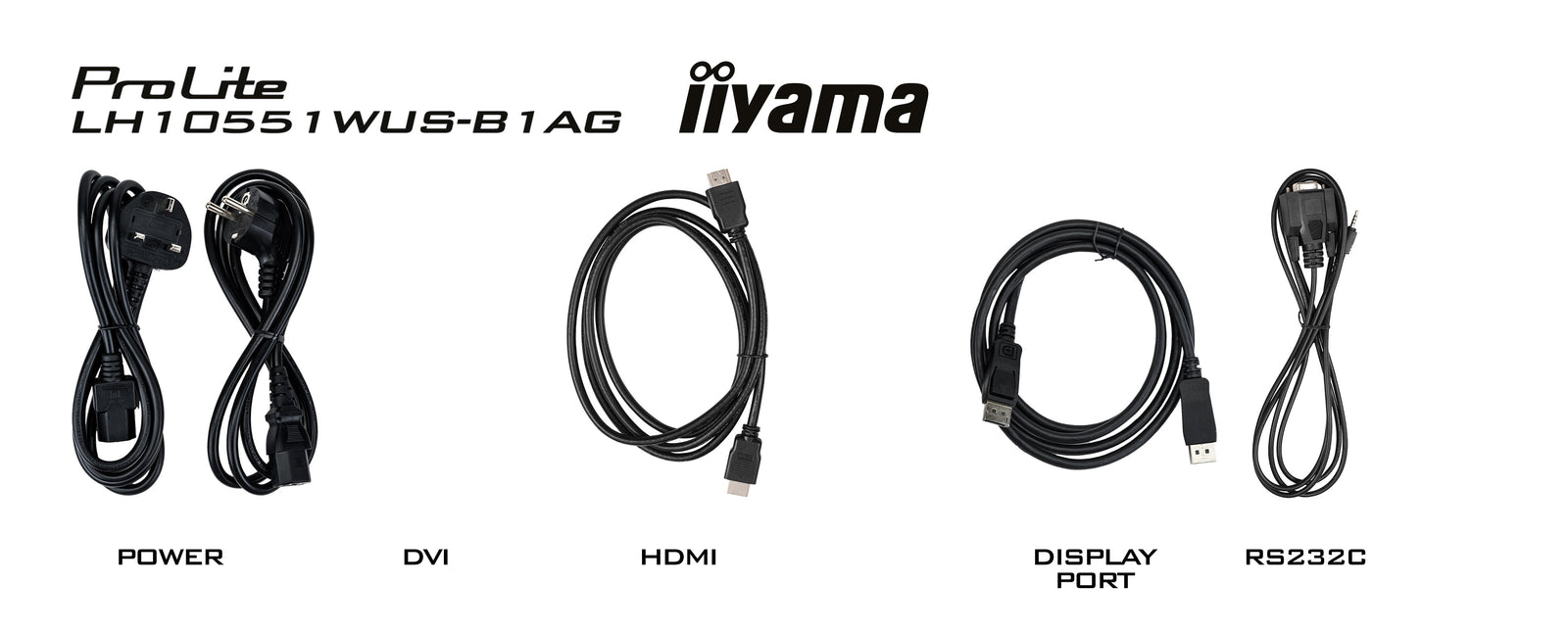

Included Accessories
Supplied with key professional accessories.
The LH10551UWS-B1AG includes essential cables, documentation and a remote control to support setup and professional operation.
- Power cable
- HDMI cable
- RS-232C cable
- Quick start guide
- Safety guide
- Remote control with batteries
- Screw-hole stickers
- Wire buckles
Compare UltraWide Displays
Need a smaller UltraWide professional display?
If the 105" LH10551UWS-B1AG is larger than your installation requires, compare it with the 92" iiyama ProLite LH9252UWS-B1AG .

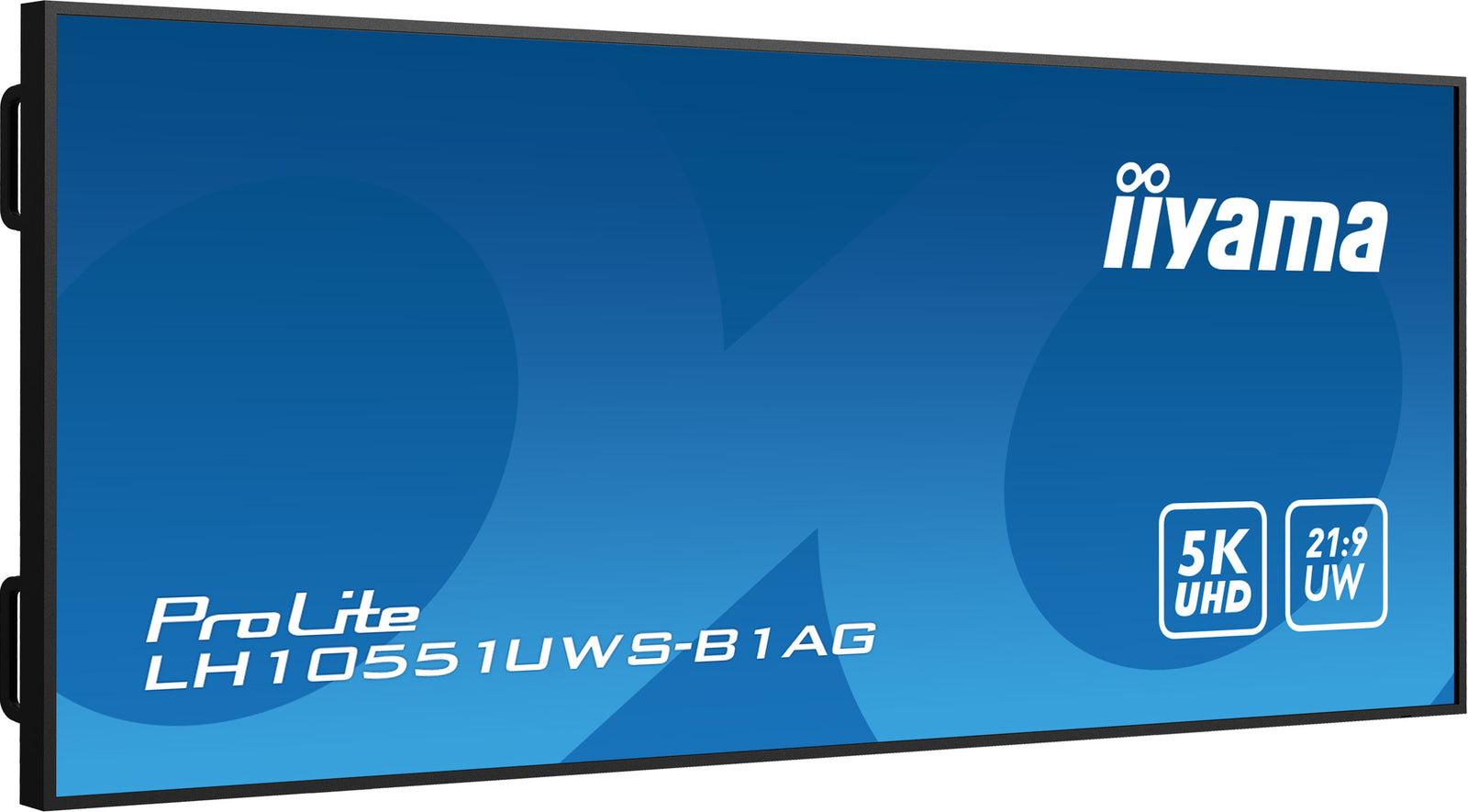

LH10551UWS-B1AG Product Gallery
A closer look at the iiyama ProLite LH10551UWS-B1AG.
Specifications
LH10551UWS-B1AG Technical Specification
iiyama ProLite LH10551UWS-B1AG specifications.
| Specification | iiyama LH10551UWS-B1AG Details |
|---|---|
| Display Characteristics | |
| Product | iiyama ProLite LH10551UWS-B1AG |
| Diagonal | 104.7" / 265.9cm |
| Panel | IPS, AG coated glass, matte finish, haze 25% |
| Native Resolution | 5120 x 2160 @ 60Hz - 5KUW |
| Aspect Ratio | 21:9 |
| Panel Brightness | 500 cd/m² |
| Static Contrast | 1200:1 |
| Response Time | 8ms GTG |
| Viewing Zone | 178° horizontal / 178° vertical |
| Colour Support | 1.07 billion colours, 8-bit + FRC, NTSC 85% |
| Horizontal Sync | 30 - 140kHz |
| Viewable Area | 2450 x 1033.6mm / 96.5 x 40.7" |
| Pixel Pitch | 0.479mm |
| Bezel | Black, matte |
| Interfaces / Connectors / Controls | |
| HDMI | 1 x HDMI 2.0, maximum 3840 x 2160 @ 60Hz |
| DisplayPort Input | 1 x DisplayPort 1.4, maximum 5120 x 2160 @ 60Hz |
| DisplayPort Output | 1 x DisplayPort 1.4, 5120 x 2160 @ 60Hz, SST |
| USB-C | 1 x USB-C 2.0 signal, DP 1.4 Alt Mode, 5120 x 2160 @ 60Hz |
| LAN | 1 x RJ45 |
| Audio Input | 1 x 3.5mm mini jack |
| Audio Output | S/PDIF optical x1, 3.5mm mini jack x1 |
| RS-232C | 1 x 2.5mm sub-mini jack |
| USB Hub | 4 x USB 2.0 |
| HDCP | 2.2 |
| Speakers | 2 x 10W |
| Professional Features | |
| OPS PC Slot | Yes |
| Maximum Non-Stop Operation | 24/7 |
| Anti Image Retention | Yes |
| Daisy Chain | Yes, via DisplayPort output using SST |
| Housing | Metal |
| Hardware | RAM 256MB, ROM 16MB |
| Mechanical | |
| Orientation | Landscape and portrait |
| Fanless Design | Yes |
| VESA Mounting | 1500 x 600mm |
| Operating Temperature | 0°C - 40°C |
| Storage Temperature | -20°C - 60°C |
| MTBF | 50,000 hours excluding backlight |
| Power Management | |
| Power Supply | Internal, AC 100 - 240V, 50/60Hz |
| Typical Power Usage | 247W |
| Standby | 0.5W |
| Off Mode | 0.3W |
| Sustainability | |
| Energy Efficiency Class | G |
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA |
| Dimensions & Weight | |
| LH10551UWS-B1AG Dimensions | 2487.4 x 1070.6 x 99.1mm |
| Box Dimensions | 2683 x 1407 x 339mm |
| LH10551UWS-B1AG Weight | 60.14kg |
| Boxed Weight | 88.7kg |
| EAN | 4948570121977 |
Warranty
iiyama Professional Display Warranty
iiyama ProLite LH10551UWS-B1AG warranty.
The LH10551UWS-B1AG is part of iiyama's professional Large Format Display range.
3-Year LFD Cover
The ScreenMoove product documentation specifies 3-year collect-and-return cover for iiyama Large Format Displays.
Warranty Upgrades
Additional swap, installation and extended cover options may be available depending on the installation.
ScreenMoove Support
ScreenMoove can assist with product, installation and warranty enquiries.
Downloads
LH10551UWS-B1AG Downloads
iiyama LH10551UWS-B1AG manuals and technical documents.
LH10551UWS-B1AG User Manual
Download the iiyama user manual.
Technical Specification
Download the official LH10551UWS-B1AG technical specification.
Technical Drawing
Download dimensional information for installation planning.
EU Energy Label
Download the LH10551UWS-B1AG EU energy label.
UK Energy Label
Download the LH10551UWS-B1AG UK energy label.
LH10551UWS-B1AG Specs
View display, connectivity, VESA and dimensional information above.
Professional Applications
Where businesses use the iiyama LH10551UWS-B1AG.
The 105" UltraWide format gives organisations an exceptionally large panoramic canvas for critical information, collaboration, signage and high-impact visual communication.
Meeting & Boardrooms
Present wide-format collaborative content and multiple information sources on a single screen.
Explore Meeting Room AVRetail Digital Signage
Create panoramic campaigns, premium brand content and high-impact promotional experiences.
Explore Retail SignageHospitality & Venues
Use the UltraWide canvas for event content, promotions and large-format information.
Explore HospitalityEducation
Display presentations and visual information in large lecture and learning spaces.
Explore EducationCorporate Communications
Present dashboards, company communications and large-scale internal information.
Explore Business SignageControl Rooms
Use the expansive horizontal canvas for monitoring, dashboards and multiple information sources.
Compare UltraWide Sizes
Alternative iiyama UltraWide Size
Compare the 105" LH10551UWS-B1AG with the 92" iiyama UltraWide display.
Choose according to room dimensions, viewing distance, available wall space and the visual impact required from your professional UltraWide display.
92"
LH9252UWS-B1AG
View smaller model
105"
LH10551UWS-B1AG
You are viewing this
Frequently Asked Questions
iiyama ProLite LH10551UWS-B1AG FAQs.
What is the iiyama ProLite LH10551UWS-B1AG?
The iiyama ProLite LH10551UWS-B1AG is a 105" professional 5K UltraWide display with a 21:9 IPS panel, 500 cd/m² brightness, OPS expansion and 24/7 operation.
What resolution is the LH10551UWS-B1AG?
The display has a native 5120 x 2160 resolution at 60Hz.
Is the LH10551UWS-B1AG a 21:9 display?
Yes. The LH10551UWS-B1AG uses an UltraWide 21:9 aspect ratio.
What panel does the LH10551UWS-B1AG use?
The LH10551UWS-B1AG uses an IPS panel with 500 cd/m² brightness and wide 178° viewing angles.
Can the LH10551UWS-B1AG run 24/7?
Yes. It is rated for 24/7 continuous professional operation.
Does the LH10551UWS-B1AG support USB-C?
Yes. The display includes USB-C with DisplayPort Alt Mode support.
Does the LH10551UWS-B1AG have DisplayPort?
Yes. It includes DisplayPort input and output, with support for 5120 x 2160 at 60Hz.
Does the LH10551UWS-B1AG support an OPS PC?
Yes. It includes an OPS PC slot for a compatible optional slot-in computer.
What VESA mount does the LH10551UWS-B1AG use?
It uses a 1500 x 600mm VESA mounting pattern.
What are the dimensions of the LH10551UWS-B1AG?
The display measures 2487.4 x 1070.6 x 99.1mm.
How much does the LH10551UWS-B1AG weigh?
The display weighs 60.14kg without packaging.
Is there a smaller iiyama UltraWide alternative?
Yes. ScreenMoove also offers the iiyama ProLite LH9252UWS-B1AG 92" UltraWide professional display .
iiyama UltraWide Professional Displays
Is the iiyama ProLite LH10551UWS-B1AG right for your project?
The LH10551UWS-B1AG combines a huge 104.7" IPS panel, 5120 x 2160 5K UltraWide resolution, 21:9 format, 500 cd/m² brightness, OPS expansion, DisplayPort daisy chaining and 24/7 professional operation.
Technical Highlights
- Display size / Screen sizes
- 105"
- Resolution
- Ultra HD (5K)
- Panel type
- IPS Panel
- Screen type
- UltraWide
- Brightness
- 500 cd/m2
- Response time
- 8ms
- Screen ratio
- 21:9
- Refresh rate
- 60Hz
- Display orientation
- Landscape & Portrait
- Operating hours
- 24/7
- Operating system
- None
- Player features
- USB Plug and Play
- VESA patterns
- 1500x600
- Warranty
- 3 Year Warranty
iiyama ProLite LH10551UWS-B1AG 105" Professional Large Format Dis...SKU: LH10551UWS-B1AG
£4,164.87
See Before You Decide
Book a Free Product Demonstration
Compare picture quality, touchscreen performance, software and connectivity with guidance from a commercial display specialist.
Remote or on-site
No obligation
Expert-led session
For Integrators and Resellers
Open a Screen Moove Trade Account
Access project pricing, volume discounts, product sourcing support and faster commercial quotations for your client projects.
Trade pricing
Project support
Volume discounts
Education & Public Sector
A simpler procurement route for schools and public organisations
Access education pricing, purchase-order support, installation services and account management for schools, academies, colleges, universities, NHS organisations, councils and government bodies.
Purchasing for a school, academy, university or NHS organisation?
Register your organisation to request institutional pricing and
purchase-order support.
Register Your Organisation
Trusted Store Status
Top Quality Store
Rating status, Exceptional, based on Google’s shopping experience metrics.
Why it matters
Demonstrates consistently strong fulfilment, service, and post-sale experience across Google signals.
Google
Top Quality Store
Built for confidence, next-day delivery options, UK-based support, trade-ready operations.
Request a quote
JO
Josh
Jan 6, 2026
Great products and service! The guys always go above and beyond to make sure they supply you with the product that best fits your needs. I’ve been using Screen Moove for a number of years now and woul...
See moreSD
Sandy Dobson
Nov 28, 2025
Verified
Screen Moove went above and beyond for my requirements. Ordering system was super easy it just take 2 minutes to complete my order and I have received my tracking details right away after few minutes...
See moreS
St Peter's Church
Dec 17, 2025
Moe Khan, one of the team at Screen Move has been a fantastic help as we have navigated the process of choosing and buying screens and stands for our church. Helpful at every step of the way, patient...
See moreFS
Furniture Store
Nov 27, 2025
We originally planned to purchase a cheap TV for our showrooms. After speaking with screen moove, we ended up investing in floorstanding displays across multiple retail sites and showrooms. The bright...
See moreFT
Felix Thomas
Sep 4, 2025
Verified
I placed my order late at night but realized I had entered the wrong address. I immediately sent an email asking for it to be changed, not really expecting a reply until the next day. To my surprise,...
See moreAS
ava singh
Aug 27, 2025
Verified
I’ve been looking ultra high brightness display despite I checked everywhere I didn’t trust. They got my trust and I ordered. It arrived safely next day we have installed screen is awesome and high qu...
See moreGK
Glenn Khan
Nov 27, 2025
Verified
This is second time I used Screen Moove, I have bought double sided 55 inch display. The first order was a bit delayed I don't blame it might be happen, but customer service over the phone was excell...
See moreBY
Burcu Yesilova
Feb 12, 2025
Screenmoove, perfect customer satisfaction from start to finish! Their customer service is incredibly helpful and fast. It’s amazing to be able to reach out and get quick solutions for any issue. We a...
See moreTE
Tina e Edwards
Dec 17, 2025
We found that we needed a video call to work out the set up. The tech team at screenmoove were very very good. I would suggest that the instructions that come with the screen offer two key info. 1. Set...
See moreMA
Miss Akthar
Nov 21, 2025
Verified
Great experience with Jonathan Gray, previously I was looking for other companies and randomly ordering our needs from elsewhere. after I met with him, since 2024 we are keep purchasing from screen m...
See moreGet in touch
Speak directly with Screen Moove about your display, digital signage, meeting-room or AV project.
Need help choosing the right product?
Speak directly with a dedicated Screen Moove expert and get the right solution first time.
Call us: 020 8191 9223
Email: info@screenmoove.com
Contact us
Simply complete our contact form, and we will promptly respond to your inquiries.
If you have any questions or enquiry, please fill out the form below with all of your details and we'll get back to you shortly.
Ready to start your next AV project?
Contact our team of experts today!
