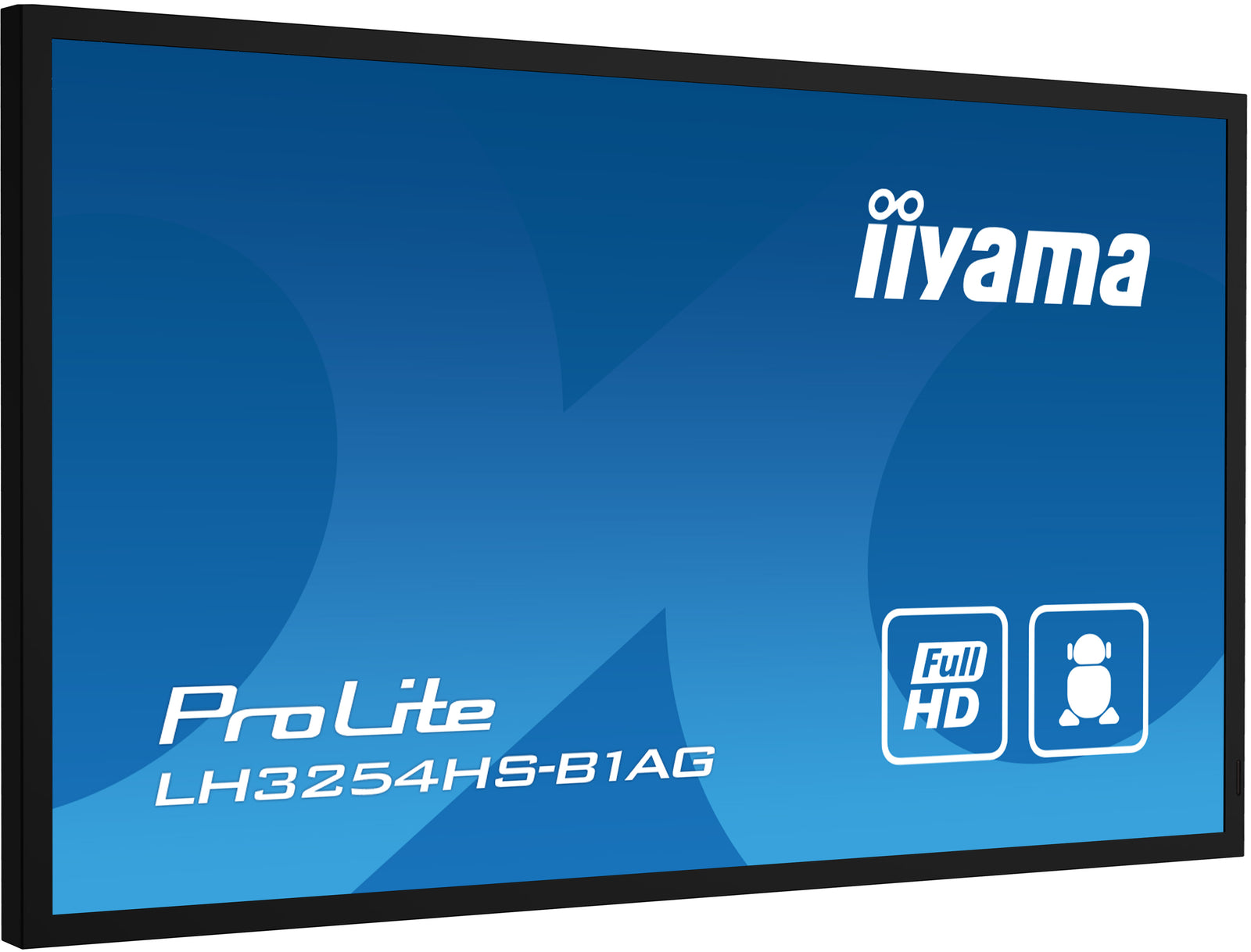

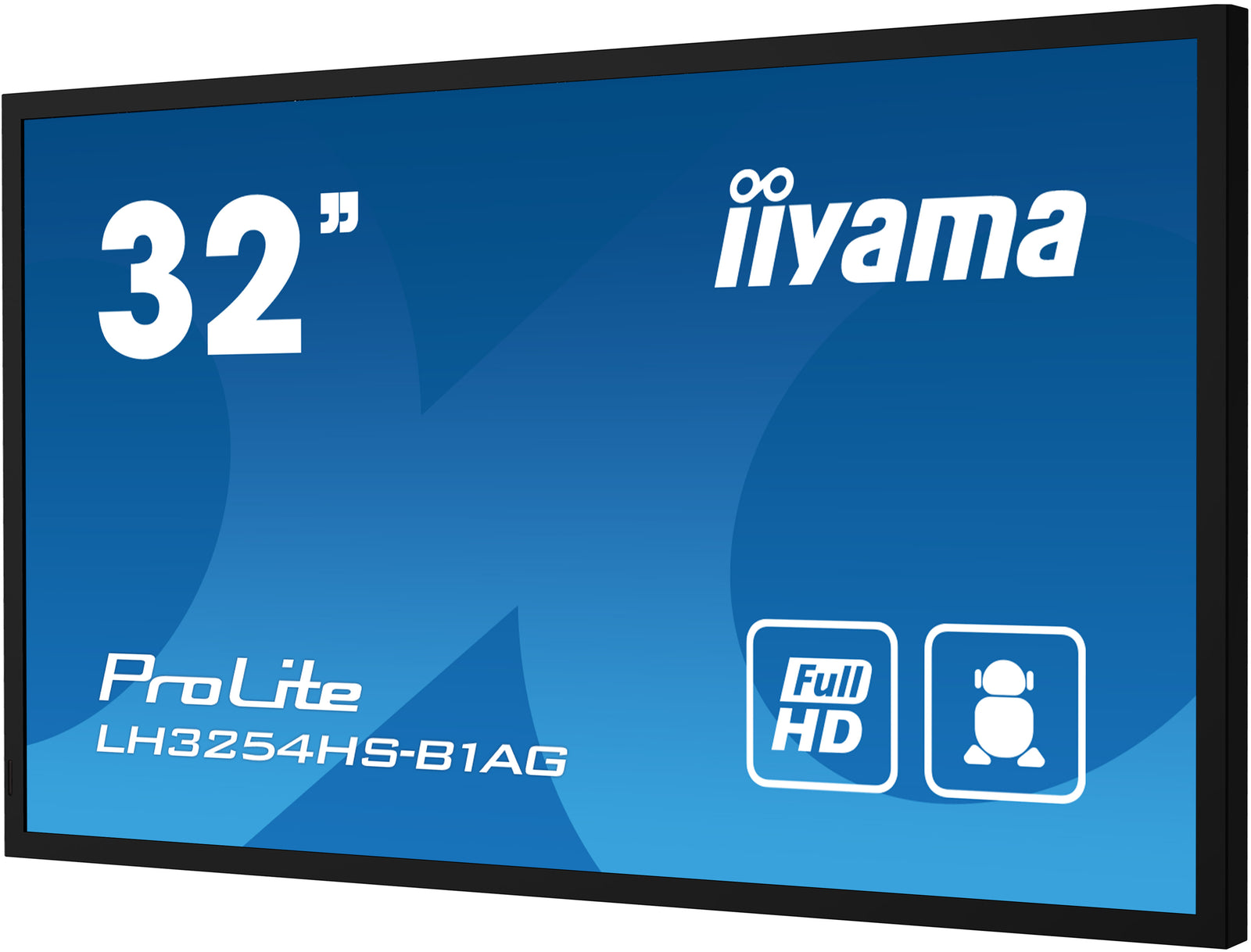

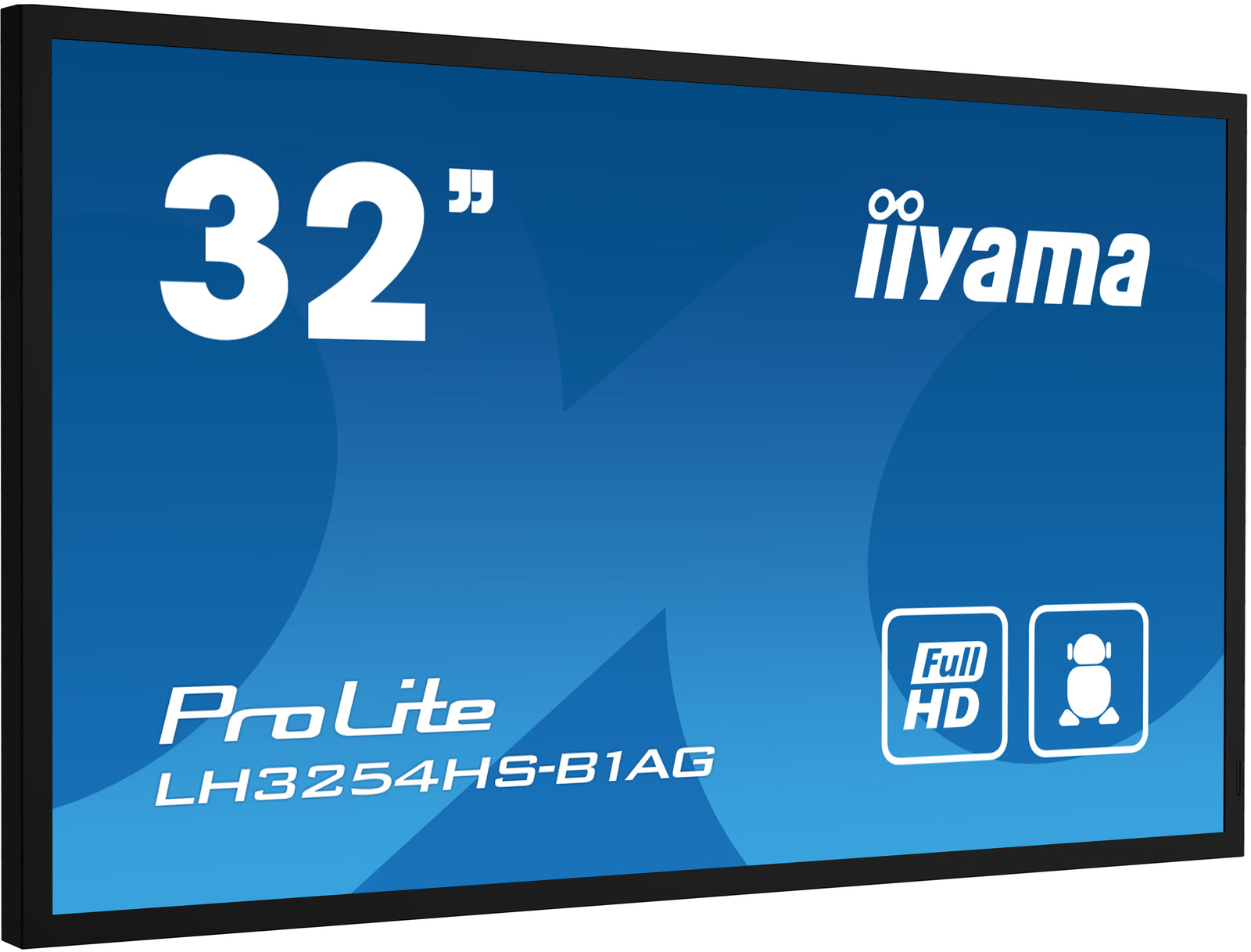

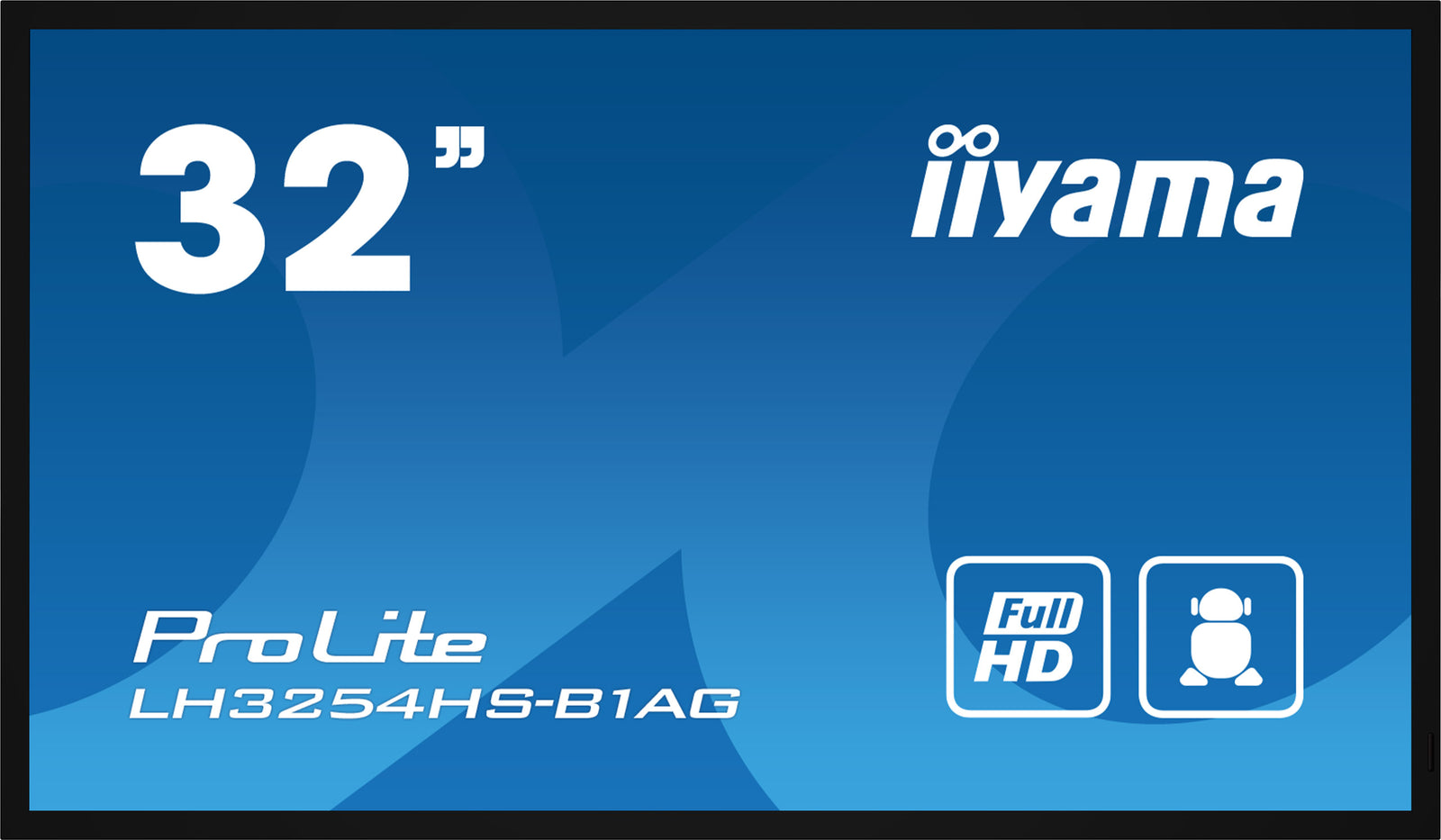

iiyama ProLite LH3254HS-B1AG

32" Full HD Professional Digital Signage

• Description
• Specifications
• Warranty

• iiyama 32" Digital Signage Display 24/7 Android OS Can be use Portrait or Landscape

  32" Full HD Professional Digital Signage 24/7 display featuring Android OS and FailOver

  Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH3254HS from iiyama is a 500cd/m² high brightness professional large format display and can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android OS means you can customize the display to your needs and install applications directly to it.

  The on-board CMS (Content Management Software) gives you total control of your messaging and advertising remotely and safely. The Signal FailOver feature ensures your content is always actively displayed through your choice of inputs. WiFi enabled, this series is ready for remote content delivery using your network or you can choose to utilise LAN control.

  Introducing the PROLITE LH3254HS-B1AG – a 32" Full HD Digital Signage Powerhouse

  Experience unparalleled visual excellence and seamless operation with the PROLITE LH3254HS-B1AG, a 32" Full HD professional digital signage display, designed to thrive in mission-critical environments. This high-performance, 500cd/m² high-brightness display from iiyama is built for round-the-clock usage, adapting effortlessly to landscape or portrait orientation for your industry's diverse display requirements.

  Powered by the versatile Android OS, customize the LH3254HS to meet your specific needs and easily install applications directly onto the display. The integrated CMS (Content Management Software) provides seamless remote control over your messaging and advertising campaigns, ensuring secure and efficient content management.

  Never miss a beat with the Signal FailOver feature, which guarantees continuous content delivery through your preferred input options. The WiFi-enabled LH3254HS-B1AG is primed for remote content delivery via your network, or alternatively, leverage LAN control for added flexibility.

  Key Features:

  • 32" Full HD Digital Signage Display
  • 24/7 Continuous Operation
  • 500cd/m² High Brightness
  • Android OS Integration
  • On-Board CMS for Remote Content Management
  • Signal FailOver Feature
  • WiFi and LAN Control Options



  Choose the PROLITE LH3254HS-B1AG for relentless performance and reliability, making it the ultimate all-in-one signage solution for your business.



  IISIGNAGE²

  iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays. The Content Management Software (CMS) gives you total control of your messaging and advertising remotely and safely. The Device Management System (DMS) allows you to easily manage your screens in a secure way.




  ---

  SIGNAL FAILOVER

  FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.




  ---

  ANDROID OS

  Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.




  ---

  MEDIA PLAYER

  Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or the internal memory with the built-in media player.




  ---

  FULL HD

  With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.







• DISPLAY CHARACTERISTICS

  Design	Thin bezel
  Diagonal	31.5", 80cm
  Panel	IPS, AG coated glass, matte finish, haze 25%
  Native resolution	1920 x 1080 @60Hz (2.1 Megapixels Full HD)
  Aspect ratio	16:9
  Panel brightness	500 cd/m²
  Static contrast	1200:1
  Response time (GTG)	8ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	16.7mln 8bit (NTSC 72%)
  Horizontal Sync	28 - 160kHz
  Viewable area W x H	698.4 x 392.85mm, 27.5 x 15.5"
  Pixel pitch	0.364mm
  Bezel colour and finish	black, matte

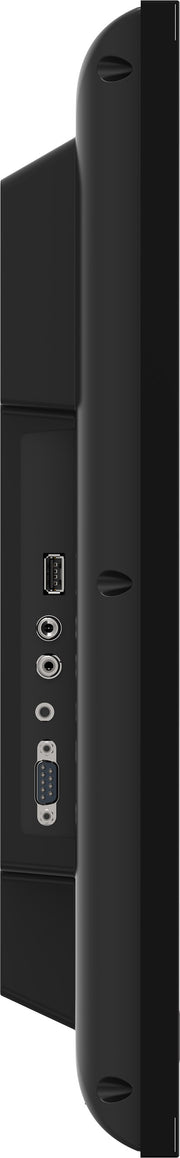

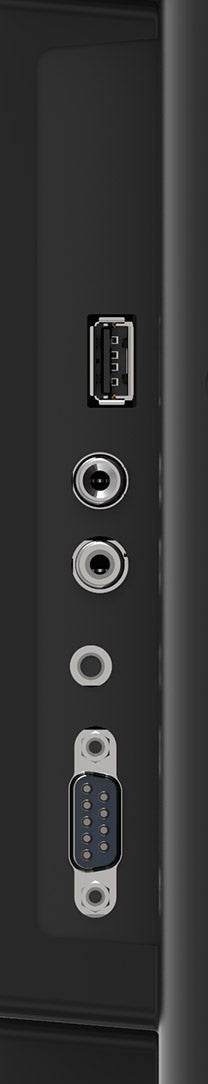

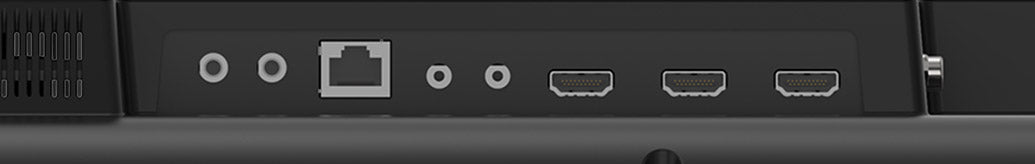

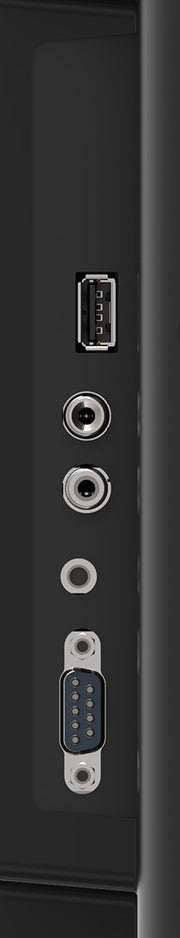

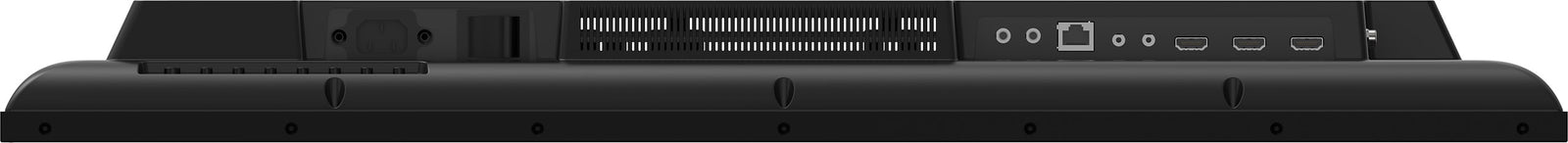

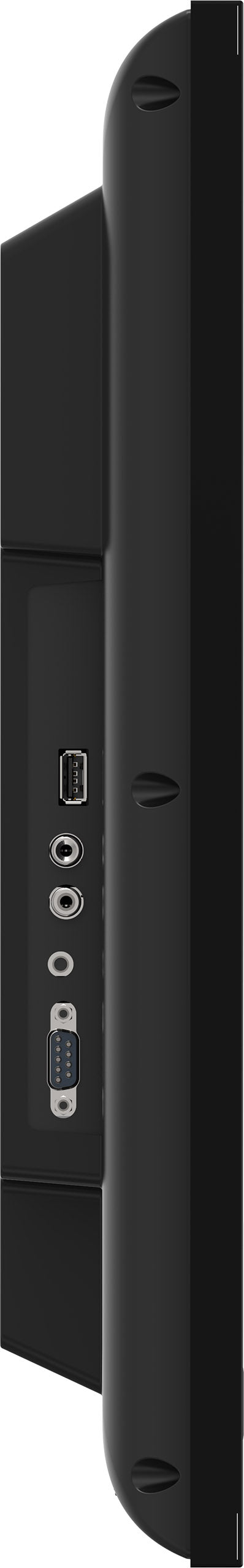

  INTERFACES / CONNECTORS / CONTROLS

  Analog signal input	VGA x1 (DVI-I: VGA+DVI)
  Digital signal input	DVI x1 (max. 1920x1080 @60Hz) HDMI x3 (v.2.0, max. 1920x1080 @60Hz) DisplayPort x1 (v.1.4, max. 1920x1080 @60Hz)
  Audio input	Mini jack x1 (3.5mm)
  Monitor control input	RS-232c x1 (2.5mm sub-mini jack) RJ45 (LAN) x1 IR x1 (3.5mm stereo mini)
  Digital signal output	DisplayPort x1 (max. 3840x2160 @60Hz, MST-out Daisy Chain v.1.2)
  Audio output	Mini jack x1 Speakers 2 x 10W
  Monitor control output	RS-232c x1 (2.5mm sub-mini jack) IR loop through x1 (3.5mm stereo mini)
  HDCP	v.2.2
  USB ports	x2 (v.2.0)

  FEATURES

  Integrated software	Android 11 OS, iiSignage2, FailOver, EShare
  WiFi	yes (Built-in)
  Hardware	CPU: A73*4+A53*4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB
  Extra	micro SD card slot
  Max. non-stop operating time	24/7
  Anti image retention	yes
  Video wall / daisy chain	Yes, (MST-output)
  Media playback	yes
  Housing (bezel)	metal (front)

  GENERAL

  OSD languages	EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL
  Control buttons	Power, Mute, Input, Plus, Minus, Up, Down, Menu
  User controls	picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, over scan, picture reset), screen (H. position, V. position, clock, clock phase, zoom mode, custom zoom, auto adjust, screen reset), Audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio source, audio reset, audio out sync, speaker setting), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, rotation, information OSD, logo and animation logo setting, animation setting, monitor ID, group ID, monitor information, DP version, DP monitors, HDMI version, configuration 2 reset), advanced option (IR control, power LED light, keyboard control, tiling, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, advanced option reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device)
  Plug&Play	DDC2B

  MECHANICAL

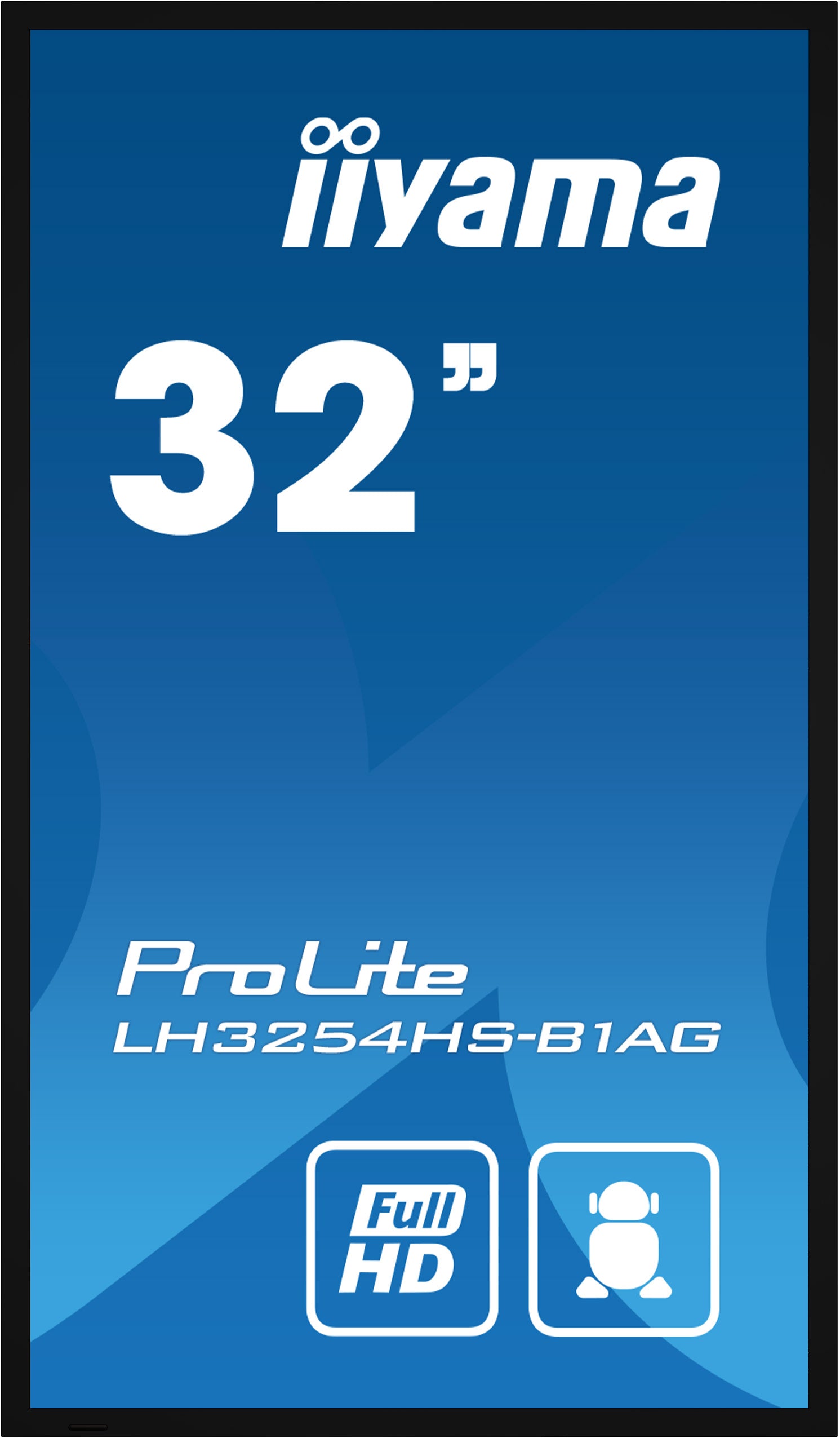

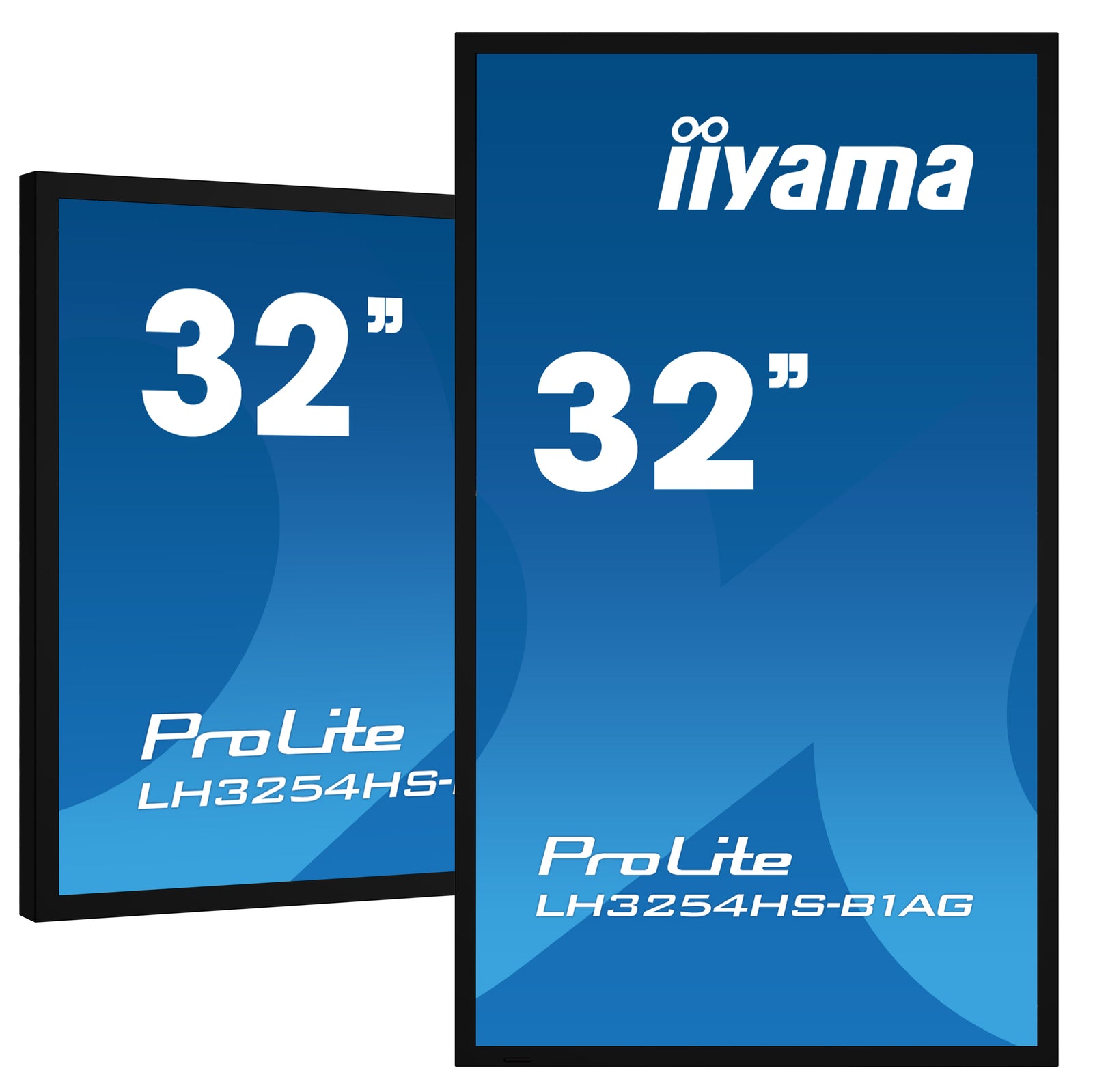

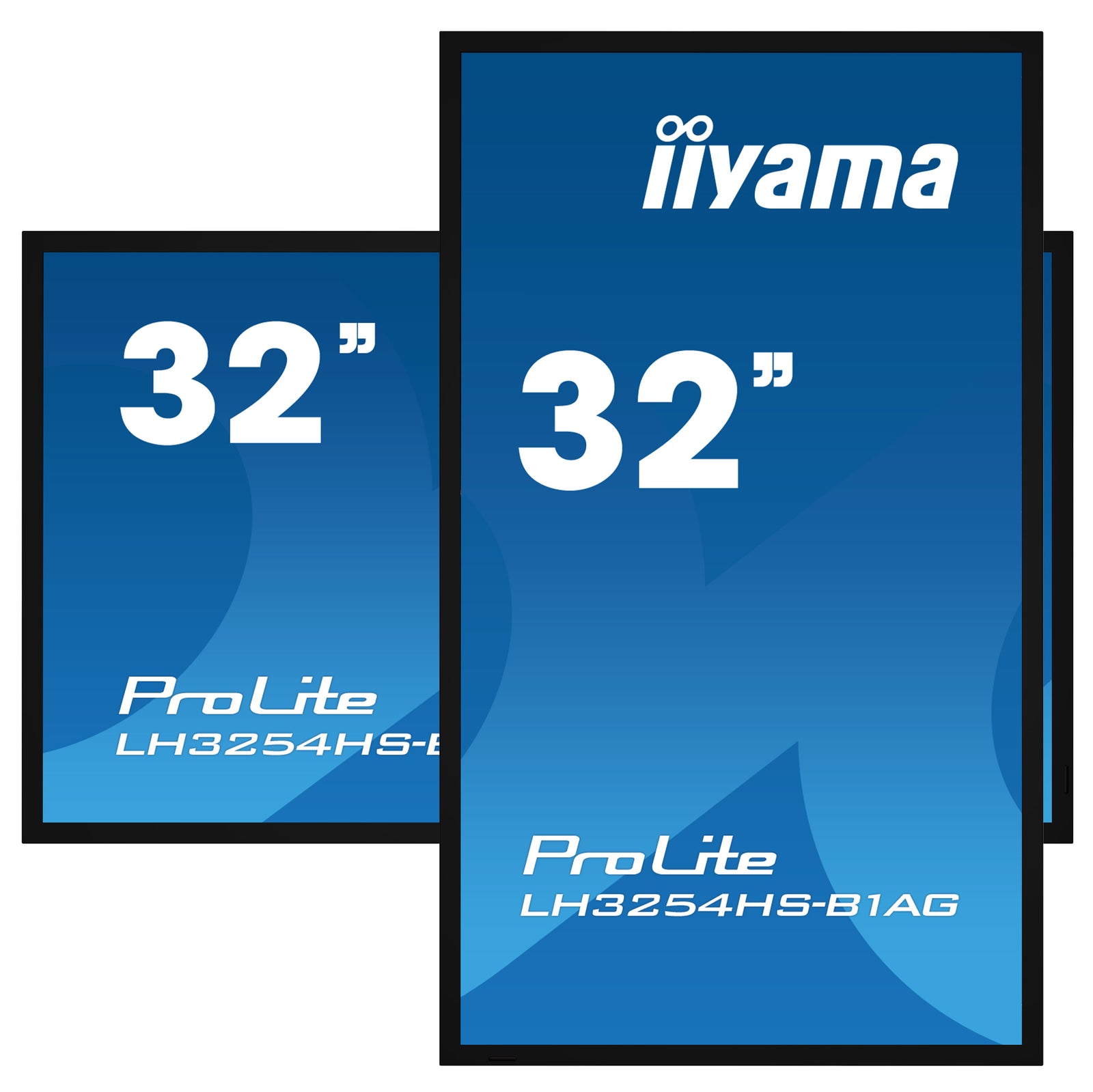

  Orientation	landscape, portrait
  Fanless design	yes

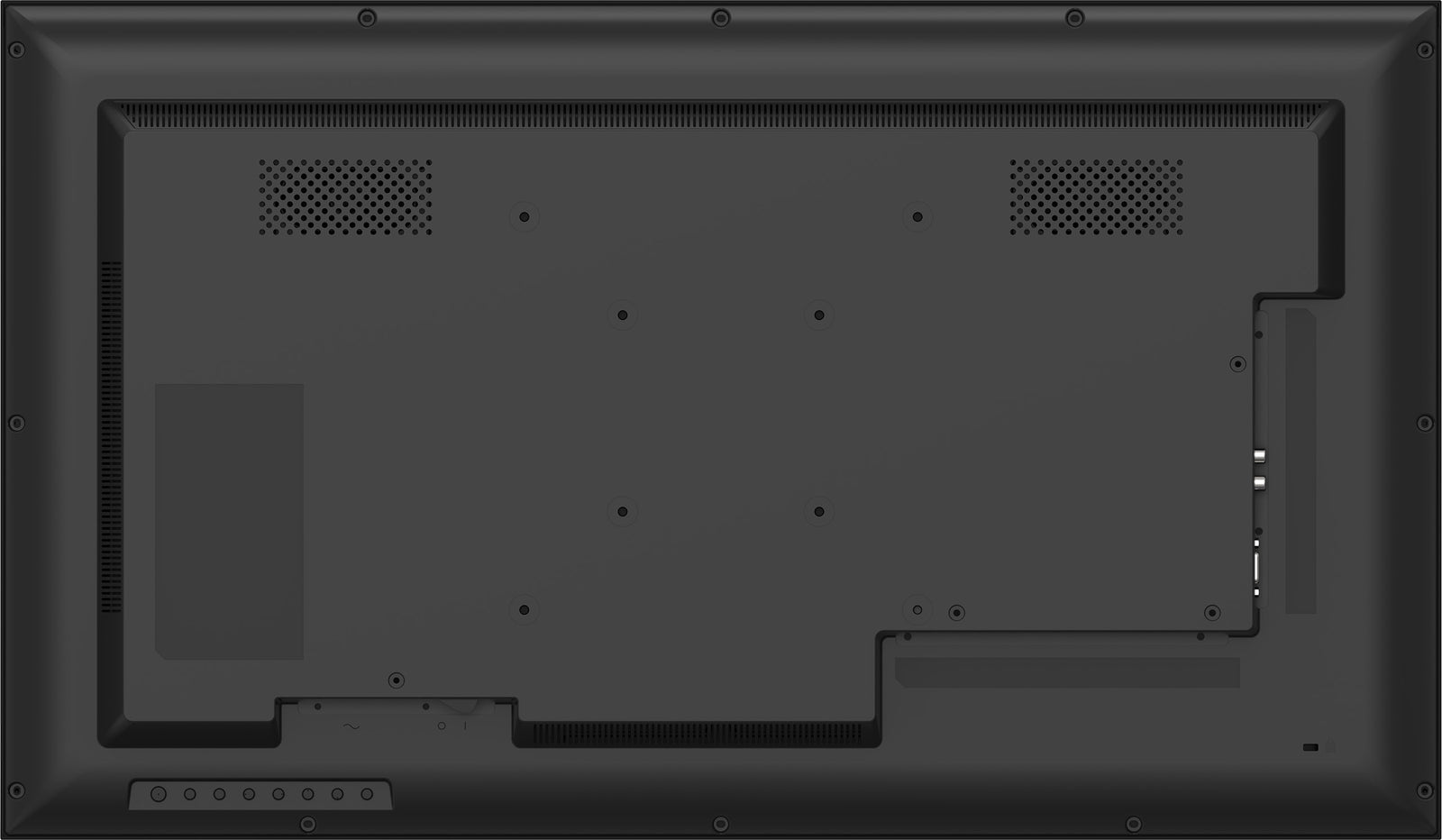

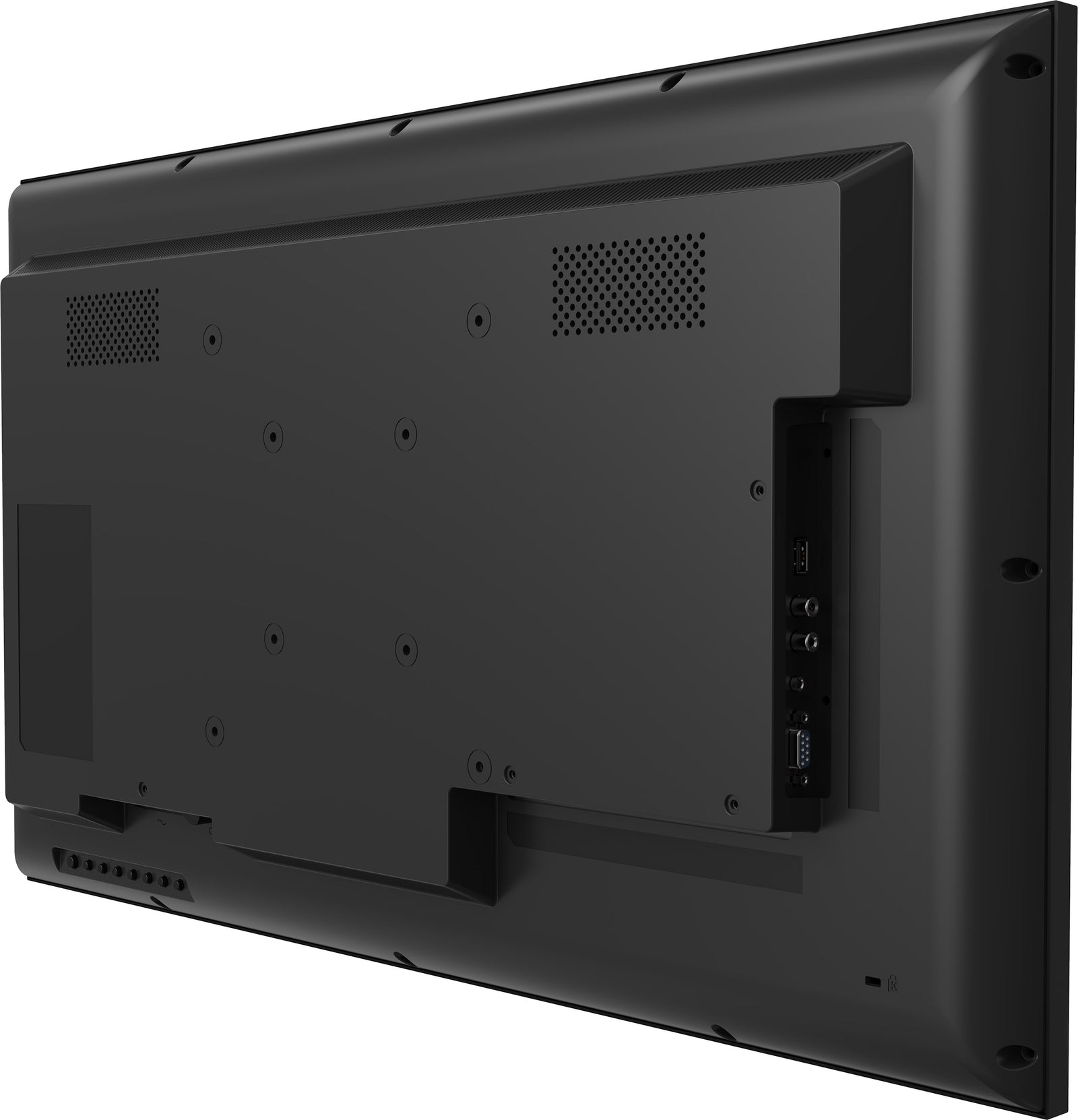

  VESA mounting	200 x 200mm
  Operation temperature range	0°C - 40°C
  Storage temperature range	- 20°C - 60°C
  MTBF	50.000 hours (excluding backlight)

  ACCESSORIES INCLUDED

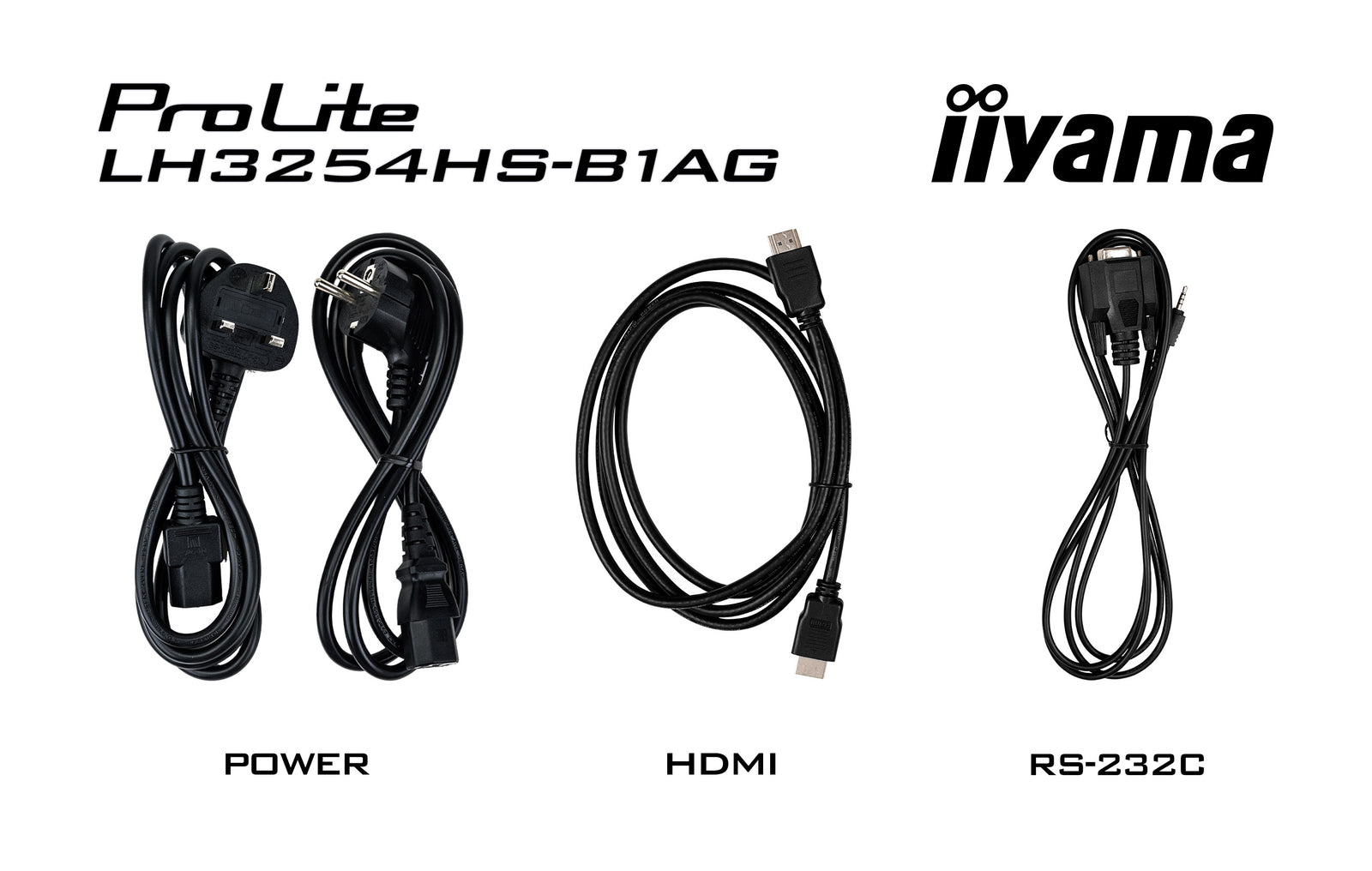

  Cables	power, HDMI, RS-232c
  Guides	quick start guide, safety guide
  Other	Stickers for screw holes, wire buckles
  Remote control	yes (batteries included)

  POWER MANAGEMENT

  Power supply unit	internal
  Power supply	AC 100 - 240V, 50/60Hz
  Power usage	110W typical, 0.5W stand by, 0.3W off mode

  SUSTAINABILITY

  Regulations	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
  Energy efficiency class (Regulation (EU) 2017/1369)	G

  DIMENSIONS / WEIGHT

  Product dimensions W x H x D	733 x 427.5 x 66.5mm
  Box dimensions W x H x D	823 x 545 x 132mm
  Weight (without box)	5.4kg
  Weight (with box)	8.1kg
  EAN code	4948570120963

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17" - 43")	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download


  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one - Check that all connections have been properly made.

  Step two - Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three - If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four - Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five - Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six - Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required


  ON-SITE SWAP OUT

  PIONEERING CUSTOMER SERVICE.

  iiyama has always strived to achieve maximum reliability and to prove our belief in our products we were the first manufacturer to confidently guarantee our display products with a 3-year on-site warranty as standard changing and shaping the warranty landscape forever.
  Visioncare is our comprehensive warranty support scheme for standard desktop display products.  We understand that should a fault occur, downtime needs to be minimised and vision care was designed to do just that.

  1-) If your display should develop a fault within the first 2 years of purchase, iiyama will arrange a replacement unit of an equivalent or higher specification.
  2-) iiyama endeavours to dispatch the replacement unit within 24hrs whenever possible.
  3-) iiyama takes care of the swap out and all carraige charges.

  And it's not just us at iiyama that believes we provide great service, our customers think so too. iiyama has been proud to receive many reader-voted magazine awards for customer satisfaction and reliability.

  For Desktop and Touchscreen displays (below 42") service
  Call 01926 819189 between 9:00am - 5:30pm Monday to Friday
  For Large Format Displays (42" and above) service
  Call 03302 020 463 between 9:00am - 5:30pm Monday to Friday

  Service request form
