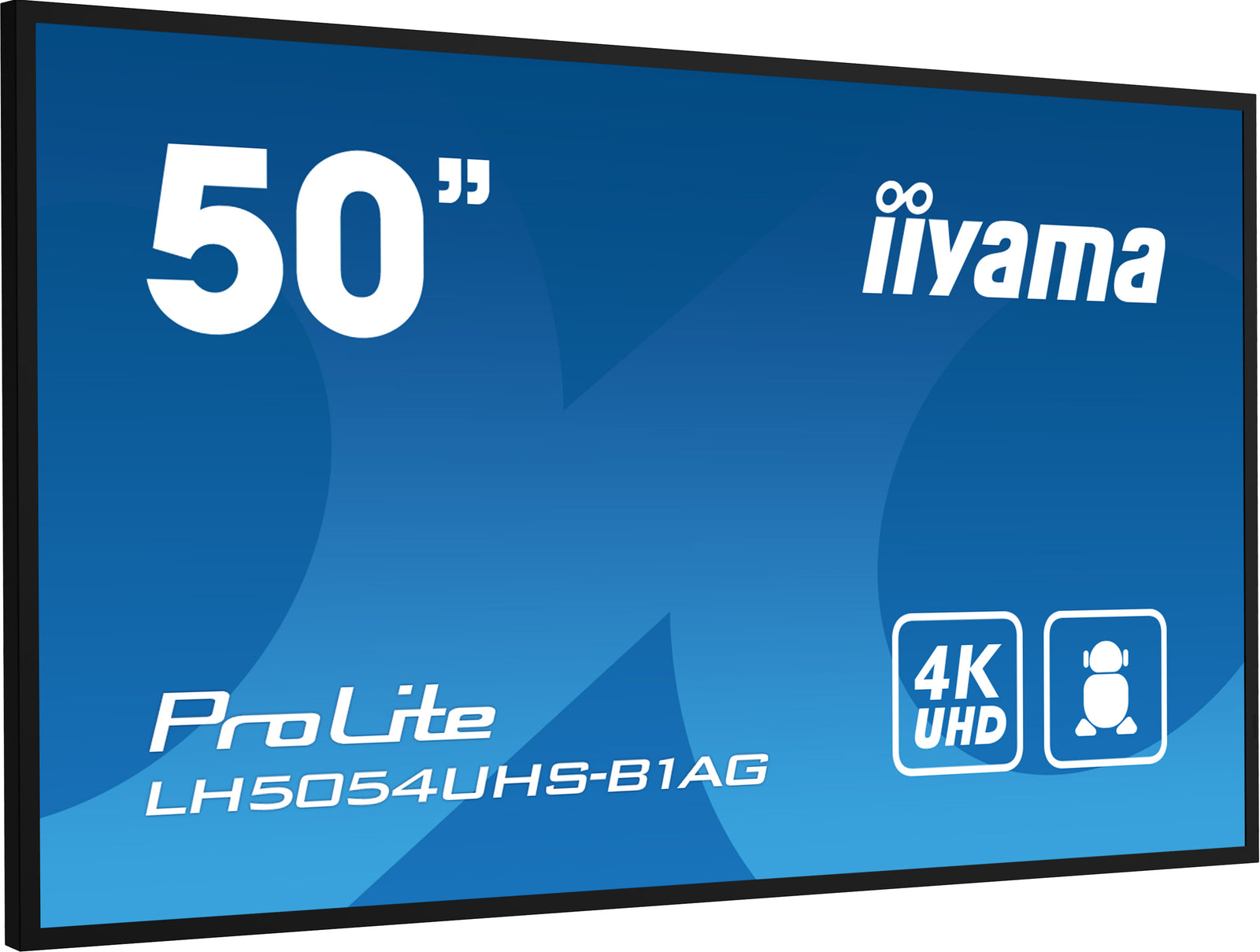

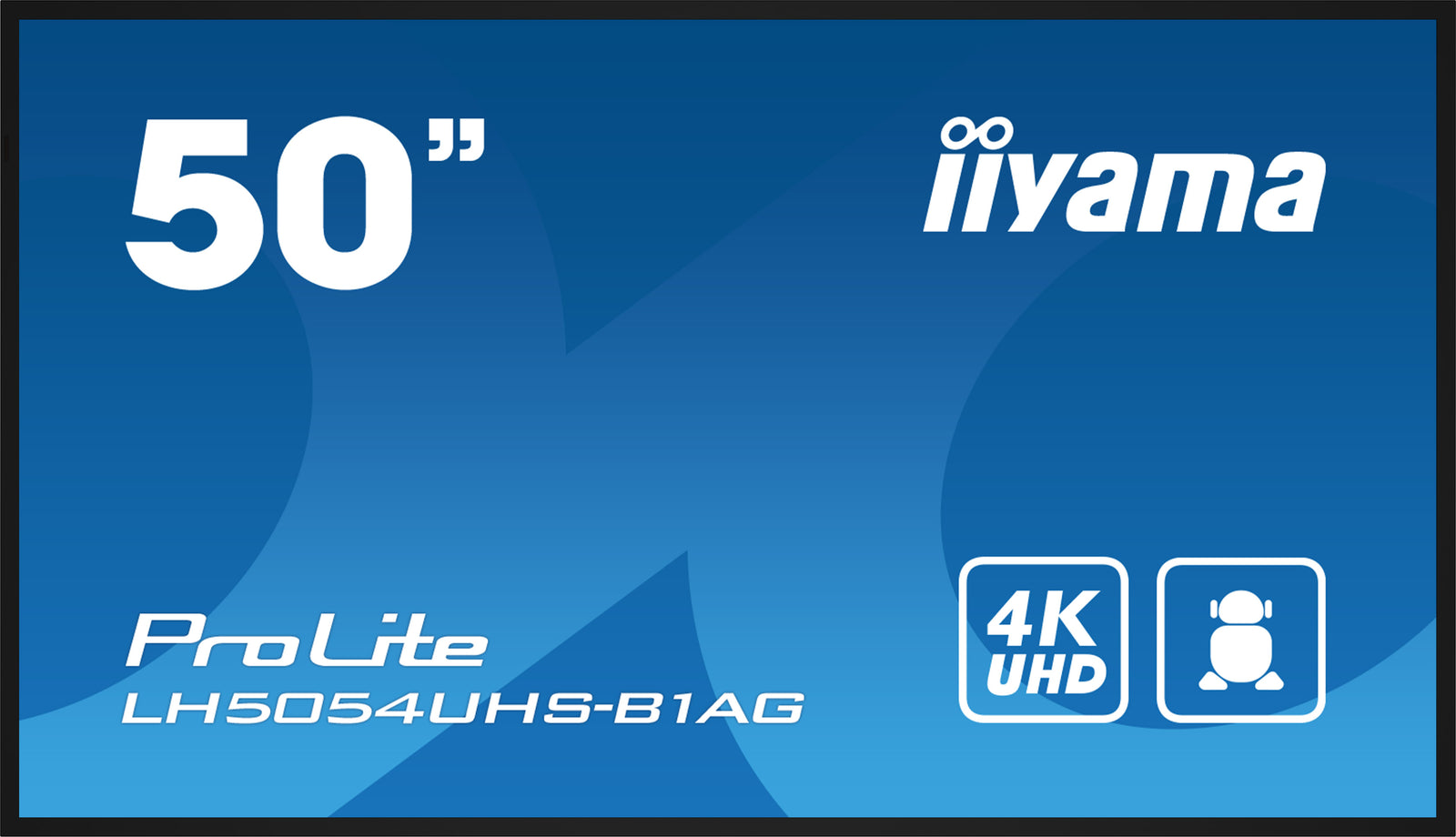

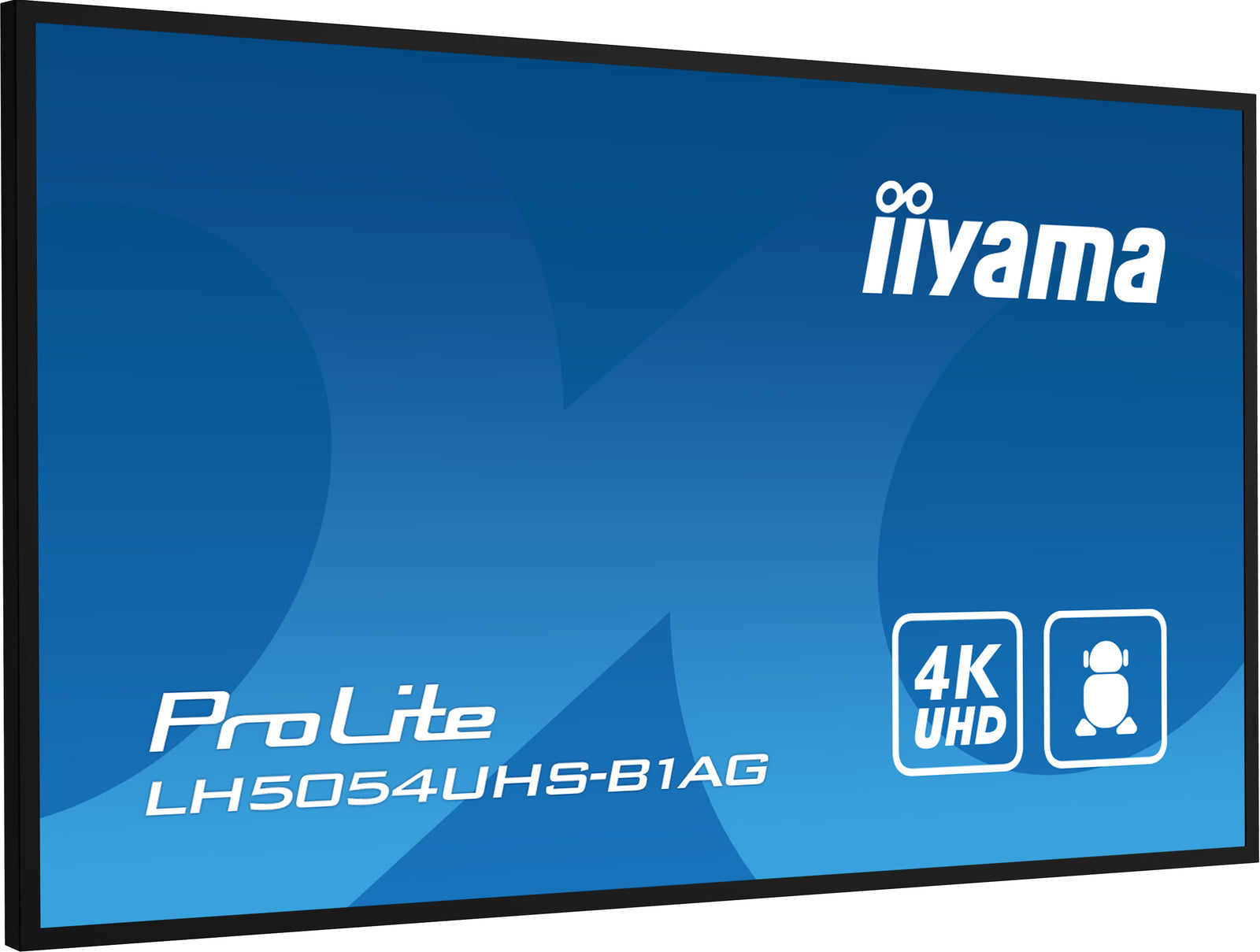

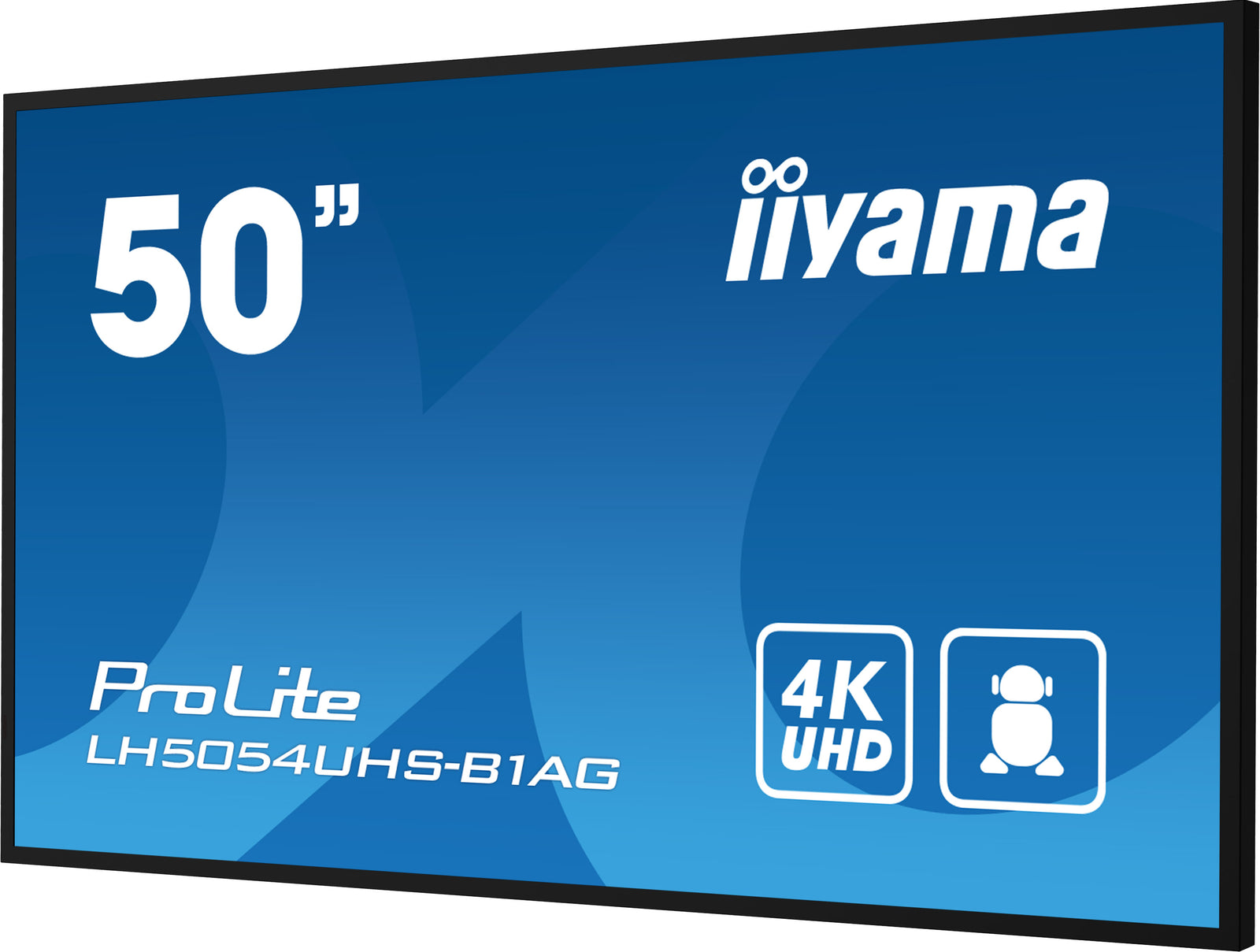

Iiyama PROLITE LH5054UHS-B1AG 50" 4K UHD Professional Digital Signage 24/7 Display
50" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot

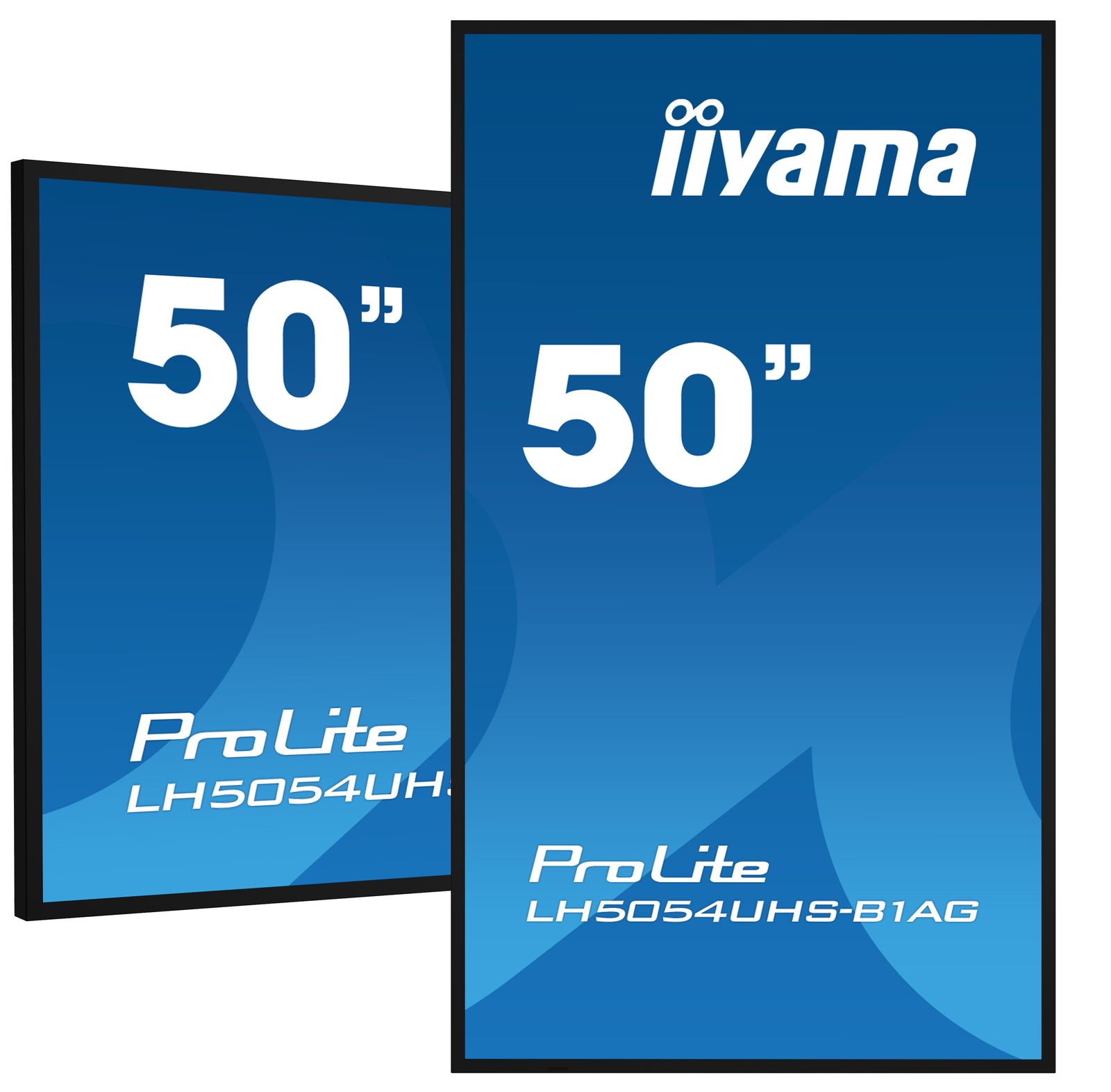

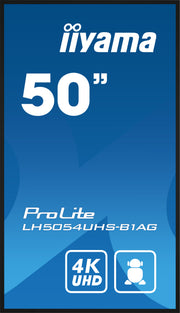

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH5054UHS from iiyama is a 500cd/m² high brightness professional large format display and can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android OS means you can customize the display to your needs and install applications directly to it.
The on-board CMS (Content Management Software) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the Signal FailOver feature ensures your content is always actively displayed through your choice of inputs. WiFi enabled, this series is ready for remote content delivery using your network or you can choose to utilise LAN control.
You can also order a wall mounting bracket or ceiling bracket to mount your display in your store.
- Product Description
- Display Specifications
- Delivery Time
- Return and Warranty
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
SMART DISPLAY MODULE
A Smart Display Module (Small/Large) is a plug-in module which can easily be inserted into the most stylish and ultra-slim displays. This small sized module delivers great performance with minimum implementation and management. Available as optional.
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.
Design Thin bezel Diagonal 49.5", 125.7cm Panel VA, AG coated glass, matte finish, haze 25% Native resolution 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD) Aspect ratio 16:9 Panel brightness 500 cd/m² Static contrast 5000:1 Response time (GTG) 9.5ms Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° Colour support 1.07B 8bit+FRC (NTSC 72%) Horizontal Sync 28 - 160kHz Viewable area W x H 1095.8 x 616.4mm, 43.2 x 24.3" Pixel pitch 0.285mm Bezel colour and finish black, matte

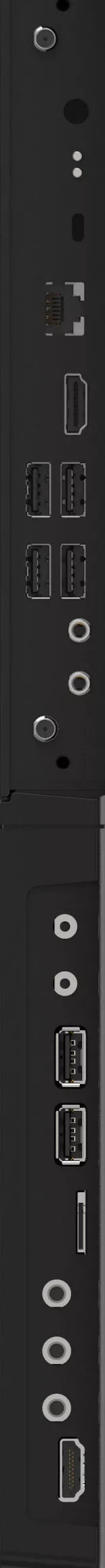

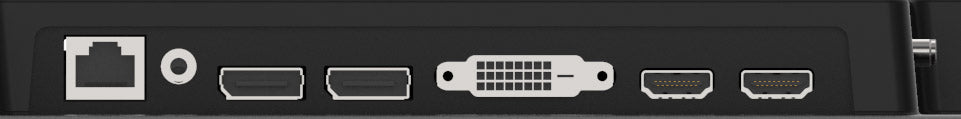

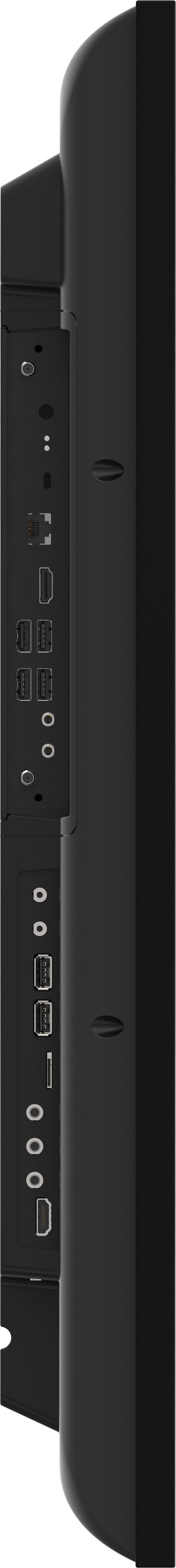

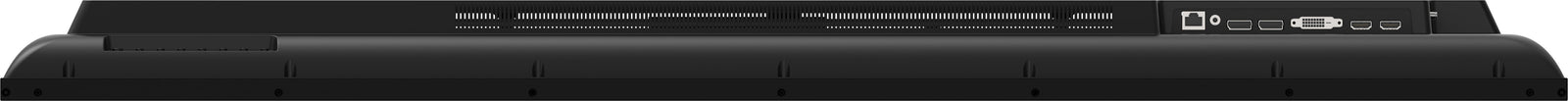

INTERFACES / CONNECTORS / CONTROLS
Analog signal input VGA x1 (DVI-I: VGA+DVI) Digital signal input DVI x1 (max. 2560x1440 @60Hz)
HDMI x3 (v.2.0, max. 3840x2160 @60Hz)
DisplayPort x1 (v.1.4, max. 3840x2160 @60Hz)
Audio input Mini jack x1 (3.5mm) Monitor control input RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN) x1
IR x1 (3.5mm stereo mini)
Digital signal output DisplayPort x1 (max. 3840x2160 @60Hz, MST-out Daisy Chain v.1.2) Audio output Mini jack x1
Speakers 2 x 10W
Monitor control output RS-232c x1 (2.5mm sub-mini jack)
IR loop through x1 (3.5mm stereo mini)
HDCP v.2.2 USB ports x2 (v.2.0)
Integrated software Android 11 OS, iiSignage2, FailOver, EShare WiFi yes (Built-in) Hardware CPU: A73*4+A53*4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB Extra Intel® SDM-L, micro SD card slot Max. non-stop operating time 24/7 Anti image retention yes Video wall / daisy chain Yes, (MST-output) Media playback yes Housing (bezel) metal
OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL Control buttons Power, Up, Down, Volume up, Volume down, Mute, Input, Menu User controls picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, over scan, picture reset), screen (H. position, V. position, clock, clock phase, zoom mode, custom zoom, auto adjust, screen reset), Audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio source, audio reset, audio out sync, speaker setting), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, rotation, information OSD, logo and animation logo setting, animation setting, monitor ID, group ID, monitor information, DP version, DP monitors, HDMI version, configuration 2 reset), advanced option (IR control, power LED light, keyboard control, tiling, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, SDM settings, advanced option reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device) Plug&Play DDC2B

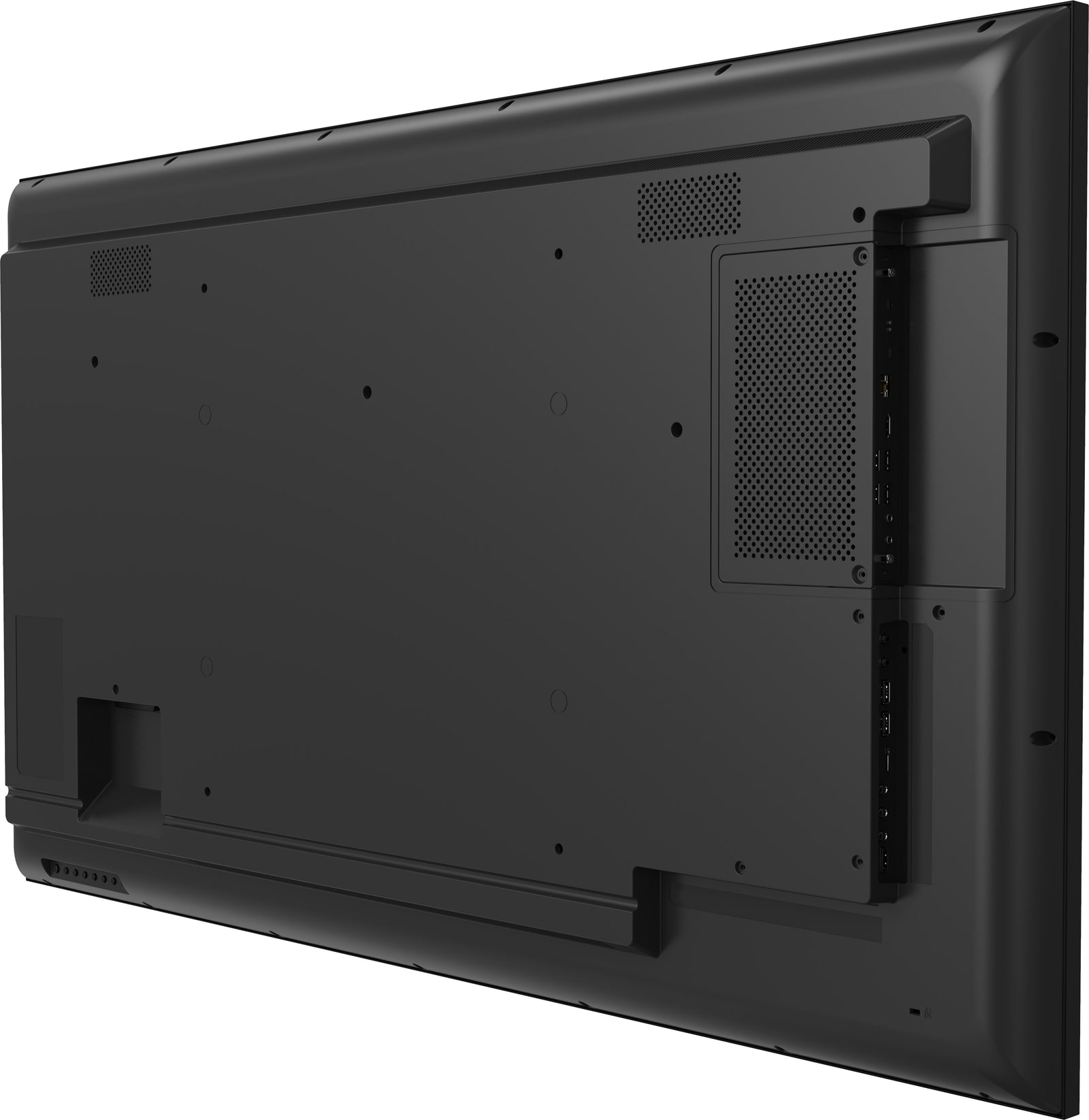

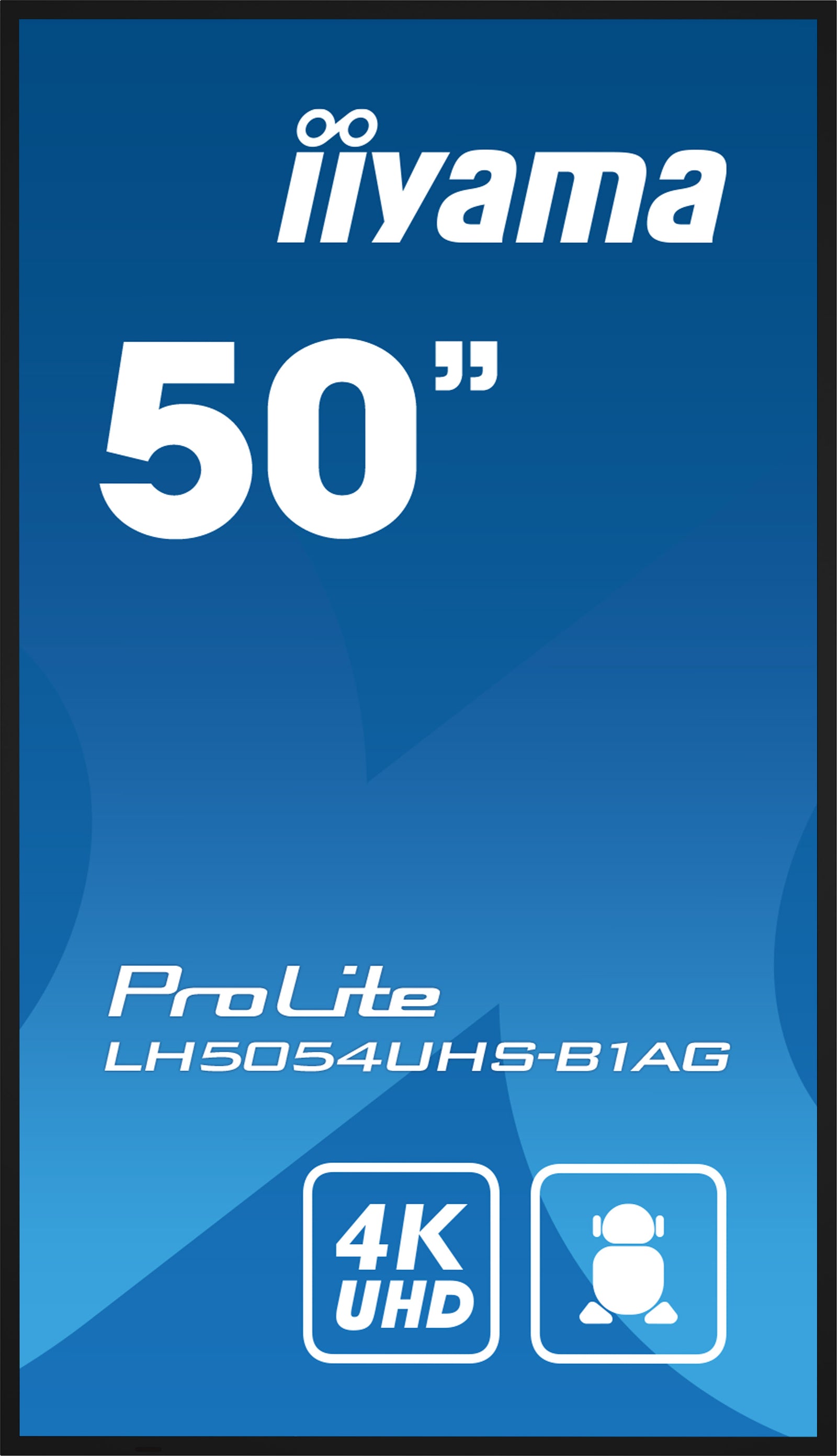

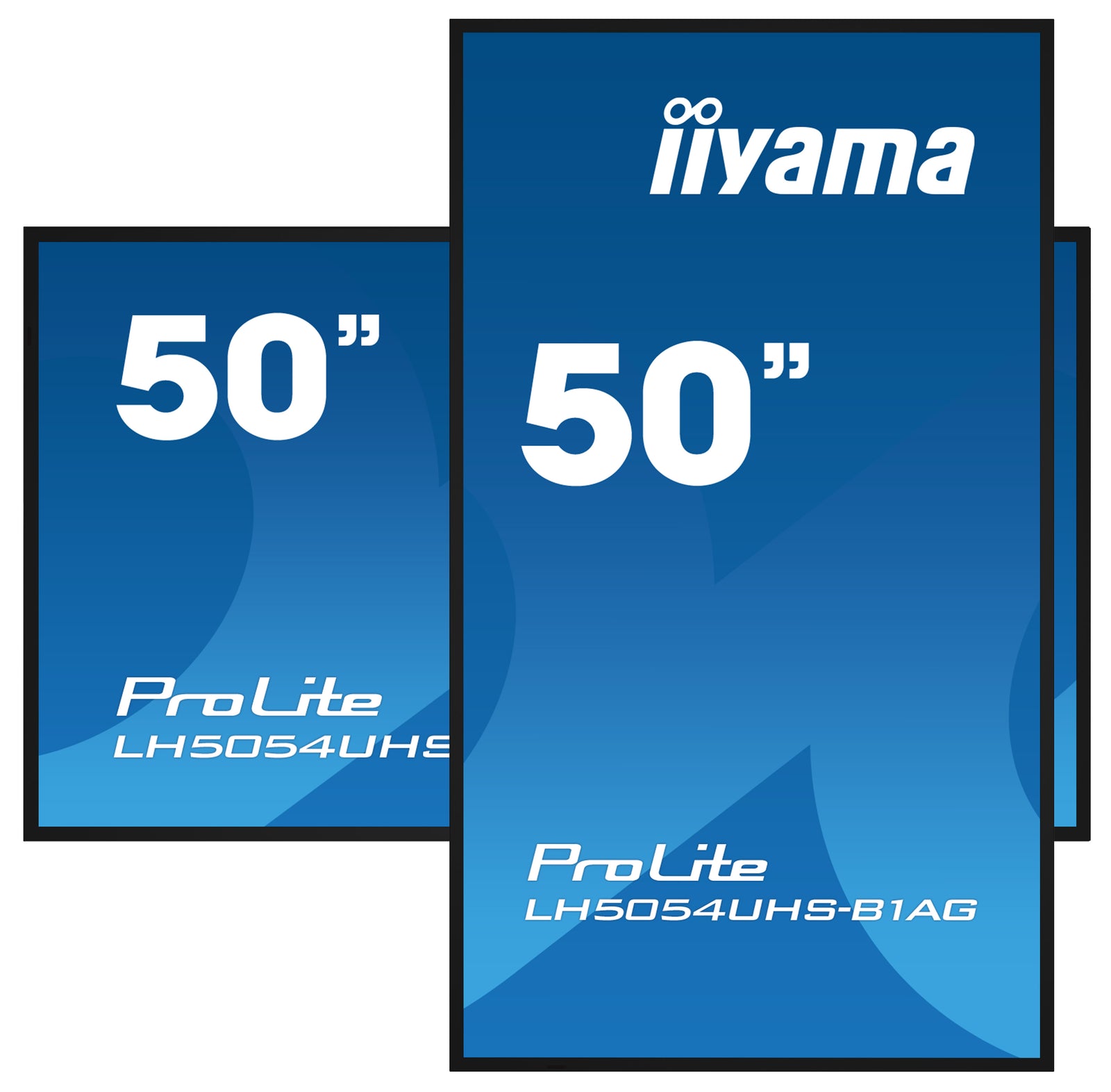

Orientation landscape, portrait Fanless design yes VESA mounting 400 x 400mm Mini PC mount VESA 100 x 100 Operation temperature range 0°C - 40°C Storage temperature range - 20°C - 60°C MTBF 50.000 hours (excluding backlight)

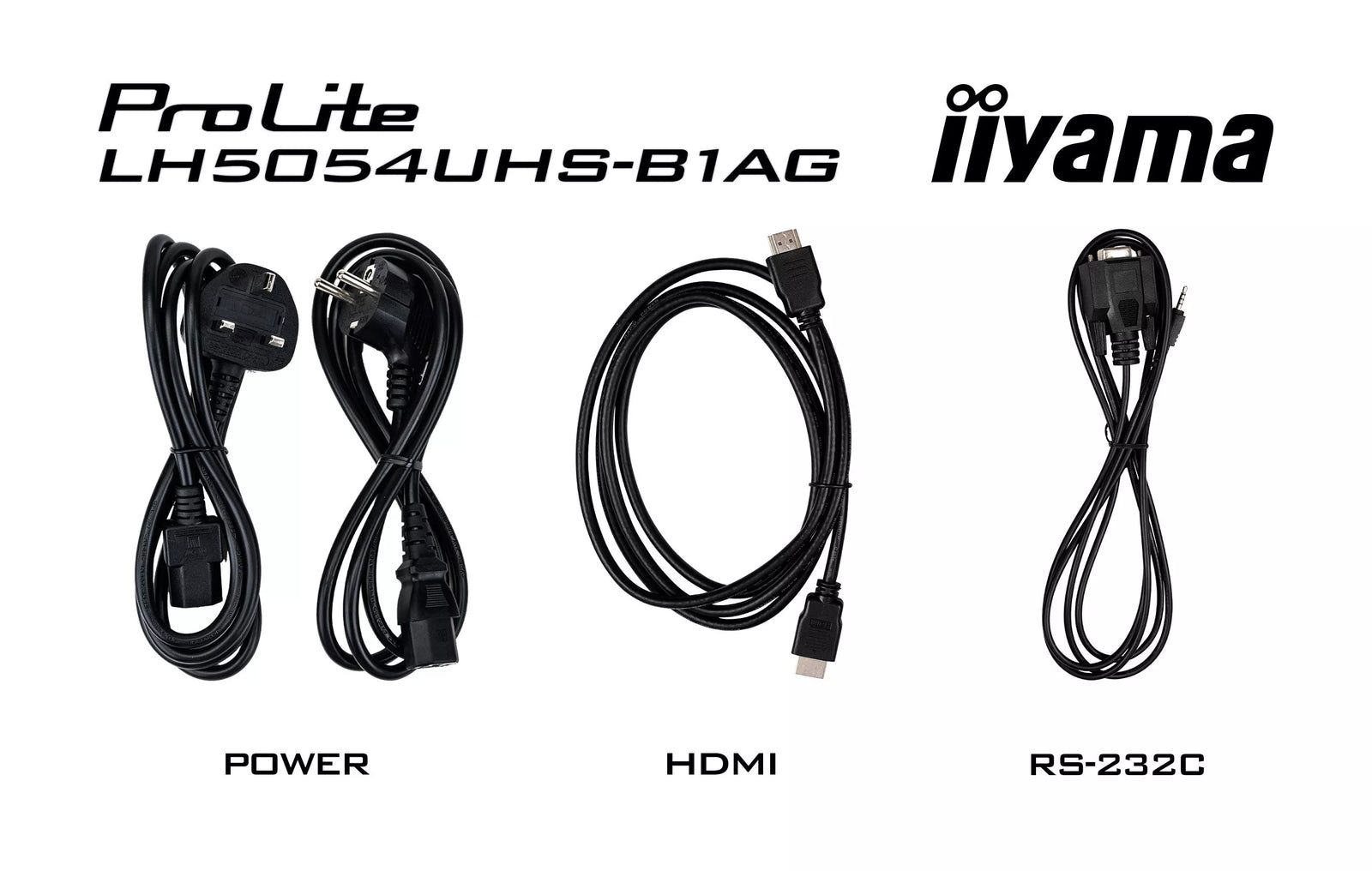

Cables power, HDMI, RS-232c Guides quick start guide, safety guide Other Stickers for screw holes, wire buckles Remote control yes (batteries included)
Power supply unit internal Power supply AC 100 - 240V, 50/60Hz Power usage 0.5W stand by
Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH Energy efficiency class (Regulation (EU) 2017/1369) G
DIMENSIONS / WEIGHT
Product dimensions W x H x D 1127.6 x 648.2 x 72.6mm Weight (without box) 13.9kg Weight (with box) 18.6kg EAN code 4948570120987
Standard Shipping: Deliver within 2-3 days after the order was placed.
Next-Business-Day: Shipping same-day (before 14:00 PM Orders), arriving next business days.
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17" - 43")
3 years on-site UK warranty. (Upgrades to 5 years available)
LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available)
LFD Large Format Displays Standard Warranty
3 years collect and return (Upgrade to swap, installation & 5 years available) Download
