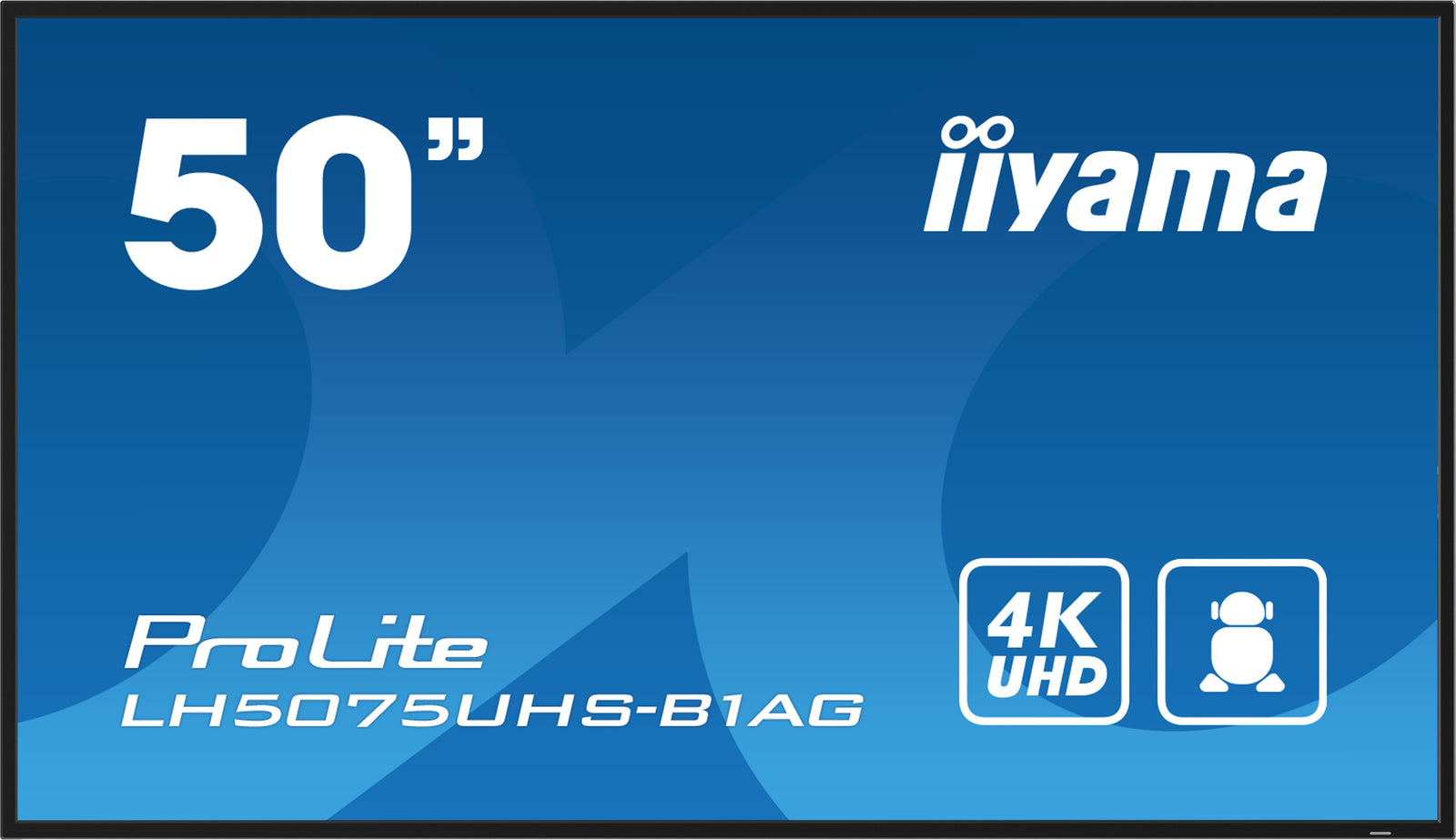

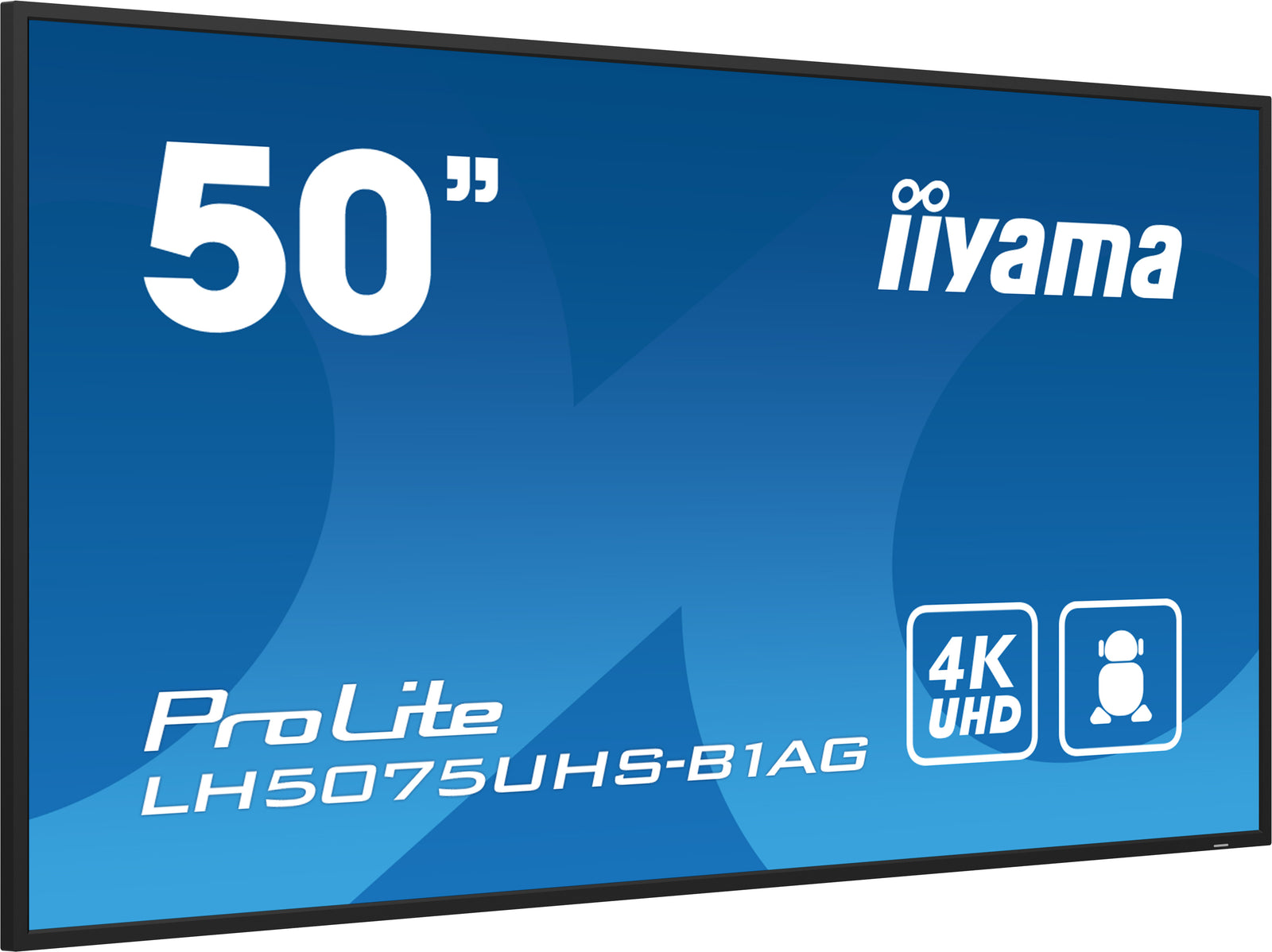

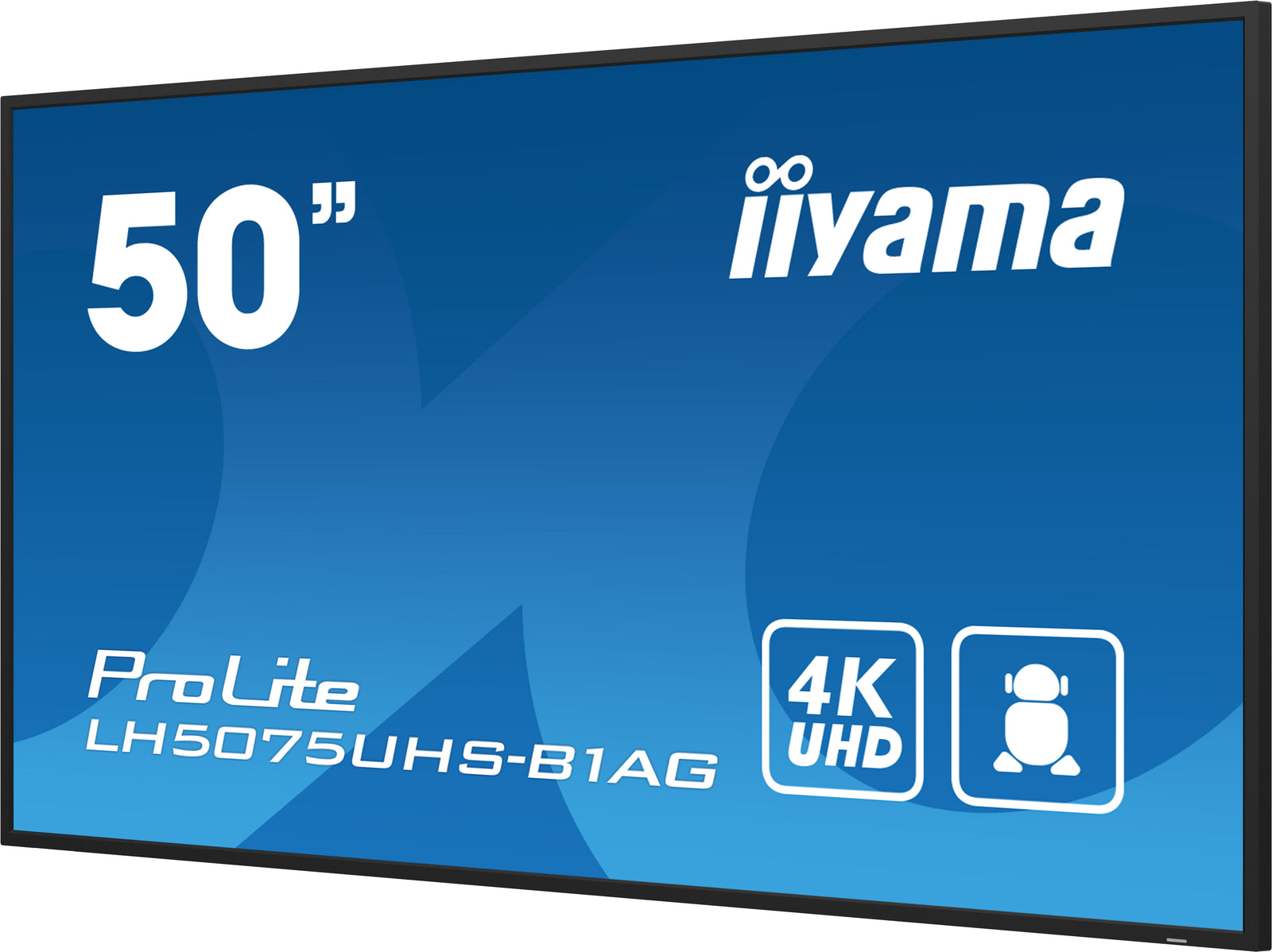

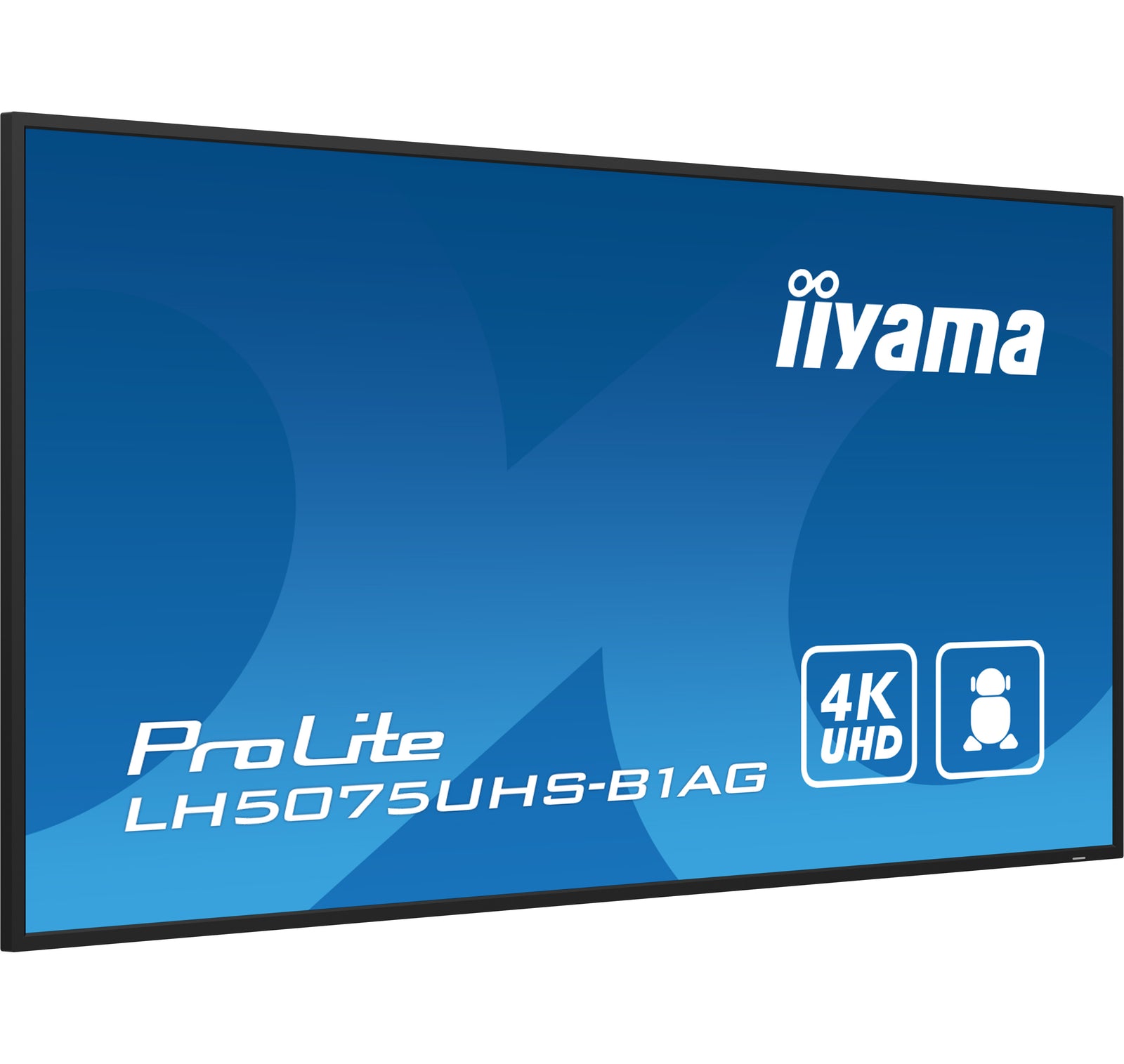

iiyama ProLite LH5075UHS-B1AG 50" 4K Ultra HD Professional Digital Signage Display

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH5075UHS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it.

The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the FailOver feature ensures your content is always actively displayed through your choice of inputs. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network.

With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

ANDROID OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

IISIGNAGE²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

SIGNAL FAILOVER
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

SMART DISPLAY MODULE
A Smart Display Module (Small/Large) is a plug-in module which can easily be inserted into the most stylish and ultra-slim displays. This small sized module delivers great performance with minimum implementation and management. Available as optional.

4K
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

Category	Specifications
DISPLAY CHARACTERISTICS
Design	Thin bezel
Diagonal	49.5", 125.7cm
Panel	VA, AG coated glass, matte finish, haze 25%
Native Resolution	3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect Ratio	16:9
Panel Brightness	500 cd/m²
Static Contrast	5000:1
Response Time (GTG)	9.5ms
Viewing Zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour Support	1.07B 8bit (NTSC 72%)
Horizontal Sync	28 - 160kHz
Viewable Area W x H	1095.8 x 616.4mm, 43.2 x 24.3"
Bezel Width	14.9mm (sides, top, bottom)
Pixel Pitch	0.285mm
Bezel Colour and Finish	black, matte

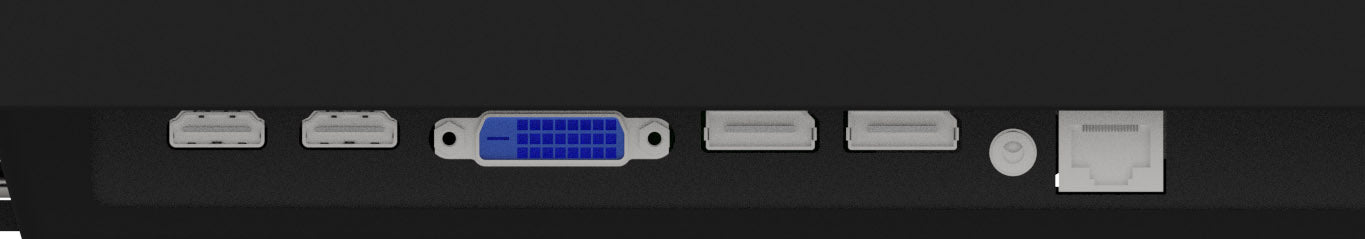

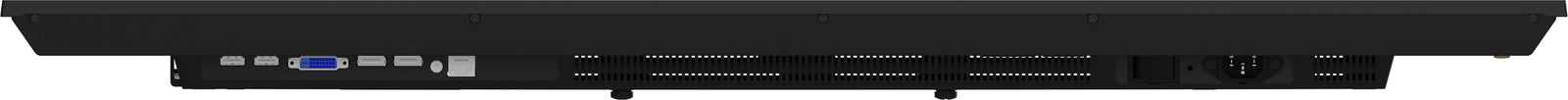

INTERFACES / CONNECTORS / CONTROLS
Digital Signal Input	HDMI x3 (v.2.0, ARC on HDMI #3), DisplayPort x1 (v1.2)
Digital Signal Output	DisplayPort x1 (MST-out Daisy Chain v.1.2)
Monitor Control Input	RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN)	x1
IR	x1 (3.5mm stereo mini)
Audio Output	Mini jack x1
Speakers	2 x 10W
Monitor Control Output	RS-232c x1, IR loop through x1
HDCP	v.2.2

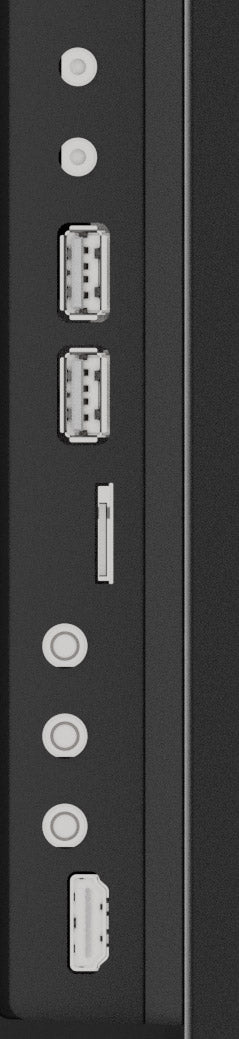

USB Ports	x2 (v.2.0)
FEATURES
Integrated Software	Android 11 OS, iiSignage², FailOver, EShare
WiFi	yes (Built-in, 802.11ac)
Hardware	CPU: A734+A534, GPU: G52 MP8, RAM: 4GB, ROM: 32GB
Extra	Intel® SDM-L, micro SD card slot
Max. Non-stop Operating Time	24/7
Anti Image Retention	yes
Video Wall / Daisy Chain	Yes (MST-output)
Media Playback	yes
Housing (Bezel)	metal
GENERAL
OSD Languages	Multiple languages supported
Control Buttons	Power
User Controls	Extensive settings including picture, screen, audio, configuration, advanced options
Plug & Play	DDC2B
MECHANICAL

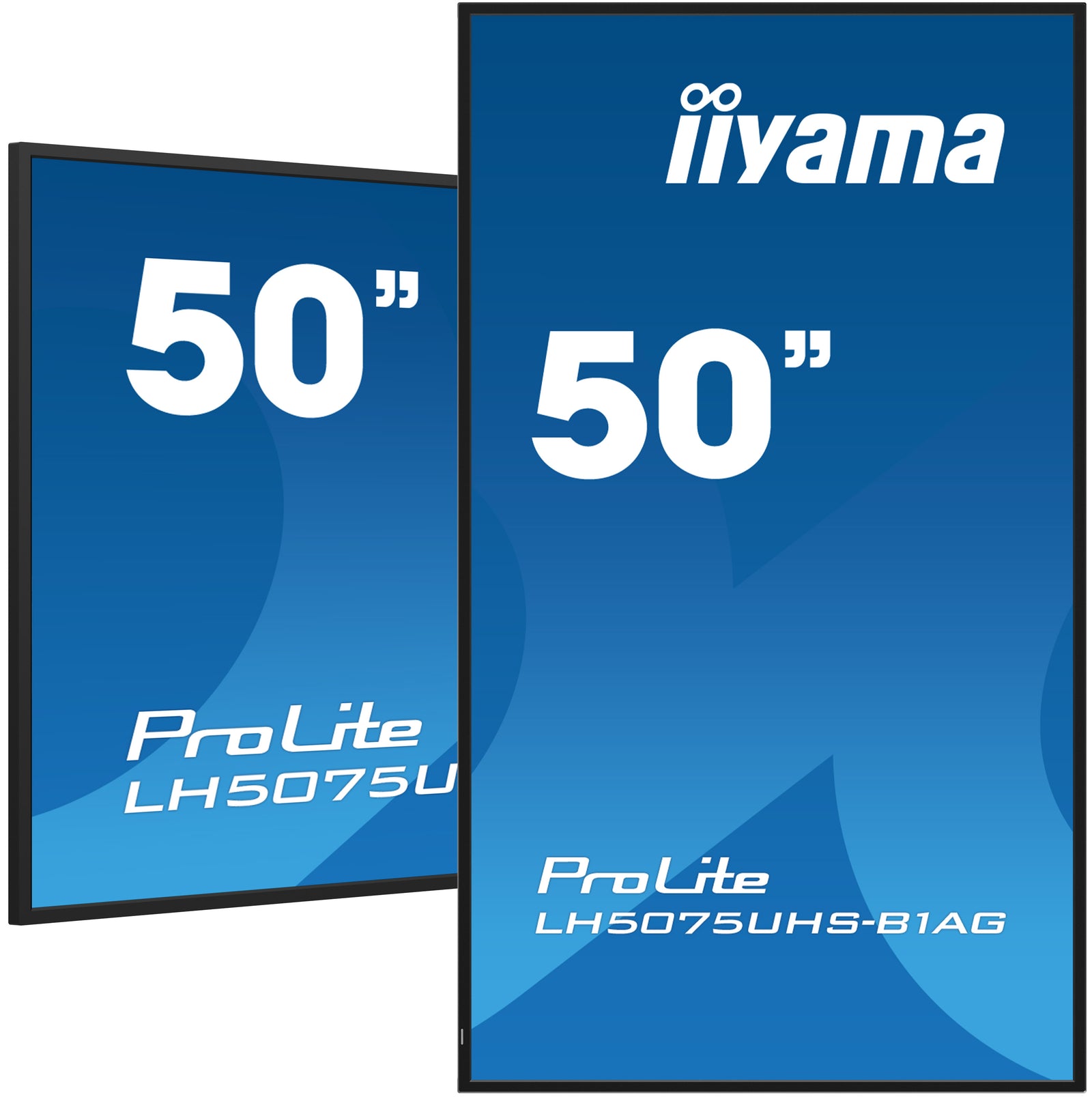

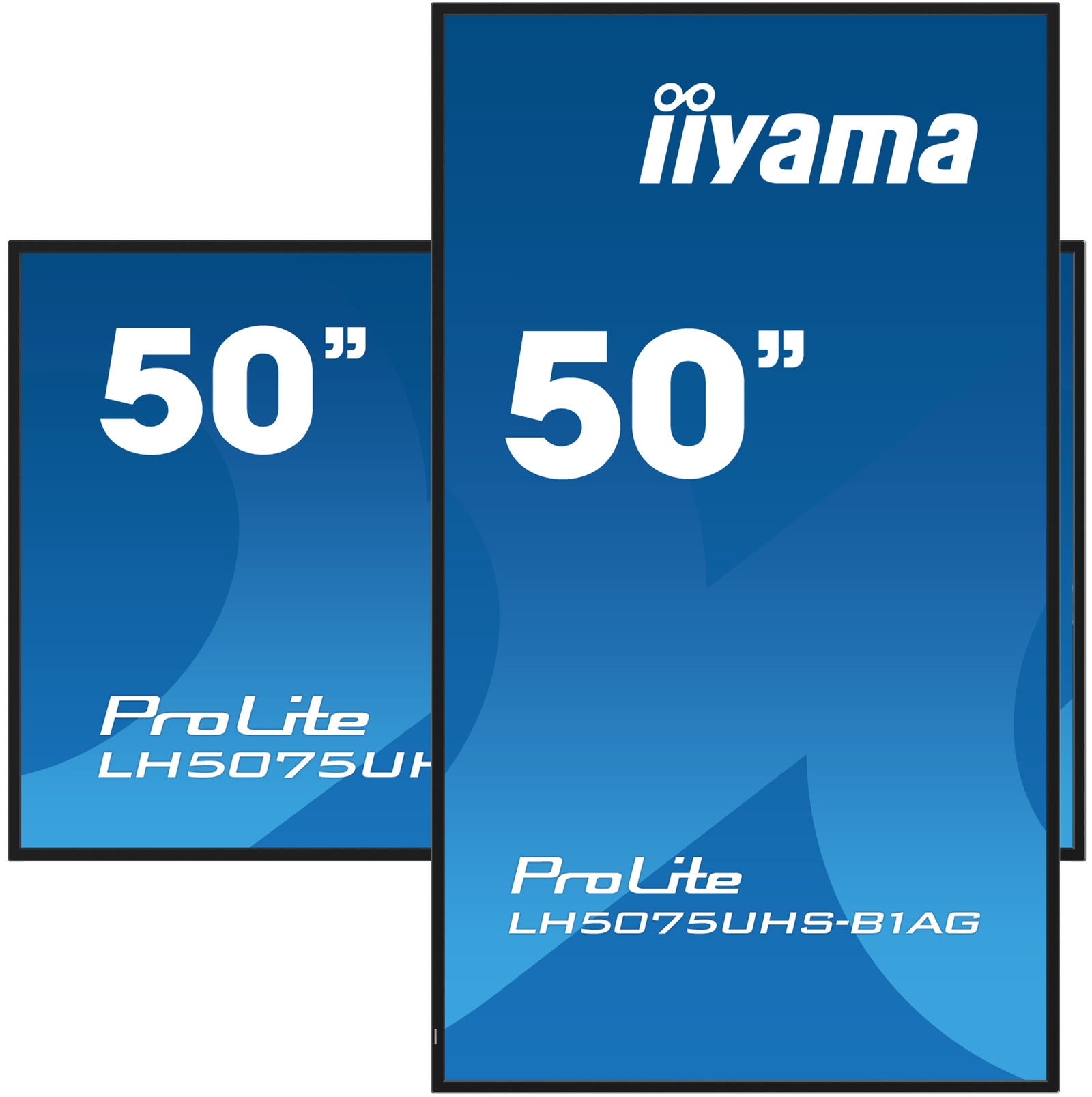

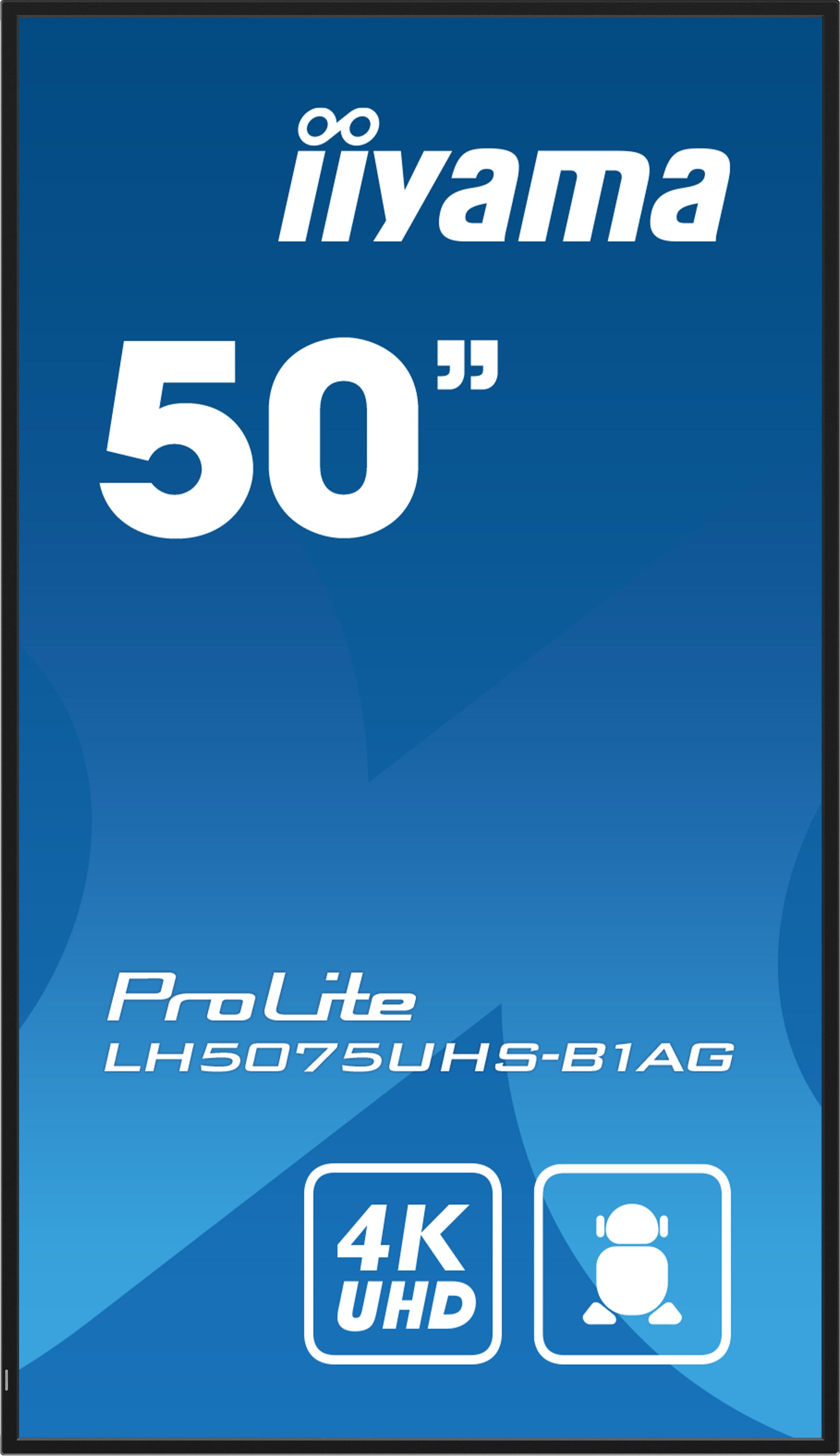

Orientation	landscape, portrait
Fanless Design	yes

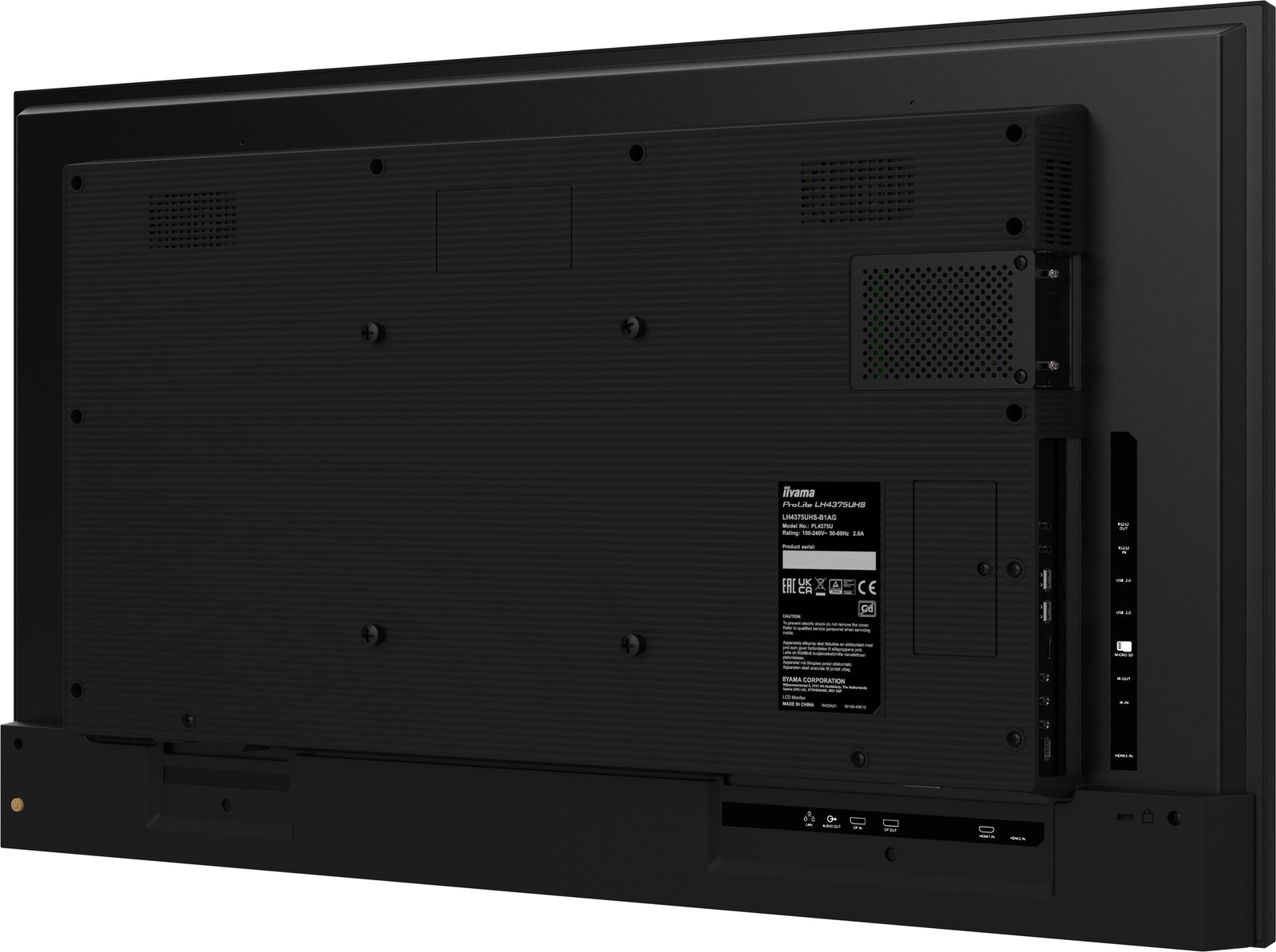

VESA Mounting	400 x 400mm
Operation Temperature Range	0°C - 40°C
Storage Temperature Range	-20°C - 60°C
MTBF	44,000 hours (excluding backlight)

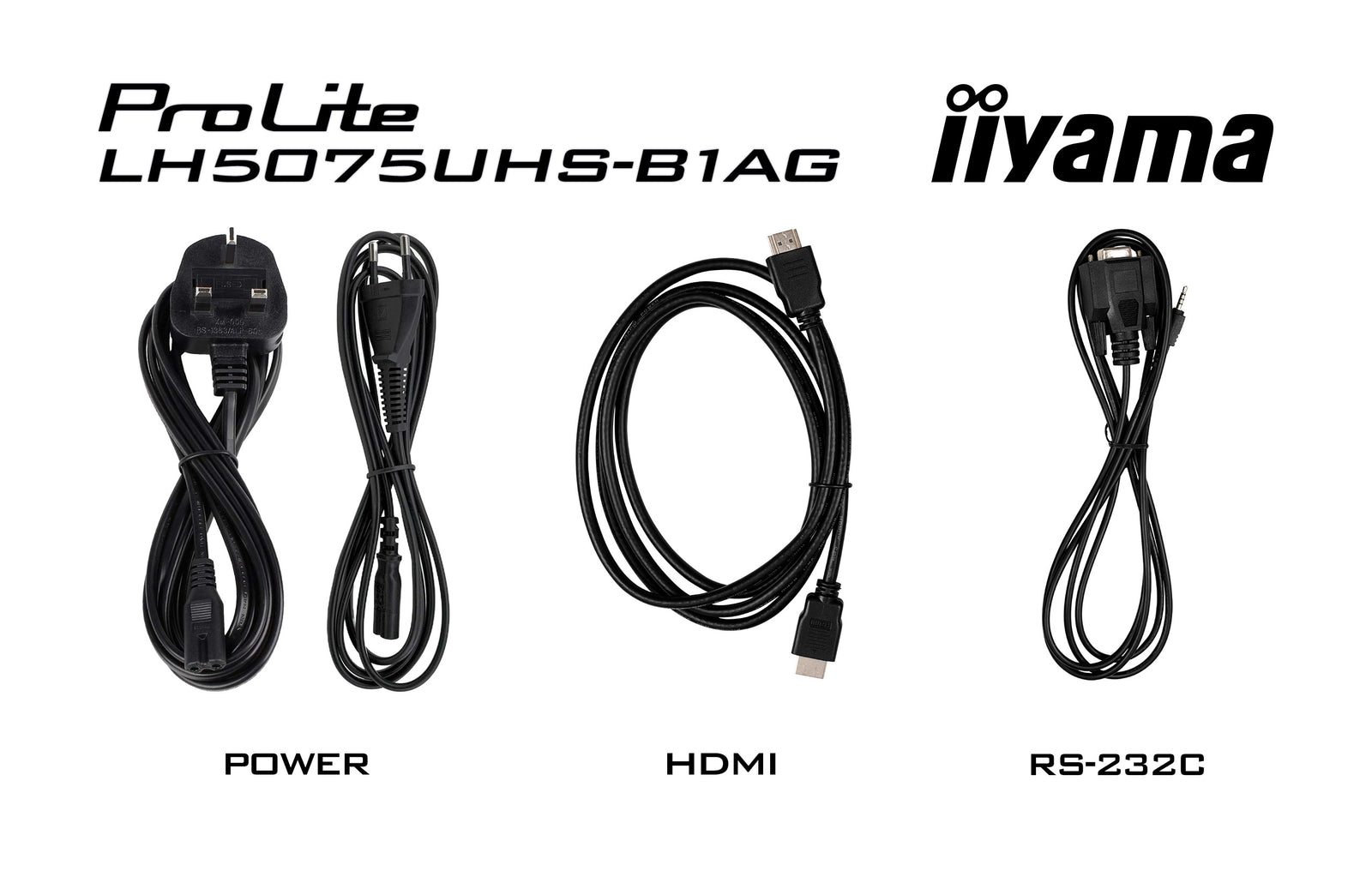

ACCESSORIES INCLUDED	Power cable, HDMI cable, RS-232c cable, quick start guide, safety guide, stickers for screw holes, wire buckles, remote control (batteries included)
POWER MANAGEMENT	Internal power supply, AC 100 - 240V, 50/60Hz, 112W typical usage, 0.5W stand by, 0.3W off mode
SUSTAINABILITY	CE, TÜV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA
DIMENSIONS / WEIGHT	Product: 1122.7 x 643.6 x 55mm, Box: 1261 x 761 x 132mm, Weight without box: 11.8kg, Weight with box: 16.2kg
EAN Code	4948570123452
