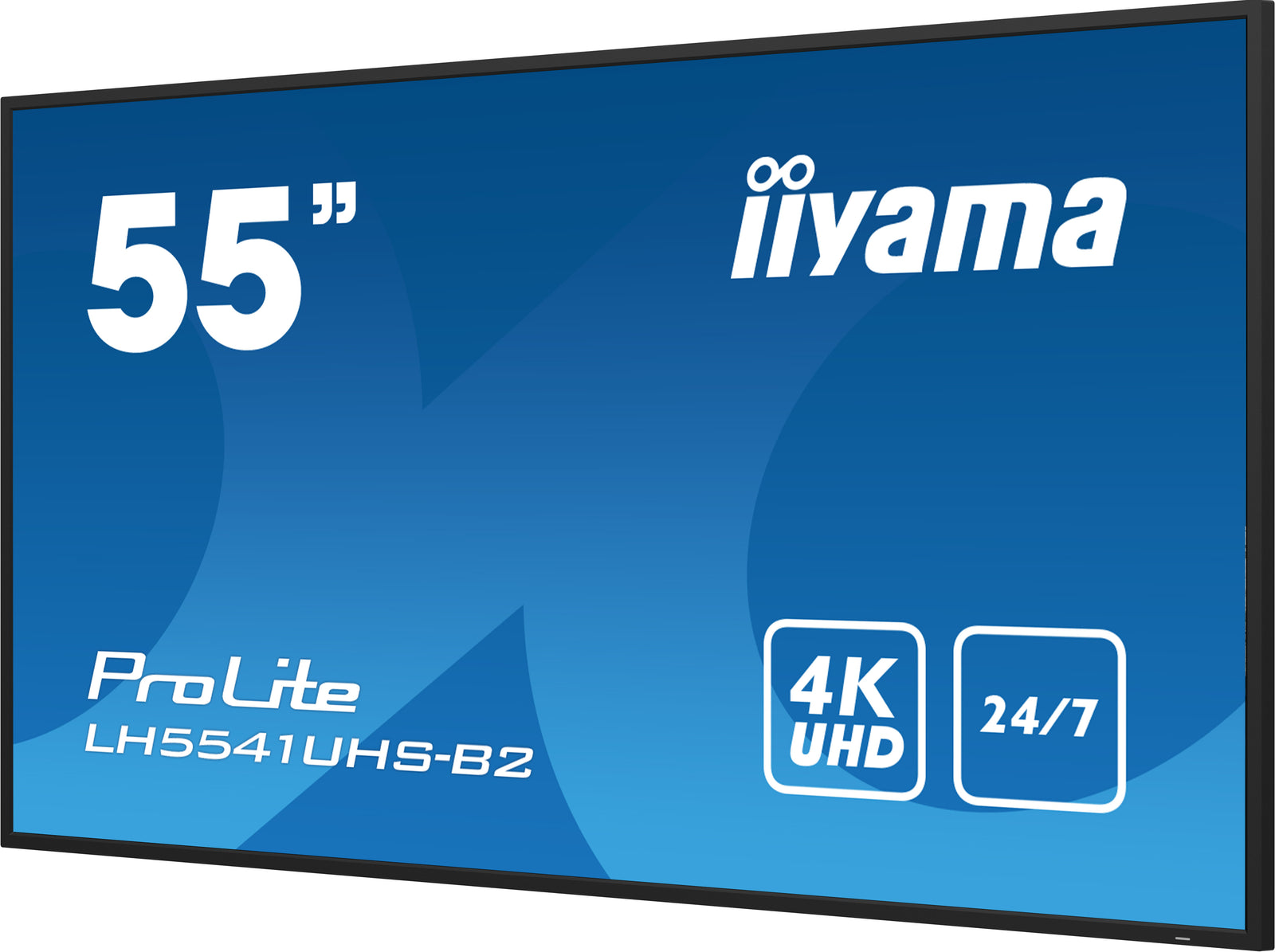

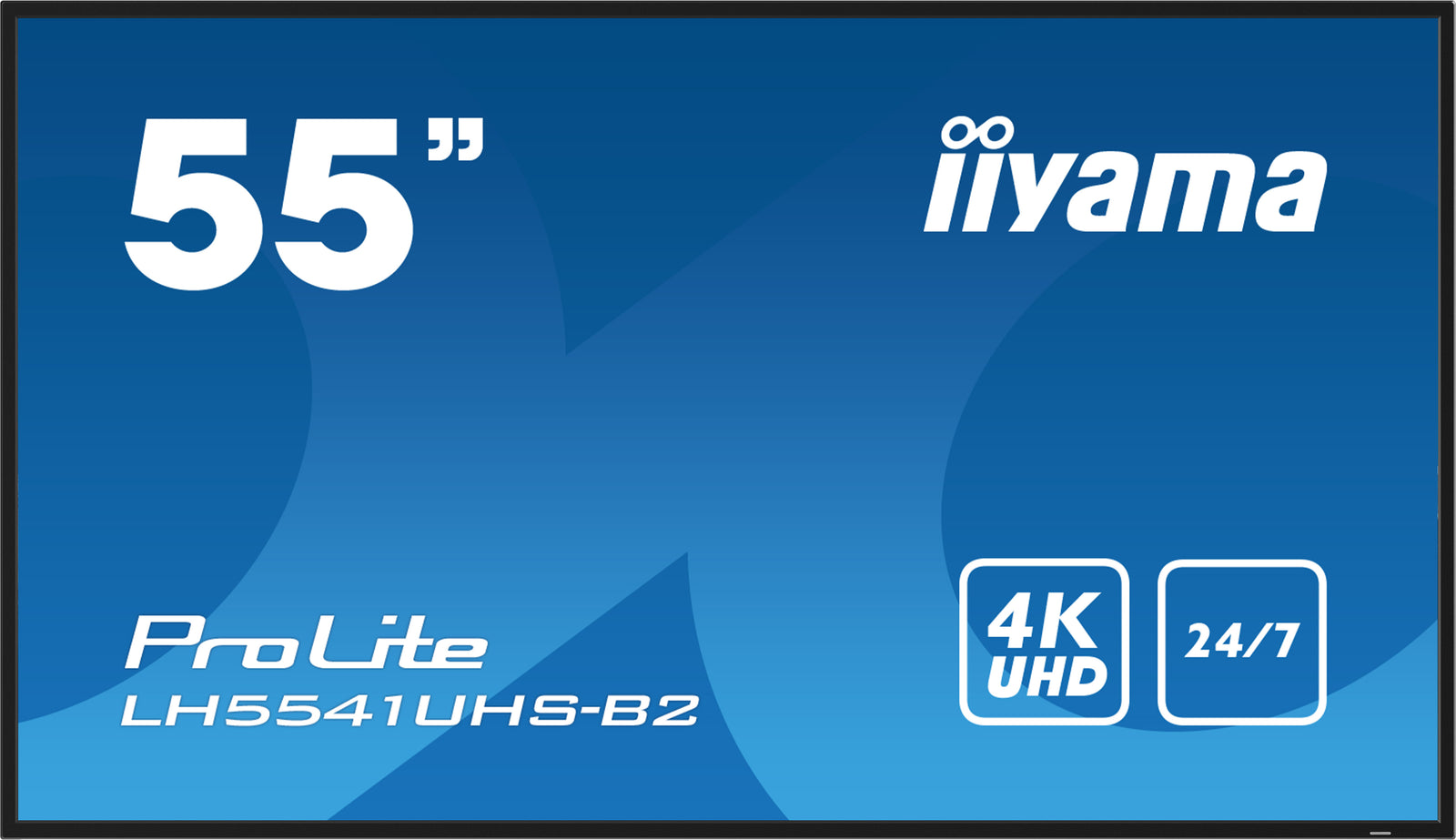

Introducing the iiyama ProLite LH5541UHS-B2
The Newest Cost Effective Digital Signage Display

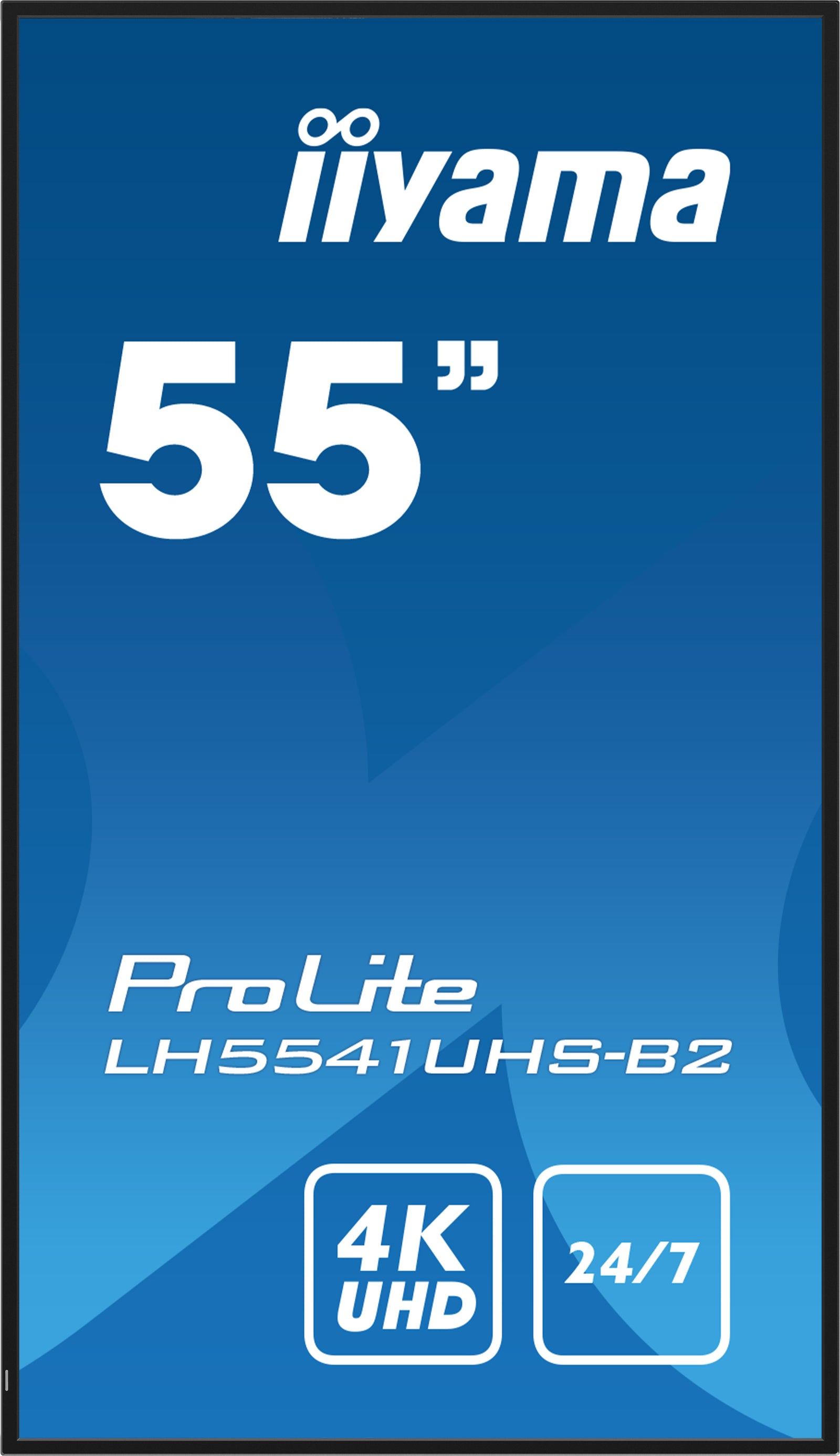

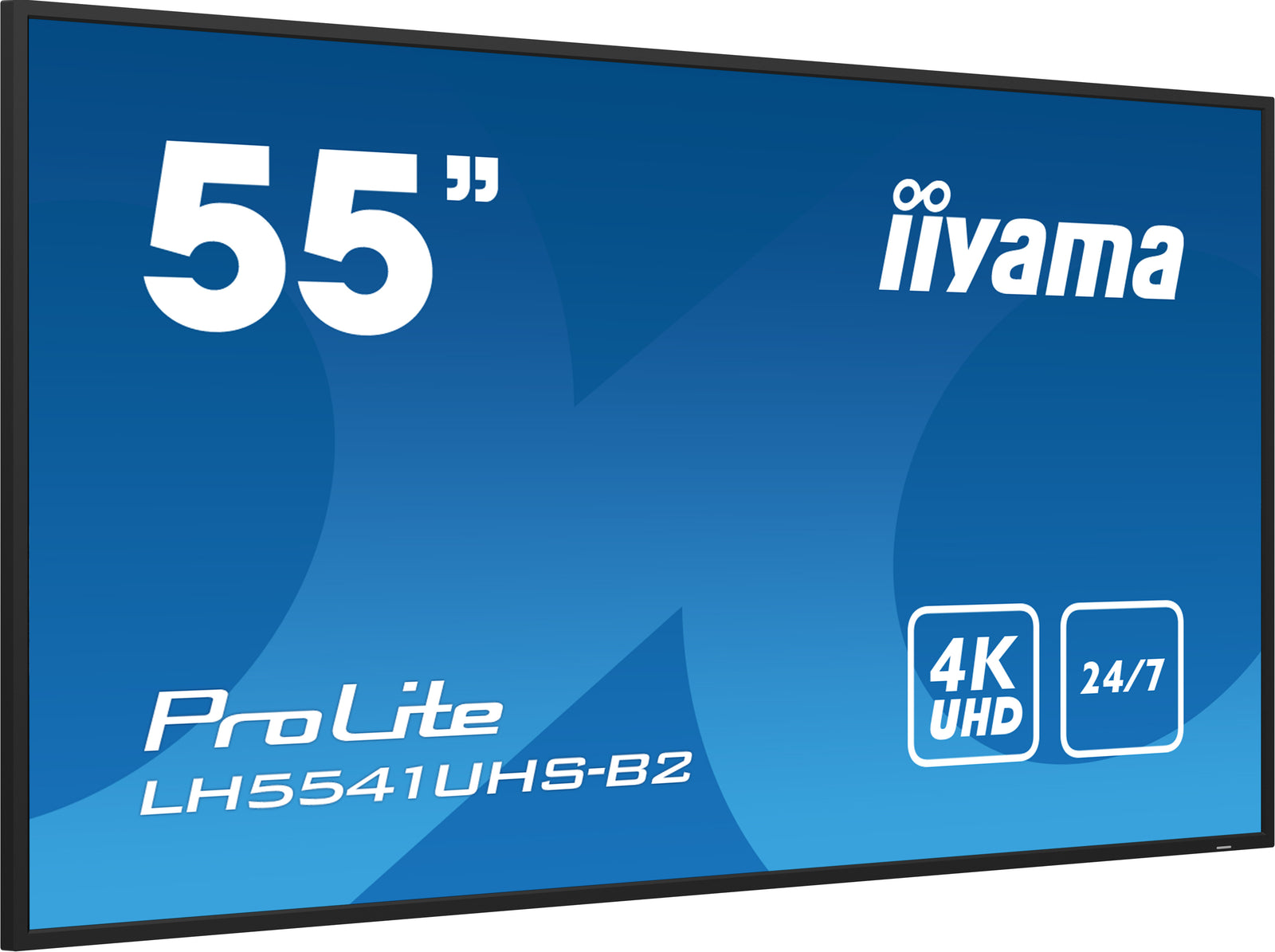

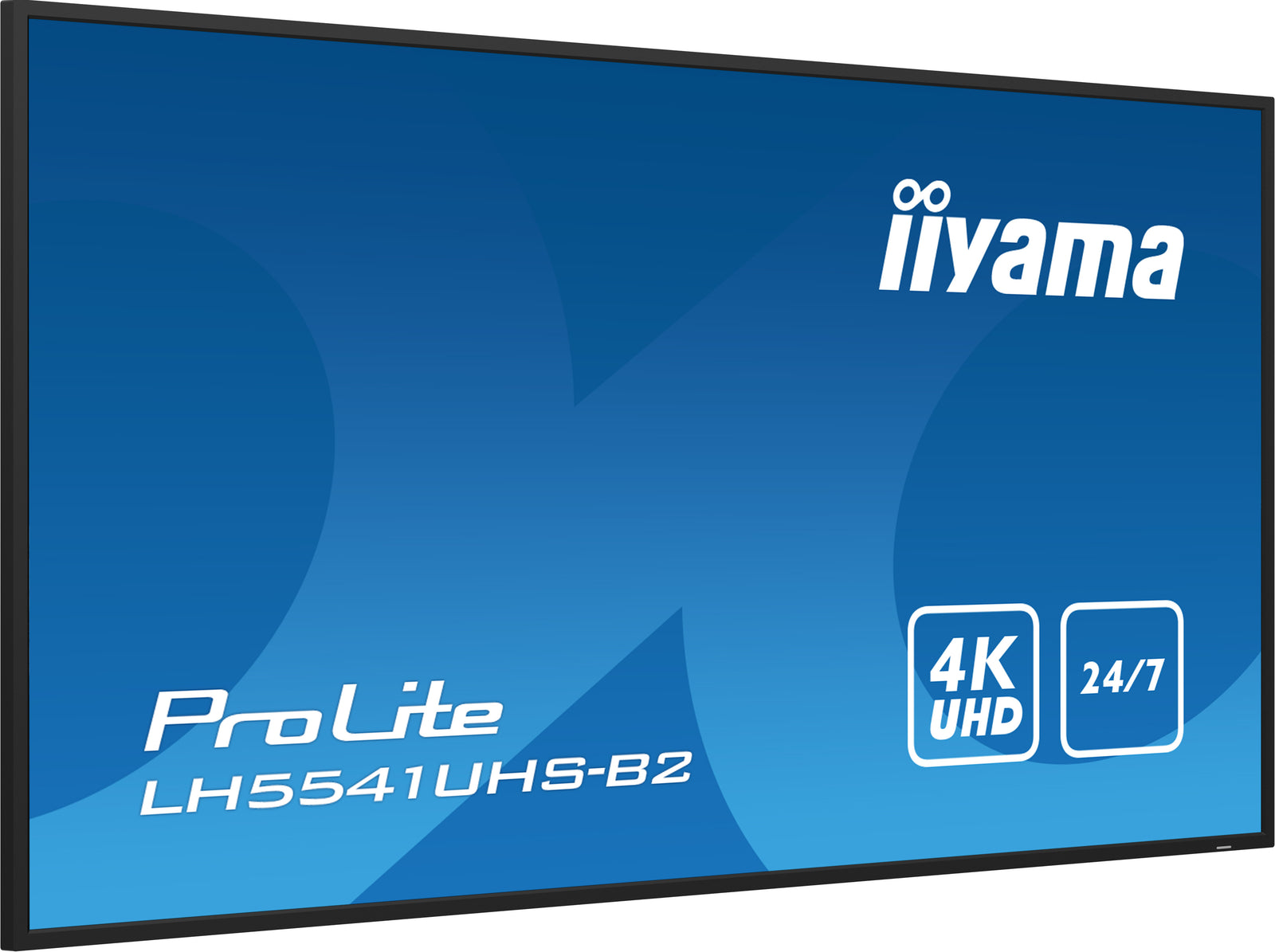

Stunning 55" 4K UHD Professional Digital Signage Display
4K
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.
MEDIA PLAYER
Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.
LAN CONTROL
LAN control enables making adjustments in the display OSD menu through your network (software not included).
IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
24/7
24/7 displays are designed for a continuous operation.
-
| Category |
Details |
| Display Characteristics |
|
| Design |
Thin bezel |
| Diagonal |
54.6", 139cm |
| Panel |
IPS, haze 1% |
| Native resolution |
3840 x 2160 (4K UHD) |
| Aspect ratio |
16:9 |
| Panel brightness |
500 cd/m² |
| Static contrast |
1200:1 |
| Response time (GTG) |
8ms |
| Viewing zone |
Horizontal/vertical: 178°/178°, Right/left: 89°/89°, Up/down: 89°/89° |
| Colour support |
1.07B 10bit (8bit + Hi-FRC), NTSC 72% |
| Horizontal Sync |
30 - 83kHz |
| Viewable area W x H |
1209.6 x 680.4mm, 47.6 x 26.8" |
| Bezel width |
Sides: 14mm, Top: 14.5mm, Bottom: 15mm |
| Pixel pitch |
0.3155mm |
| Bezel colour and finish |
Black, glossy |

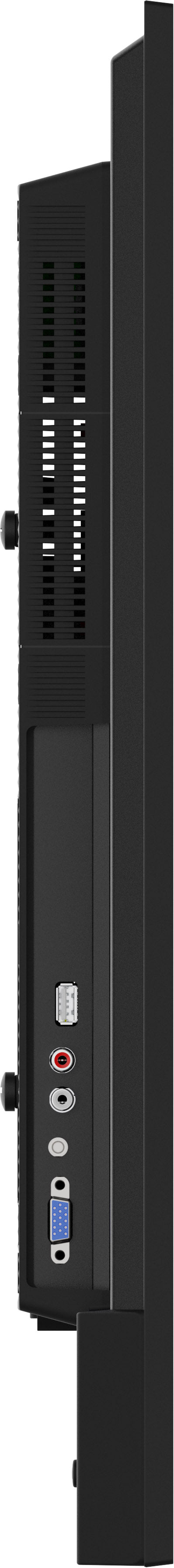

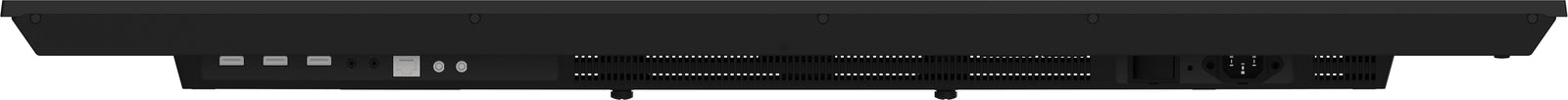

| Interfaces / Connectors |
|
| Analog signal input |
VGA x1 (max. 1920x1080 @60Hz) |
| Digital signal input |
HDMI x3 (2.0, max. 3840x2160 @60Hz) |
| Audio input |
Mini jack x1 |
| Monitor control input |
RS-232c x1 |
| RJ45 (LAN) |
x1 |
| IR |
x1 |
| Audio output |
RCA (L/R) x1 |
| Speakers |
2 x 10W |
| Monitor control output |
RS-232c x1 |
| IR loop through |
x1 |
| HDCP |
2.2 |
| USB ports |
x1 (2.0, USB Media Player) |
| Features |
|
| Max. non-stop operating time |
24/7 |
| Media playback |
Yes |
| Housing (bezel) |
Metal |
| General |
|
| OSD languages |
EN, DE, FR, ES, IT, RU, JP, NL |
| Control buttons |
Power |
| User controls |
Picture, Sound, General Settings, etc. |
| Mechanical |
|

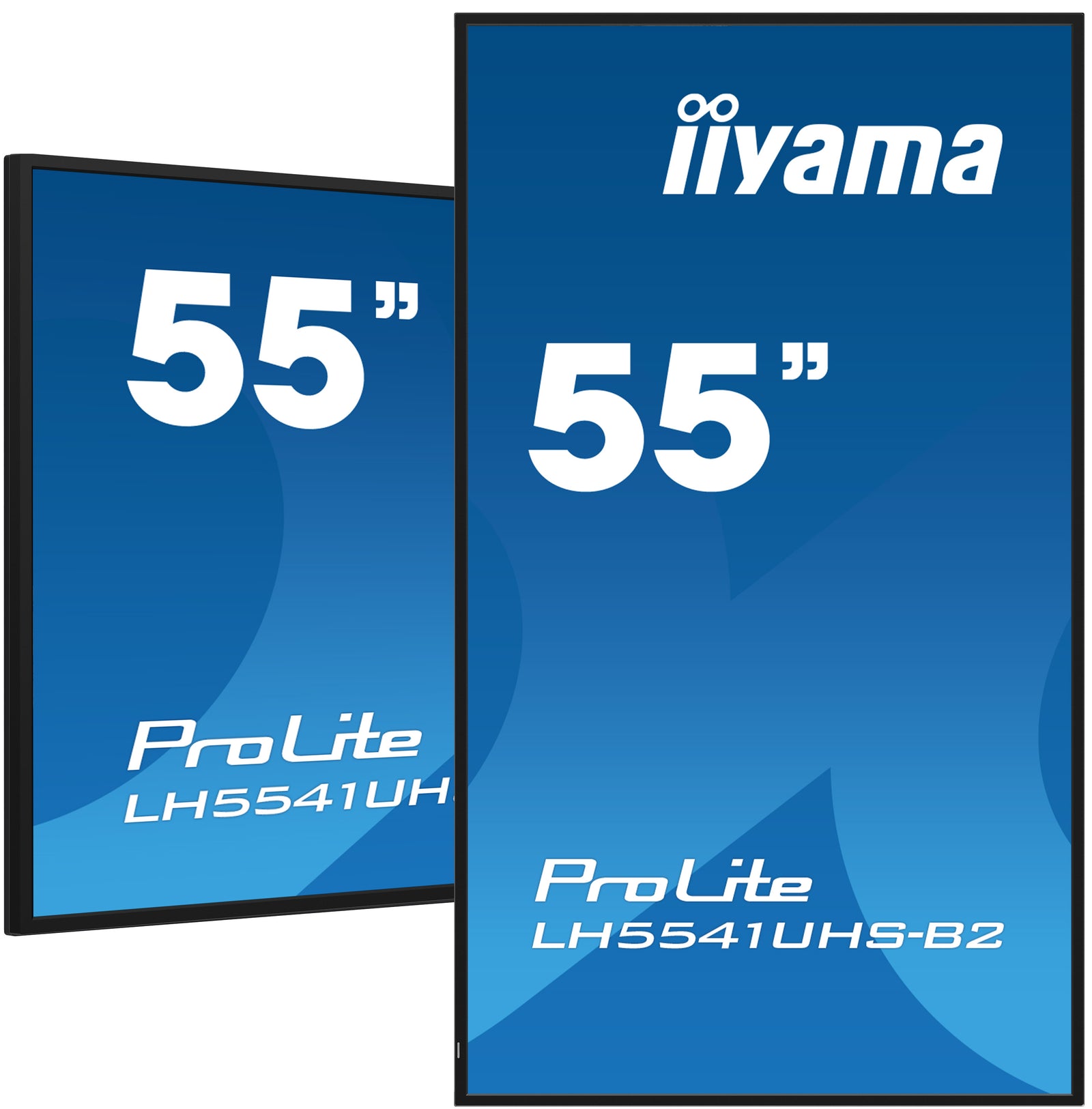

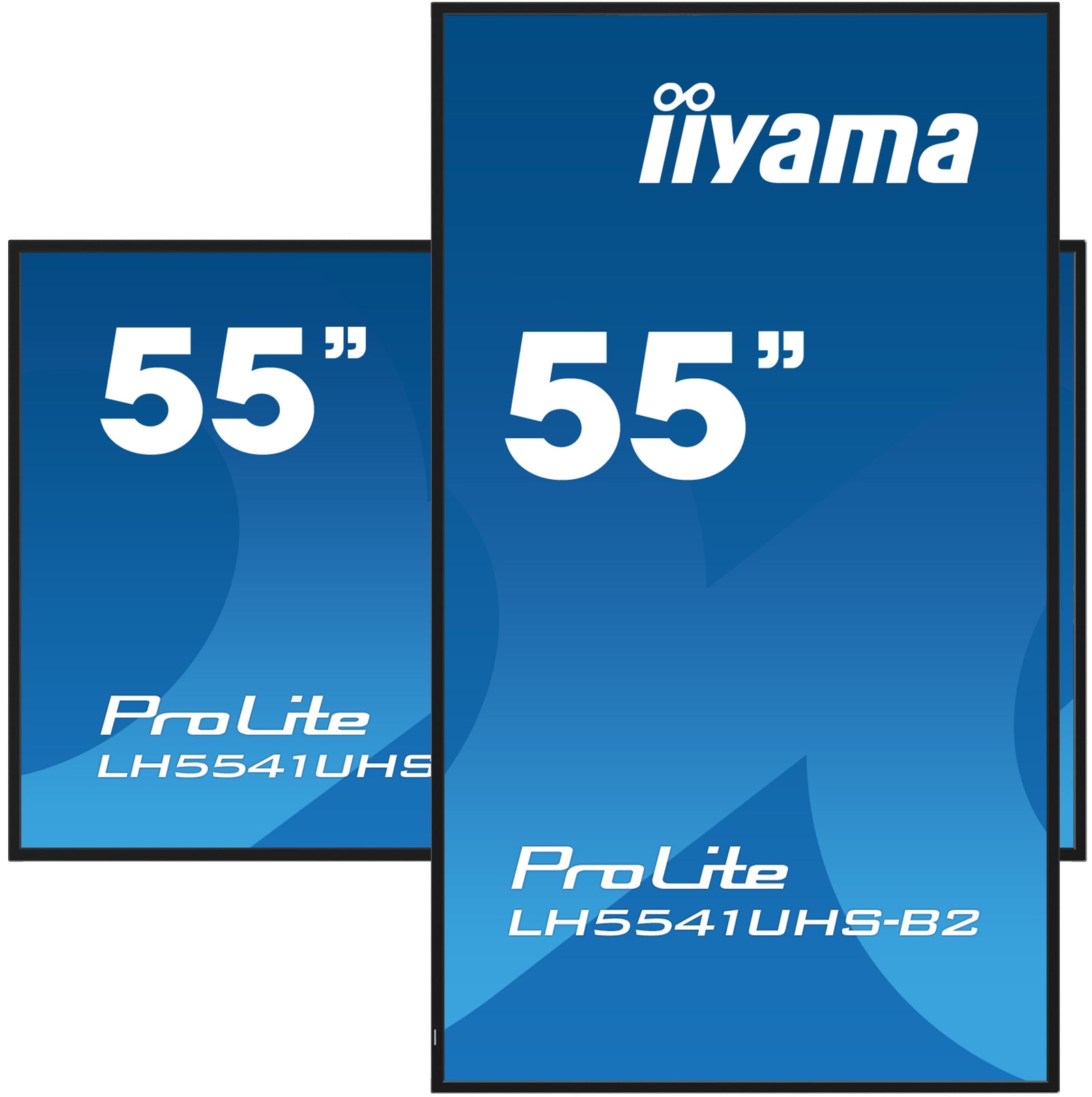

| Orientation |
Landscape, portrait |
| Fanless design |
Yes |

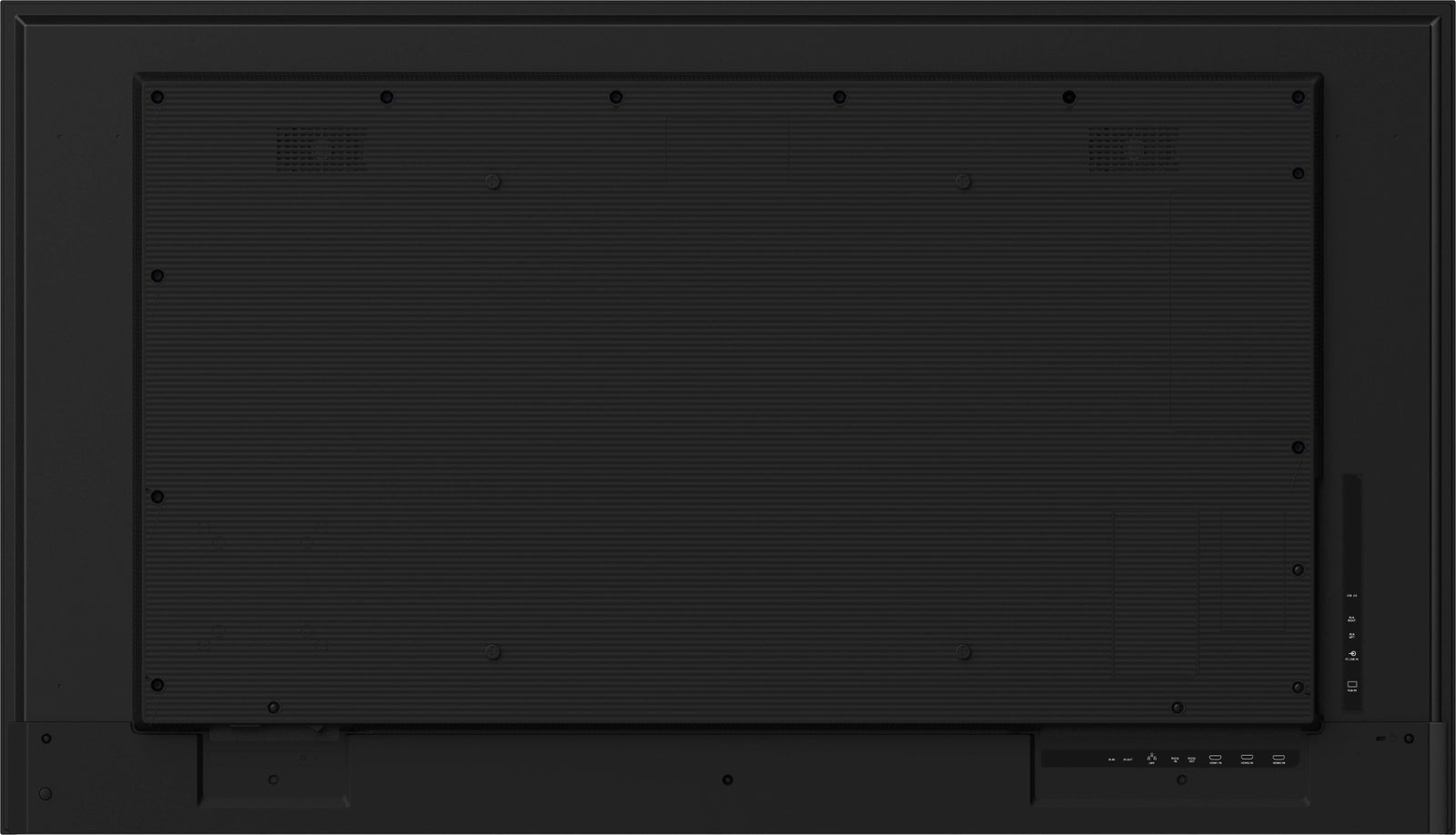

| VESA mounting |
400 x 400mm |
| Operation temperature range |
0°C - 40°C |
| Storage temperature range |
-20°C - 60°C |
| MTBF |
50,000 hours |
| Accessories Included |
|

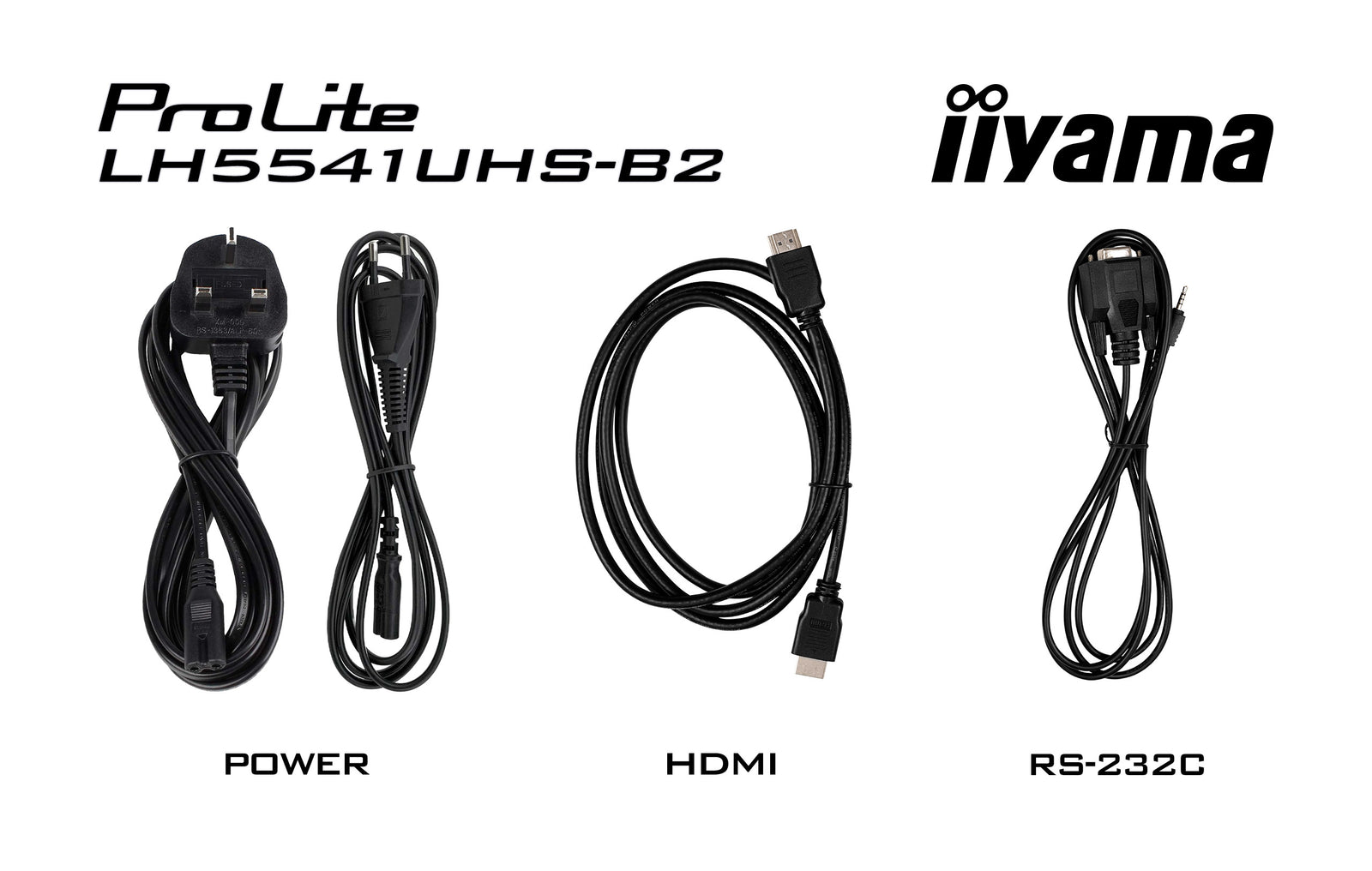

| Cables |
Power, HDMI, RS-232c |
| Guides |
Quick start guide, Safety guide |
| Other |
Cable management |
| Remote control |
Yes (batteries included) |
| Power Management |
|
| Power supply unit |
Internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
139W typical, 0.5W standby, 0.3W off mode |
| Sustainability |
|
| Regulations |
CB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH |
| REACH SVHC |
Above 0.1%: Lead |
| Dimensions / Weight |
|

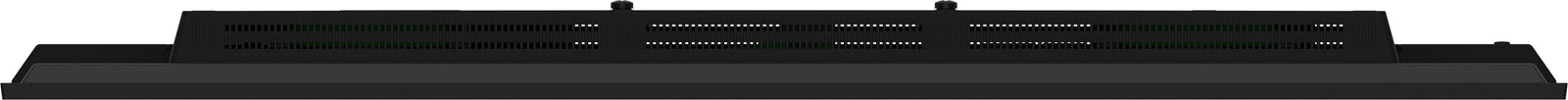

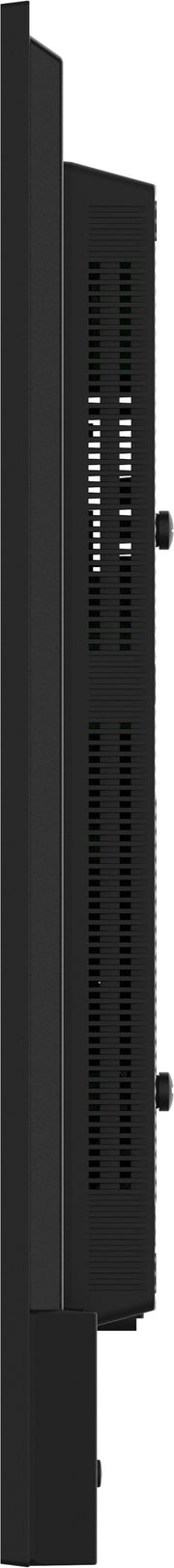

| Product dimensions W x H x D |
1237.5 x 710 x 55mm |
| Box dimensions W x H x D |
1386 x 845 x 130mm |
| Weight (without box) |
14.3kg |
| EAN Code |
|
| EAN code |
4948570123544 |
-
| Warranty |
Product |
Cover |
| Visioncare |
Desktop LCD products (Monitors) (17" - 43")
|
3 years on-site UK warranty. (Upgrades to 5 years available)
|
Touchcare
|
LCD touchscreen products |
3 years repair and return. (Upgrades to on-site & 5 years available)
|
| LFD |
Large Format Displays Standard Warranty
|
3 years collect and return (Upgrade to swap, installation & 5 years available) Download
|
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one - Check that all connections have been properly made.
Step two - Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three - If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four - Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five - Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six - Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
