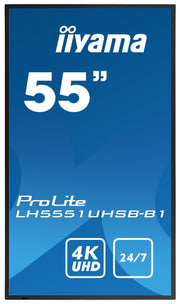

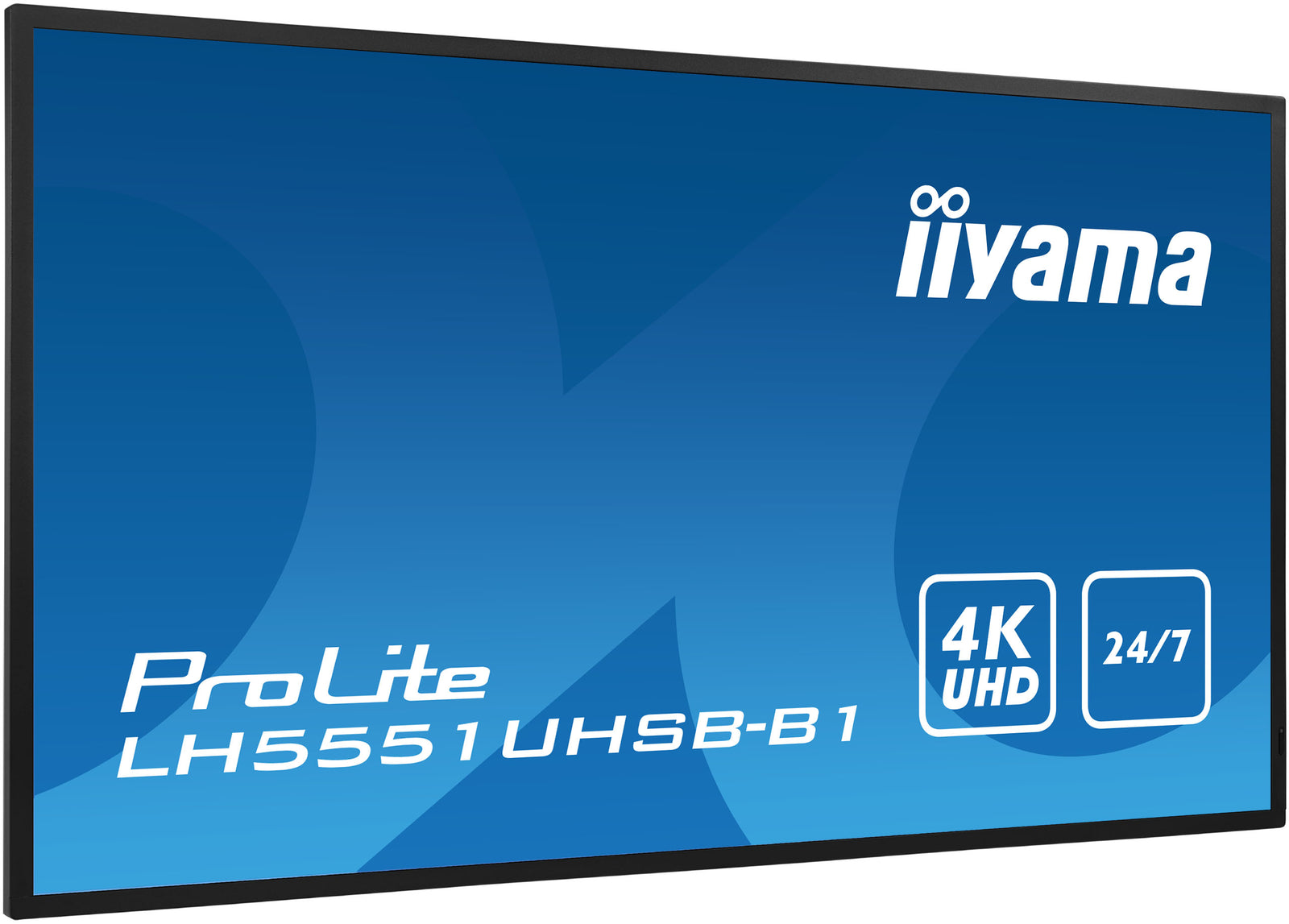

iiyama ProLite LH5551UHSB-B1

55” Professional 24/7 Digital Signage Display

• Description
• Spesifications
• Warranty

• PROLITE LH5551UHSB-B1

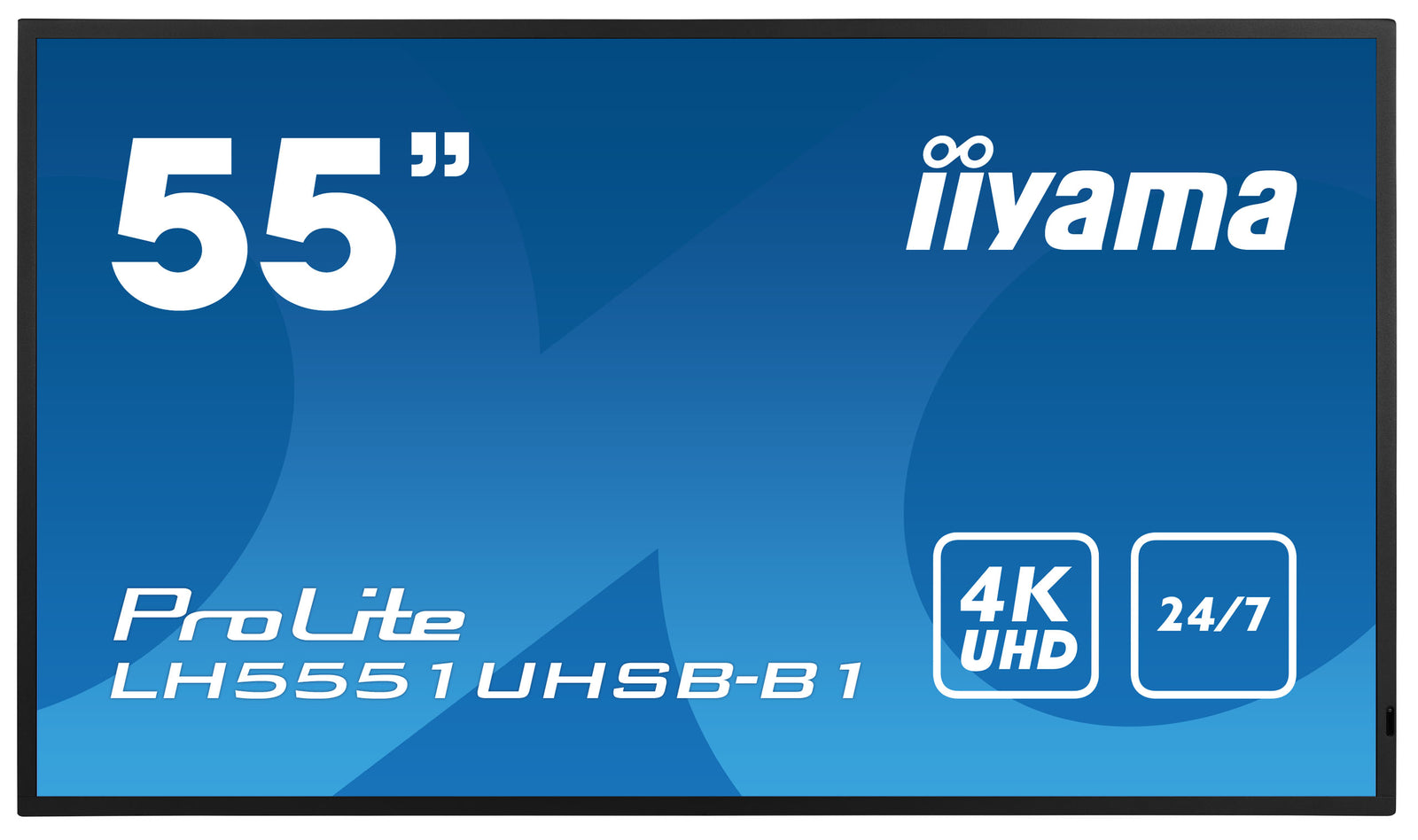

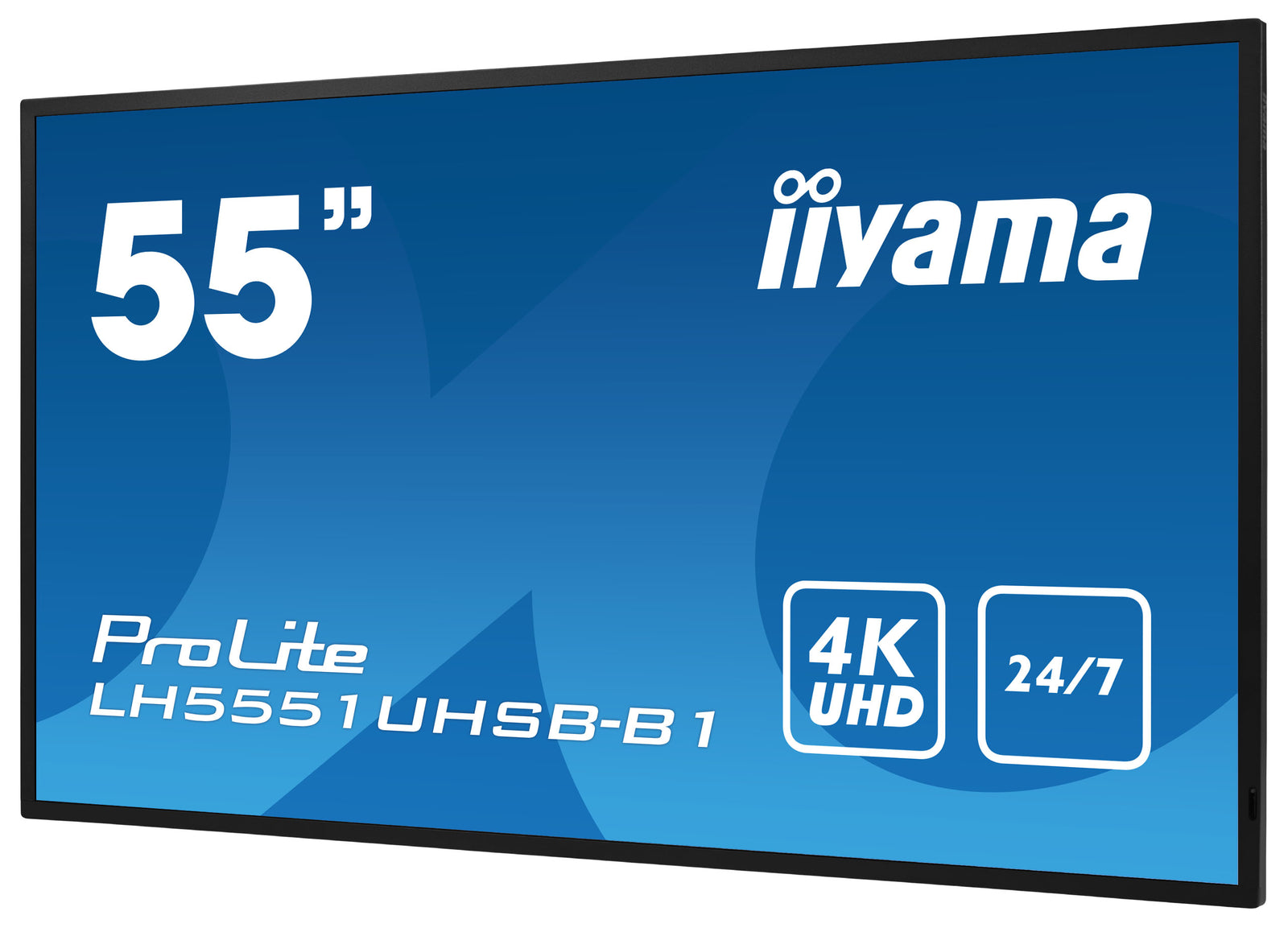

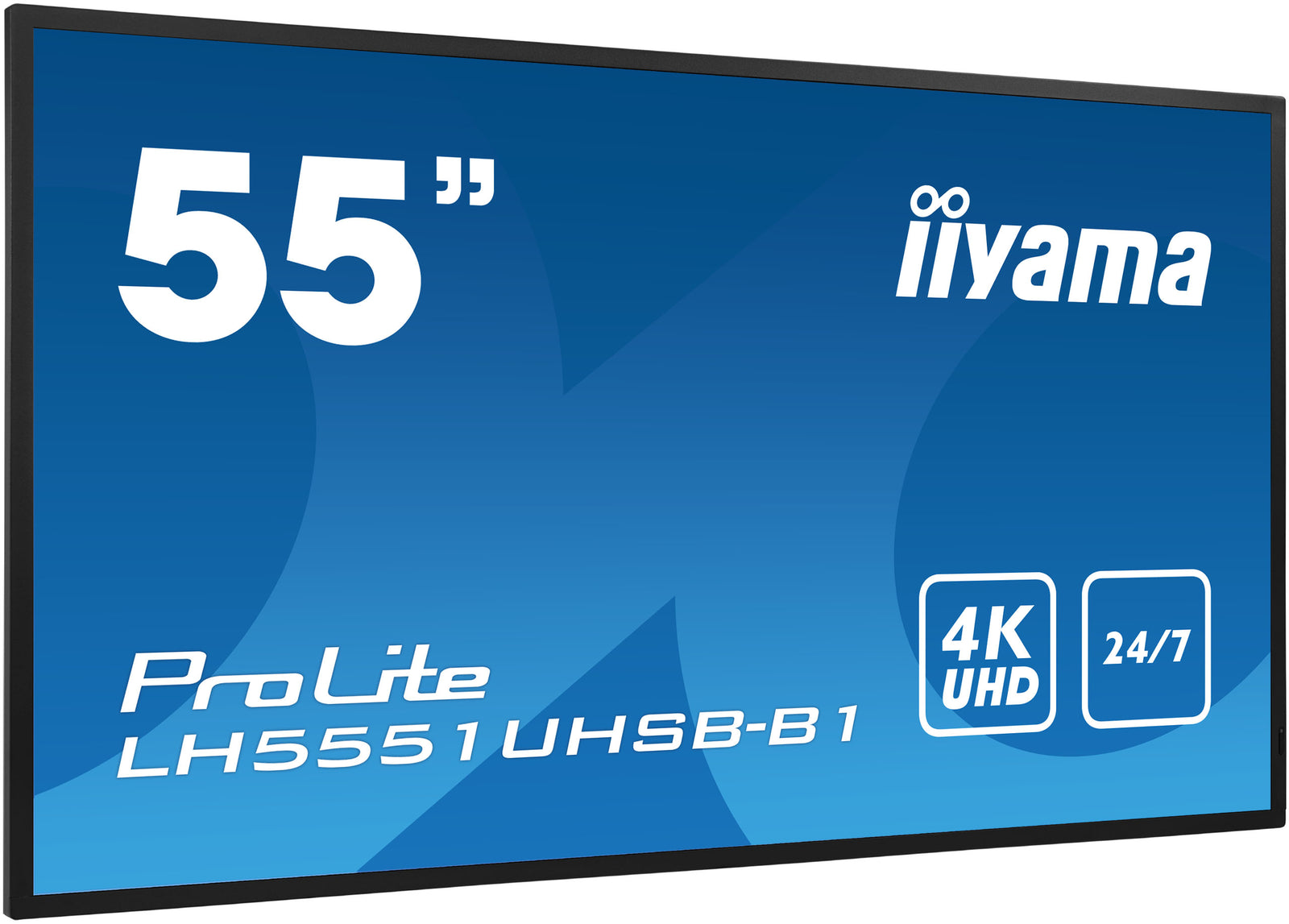

  55” Professional 24/7 Digital Signage display with 4K UHD resolution and 800cd/m² high brightness performance

  This 800cd/m² high brightness professional large format display with a 4K UHD resolution (3840x2160) delivers dynamic and sharp content. Providing vibrant, detailed and sublime images this screen is perfect for environments where performance and reliability are mission critical.

  Designed to perform in continual, around the clock environments, the LH5551UHSB can be installed and utilised in landscape and portrait orientation. The slim bezel and commercial display is VESA mountable and the OSD menu can be controlled with both control buttons and an included remote control. The LH5551UHSB offers businesses an easy and effective solution to help capture their audience's attention.


  4K

  UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.



  24/7

  24/7 displays are designed for a continuous operation.



  LAN CONTROL

  LAN control enables making adjustments in the display OSD menu through your network (software not included).



  SPEAKERS

  This LED monitor is equipped with two high quality stereo speakers.




• DISPLAY CHARACTERISTICS

  Design	Thin bezel
  Diagonal	54.6", 138.68cm
  Panel	IPS
  Native resolution	3840 x 2160 @60Hz (8.3 megapixel 4K UHD)
  Aspect ratio	16:9
  Panel brightness	800 cd/m²
  Static contrast	1200:1
  Response time (GTG)	8ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	1.07G (8 Bits+FRC)
  Horizontal Sync	15 - 160kHz
  Viewable area W x H	1209.6 x 680.4mm, 47.6 x 28.6"
  Bezel width (sides, top, bottom)	11.3mm, 11.3mm, 11.3mm
  Pixel pitch	0.315mm
  Bezel colour and finish	black, glossy

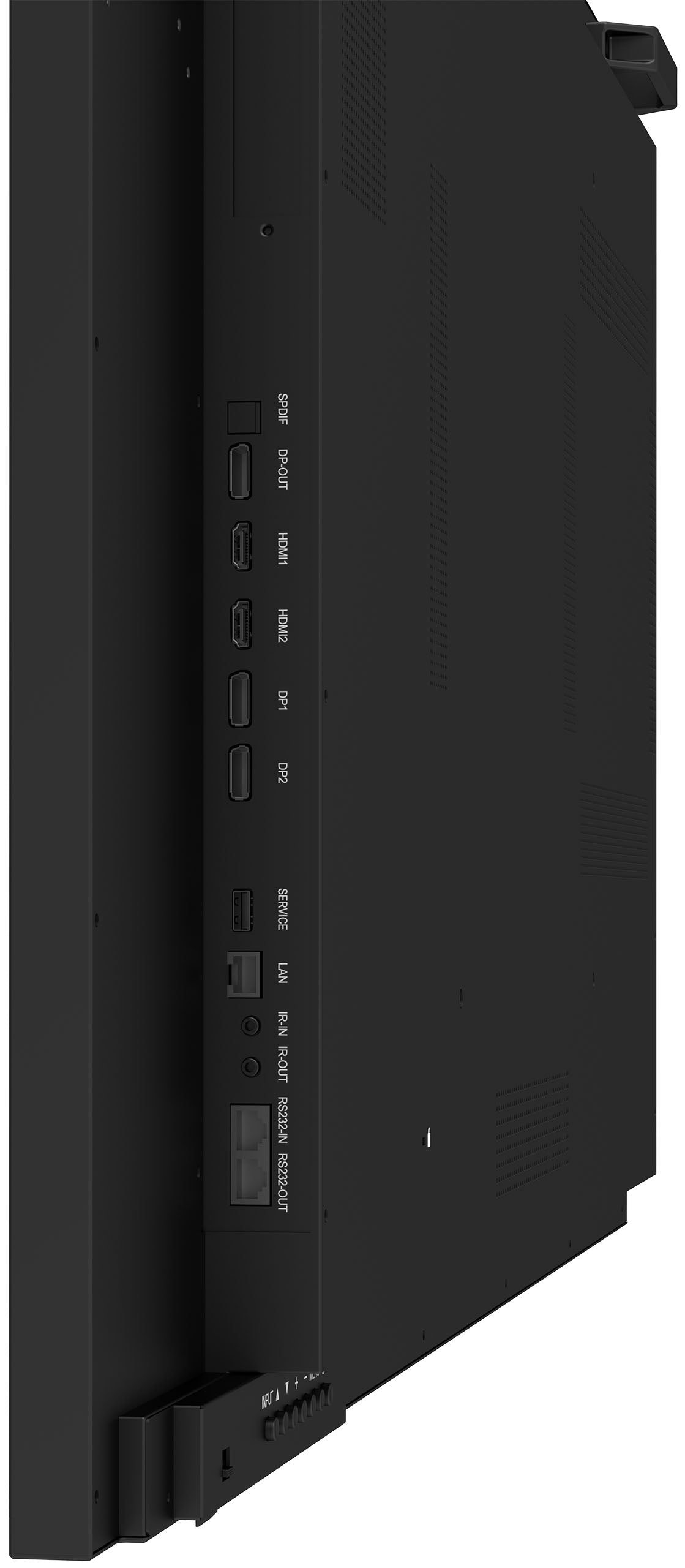

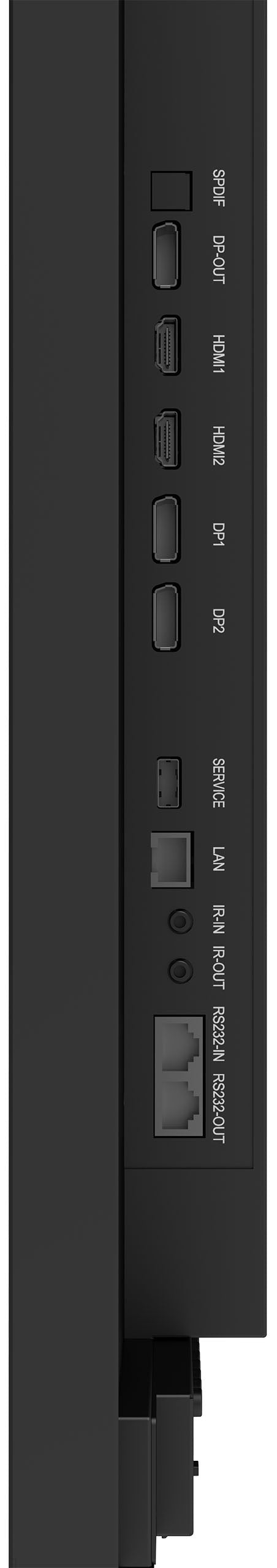

  INTERFACES / CONNECTORS / CONTROLS

  Digital signal input	HDMI x2 (max. 3840x2160 @60Hz, RGB 444) DisplayPort x2 (max. 3840x2160 @60Hz)
  Monitor control input	RS-232c x1 RJ45 (LAN) x1 IR x1 (Φ3.5 stereo mini)
  Digital signal output	DisplayPort x1 (max. 3840x2160 @60Hz, Daisy Chain)
  Audio output	Speakers 2 x 10W
  Monitor control output	RS-232c x1 IR loop through x1 (Φ3.5 stereo mini)
  HDCP	yes
  USB ports	x1 (2.0 for service only, DC5V, 500mA)

  FEATURES

  Extra	Intel® SDM-L
  Max. non-stop operating time	24/7
  Anti image retention	yes
  Housing (bezel)	metal

  GENERAL

  OSD languages	EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL

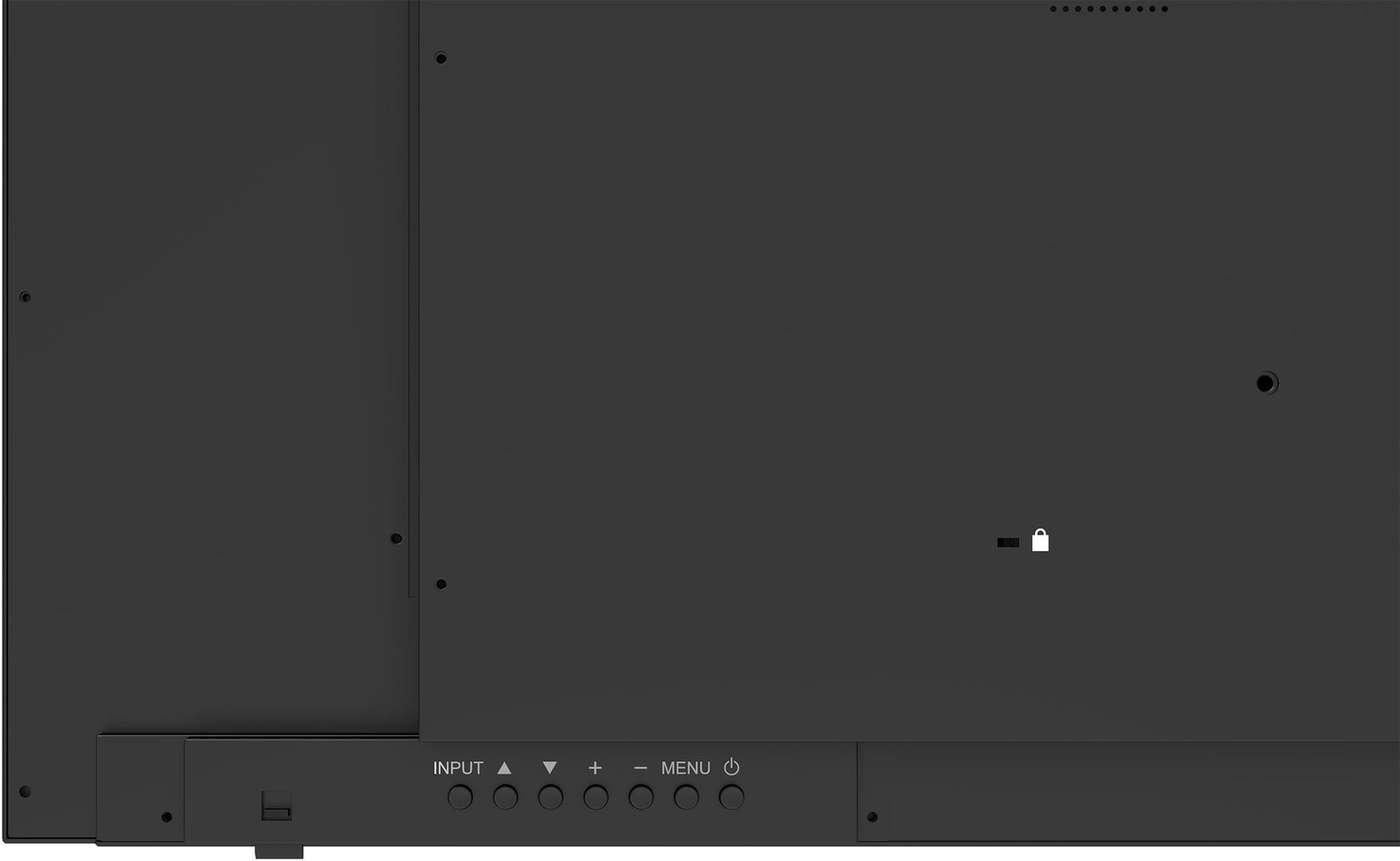

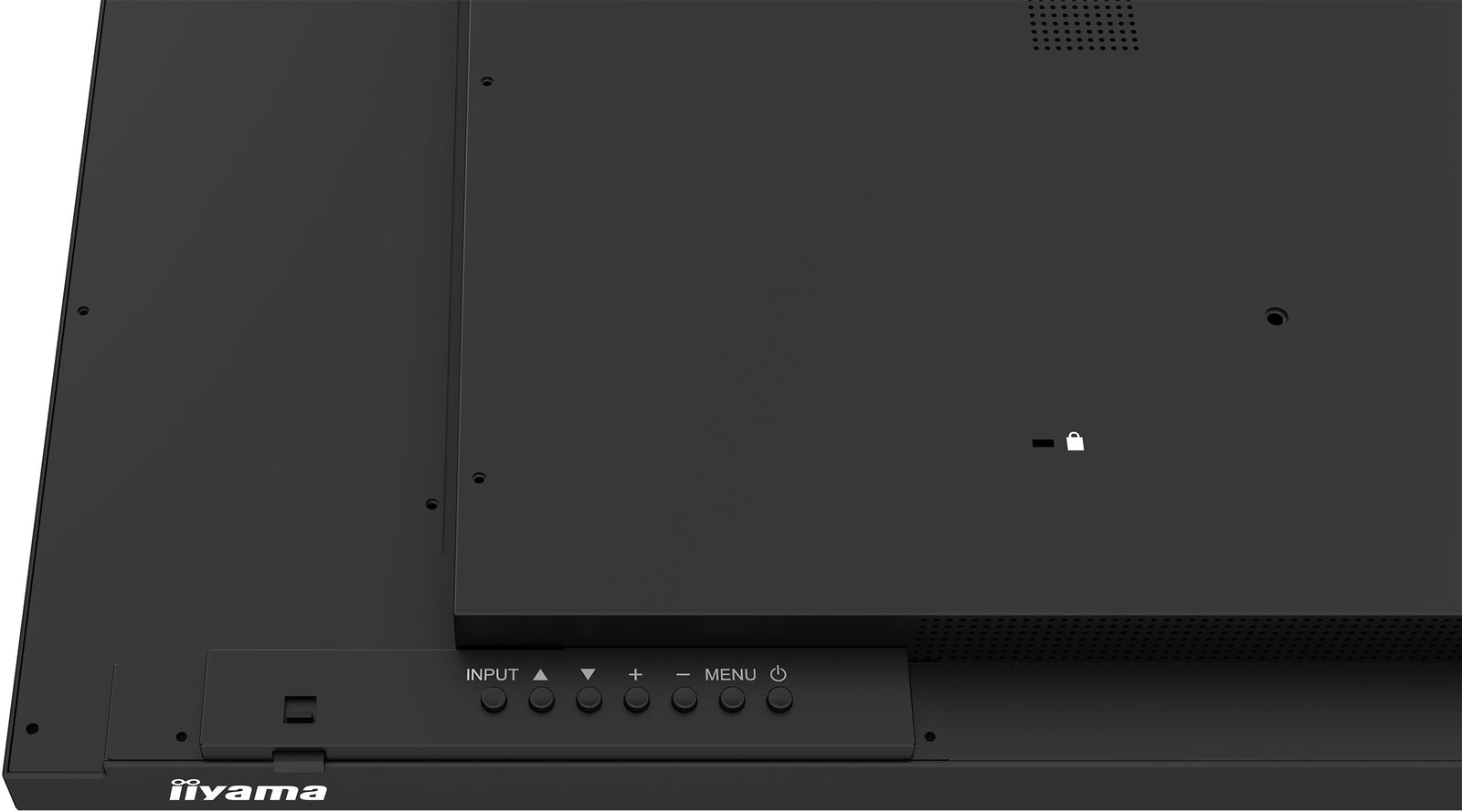

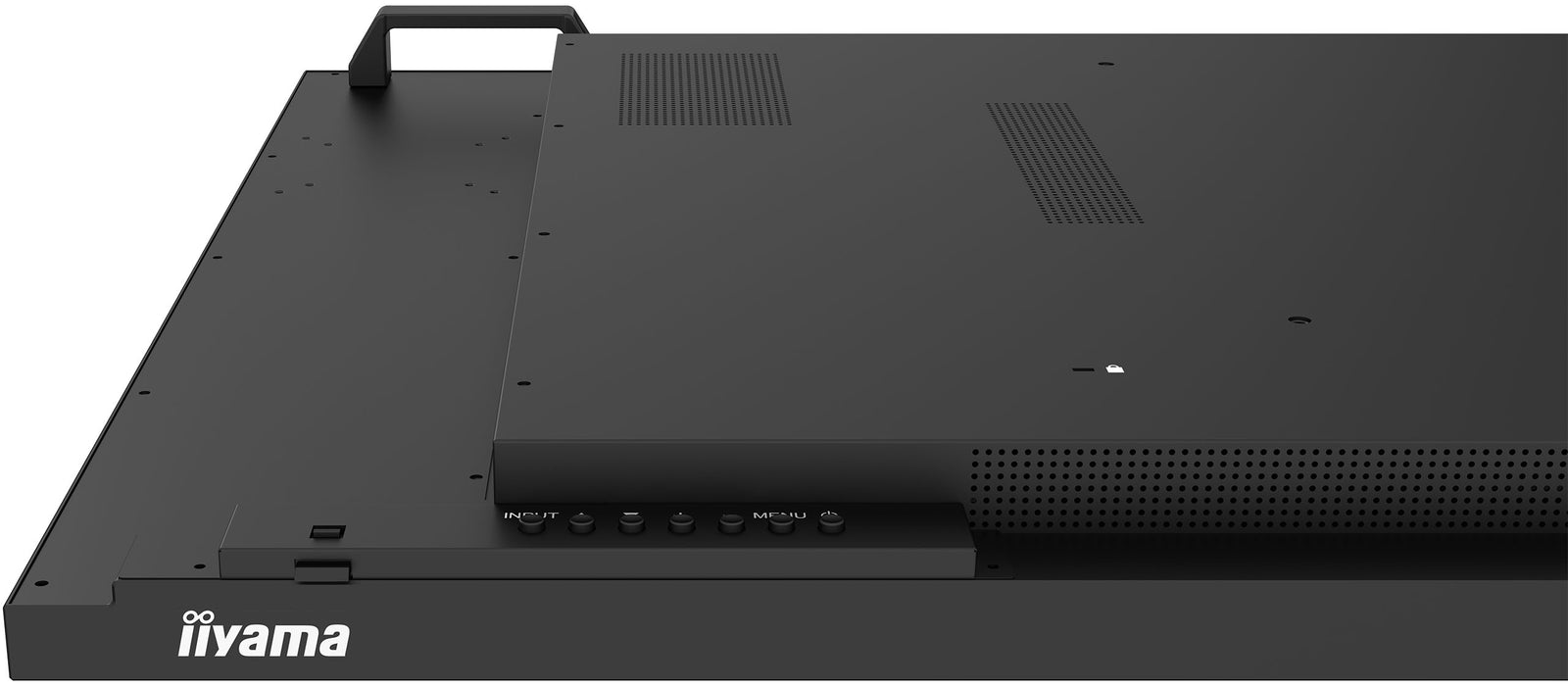

  Control buttons	Input select, Up, Down, Plus, Minus, Menu Power
  User controls	picture (brightness, contrast, sharpness, black level, gamma selection, ACR, Overdrive, aspect), colour (colour temperature, colour control), audio (volume, mute, maximum volume, minimum volume), OSD (H-Position, V-position, transparency, turn off, rotation, language, power off), tiling (tiling, H-monitors, V-monitors, H-Position, V-position, H-fill, V-fill, frame comp., switch on delay), configuration 1 (switch on state, anti-image retention, RS232-routing, standby control, boot on source, power LED light, factory reset), configuration 2 (logo, moitor ID, heat status, monitor info, IR control keyboard control, HDMI version, DP version), advanced option (date and time, schedule, HDMI with one wire, auto signal detection, standby mode, FM upgrade)

  MECHANICAL

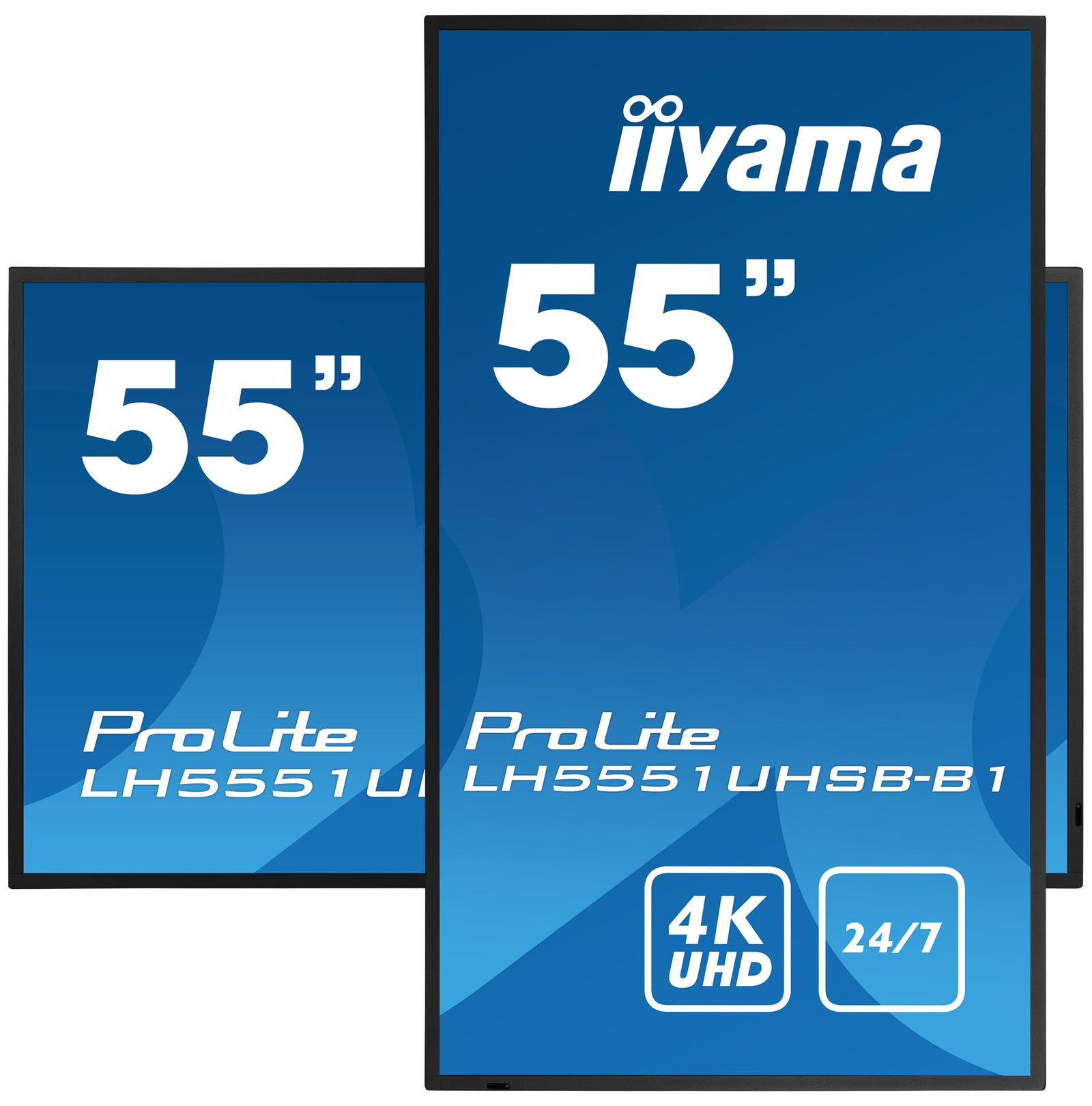

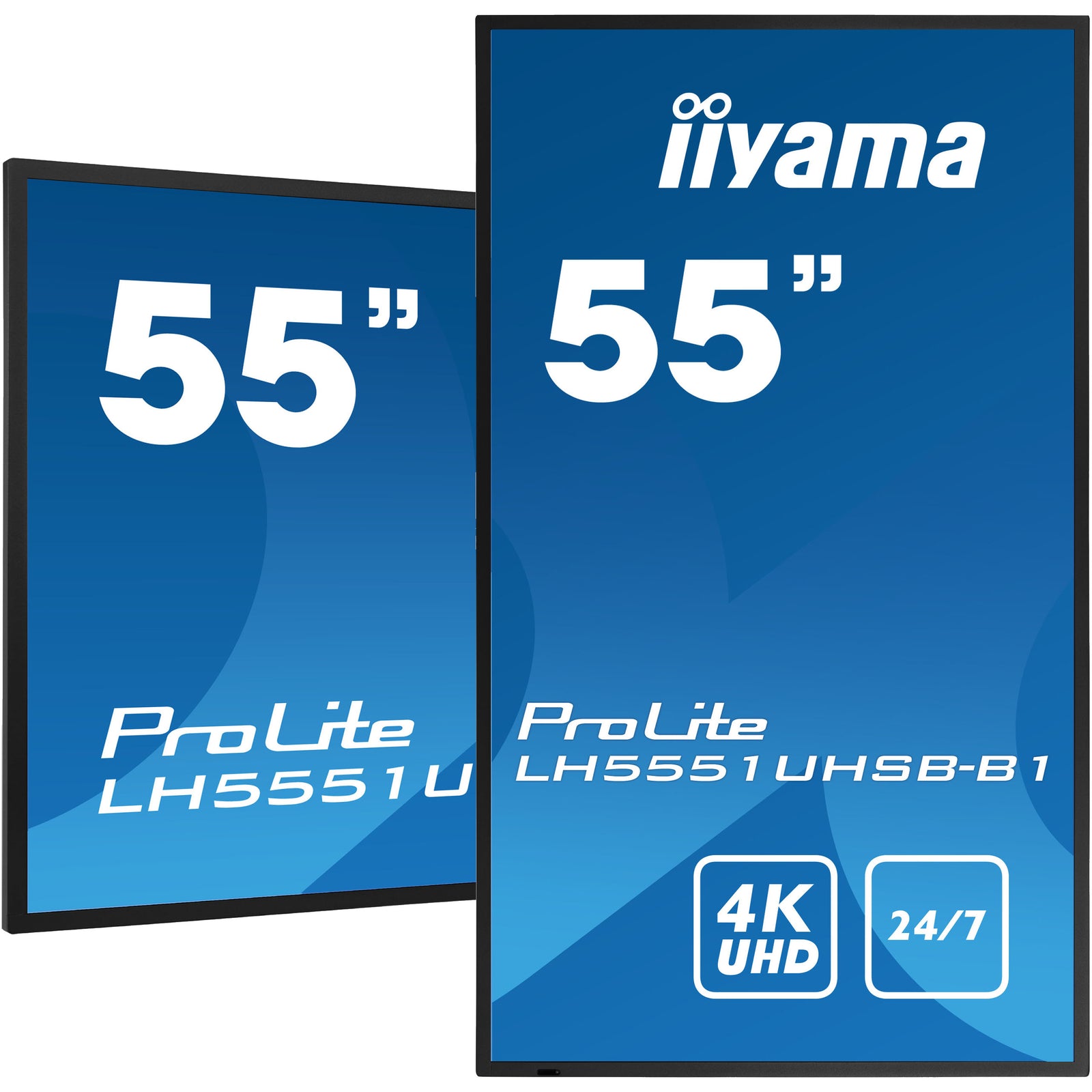

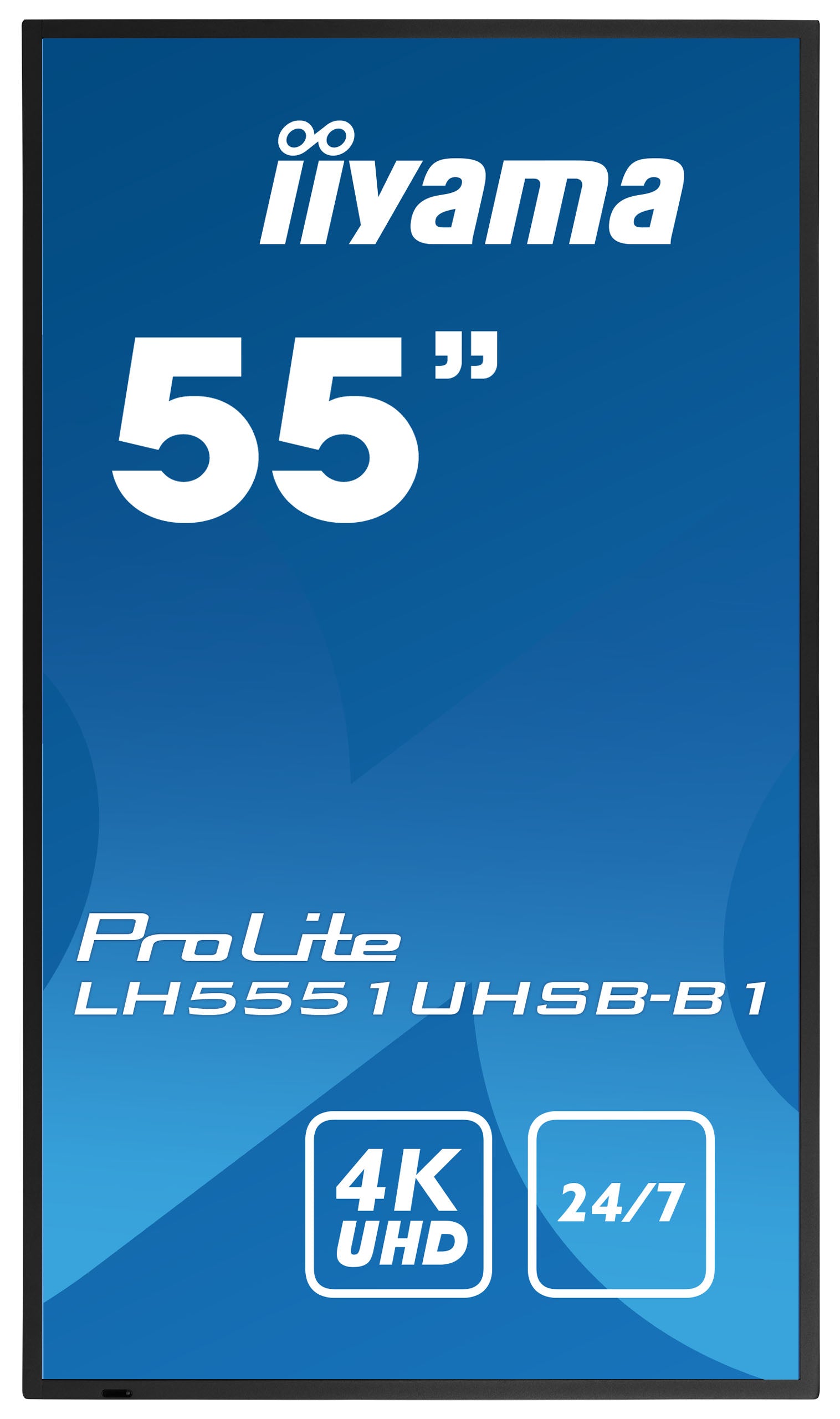

  Orientation	landscape, portrait
  VESA mounting	100 x 100mm, 400 x 400mm
  Operation temperature range	0°C - 40°C
  Storage temperature range	- 20°C - 60°C
  MTBF	50.000 hours (excluding backlight)

  ACCESSORIES INCLUDED

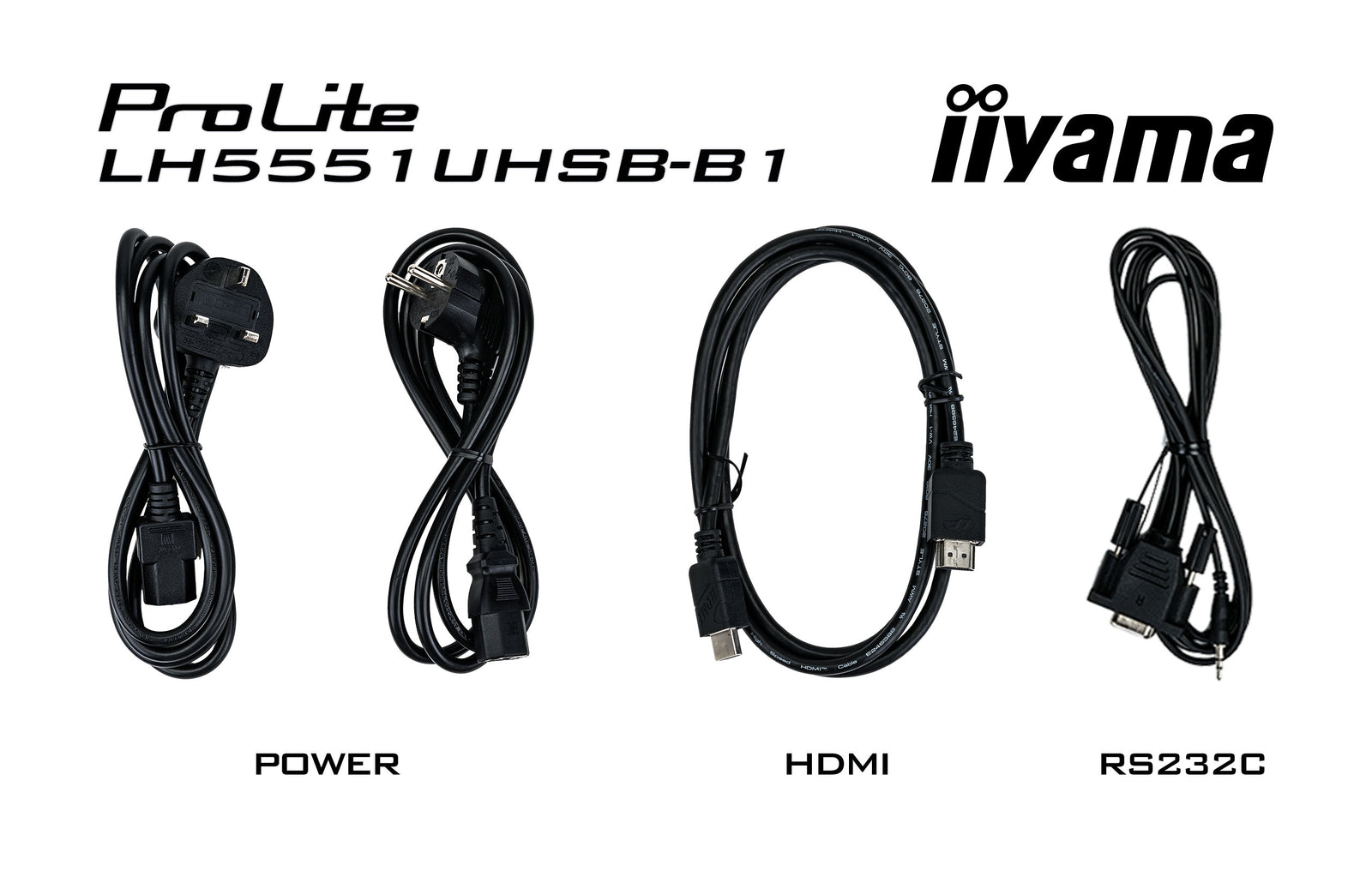

  Cables	power, HDMI, RS-232c
  Guides	quick start guide, safety guide
  Remote control	yes (batteries included)

  POWER MANAGEMENT

  Power supply unit	internal
  Power supply	AC 100 - 240V, 50/60Hz
  Power usage	183W typical, 0.5W stand by, 0.3W off mode

  SUSTAINABILITY

  Regulations

  CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA

  DIMENSIONS / WEIGHT

  Product dimensions W x H x D	1236.5 x 707.5 x 64.5mm
  Weight (without box)	26kg
  EAN code	4948570118410
