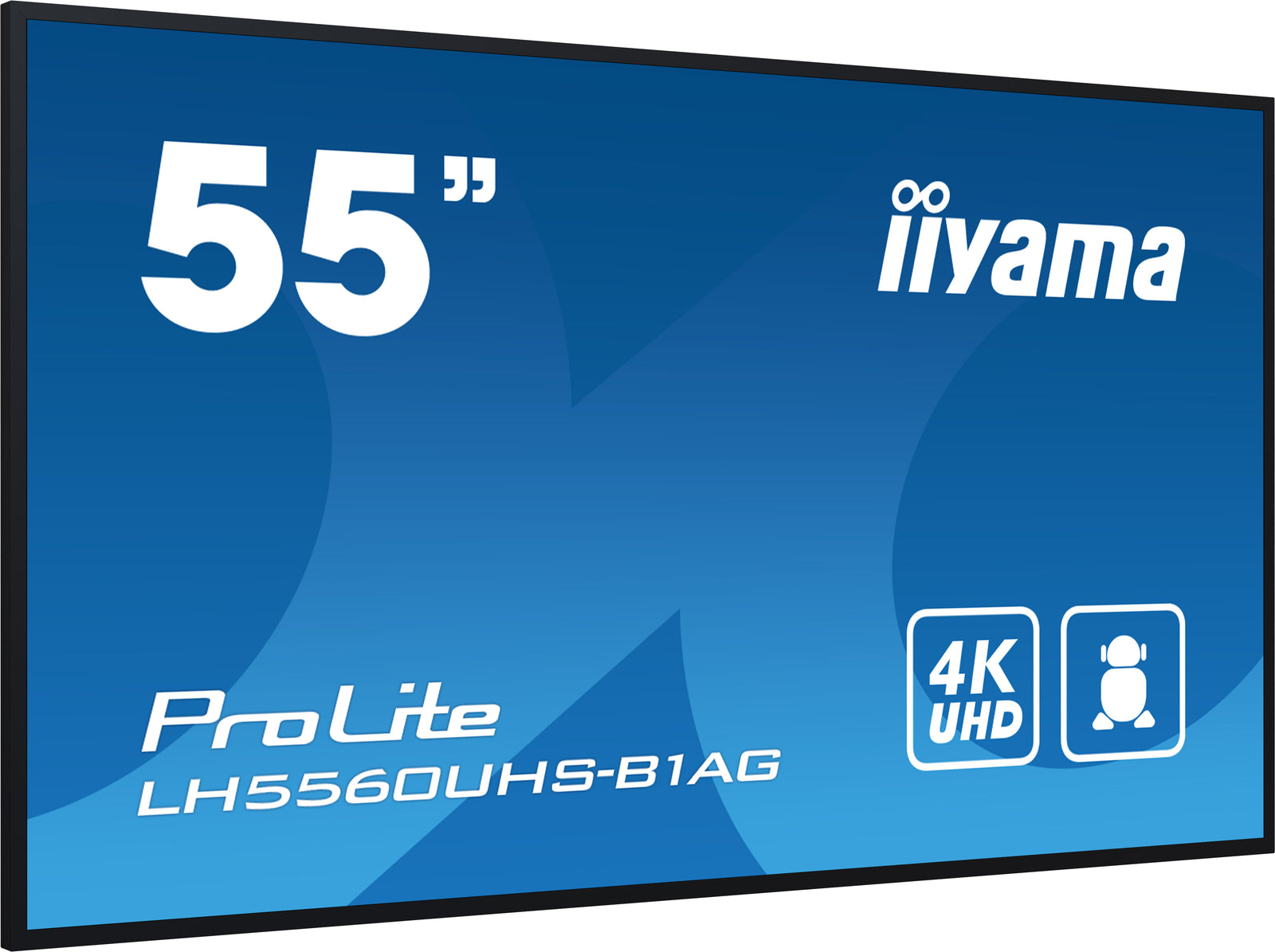

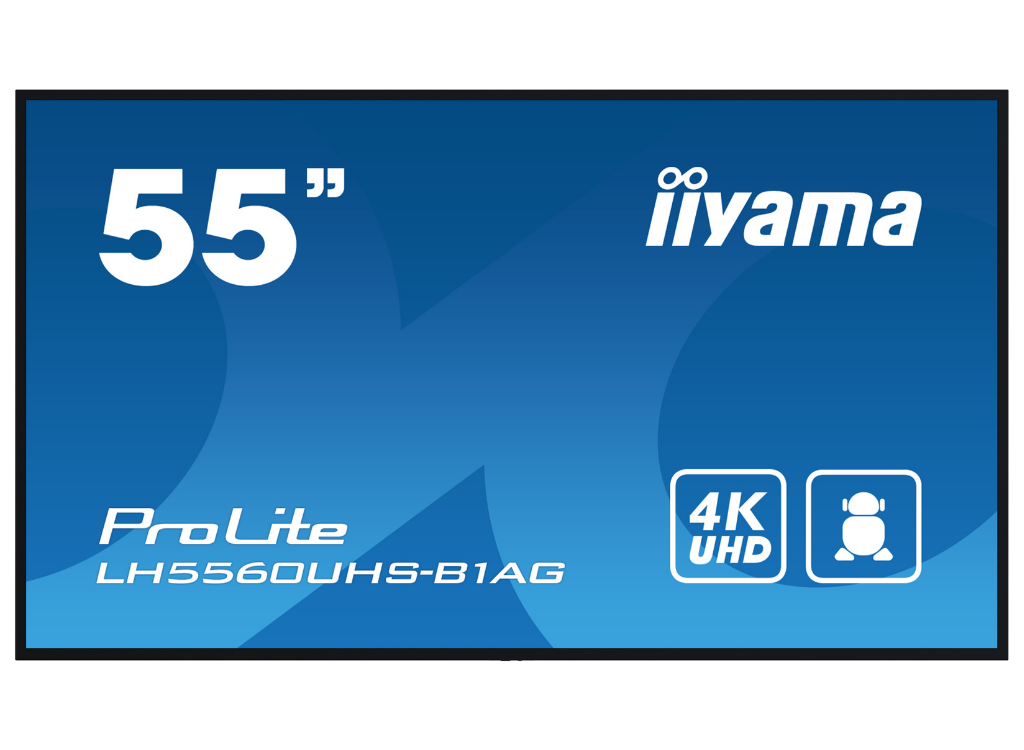

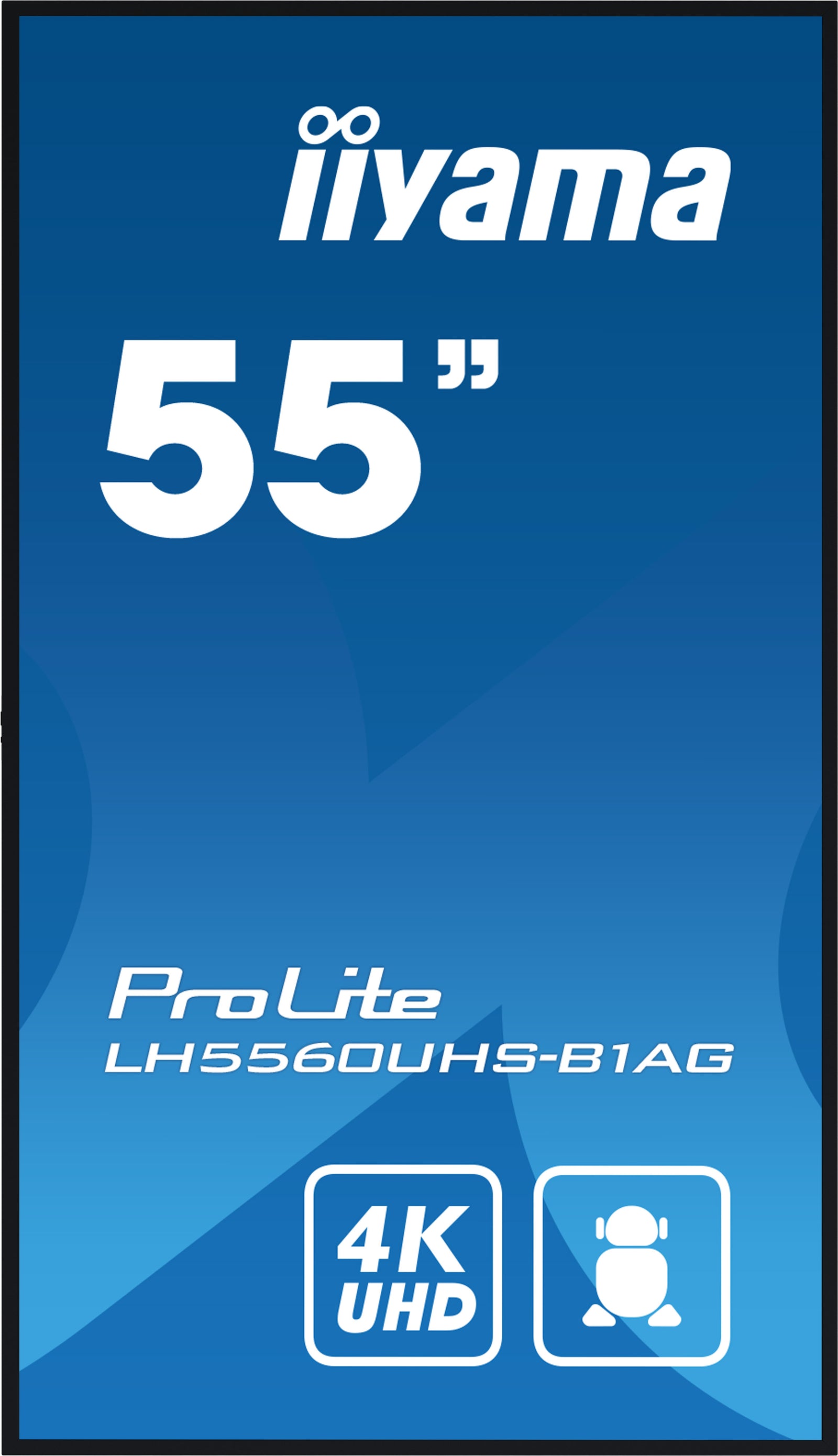

iiyama ProLite LH5560UHS-B1AG 55" Signage Display

55" 4K UHD Professional Digital Signage Display

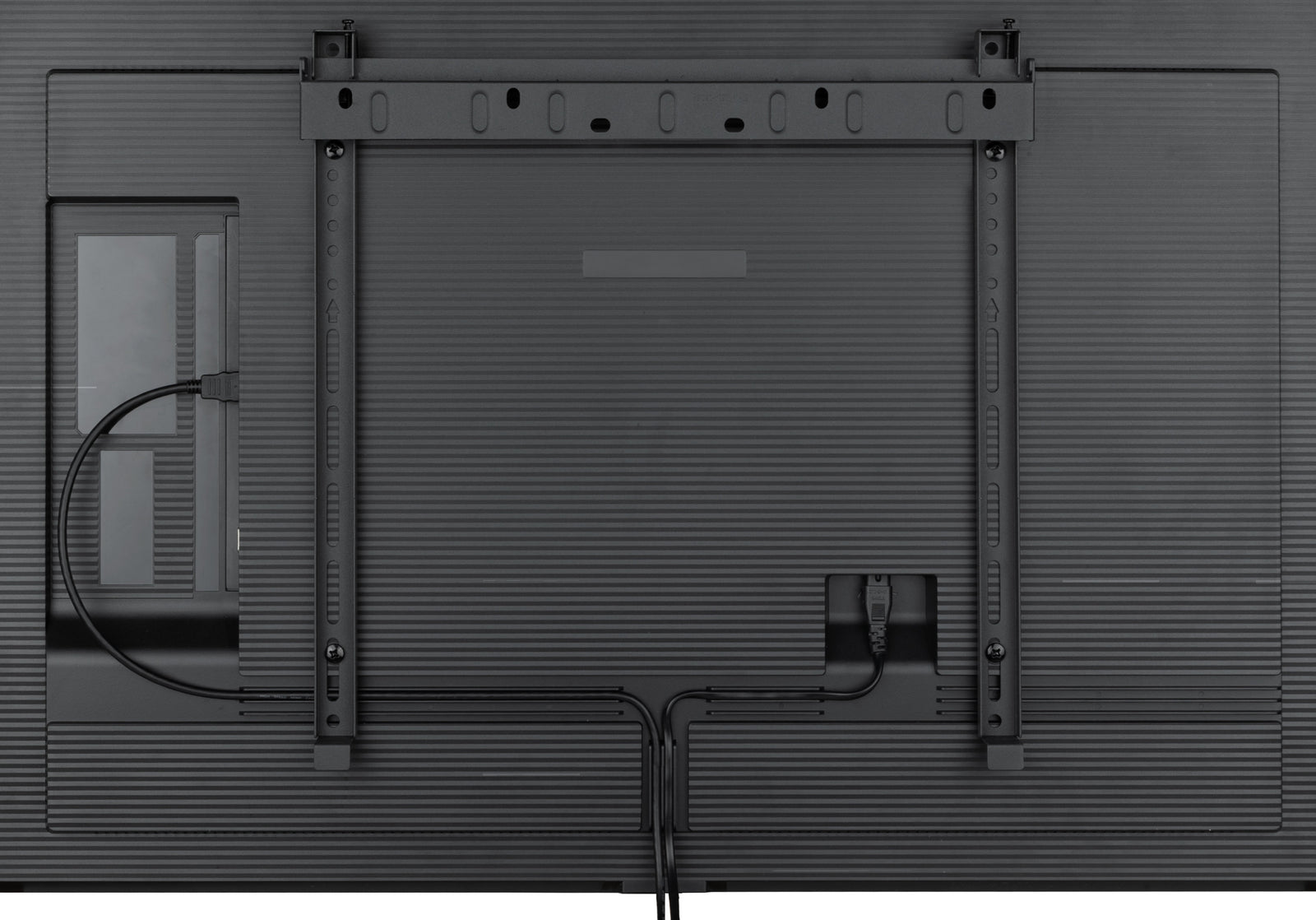

Free Wall Mounting Kit Included (VESA 300 x 400mm)

• Description
• Specifications
• Warranty

• iiyama ProLite LH5560UHS-B1AG Signage Display

  55" 4K UHD professional digital signage display with advanced control and connectivity options

  Elevate your visual communication with the LH5560UHS-B1AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² content management software, Signal FailOver and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze.

  This ELED VA display consumes significantly less power compared to DLED IPS while maintaining the same level of brightness. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH5560UHS -B1AG will undoubtedly captivate your audience and leave a lasting impression.



  ANDROID OS
  Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

  IISIGNAGE²
  iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

  SIGNAL FAILOVER
  FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

  MEDIA PLAYER
  Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.

  SPEAKERS
  This LED monitor is equipped with two high quality stereo speakers.

•


  DISPLAY CHARACTERISTICS

  Design	Thin bezel
  Diagonal	54.6", 139cm
  Panel	VA, AG coated glass, matte finish, hard coating (3H), haze 25%
  Native resolution	3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
  Aspect ratio	16:9
  Panel brightness	500 cd/m²
  Static contrast	4000:1
  Response time (GTG)	6.5ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	1.07G (8 Bits+FRC) (NTSC 87%)
  Horizontal Sync	28 - 160kHz
  Viewable area W x H	1209.6 x 680.4mm, 47.6 x 28.8"
  Bezel width (sides, top, bottom)	13.3mm, 13.3mm, 15.3mm
  Pixel pitch	0.315mm
  Bezel colour and finish	black, matte

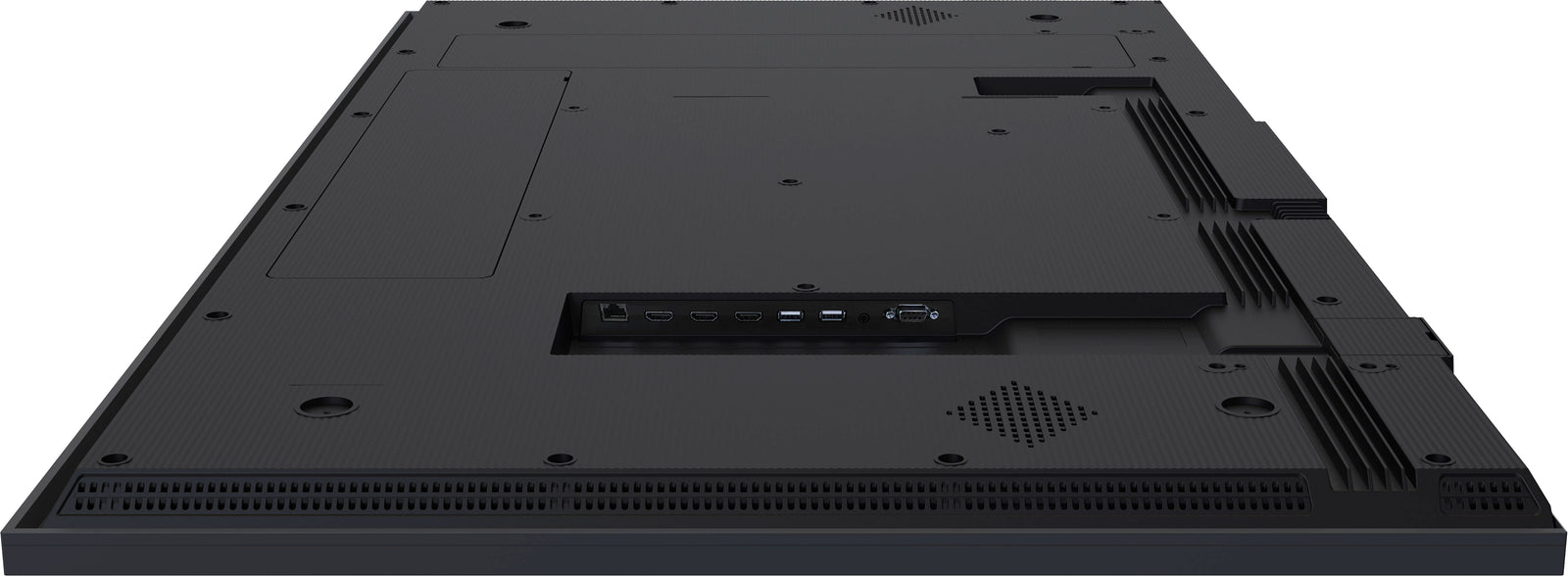

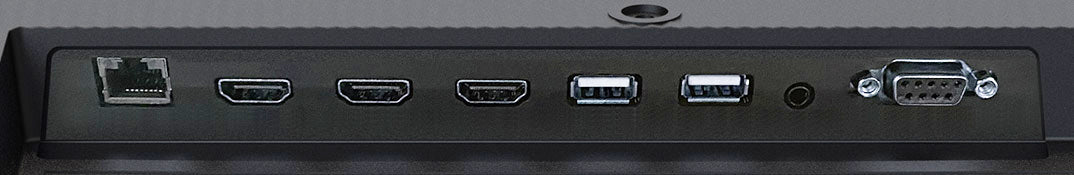

  INTERFACES / CONNECTORS / CONTROLS

  Digital signal input	HDMI x3 (v.2.0, max. 3840x2160 @60Hz)
  Audio input	Mini jack x1 (3.5mm)
  Monitor control input	RS-232c x1 (2.5mm sub-mini jack) RJ45 (LAN) x1 IR x1 (3.5mm stereo mini)
  Audio output	Mini jack x1 Speakers 2 x 10W
  HDCP	v.1.4 & 2.2
  USB ports	x2 (v.2.0)

  FEATURES

  Integrated software	Android 11 OS, iiSignage², FailOver, EShare
  WiFi	yes (Built-in)
  Hardware	CPU: A53*4, GPU: G52 MP2, RAM: 2GB, ROM: 16GB
  Extra	Wall mounting kit included (VESA 300x400mm)
  Max. non-stop operating time	24/7
  Anti image retention	yes
  Media playback	yes
  Housing (bezel)	metal (front)

  GENERAL

  OSD languages	EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL
  Control buttons	Power button, Power Indicator, Remote Sensor
  User controls	picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, over scan, picture reset), screen (zoom mode, custom zoom, screen reset), Audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio out sync, speaker setting, audio reset), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (IR control, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, advanced option reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device)
  Plug&Play	DDC2B

  MECHANICAL

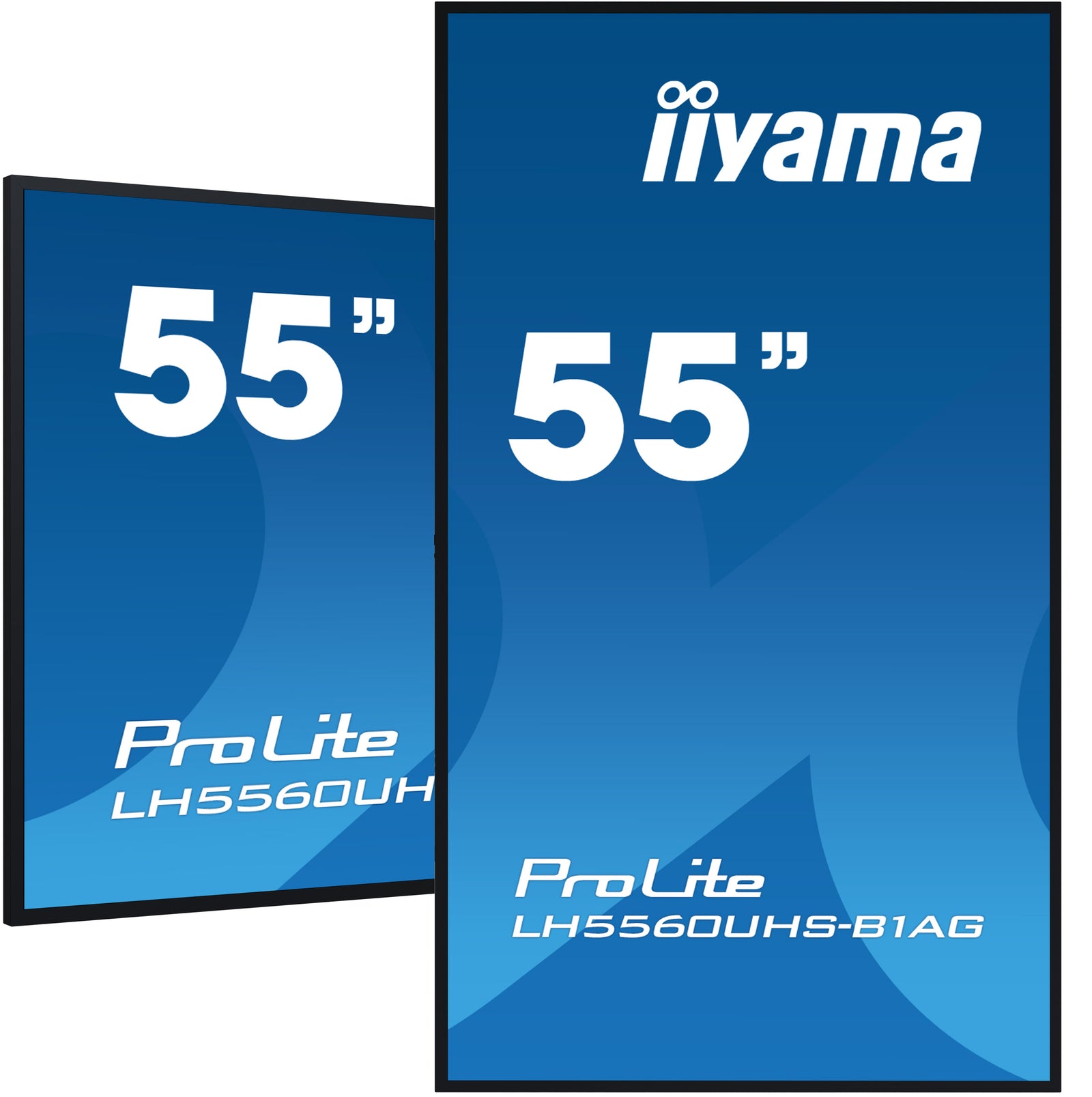

  Orientation	landscape, portrait
  Fanless design	yes

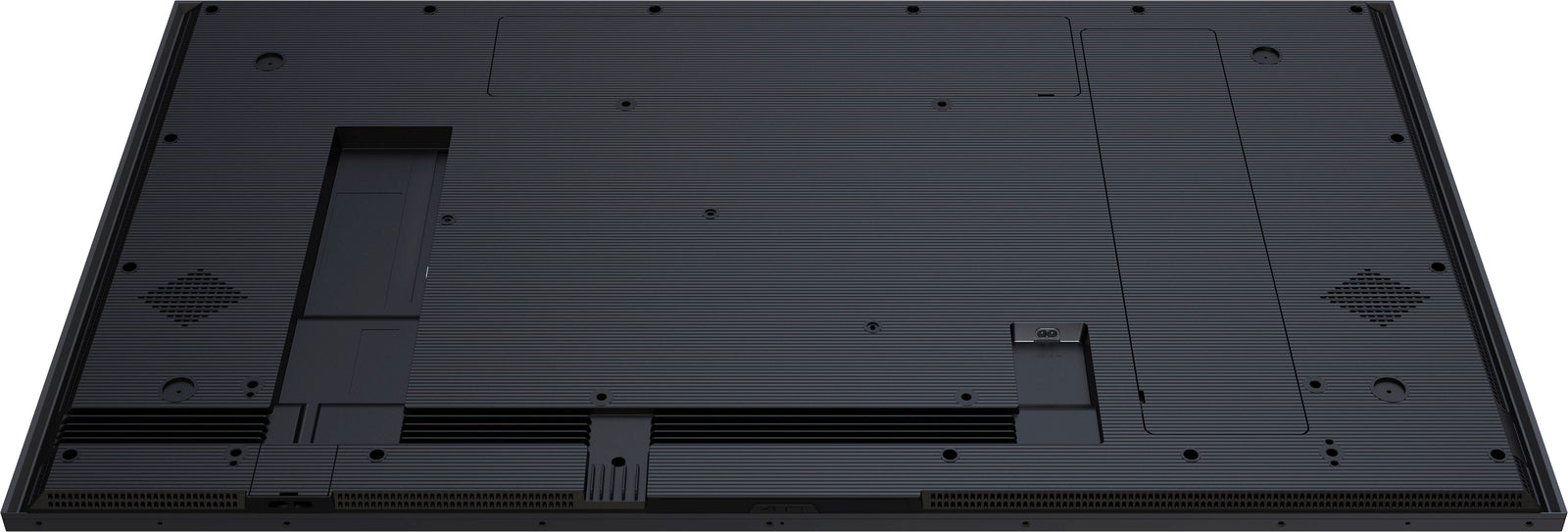

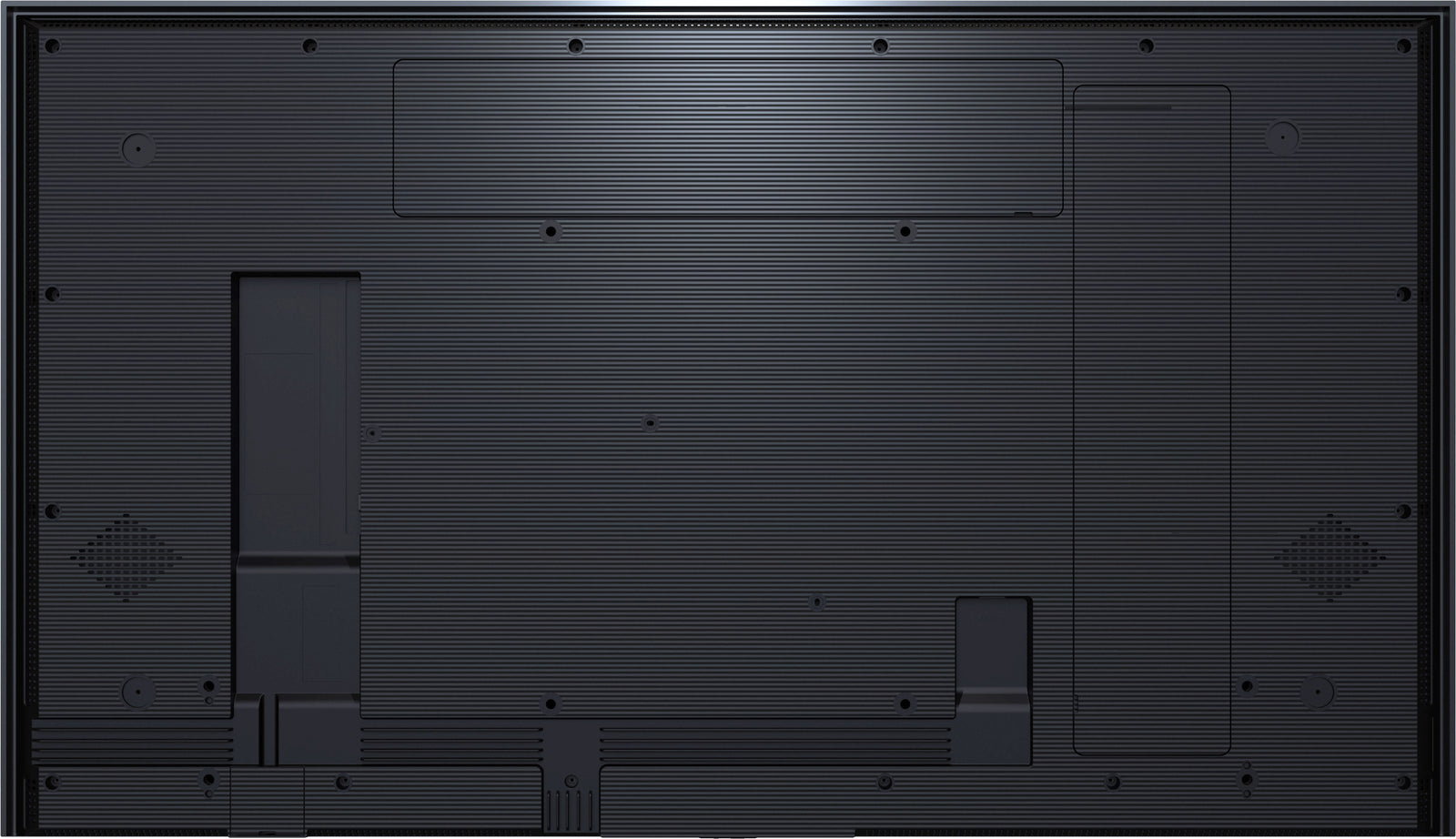

  VESA mounting	300 x 400mm
  Operation temperature range	0°C - 40°C
  Storage temperature range	- 20°C - 60°C
  MTBF	50.000 hours (excluding backlight)

  ACCESSORIES INCLUDED

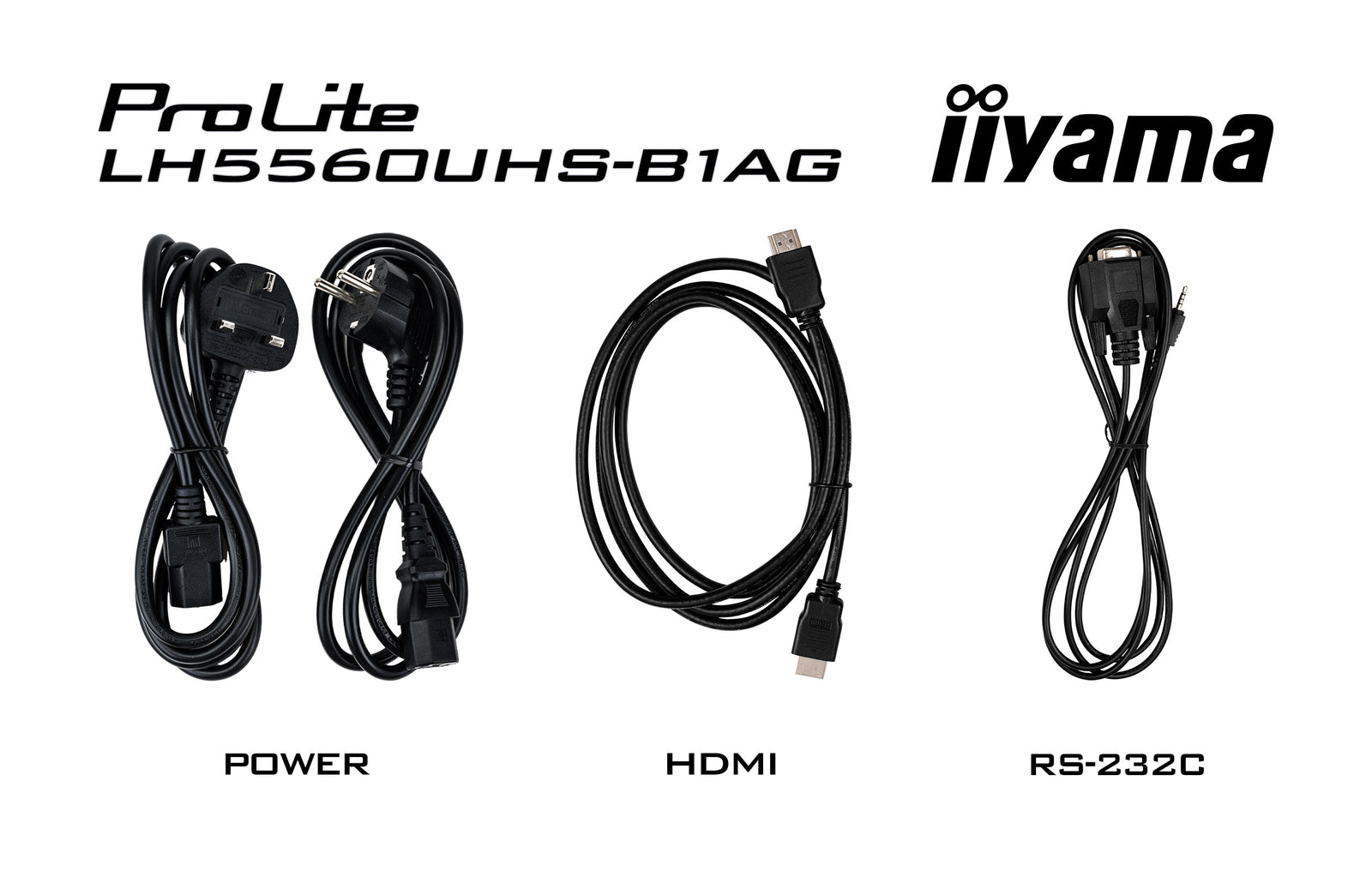

  Cables	power, HDMI, RS-232c
  Guides	quick start guide, safety guide
  Other	Wall mount bracket, Wall mount guide, Screws, Screw anchors, Stickers for screw holes
  Remote control	yes (batteries included)

  POWER MANAGEMENT

  Power supply unit	internal
  Power supply	AC 100 - 240V, 50/60Hz
  Power usage	89W typical, 0.5W stand by

  SUSTAINABILITY

  Regulations	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
  Energy efficiency class (Regulation (EU) 2017/1369)	G

  DIMENSIONS / WEIGHT

  Product dimensions W x H x D	1239.7 x 712.5 x 38.6mm
  Box dimensions W x H x D	1390 x 850 x 136mm
  Weight (without box)	17.6kg
  Weight (with box)	22.9kg
  EAN code	4948570122301

• HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one - Check that all connections have been properly made.

  Step two - Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three - If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four - Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five - Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six - Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required
