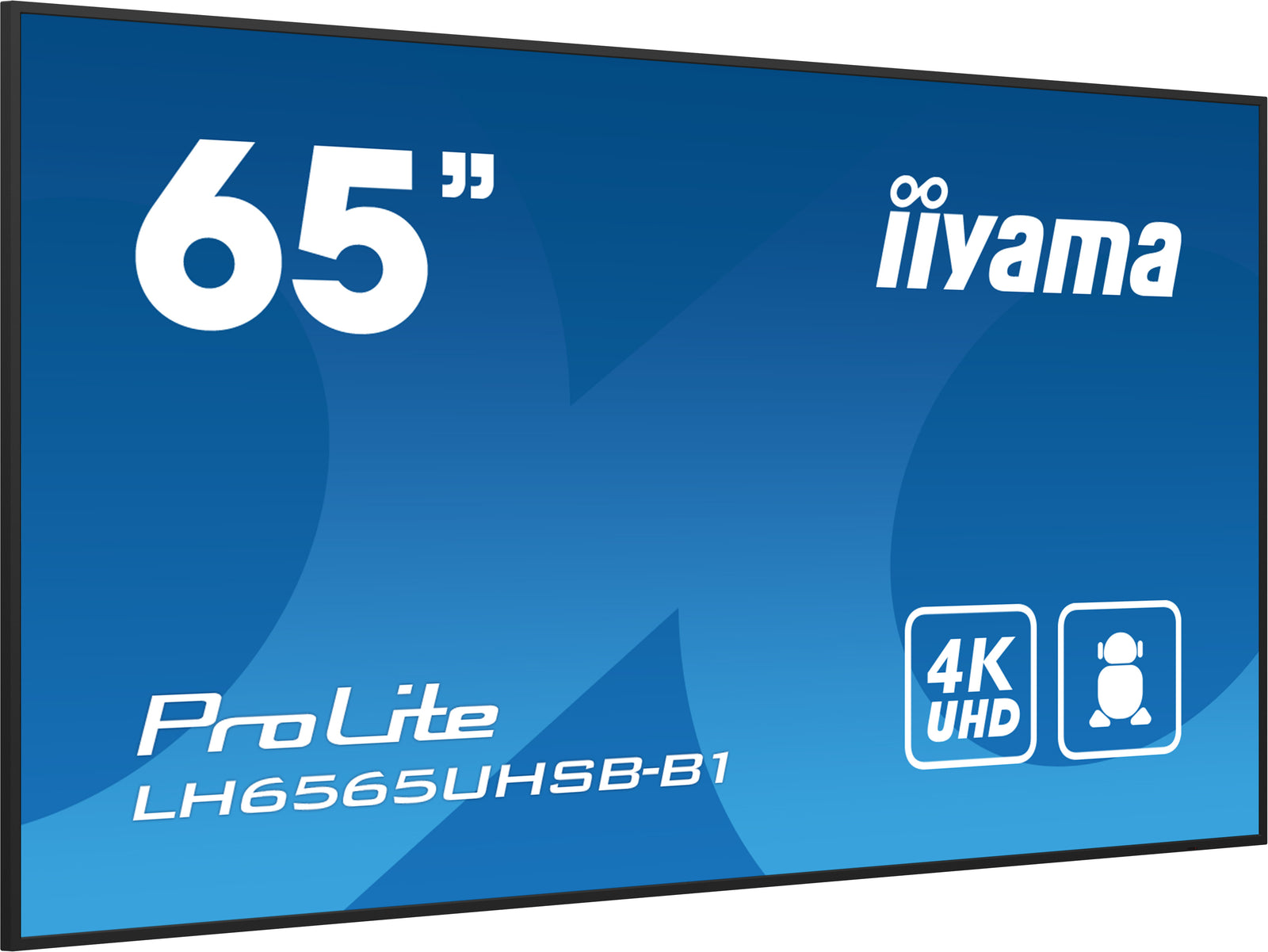

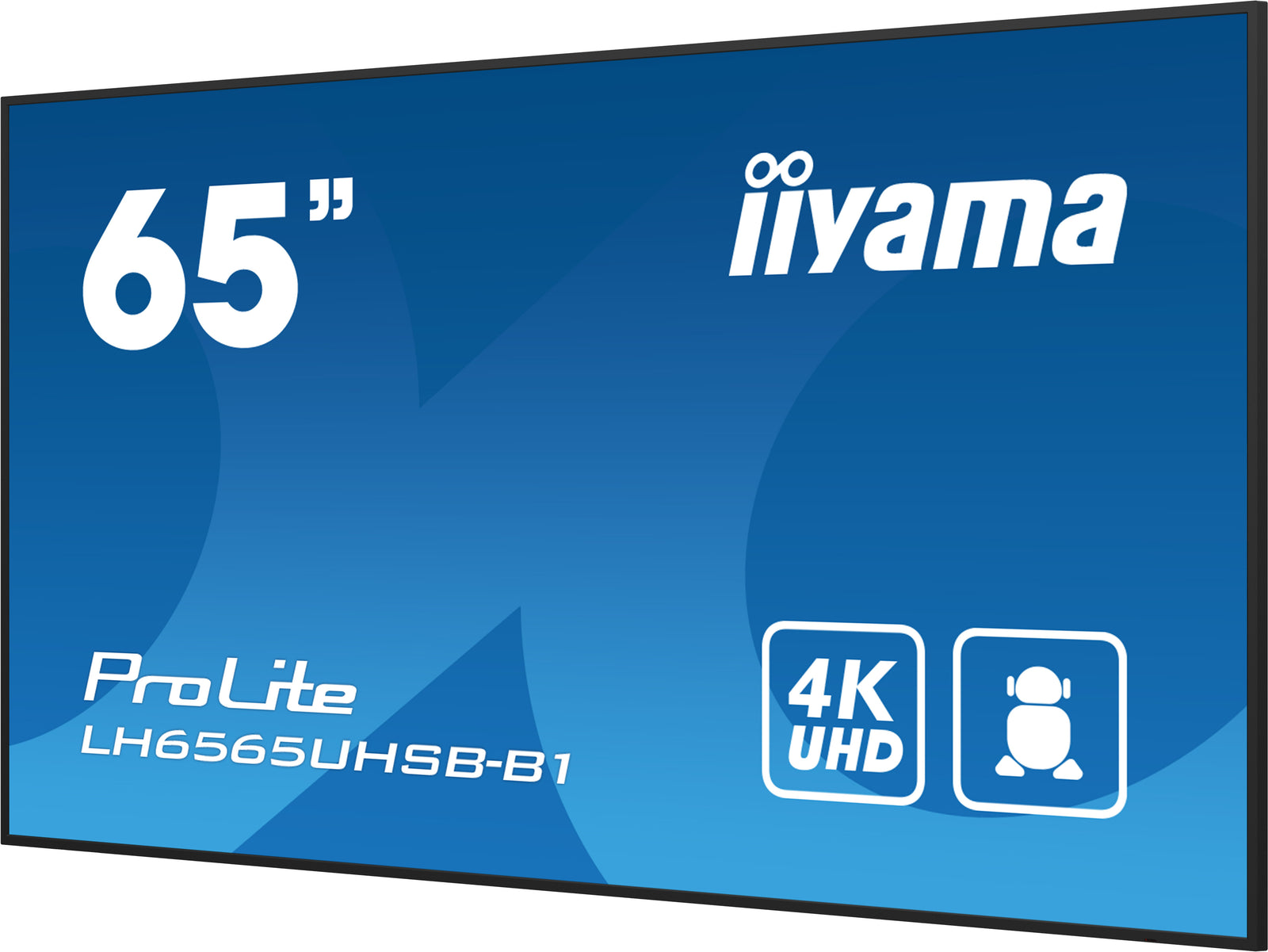

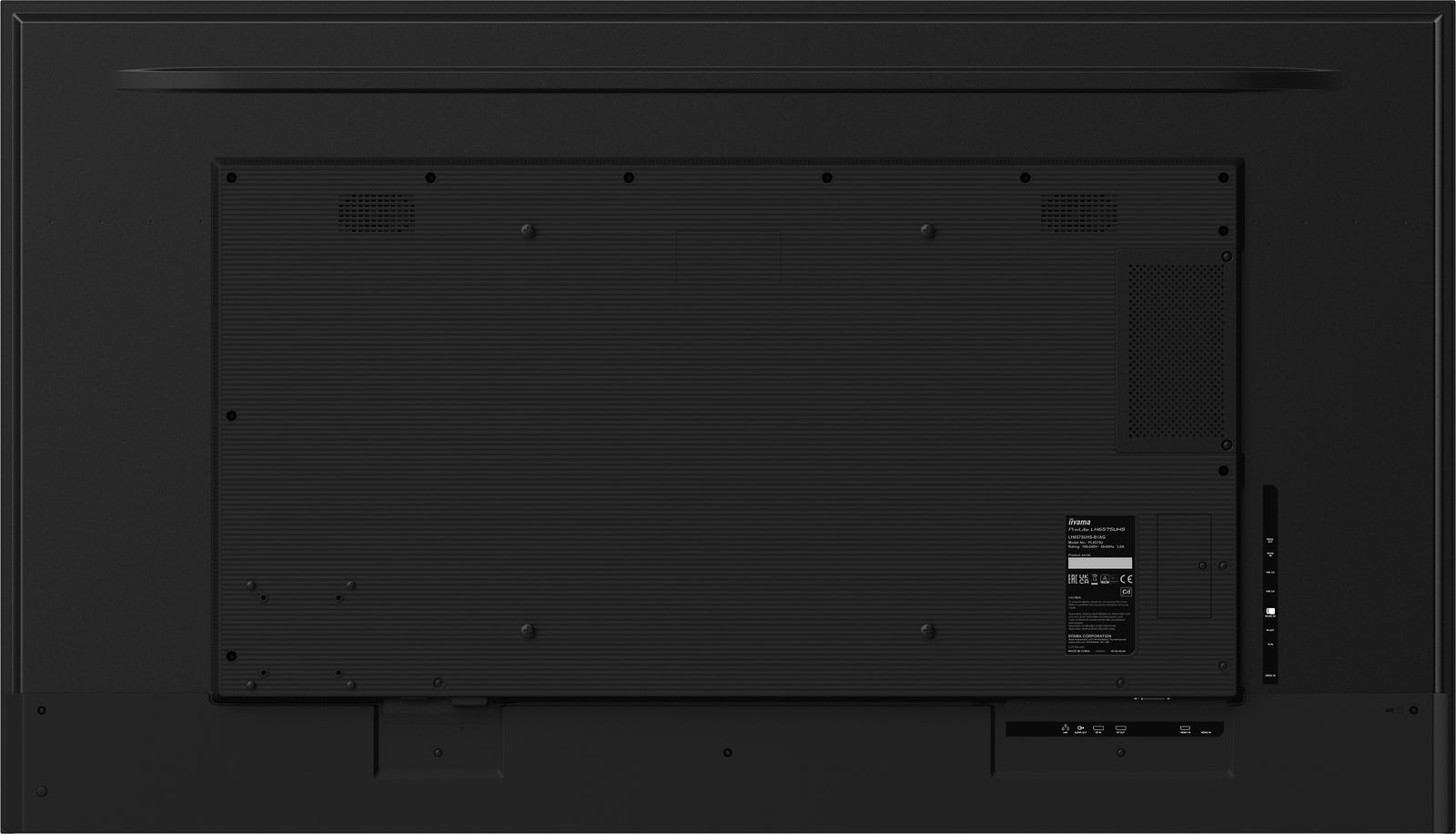

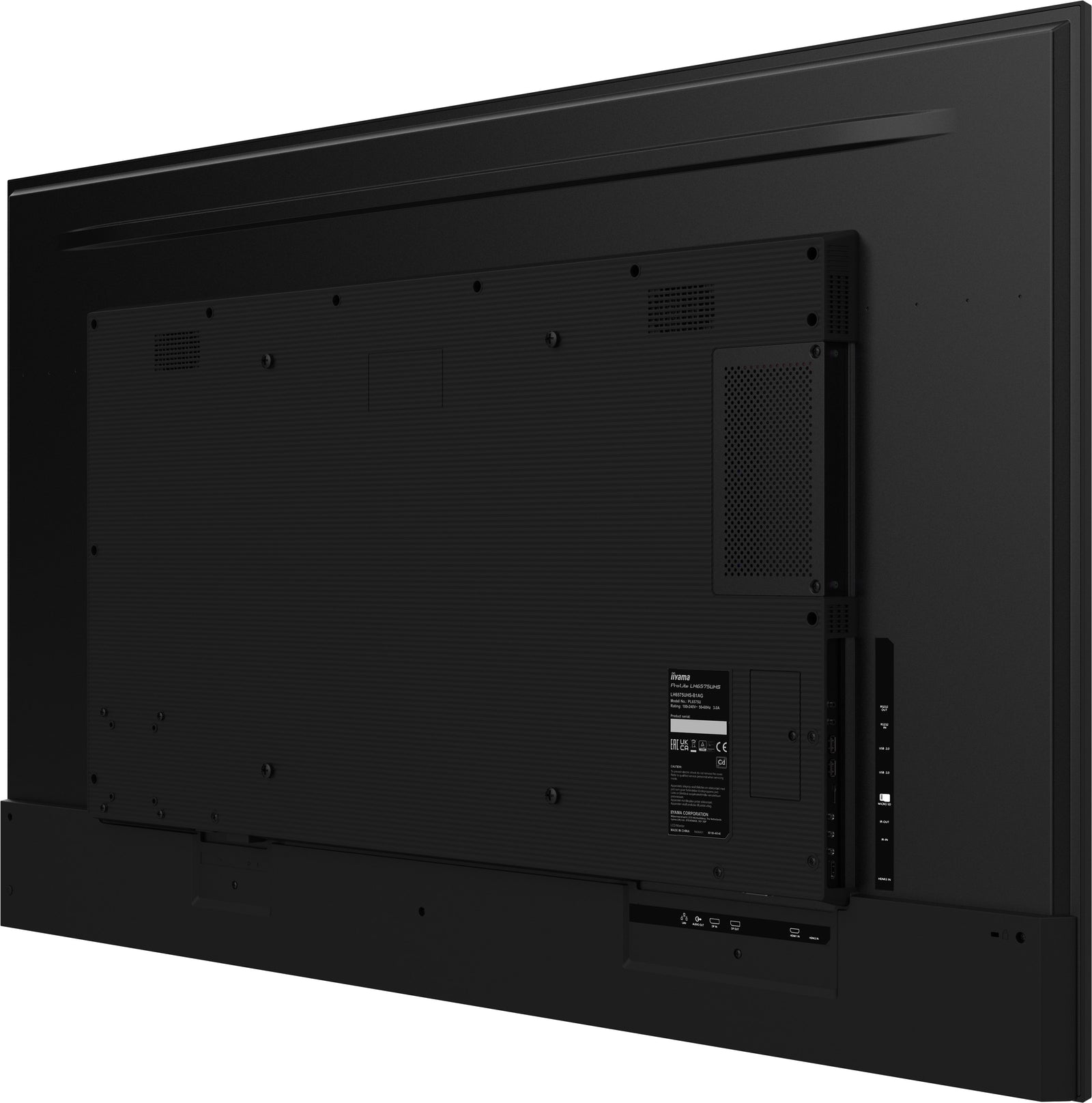

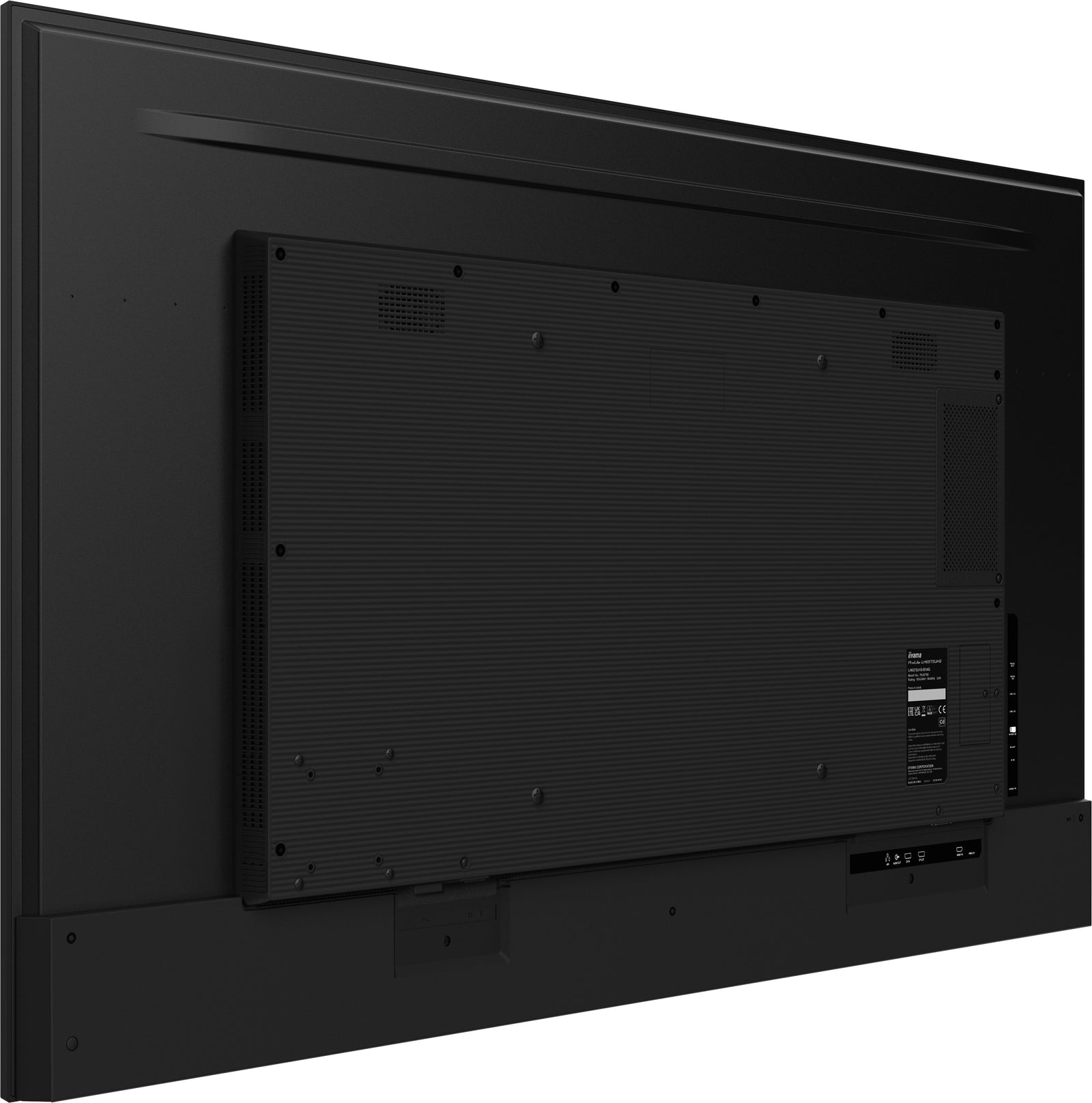

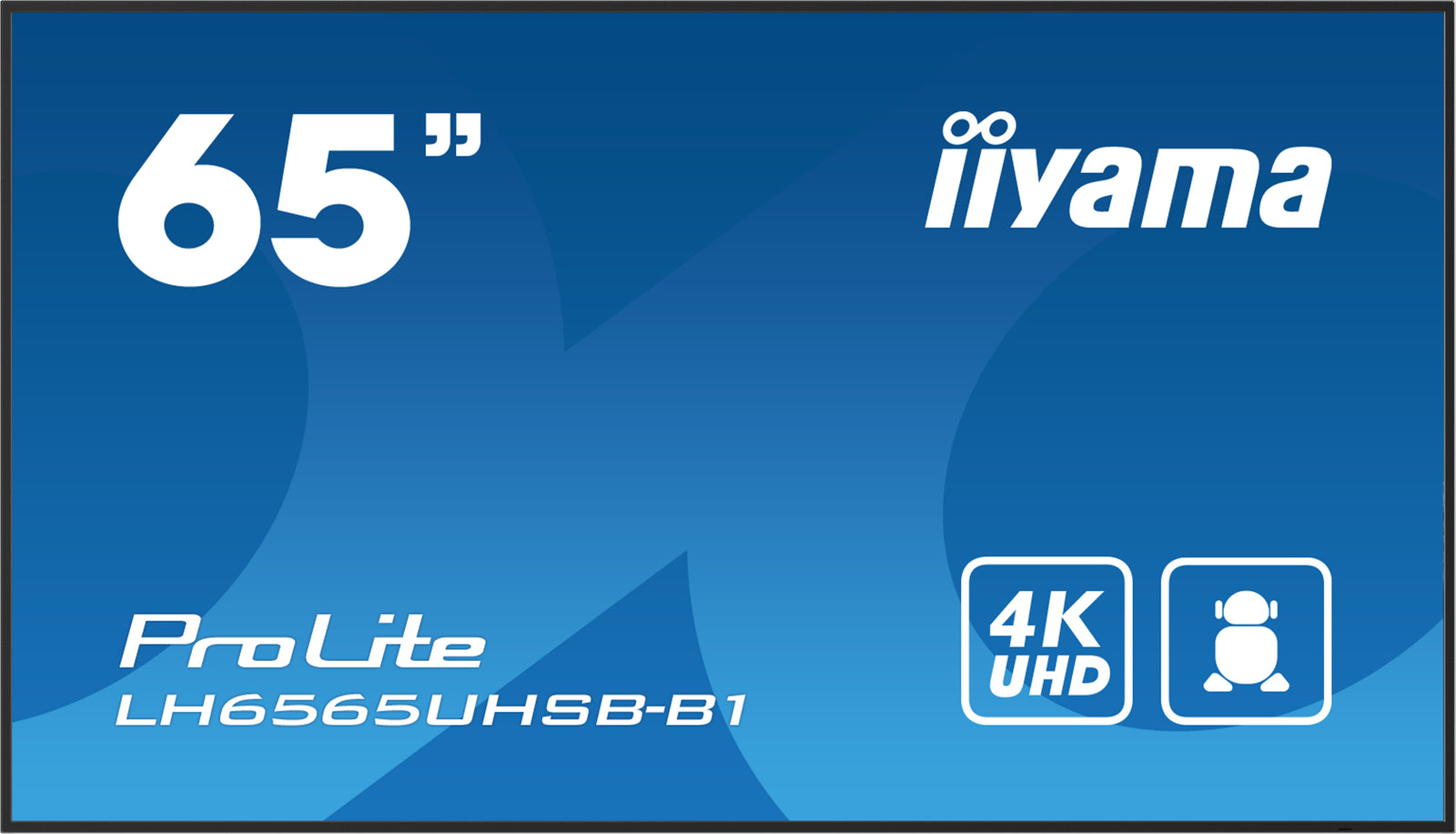

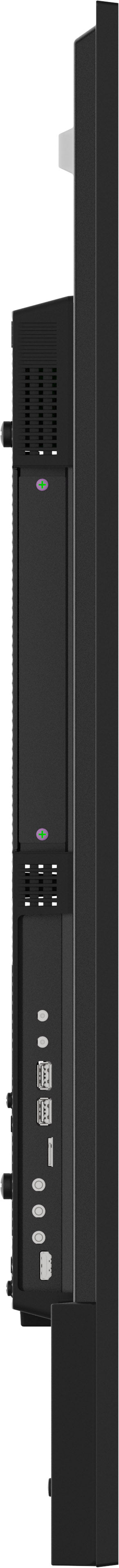

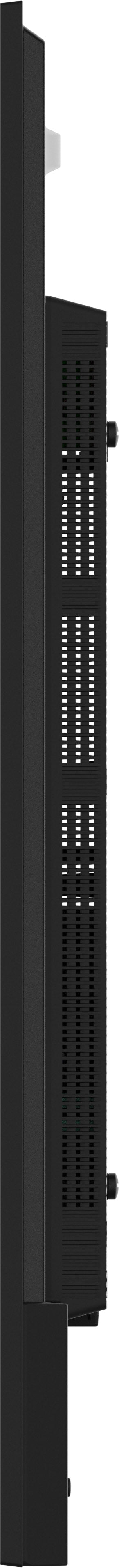

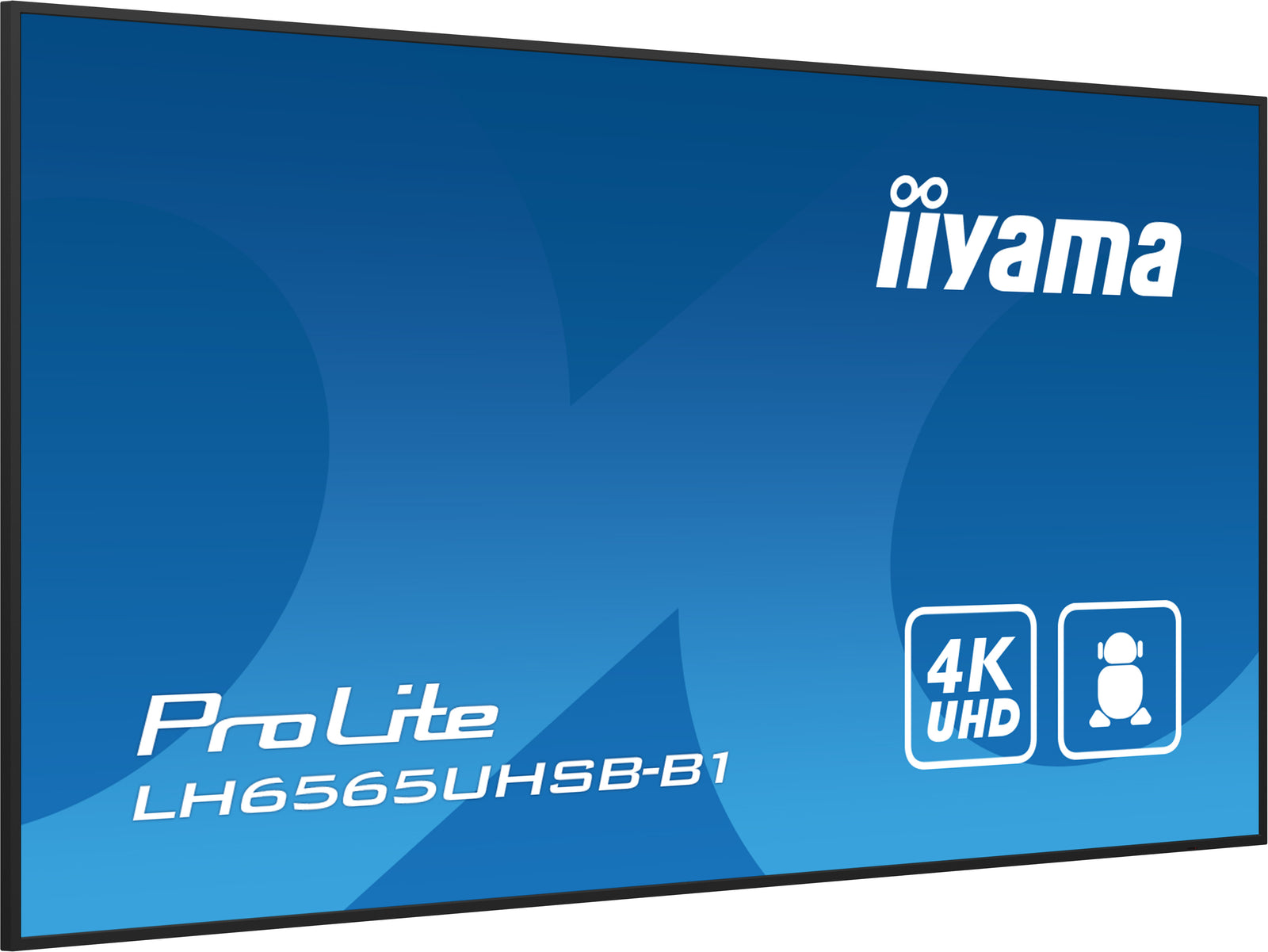

iiyama ProLite LH6565UHSB-B1 65" 4K Ultra HD Vivid-Bright 800 cd/m2 Digital Signage Display
SKU: LH6565UHSB-B1
£828.26 (Excl. VAT)
- Display Size65"
- Operating SystemAndroid 11
- VESA Patterns400x400
- Panel TypeIPS Panel
- ResolutionUltra HD (4K)
- Screen TypeFlat
- Description
- Specifications
- Downloads
-
iiyama ProLite LH6565UHSB-B1 65" 4K Ultra HD 800 cd/m2 Digital Signage Display

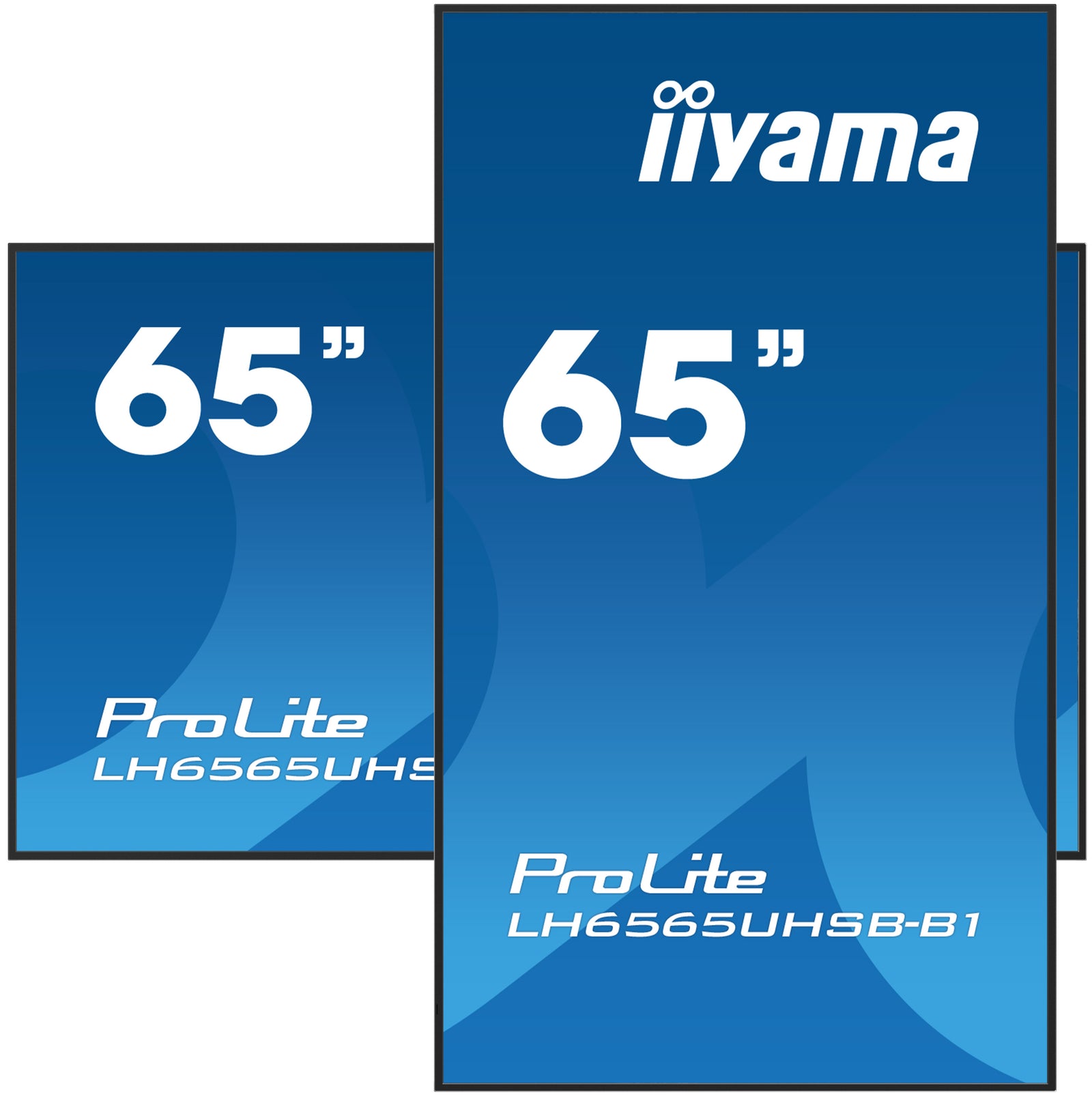

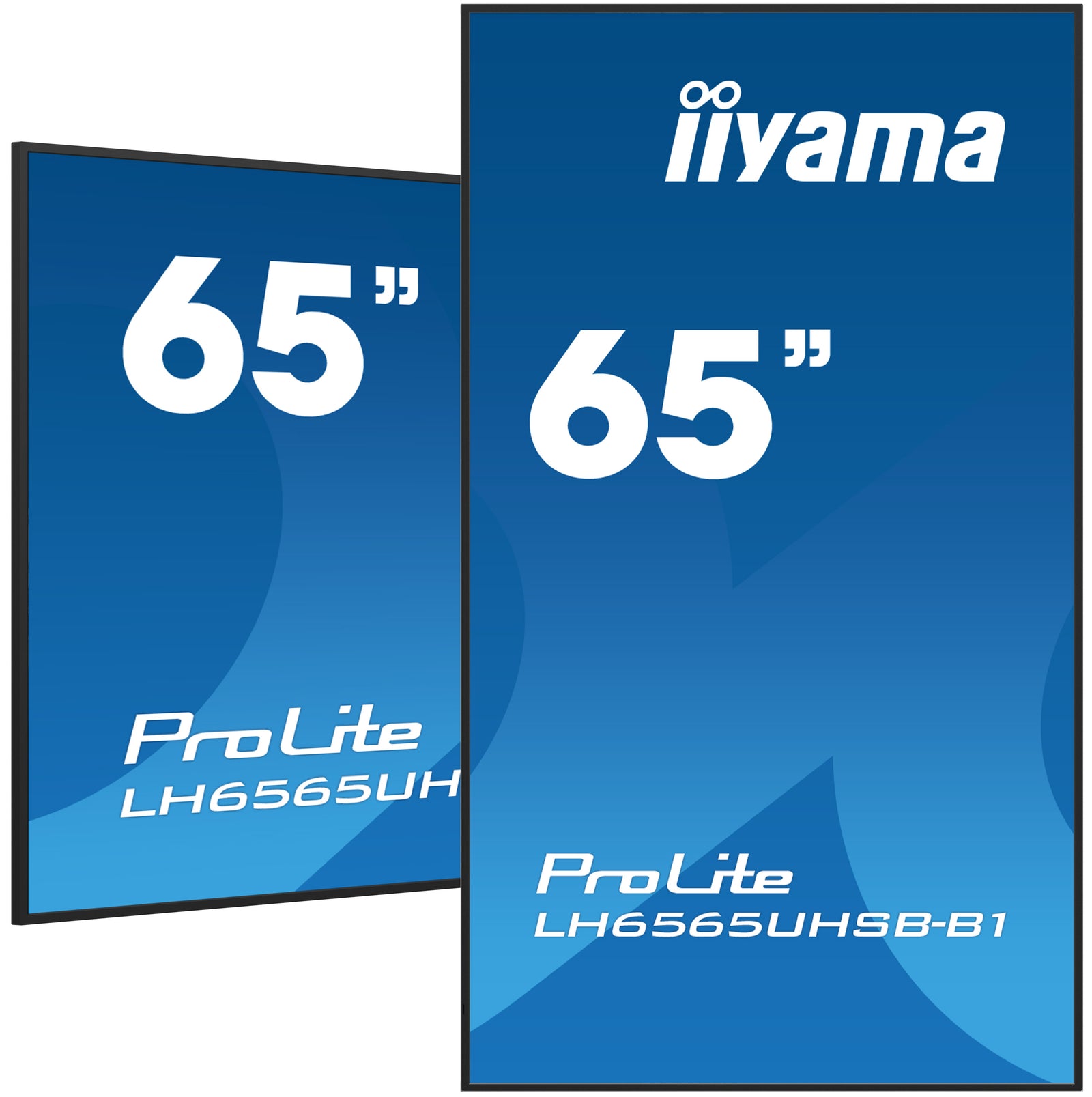

Create dynamic, show stopping content, designed to entice and captivate your audience. The LH6565UHSB vivid-bright display, boasting 800cd/m², can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and smoothly run third party applications, including multiple CMS platforms.
The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The Signal FailOver feature ensures your content is always actively displayed through your choice of inputs for mission critical environments. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network.
With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.
ANDROID OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
IISIGNAGE²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
SIGNAL FAILOVER
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
24/7
24/7 displays are designed for a continuous operation.
4K
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.
-

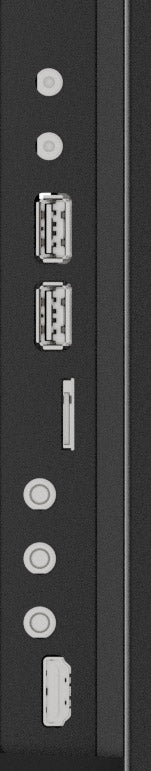

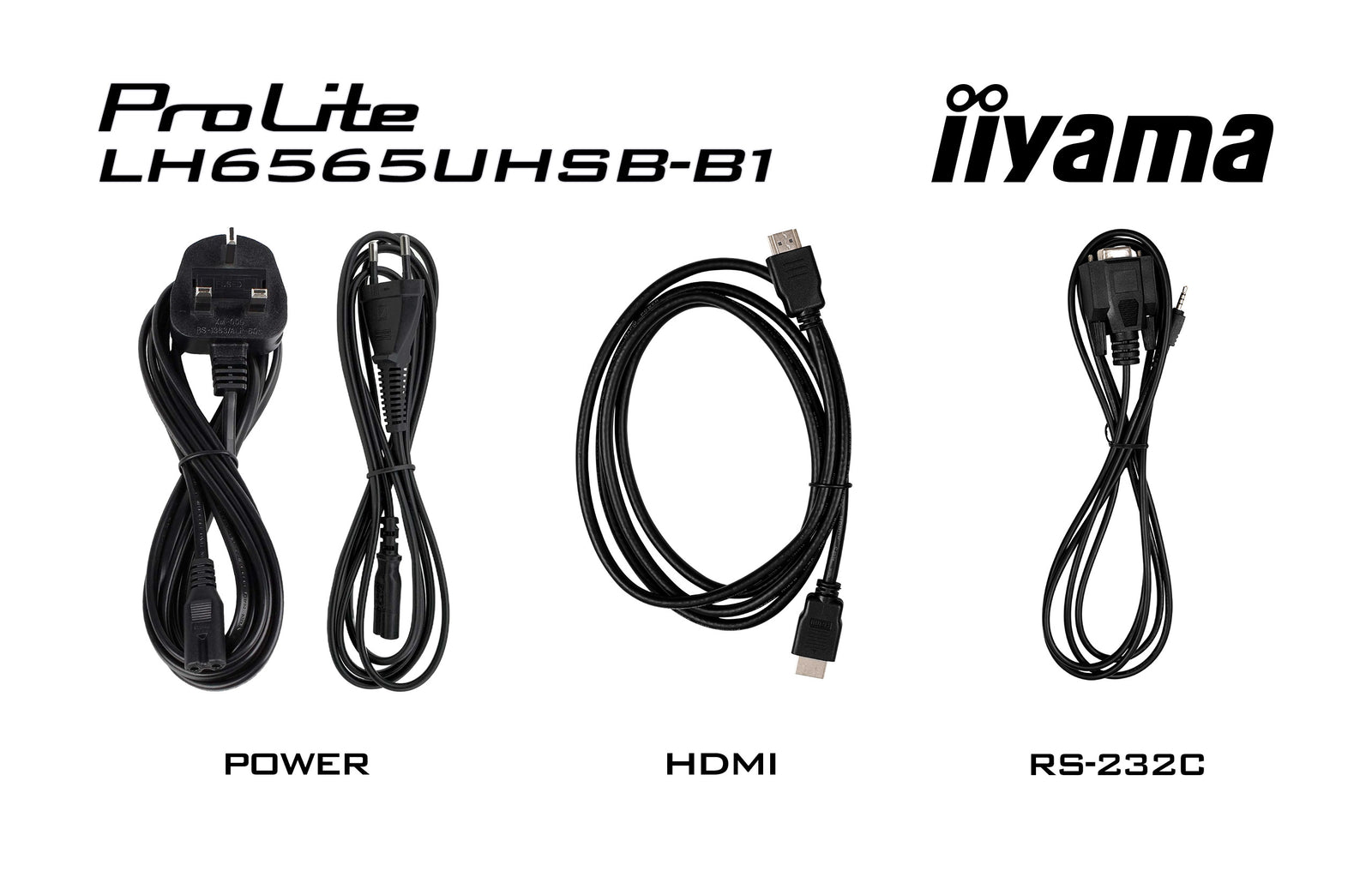

Design Thin bezel Diagonal 64.5", 163.9cm Panel IPS, haze 1% Native Resolution 3840 x 2160 @60Hz Aspect Ratio 16:9 Panel Brightness 800 cd/m² Static Contrast 1200:1 Response Time (GTG) 8ms Viewing Zone 178°/178°, RL 89°/89°, UD 89°/89° Colour Support 1.07G (8 Bits+FRC) (NTSC 72%) Horizontal Sync 28 - 160kHz Viewable Area (W x H) 803.52 x %2mm, 47.6 x 26.8" Bezel Width 14.9mm (all sides) Pixel Pitch 0.372mm Bezel Colour Black Digital Signal Input HDMI x2 (v2.0) DisplayPort x1 (v1.2) Monitor Control Input RS-232c x1 / RJ45 x1 Audio Output Mini Jack x1 Speakers 2 x 10W Monitor Control Output RS-232c x1 HDCP v2.2 USB Ports x2 (v2.0) Integrated Software Android 11, iiSignage², iiControl, iiShare, FailOver, EShare WiFi Yes (Built-in 802.11ac) Hardware CPU: A73*4+A53*4, GPU: G52 MP8, RAM 4GB, ROM 32GB Operating Time 24/7 Media Playback Yes Orientation Landscape / Portrait Fanless Design Yes VESA Mounting 400 x 400mm Operating Temperature 0°C - 40°C Power Usage 104W typical / 0.5W standby / 0.3W off Power Supply AC 100 - 240V, 50/60Hz Product Dimensions 1456.5 x 832.5 x 56mm Box Dimensions 1345 x 1016 x 162mm Weight (Net) 20.7kg Weight (Gross) 28.7kg Accessories Power cable, HDMI cable, RS-232c cable, Quick start guide, Safety guide, Screw hole stickers, Cable clips, AC switch cover, Remote control (with batteries) Certifications CE, TÜV-Bauart, RoHS, ErP, WEEE, REACH, UKCA EAN Code 4948570123582 -
Description Downloads User Manual Downloads Technical Specification Downloads Drawing Downloads EU Energy Label Downloads UK Energy Label Downloads
