iiyama ProLite LH6570UHB-B1

65" Professional Digital Signage Display

• Description
• Specifications
• Warranty

• End Of Line - Direct Replacement with : LH6565UHSB-B1

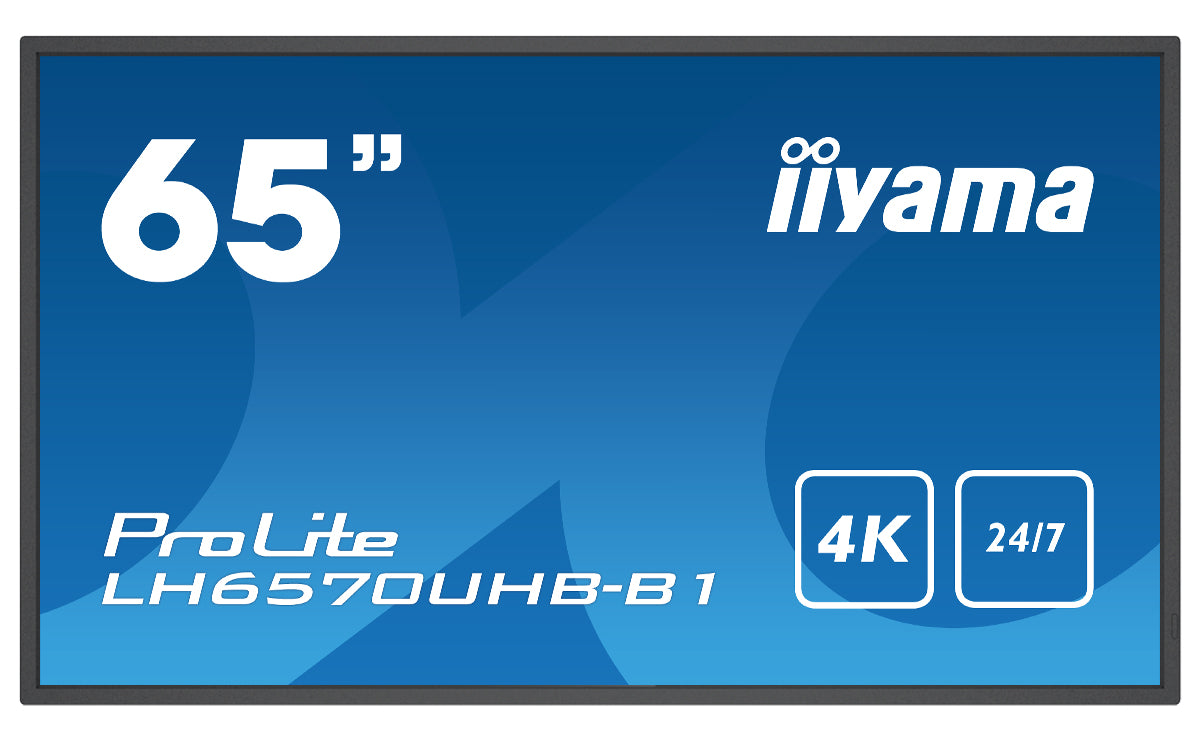

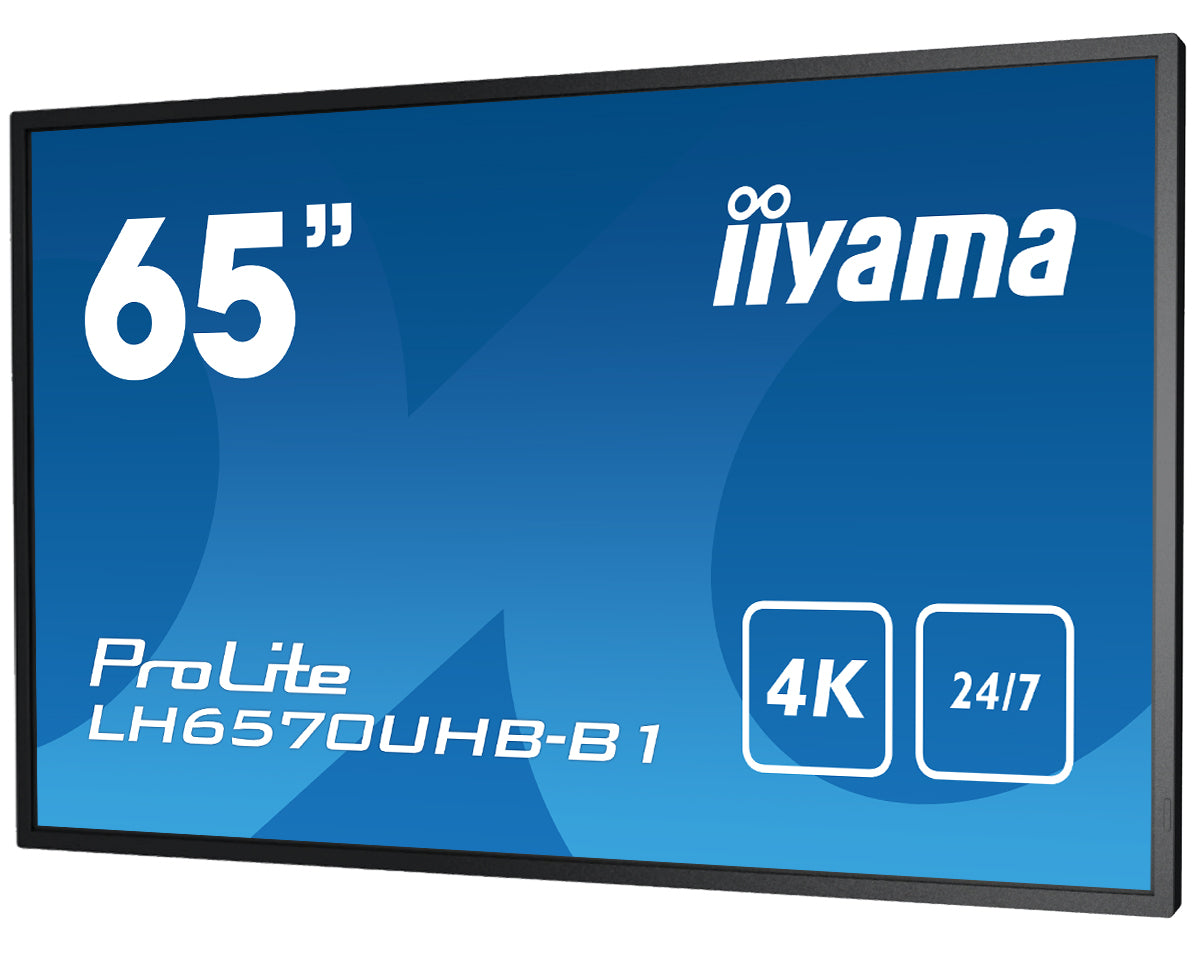

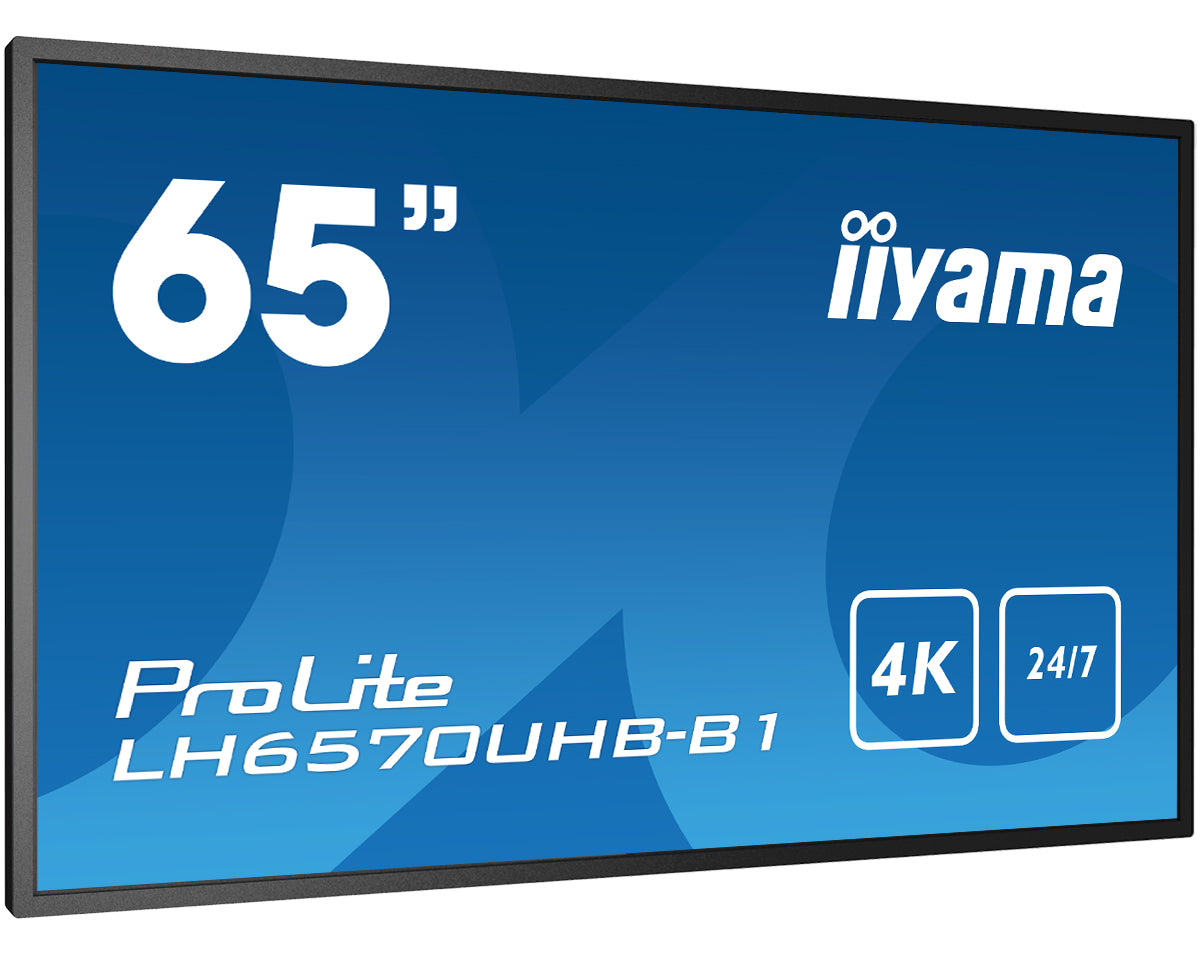

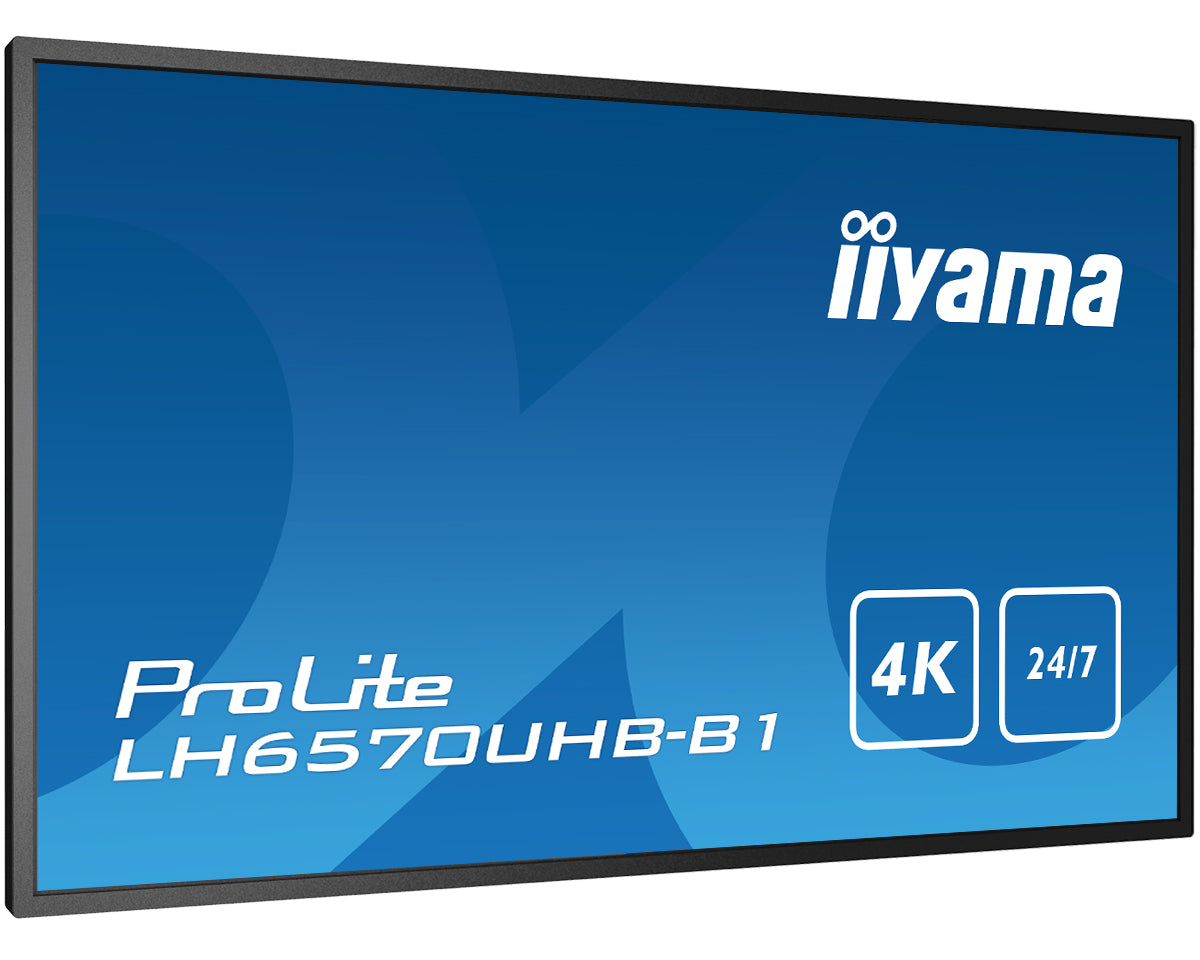

  iiyama PROLITE LH6570UHB-B1

  65” Professional Digital Signage display with 24/7, 4K UHD and 700cd/m² high brightness performance

  This high-brightness display will deliver dynamic and sharp content, designed to entice and captivate your audience. The slim bezel and true commercial display with a 4K UHD resolution (3840x2160), 700cd/m² and a contrast ratio of 4000:1 provide vibrant, detailed and sublime images. Thanks to onboard Android 9.0 you can easily customize the display by installing applications directly to it which makes it the perfect choice for Digital Signage, In-store communication and messaging.

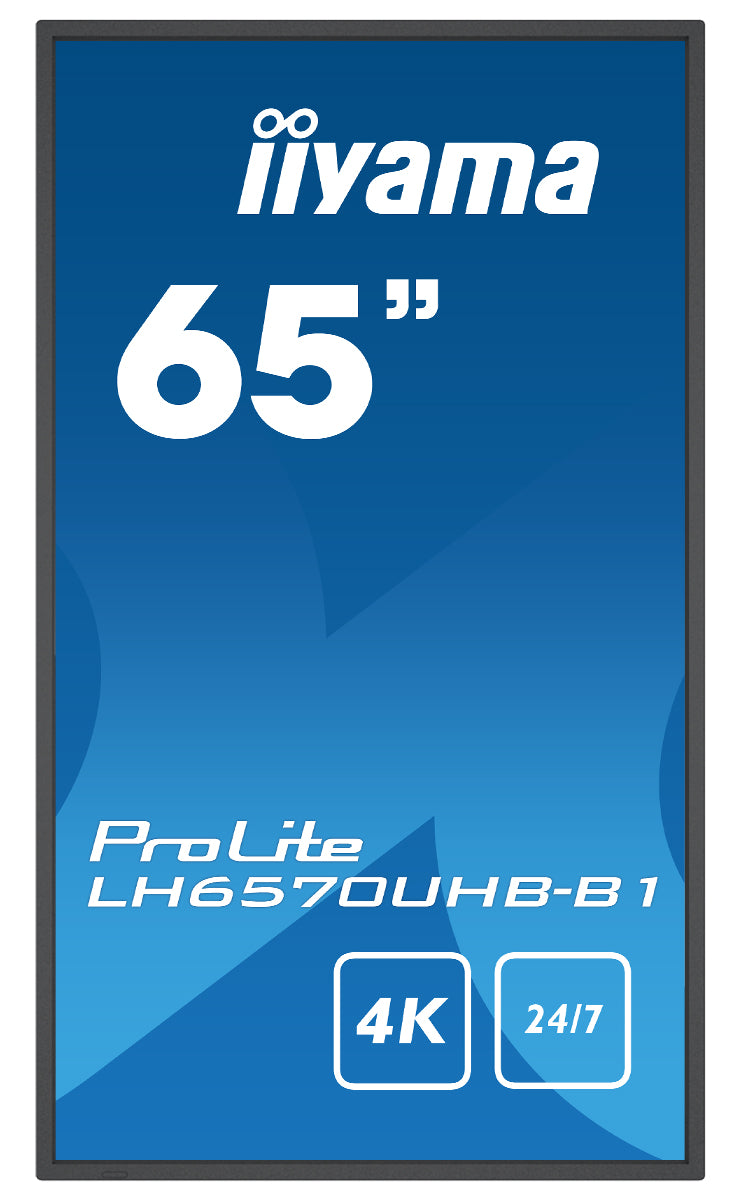

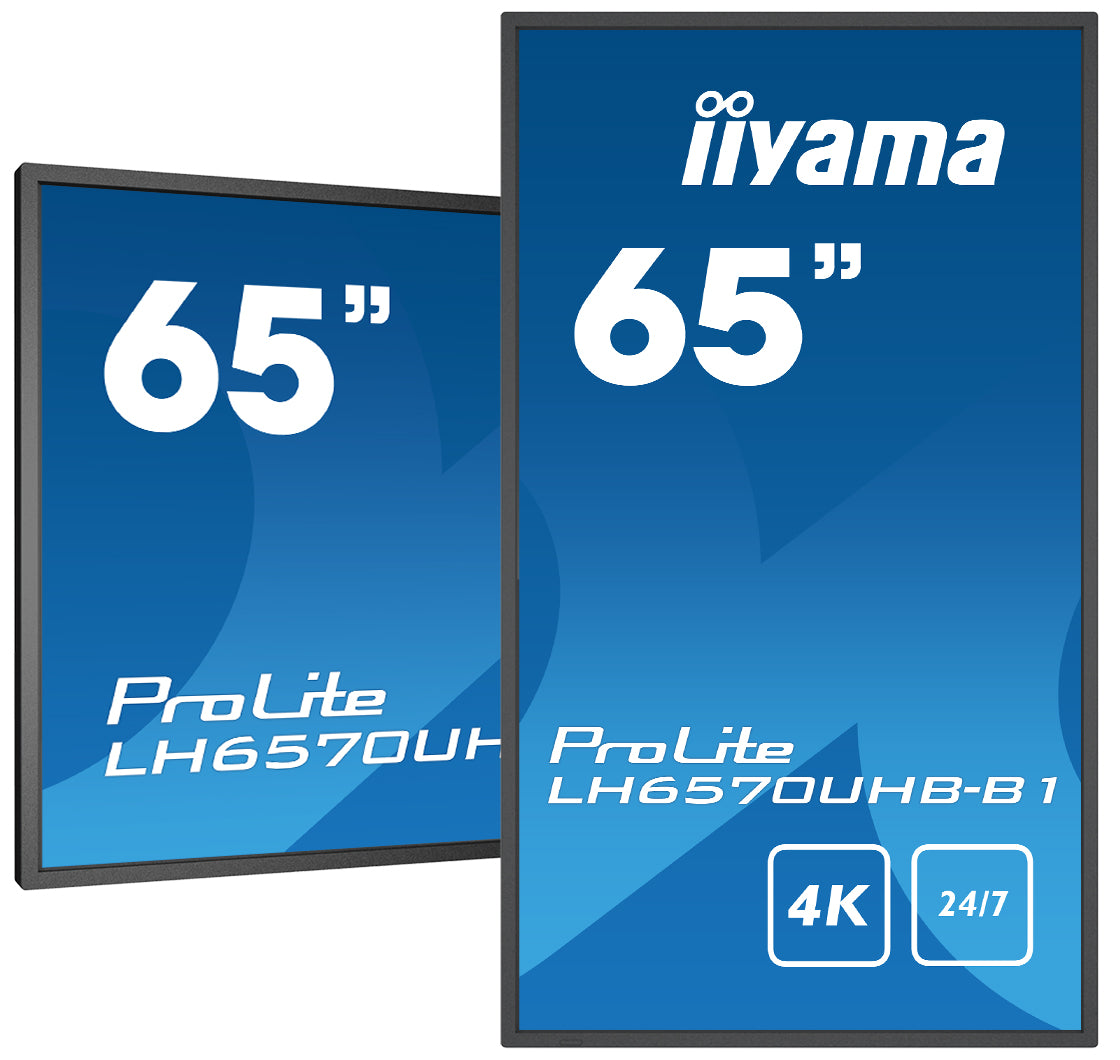

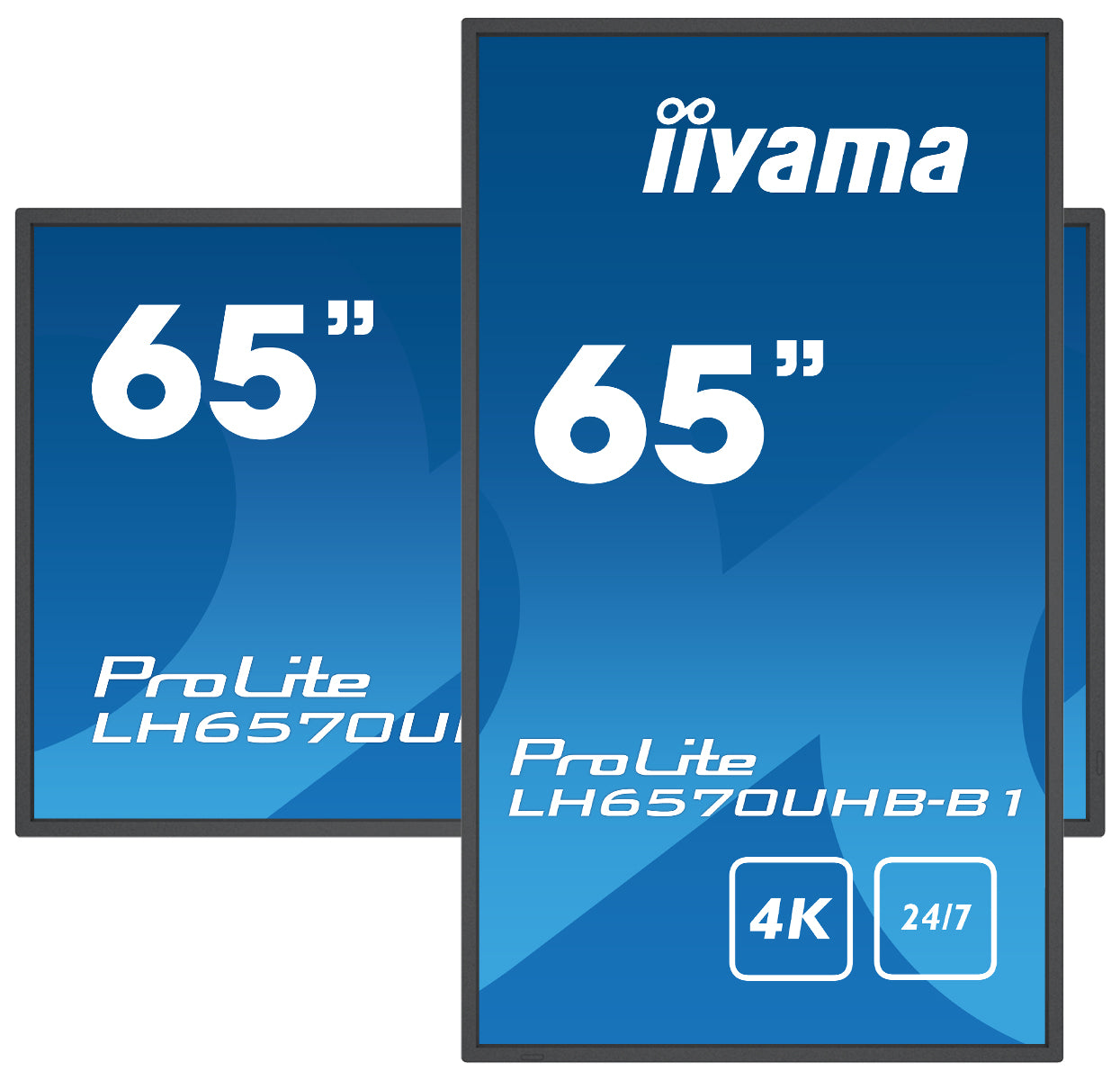

  Designed to perform in continual, around-the-clock environments, the LH6570UHB can be installed and utilised in landscape and portrait orientation. The jaw-dropping and best-in-class 35mm total depth (when used with the included proprietary brackets) will mean this display can be installed discreetly and elegantly in all areas.


  Introducing the iiyama ProLite LH6570UHB-B1, a 65" Professional Digital Signage display designed to dazzle and engage audiences with its stunning visual performance. Boasting a 4K UHD resolution (3840x2160), 700cd/m² high brightness, and a 4000:1 contrast ratio, this display delivers vibrant, crystal-clear images that demand attention. Powered by Android 9.0, you can effortlessly customize the display by installing applications directly onto it, making it the ideal choice for Digital Signage, In-store communication, and messaging applications.

  Built to excel in continuous, 24/7 environments, the LH6570UHB can be installed in both landscape and portrait orientations, providing versatile display options. With a best-in-class total depth of just 35mm when used with the included proprietary brackets, this slim and stylish display can be seamlessly integrated into any space for a sleek and unobtrusive presentation. Elevate your digital signage game with the iiyama ProLite LH6570UHB-B1.

  Zero GAP Technology: Sleek Displays, Seamless Artistry

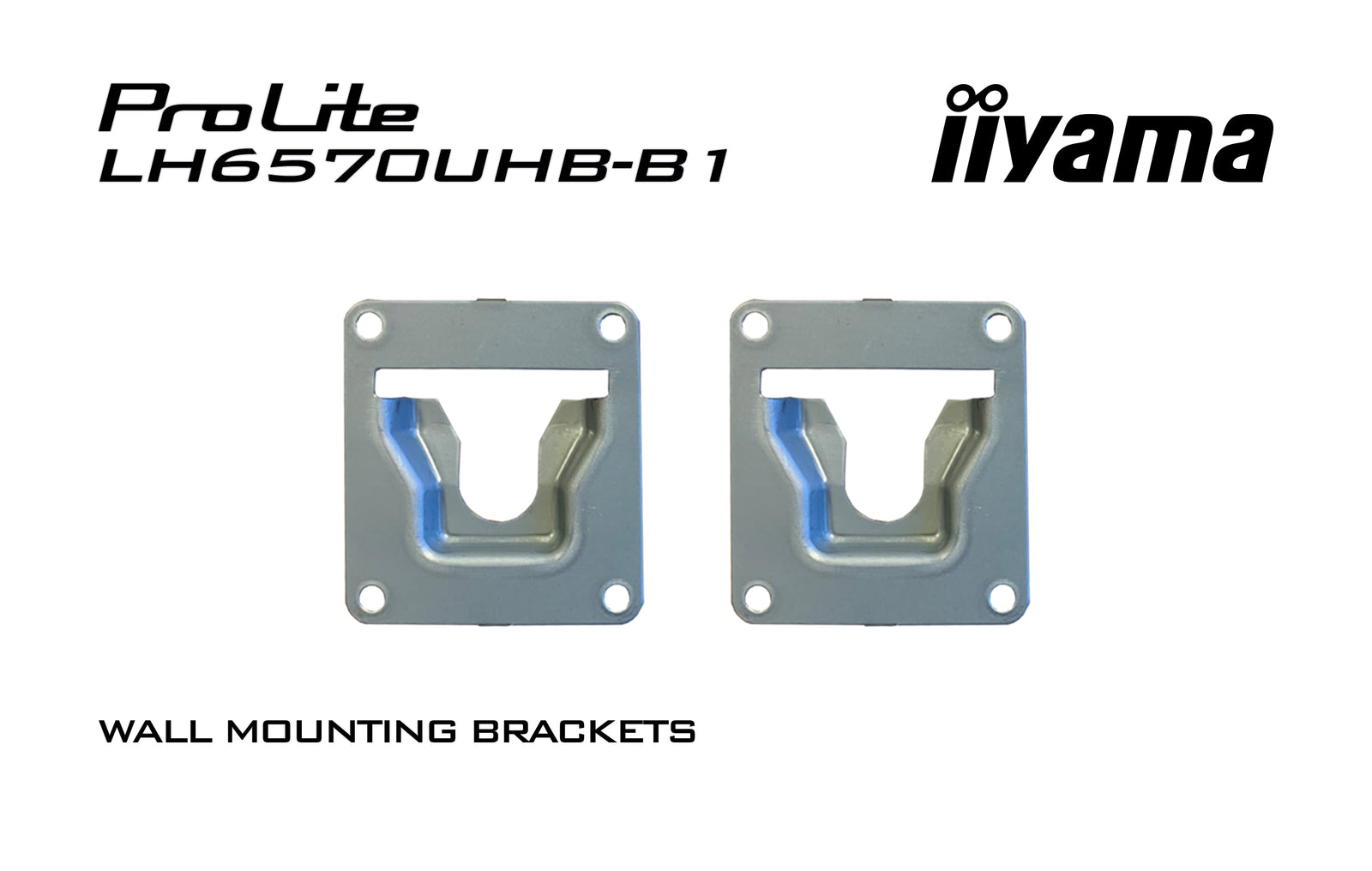

  ZERO-GAP WALL MOUNT

  Style commercial interiors with Ultra Slim line displays and portray them like smart artwork, using the included Zero-Gap wall mount brackets.



  ---

  Half the Depth, Double the Elegance


  ULTRA SLIM

  With 50 percent depth saving over similar models, the jaw-dropping and best-in-class 25mm total depth display can be installed discretely and elegantly in all areas.



  ---

  Empowering Displays, Endless Possibilities

  ANDROID OS

  Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.



  ---

  Uninterrupted Day and Night Streaming

  24/7 Operation

  24/7 displays are designed for continuous operation.



  ---

  Unleashing Clarity, Redefining Visual Experiences

  4K

  UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

• DISPLAY CHARACTERISTICS

  Design	Thin bezel
  Diagonal	64.5", 164cm
  Panel	VA, haze 2%
  Native resolution	3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
  Aspect ratio	16:9
  Panel brightness	700 cd/m²
  Static contrast	4000:1
  Response time (GTG)	8ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	1.07B 10bit (8bit + Hi-FRC)
  Horizontal Sync	28 - 135kHz
  Viewable area W x H	1428.5 x 803.5mm, 56.2 x 26.8"
  Bezel width (sides, top, bottom)	12mm, 12mm, 12mm
  Pixel pitch	0.372mm
  Bezel colour and finish	black, matte

  INTERFACES / CONNECTORS / CONTROLS

  Digital signal input	HDMI x2 (v.2.0, max. 3840x2160 @60Hz)
  Monitor control input	RS-232c x1 (2.5mm mini jack) RJ45 (LAN) x1 IR x1 (3.5mm stereo mini)
  Audio output	Mini jack x1 (3.5mm - stereo)
  HDCP	v.2.3
  USB ports	x2 (v.2.0)

  FEATURES

  Integrated software	Android OS 9.0, iiWare
  Hardware	CPU: A53*2, quad core 1.5G, GPU: Mali G51 MP2, Memory: 3GB DDR4, Storage:32GB eMMC
  Max. non-stop operating time	24/7
  Anti image retention	yes
  Media playback	yes
  Housing (bezel)	metal

  GENERAL

  OSD languages	EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL
  Control buttons	Power
  User controls	picture (picture mode, contrast, brightness, hue, sharpness, saturation, black level, colour temp., aspect ratio, gamma selection), sound (balance, treble, bass), setting (OSD off timer, colour range, orientation, CEC options, wake on LAN, auto wake up, boot on source, logo on/off, HDMI version, IR/keypad lock, language, power saving, recovery from power off, restore to default), time (date, current time, scheduler), information (iiWare version, FW version, release date, current resolution, IP address, Wi-Fi MAC address, MAC address, internal thermal temp.)
  Plug&Play	DDC2B

  MECHANICAL

  Orientation	landscape, portrait
  Fanless design	yes
  VESA mounting	400 x 400mm
  Operation temperature range	0°C - 40°C
  Storage temperature range	- 20°C - 60°C
  MTBF	50.000 hours (excluding backlight)

  ACCESSORIES INCLUDED

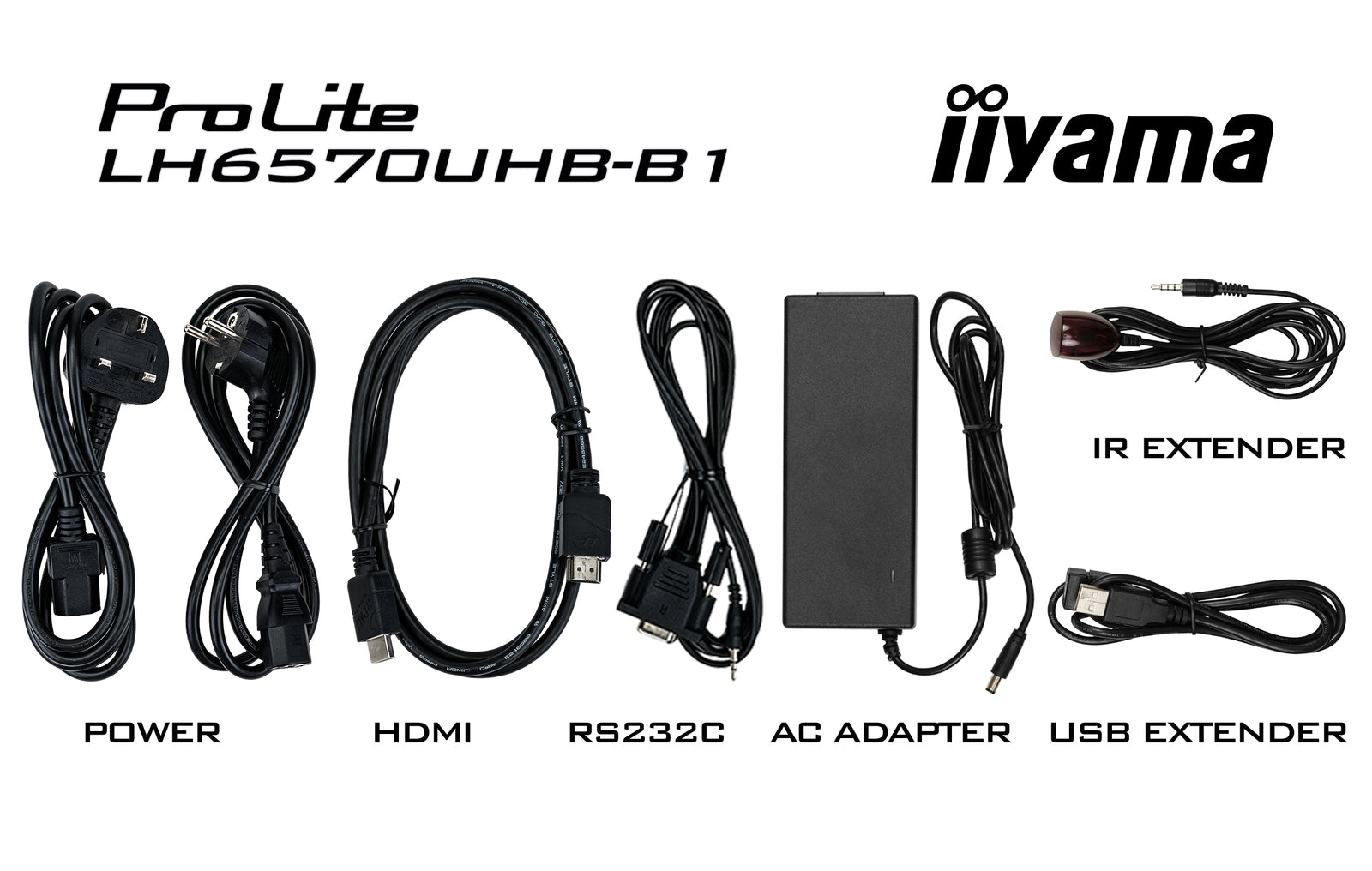

  Cables	power, USB, HDMI, RS-232c, IR-Extender
  Guides	quick start guide, safety guide
  Other	Wall mounting brackets, Stickers for screw holes, Adhesive clips for cable management

  POWER MANAGEMENT

  Power supply unit	external
  Power supply	DC 24 V
  Power usage	150W typical, 0.5W stand by, 0.3W off mode

  SUSTAINABILITY

  Regulations	CE, TÜV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA
  Energy efficiency class (Regulation (EU) 2017/1369)	G

  DIMENSIONS / WEIGHT

  Product dimensions W x H x D	1456 x 831 x 35mm
  Box dimensions W x H x D	1640 x 970 x 190mm
  Pallet volume	12pcs
  Weight (without box)	29kg
  Weight (with box)	36kg
  EAN code	4948570120512

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17" - 43")	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download


  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one - Check that all connections have been properly made.

  Step two - Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three - If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four - Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five - Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six - Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required
