86" 4K UHD
3840 x 2160 resolution for large-format advertising, information, presentations and corporate content.
Official Partner
iiyama ProLite LH8664UHS-B2AG 86" 4K UHD Android 14 Professional Signage Display
In Stock18 available
Express DeliveryFast UK delivery where eligible
3 Year WarrantyManufacturer-backed cover
UK Expert SupportPre-sales and technical advice
Product description
iiyama ProLite LH8664UHS-B2AG
iiyama ProLite LH8664UHS-B2AG 86" 4K Professional Digital Signage Display
The iiyama ProLite LH8664UHS-B2AG is an 86" professional 4K UHD digital signage display with 500 cd/m² brightness, Android 11, iiSignage² CMS, EShare, Signal FailOver, integrated Wi-Fi and reliable 24/7 commercial operation.
Its 85.6" IPS panel delivers 3840 x 2160 resolution, wide 178° viewing angles and a 1,200:1 static contrast ratio. Three HDMI 2.0 inputs, 2 x 16W speakers, LAN and RS-232C control make the LH8664UHS-B2AG suitable for retail, hospitality, corporate spaces, education, reception areas and public information.
86" 4K UHD
3840 x 2160 @ 60Hz
Android 11
2GB RAM + 16GB storage
500 cd/m²
Professional indoor signage
24/7 Operation
Continuous commercial use
Description
LH8664UHS-B2AG Professional Signage
A high-impact 86" iiyama commercial display.
The iiyama LH8664UHS-B2AG is designed for organisations that need a very large professional digital signage display with integrated Android functionality, content management and continuous-use reliability.
Its 85.6" IPS panel provides 3840 x 2160 4K UHD resolution, 500 cd/m² brightness, 1,200:1 static contrast and wide 178° viewing angles.
Android 11, iiSignage², EShare, Signal FailOver and integrated media playback create a flexible professional signage platform.
Compare this model with other 86" commercial displays available from ScreenMoove.
- iiyama ProLite LH8664UHS-B2AG
- 85.6" / 217.4cm professional display
- 3840 x 2160 4K UHD resolution
- 500 cd/m² brightness
- IPS panel
- 1,200:1 static contrast
- Android 11 operating system
- 2GB RAM and 16GB storage
- iiSignage² content management
- EShare wireless collaboration
- Signal FailOver
- 24/7 commercial operation
LH8664UHS-B2AG Key Features
iiyama ProLite LH8664UHS-B2AG specifications at a glance.
Android 11
Integrated Android platform with 2GB RAM and 16GB internal storage.
500 cd/m²
Professional indoor brightness for large-scale digital signage environments.
24/7 Operation
Designed for continuous professional use where content needs to remain available day and night.
iiSignage²
Integrated content-management tools for remotely managing compatible digital signage content.
3 x HDMI 2.0
Three 4K-capable HDMI inputs for professional AV and signage sources.
4K UHD Resolution
Detailed 4K content across a huge 86" commercial display.
The LH8664UHS-B2AG provides 3840 x 2160 resolution at 60Hz, delivering 8.3 million pixels for professional signage content.
High-resolution advertising, product imagery, dashboards, presentations, wayfinding and promotional video can all be displayed with excellent detail across the large-format panel.
- 3840 x 2160 native resolution
- 4K UHD at 60Hz
- 8.3 megapixel panel
- 16:9 aspect ratio
IPS Panel
Wide viewing angles for large professional spaces.
The iiyama ProLite LH8664UHS-B2AG uses an IPS panel with a 1,200:1 static contrast ratio.
Wide 178° horizontal and vertical viewing angles help content remain clear when audiences view the screen from different positions across larger rooms and commercial environments.
- IPS panel technology
- 1,200:1 static contrast
- 178° horizontal viewing angle
- 178° vertical viewing angle
- 1.07 billion colours
- 25% haze anti-glare surface
Android 11
Integrated Android digital signage functionality.
The LH8664UHS-B2AG uses Android 11 with an MT9630 system-on-chip, quad-core A73 processor, G52 MP2 graphics, 2GB RAM and 16GB internal storage.
Compatible signage applications and media can run directly on the display, helping reduce the need for separate external signage hardware in many installations.
- Android 11 OS
- MT9630 system-on-chip
- A73 quad-core processor
- G52 MP2 graphics
- 2GB RAM
- 16GB internal storage
- Built-in dual-band Wi-Fi
iiSignage² CMS
Create, schedule and manage digital signage remotely.
iiSignage² is iiyama's integrated content-management platform for managing compatible digital signage content.
Marketing and AV teams can remotely manage advertising, information, corporate communications and other content across individual displays or larger signage estates.
- Remote content management
- Content scheduling
- Centralised signage management
- Suitable for single and multi-screen deployments
EShare
Flexible wireless collaboration and content sharing.
EShare adds wireless collaboration functionality to the LH8664UHS-B2AG, allowing compatible devices to share content more easily with the professional display.
Combined with built-in dual-band Wi-Fi, this provides additional flexibility for corporate, education and presentation environments.
Signal FailOver
Help keep important commercial content continuously visible.
Signal FailOver automatically detects available input sources.
If the default input stops receiving a signal, the LH8664UHS-B2AG can move to another prioritised source, helping minimise blank screens in customer-facing and business-critical environments.
- Automatic source detection
- Prioritised backup inputs
- Supports browser and media-player sources
- Helps reduce blank-screen downtime

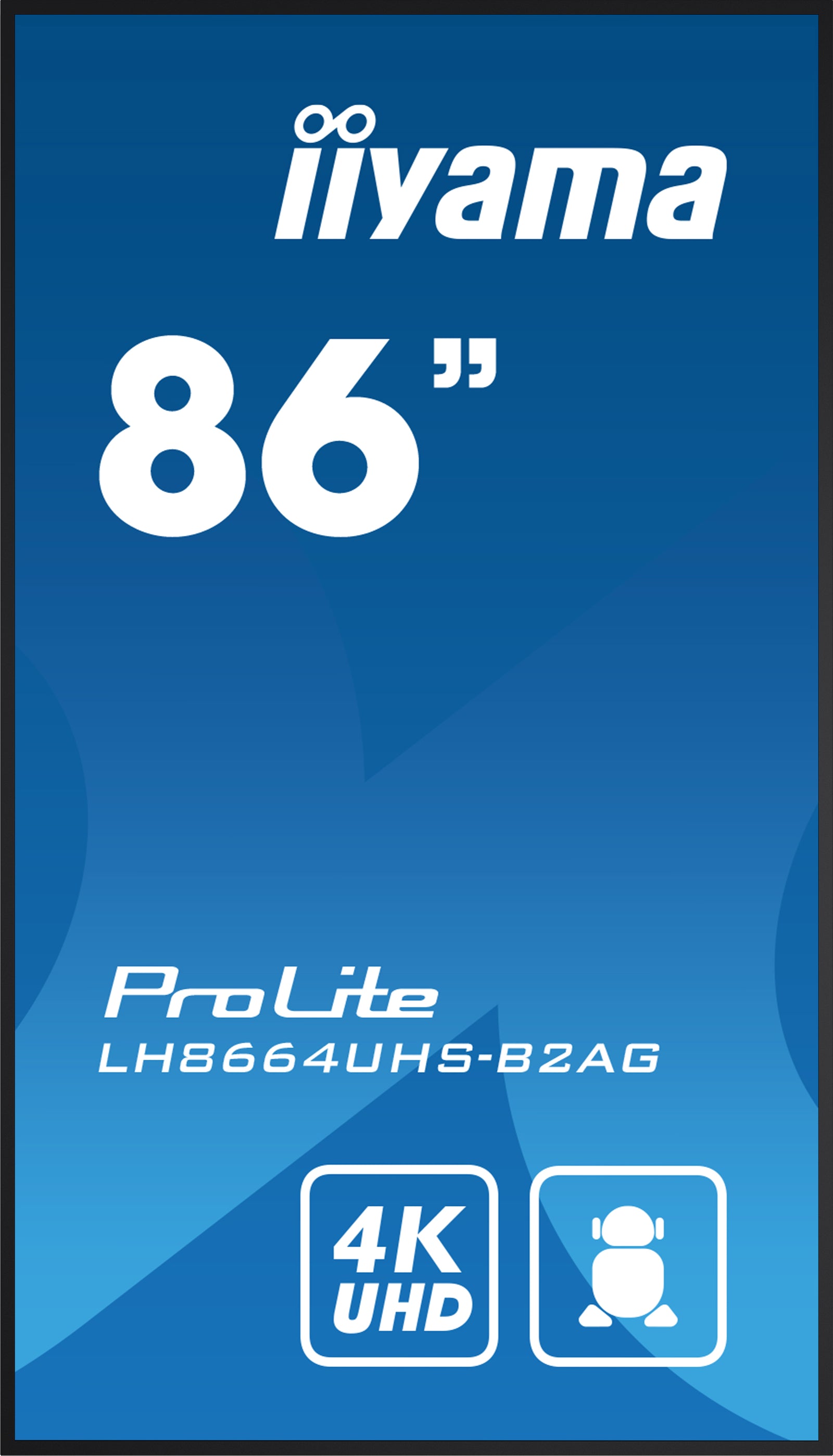

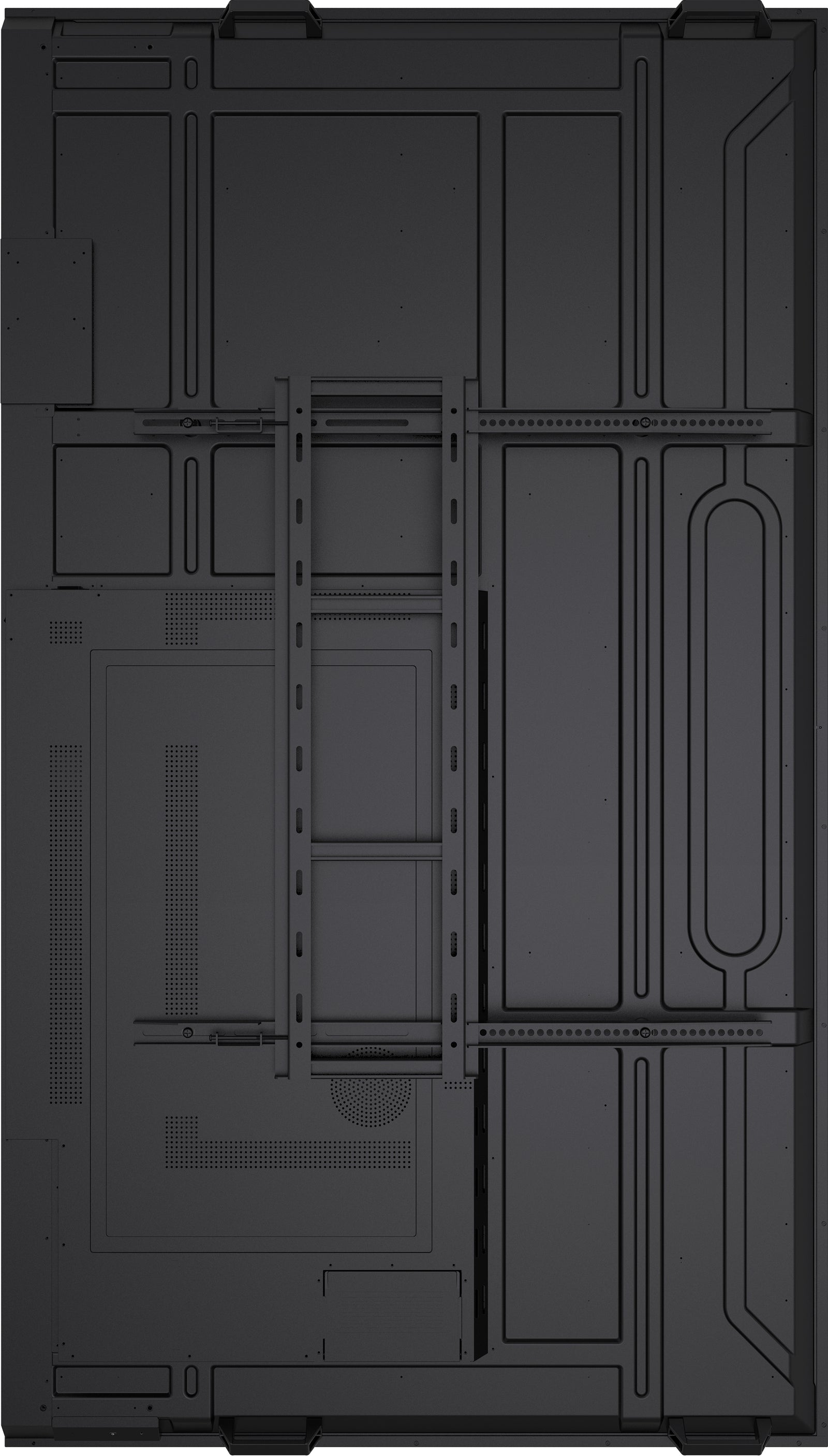

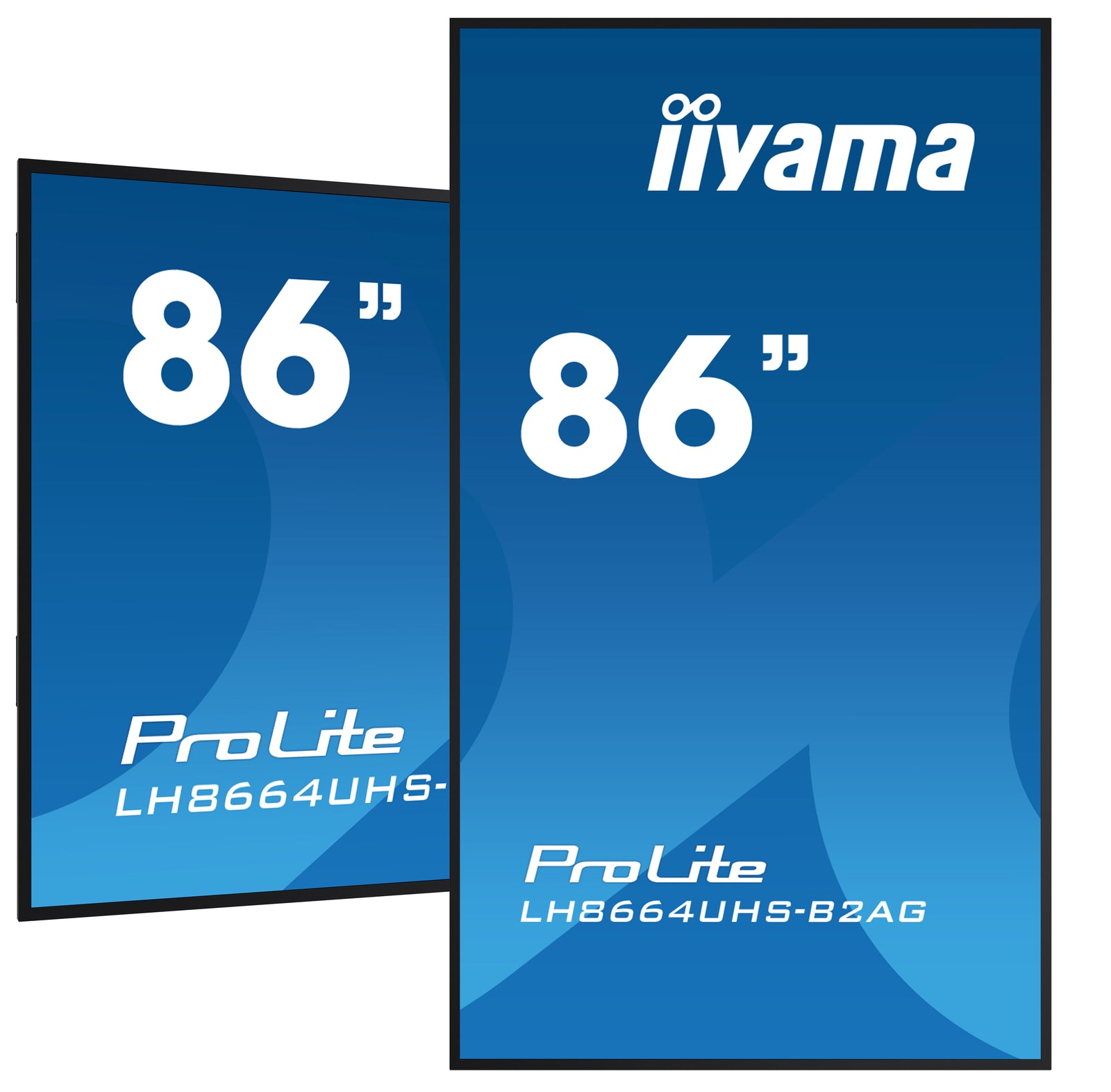

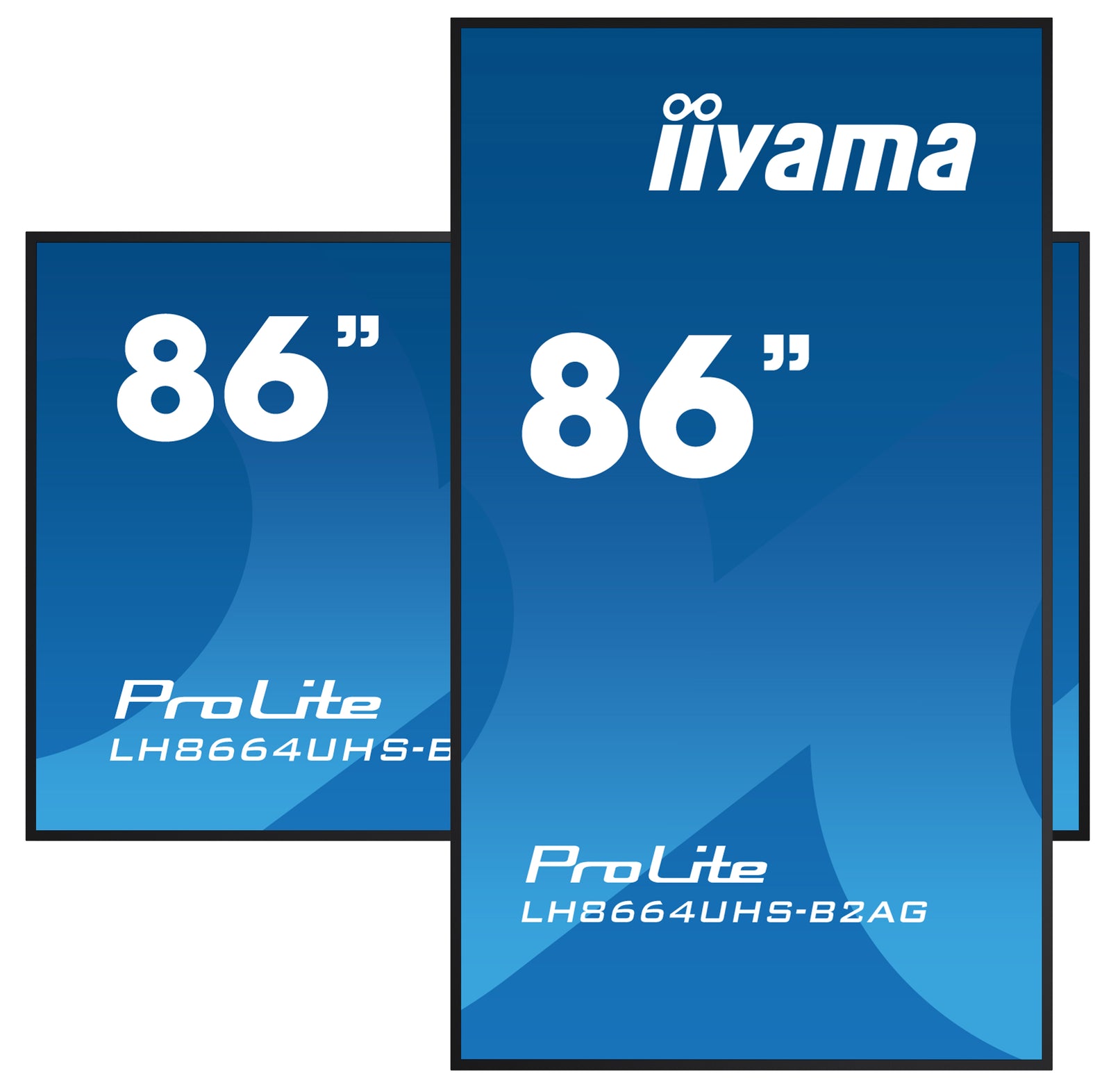

Flexible Orientation
Landscape and portrait digital signage installation.
The LH8664UHS-B2AG supports both landscape and portrait orientation.
Landscape works well for dashboards, presentations and large-format advertising, while portrait is ideal for digital posters, directories, promotions and wayfinding.
- Landscape mounting
- Portrait mounting
- Large-format presentations
- Vertical advertising
- Directories and wayfinding
24/7 Professional Operation
Built for continuous commercial digital signage.
The iiyama LH8664UHS-B2AG is rated for 24/7 operation, making it suitable for professional signage that needs to remain active continuously.
It combines fanless operation with anti-image-retention functionality and a specified 50,000-hour MTBF excluding backlight.
- 24/7 maximum non-stop operation
- Fanless design
- Anti-image-retention support
- 50,000-hour MTBF excluding backlight

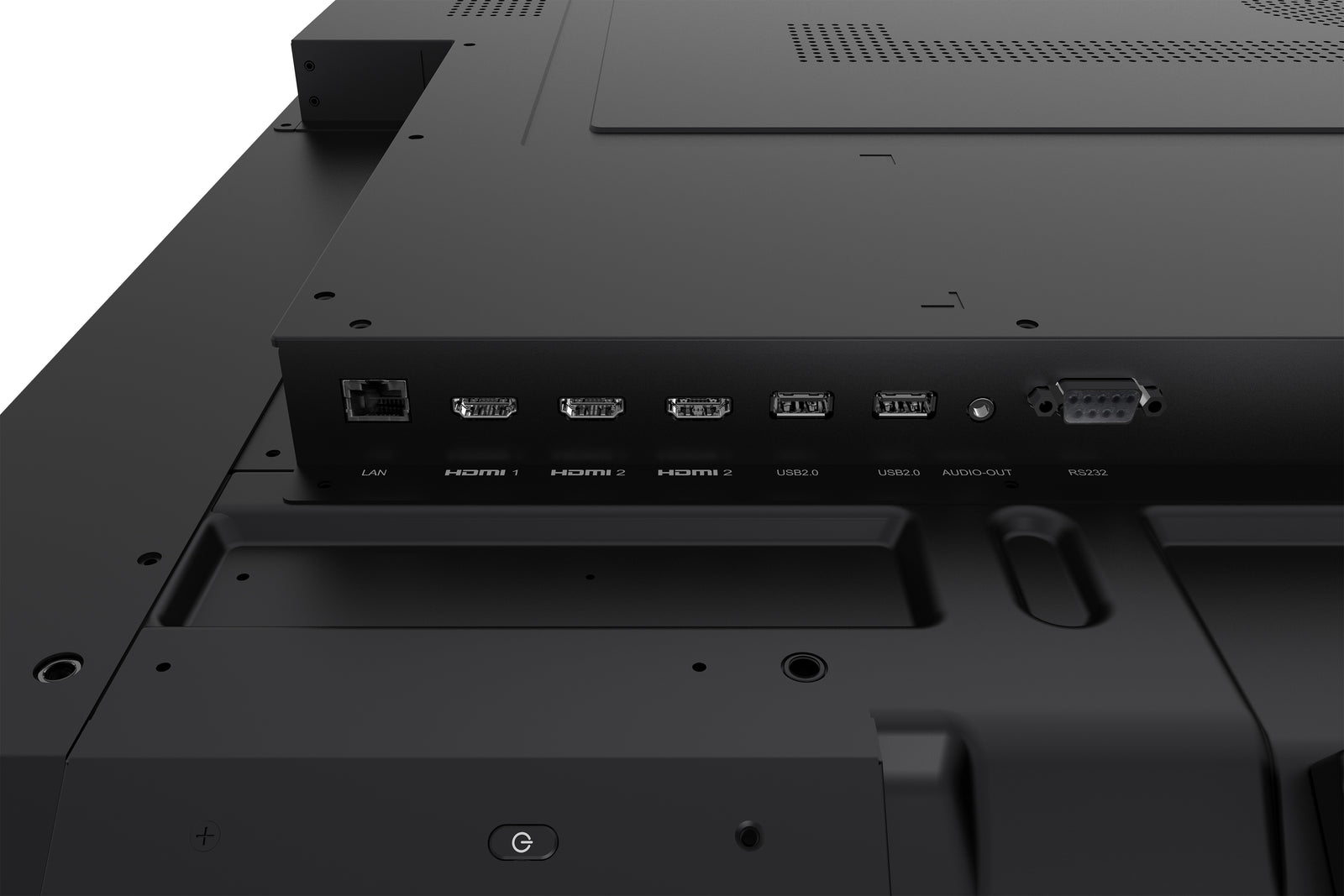

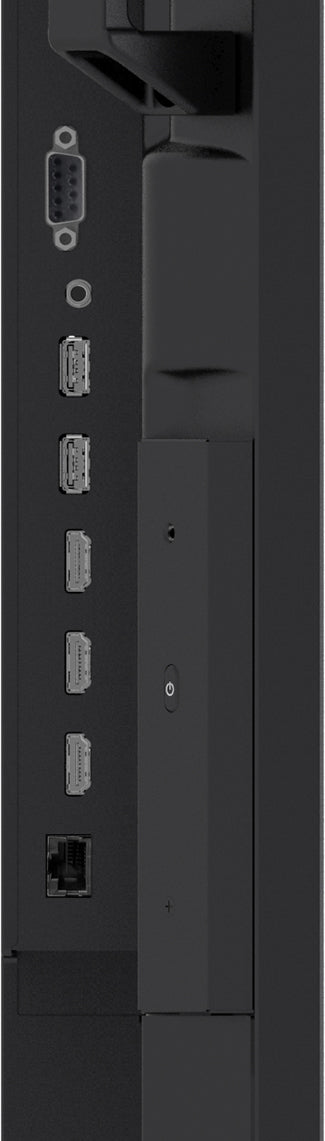

Professional Connectivity
HDMI, USB, LAN, RS-232C and IR control.
The LH8664UHS-B2AG provides professional connectivity for digital signage, AV systems and remote display control.
Three HDMI 2.0 inputs support 4K UHD signals at up to 60Hz, while LAN and RS-232C provide control options for professional AV environments.
- 3 x HDMI 2.0
- 2 x USB 2.0
- RJ45 LAN
- RS-232C control
- IR input
- 3.5mm audio input
- 3.5mm audio output
- Built-in Wi-Fi
Integrated Audio
Built-in 2 x 16W speakers for multimedia signage.
The iiyama ProLite LH8664UHS-B2AG includes two integrated 16W speakers.
This makes it possible to add sound to presentations, advertising and informational content without separate speakers in many commercial installations.
- 2 x 16W integrated speakers
- Stereo commercial audio
- 3.5mm audio input
- 3.5mm audio output
Professional Display Control
Built for integration into managed AV environments.
RS-232C, LAN and IR control give integrators and facilities teams multiple ways to manage the LH8664UHS-B2AG as part of a professional display installation.
- RS-232C control
- RJ45 LAN control
- IR control
- Wake-on-LAN support

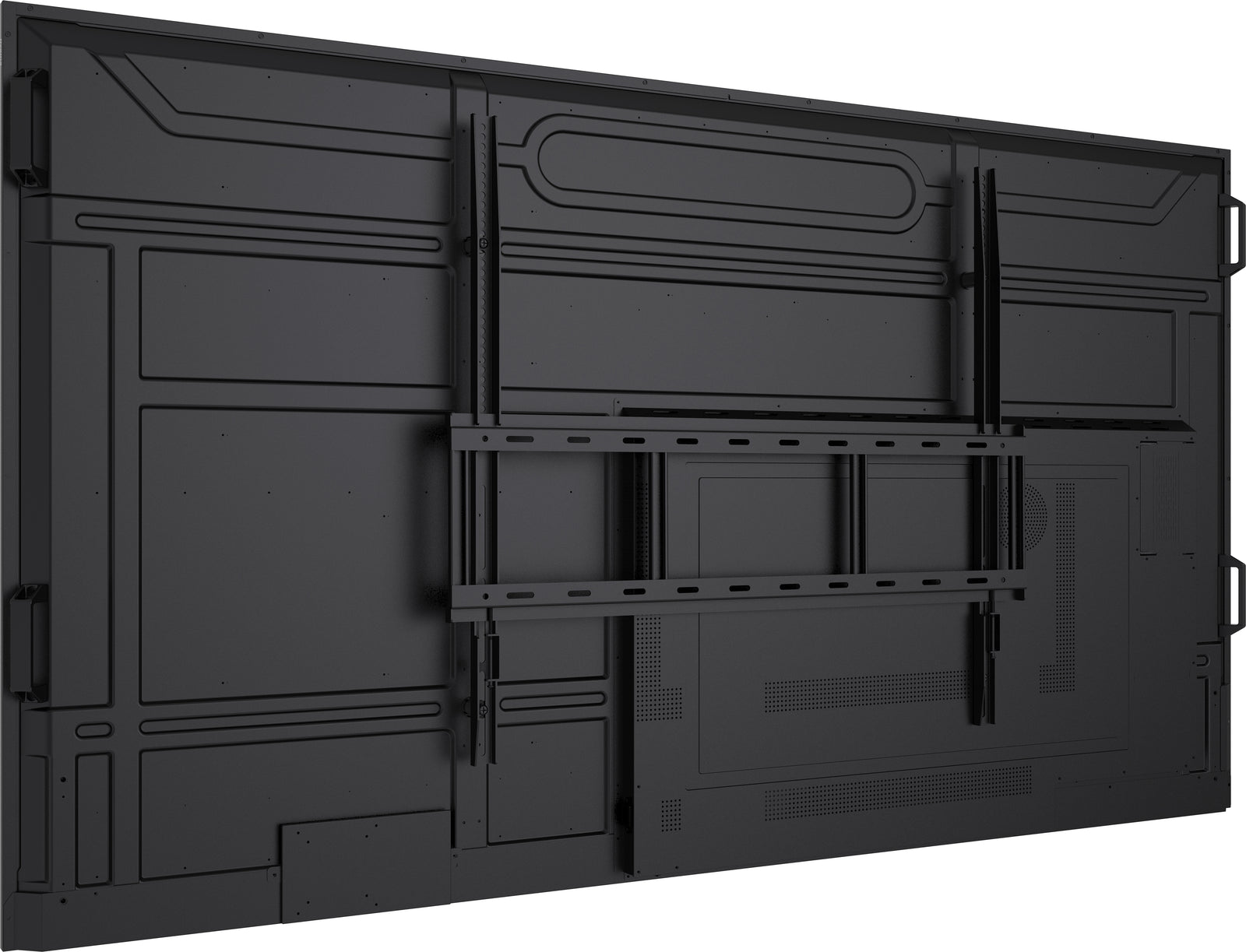

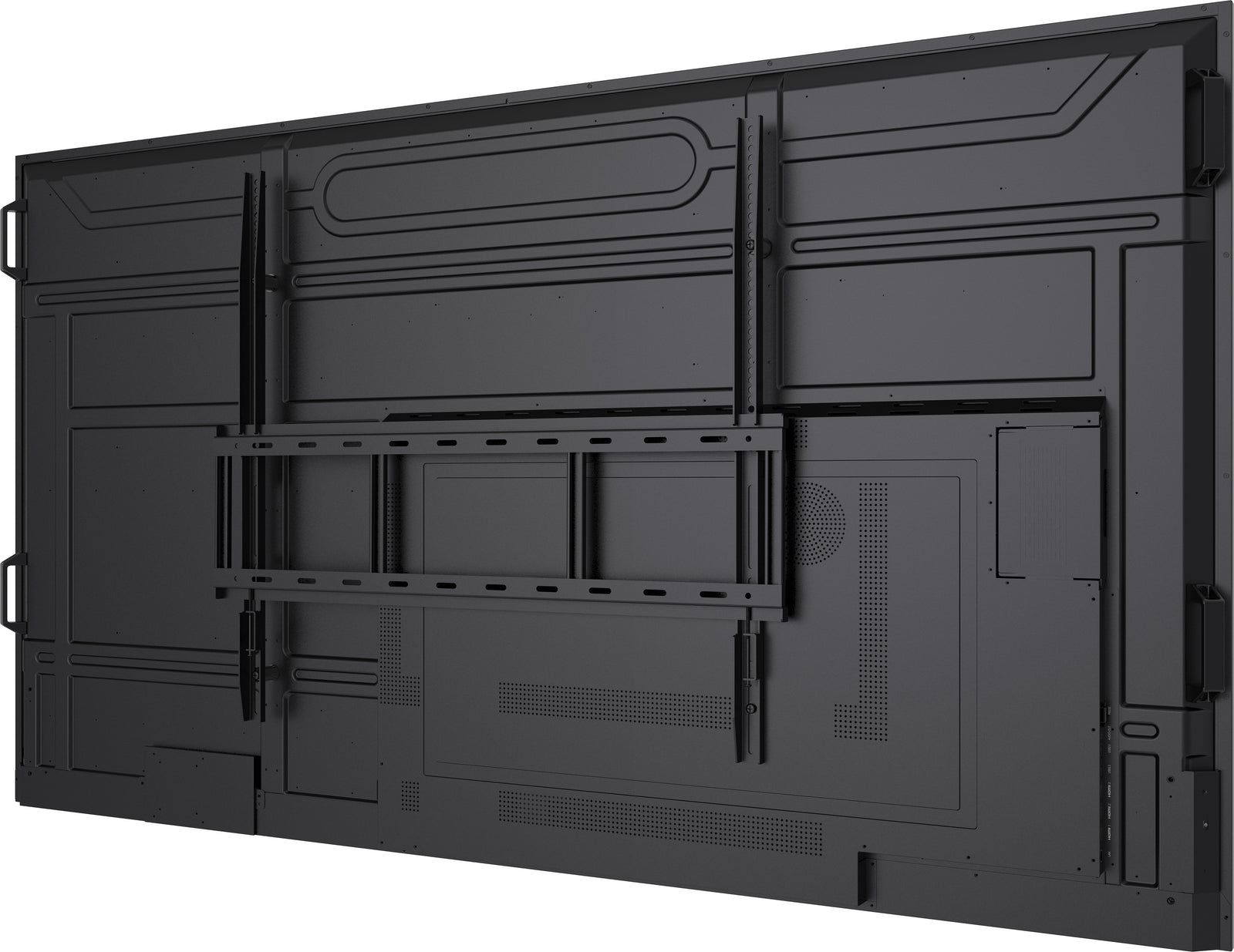

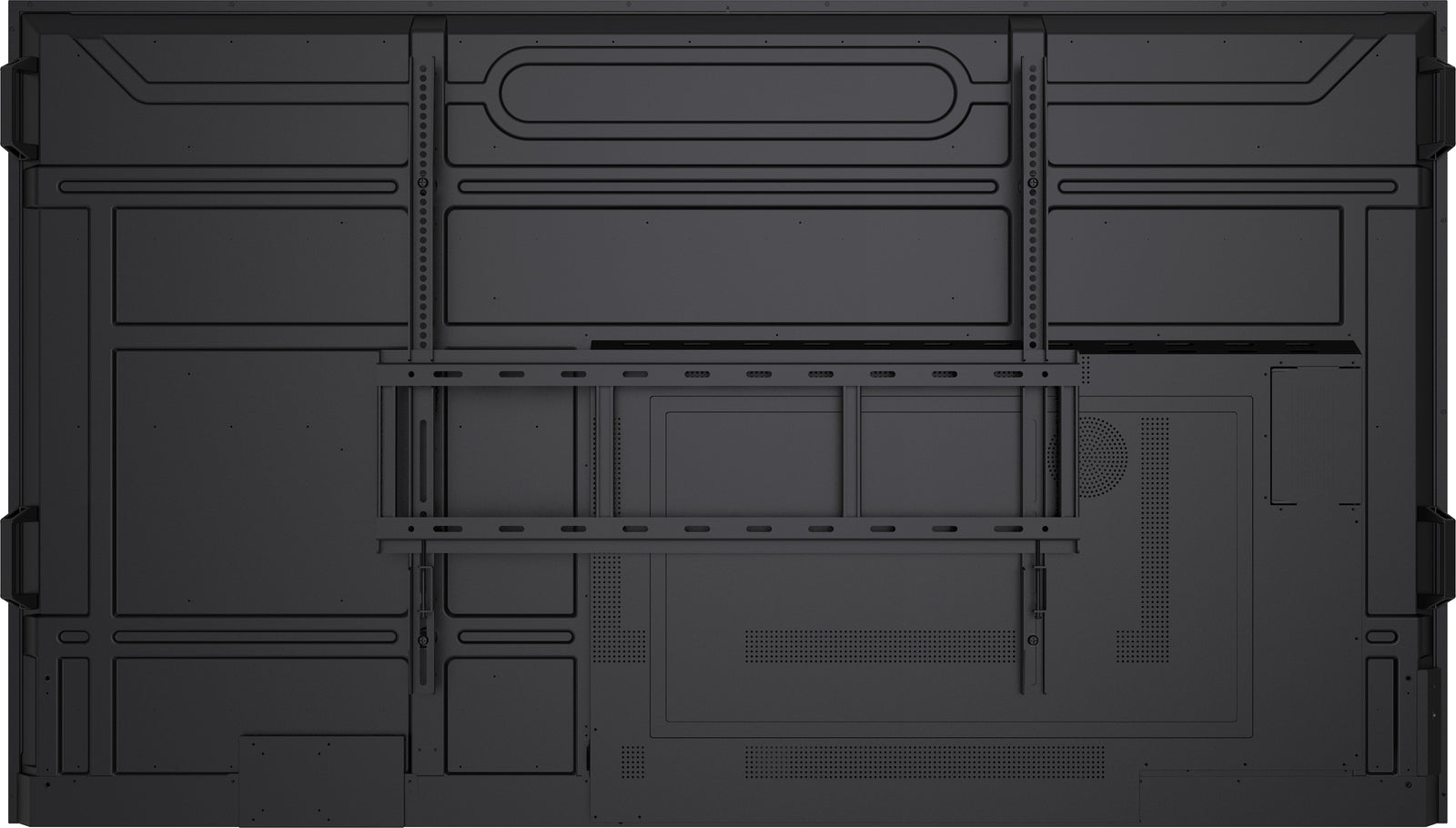

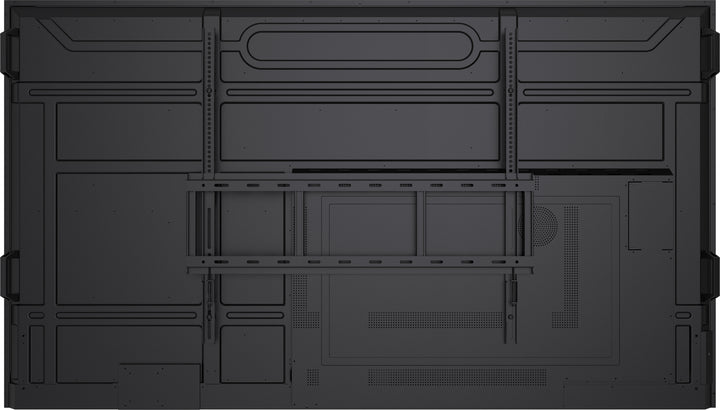

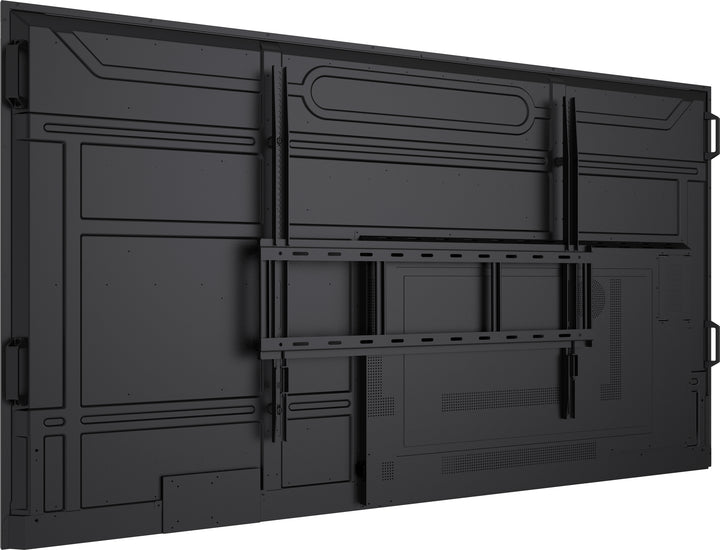

Wall Mount Included
800 x 600mm VESA mounting for professional installations.
The iiyama ProLite LH8664UHS-B2AG uses an 800 x 600mm VESA mounting pattern.
A wall-mount bracket, wall-mount guide, screws and screw anchors are supplied for professional installation.
- 800 x 600mm VESA
- Wall mount bracket included
- Wall mount guide included
- Screws and anchors supplied

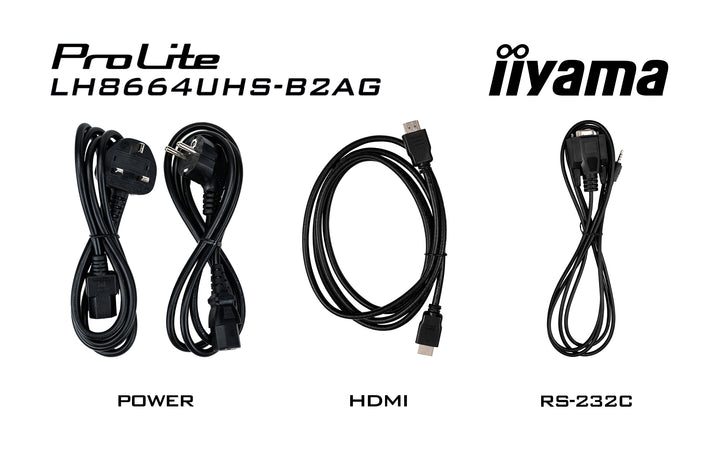

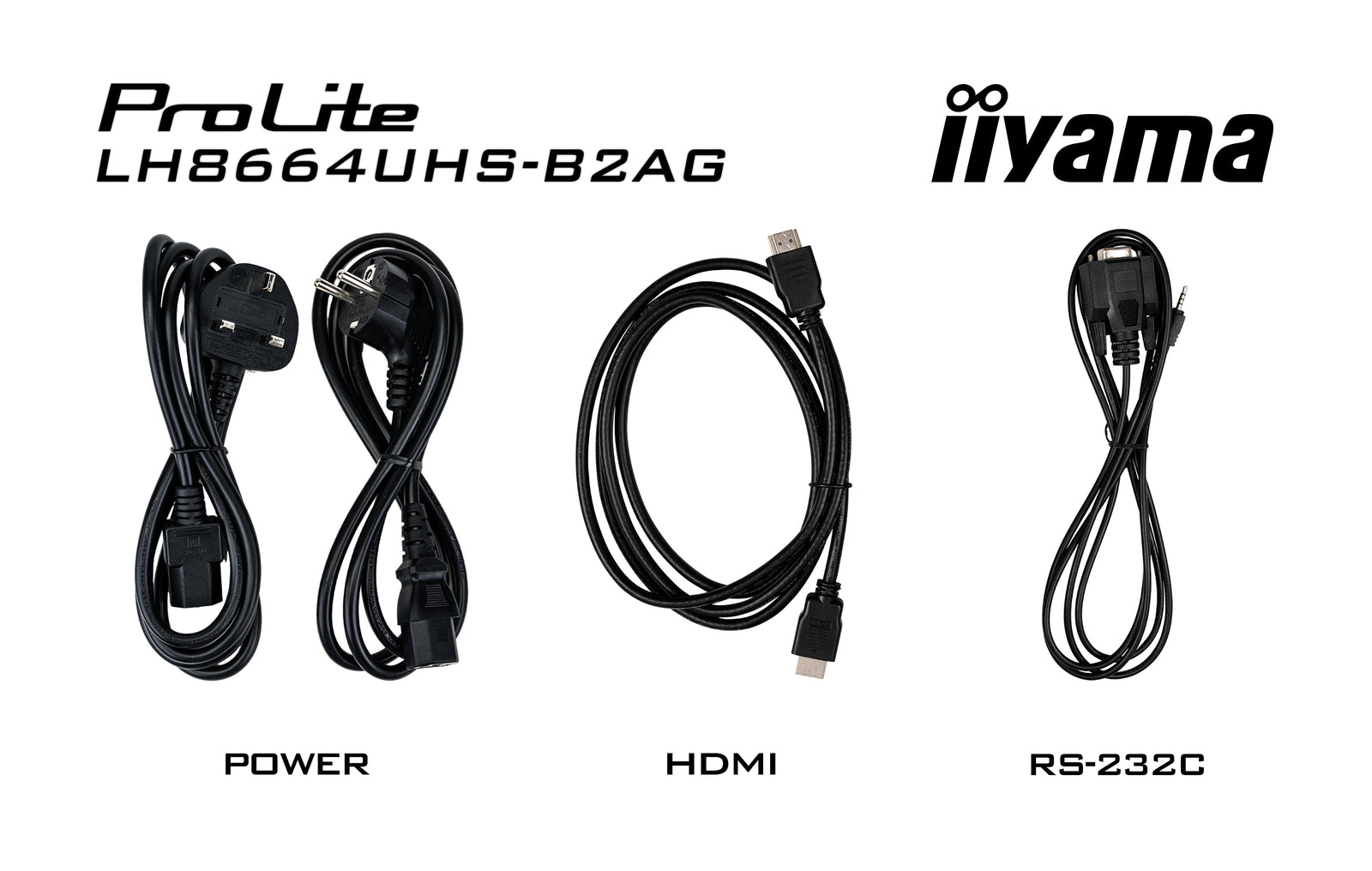

Professional Installation
Supplied with the essentials for commercial installation.
The LH8664UHS-B2AG includes the core cables, mounting hardware, guides and remote control required for professional setup.
- 1.8m power cable
- 1.8m HDMI cable
- 1.8m RS-232C cable
- Remote control with batteries
- Quick start guide
- Safety guide
- Wall mounting hardware
Compare 86" Displays
Is the iiyama LH8664UHS-B2AG the right 86" commercial display?
The LH8664UHS-B2AG is particularly strong if you need 86" 4K UHD resolution, 500 cd/m² brightness, IPS panel technology, Android 11, iiSignage², 3 x HDMI and 24/7 operation.
Compare it against other professional models in ScreenMoove's 86" commercial displays collection .

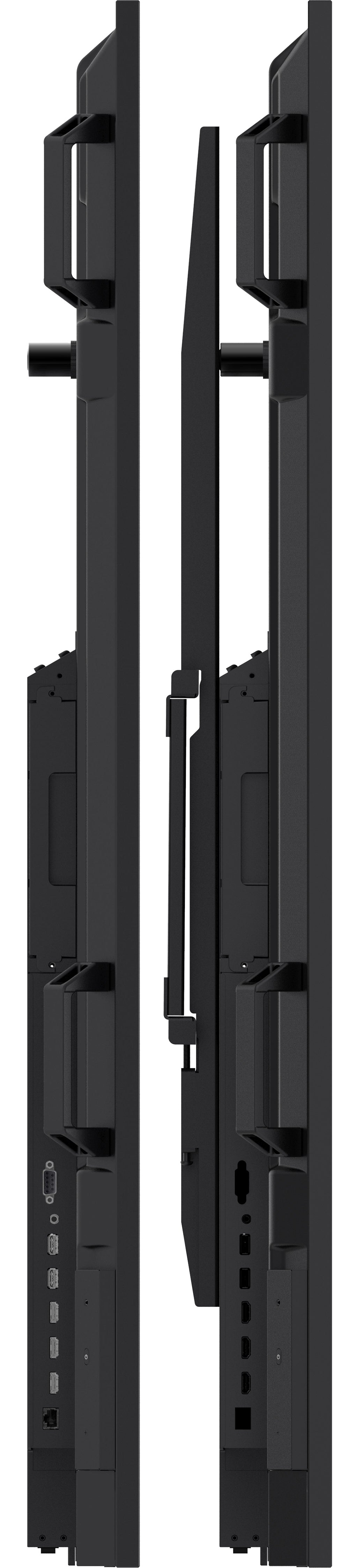

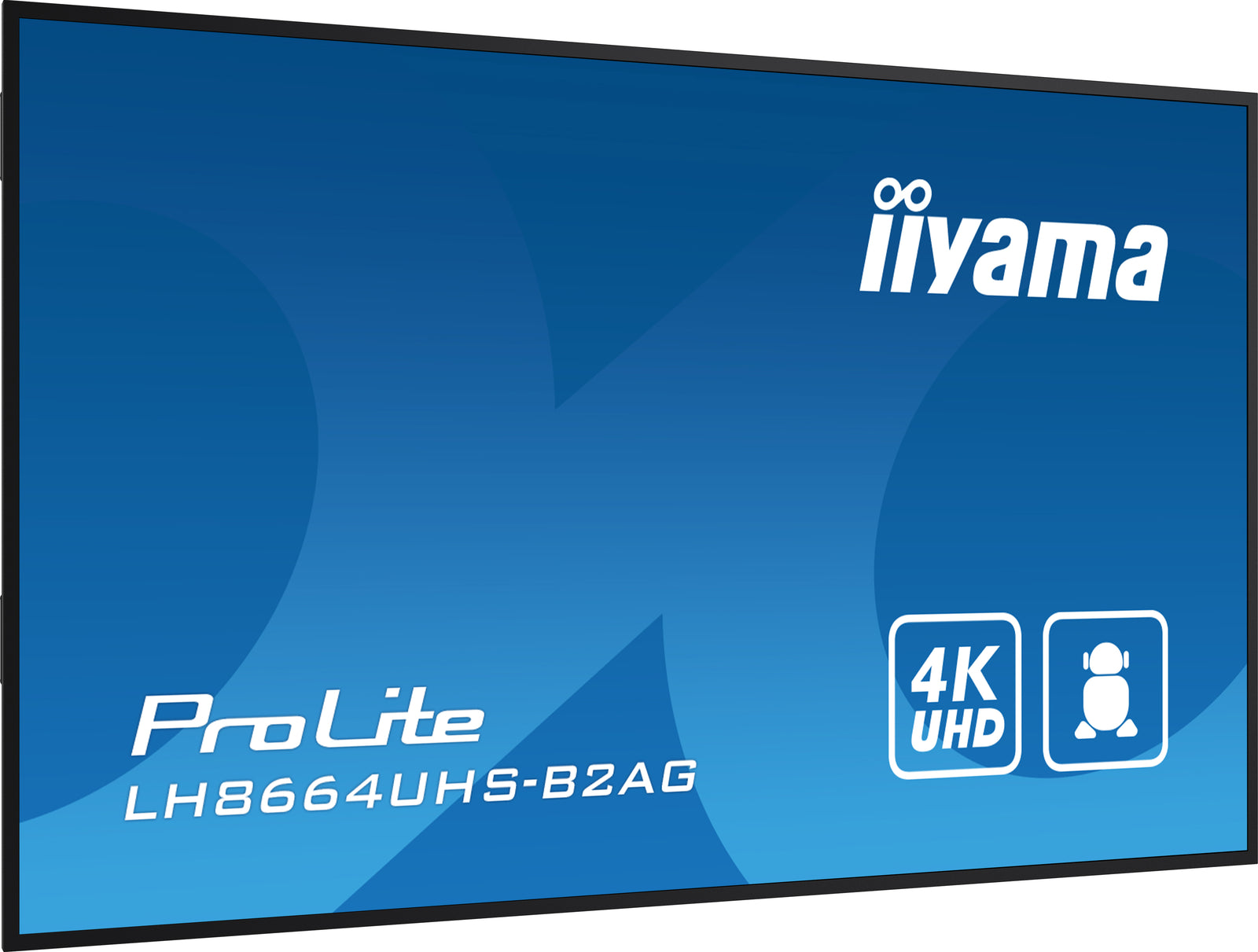

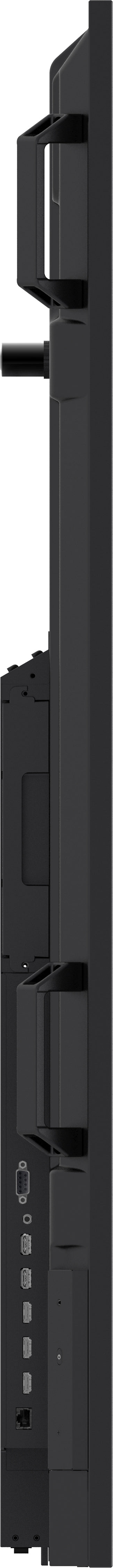

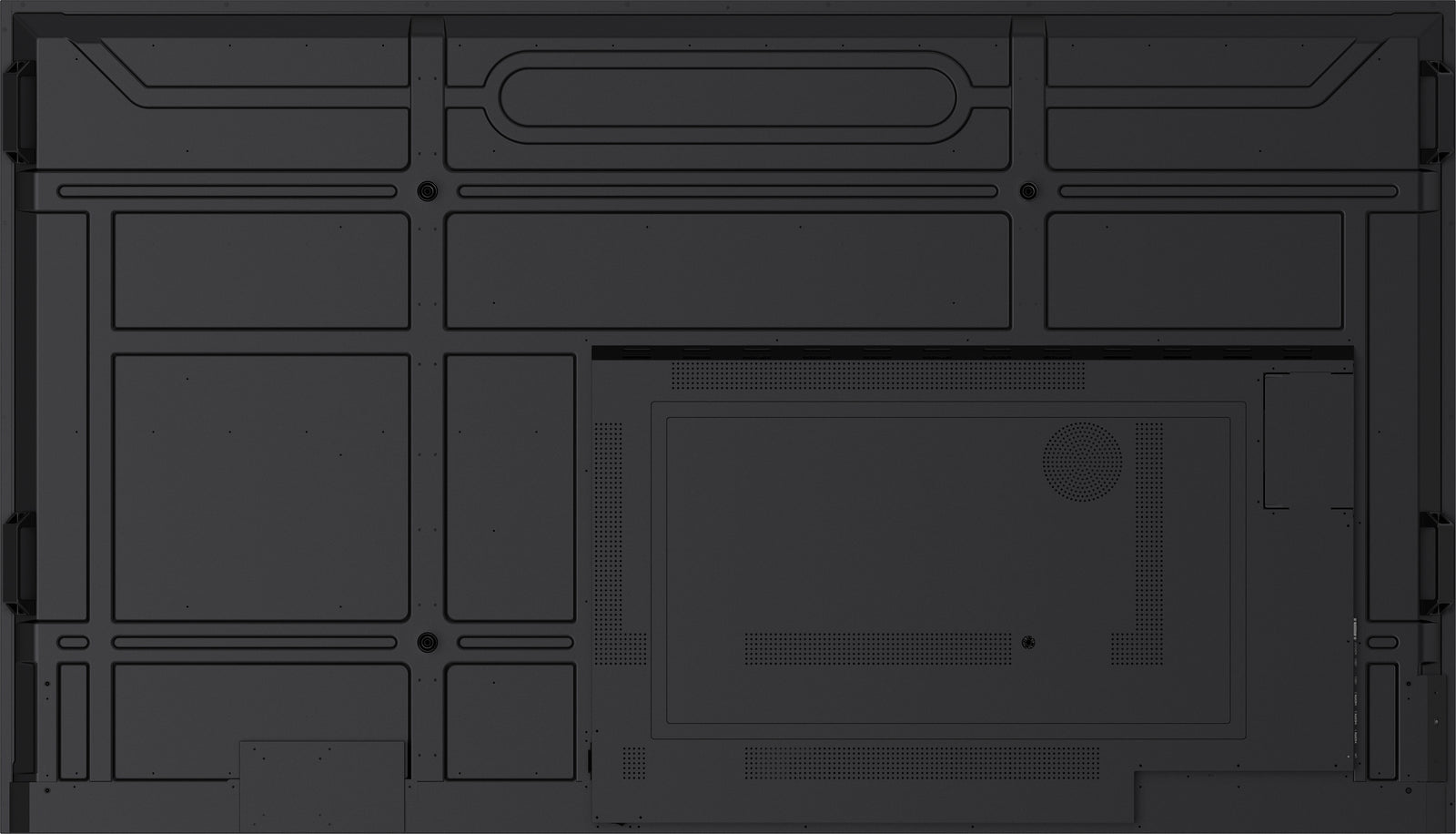

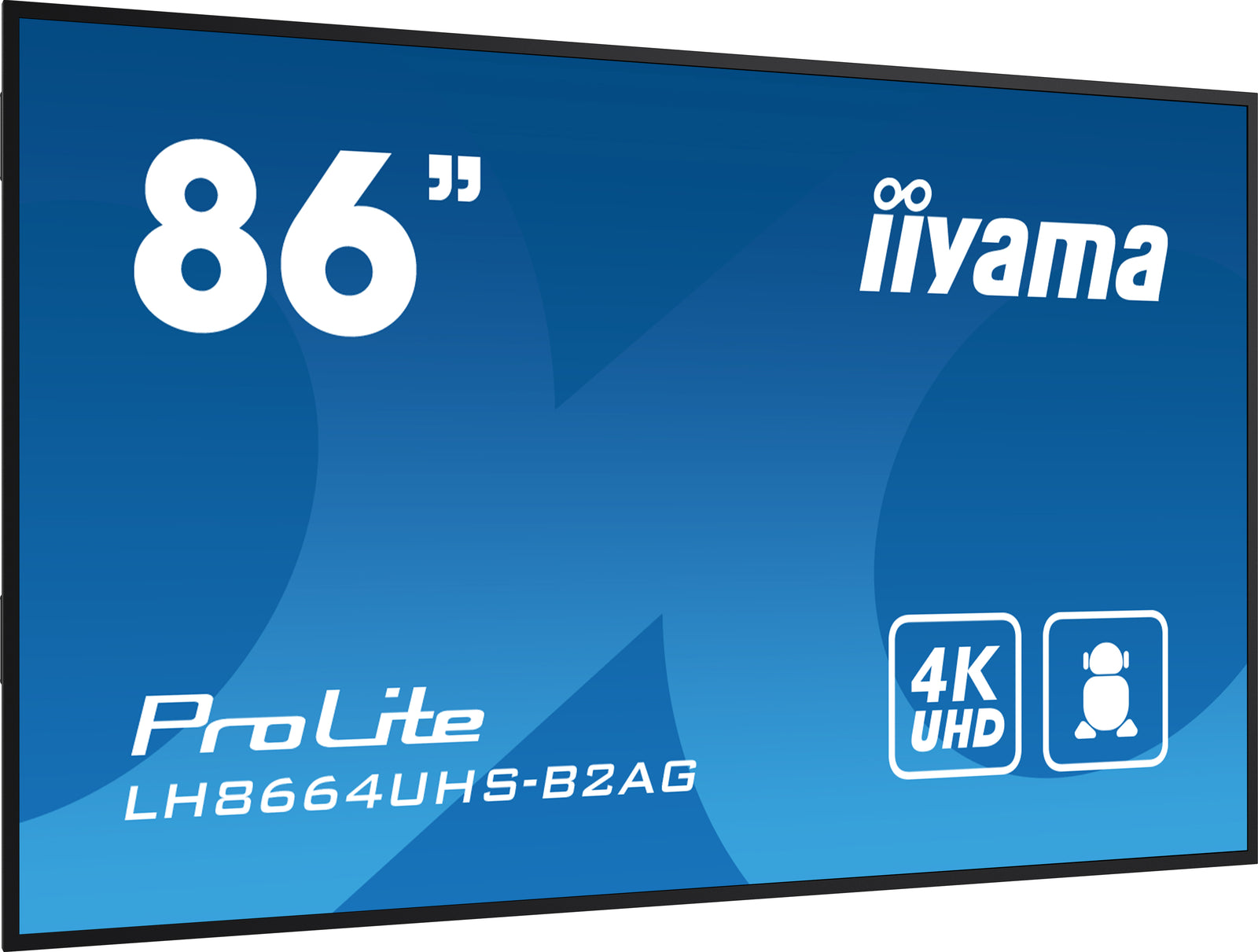

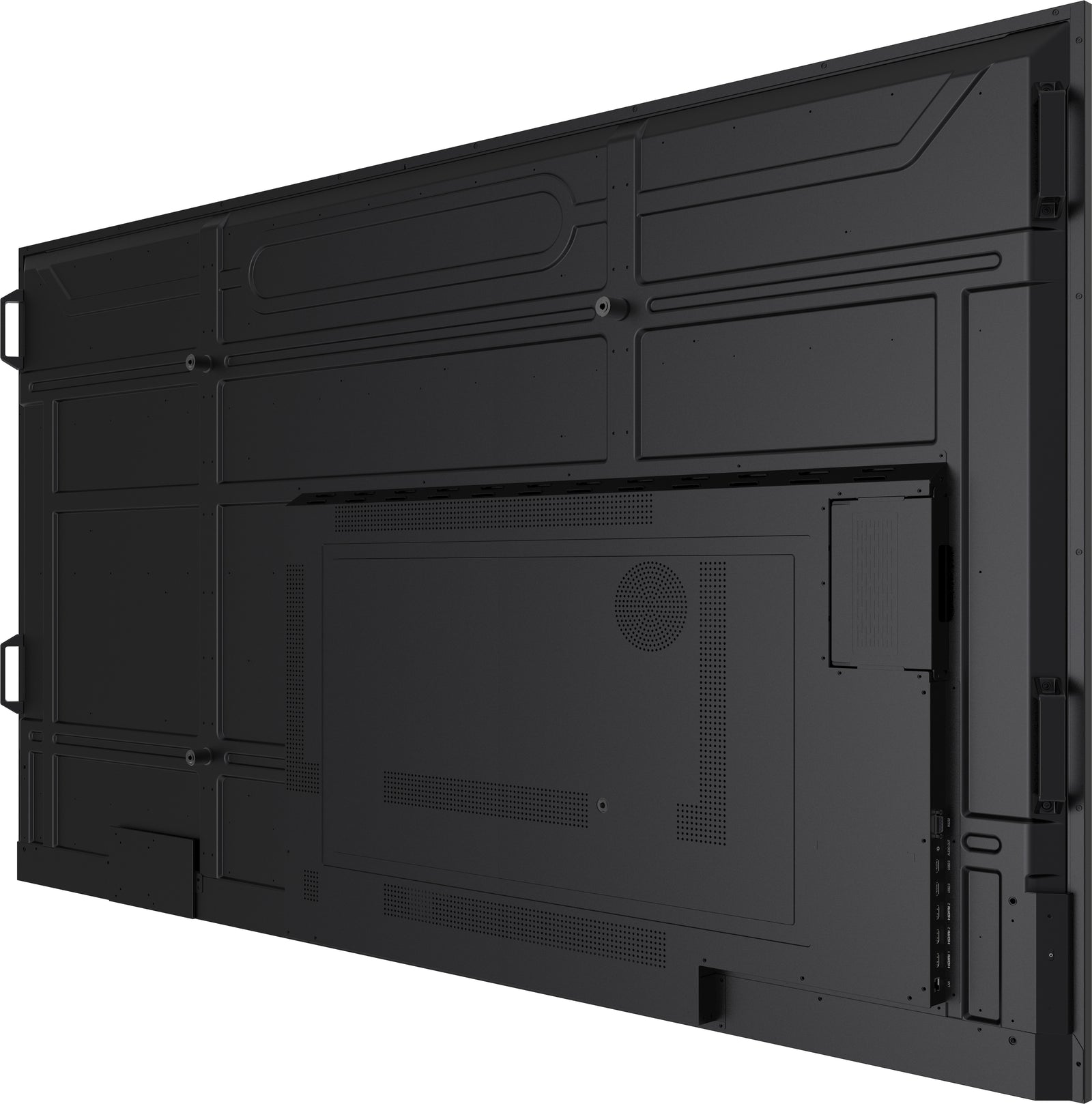

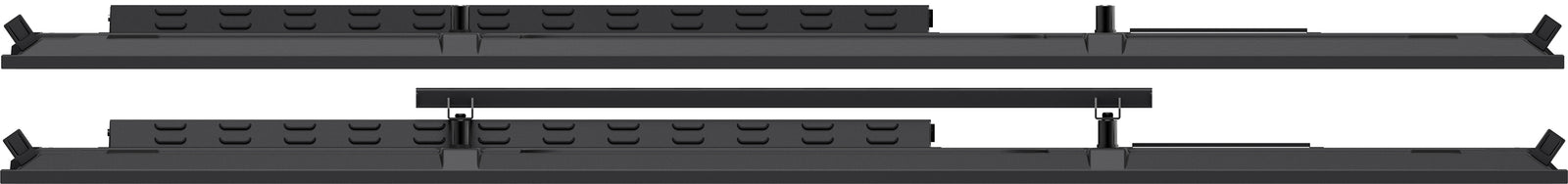

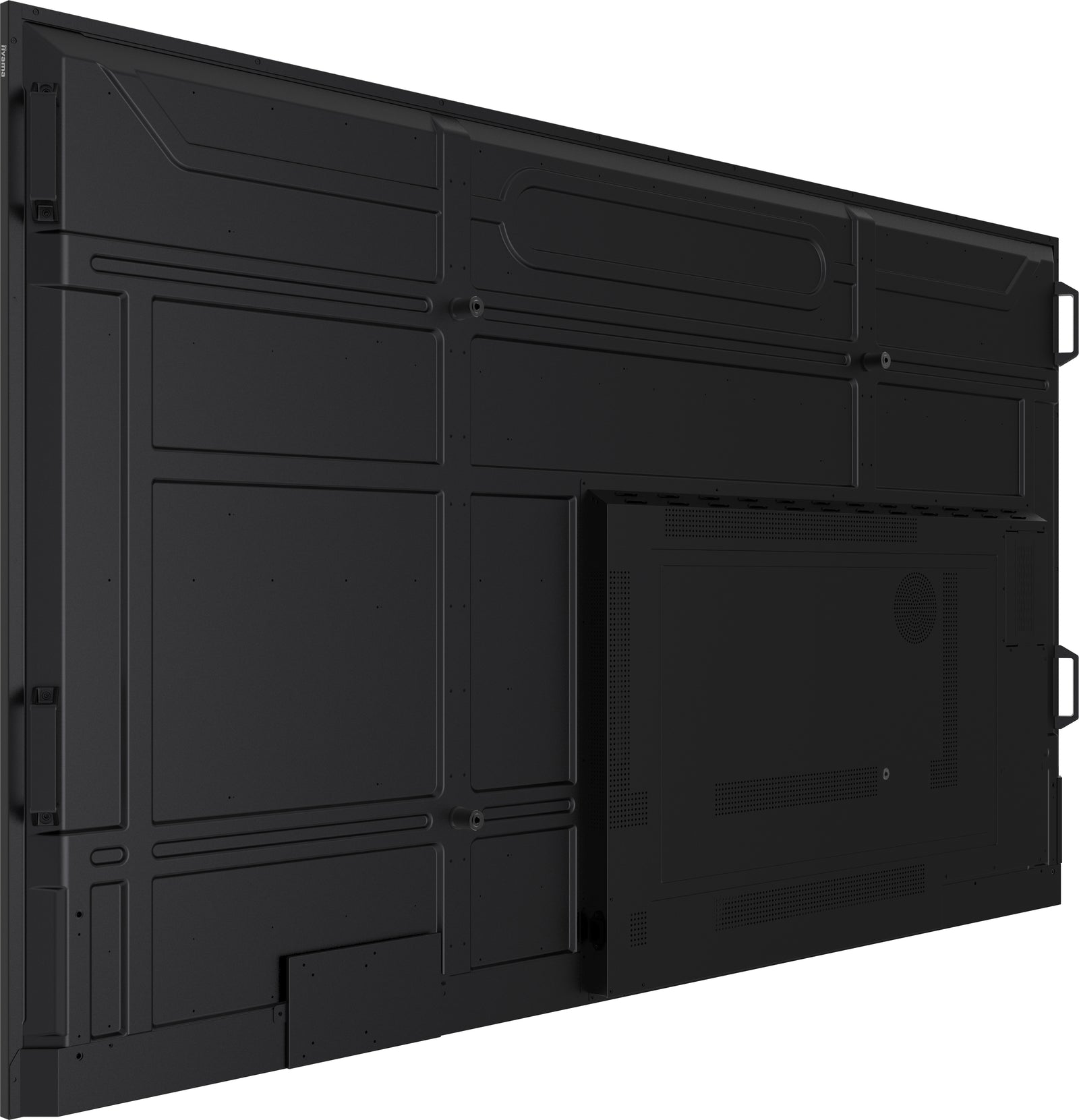

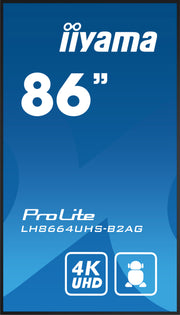

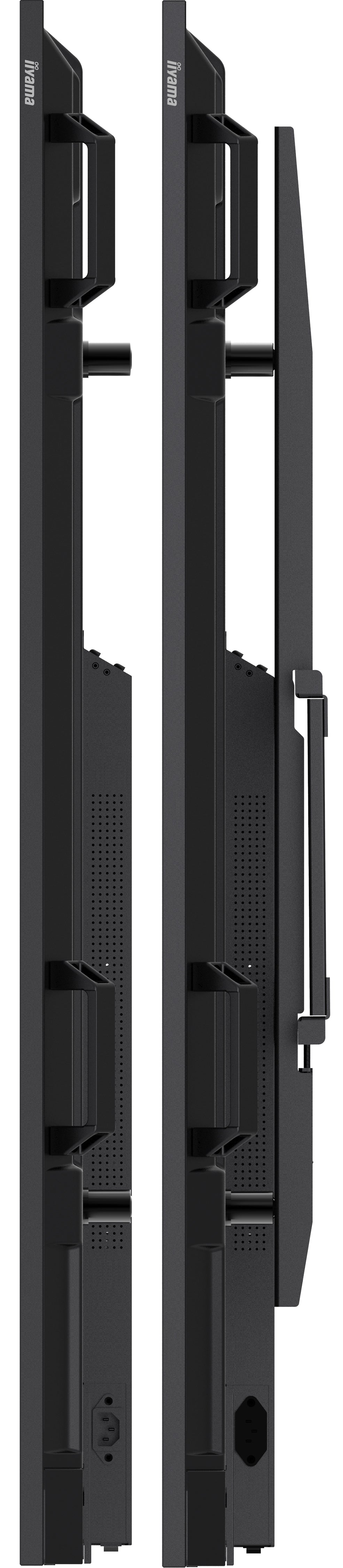

LH8664UHS-B2AG Product Gallery
A closer look at the iiyama ProLite LH8664UHS-B2AG.
Specifications
LH8664UHS-B2AG Technical Specification
iiyama ProLite LH8664UHS-B2AG specifications.
Detailed technical specifications for the LH8664UHS-B2AG including its 85.6" IPS panel, Android hardware, connectivity, VESA mounting, dimensions, power consumption and weight.
| Specification | iiyama LH8664UHS-B2AG Details |
|---|---|
| Display Characteristics | |
| Product | iiyama ProLite LH8664UHS-B2AG |
| Design | Thin bezel |
| Diagonal | 85.6" / 217.4cm |
| Panel | IPS, AG coated glass, matte finish, haze 25% |
| Native Resolution | 3840 x 2160 @ 60Hz, 8.3 megapixel 4K UHD |
| Aspect Ratio | 16:9 |
| Panel Brightness | 500 cd/m² |
| Static Contrast | 1,200:1 |
| Response Time | 8ms GTG |
| Viewing Zone | Horizontal / vertical 178° / 178°; right / left 89° / 89°; up / down 89° / 89° |
| Colour Support | 1.07G, 8-bit + FRC, NTSC 72% |
| Horizontal Sync | 28 - 160kHz |
| Viewable Area | 1895 x 1066mm |
| Bezel Width | 14mm sides, 14mm top, 16mm bottom |
| Pixel Pitch | 0.493mm |
| Bezel Colour / Finish | Black, matte |
| Interfaces / Connectors / Controls | |
| HDMI Inputs | 3 x HDMI 2.0, maximum 3840 x 2160 @ 60Hz |
| USB Ports | 2 x USB 2.0 |
| Audio Input | 3.5mm mini jack x1 |
| Monitor Control | RS-232C x1, RJ45 LAN x1, IR x1 |
| Audio Output | 3.5mm mini jack x1 |
| Speakers | 2 x 16W |
| HDCP | 1.4 and 2.2 |
| Integrated Software & Hardware | |
| Operating System | Android 11 |
| Integrated Software | Android 11 OS, iiSignage², FailOver, EShare |
| Wi-Fi | Built-in dual-band 2.4GHz / 5GHz |
| SoC | MT9630 |
| CPU | A73 quad-core |
| GPU | G52 MP2 |
| RAM | 2GB |
| ROM / Storage | 16GB |
| Maximum Non-Stop Operation | 24/7 |
| Anti Image Retention | Yes |
| Media Playback | Yes |
| Housing / Bezel | Plastic |
| General | |
| OSD Languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB |
| Control Buttons | Power button, Power Indicator, Remote Sensor |
| Plug & Play | DDC2B |
| Mechanical | |
| Orientation | Landscape and portrait |
| Fanless Design | Yes |
| VESA Mounting | 800 x 600mm |
| Wall Mount Kit | Included |
| Operating Temperature | 0°C - 40°C |
| Storage Temperature | -20°C - 60°C |
| MTBF | 50,000 hours excluding backlight |
| Included Accessories | |
| Cables | 1.8m power cable, 1.8m HDMI cable, 1.8m RS-232C cable |
| Guides | Quick start guide, safety guide |
| Mounting Accessories | Wall mount bracket, wall mount guide, screws, screw anchors, screw-hole stickers |
| Remote Control | Yes, batteries included |
| Power Management | |
| Power Supply Unit | Internal |
| Power Supply | AC 100 - 240V, 50/60Hz |
| Typical Power Usage | 145W |
| Standby | 0.5W |
| Off Mode | 0.3W |
| Sustainability | |
| Energy Efficiency Class | F |
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| REACH SVHC | Above 0.1%: Lead |
| Dimensions & Weight | |
| LH8664UHS-B2AG Dimensions | 1938 x 1109 x 79.5mm |
| Box Dimensions | 2125 x 1275 x 275mm |
| LH8664UHS-B2AG Weight | 47.9kg |
| Boxed Weight | 62.2kg |
| EAN | 4948570124916 |
Warranty
iiyama Large Format Display Warranty
iiyama ProLite LH8664UHS-B2AG warranty.
The LH8664UHS-B2AG is part of iiyama's professional Large Format Display range.
Manufacturer Warranty
Supplied with the applicable iiyama professional Large Format Display manufacturer warranty.
Professional Support
Keep the LH8664UHS-B2AG model number, serial number and proof of purchase available when requesting technical support.
ScreenMoove Assistance
ScreenMoove can assist with product, installation and warranty enquiries before and after purchase.
Downloads
LH8664UHS-B2AG Manuals & Downloads
iiyama LH8664UHS-B2AG manual, datasheet and technical documents.
Download documentation for the iiyama ProLite LH8664UHS-B2AG 86" 4K UHD professional digital signage display.
LH8664UHS-B2AG User Manual
Download the iiyama LH8664UHS-B2AG user manual.
LH8664UHS-B2AG Technical Specification
Download the official LH8664UHS-B2AG technical specification.
LH8664UHS-B2AG Technical Drawing
Download dimensional information for installation and mounting planning.
LH8664UHS-B2AG UK Energy Label
Download the UK energy label for the LH8664UHS-B2AG.
Official iiyama Product Information
View current manufacturer information for the LH8664UHS-B2AG.
LH8664UHS-B2AG Specs
View brightness, Android hardware, connectivity, VESA, dimensions and power information above.
Commercial Applications
Where businesses use the iiyama LH8664UHS-B2AG.
The huge 86" format provides high-impact visual communication for larger customer-facing and workplace environments, while 500 cd/m² brightness, iiSignage² and 24/7 operation make the LH8664UHS-B2AG suitable for a broad range of professional signage projects.
Retail Digital Signage
Promote products, seasonal offers, campaigns and branded content across stores and larger retail spaces.
Explore Retail SignageHospitality & Venues
Display promotions, event information, schedules and guest communications in larger hospitality spaces.
Explore HospitalityCorporate & Offices
Present dashboards, company communications, presentations and content in larger meeting spaces.
Explore Meeting Room AVEducation
Use for lecture spaces, campus announcements, information, directories and digital communications.
Explore Education SignageReception & Visitor Areas
Welcome messaging, corporate branding, visitor information and high-impact front-of-house content.
Explore Business SignagePublic Information
Directories, schedules, wayfinding and high-visibility professional information displays.
Compare 86" Displays
Alternative iiyama Screen Sizes
Compare the LH8664UHS-B2AG with other iiyama professional displays.
Choose the most appropriate iiyama commercial display according to viewing distance, available wall space, room size and the visual impact required from your digital signage installation.
43"
LH4364UHS-B1AG
4K UHD Signage
50"
LH5064UHS-B1AG
4K UHD Signage
55"
LH5564UHS-B1AG
4K UHD Signage
65"
LH6564UHS-B1AG
4K UHD Signage
75"
LH7564UHS-B1AG
4K UHD Signage
86"
LH8664UHS-B2AG
You are viewing this
Frequently Asked Questions
iiyama ProLite LH8664UHS-B2AG FAQs.

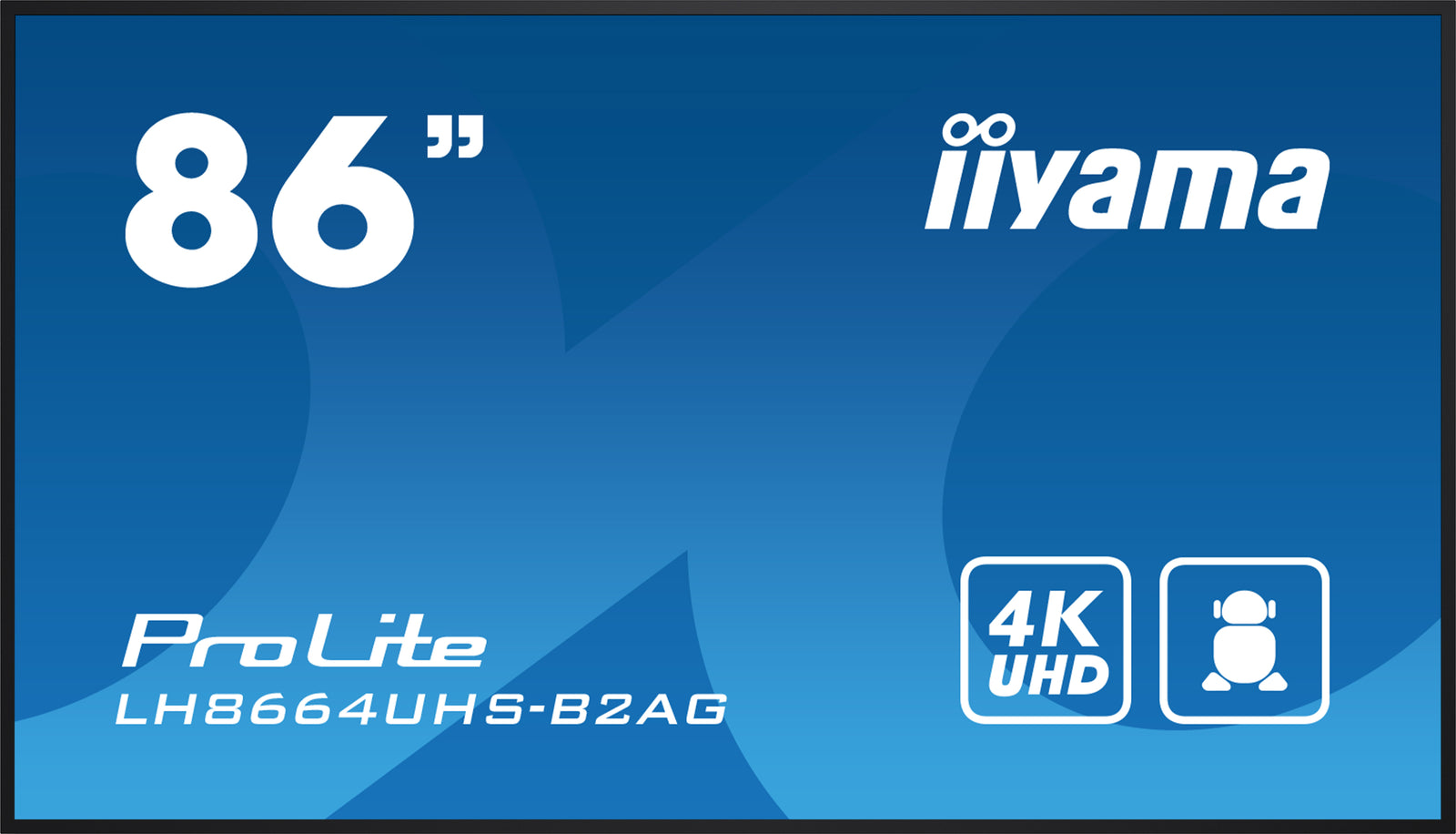

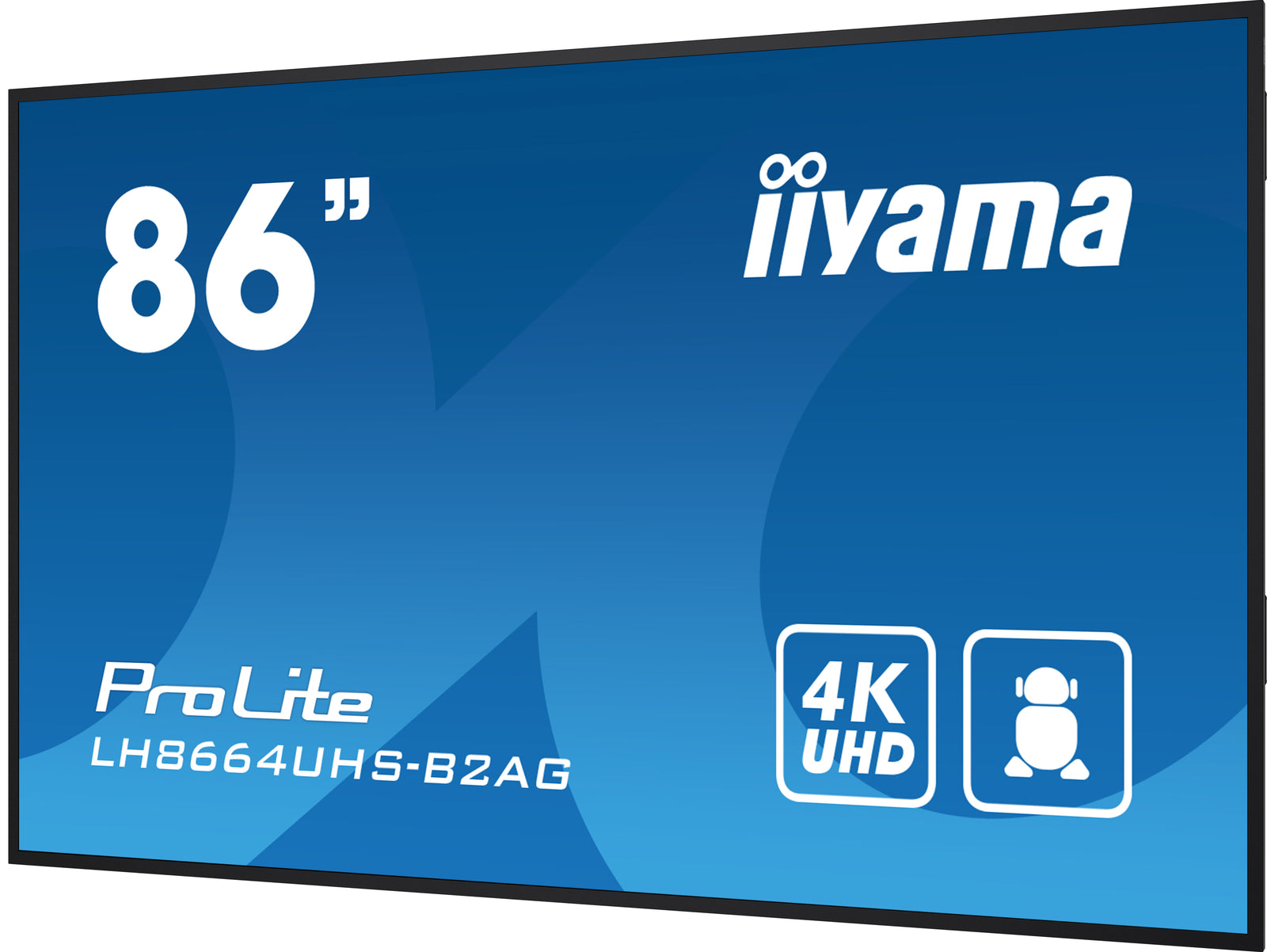

What is the iiyama ProLite LH8664UHS-B2AG?
The iiyama ProLite LH8664UHS-B2AG is an 86" professional 4K UHD digital signage display with Android 11, 500 cd/m² brightness, iiSignage², EShare, Signal FailOver and 24/7 commercial operation.
Is LH8664UHS B2AG the same as LH8664UHS-B2AG?
Yes. LH8664UHS B2AG and LH8664UHS-B2AG refer to the same iiyama ProLite 86" professional digital signage display.
What resolution is the LH8664UHS-B2AG?
The display has a native 3840 x 2160 4K UHD resolution at 60Hz.
What operating system does the LH8664UHS-B2AG use?
The display uses Android 11 with an MT9630 system-on-chip, A73 quad-core CPU, G52 MP2 graphics, 2GB RAM and 16GB storage.
How bright is the iiyama LH8664UHS-B2AG?
The display has 500 cd/m² panel brightness.
What panel does the LH8664UHS-B2AG use?
The LH8664UHS-B2AG uses an IPS panel with wide 178° horizontal and vertical viewing angles.
What contrast ratio does the LH8664UHS-B2AG have?
The IPS panel has a 1,200:1 static contrast ratio.
Can the LH8664UHS-B2AG run 24/7?
Yes. It is rated for 24/7 continuous professional operation.
What are the LH8664UHS-B2AG dimensions?
The display measures 1938 x 1109 x 79.5mm.
How much does the LH8664UHS-B2AG weigh?
The display weighs 47.9kg without packaging and 62.2kg boxed.

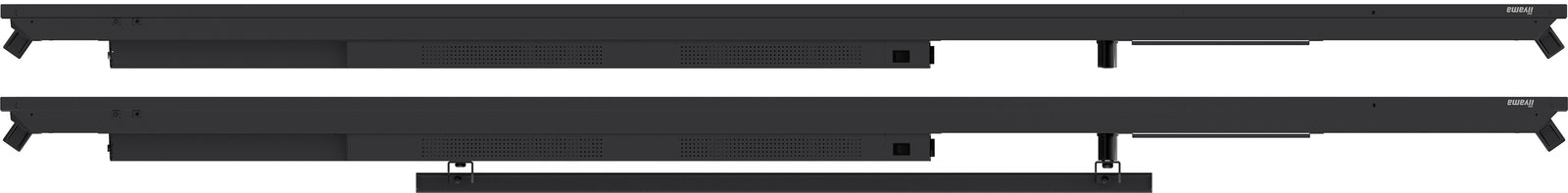

What VESA mount does the LH8664UHS-B2AG use?
It uses an 800 x 600mm VESA mounting pattern, with a wall-mounting kit supplied.
How many HDMI connections does the LH8664UHS-B2AG have?
The display includes three HDMI 2.0 inputs, supporting resolutions up to 3840 x 2160 at 60Hz.
Does the LH8664UHS-B2AG have built-in speakers?
Yes. The display includes two integrated 16W speakers.
What is iiSignage²?
iiSignage² is iiyama's digital signage content-management platform for remotely managing compatible signage content.
What is Signal FailOver?
Signal FailOver can detect when the selected content source is unavailable and automatically switch to another prioritised source.
Does the LH8664UHS-B2AG support portrait mode?
Yes. It supports both landscape and portrait installation.
Where can I compare other 86 inch commercial displays?
Browse ScreenMoove's 86" commercial displays collection to compare the LH8664UHS-B2AG with other professional large-format displays.
iiyama Professional Signage
Is the iiyama ProLite LH8664UHS-B2AG right for your project?
The LH8664UHS-B2AG combines an 85.6" 4K UHD IPS panel, 500 cd/m² brightness, Android 11, iiSignage², Signal FailOver, EShare, 3 x HDMI 2.0 and 24/7 commercial operation. Compare it with other 86" commercial displays or choose another iiyama professional display size above.
Technical Highlights
- Display size / Screen sizes
- 86"
- Resolution
- Ultra HD (4K)
- Panel type
- IPS Panel
- Screen type
- Flat
- Brightness
- 500 cd/m2
- Response time
- 8ms
- Screen ratio
- 16:9
- Refresh rate
- 60Hz
- Display orientation
- Landscape & Portrait
- Operating hours
- 24/7
- Operating system
- Android 11
- Player features
- USB Plug and Play
- VESA patterns
- 800x600
- Warranty
- 3 Year Warranty
iiyama ProLite LH8664UHS-B2AG 86" 4K UHD Android 14 Professional ...SKU: LH8664UHS-B2AG
£1,330.00
See Before You Decide
Book a Free Product Demonstration
Compare picture quality, touchscreen performance, software and connectivity with guidance from a commercial display specialist.
Remote or on-site
No obligation
Expert-led session
For Integrators and Resellers
Open a Screen Moove Trade Account
Access project pricing, volume discounts, product sourcing support and faster commercial quotations for your client projects.
Trade pricing
Project support
Volume discounts
Education & Public Sector
A simpler procurement route for schools and public organisations
Access education pricing, purchase-order support, installation services and account management for schools, academies, colleges, universities, NHS organisations, councils and government bodies.
Purchasing for a school, academy, university or NHS organisation?
Register your organisation to request institutional pricing and
purchase-order support.
Register Your Organisation
Trusted Store Status
Top Quality Store
Rating status, Exceptional, based on Google’s shopping experience metrics.
Why it matters
Demonstrates consistently strong fulfilment, service, and post-sale experience across Google signals.
Google
Top Quality Store
Built for confidence, next-day delivery options, UK-based support, trade-ready operations.
Request a quote
JO
Josh
Jan 6, 2026
Great products and service! The guys always go above and beyond to make sure they supply you with the product that best fits your needs. I’ve been using Screen Moove for a number of years now and woul...
See moreSD
Sandy Dobson
Nov 28, 2025
Verified
Screen Moove went above and beyond for my requirements. Ordering system was super easy it just take 2 minutes to complete my order and I have received my tracking details right away after few minutes...
See moreS
St Peter's Church
Dec 17, 2025
Moe Khan, one of the team at Screen Move has been a fantastic help as we have navigated the process of choosing and buying screens and stands for our church. Helpful at every step of the way, patient...
See moreFS
Furniture Store
Nov 27, 2025
We originally planned to purchase a cheap TV for our showrooms. After speaking with screen moove, we ended up investing in floorstanding displays across multiple retail sites and showrooms. The bright...
See moreFT
Felix Thomas
Sep 4, 2025
Verified
I placed my order late at night but realized I had entered the wrong address. I immediately sent an email asking for it to be changed, not really expecting a reply until the next day. To my surprise,...
See moreAS
ava singh
Aug 27, 2025
Verified
I’ve been looking ultra high brightness display despite I checked everywhere I didn’t trust. They got my trust and I ordered. It arrived safely next day we have installed screen is awesome and high qu...
See moreGK
Glenn Khan
Nov 27, 2025
Verified
This is second time I used Screen Moove, I have bought double sided 55 inch display. The first order was a bit delayed I don't blame it might be happen, but customer service over the phone was excell...
See moreBY
Burcu Yesilova
Feb 12, 2025
Screenmoove, perfect customer satisfaction from start to finish! Their customer service is incredibly helpful and fast. It’s amazing to be able to reach out and get quick solutions for any issue. We a...
See moreTE
Tina e Edwards
Dec 17, 2025
We found that we needed a video call to work out the set up. The tech team at screenmoove were very very good. I would suggest that the instructions that come with the screen offer two key info. 1. Set...
See moreMA
Miss Akthar
Nov 21, 2025
Verified
Great experience with Jonathan Gray, previously I was looking for other companies and randomly ordering our needs from elsewhere. after I met with him, since 2024 we are keep purchasing from screen m...
See moreGet in touch
Speak directly with Screen Moove about your display, digital signage, meeting-room or AV project.
Need help choosing the right product?
Speak directly with a dedicated Screen Moove expert and get the right solution first time.
Call us: 020 8191 9223
Email: info@screenmoove.com
Contact us
Simply complete our contact form, and we will promptly respond to your inquiries.
If you have any questions or enquiry, please fill out the form below with all of your details and we'll get back to you shortly.
Ready to start your next AV project?
Contact our team of experts today!
