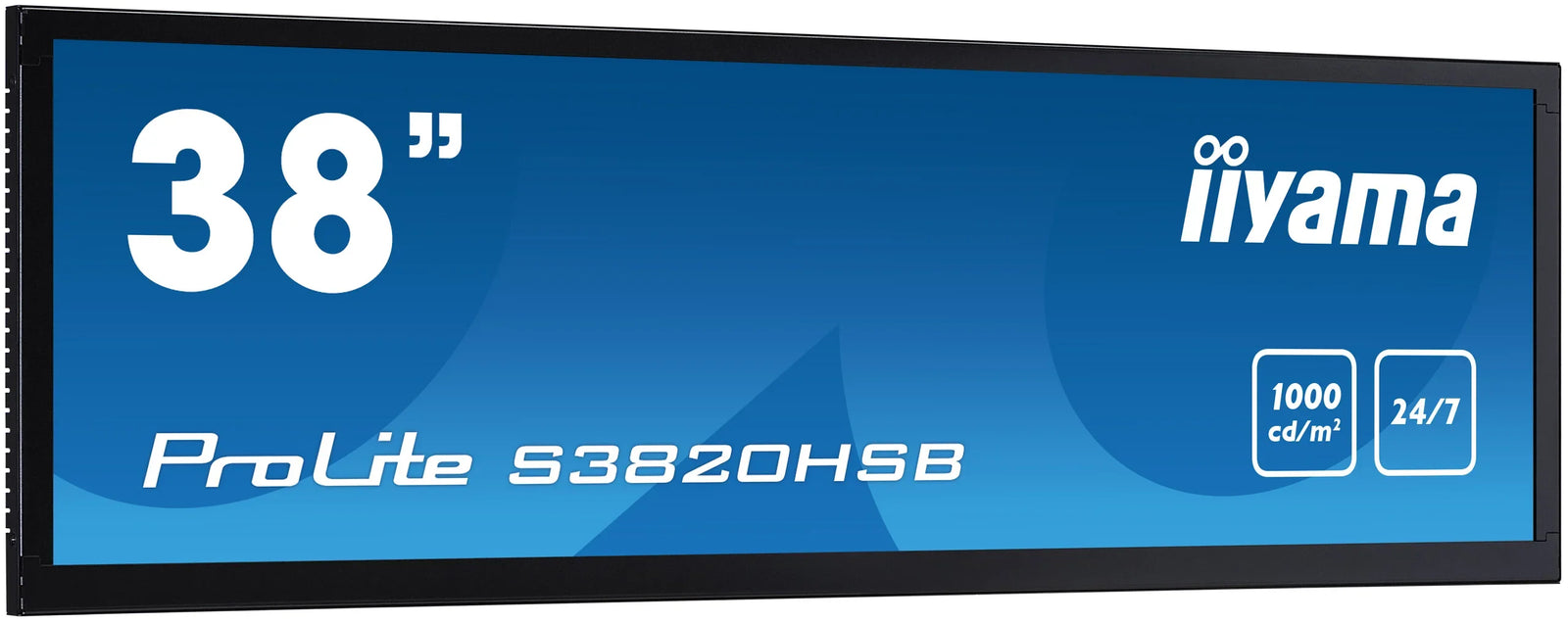

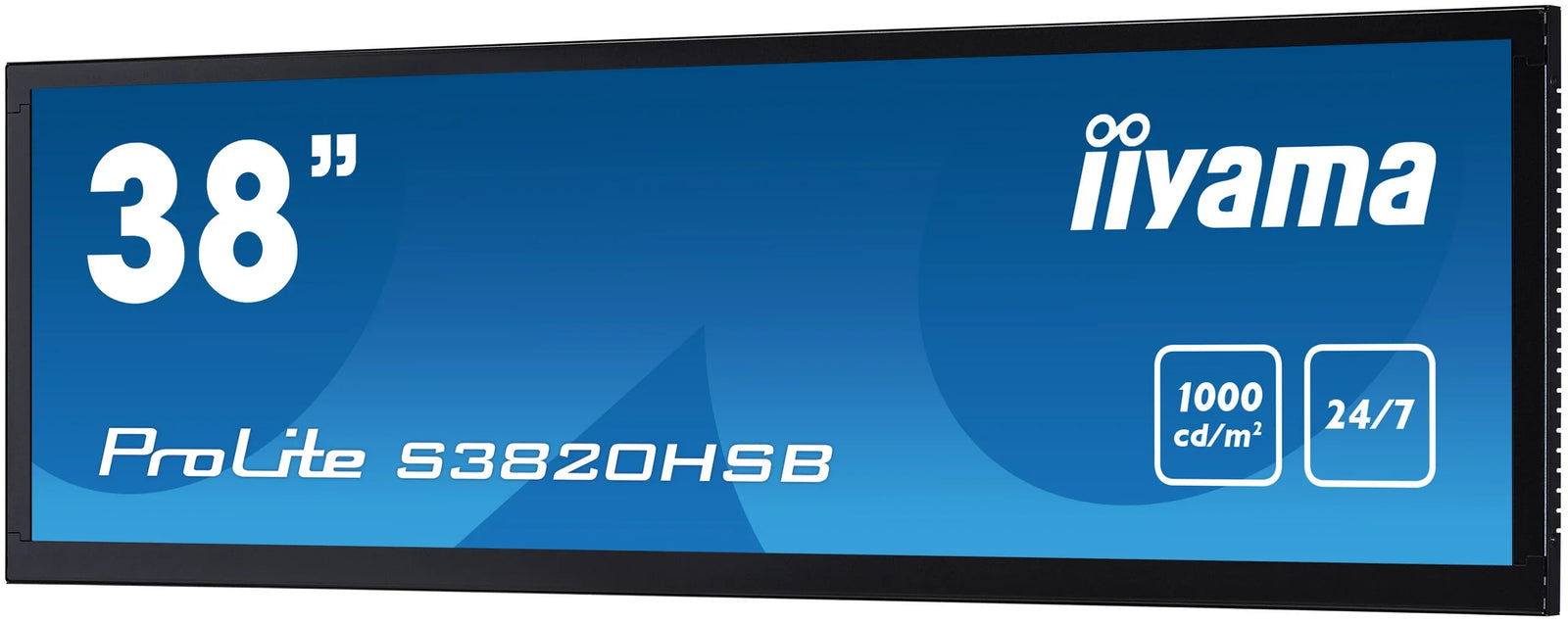

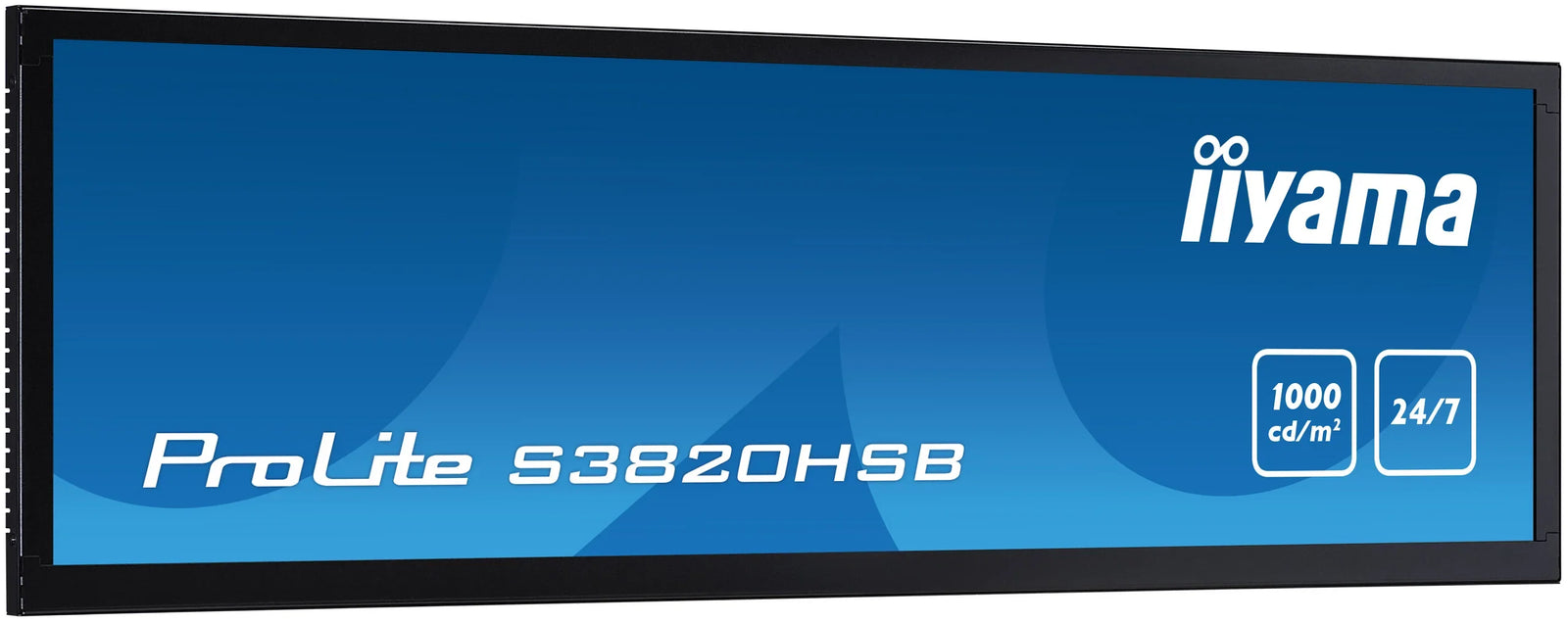

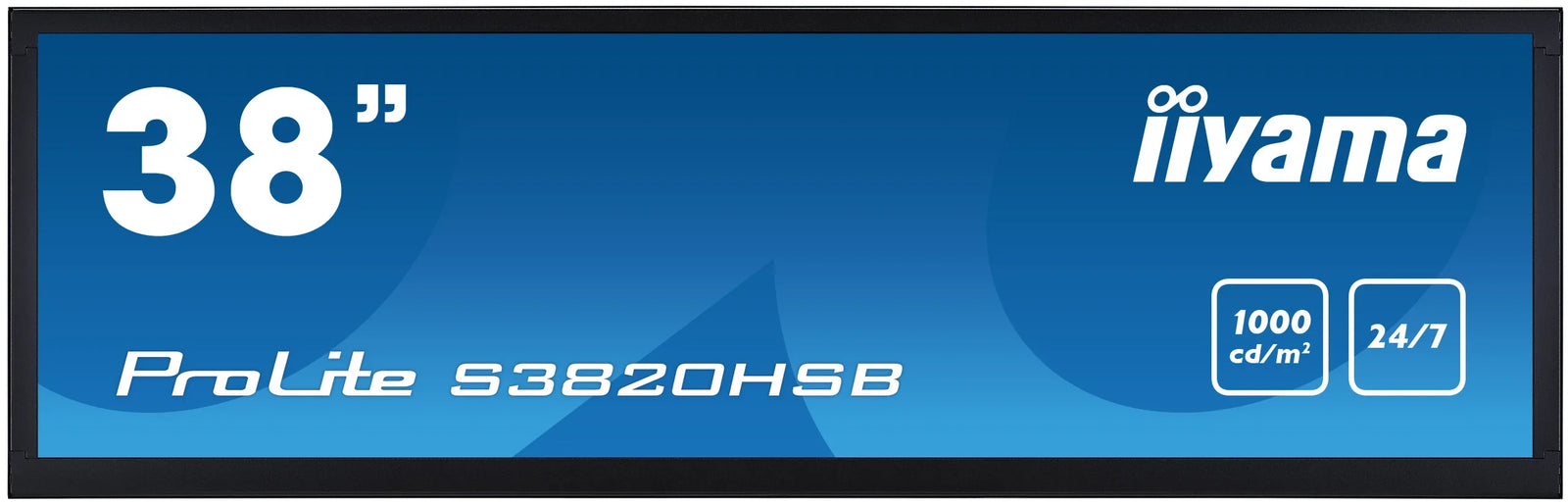

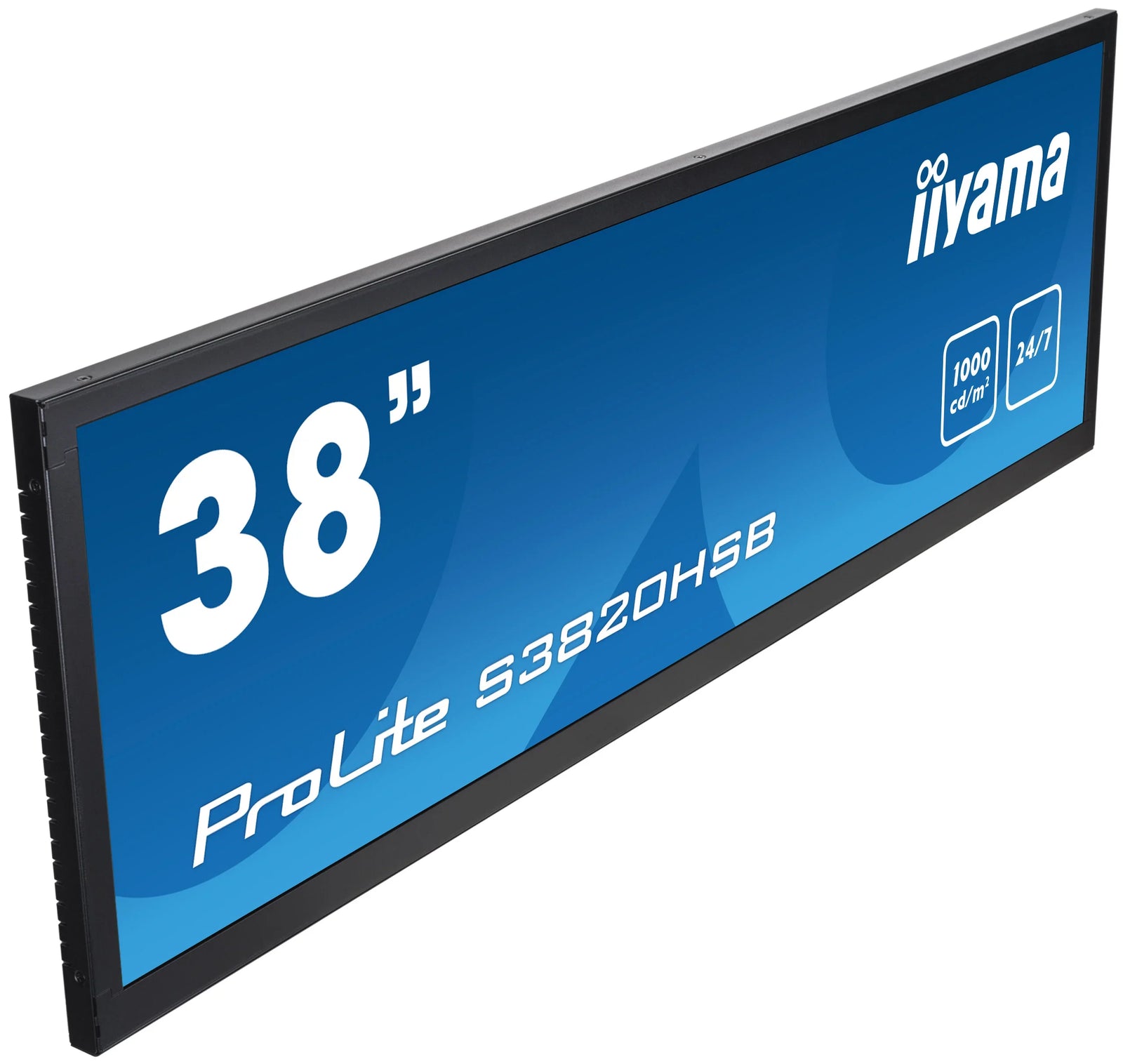

iiyama ProLite S3820HSB-B1 38" Stretched Digital Signage Display
SKU: S3820HSB-B1
£787.70 (Excl. VAT)
iiyama ProLite S3820HSB-B1
38" Stretched Digital Signage Display
- Description
- Specifications
- Warranty
- Downloads
-
IIYAMA PROLITE S3820HSB-B1 (EOL)
38" stretched digital signage display with 24/7 operating time, 1000cd/m², and landscape and portrait orientation
Give your sales promotions and your in-store displays maximum impact and visibility with the ProLite S3820HSB-B1. The S3820HSB is a 38" (1920x540) digital signage display that is ideally suited for retail, transportation, business, and health care environments where a regular 16:9 display will not fit.

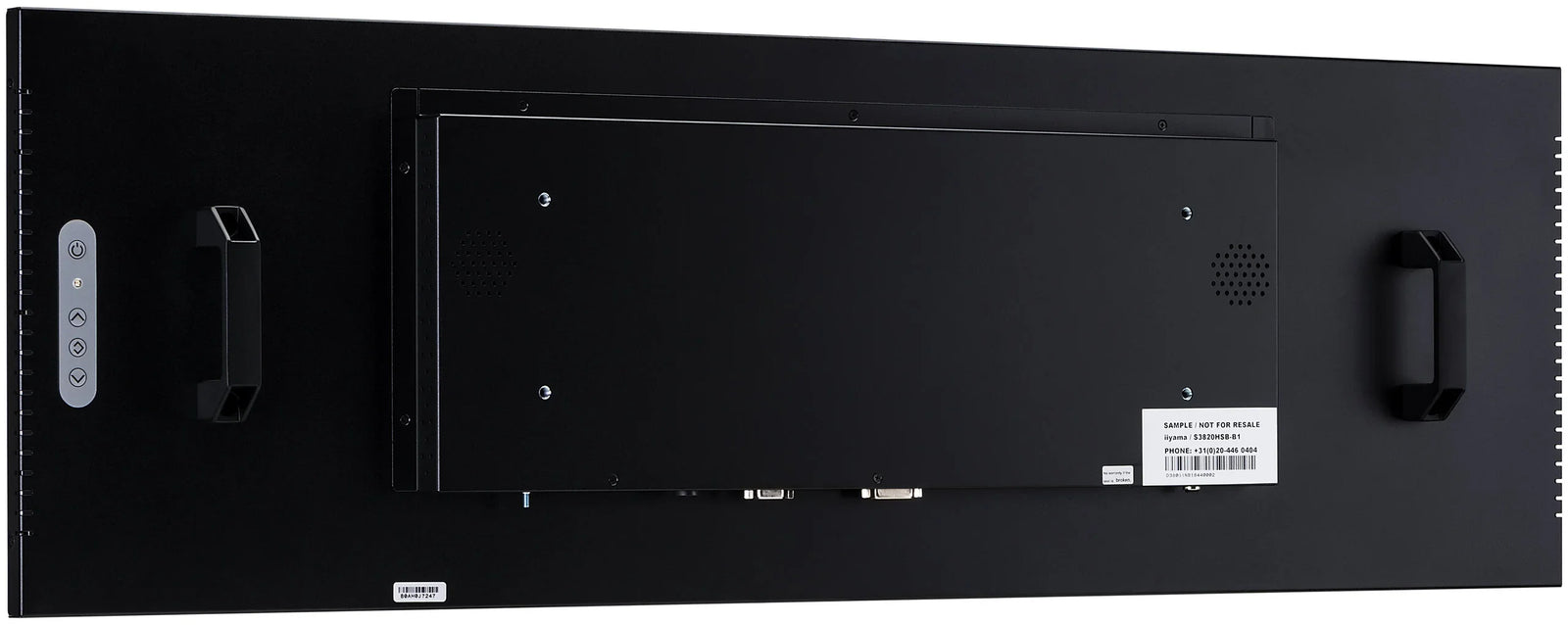

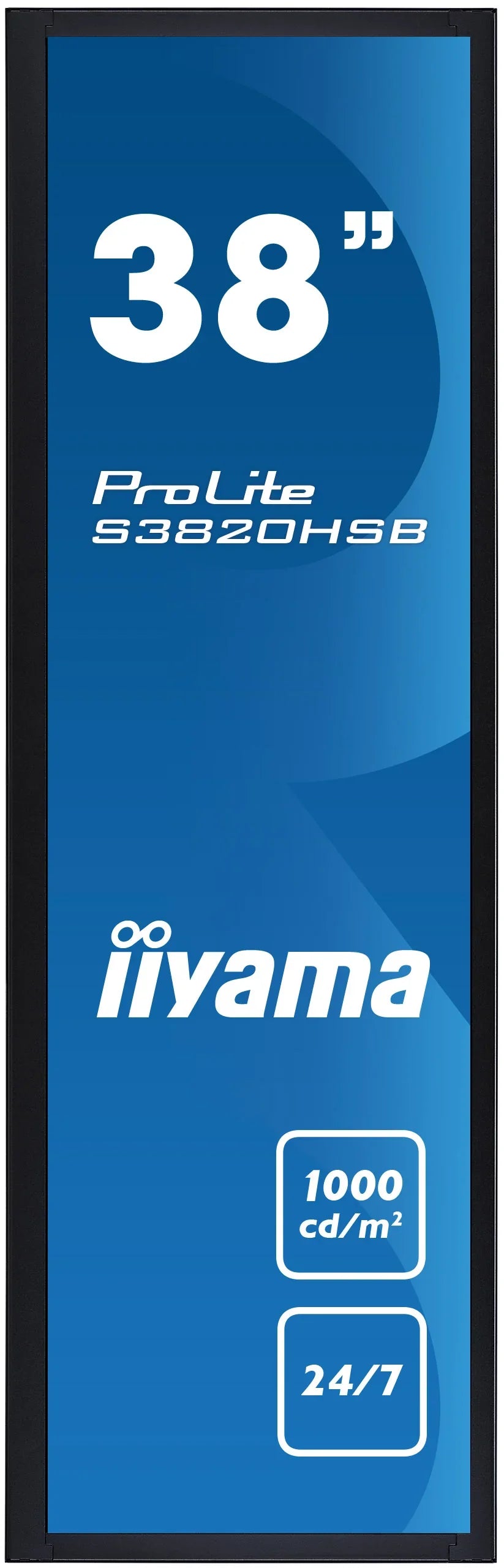

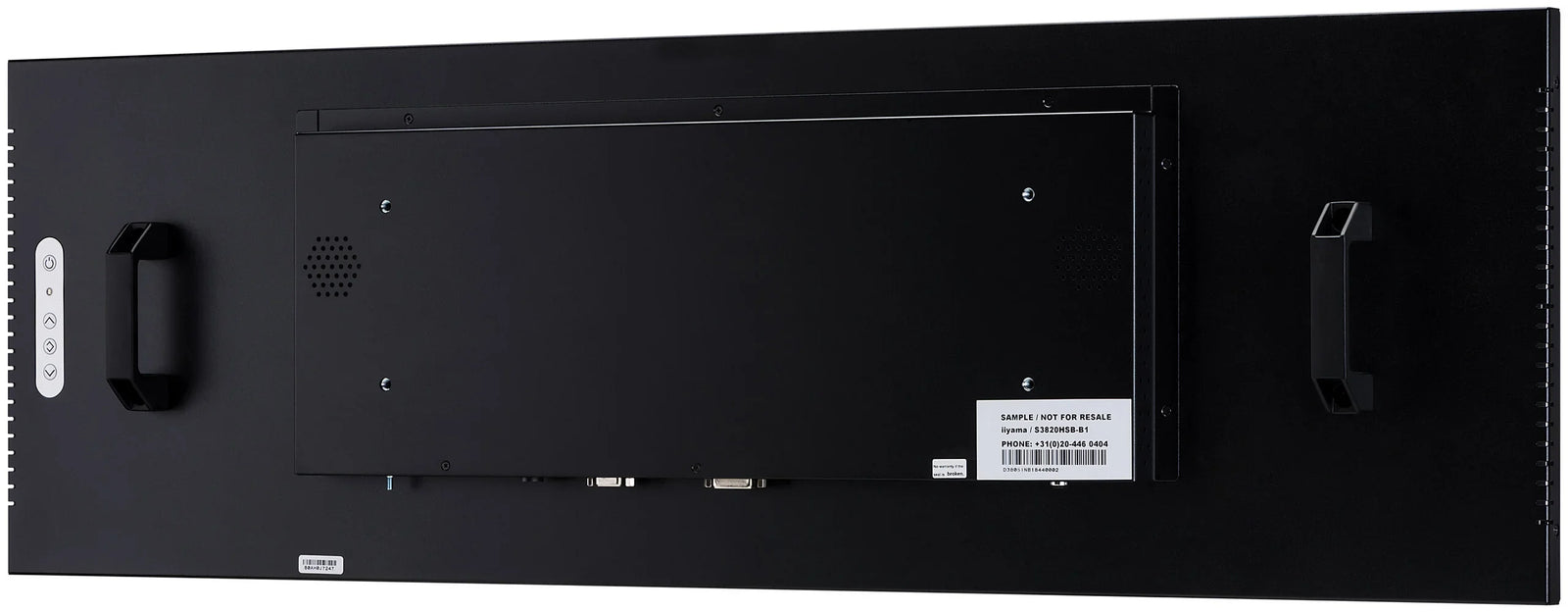

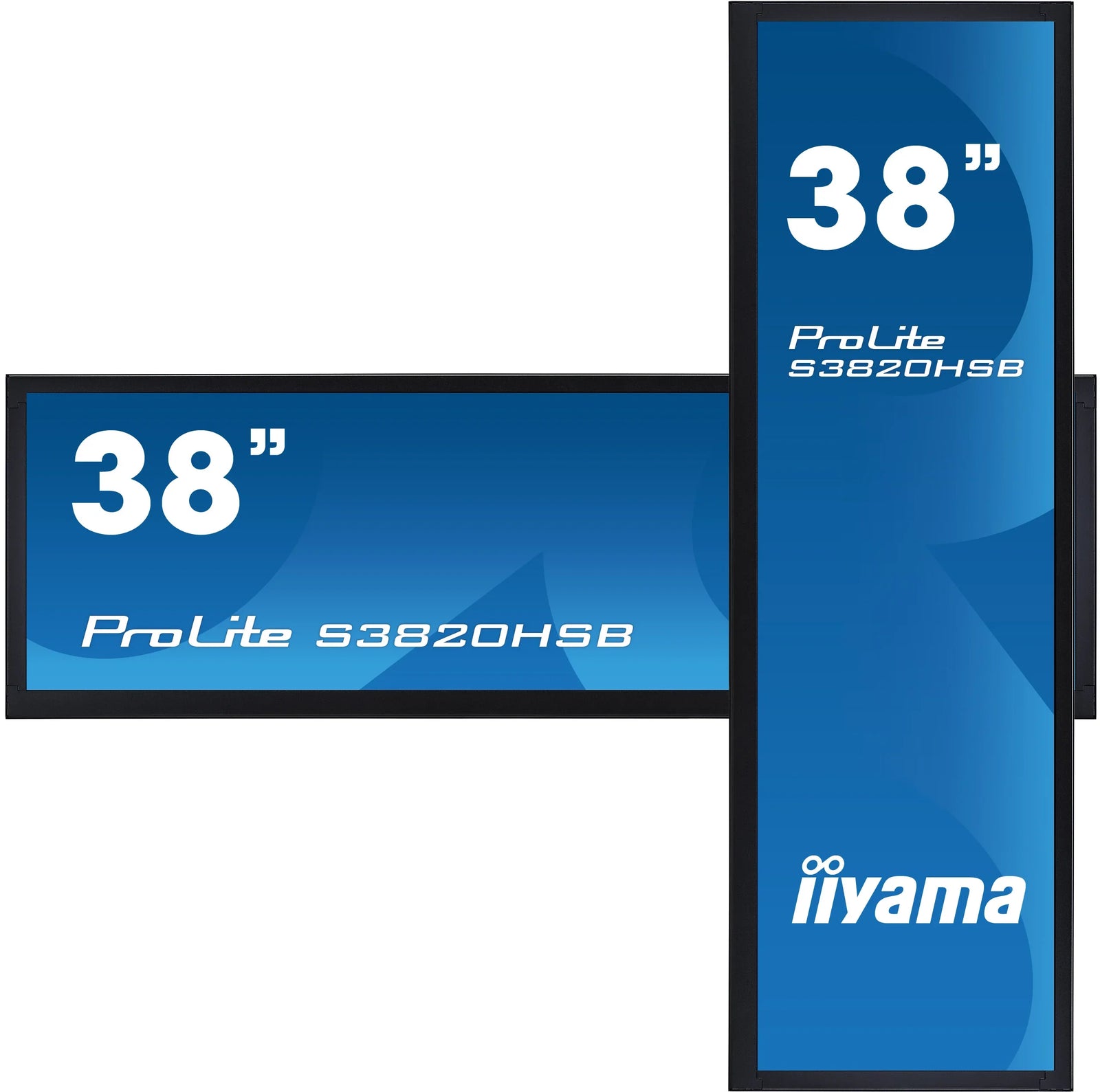

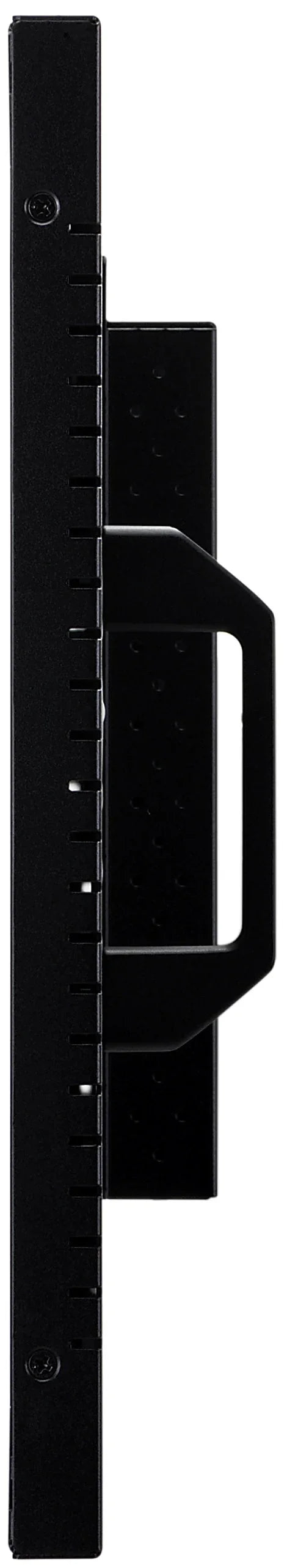

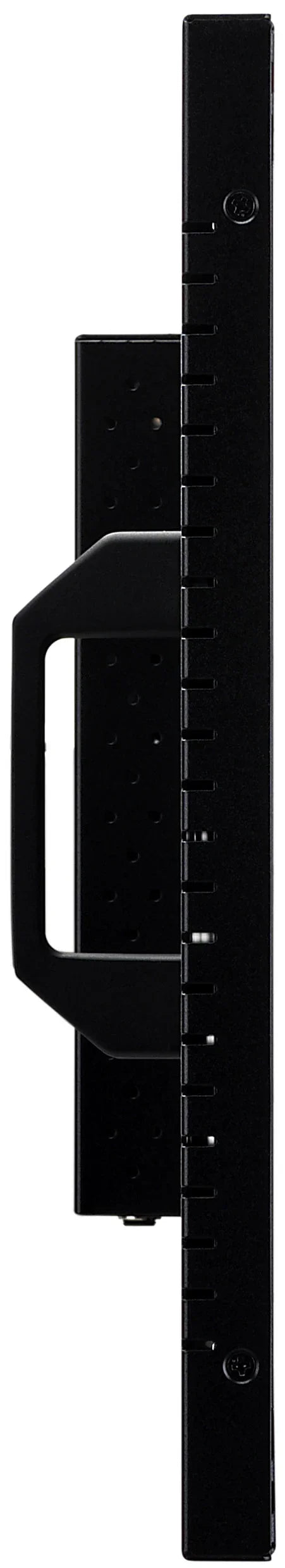

With a 24/7 operating time, landscape and portrait orientation, and brightness of 1000cd/m2, this display can be installed anyhow and anywhere you want, ensuring an optimal fit and maximum exposure. The S3820HSB is fanless, only weighs 8.8 kg, and comes with two handles for easy handling and installation.
FULL HD CONTENT
The 20-series stretched displays feature screen resolutions that are respectively 1/3 (28") and 1/2 (38") of the standard Full HD resolution (1920x1080).
The content for these displays needs to be created in Full HD resolution with the part of the content that needs to be shown placed in the first 360 pixels for the S2820HSB-B1 and in the first 540 pixels for the S3820HSB-B1.AMVA3
AMVA3 technology offers higher contrast, darker blacks, and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
24/7
24/7 displays are designed for continuous operation.
VESA

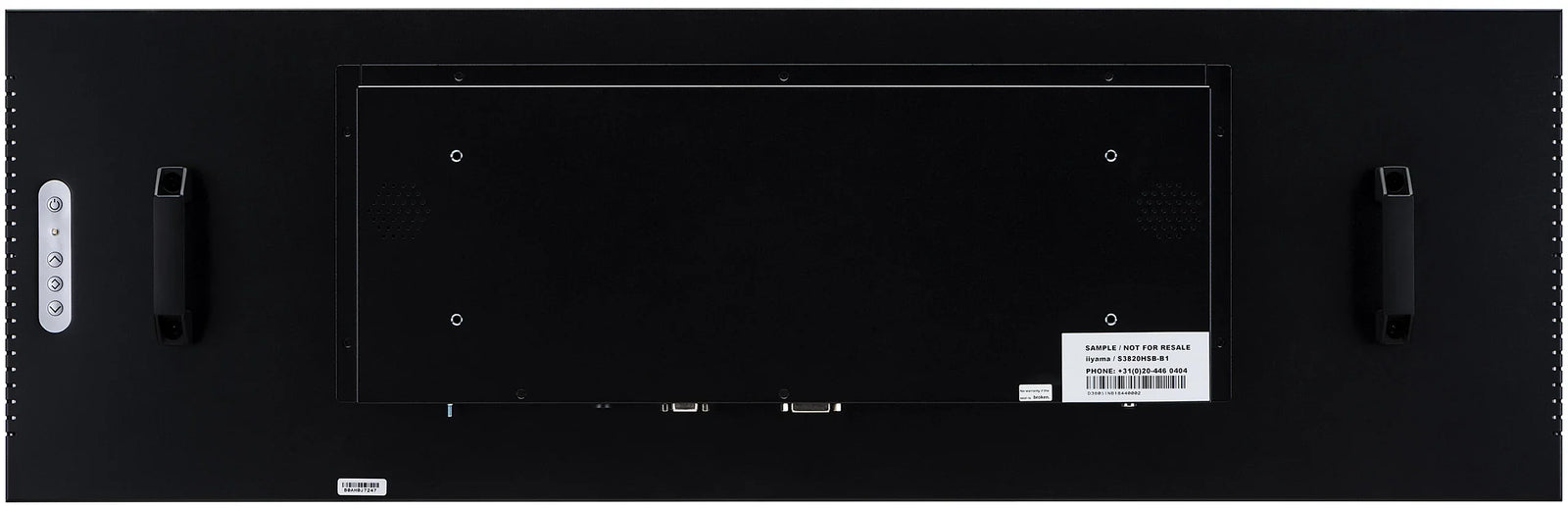

VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.
-
Display Features
DISPLAY CHARACTERISTICS

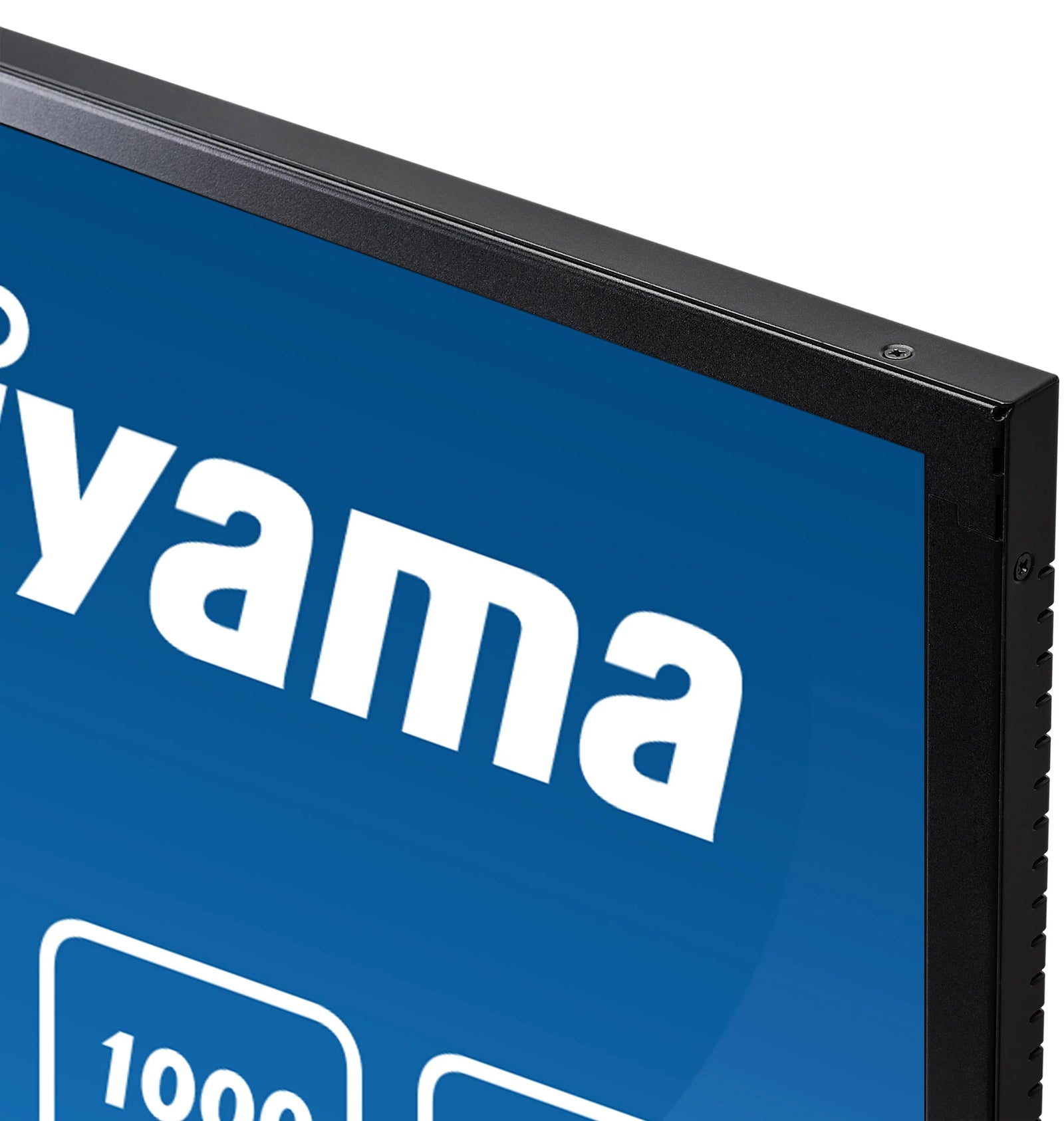

Diagonal 38", 96.5cm Panel MVA LED, matte finish Native resolution 1920 x 540 @60Hz (1.0 megapixel) Aspect ratio 16:4.5 Brightness 1000 cd/m² typical Static contrast 4000:1 typical Response time 8ms Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° Colour support 16.7mln 8bit Horizontal Sync 30 - 83KHz Vertical Sync 50 - 76Hz Viewable area W x H 919.3 x 258.5mm, 36.2 x 10.2" Bezel width (sides, top, bottom) 19.1mm, 16.4mm, 25mm Pixel pitch 0.1596 x 0.4788mm Bezel colour and finish black, matte INTERFACES / CONNECTORS / CONTROLS

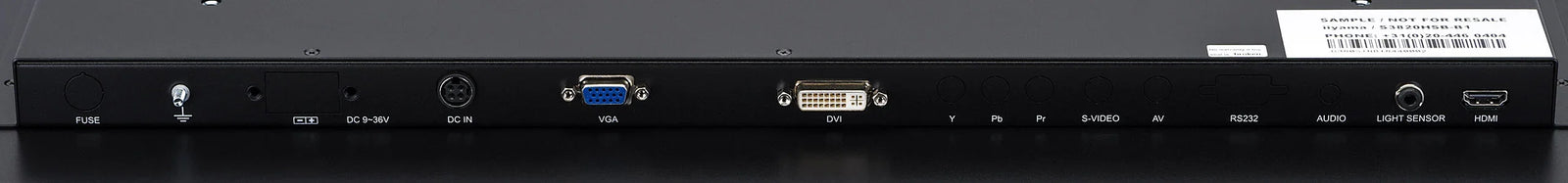

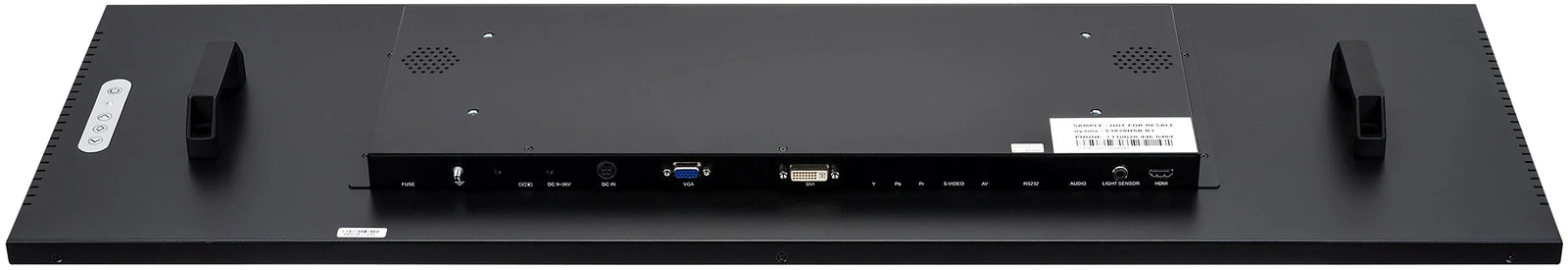

Analog signal input VGA x1 Digital signal input DVI x1
HDMI x1 (v.2.0)Audio input Mini jack x1 Monitor control input RS-232c x1 Audio output Speakers 2 x 5W Monitor control output RS-232c x1 FEATURES
Extra Sunlight readable, portrait orientation left and right, handles Max. non-stop operating time 24/7 Housing (bezel) metal Brightness sensor yes GENERAL

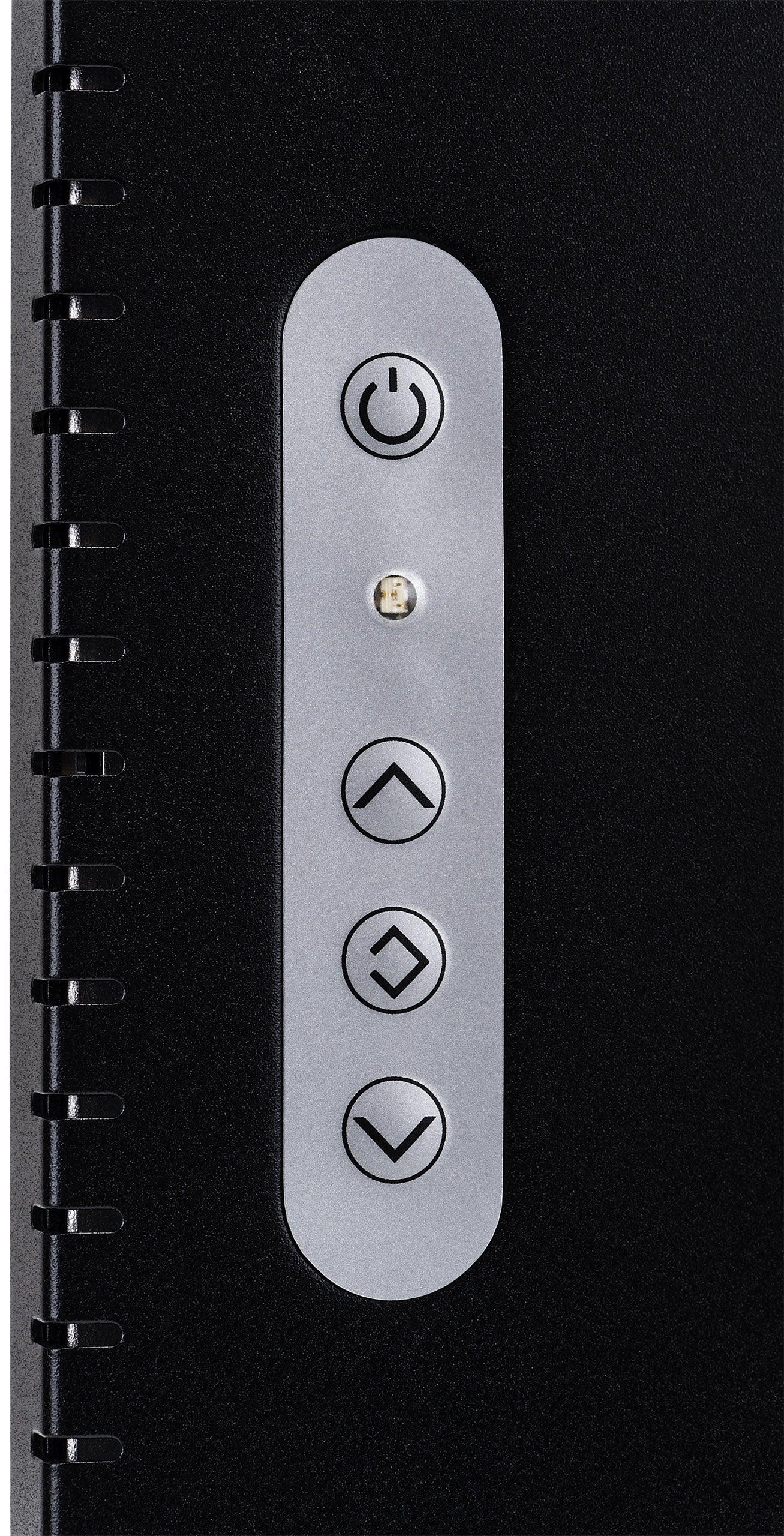

OSD languages EN Control buttons Power, Increase / Input Select, Menu / Enter, Decrease / Brightness User controls brightness (OSD brightness, ambient light sensor with OSD offset, brightness, contrast, exit), signal select, sound (volume, mute, exit), color (color adjustment, sRGB, color temp, exit), image (auto adjustment, clock, phase, H. position, V. position, exit), tools (OSD control, reset, sharpness, exit), exit. Plug&Play DDC2B, Mac OSX MECHANICAL
Orientation landscape, portrait Fanless design yes VESA mounting 400 x 100mm Operation temperature range 0°C - 50°C Storage temperature range - 20°C - 60°C MTBF 100.000 hours ACCESSORIES INCLUDED

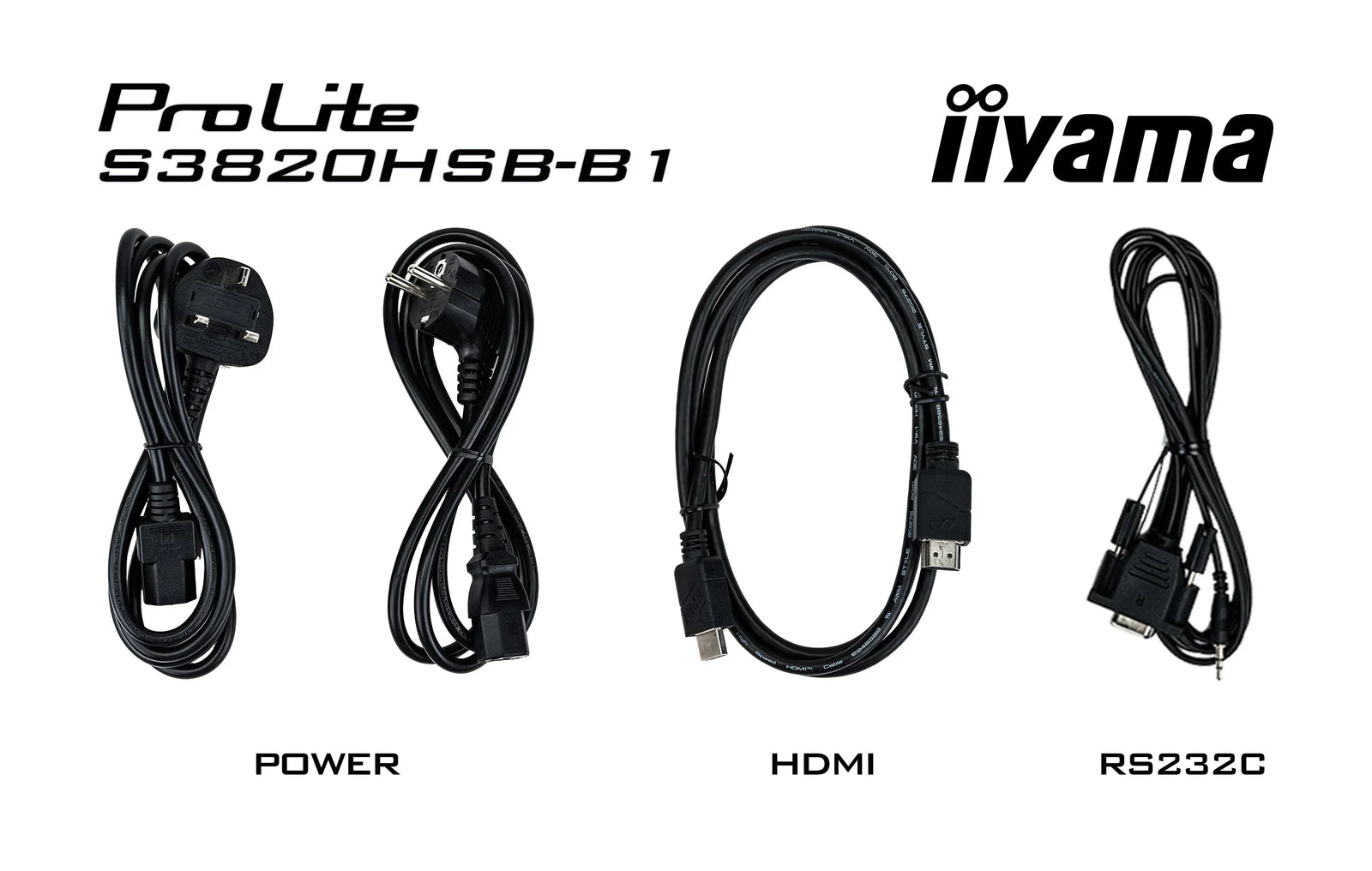

Cables power, HDMI (1.8m), RS-232c Guides quick start guide, safety guide Other light sensor cable POWER MANAGEMENT
Power supply unit external Power supply DC 12 V Power usage 42.5W typical, 0.5W stand by, 0.5W off mode SUSTAINABILITY
Regulations CB, CE, CU Energy efficiency class B Other REACH SVHC above 0.1%: Lead DIMENSIONS / WEIGHT
Product dimensions W x H x D 962.6 x 304.9 x 54.2mm Weight (without box) 8.8kg EAN code 4948570116881 EU ENERGY EFFICIENCY LABEL
Manufacturer iiyama Model ProLite S3820HSB-B1 Energy efficiency class B Visible screen diagonal 96.cm; 37.6"; (38" segment) ON mode power consumption 48.9W Annual energy consumption 71kWh/annum* Power in Standby 0.5W stand by Resolution 1920 x 540 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17" - 43")
3 years on-site UK warranty. (Upgrades to 5 years available)
Touchcare
LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available)
LFD Large Format Displays Standard Warranty
3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTYThere is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one - Check that all connections have been properly made.
Step two - Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three - If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four - Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five - Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six - Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be requiredON-SITE SWAP OUT
PIONEERING CUSTOMER SERVICE.
-
User Manual
Download Link S3820HSB-usermanual-e.pdf Downloads
Technical Specification
Download Link ProLite S3820HSB-B1 - gb_en.pdf Downloads
Drawing Download Link S3820HSB.pdf Downloads
DRIVERS/ FIRMWARE / SOFTWARE Download Link RS232 Commands_LHxx10_Sxx20.pdf Downloads
