iiyama ProLite T1721MSC-B2 17" 5ms 10 Touch Points And PCAP Technology Touchscreen

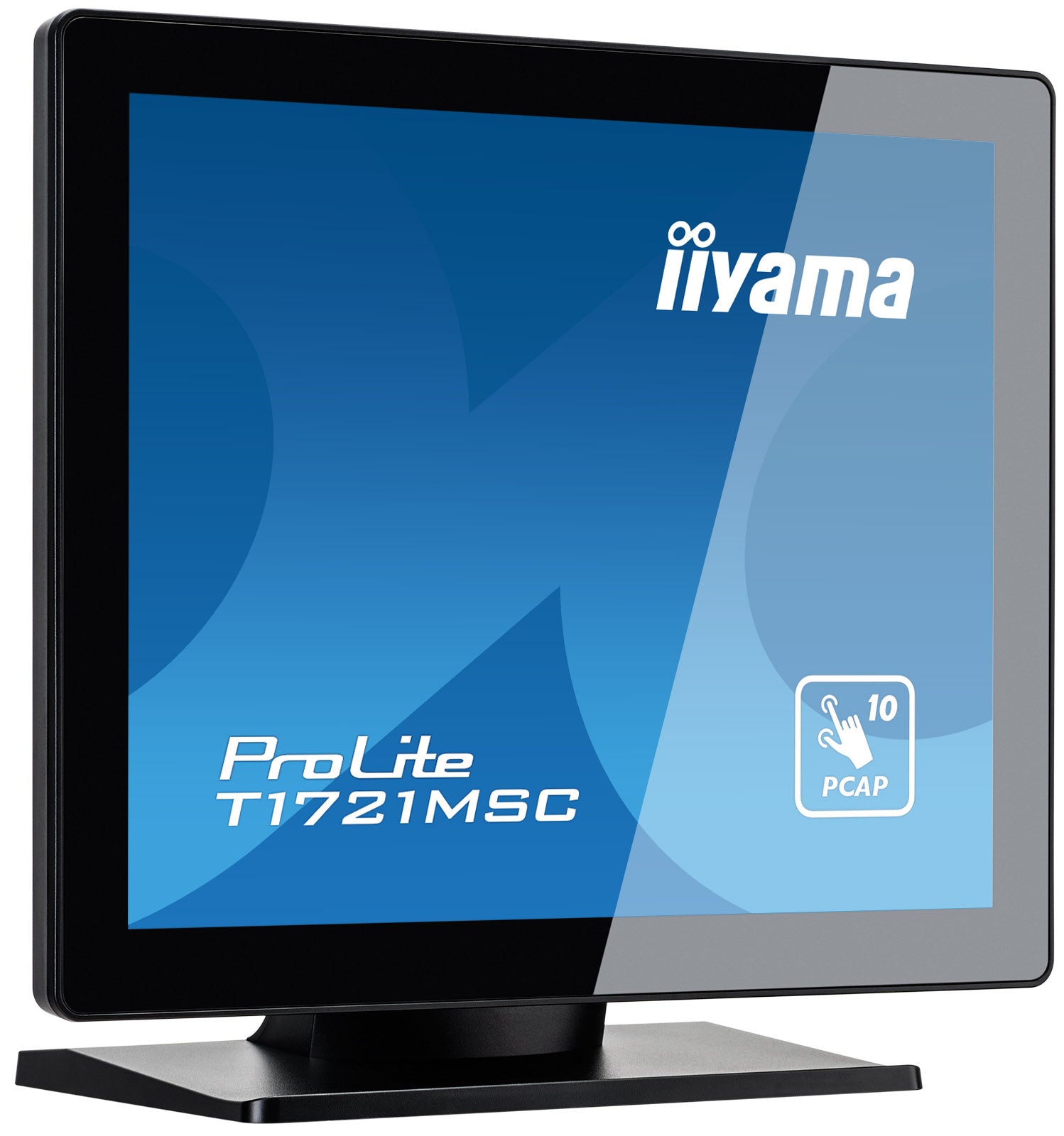

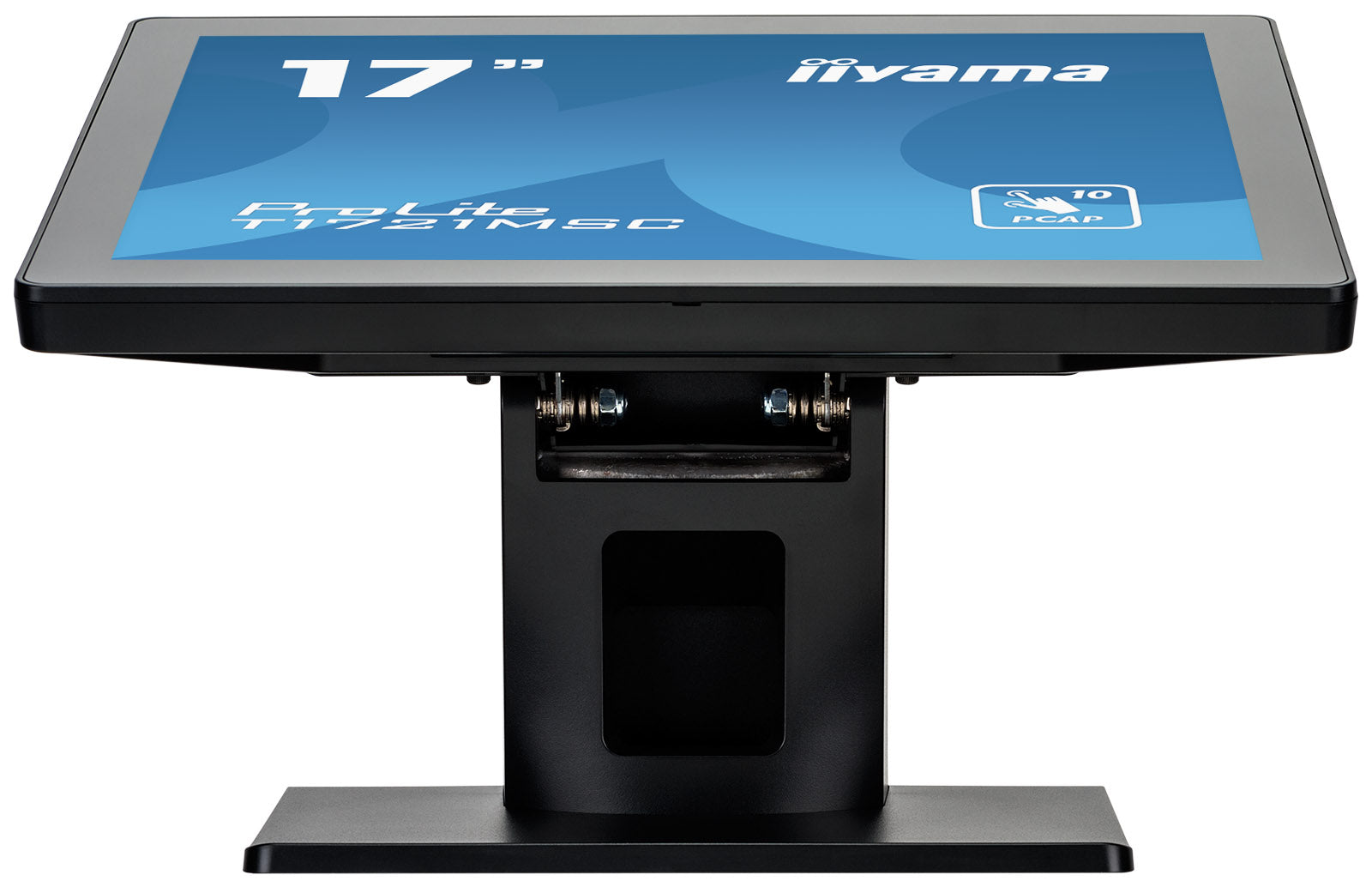

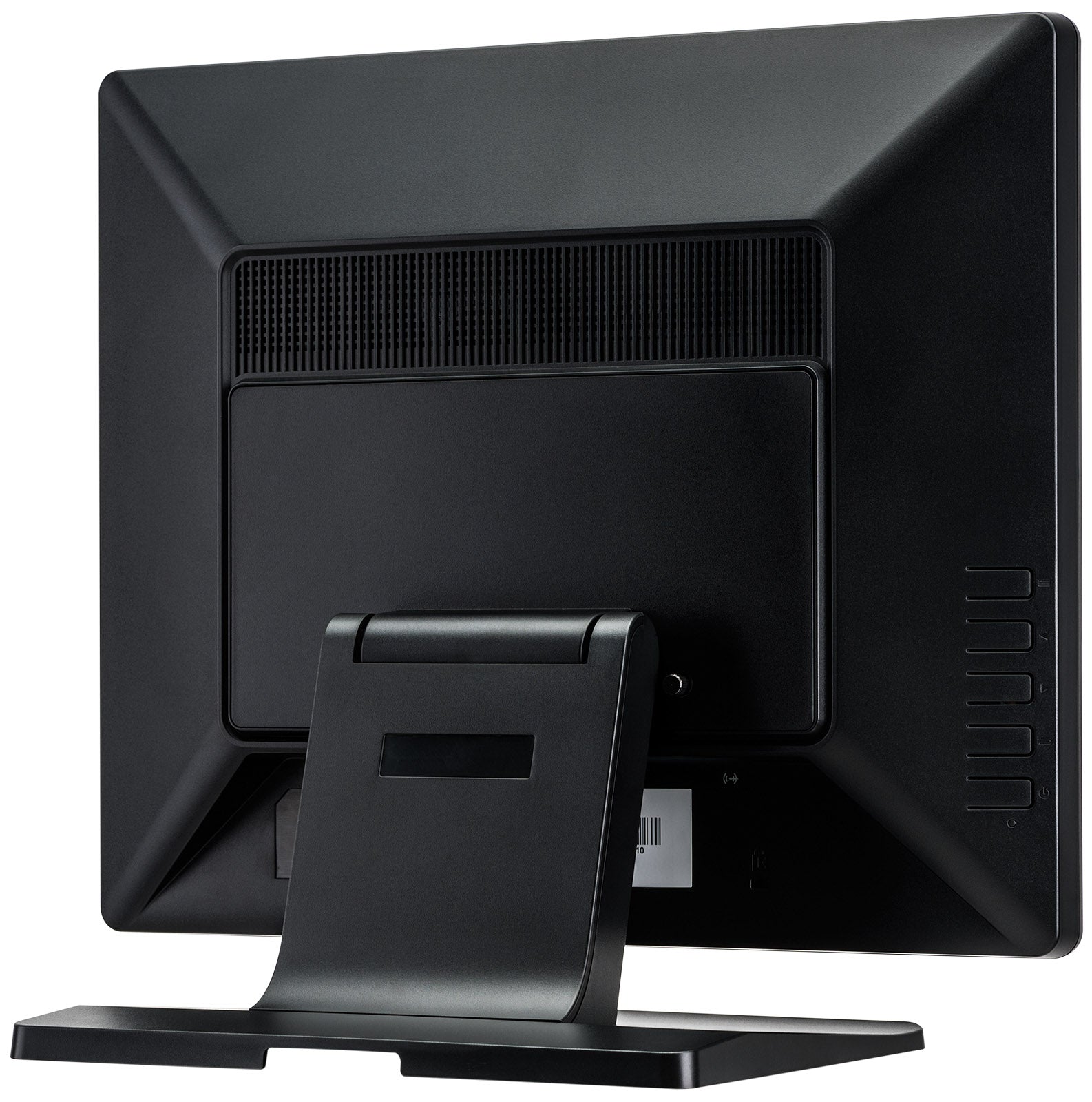

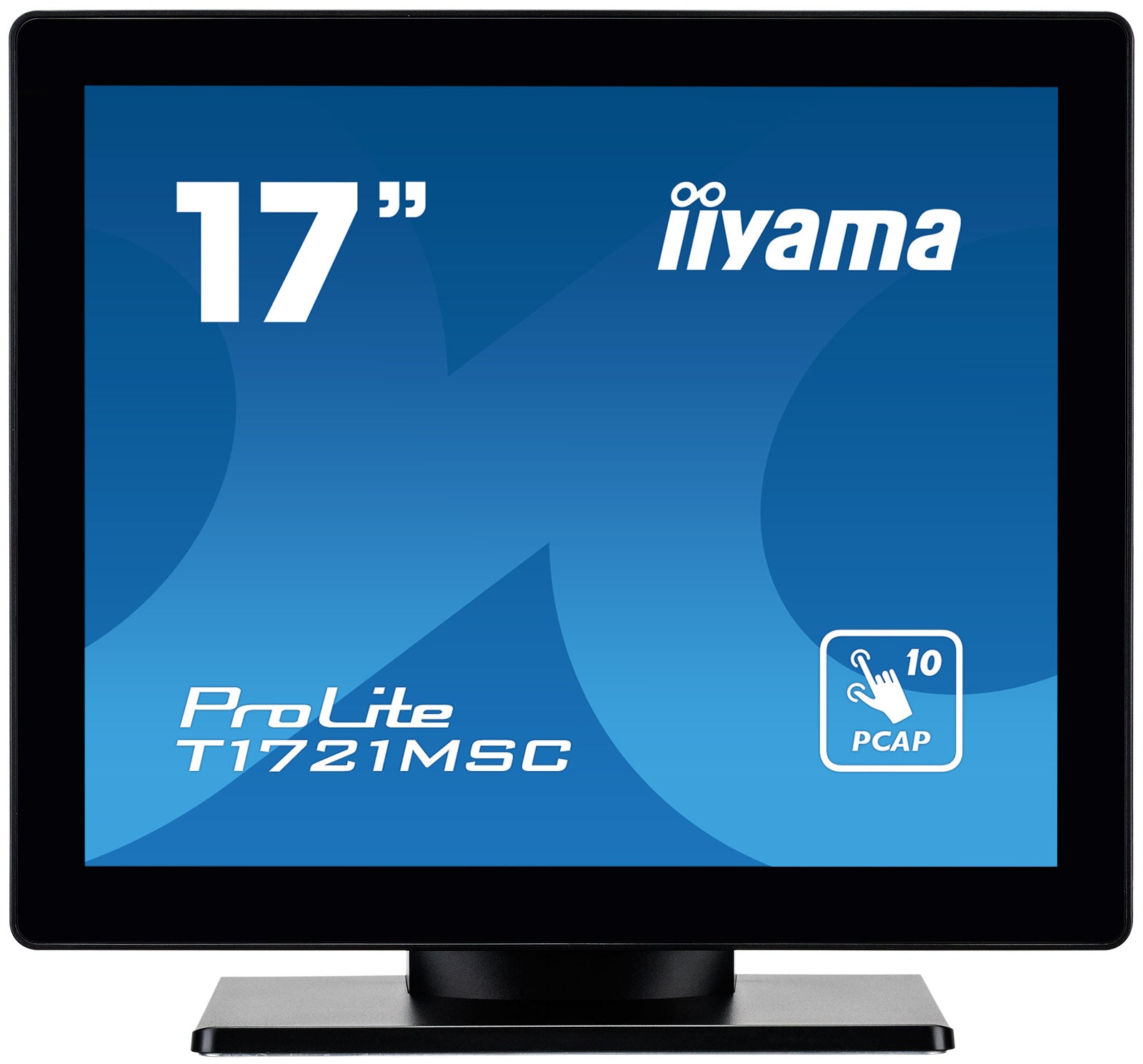

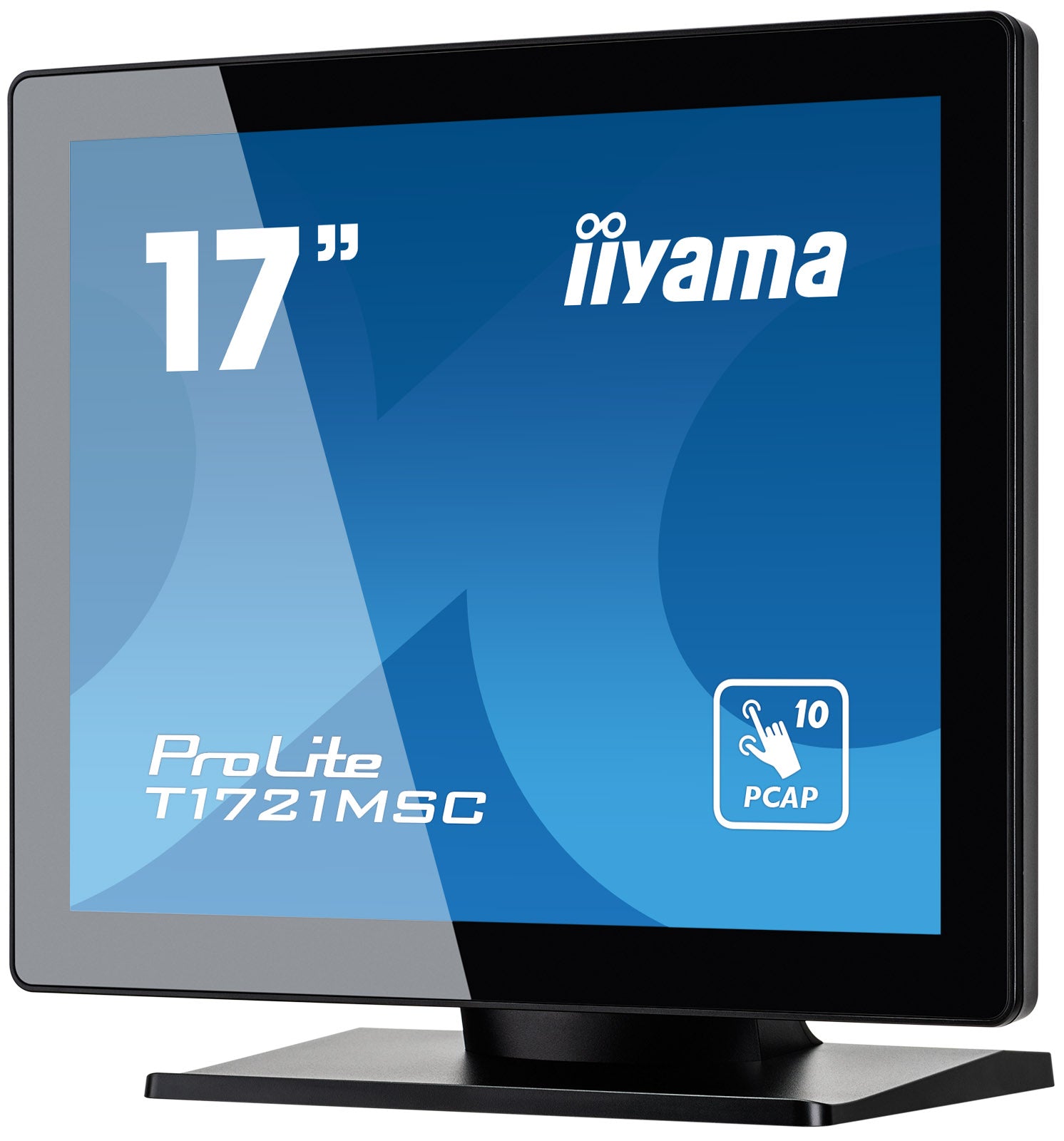

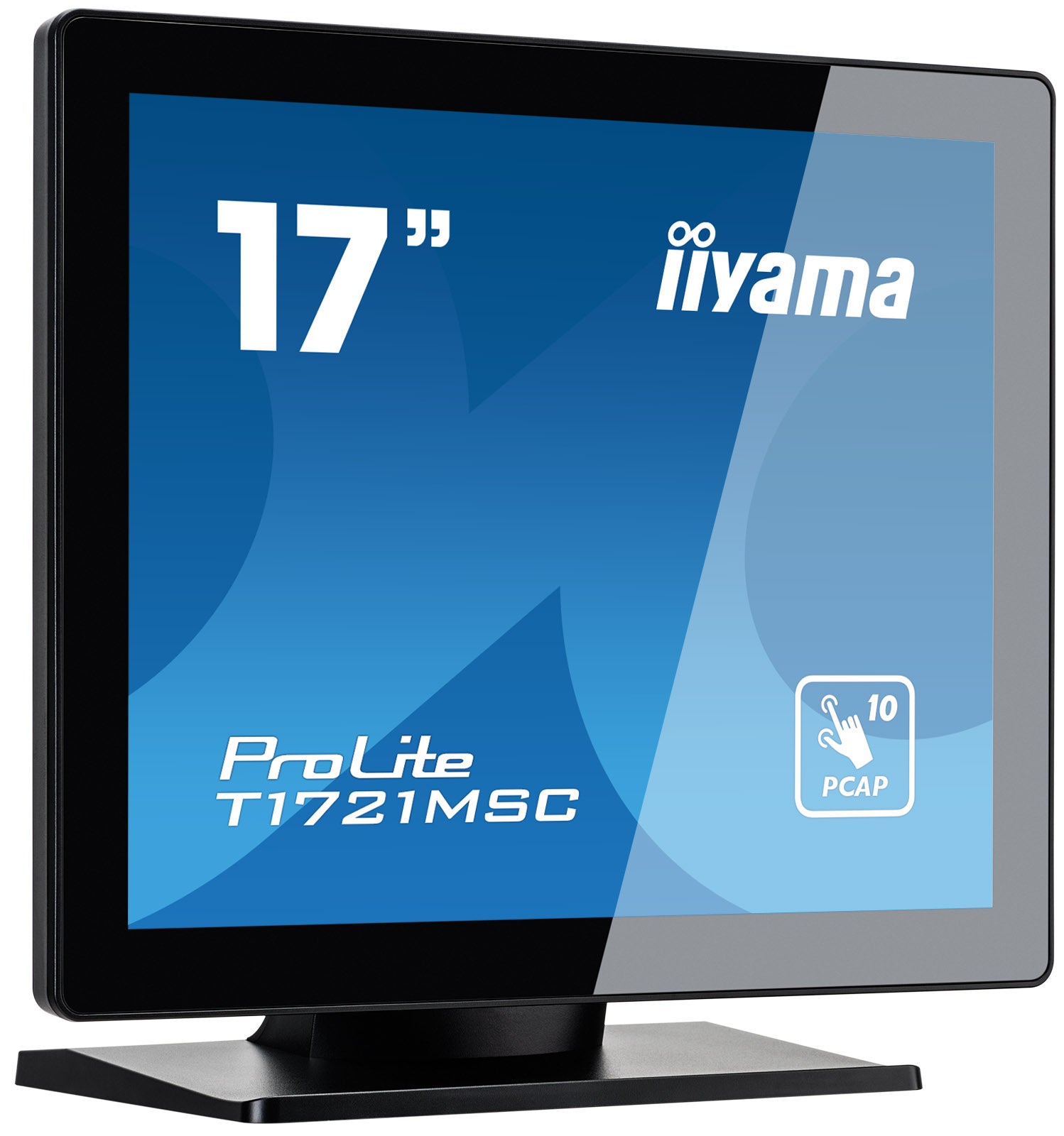

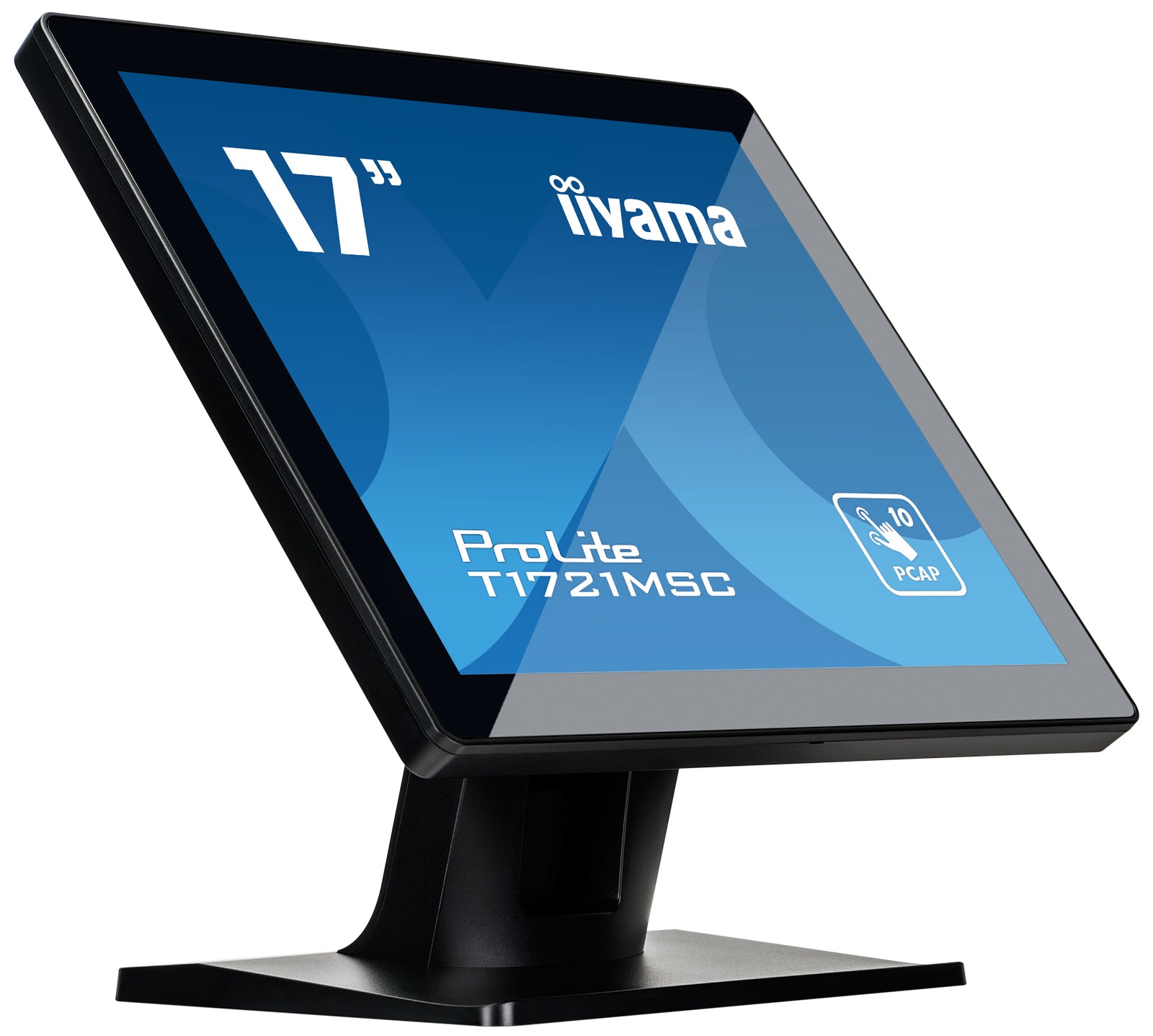

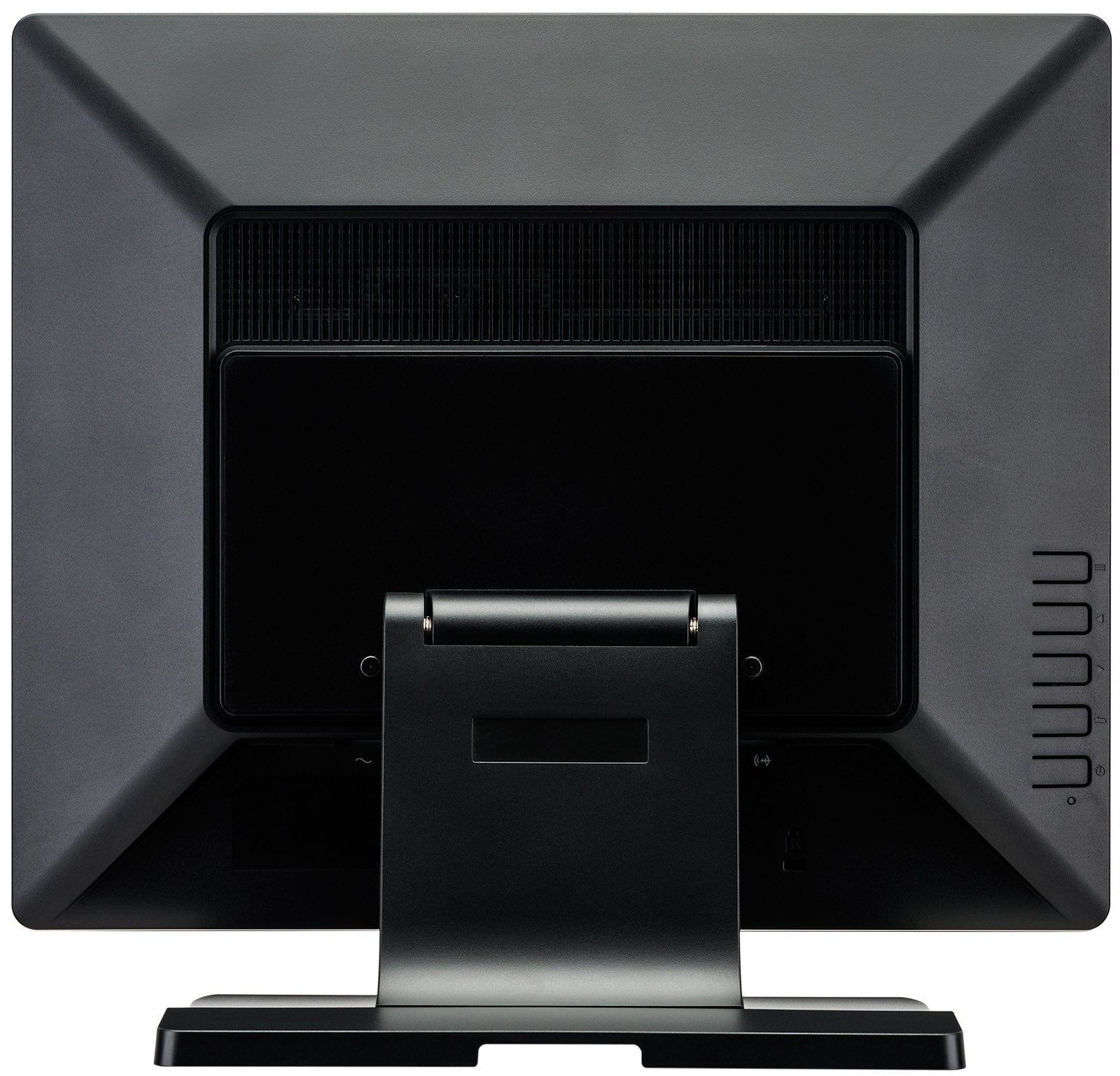

The ProLite T1721MSC-B2 17” touchscreen is based on projected capacitive technology, offering optimal seamless and accurate touch response. Due to its glass overlay, it guarantees high durability, scratch-resistance and perfect picture performance. A solid and steady base supports the touchscreen with an adjustable stand offering up to 80 degree tilt angles. Menu buttons are located on the back of the screen which can be locked to prevent tampering and include a handy function to deactivate the touchscreen for cleaning. The ProLite T1721MSC-B2 is an incredibly powerful touch solution, perfect for instore retail purposes.

Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Scratch resistance
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

Speakers
This LED monitor is equipped with two high quality stereo speakers.

VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.

Category	Details
Design	Edge to edge glass
Diagonal	17", 43cm
Panel	TN
Native Resolution	1280 x 1024 (1.3 megapixel)
Aspect Ratio	5:4
Panel Brightness	250 cd/m²
Brightness with Touch	230 cd/m²
Light Transmittance	85%
Static Contrast	1000:1
Response Time (BTB)	5ms
Viewing Zone	horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour Support	16.7mln
Horizontal Sync	31.4 - 80kHz
Viewable Area W x H	338 x 270.5mm, 13.3 x 10.6"
Pixel Pitch	0.264mm
Bezel Colour and Finish	black, matte
Touch Technology	projective capacitive
Touch Points	10 (HID, only with supported OS)
Touch Method	stylus, finger, glove (latex)
Touch Interface	USB
Supported Operating Systems	Compatible with Windows and Linux
Analog Signal Input	VGA x1
Digital Signal Input	HDMI x1
Audio Output	Mini jack x1
Speakers	2 x 2W
HDCP	yes
USB Ports	x1
Glass Thickness	1.5mm
Glass Hardness	7H
Water and Dust Protection	IPX3 (front)
OSD Key Lock	yes
OSD Languages	EN, DE, FR, ES, IT, CN, JP

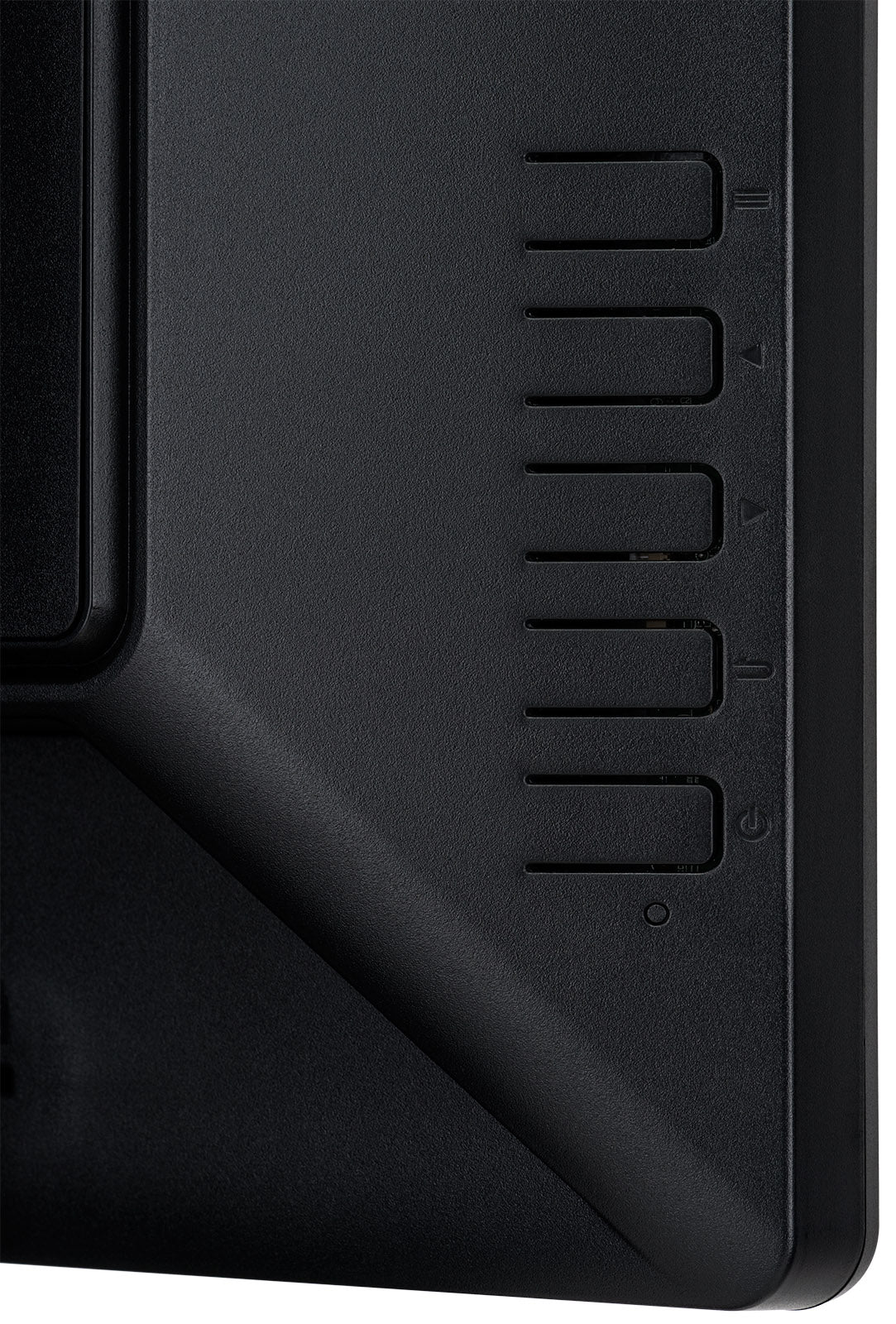

Control Buttons	Menu, Up/Left/Auto adjustment, Down/Right, Return/Exit, Power
User Controls	Various including backlight, brightness, contrast, sharpness
Blue Light Reducer	yes
Plug&Play	DDC2B

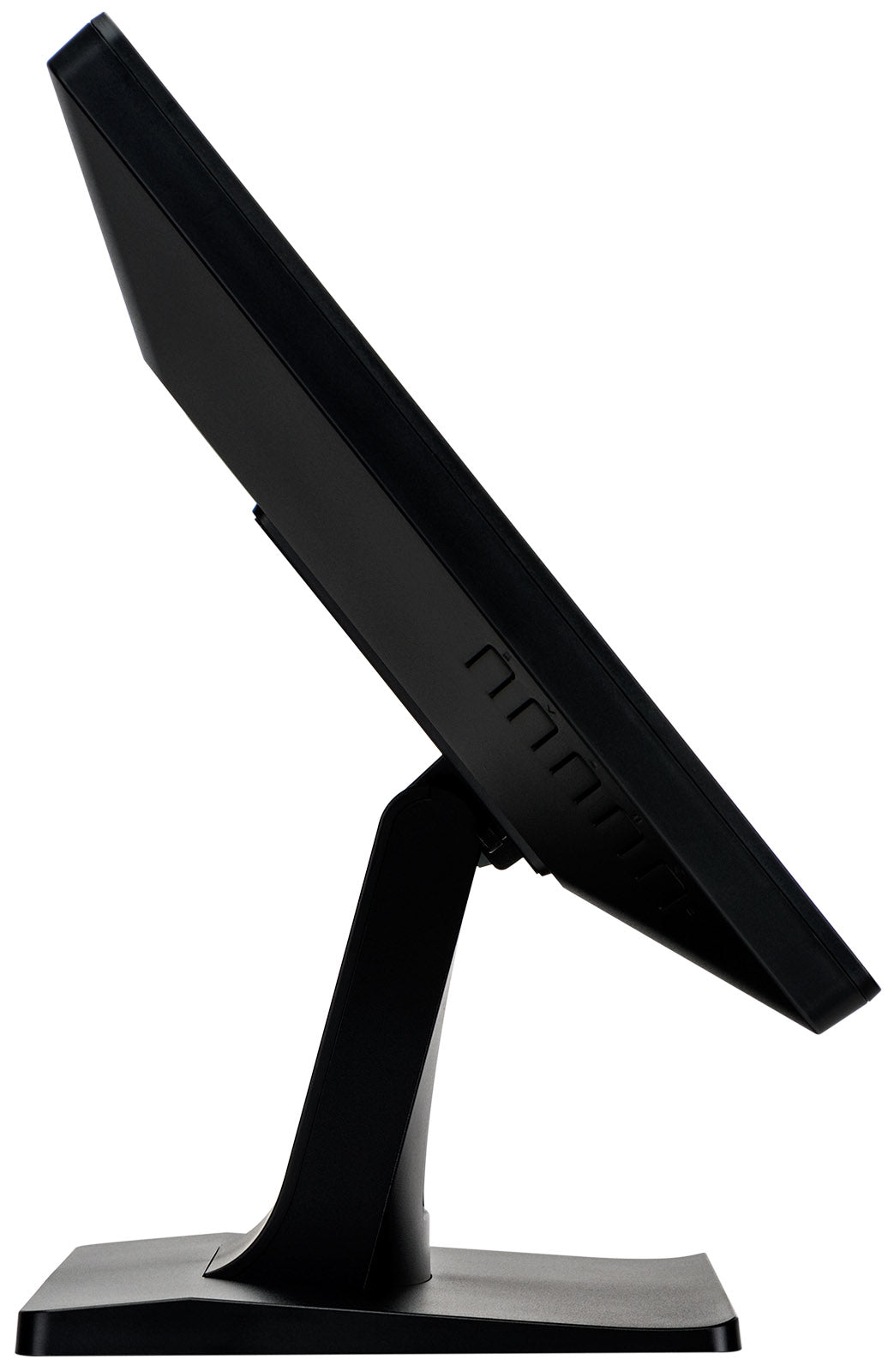

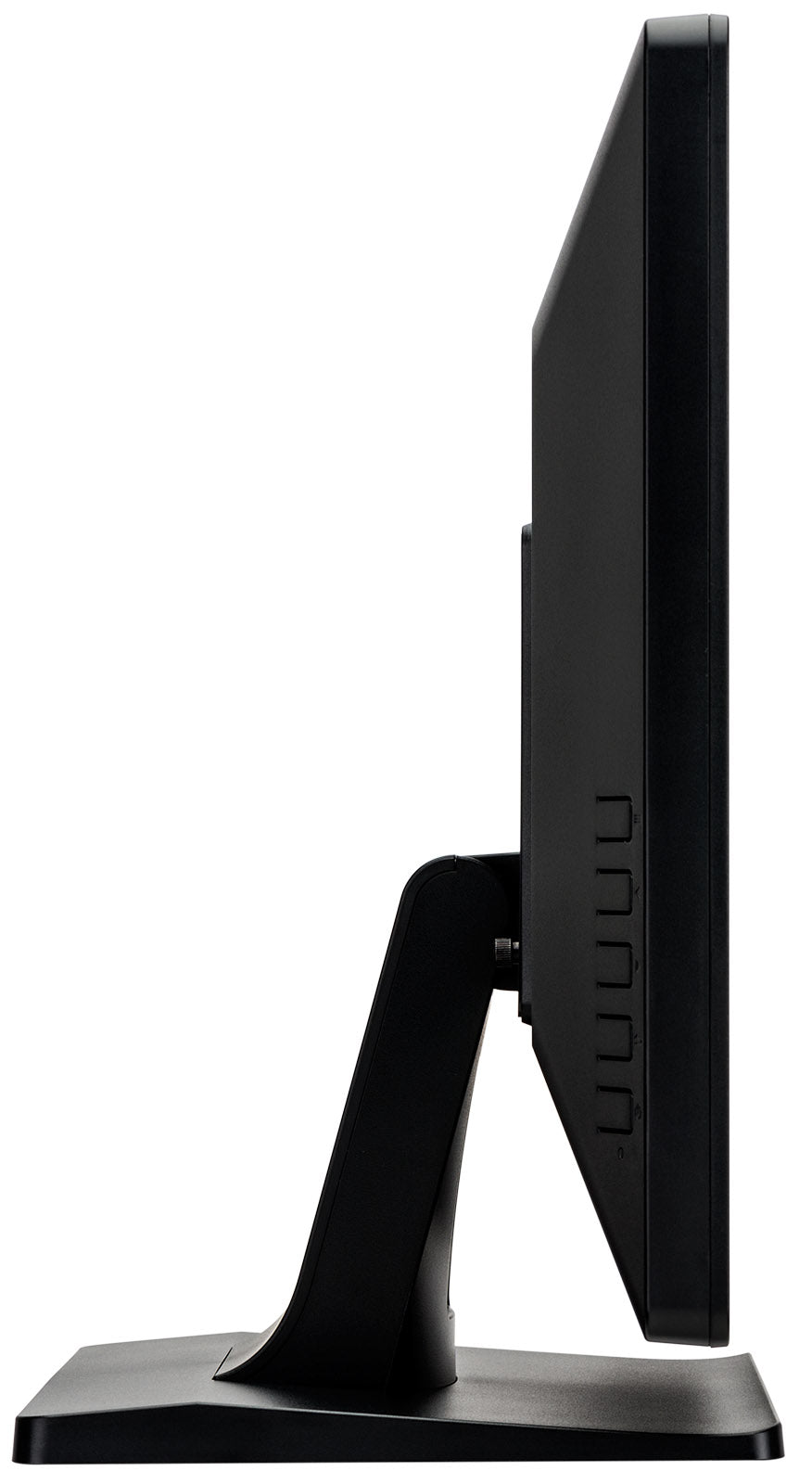

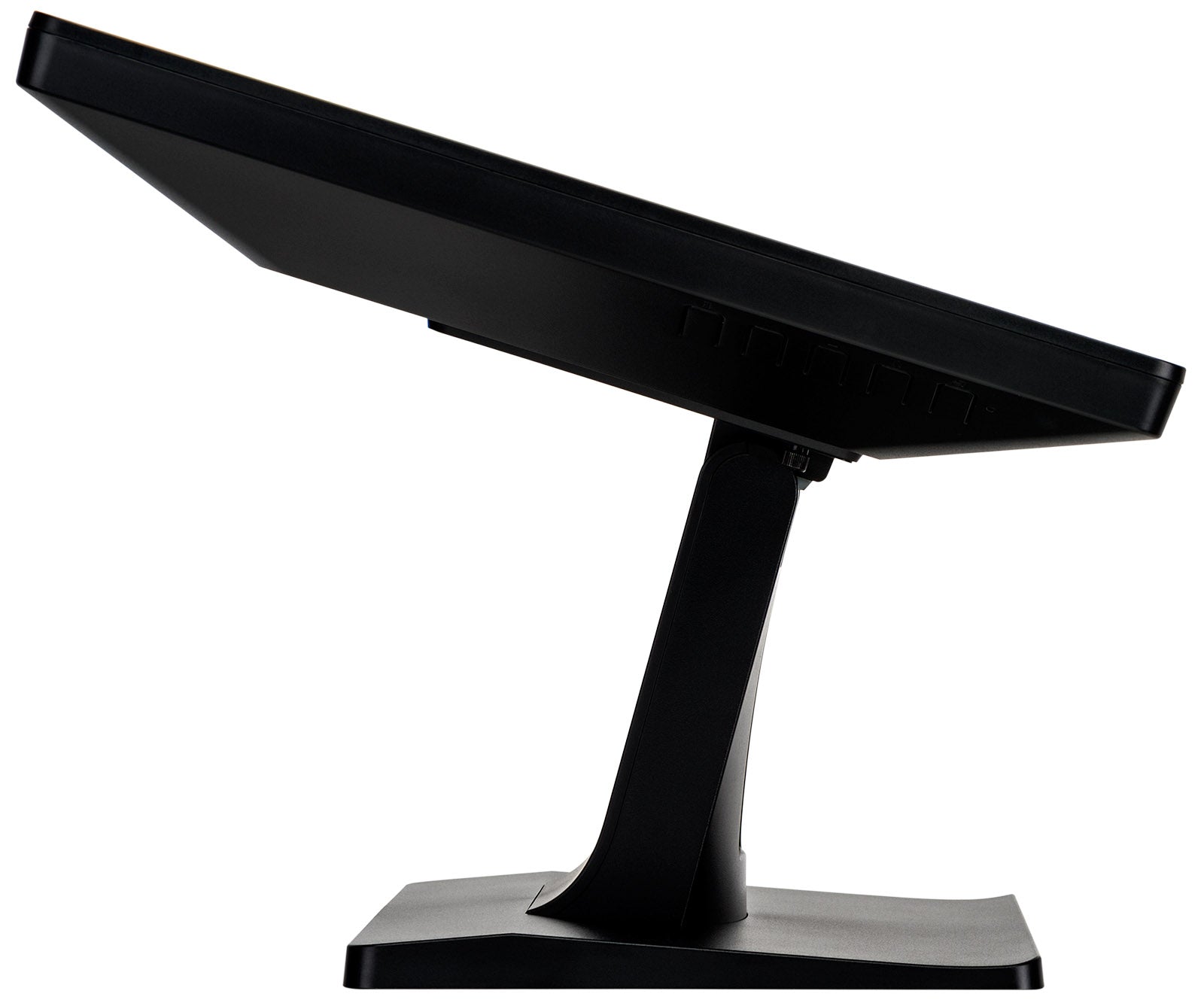

Tilt Angle	70° up; 10° down
VESA Mounting	100 x 100mm
Cable Management System	yes
MTBF	50000 hours

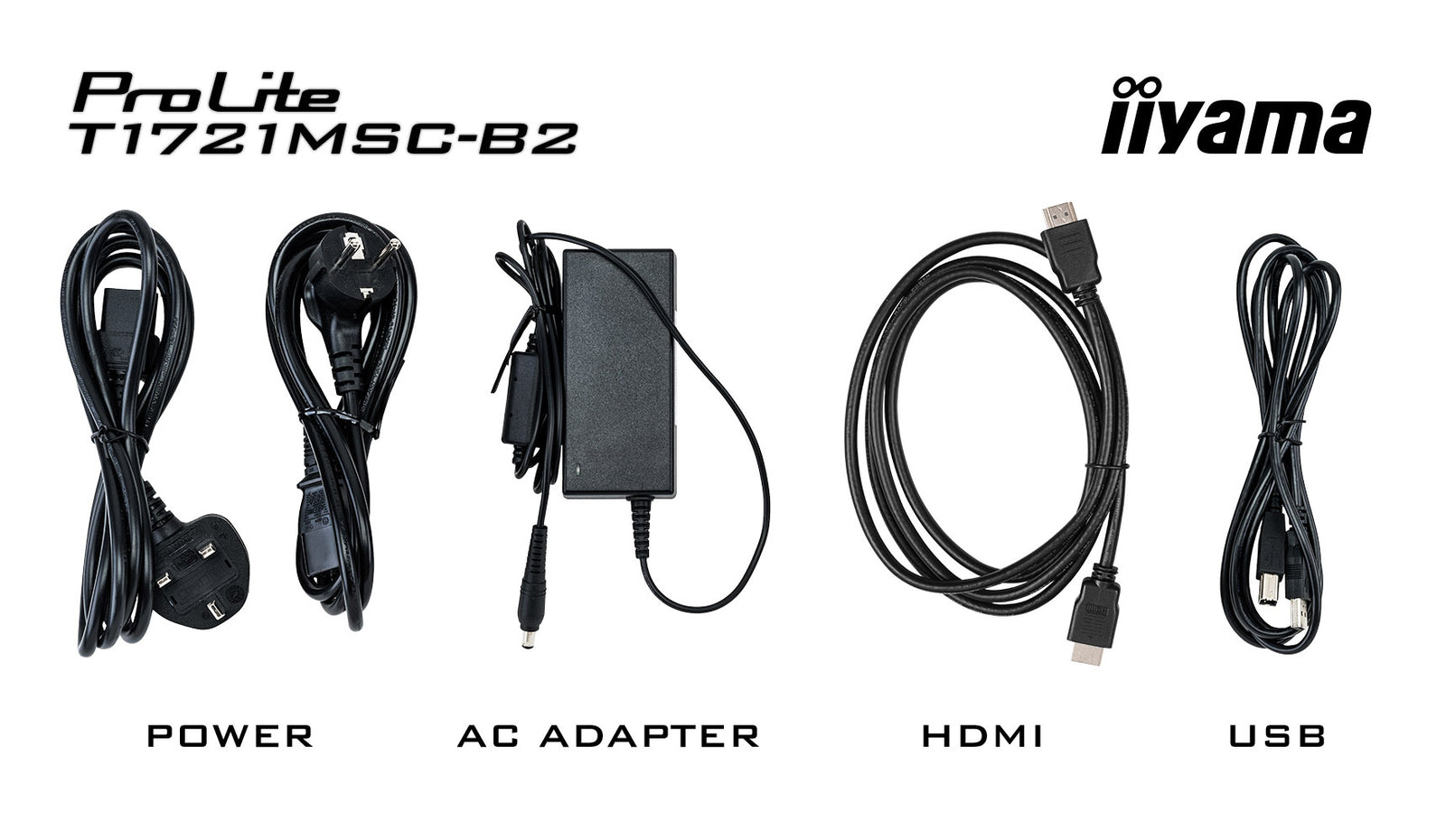

Included Accessories	Power, USB, HDMI cables, quick start guide, safety guide, AC adapter, mylar sheet (for VESA mount)
Power Supply Unit	External
Power Supply	DC 12 V
Power Usage	20W typical, 1.5W stand by, 0.3W off mode
Regulations	CE, RoHS, ErP, WEEE, cULus, REACH, UKCA
Energy Efficiency Class	E (Regulation (EU) 2017/1369)
REACH SVHC	Above 0.1%: Lead
Product Dimensions W x H x D	392.5 x 364 x 198mm
Box Dimensions W x H x D	537 x 500 x 172mm
Weight (without box)	4.4kg
Weight (with box)	5.8kg
EAN Code	4948570120659
