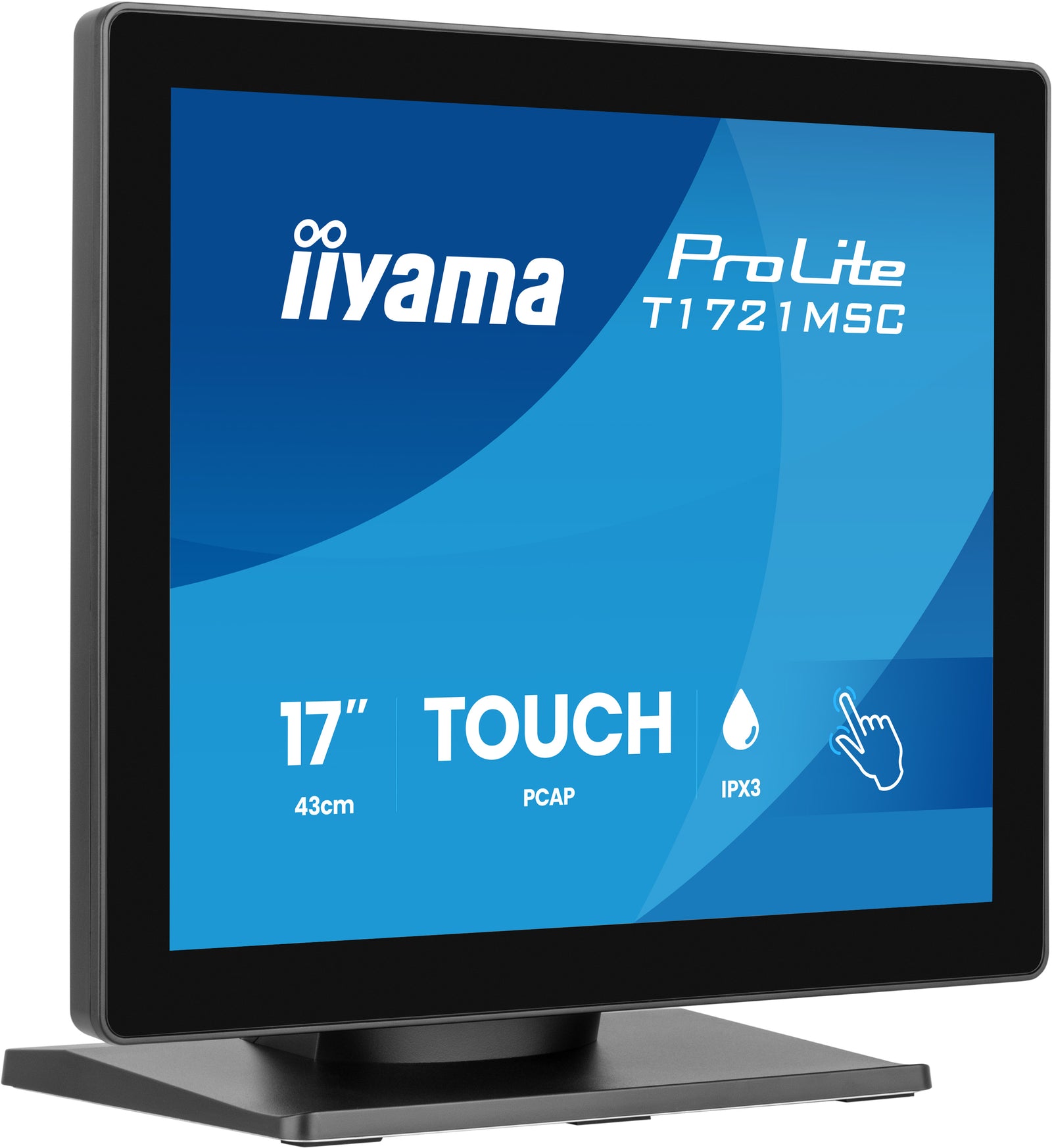

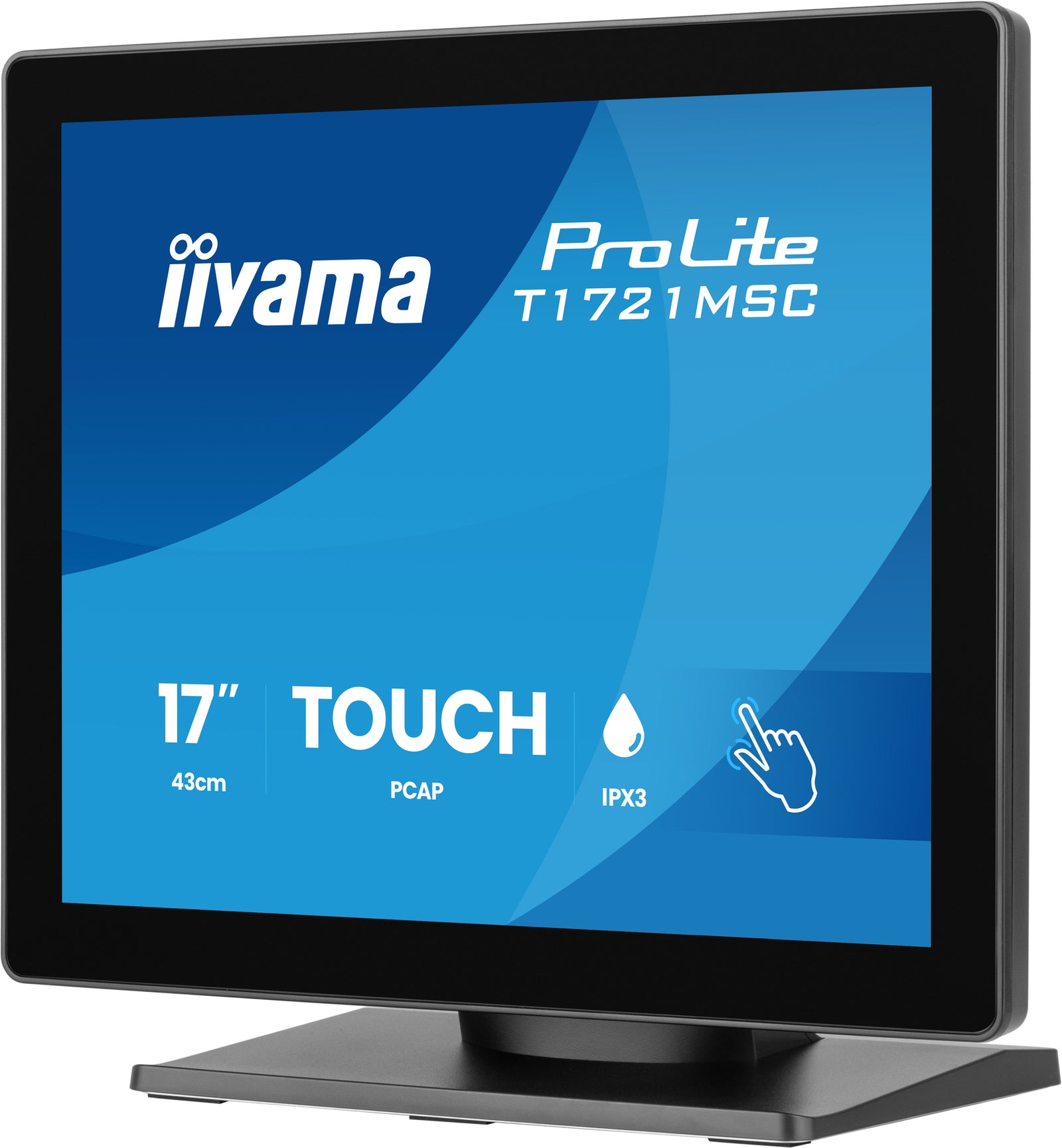

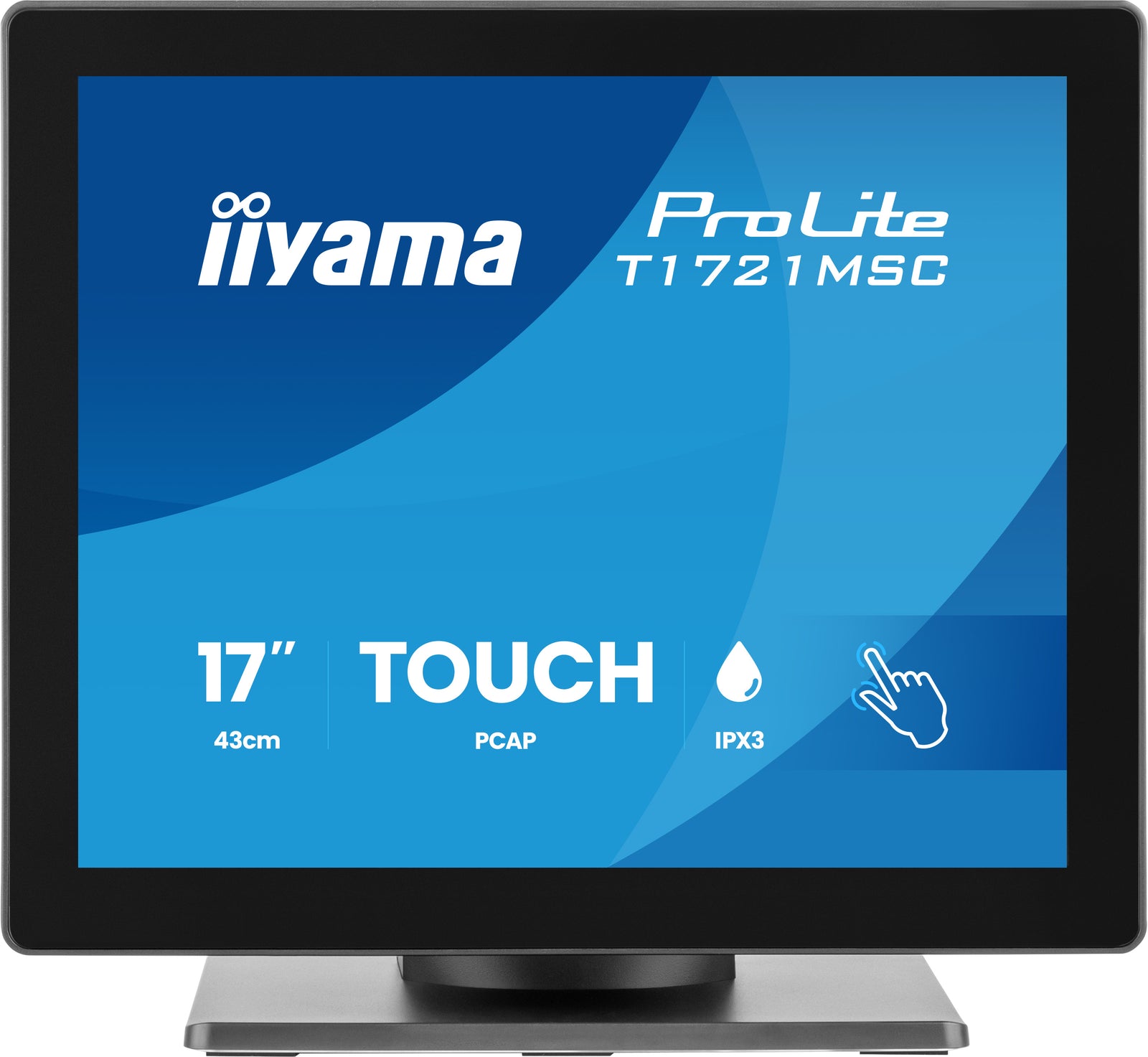

The ProLite T1721MSC-B3 is a versatile 17” touchscreen monitor designed for smooth, accurate and reliable interaction. Its 10-point PCAP touch technology supports operation by finger, latex glove or compatible stylus, making it well suited to retail, hospitality, education and industrial environments.
A protective glass overlay enhances durability and scratch resistance while preserving clear image quality and consistent touch performance. This makes the monitor a dependable choice for applications where the screen is used frequently throughout the day.

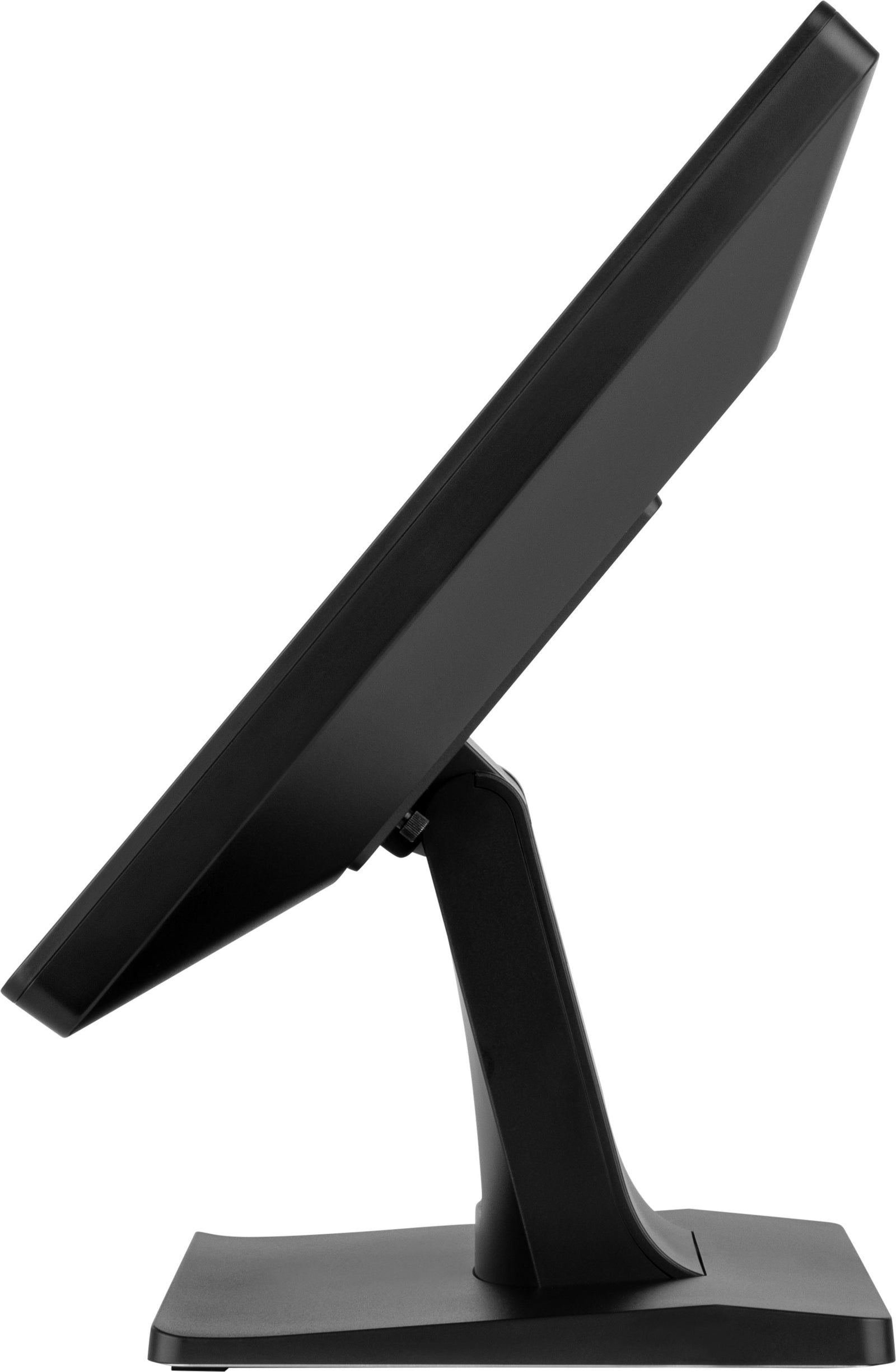

The IPX3-rated front provides protection against water sprays from different directions at angles of up to 60°, offering added reassurance in environments where occasional exposure to moisture may occur. The stable stand features an 70° tilt range, allowing the screen to be positioned comfortably for different users and applications.

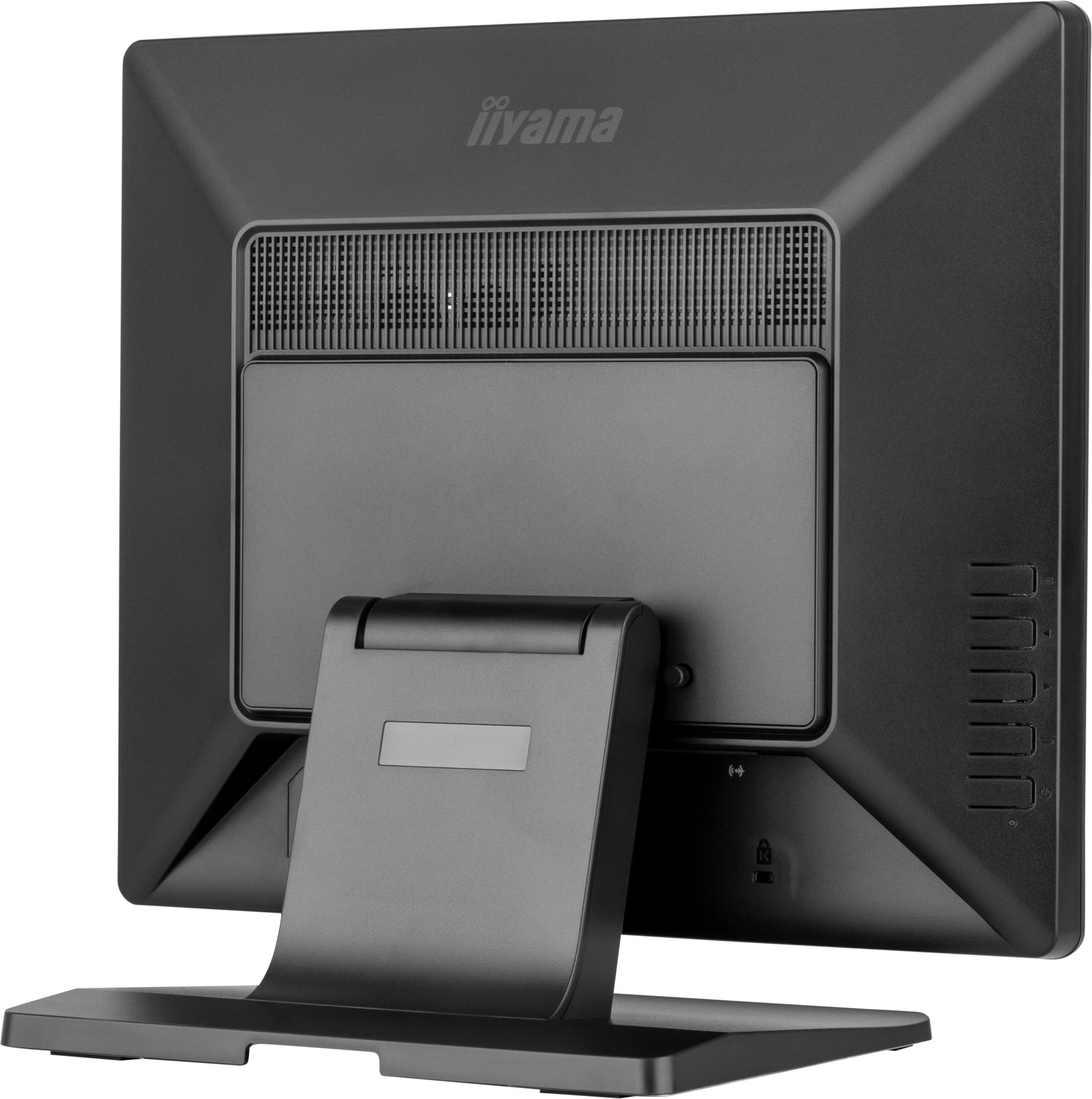

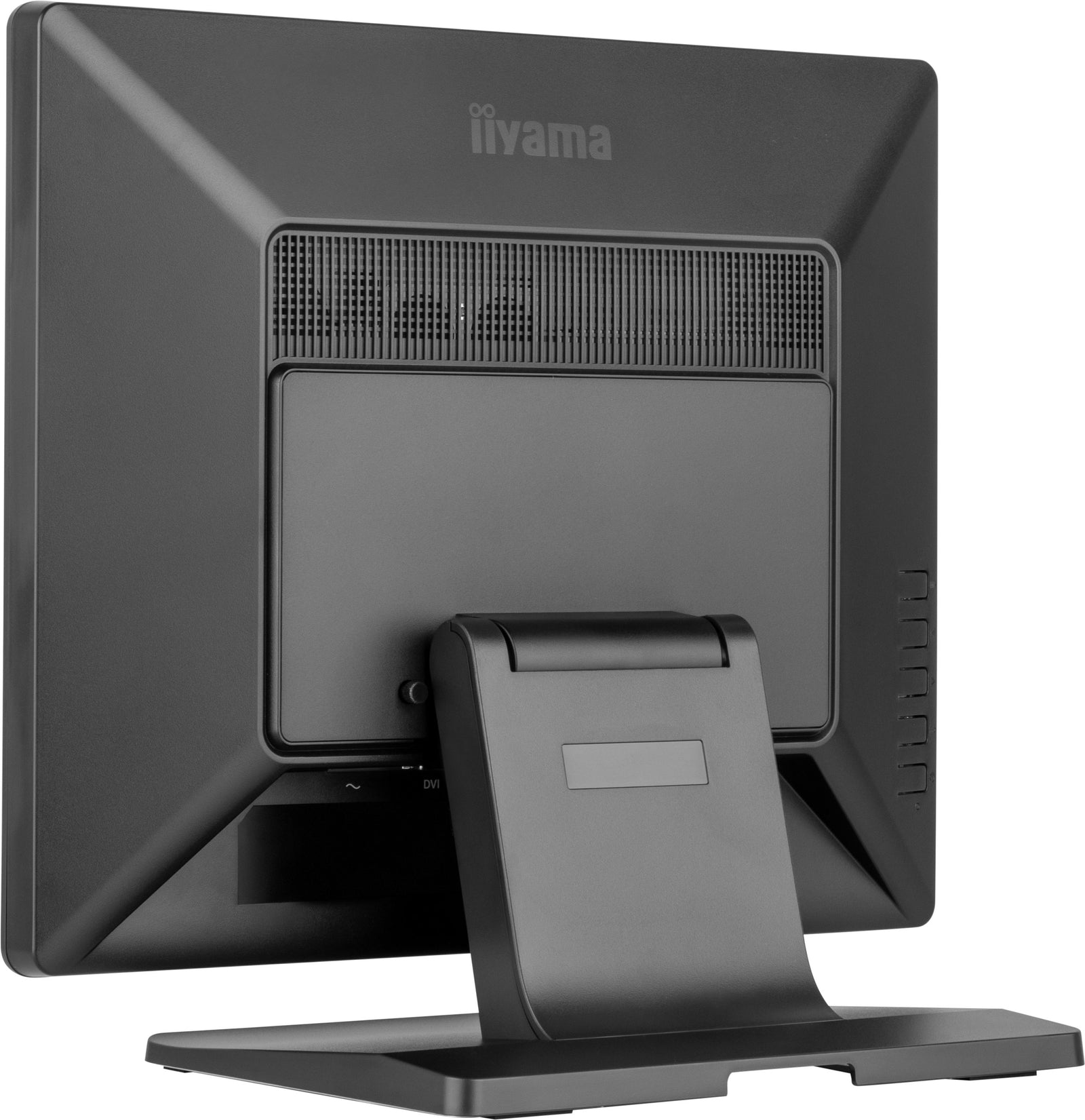

Integrated 2 x 2W speakers deliver clear sound directly from the monitor, making the ProLite T1721MSC-B3 a practical and complete touchscreen solution for a wide range of professional settings.
Smooth touch for demanding environments
PCAP touch technology supports input via finger, latex glove or stylus. Its robust design makes it a practical choice for a wide range of environments, from retail to catering or other applications where a smooth touch experience is required.
Reliable where conditions get tough
The IPX3-rated front provides protection against water sprays from different directions at angles of up to 60°, offering added reassurance in environments where occasional exposure to moisture may occur.
Comfortable and versatile use

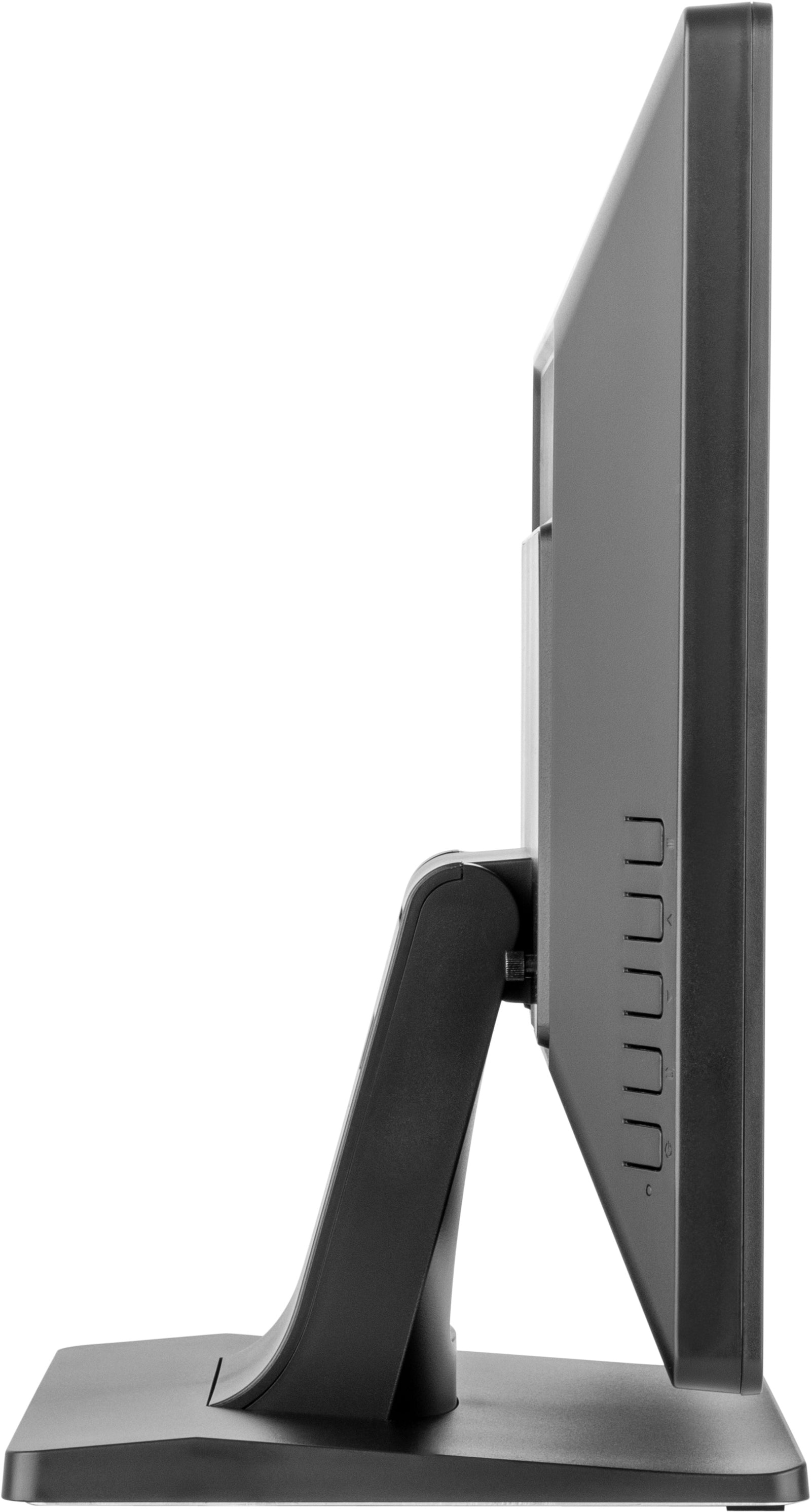

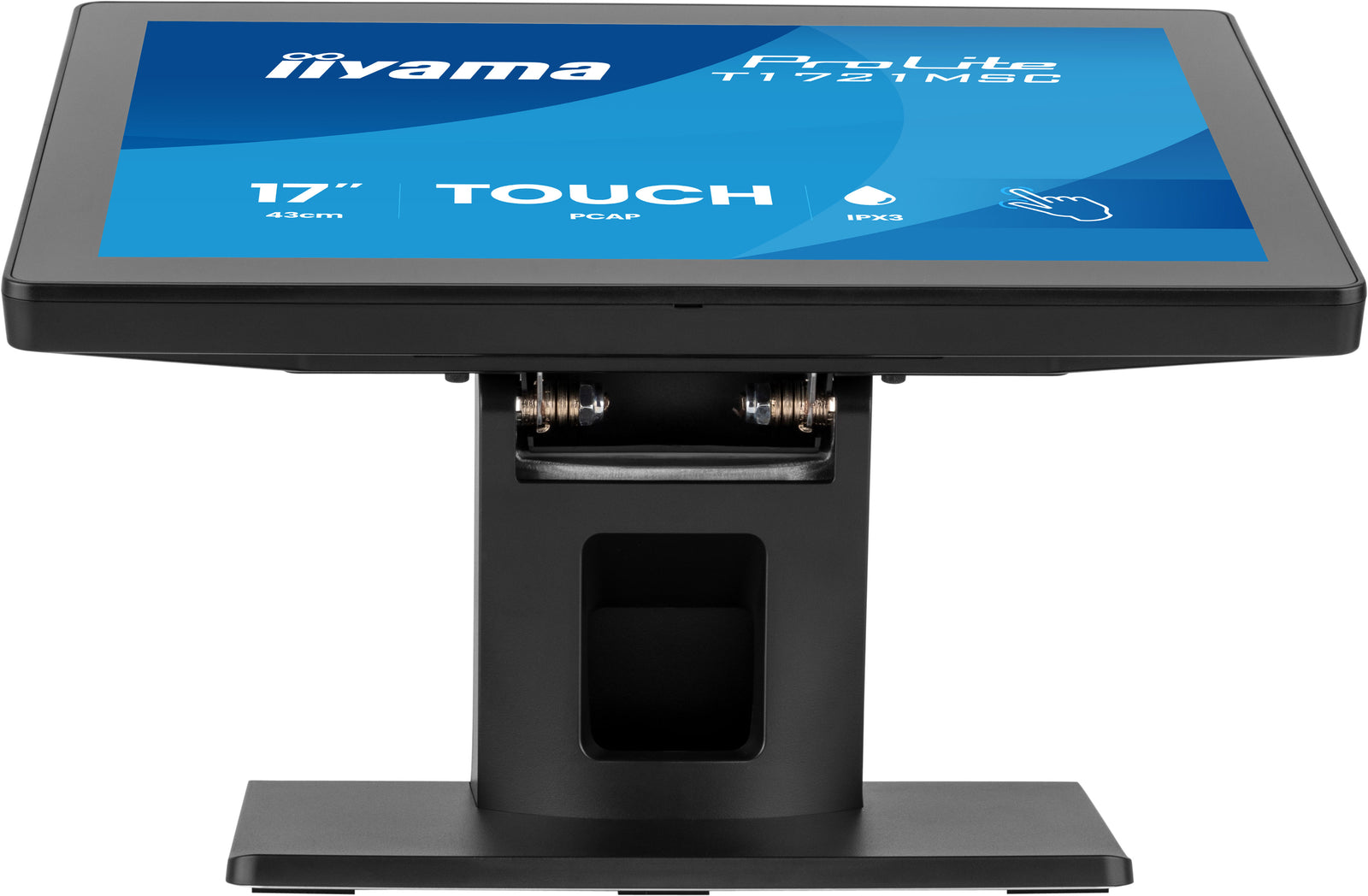

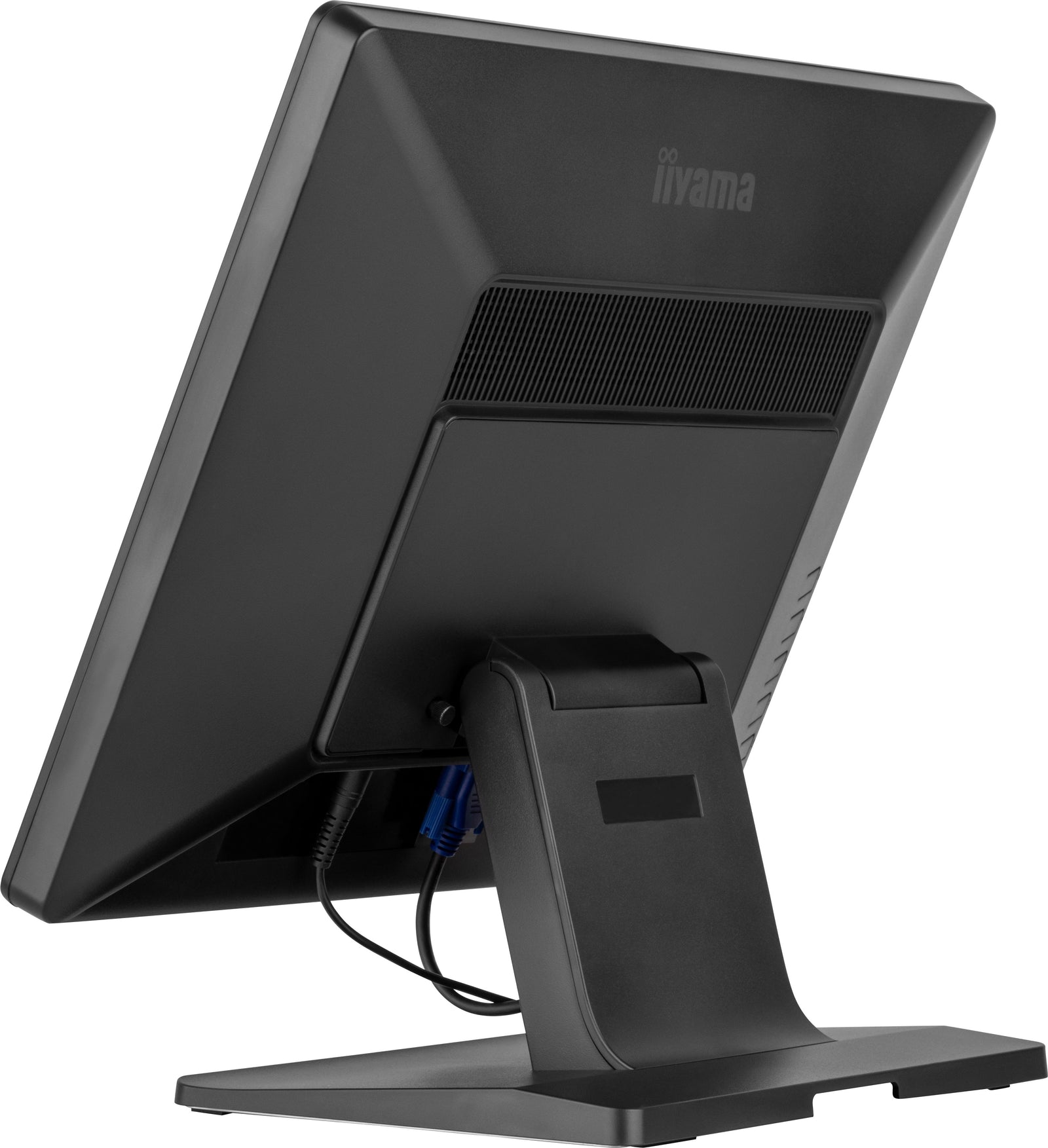

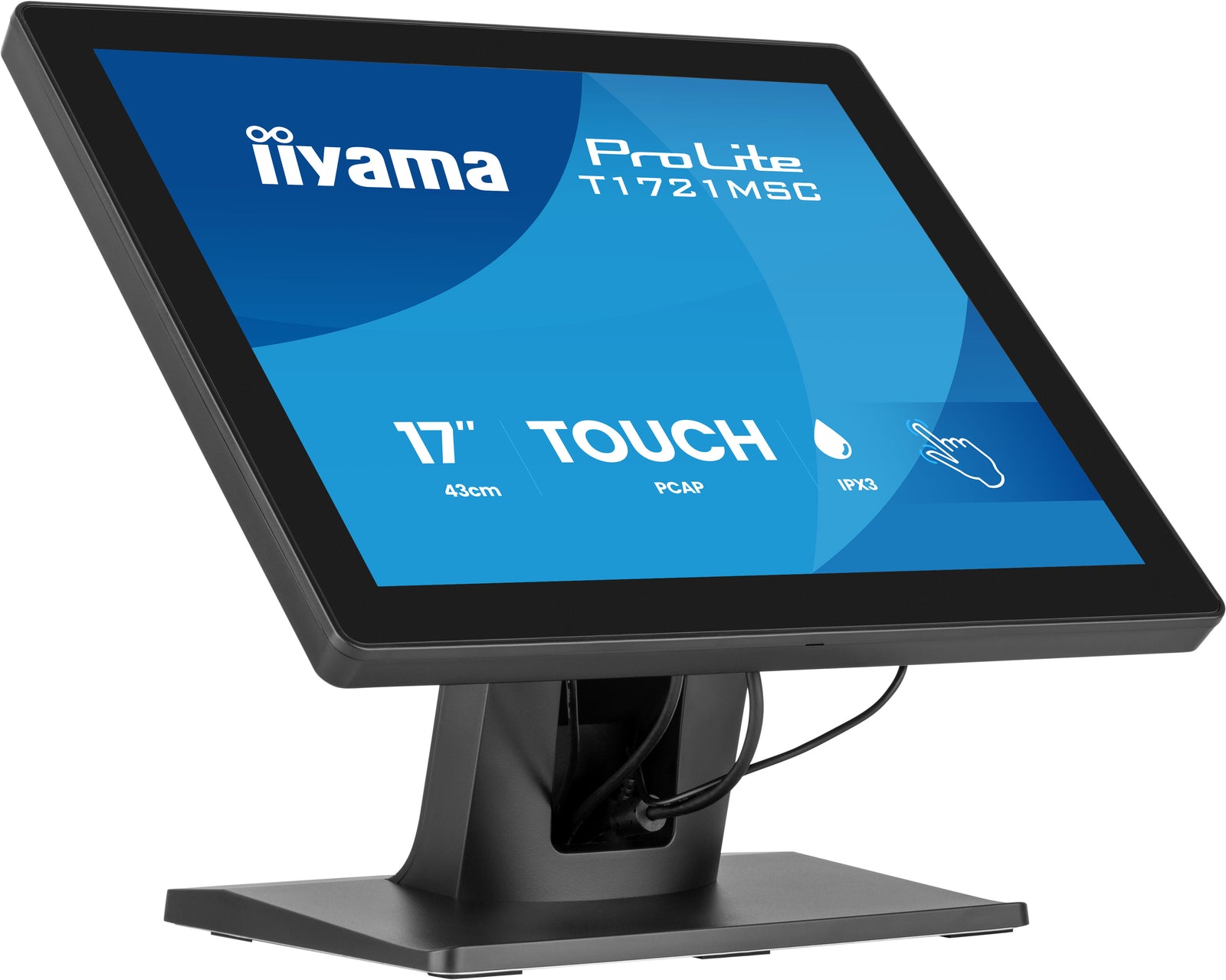

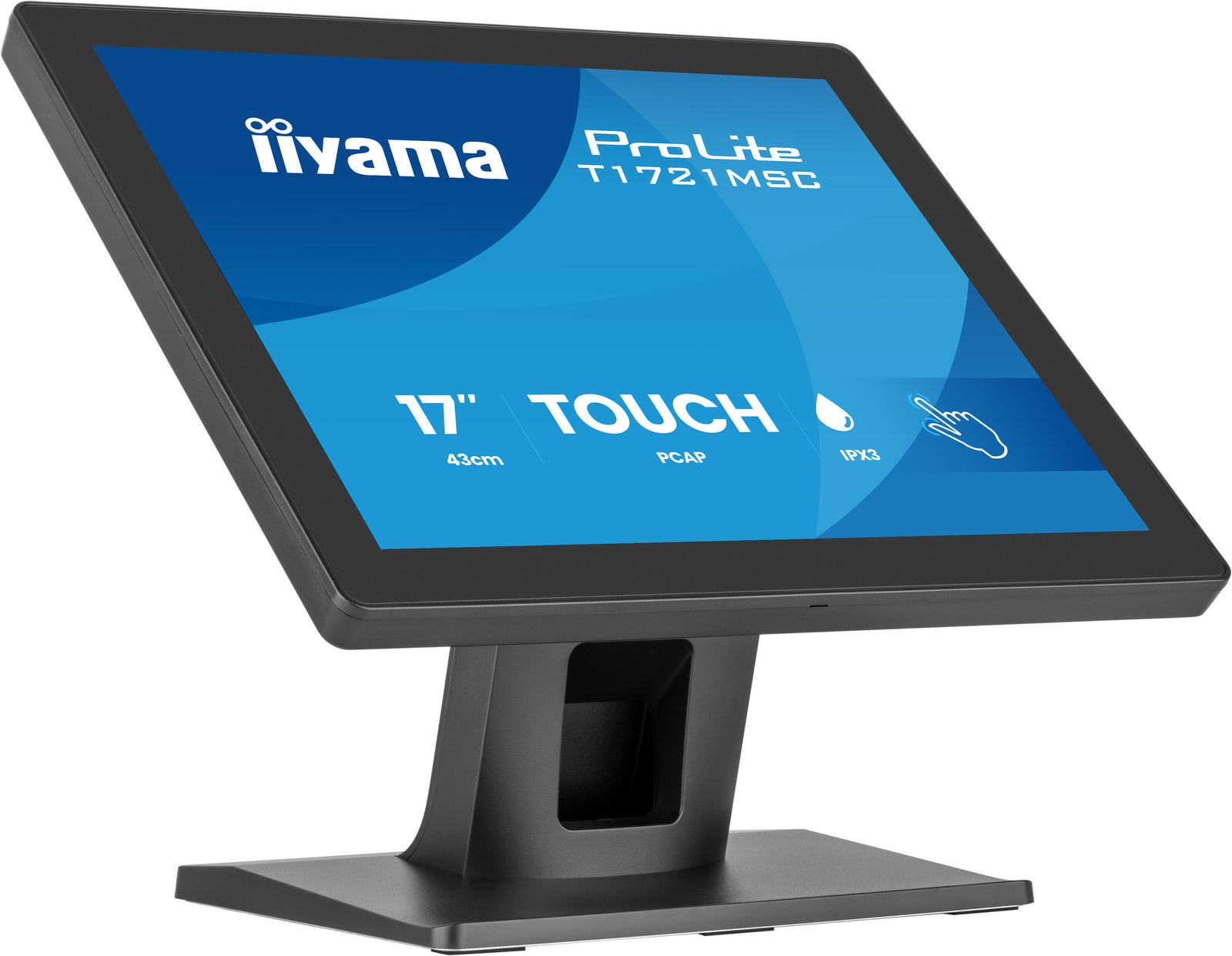

The single-hinge stand allows smooth screen adjustment for comfortable, versatile use - with built-in cable management to keep your workspace neat.
Enjoy clear, immersive sound
Deliver clear, impactful audio directly from your monitor. Ideal for grabbing attention.
| Display Characteristics | |||
| Design | Edge to edge glass | Diagonal | 17", 43cm |
| Panel | TN | Native resolution | 1280 x 1024 @75Hz (1.3 megapixel) |
| Aspect ratio | 5:4 | Panel brightness | 250 cd/m² |
| Brightness | 230 cd/m² with touch | Static contrast | 1000:1 with touch |
| Response time (BTB) | 5ms | Viewing zone | Horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80° |
| Colour support | 16.7mln | Horizontal Sync | 31 - 80kHz |
| Viewable area W x H | 338 x 270.5mm, 13.3 x 10.6" | Pixel pitch | 0.264mm |
| Bezel colour and finish | Black, matte | ||
| Touch | |||
| Touch technology | Projective capacitive | Touch points | 10 (HID, only with supported OS) |
| Touch method | Stylus, finger, glove (latex) | Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. | ||

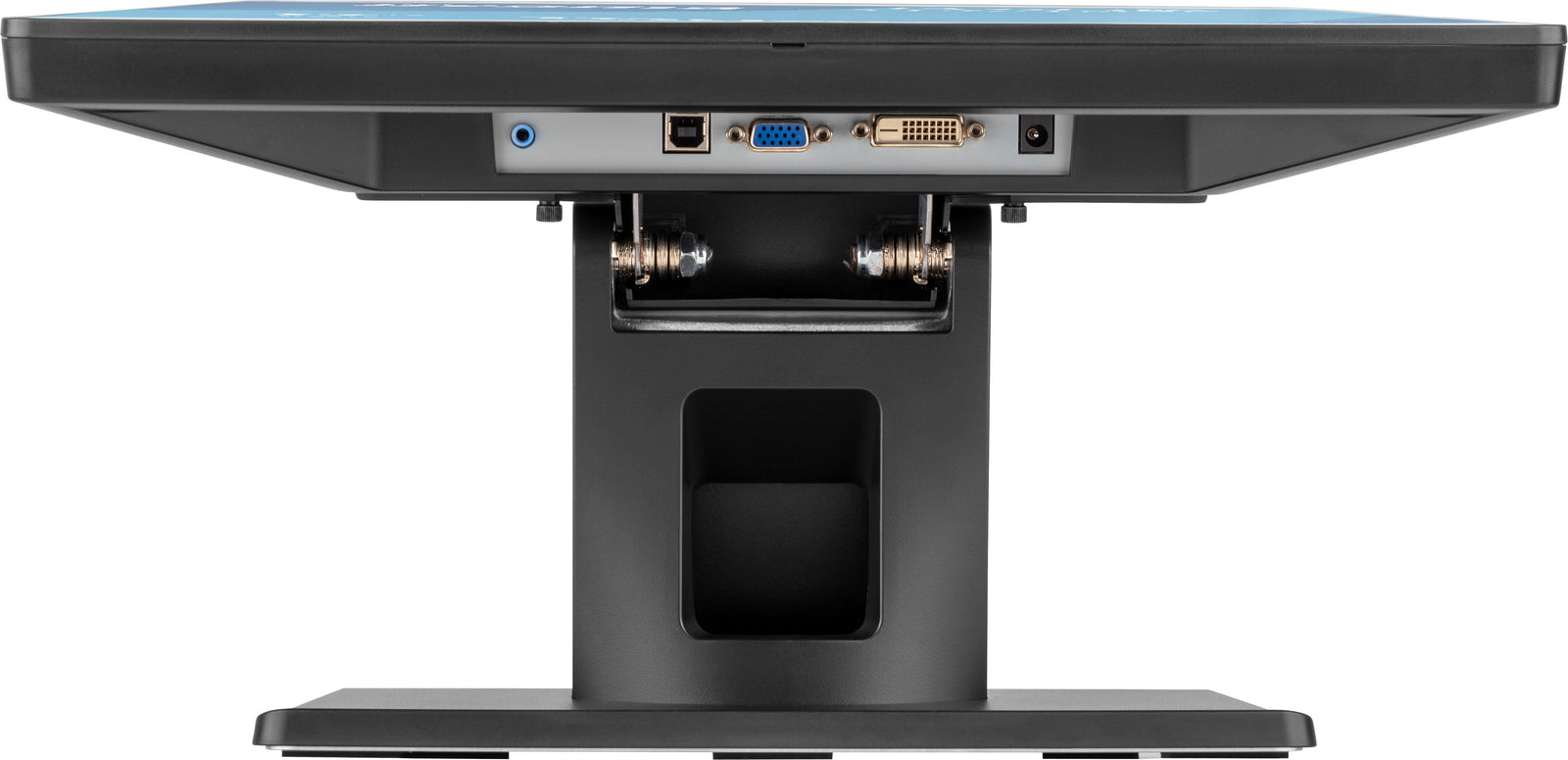

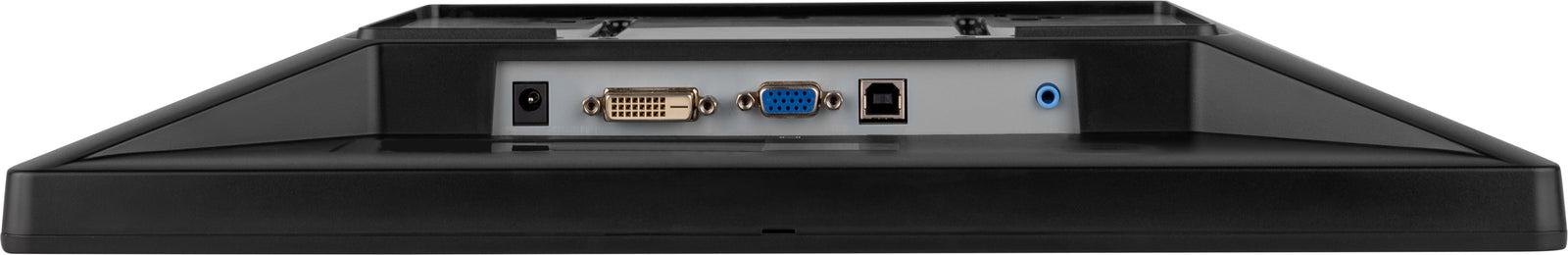

| Interfaces / Connectors / Controls | |||
| Analog signal input | VGA x1 | Digital signal input | HDMI x1 |
| Audio input | Mini jack x1 | Audio output | Speakers 2 x 2W |
| HDCP | Yes | USB ports | x1 |
| Features | |||
| Glass thickness | 1.5mm | Glass hardness | 7H |
| Water and dust protection | IPX3 (front) | OSD key lock | Yes |
| General | |||
| OSD languages | EN, DE, FR, ES, IT, CN, JP | Control buttons | Menu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power |
| User controls | Picture (backlight, brightness, contrast, sharpness), display (auto adjustment, H position, V position, pixel clock, phase), colour (colour temp, picture mode), input, audio (volume, mute, audio source), other (reset, OSD time, OSD H position, OSD V position, language), information | Convenience | Kensington-lock™ prepared |
| Blue light reducer | Yes | Plug&Play | DDC2B |
| Mechanical | |||

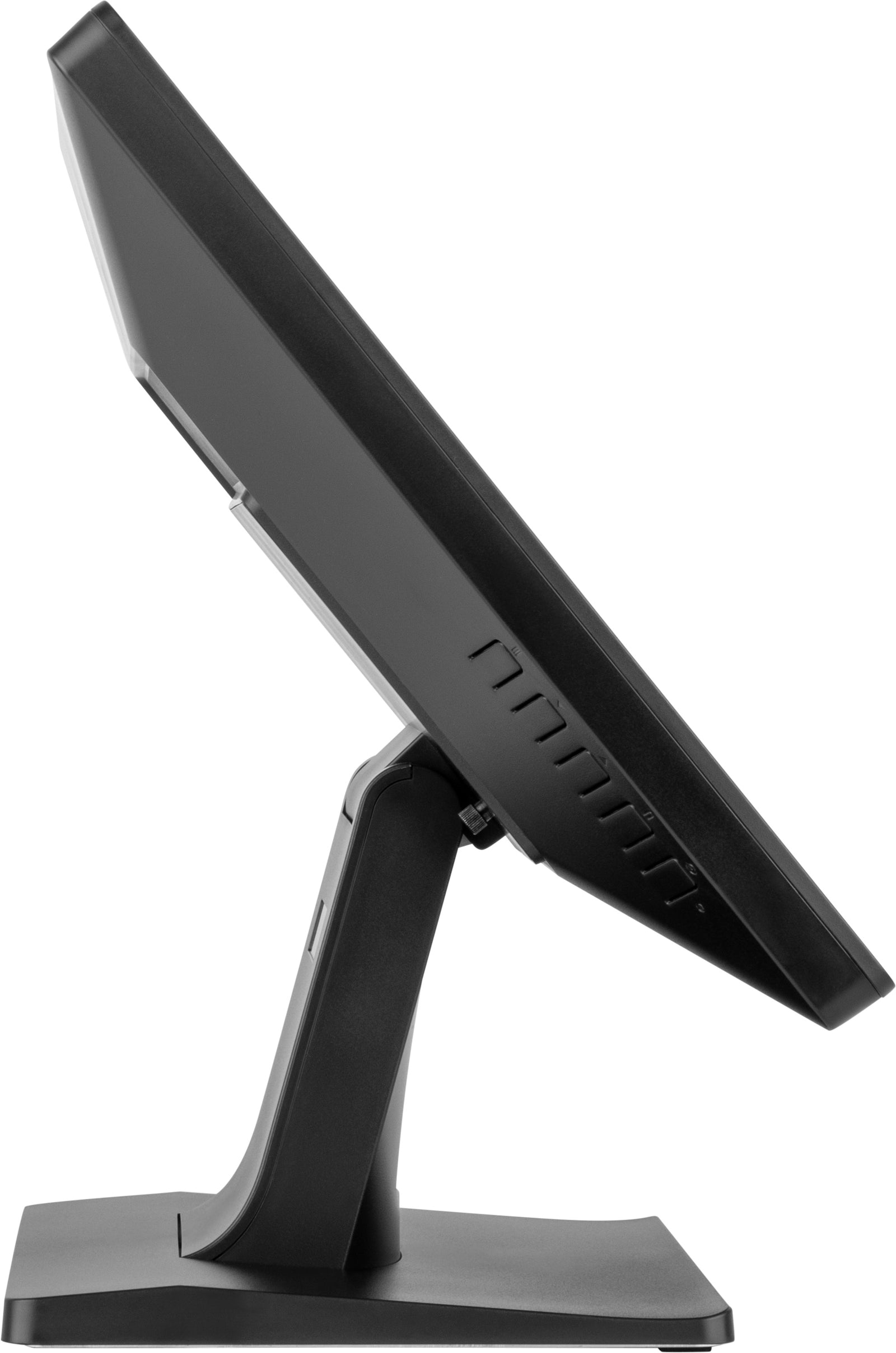

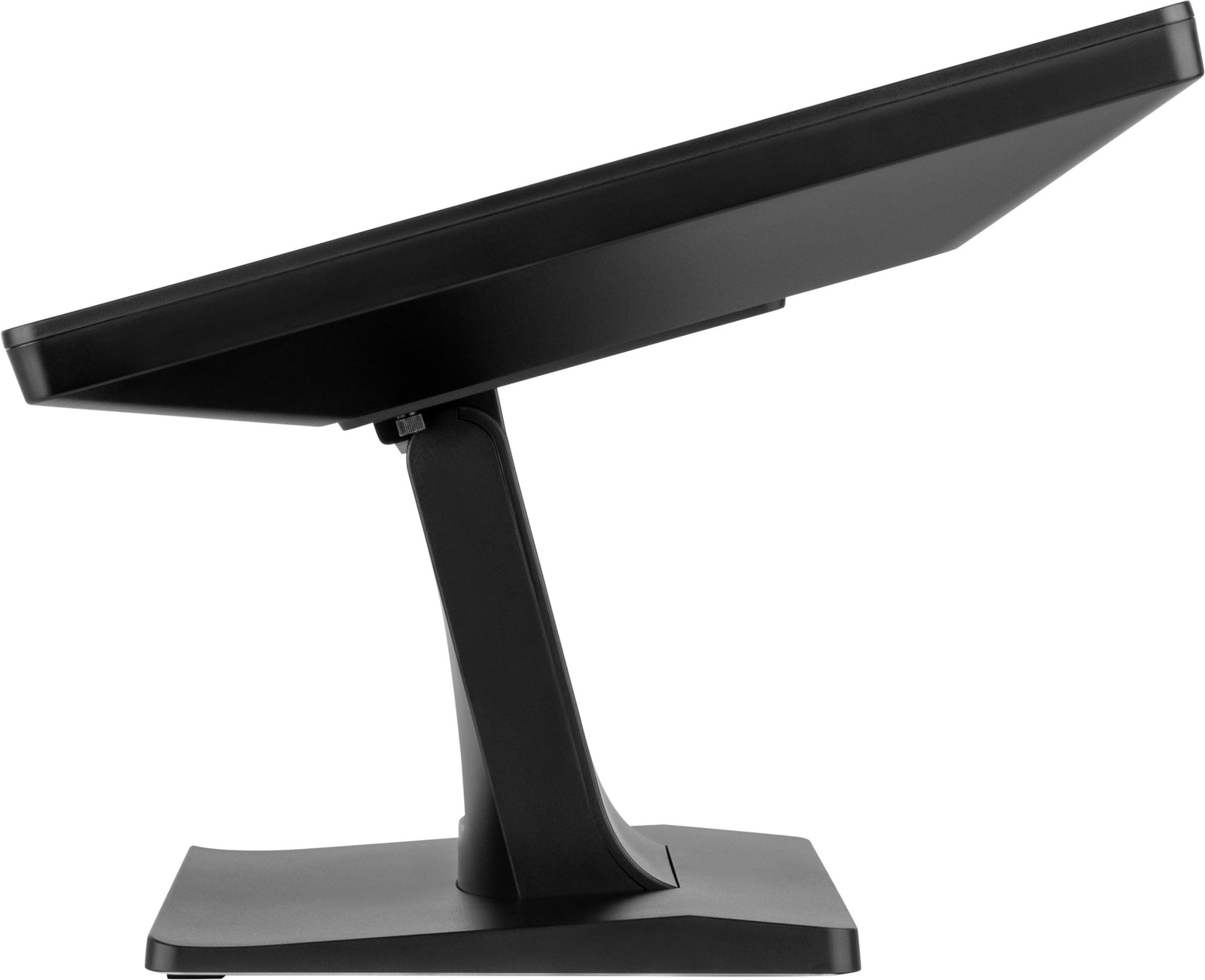

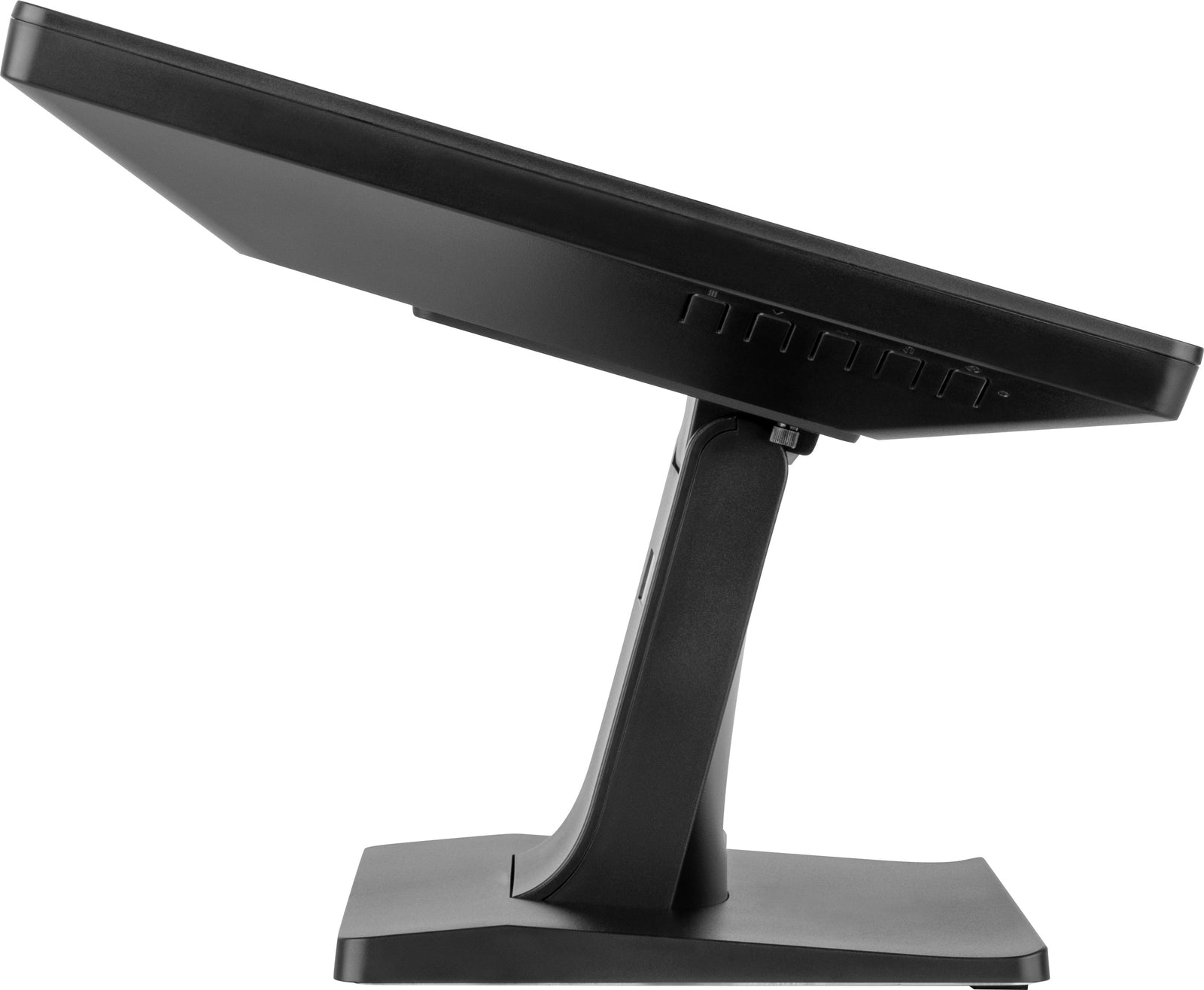

| Tilt angle | 70° up; 10° down | VESA mounting | 100 x 100mm |
| Cable management system | Yes | MTBF | 50000 hours |
| Accessories Included | |||

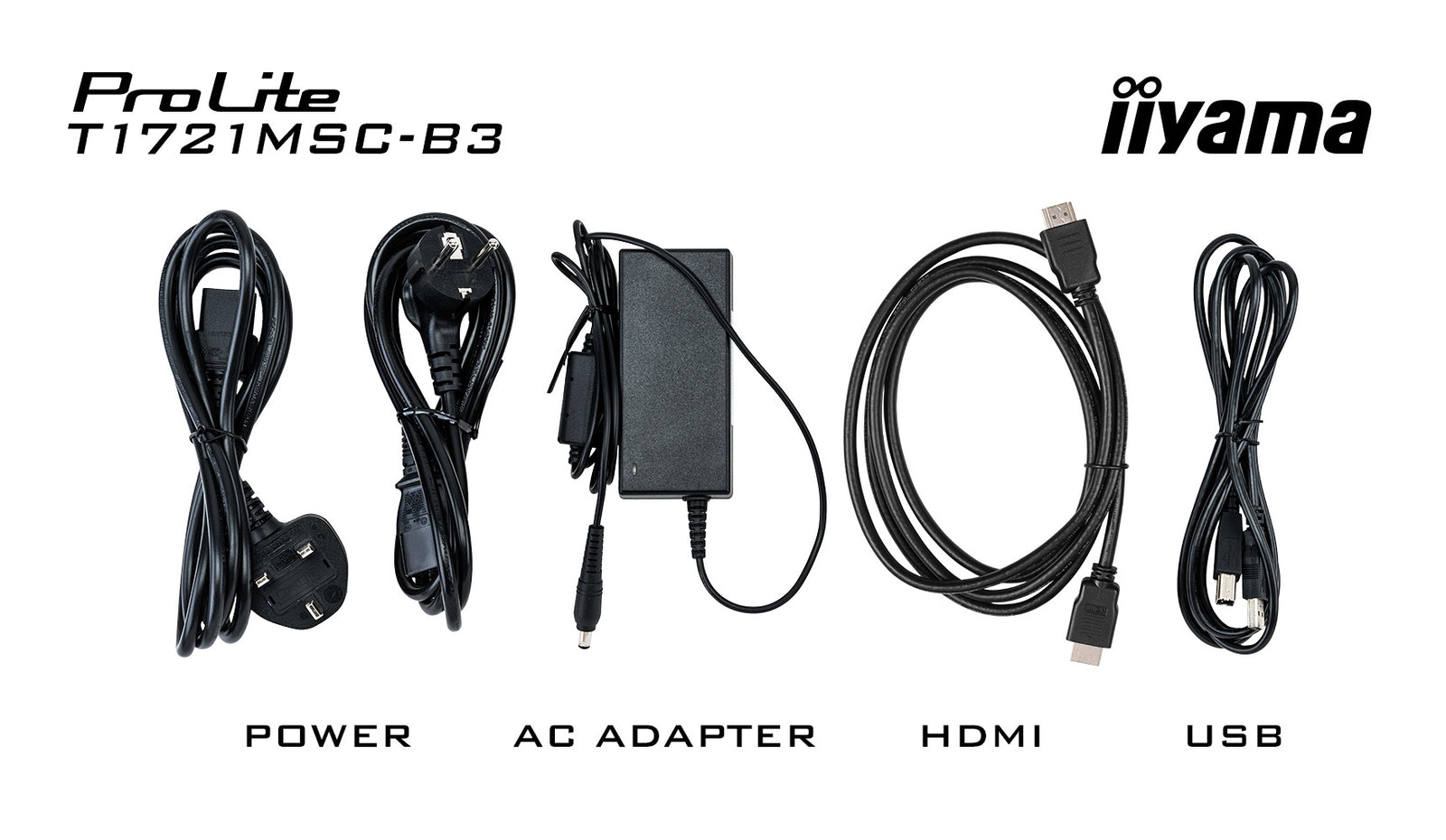

| Cables | Power (1.8m), USB (1.8m), HDMI (1.8m) | Guides | Quick start guide, safety guide |
| Other | AC adapter, mylar sheet (for VESA mount) | Cable cover | Yes |
| Power Management | |||
| Power supply unit | External | Power supply | DC 12 V |
| Power usage | 20W typical, 1.5W stand by, 0.3W off mode | ||
| Sustainability | |||
| Regulations | CE, RoHS support, ErP, WEEE, cULus, VCCI, REACH | Energy efficiency class (Regulation (EU) 2017/1369) | E |
| REACH SVHC | Above 0.1%: Lead, Diboron trioxide, Lead monoxide (lead oxide) | ||
| Dimensions / Weight | |||
| Product dimensions W x H x D | 392.5 x 364 x 198mm | Box dimensions W x H x D | 537 x 500 x 172mm |
| Weight (without box) | 4.4kg | Weight (with box) | 5.8kg |
| EAN code | 4948570127092 | ||
| Description | Downloads |
|---|---|
| User Manual | Download |
| Technical Specification | Download |
| Drawing | Download |
| EU Energy Label | Download |
| UK Energy Label | Download |
