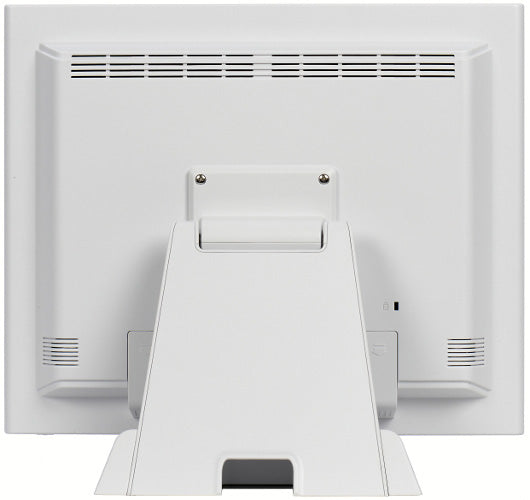

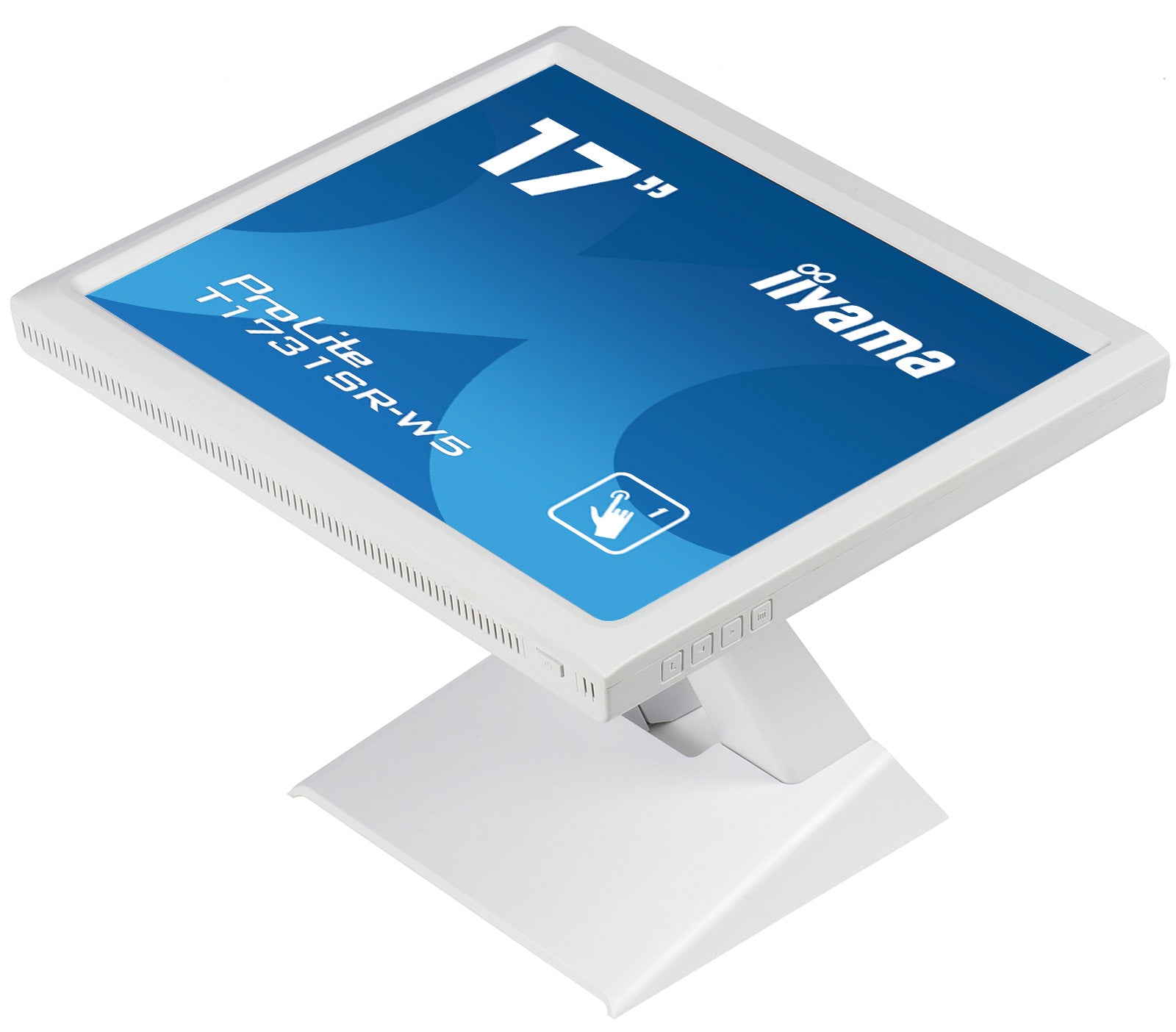

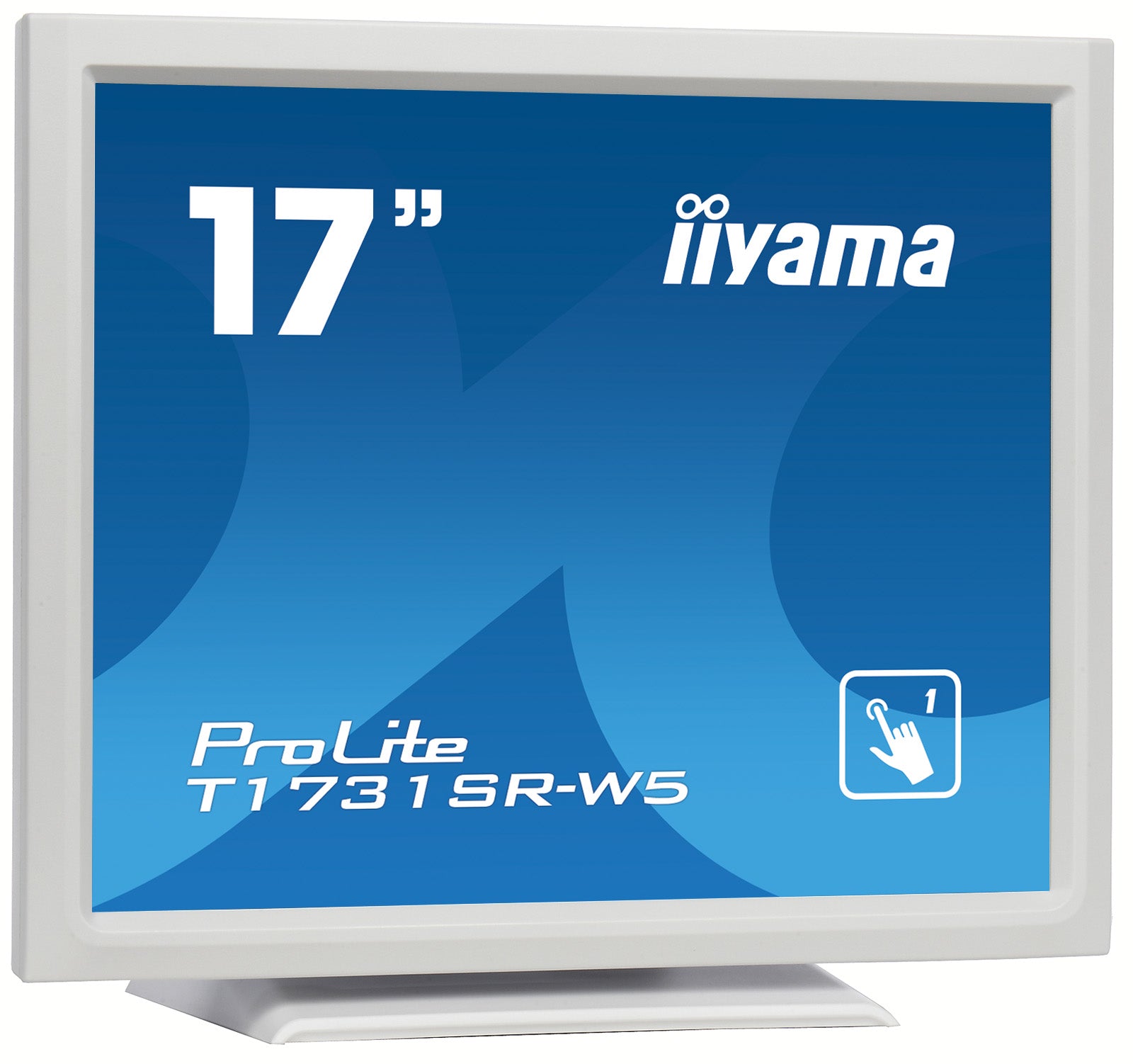

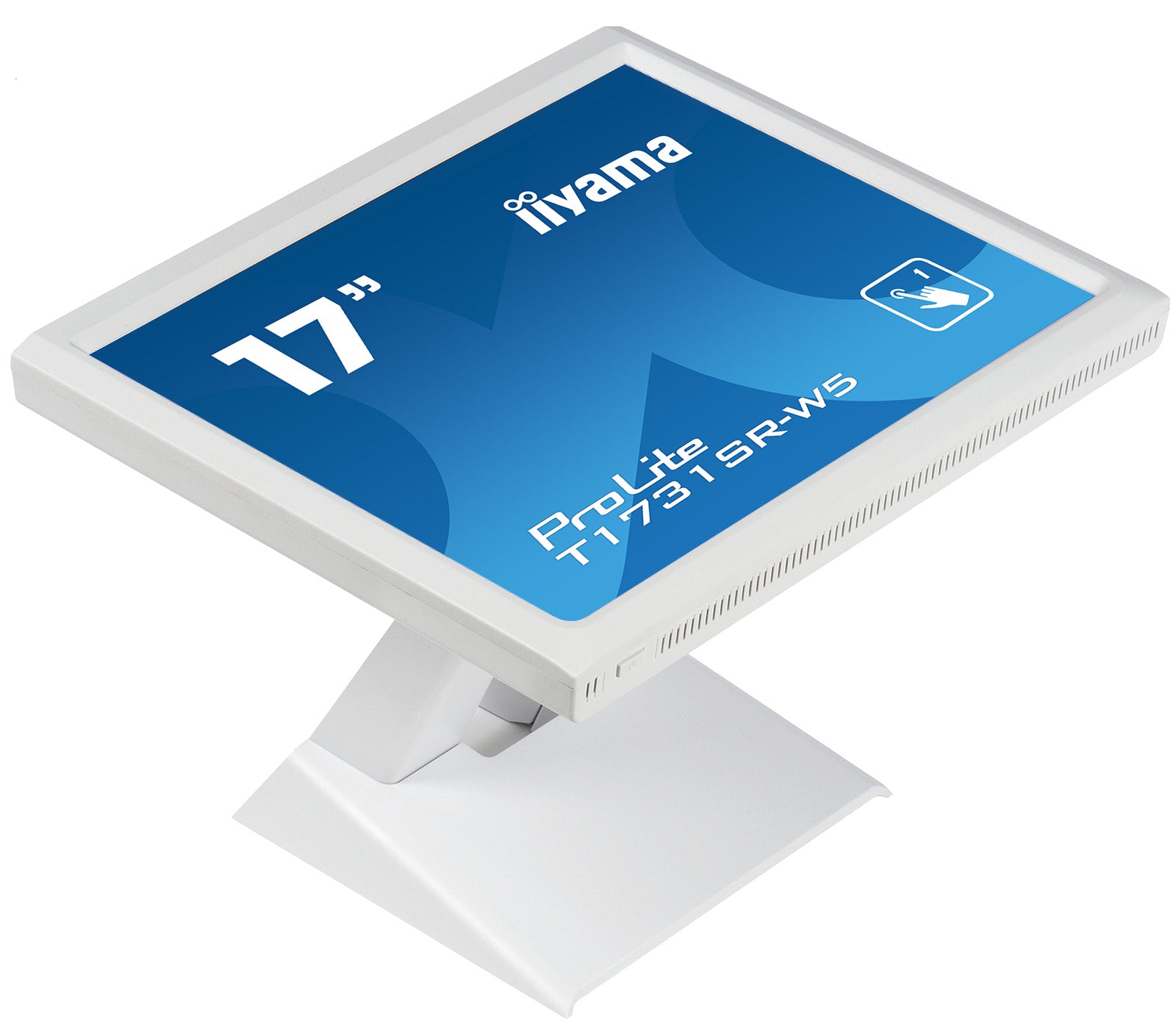

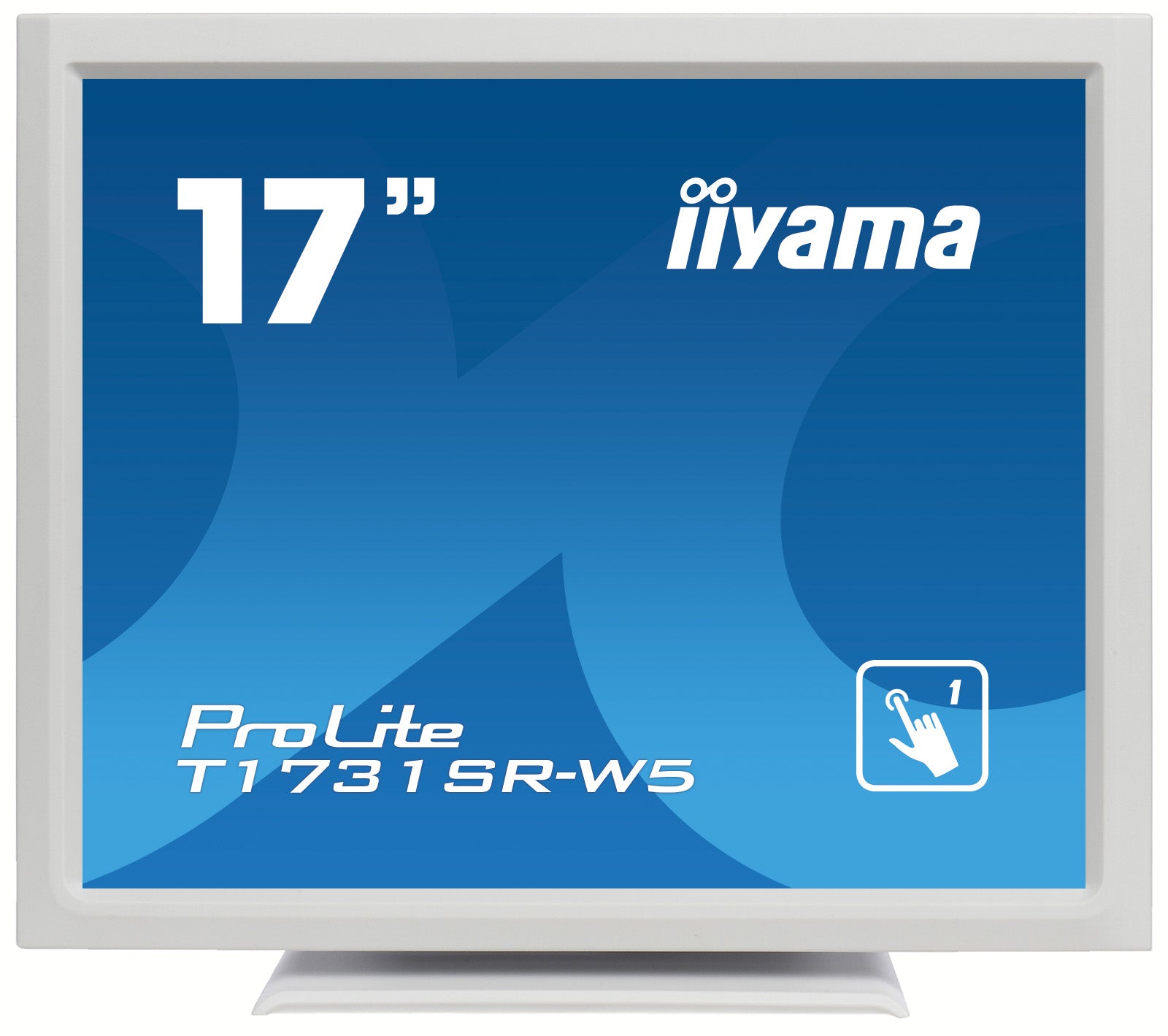

PROLITE T1731SR-W5
17” 5-wire resistive touchscreen

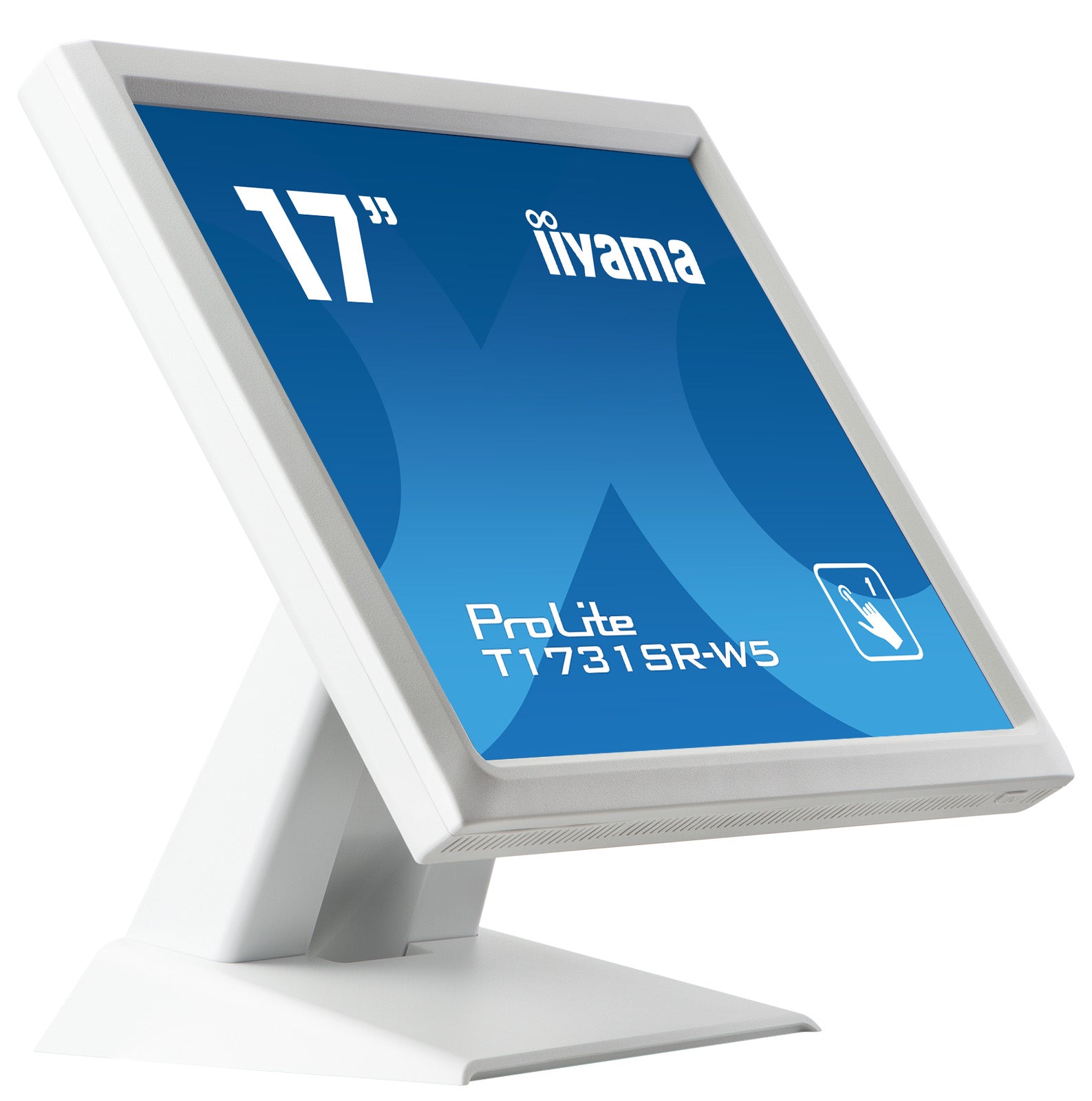

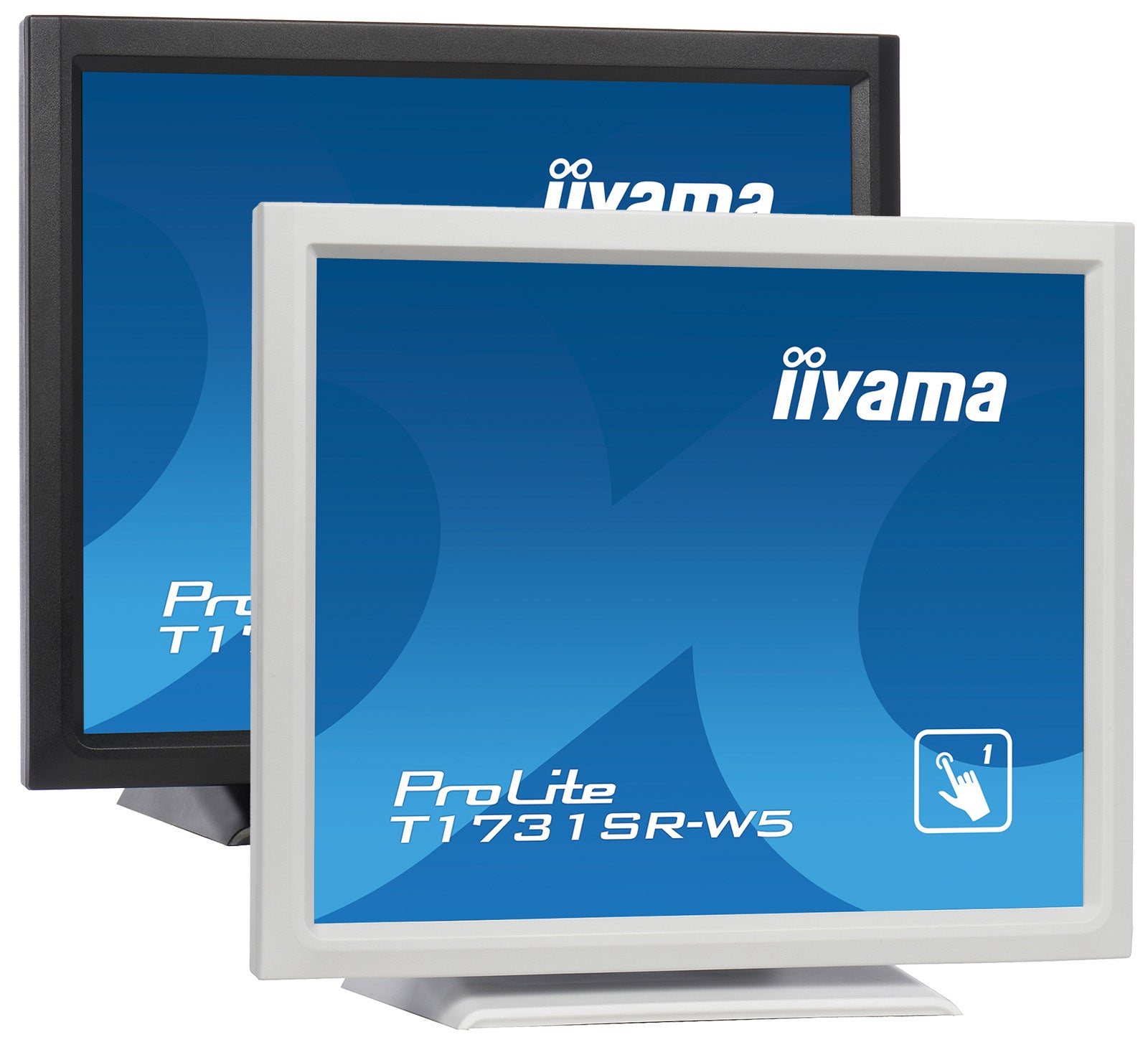

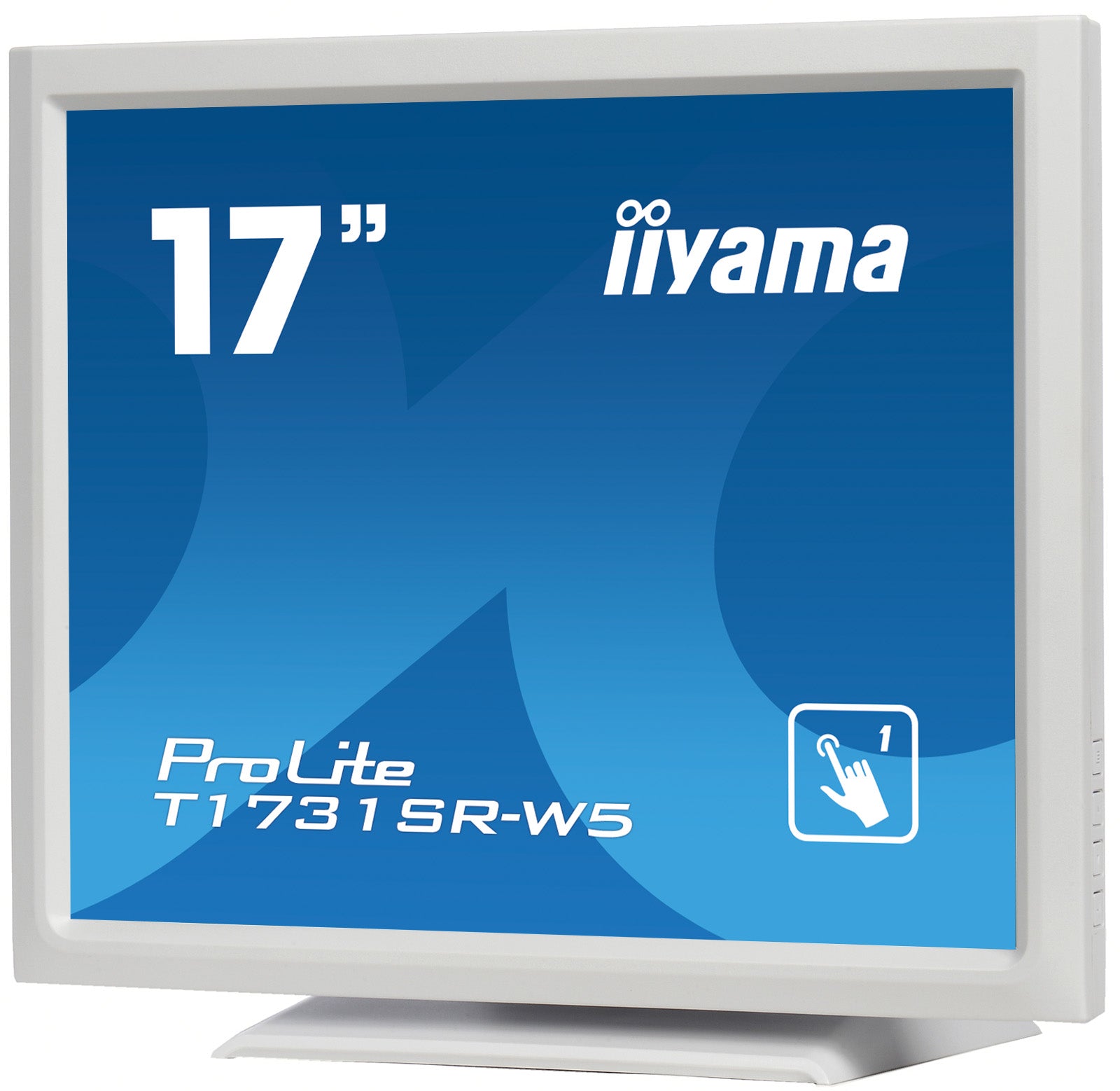

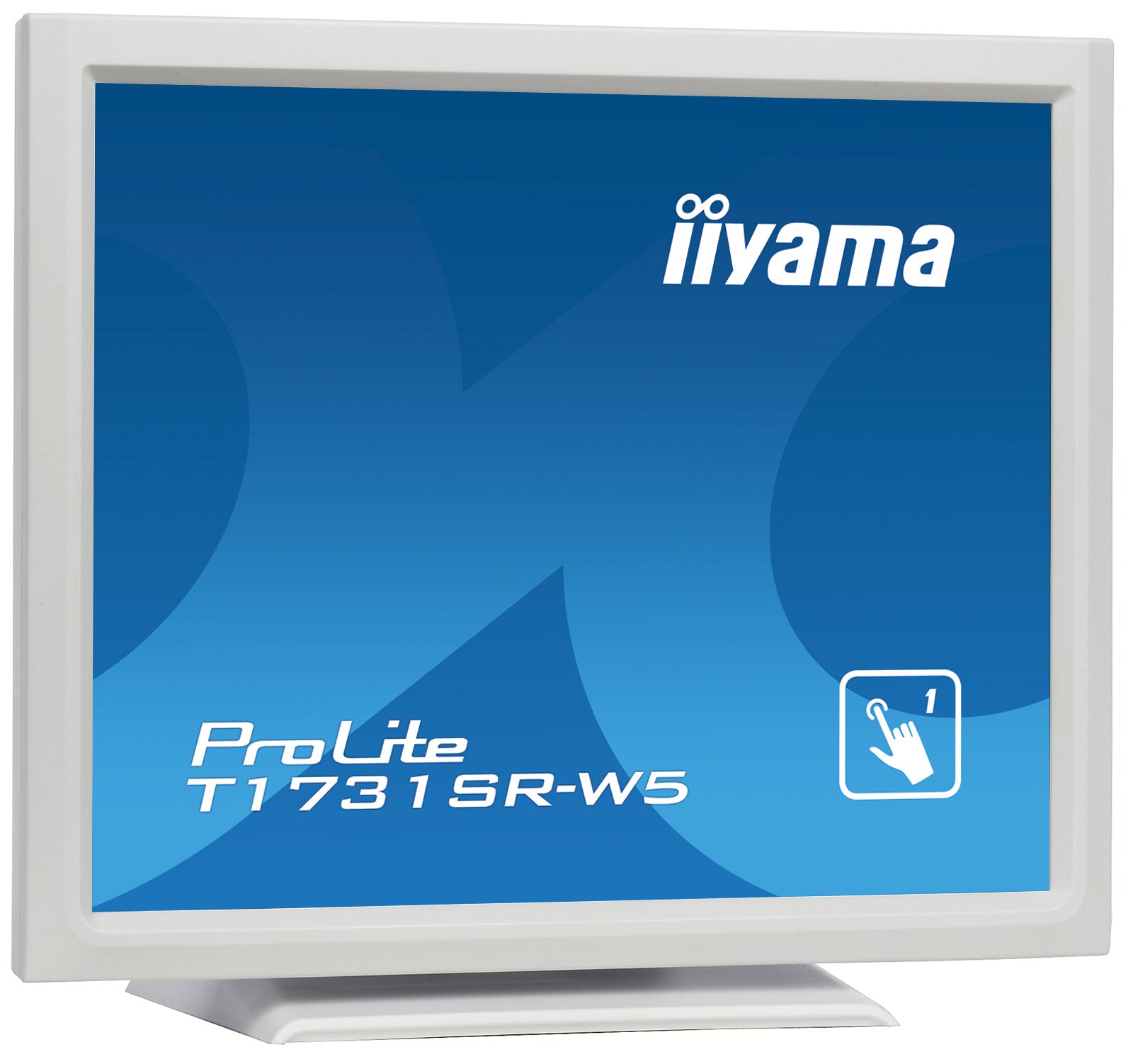

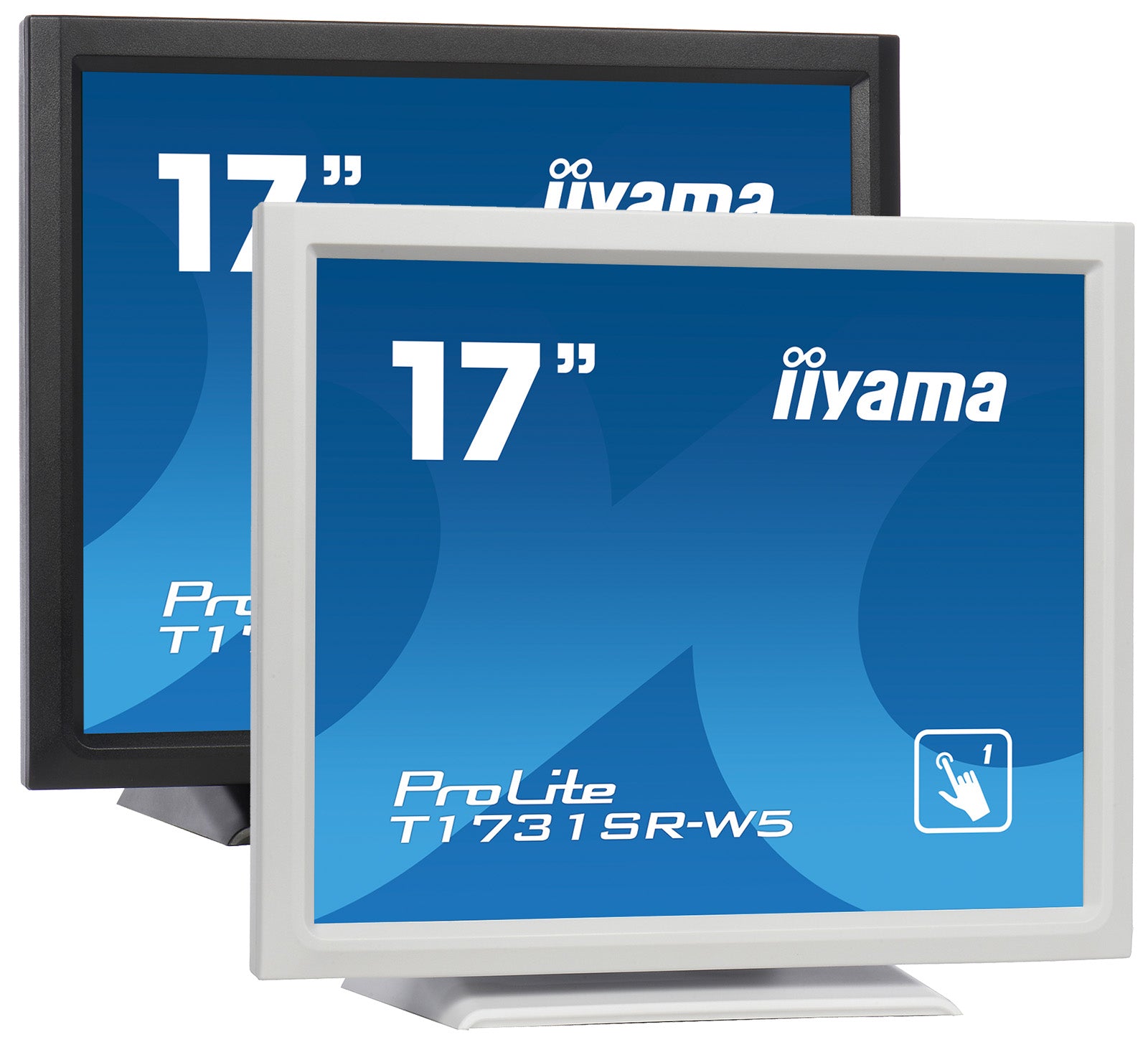

ProLite T1731SR-W5 is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (VGA, HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. A solid and steady base supports the touchscreen with an adjustable stand offering full 90-degree angles. The ProLite T1731SR-W5 can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes. Available in black and white.

TOUCH TECHNOLOGY - RESISTIVE
5-wire resistive touchscreens are very durable and can be used in a variety of environments. They are especially recommended for shops, restaurants and industrial purposes.

IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.

VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.

LED-BACKLIT
A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.

DISPLAY CHARACTERISTICS
Diagonal	17", 43cm
Panel	TN LED
Native resolution	1280 x 1024 (1.3 megapixel)
Aspect ratio	5:4
Panel brightness	250 cd/m²
Brightness (with touch)	200 cd/m²
Light transmittance	80%
Static contrast	1000:1 (with touch)
Response time (GTG)	5ms
Viewing zone	horizontal/vertical: horizontal 170°, right/left: 0°/0°, up/down: 0°/0°
Colour support	16.7 million
Horizontal Sync	31 - 80kHz
Viewable area W x H	338 x 270mm, 13.3 x 10.6"
Pixel pitch	0.264mm
Bezel colour and finish	white, matte

TOUCH
Touch technology	serial resistive
Touch points	1
Touch method	stylus, finger, glove
Touch interface	USB
Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

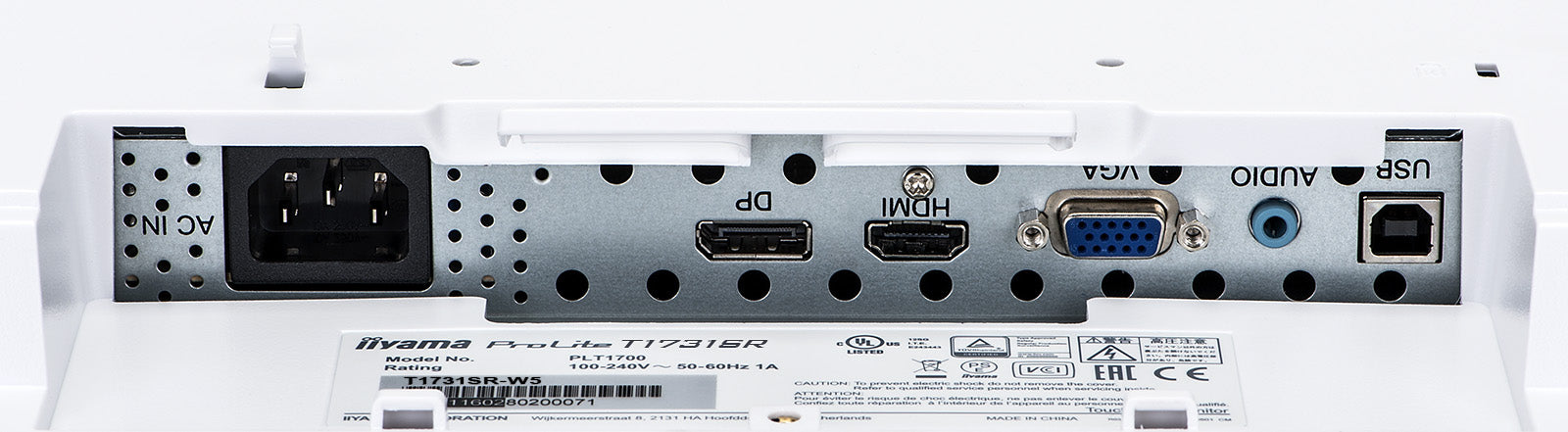

INTERFACES / CONNECTORS / CONTROLS
Analog signal input	VGA x1
Digital signal input	HDMI x1
	DisplayPort x1
Audio output	Speakers 2 x 1W
HDCP	yes

FEATURES
Water and dust protection	IP54 (front)
OSD key lock	yes

GENERAL
OSD languages	EN, DE, FR, ES, IT, CN, JP
Control buttons	Menu, Scroll up/Brightness, Scroll down/Mute, Select, Power
User controls	contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute
Convenience	Kensington-lock™ prepared
Plug&Play	DDC2B

MECHANICAL

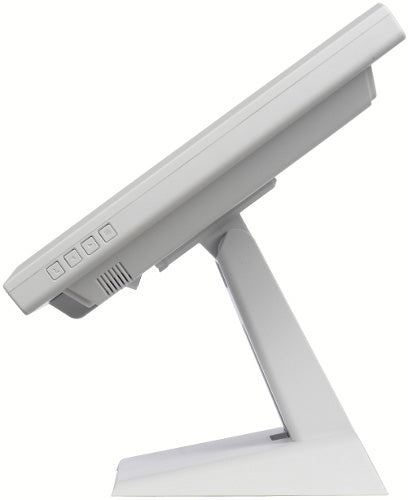

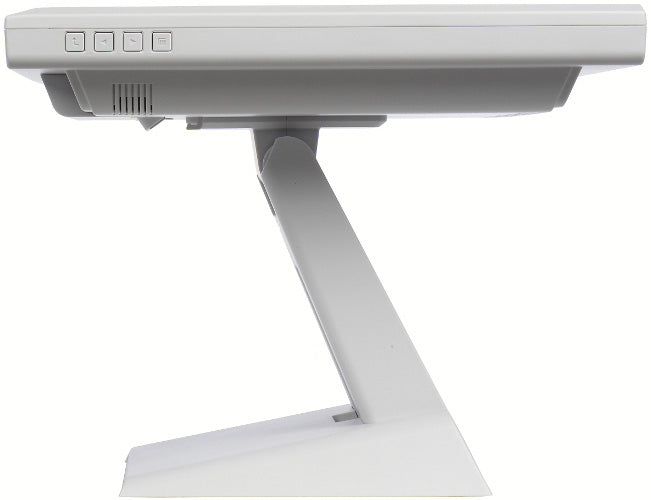

Tilt angle	90° up; 5° down
VESA mounting	100 x 100mm
Cable management system	yes

ACCESSORIES INCLUDED

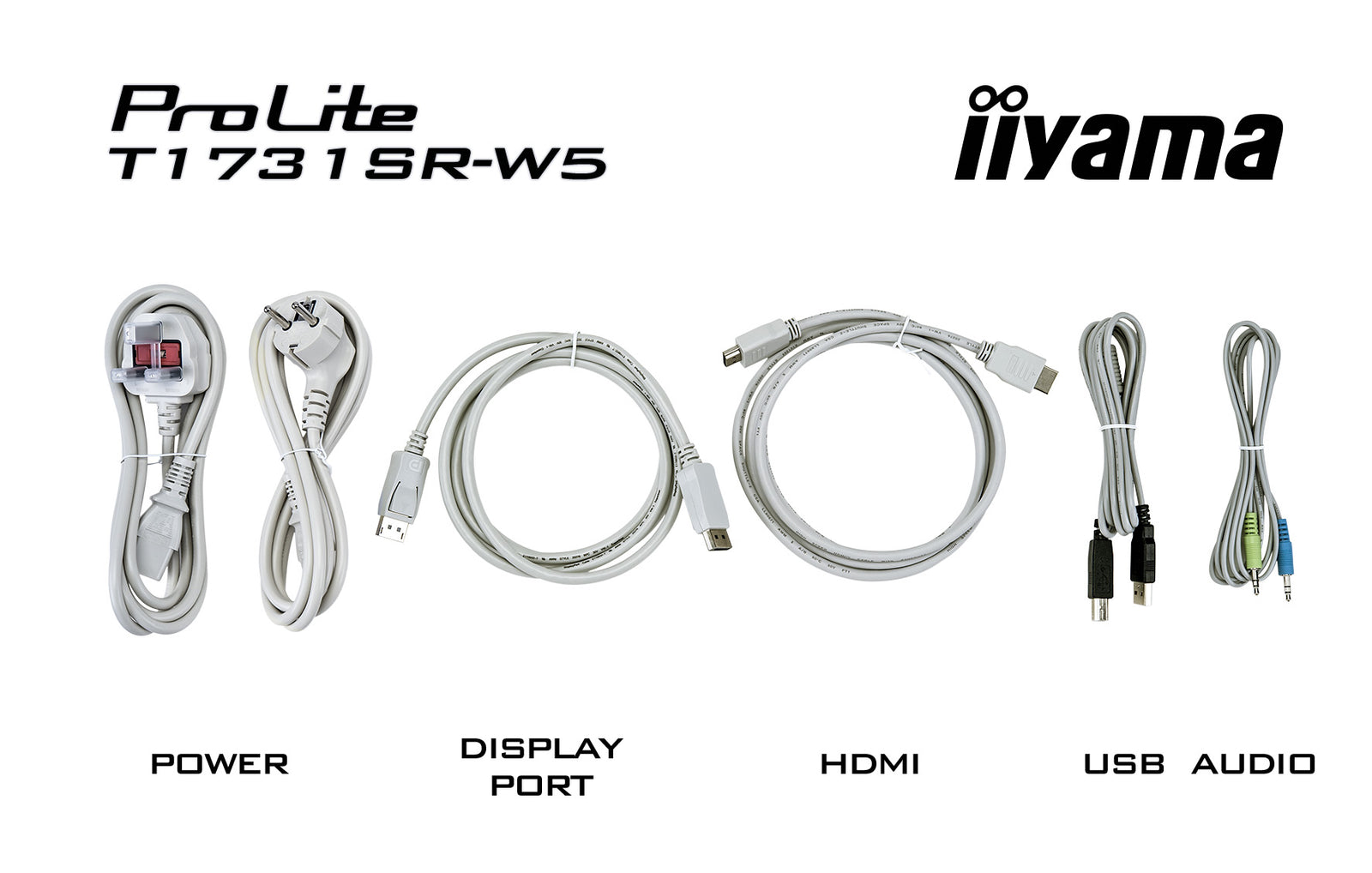

Cables	power, USB, HDMI, Audio, DP
Guides	quick start guide, safety guide
Other	Touch Panel Driver Disk (CD-ROM)
Cable cover	yes

POWER MANAGEMENT
Power supply unit	internal
Power supply	AC AC - 100V, 240/V, 50Hz
Power usage	20W typical, 2W standby, 2W off mode

SUSTAINABILITY
Regulations	CB, CE, GOST, RoHS support, ErP, WEEE, VCCI, REACH
Energy efficiency class (Regulation (EU) 2017/1369)	E
REACH SVHC	above 0.1%: Lead, Lead monoxide, Boric acid

DIMENSIONS / WEIGHT
Product dimensions W x H x D	387 x 342 x 201mm
Weight (without box)	5.8kg
EAN code	4948570116027
